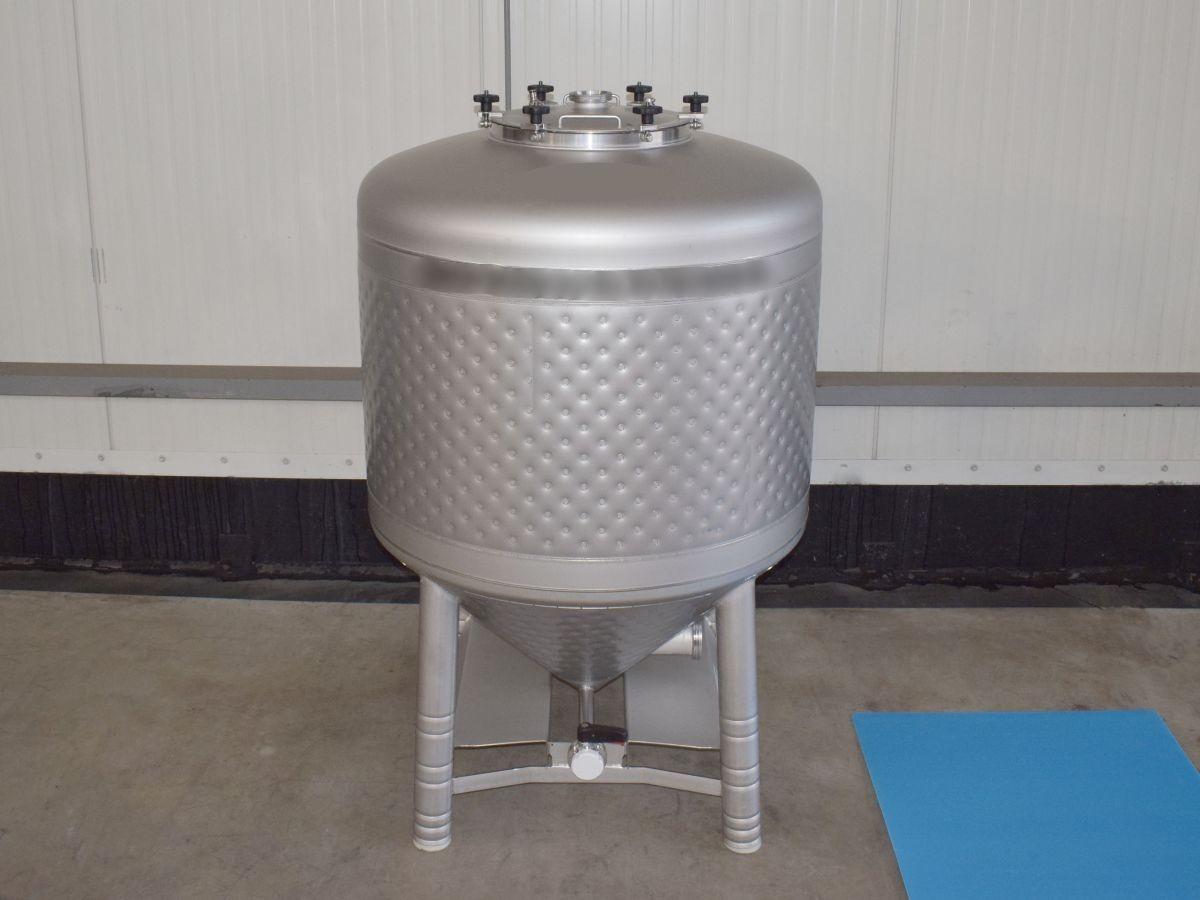

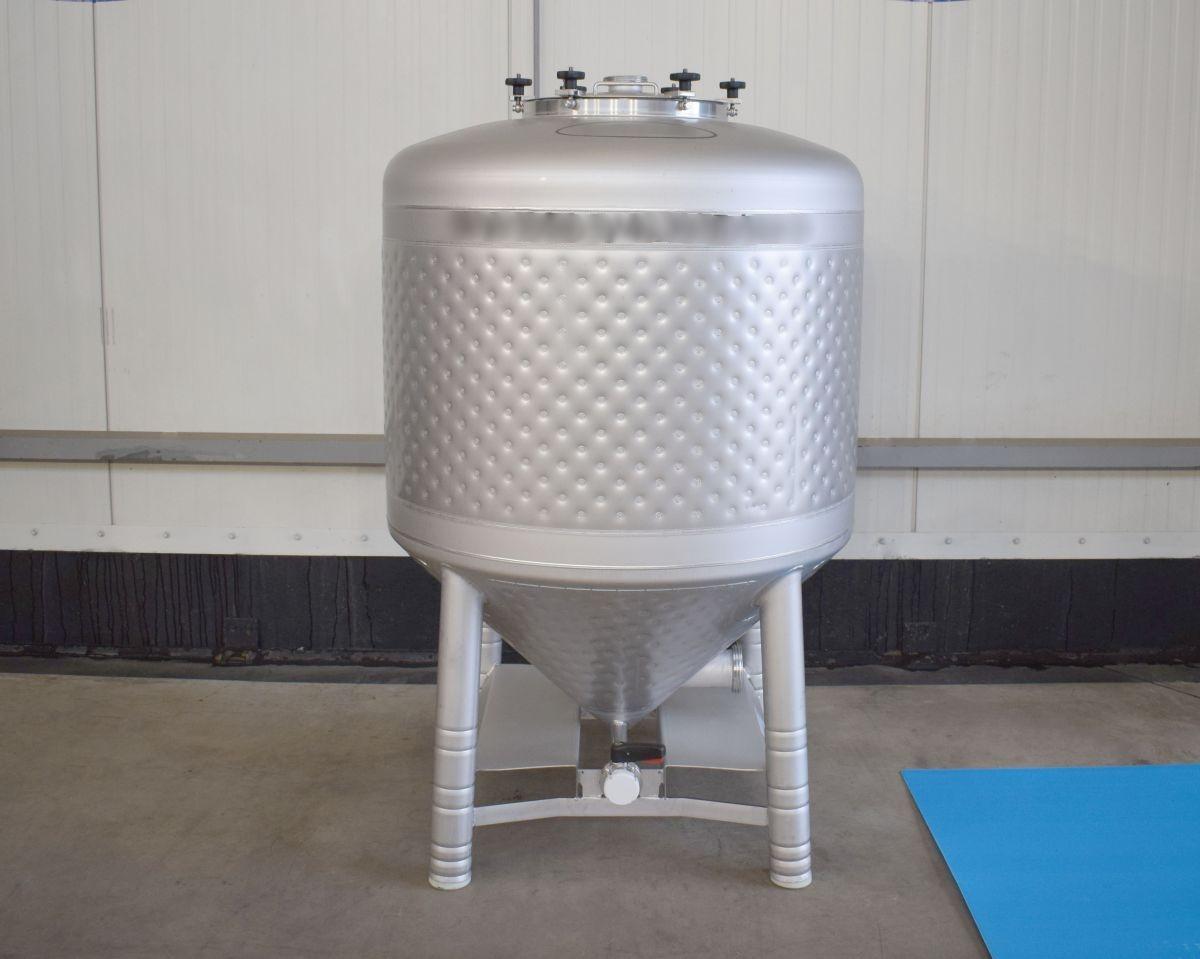

750 liter i Rostfritt 304

item available on order

Article type: brand new pressure tank – type CCT-ES-HL
Additional information: PED 2014/68/EU, DIN EN 10028-1 and DIN EN 10028-7.
Capacity: 750 L
Finish stainless steel: pickled
Working pressure in tank: pressure

Design pressure of the tank: 2 Bar
Overpressure: 2 Bar
Max. working temperature: 130 °C
Min. working temperature: -10 °C
Material wet parts: SS AISI 304L (V2A)

Model: vertical
Configuration: single jacketed with heat-exchanger
Heat exchanger: yes
Insulation: no
Agitator: yes, optional

Mobile tank: no

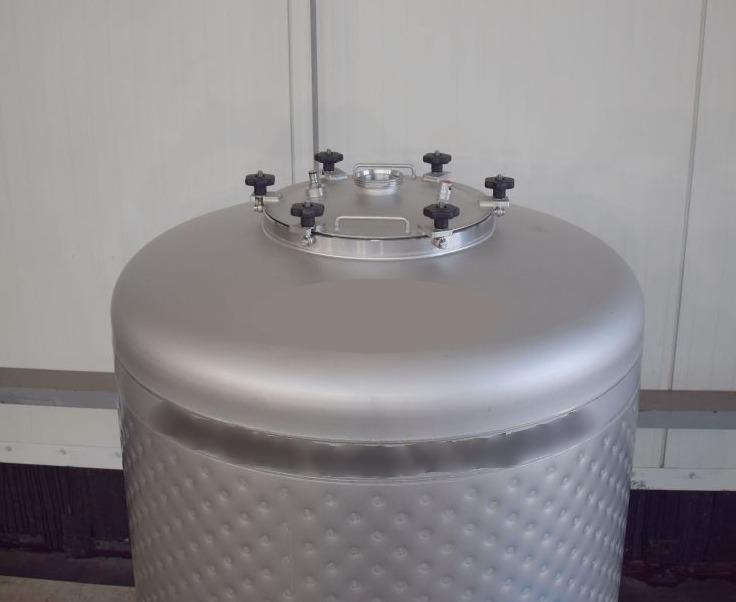

Top type: dished
Shape of tank: cylindrical

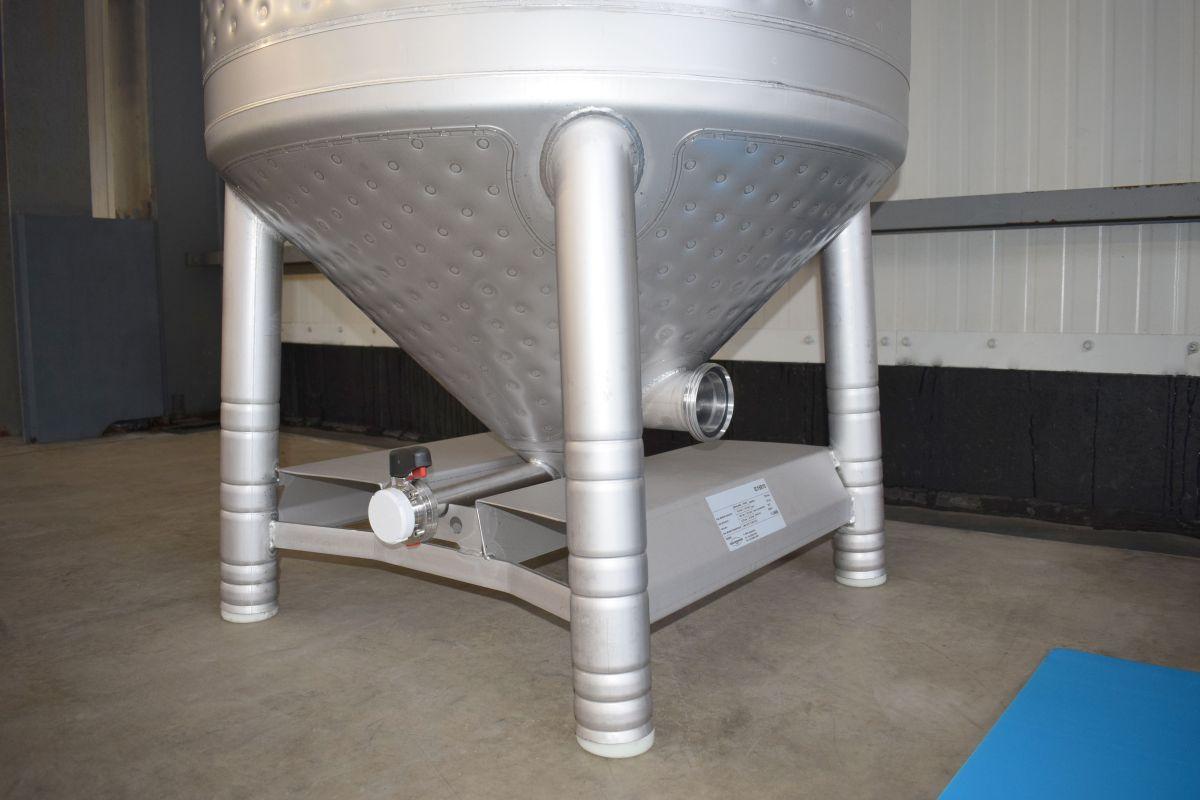

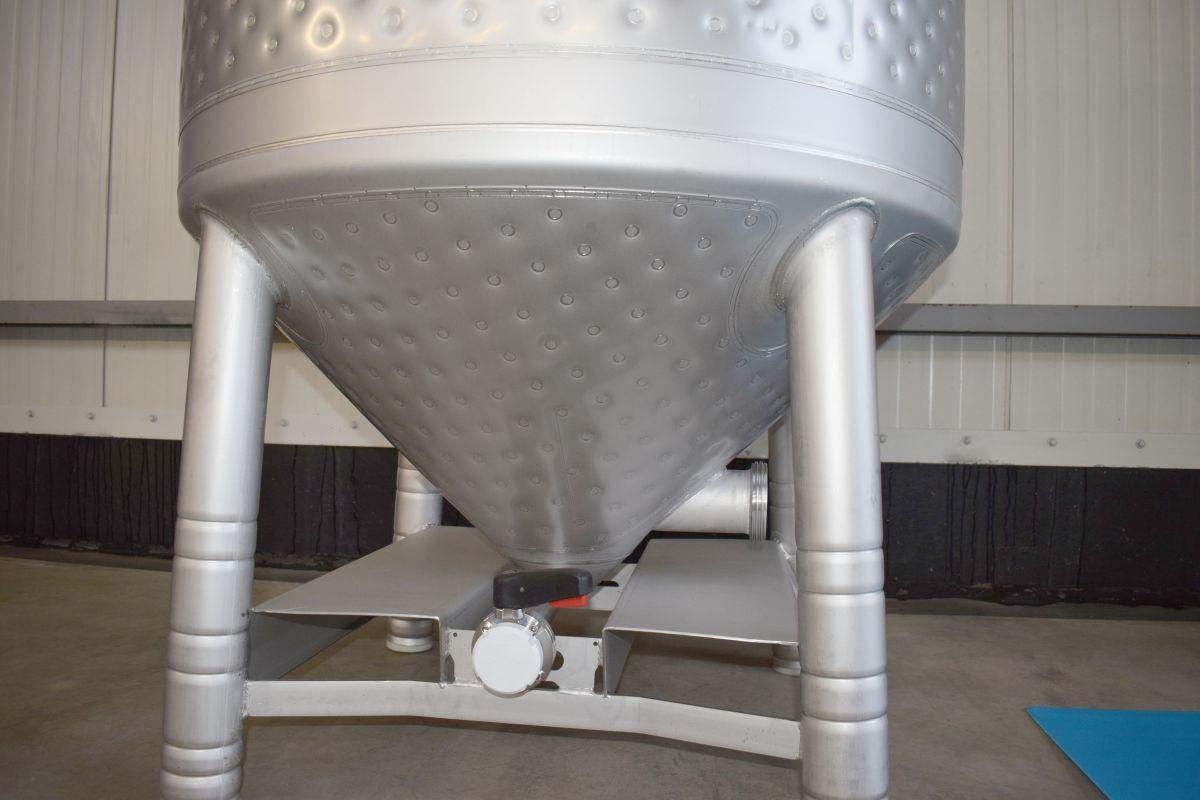

Bottom type: strong conical 45 °
Total discharge: yes

Fixation points: 4 non adjustable feet

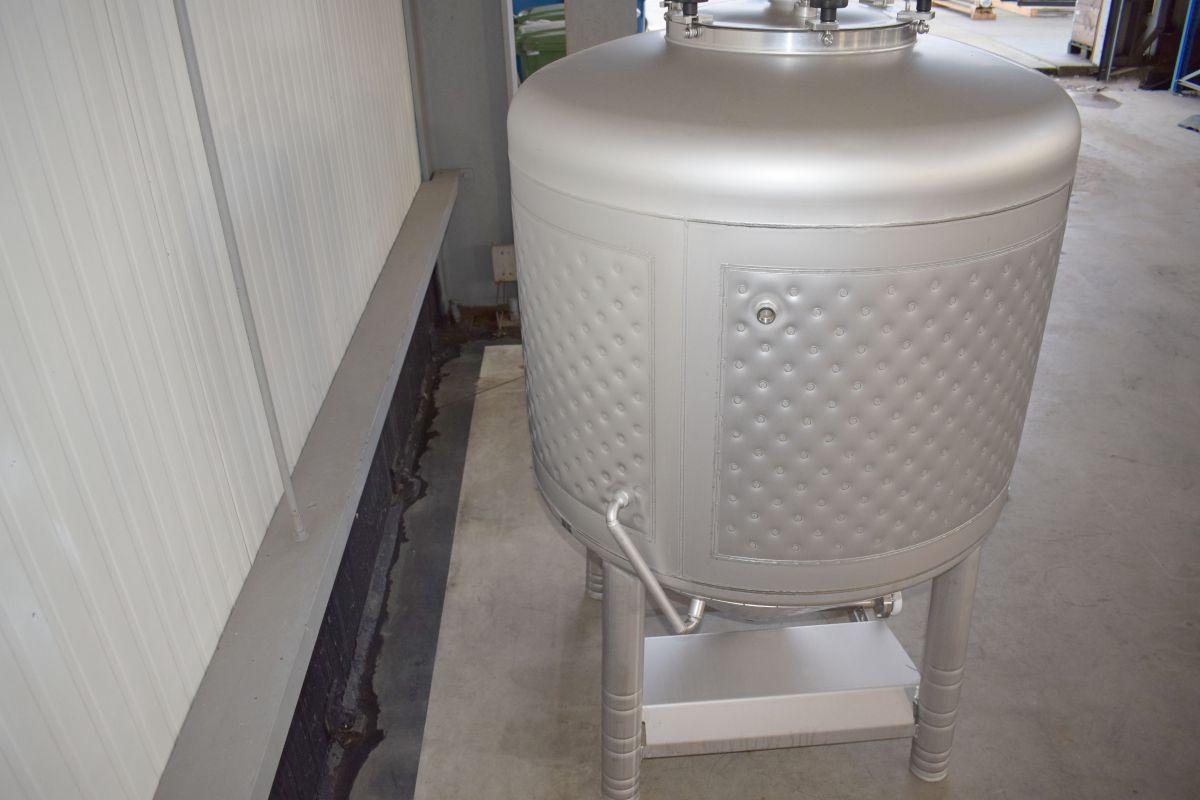

Type of HE on the cylinder: dimple-jacket
Position HE: the complet cilinder
Number of sections: 1
Water pressure HE: 2 Bar

Steam pressure HE: 0,49 Bar
Connection HE: 1/2″ BSP
Working temperature HE cylinder: 111 °C
Type of HE on the bottom: dimple-jacket
Water pressure HE: 2 Bar

Steam pressure HE: 0,49 Bar
Connection HE: 1/2″ BSP
Working temperature HE bottom: 111 °C
Heat exchanger: RVS 304
Manway(s): RVS 304L

Gasket manway(s): EPDM
Valve: RVS 304L
Gasket shut-off valve (mat): EPDM
Fixation point(s): RVS 304L
Suitable for food industry: yes

Documents included: yes, optional

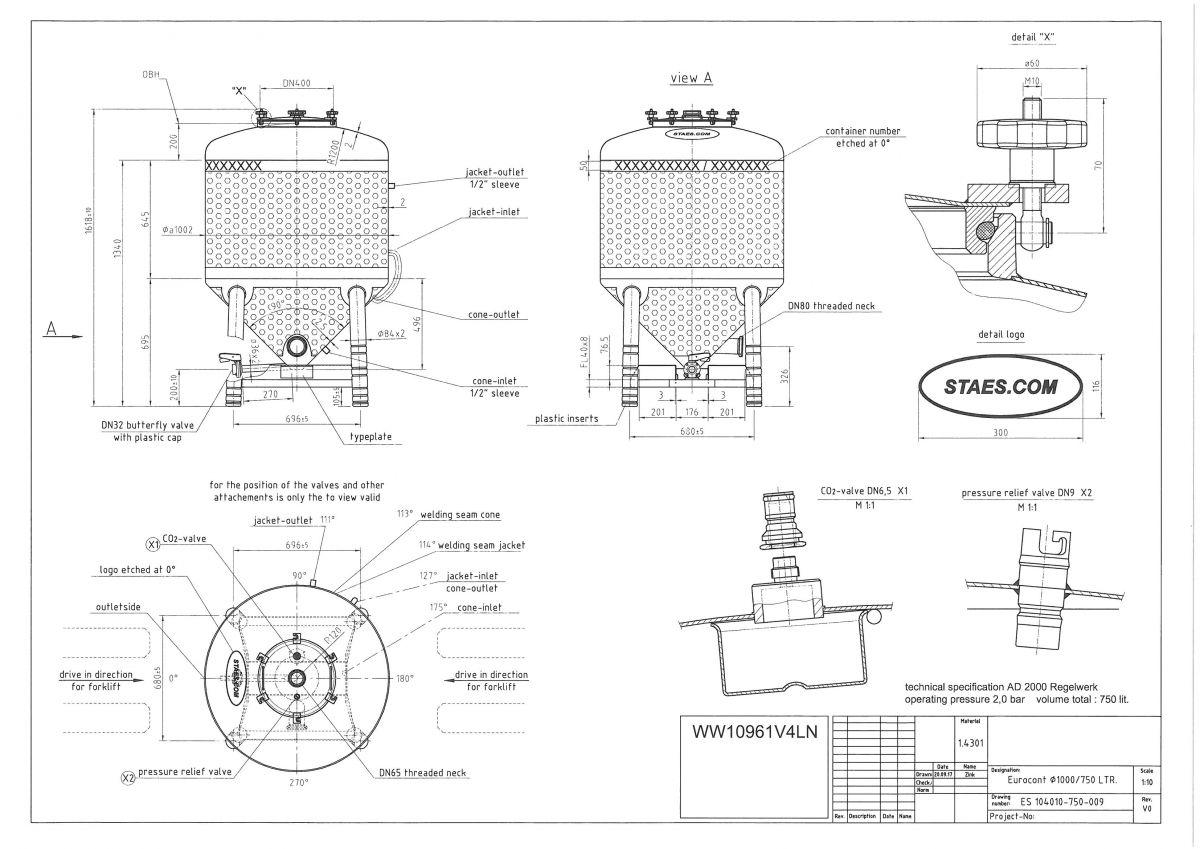

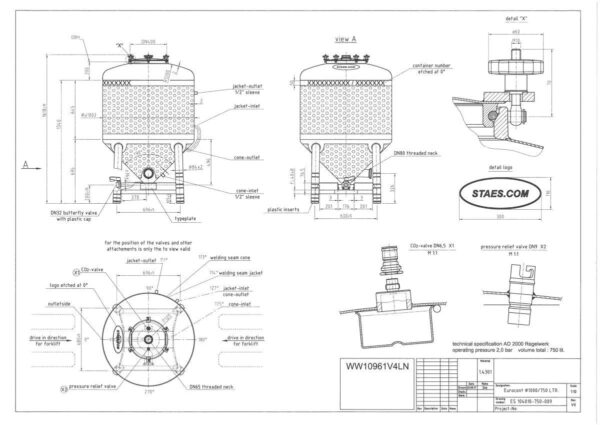

Technical drawing included: yes
Registration plate on the tank: yes
Flange for agitator: no

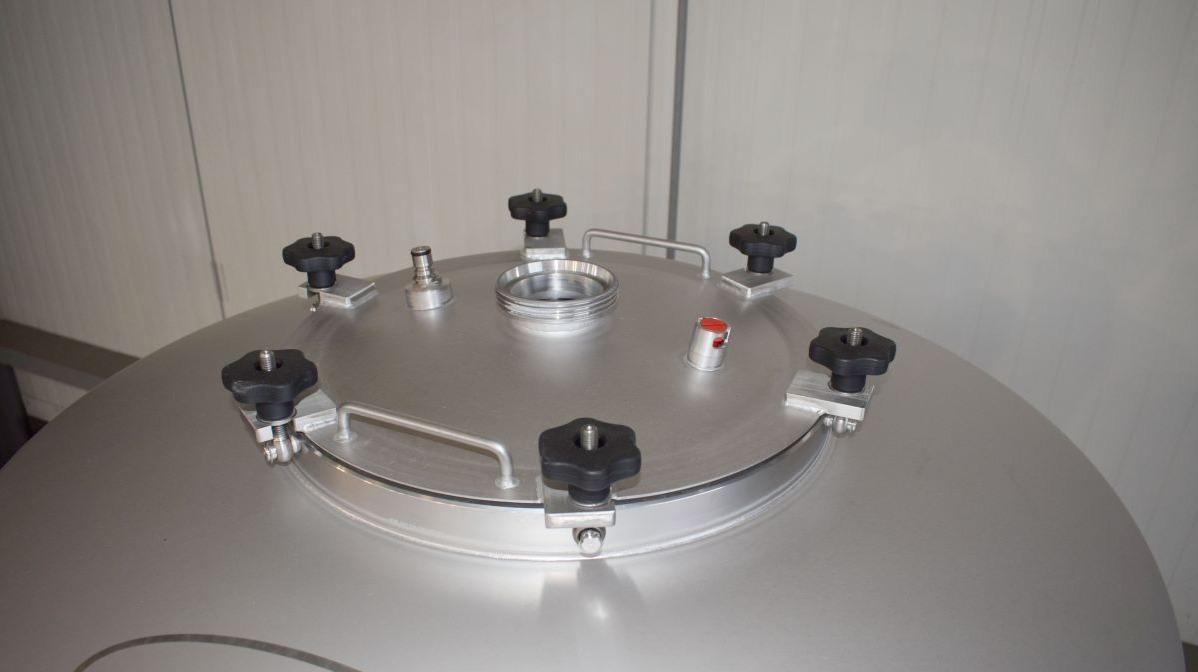

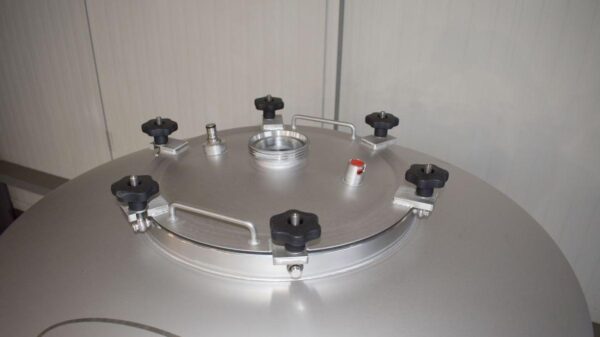

Number of manways: 1

Position manway: at the top

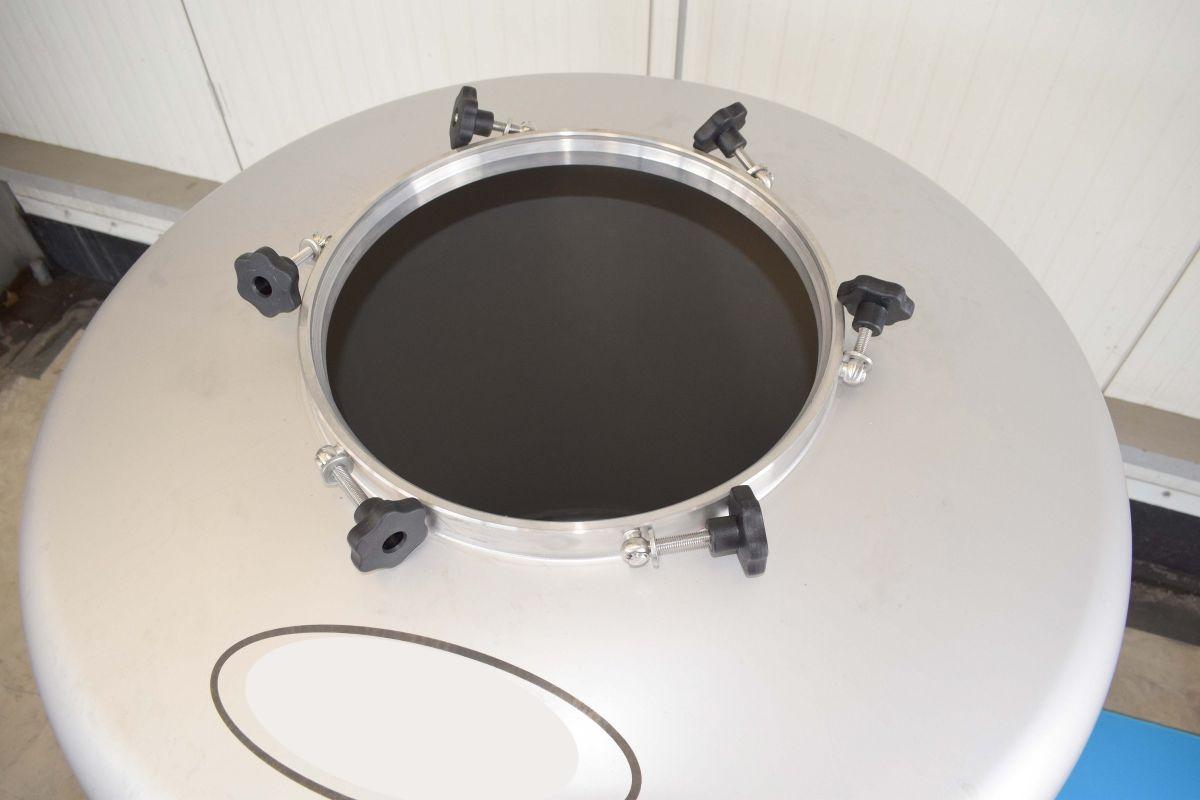

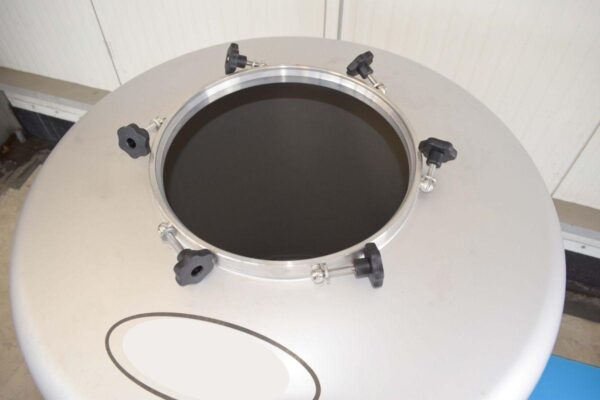

Manway 1: 400 mm
Spray ball: yes, optional
Tank outlet: inside Ø 32 mm
Outlet type: DIN11851 male

Total outlet valve: yes, optional
Top: 2 mm
Cylinder: 2 mm
Bottom: 2,50 mm
Distance from outlet to ground: 200 mm

Outer diameter tank: 1.002 mm
Cylinder height: 645 mm
Height of bottom: 496 mm
Feet height: 695 mm
Total height of tank: 1.620 mm

Empty weight tank: 180
