3535 liter tank i Syrafast 316

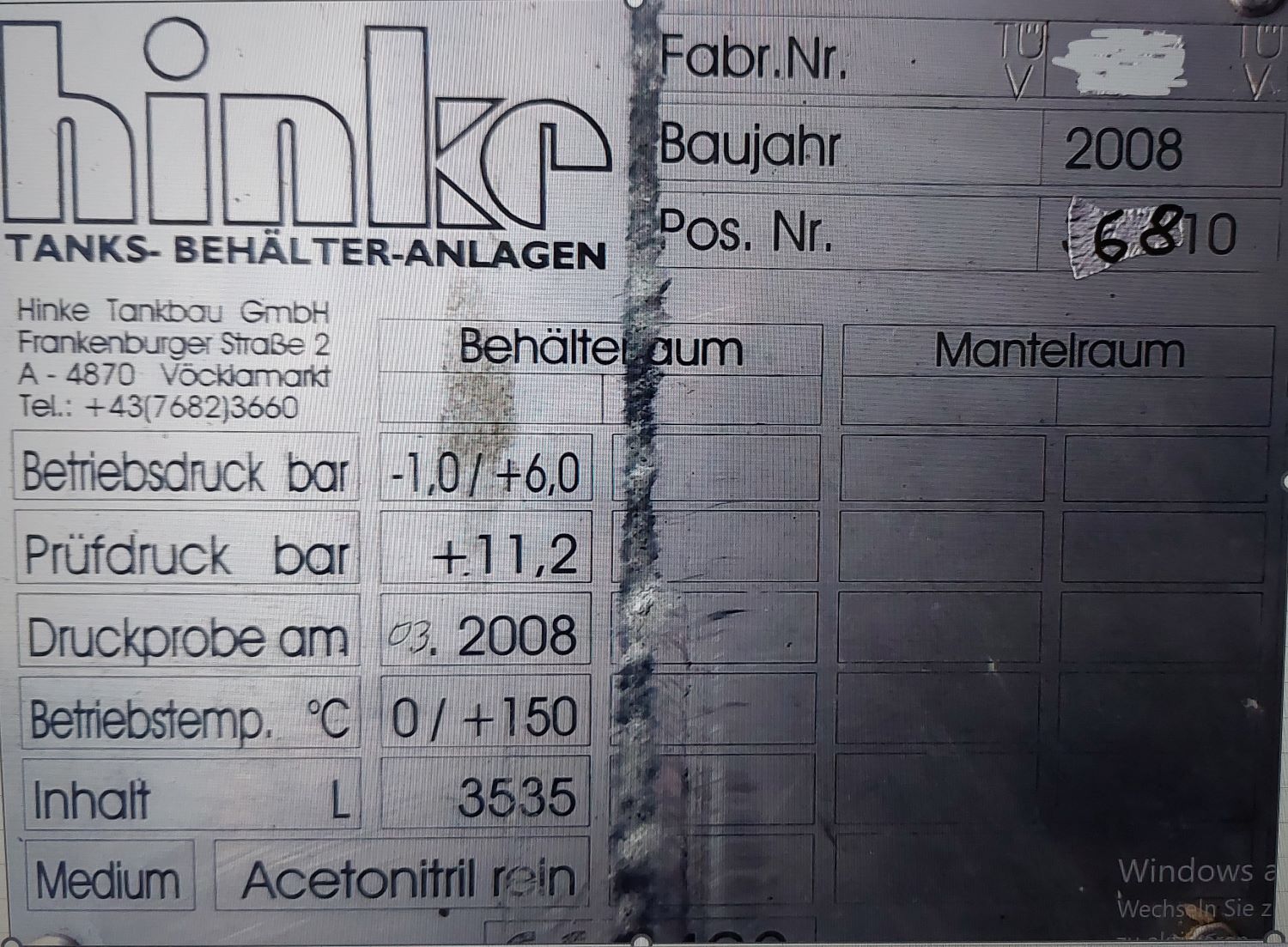

Additional information: tank is unused, was only filled with demineralised water for pressure testing Volumetric volume (L): 3.535 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 6 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 150 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single jacketed with heat-exchanger Heat exchanger: yes Insulation: no Mobile tank: no Total discharge: yes Max Overpressure: 6 Bar Max onderdruk: 1 Bar Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: yes Position of manway: headside Outlet of tank: DN32 DIN 11851 Internal diameter tank: 1.400 mm Cylinder height: 1.650 mm Total height of tank: 3.553 mm
