1530 liter tank i Syrafast 316

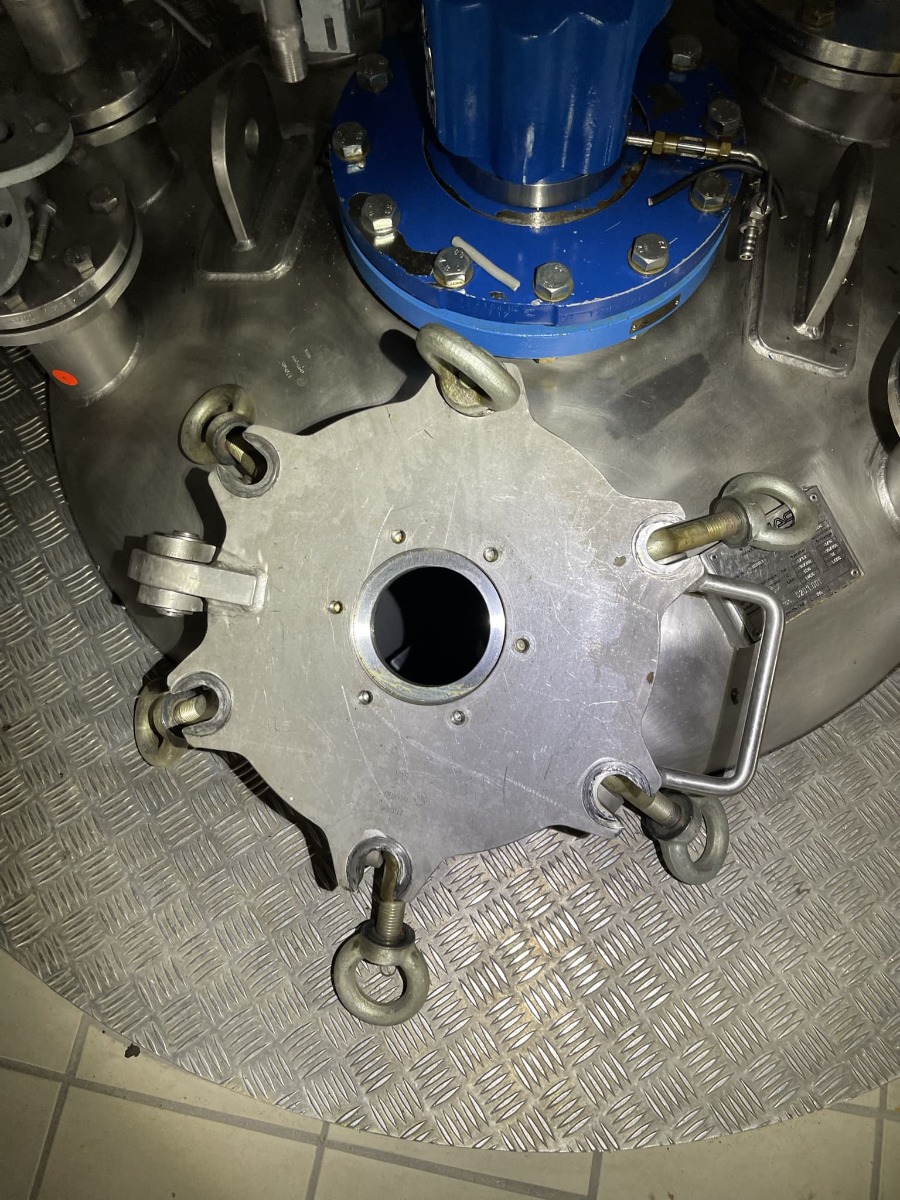

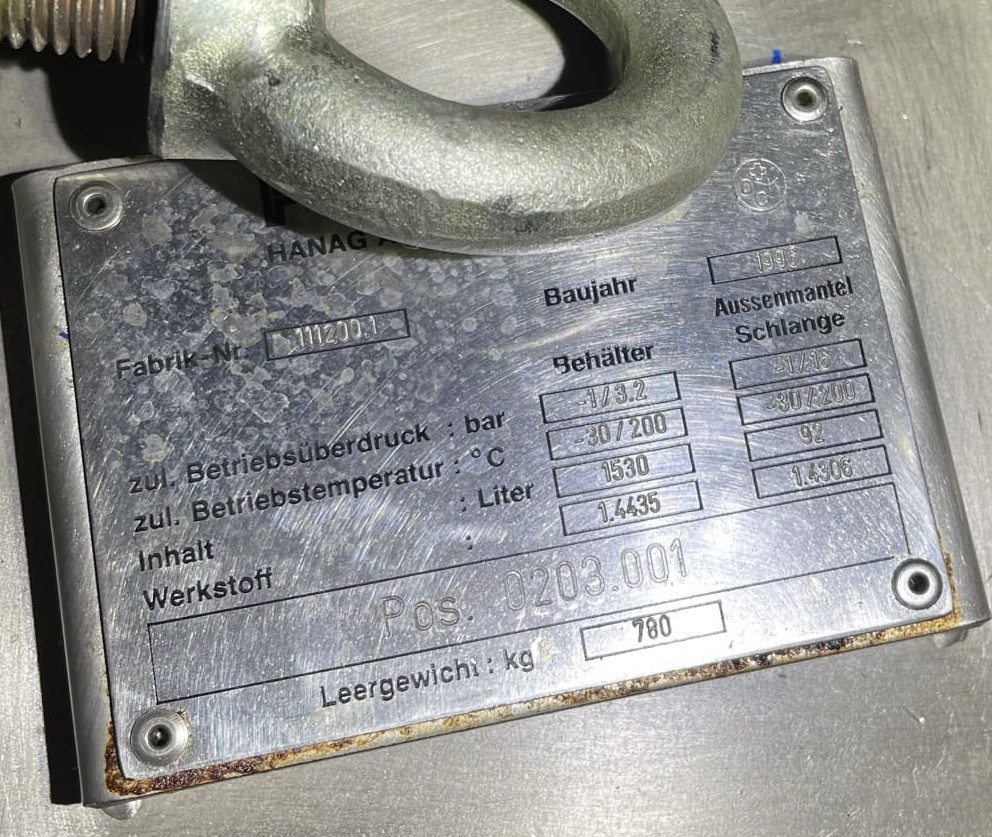

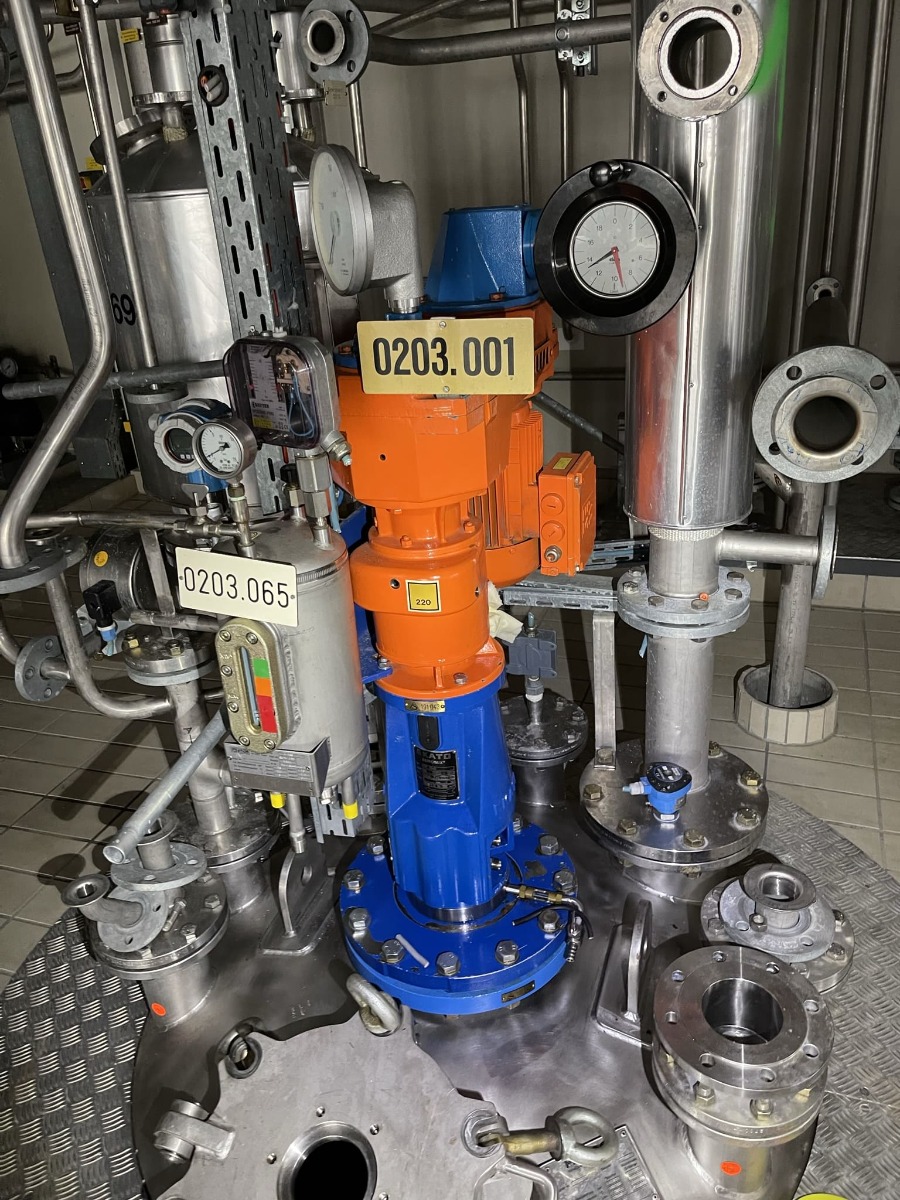

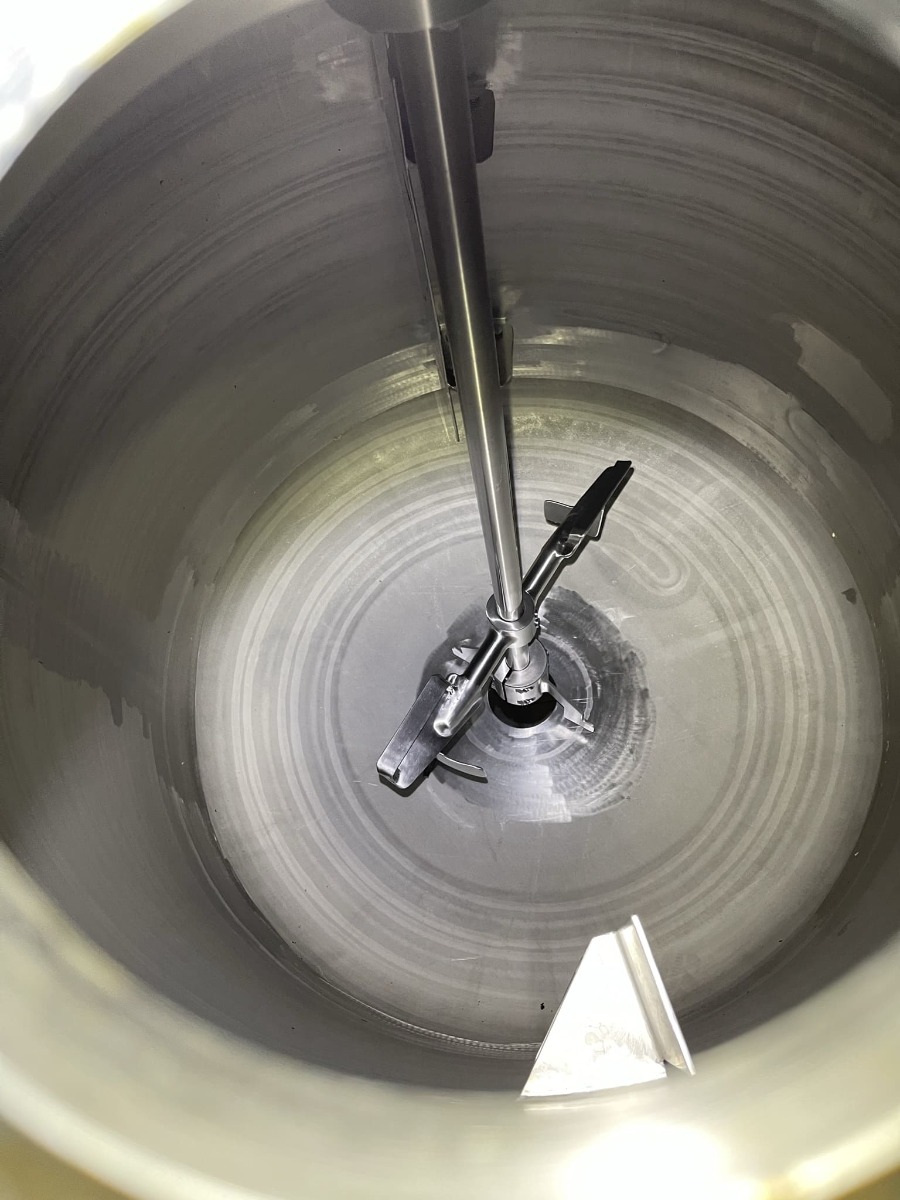

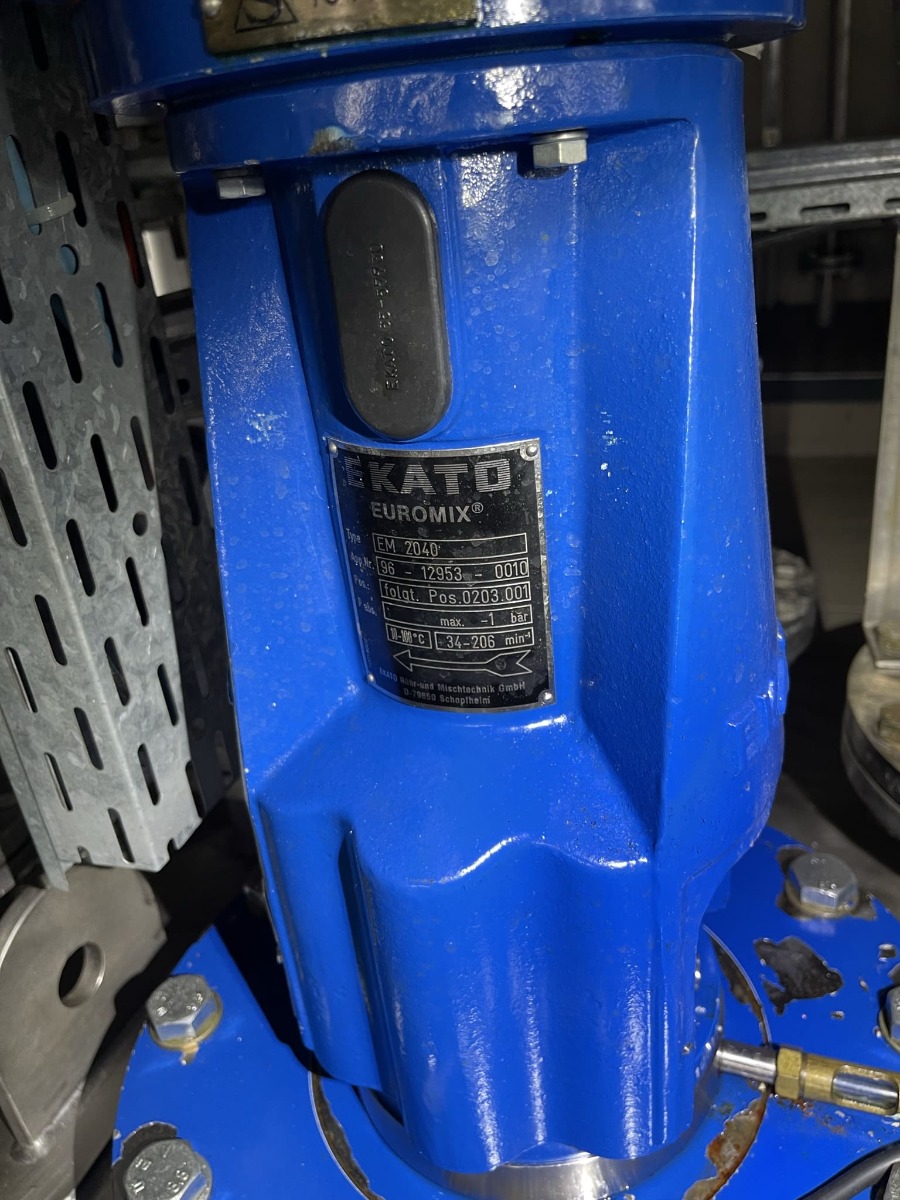

Additional information: Pharmaceutical chemistry; Hand hole DN 300 (sight glass in the hand hole cover is missing on 1 tank); Support ring, Fe; Flanges partly made of Fe Volumetric volume (L): 1.530 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3,20 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single jacketed with heat-exchanger Heat exchanger: yes Insulation: no Mobile tank: no Total discharge: yes Volume: 92 L Max Overpressure: 16 Bar Max onderdruk: 1 Bar Max. working temperature: 200 °C Type HE on the bottom: half pipe welded onto the outside of the innertank Type HE on the cylinder: half pipe welded onto the outside of the innertank Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: in the bottom Outlet of tank: 130 Agitator: yes Number of revolutions: 34 - 206 Power: 2,60 Top: 8,90 mm Cylinder: 5 mm Bottom: 5,20 mm Internal diameter tank: 1.200 mm Cylinder height: 1.070 mm Total height of tank: 2.950 mm
