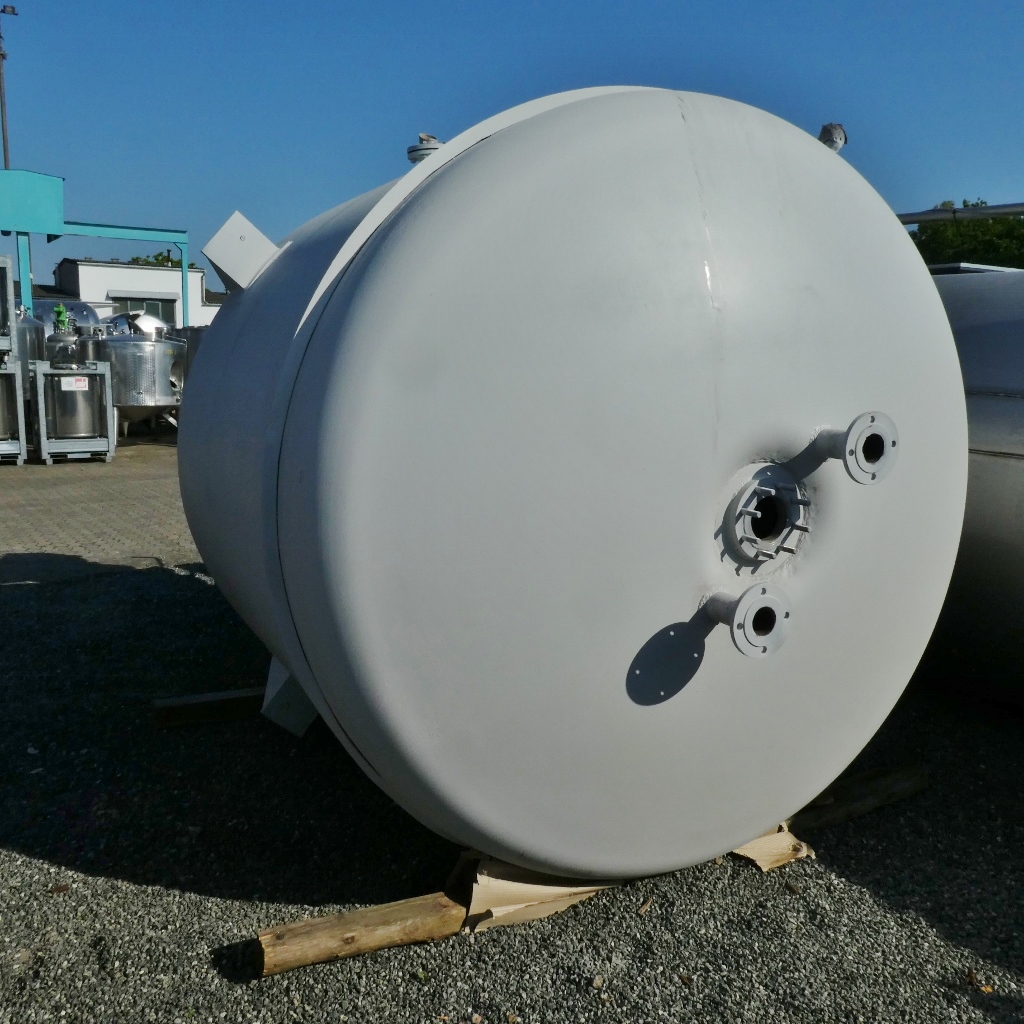

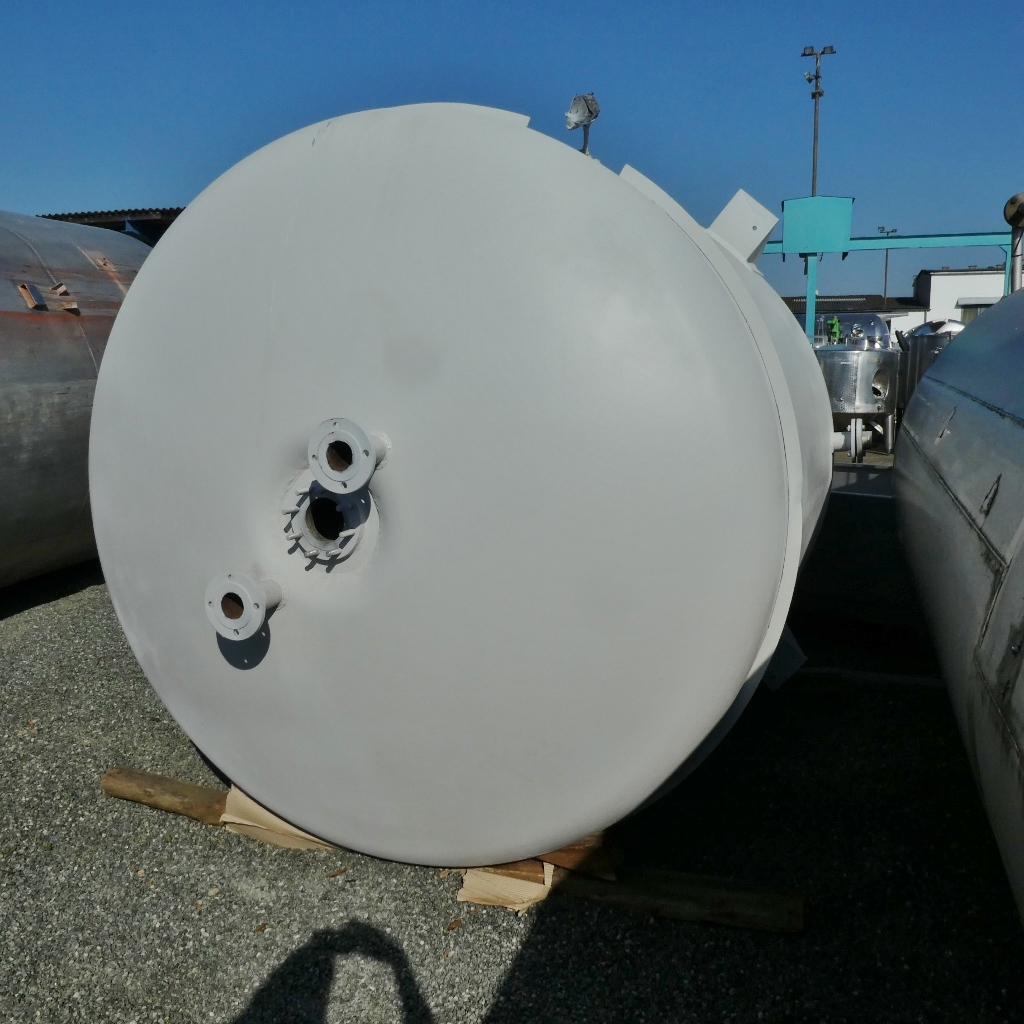

8000 liter tank i Syrafast 316

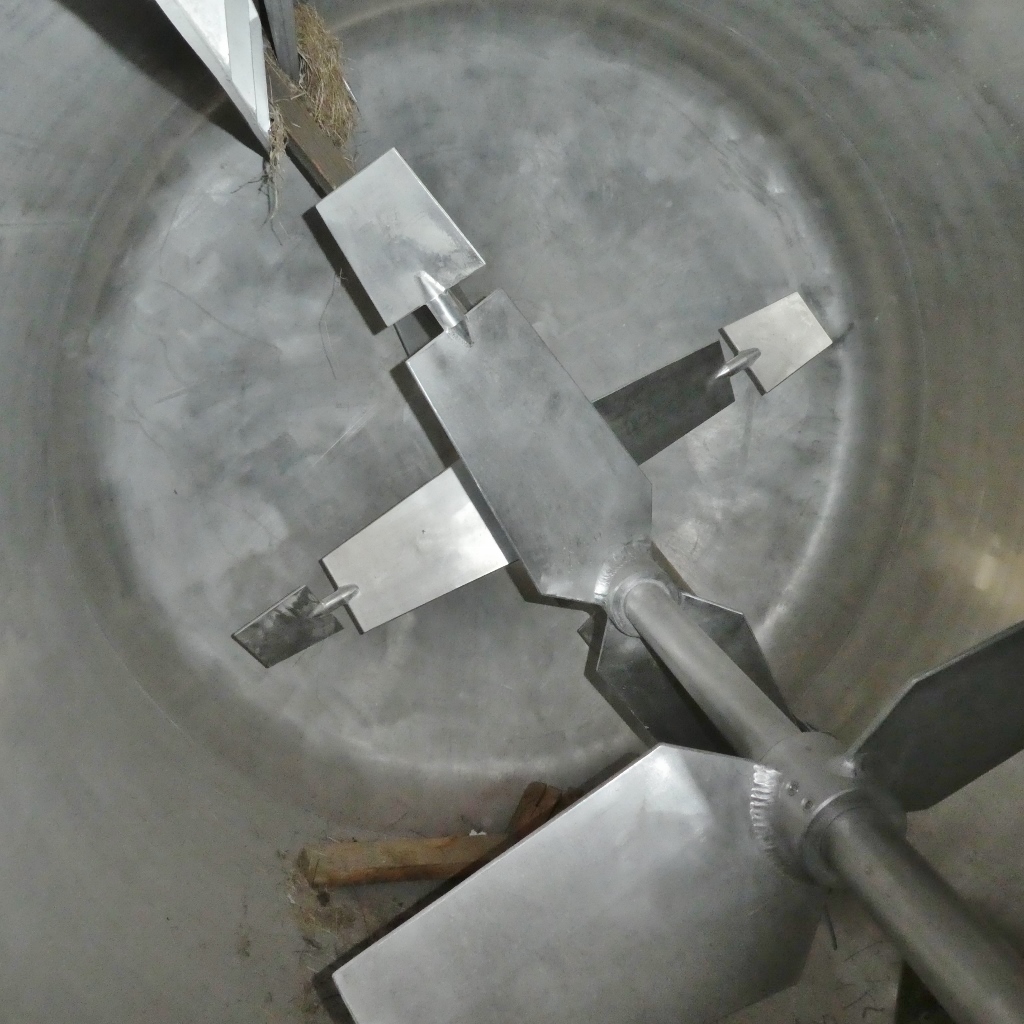

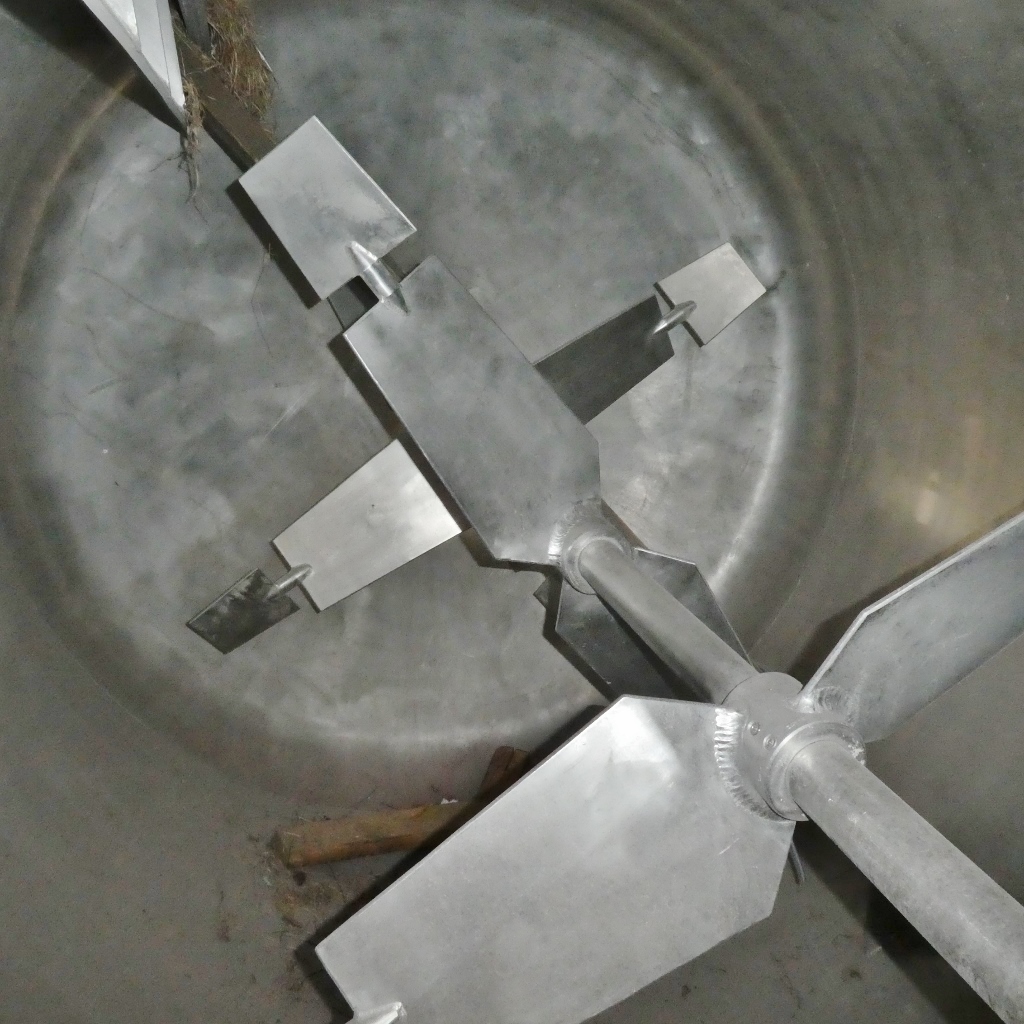

Additional information: Chemistry; 4 support brackets, Fe; double jacket blasted and primed; Type plate probably not available Volumetric volume (L): 8.000 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 2 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 135 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single jacketed with heat-exchanger Heat exchanger: yes Insulation: no Mobile tank: no Total discharge: yes Volume: 600 L Max. working temperature: 135 °C Type HE on the bottom: heating/cooling jacket Type HE on the cylinder: heating/cooling jacket Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator: no Position of manway: in the bottom Outlet of tank: flange DN100 Agitator: yes Number of revolutions: 140 Power: 30 Cylinder: 13 mm Bottom: 10 mm Internal diameter tank: 2.200 mm Outer diameter tank: 2.300 mm Cylinder height: 1.830 mm Total height of tank: 5.100 mm
