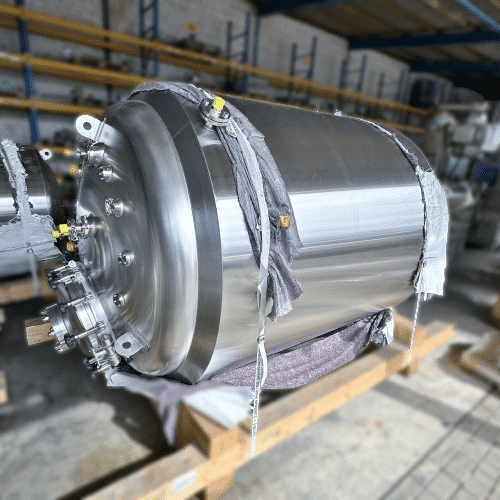

4000 liter tank i Syrafast 316

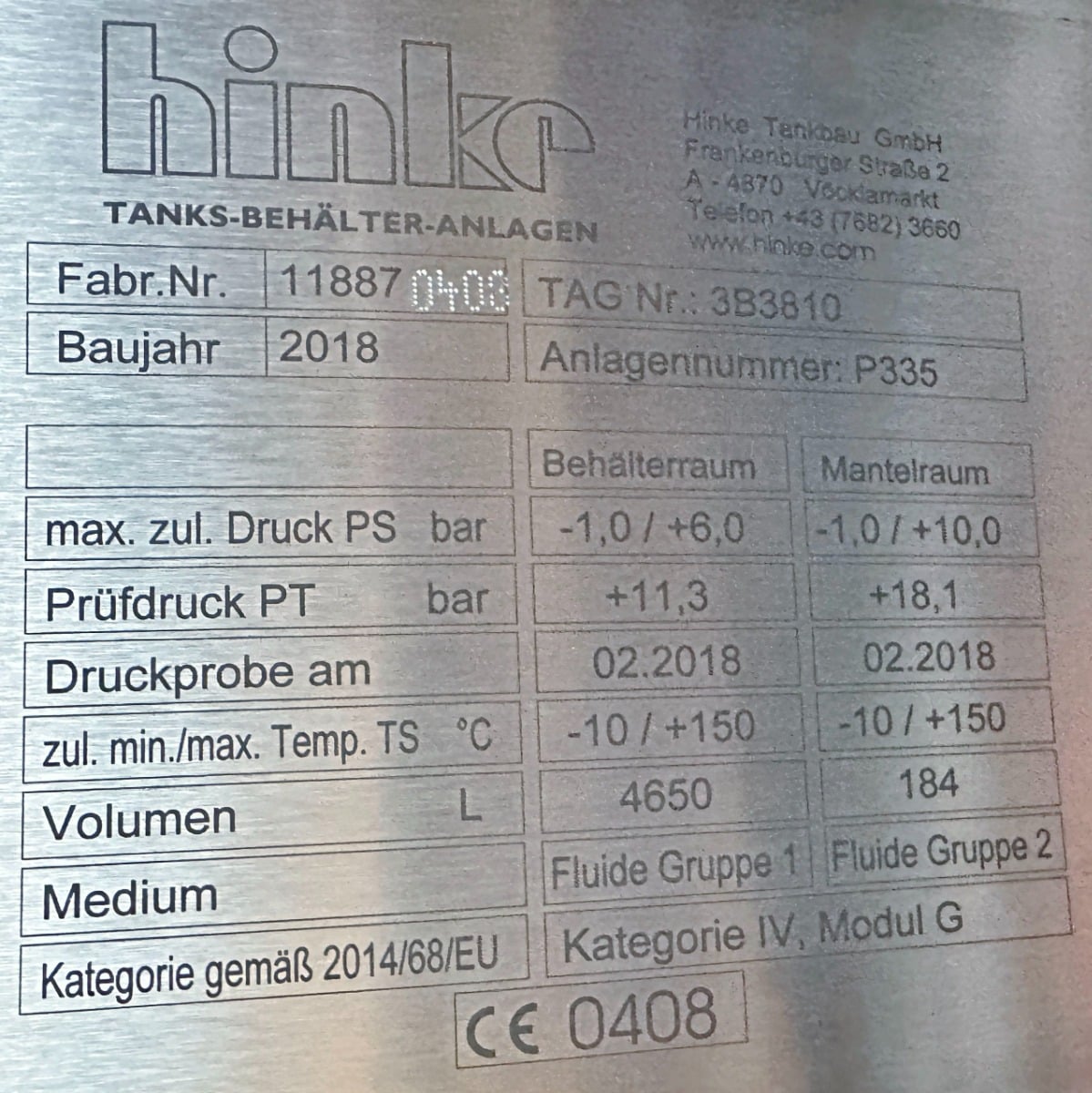

Additional information: Full set of pharma-compliant technical documentation included in delivery; tank was manufactured for a global pharmaceutical company but was never put into operation; hand hole with sight glass diameter: 150mm; incl. Südmo single-seat valve SVP (outlet) Volumetric volume (L): 4.000 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 6 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 150 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Volume: 184 L Max Overpressure: 6 Bar Max onderdruk: 1 Bar Max. working temperature: 150 °C Type HE on the cylinder: half pipe welded onto the outside of the innertank Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: headside Outlet of tank: available Top: 15 mm Cylinder: 6 mm Bottom: 10 mm Internal diameter tank: 1.600 mm Outer diameter tank: 1.830 mm Cylinder height: 1.930 mm Total height of tank: 3.695 mm Empty weight tank: 2.050
