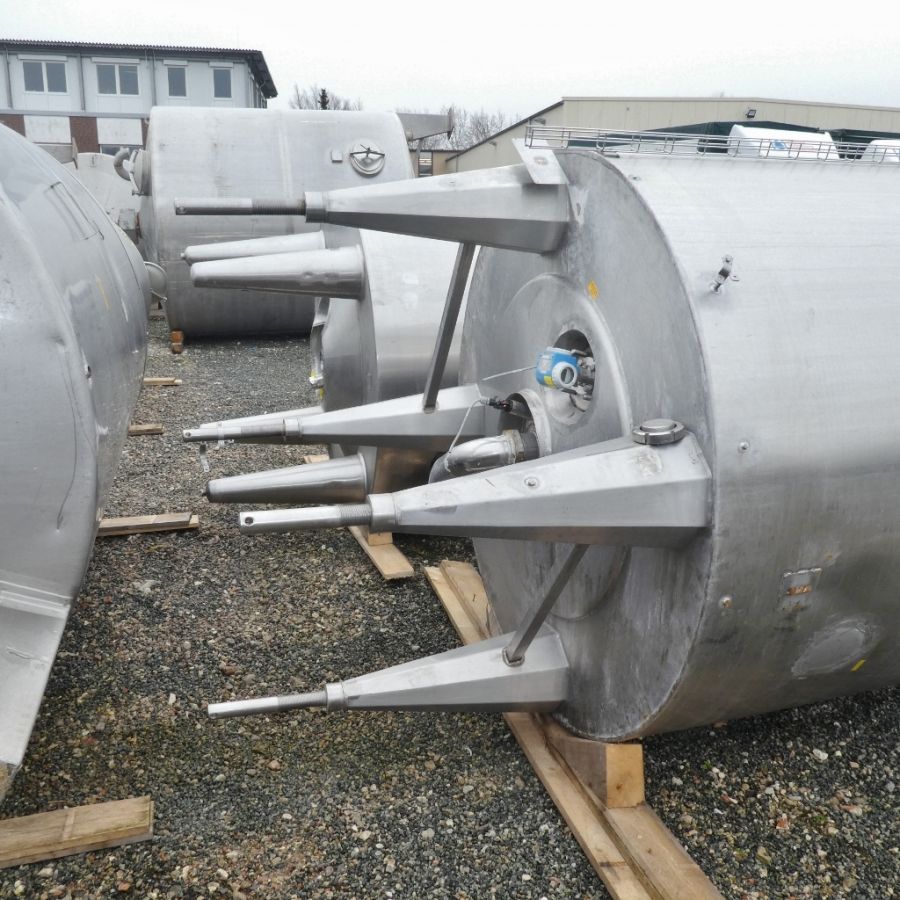

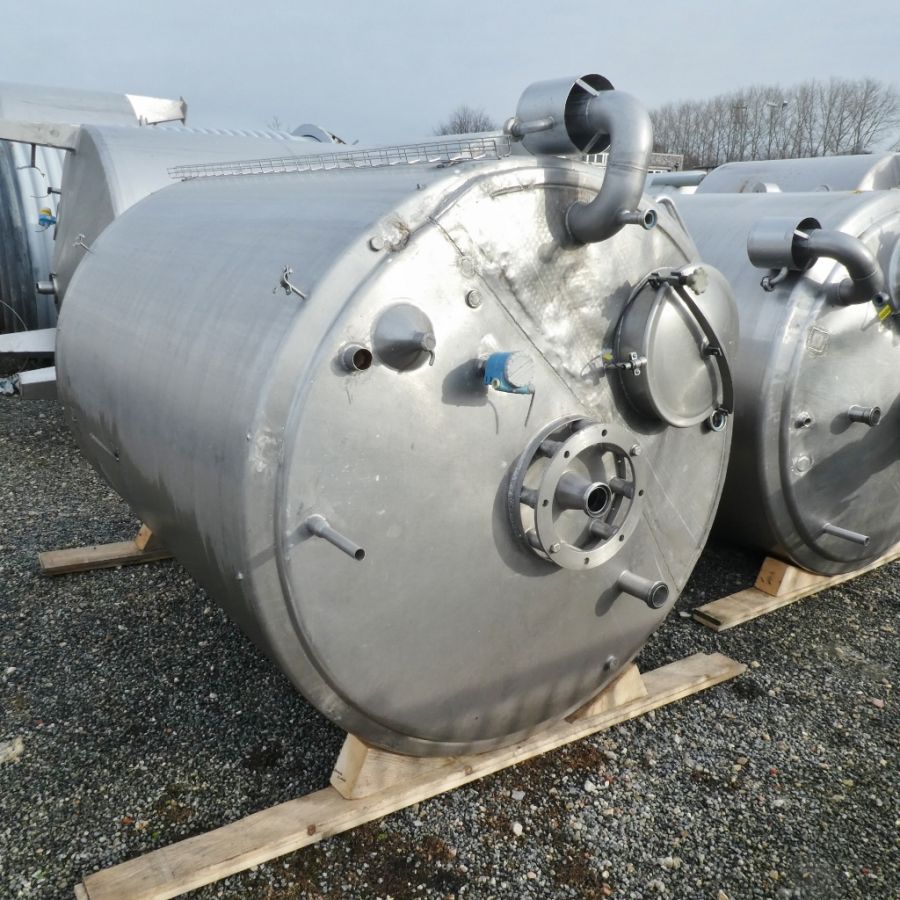

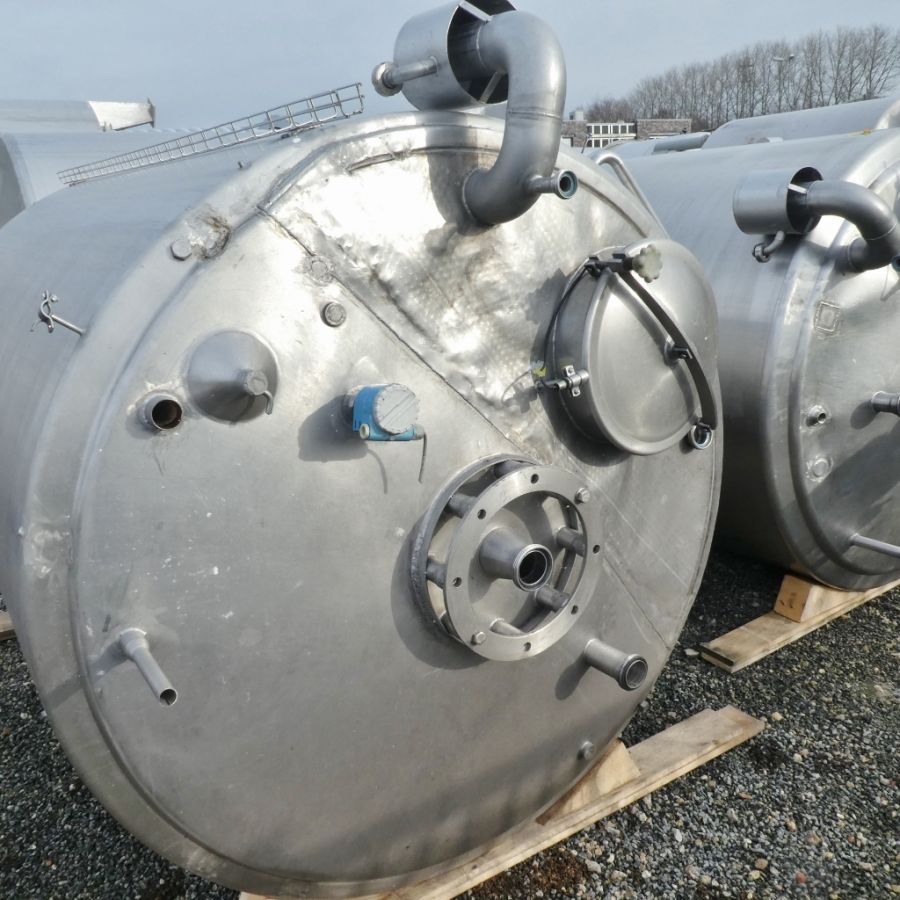

4000 liter tank i Rostfritt 304

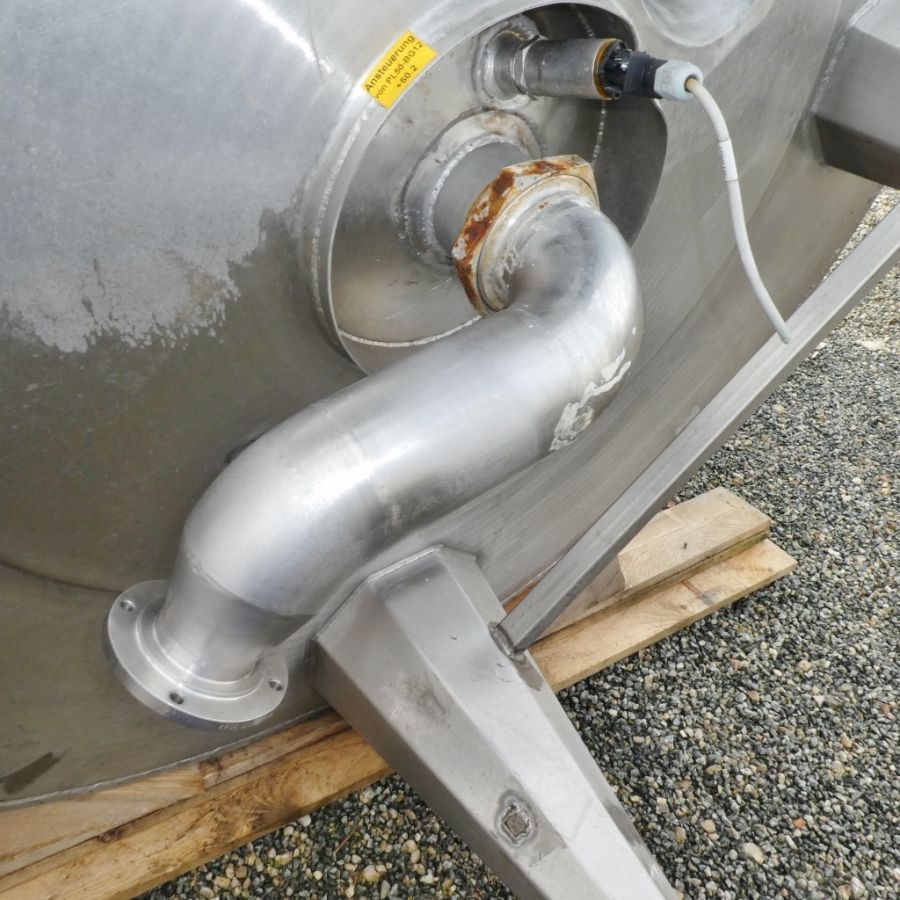

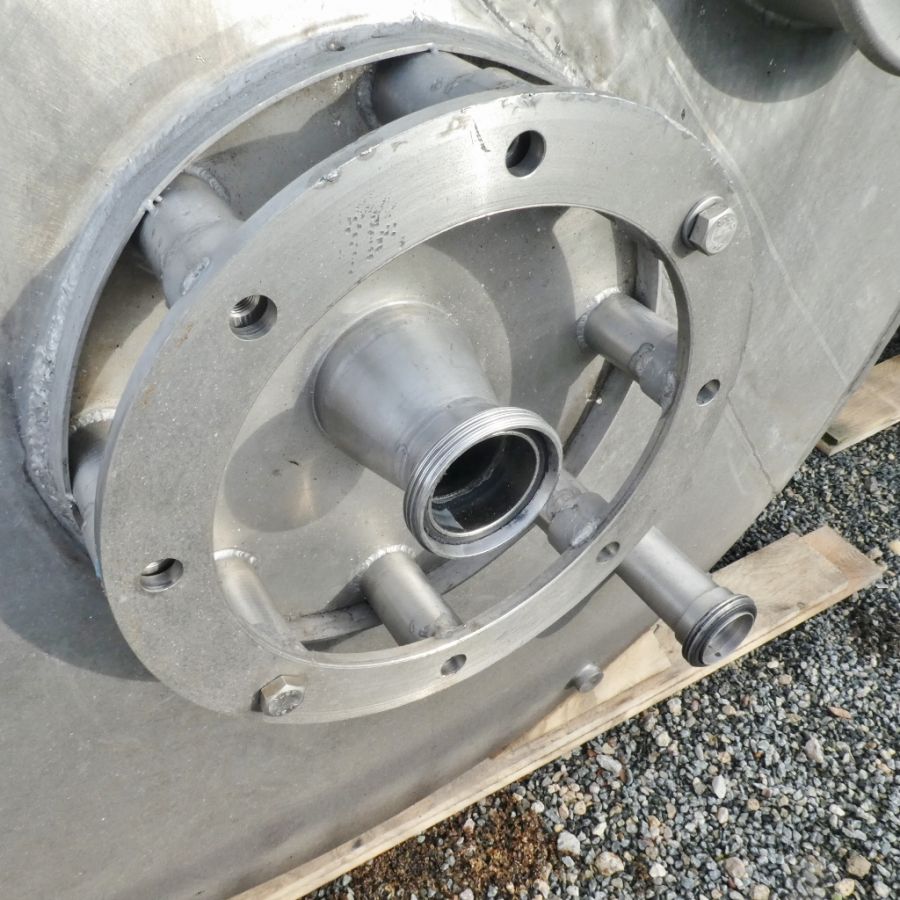

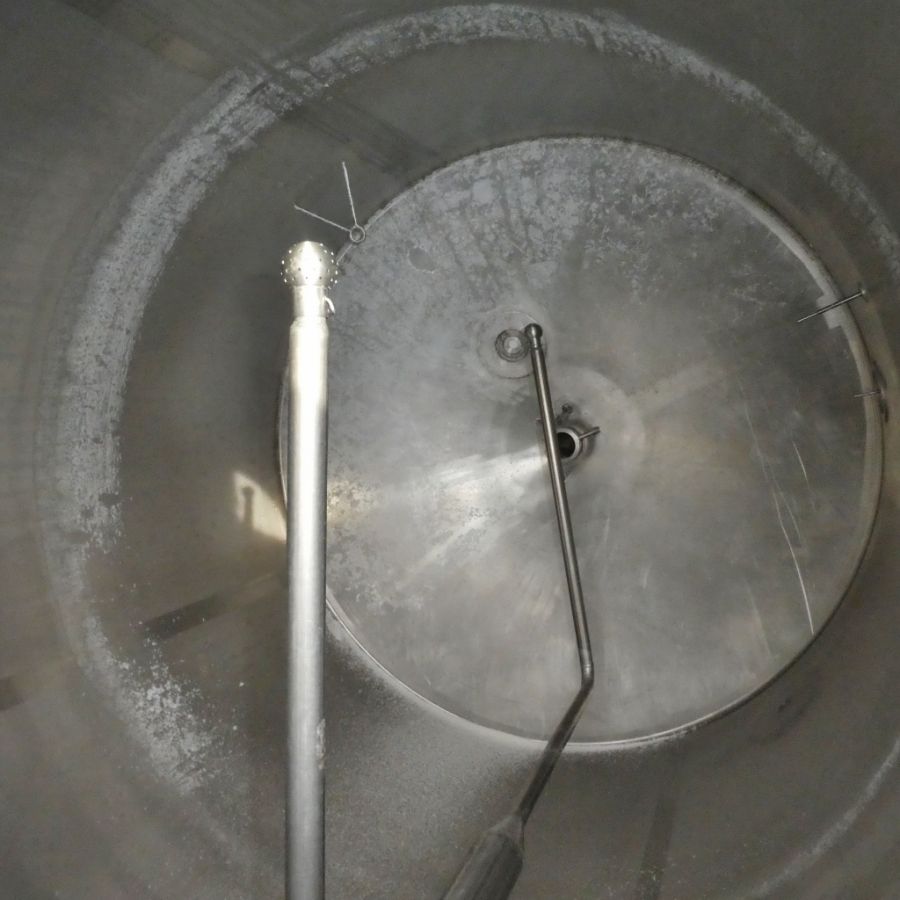

Additional information: dairy; Dents in the upper bottom and in the insulation jacket; diameter manhole appr. 430 mm Volumetric volume (L): 4.000 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: insulated Heat exchanger: no Insulation: yes Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator: yes Position of manway: in the bottom Outlet of tank: flange DN65 Internal diameter tank: 1.580 mm Outer diameter tank: 1.720 mm Cylinder height: 2.000 mm Total height of tank: 3.500 mm
