3158 liter tank i Syrafast 316

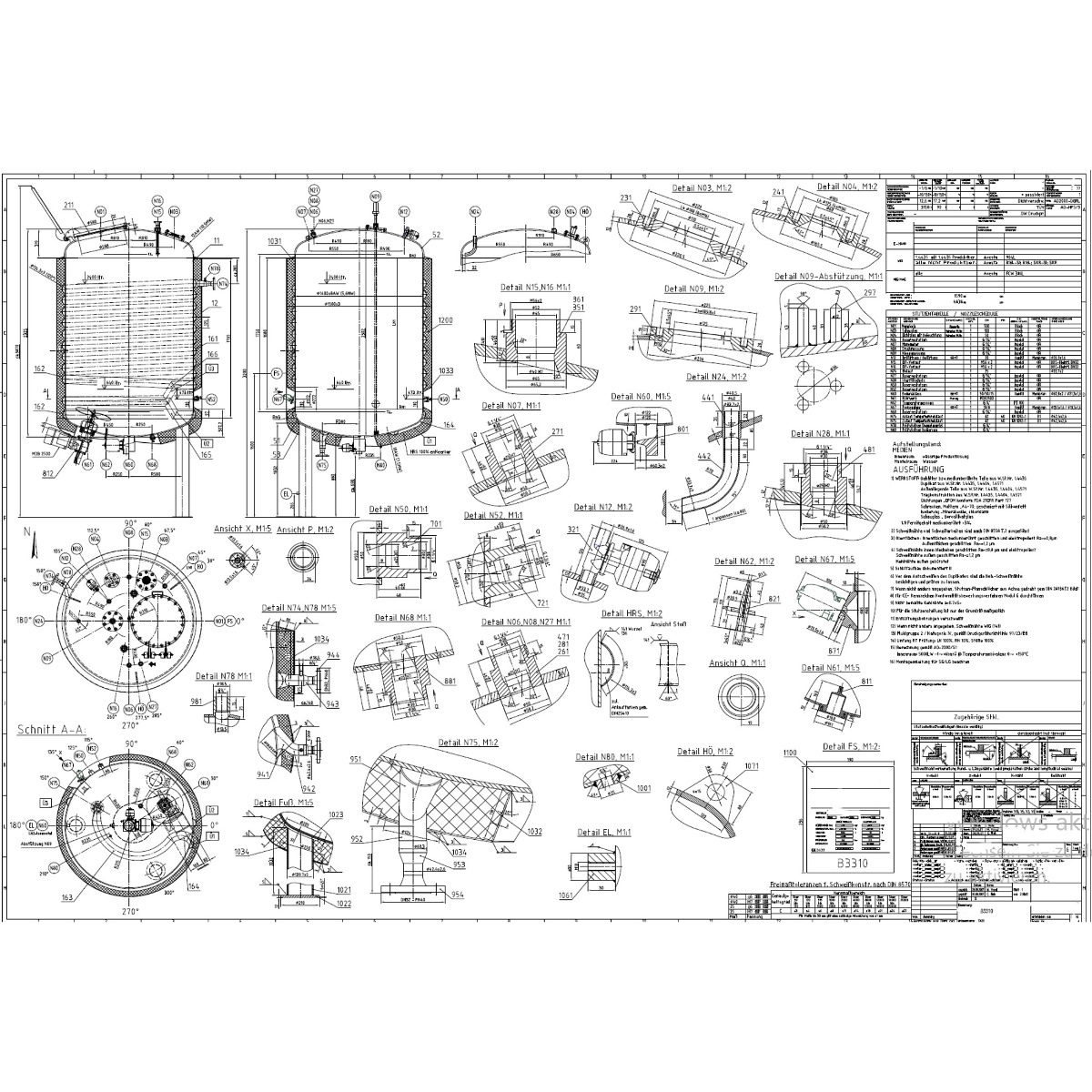

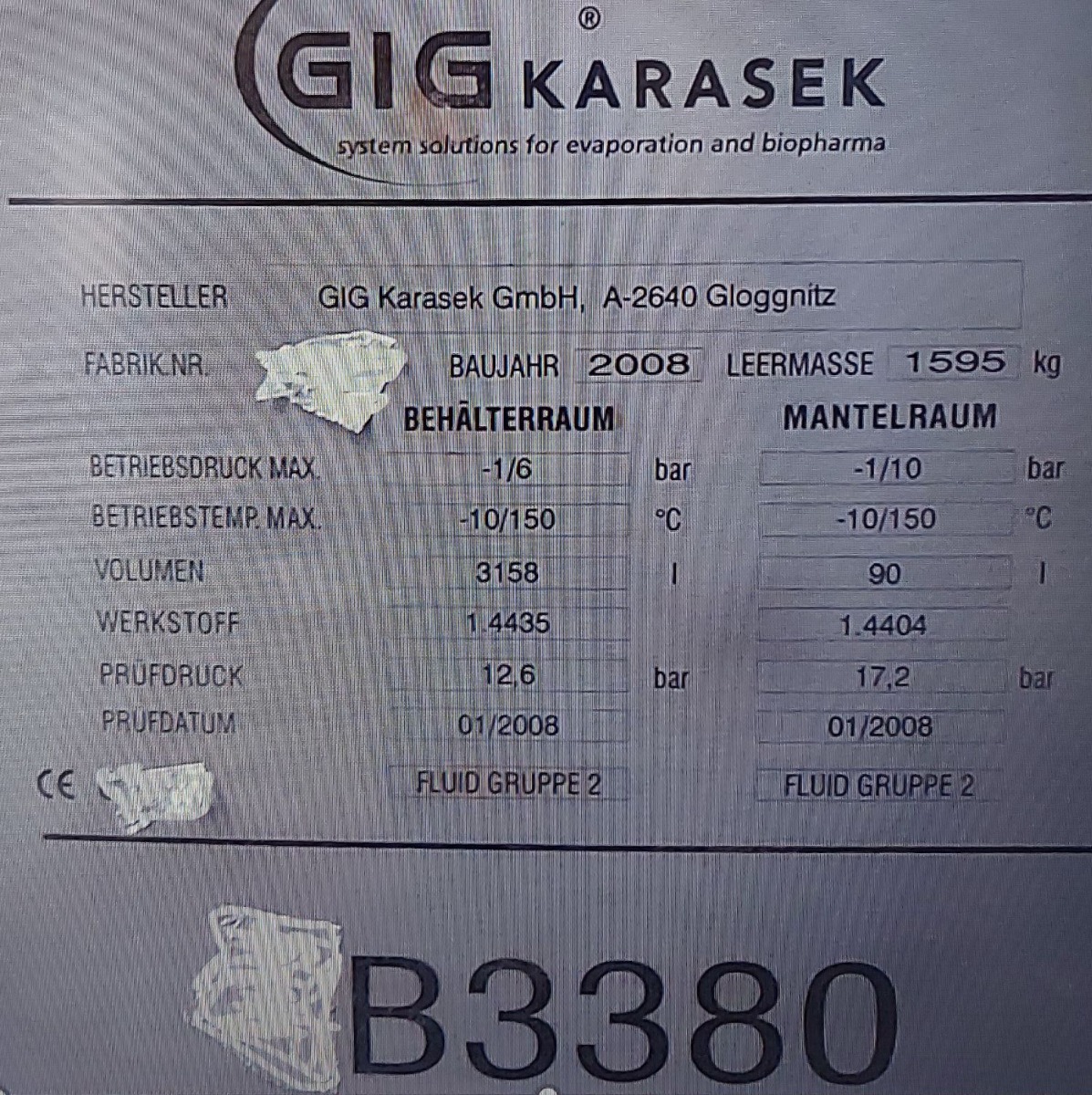

Additional information: tank is unused, was only filled with demineralised water for pressure testing Volumetric volume (L): 3.158 L Pressure in tank: ATM - atmosferic Max. pressure (Bar): 6 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 150 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single jacketed with heat-exchanger Heat exchanger: yes Insulation: no Mobile tank: no Total discharge: no Volume: 90 L Max Overpressure: 10 Bar Max onderdruk: 1 Bar Max. working temperature: 150 °C Type HE on the cylinder: half pipe welded onto the outside of the innertank Heat exchanger: RVS 316 Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: headside Outlet of tank: available Top: 10,50 mm Cylinder: 5,60 mm Bottom: 7,50 mm Internal diameter tank: 1.400 mm Outer diameter tank: 1.580 mm Cylinder height: 1.680 mm
