2420 liter tank i Syrafast 316

Name: 2420 liter tank i Syrafast 316 | Processöverskott AB
SKU: 290514
Price: 236000.00 SEK
Availability: OutOfStock

Art.nr: 290514

236,000.00 SEK/st exkl moms

Ytterligare information

Filtreringsgrupp

Isolerad: Nej
Material: Syrafast 316
Modell: Vertikal
Nytillverkad/Begagnad: Begagnad
Trycktank: Ja
Uppvärmning/kylning: Ja
Omrörare: Ja

Beskrivning av Produkt

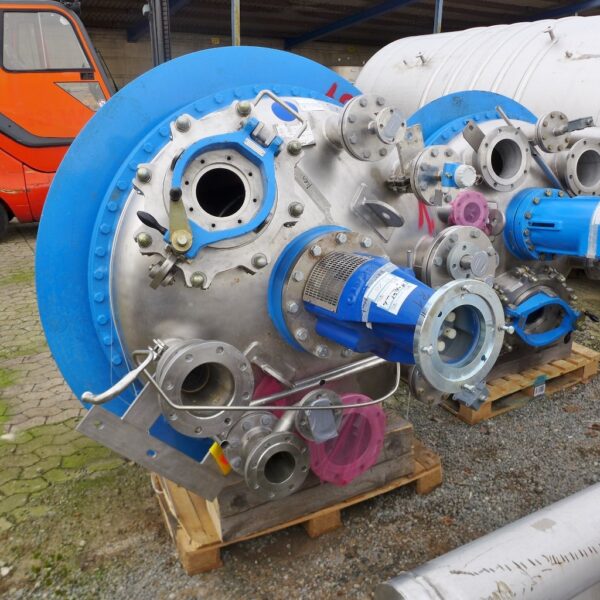

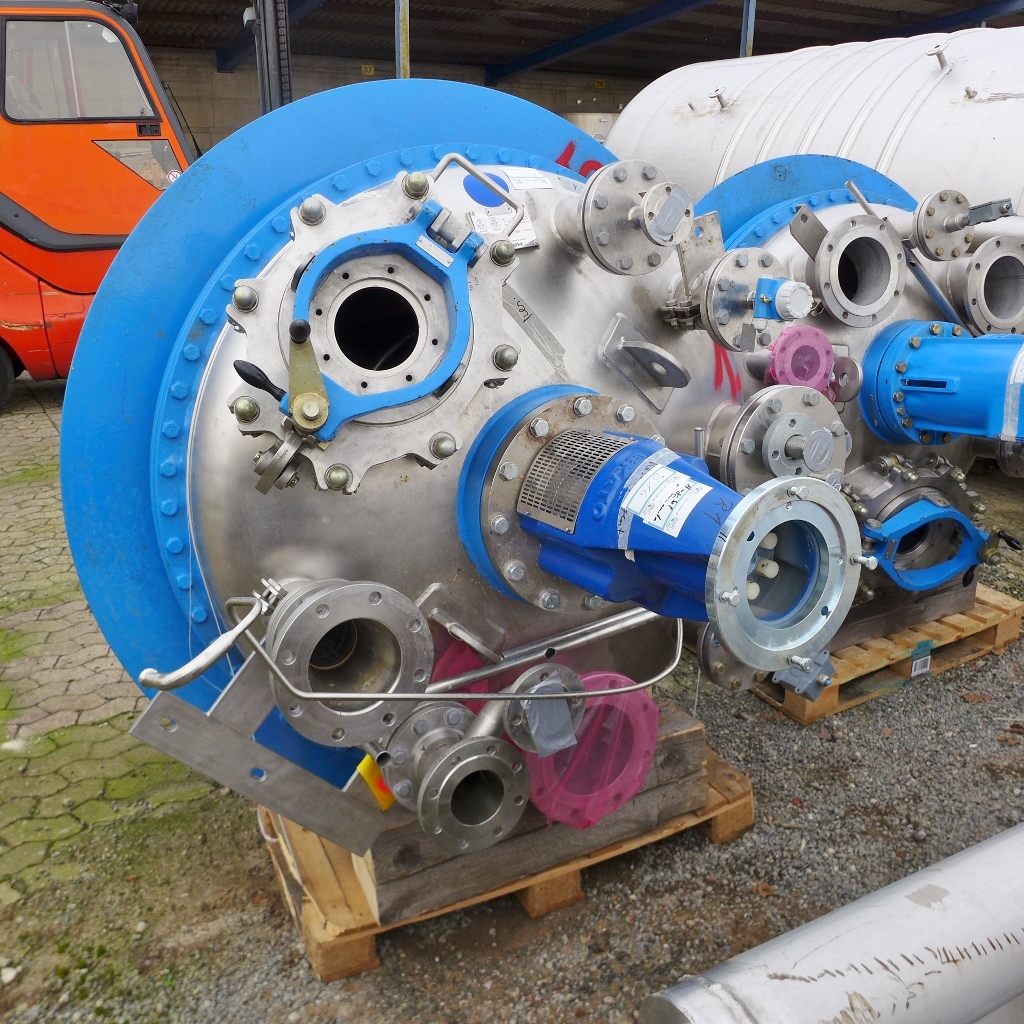

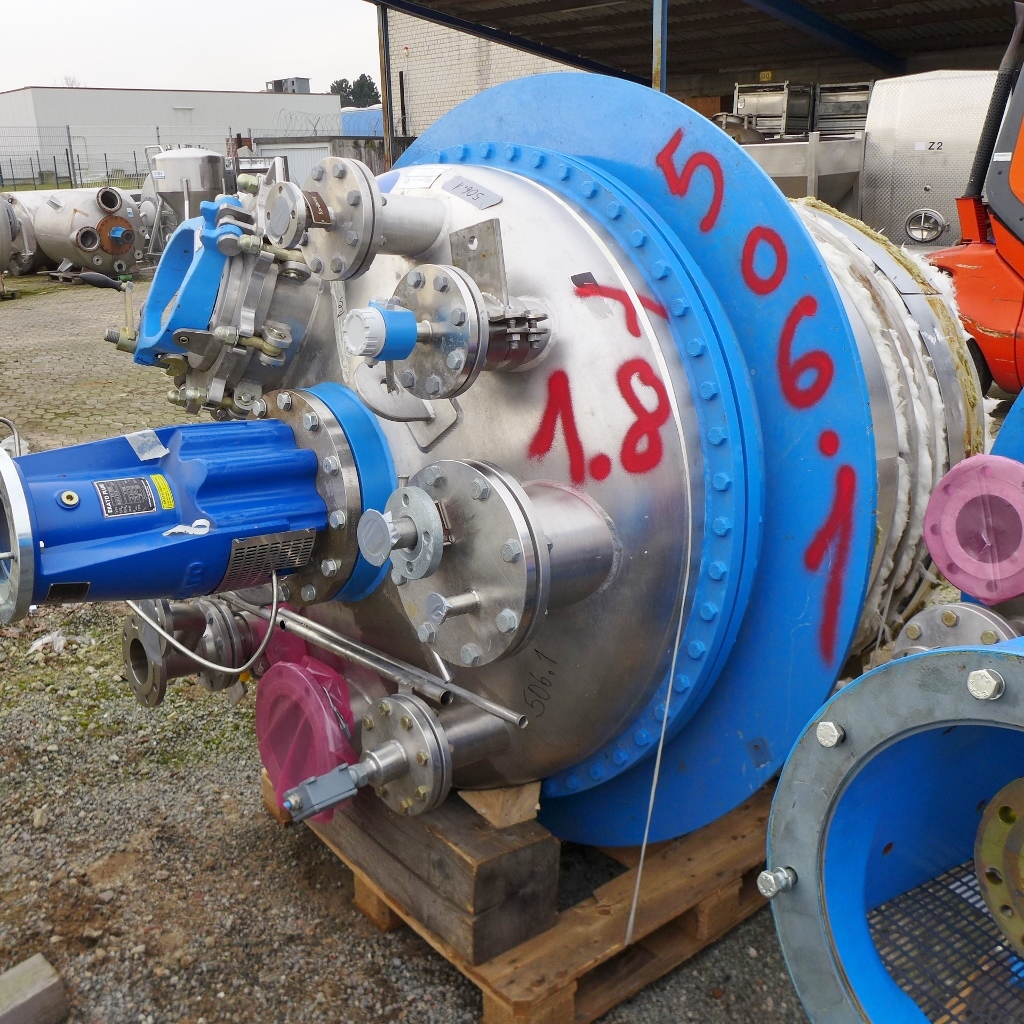

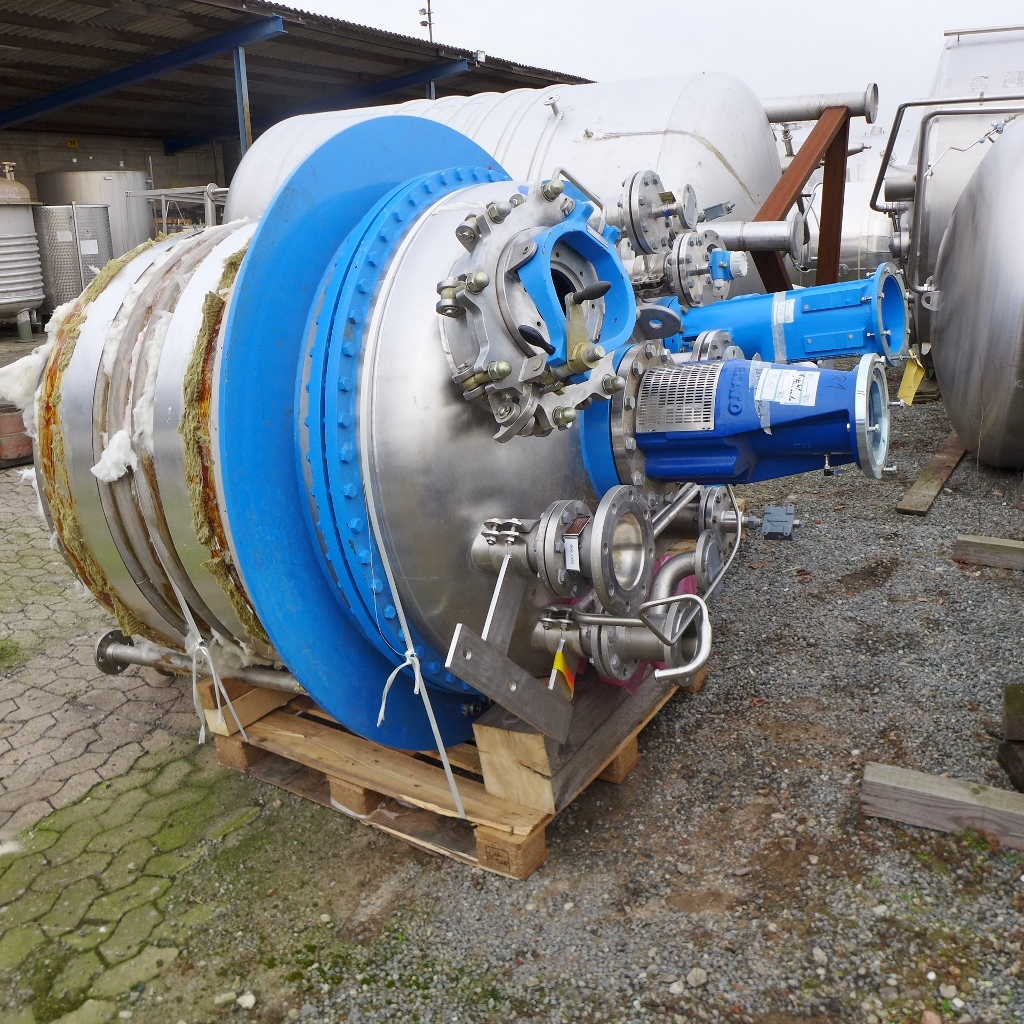

Övrig Information: Pharmaceutical Chemistry ; Manhole DN 350/450 (sight glass in the manhole cover is missing); support ring, Fe; Flanges partly made of Fe; we can’t give any guarantees about the agitator
Arbetstryck i tank: pressure and vacuum
Isolerad: Nej

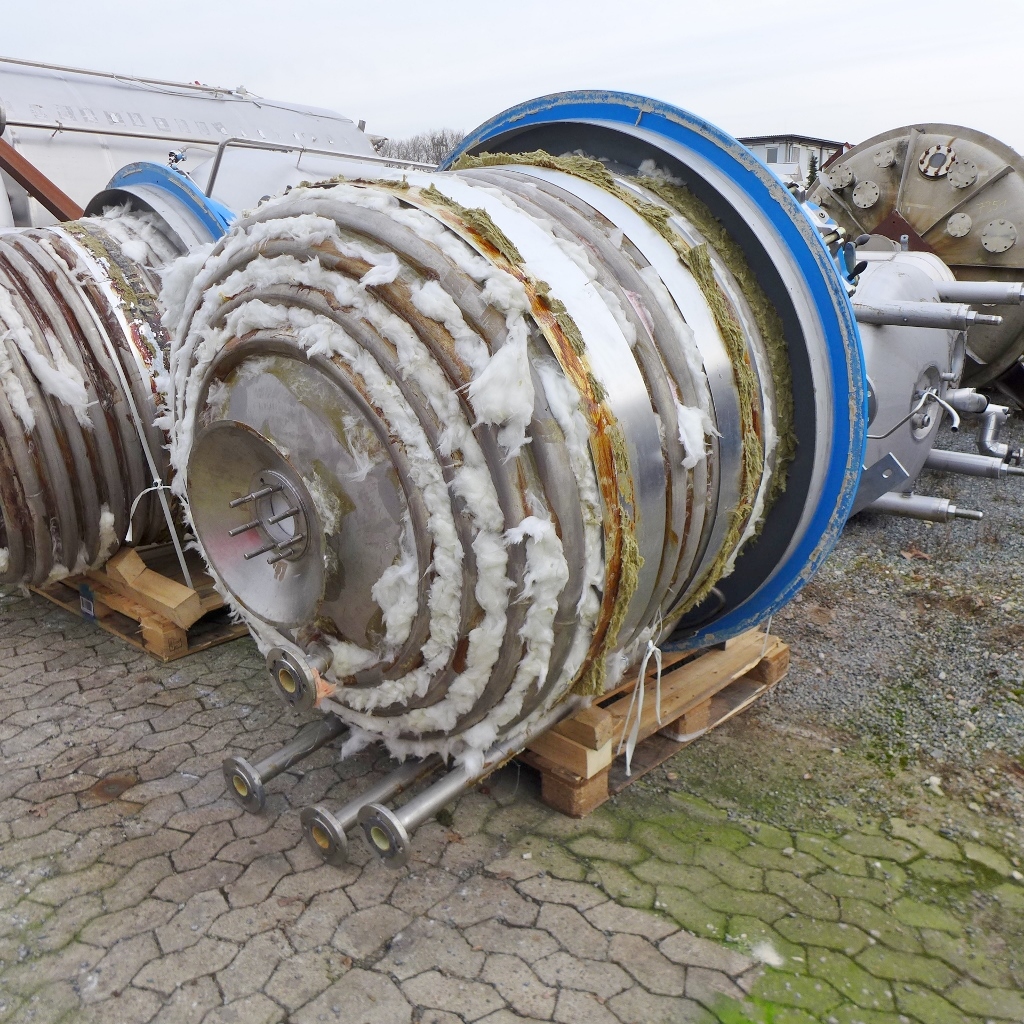

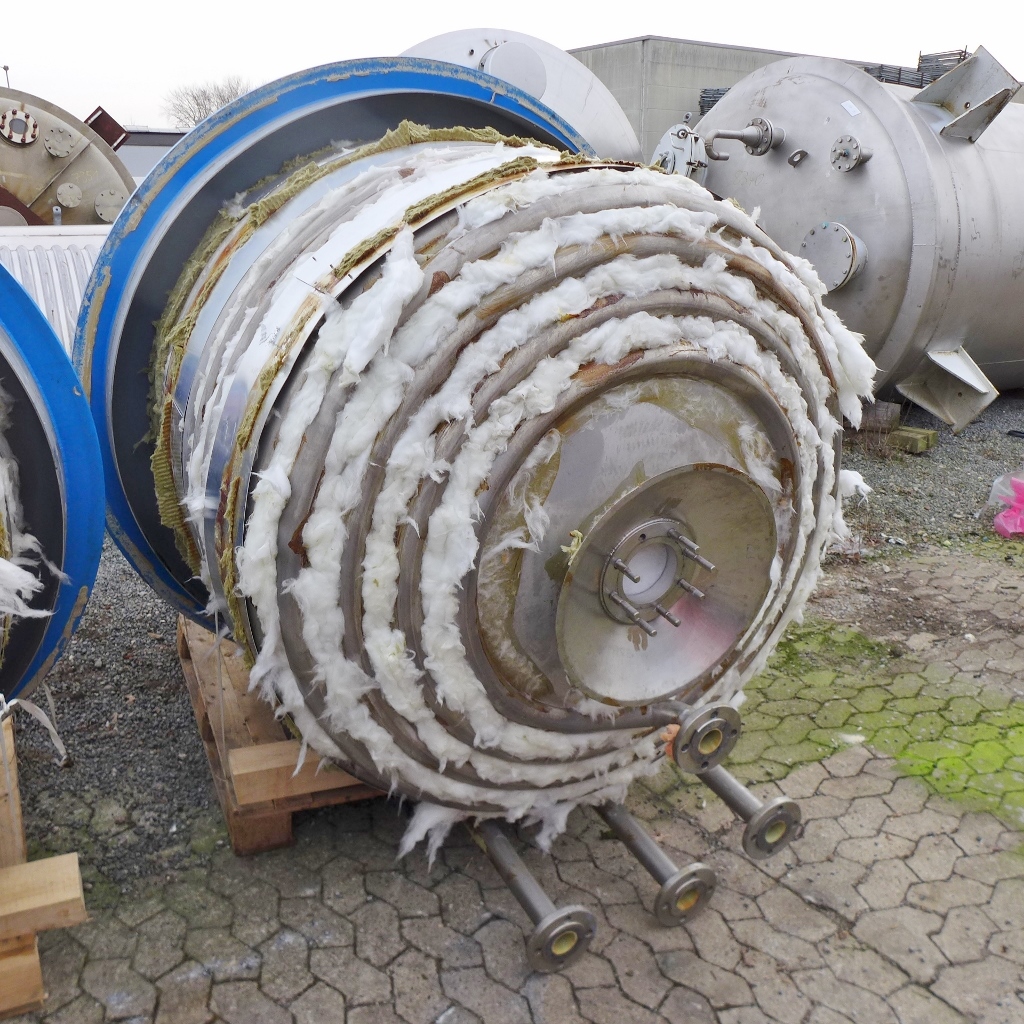

Konfiguration: single jacketed with heat-exchanger
Max. arbetstemperatur: 200 °C
Mobil tank: Nej
Modell: Vertikal
Nytillverkad/Begagnad: Begagnad
Omrörare: Ja
Övertryck: 3,20 Bar
Total urtappning: Ja
Undertryck (vakuum): 1 Bar
Uppvärmning/kylning: Ja

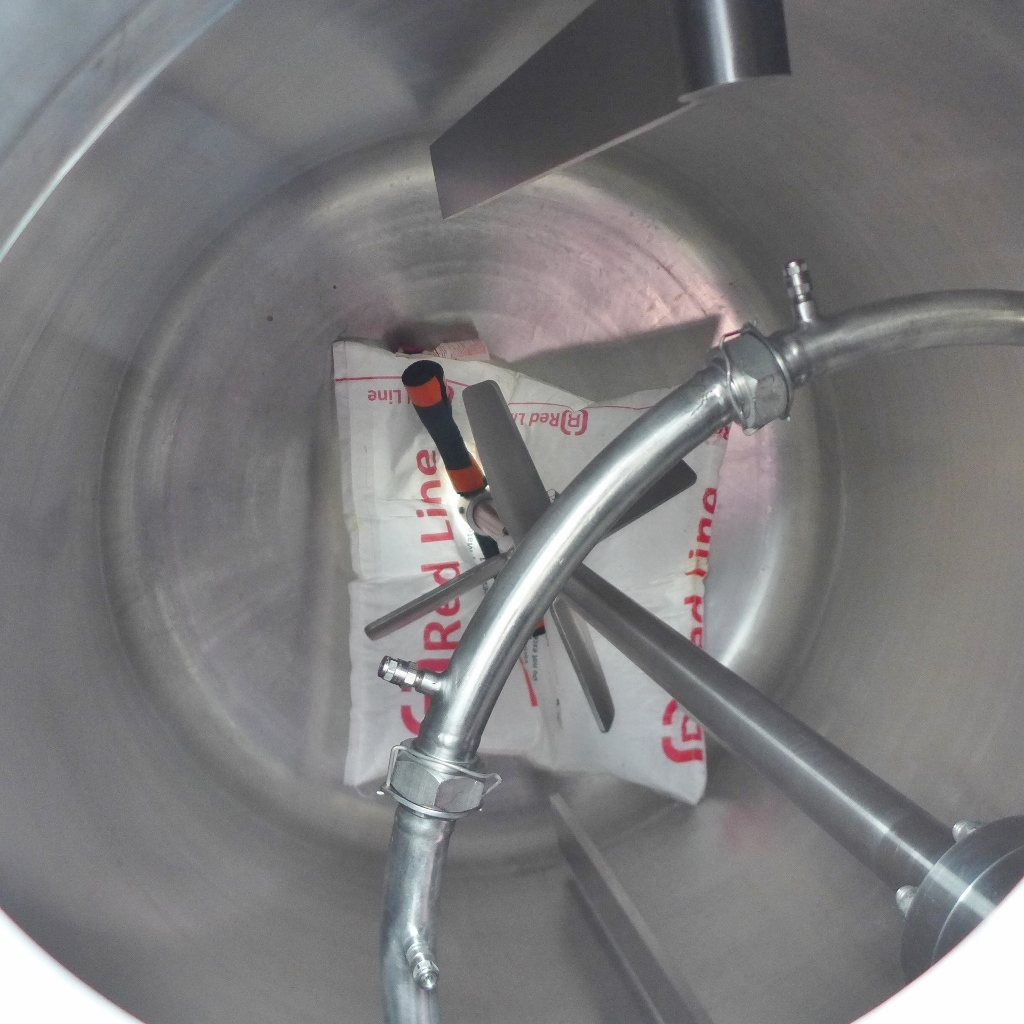

Vätskeberörd yta: SS AISI 316 (V4A)
Volym i liter: 2420
Trycktank: Ja

Utrustning

Dokument finns: Nej
Fläns för omrörare: Nej

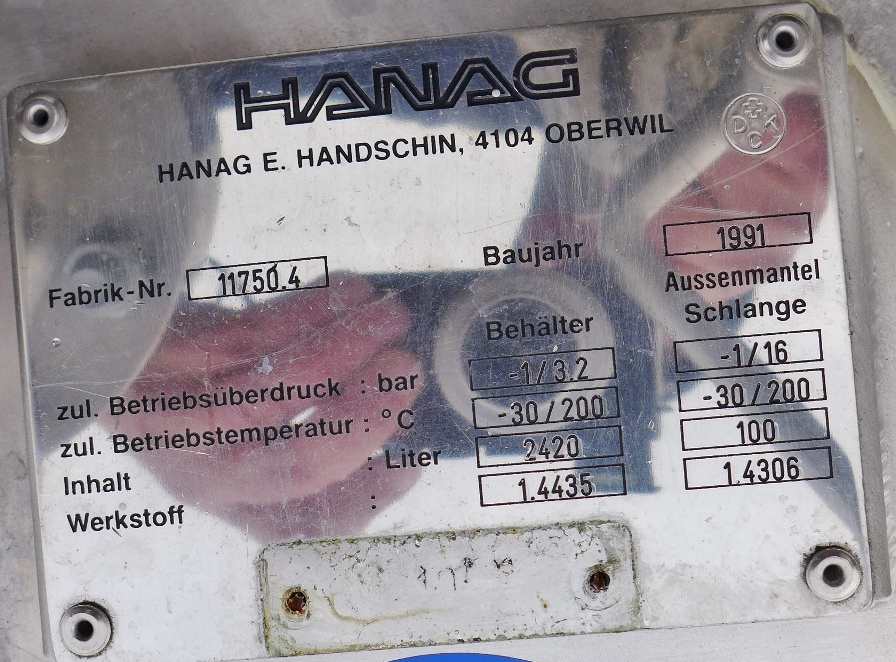

Märkskylt: Ja
Tekniskt ritning finns: Nej

Dimensioner av tank

Cylinderhöjd: 1.180 mm
Invändig diameter: 1.400 mm
Total höjd: 3.550 mm

Översikt material

Material: Syrafast 316

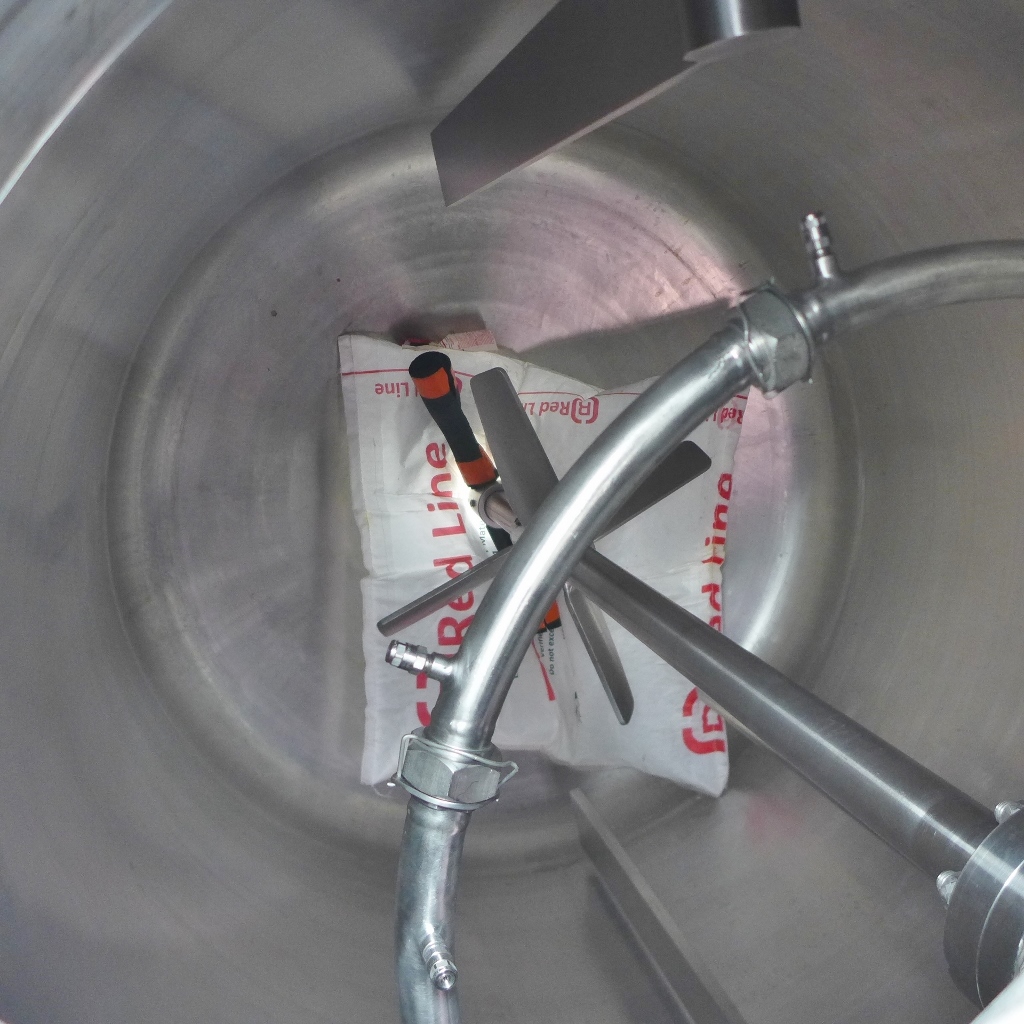

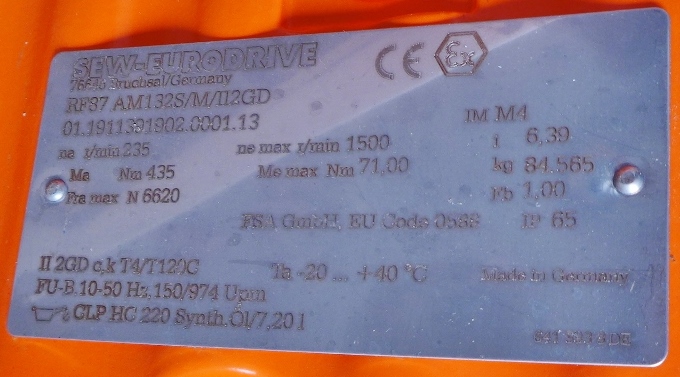

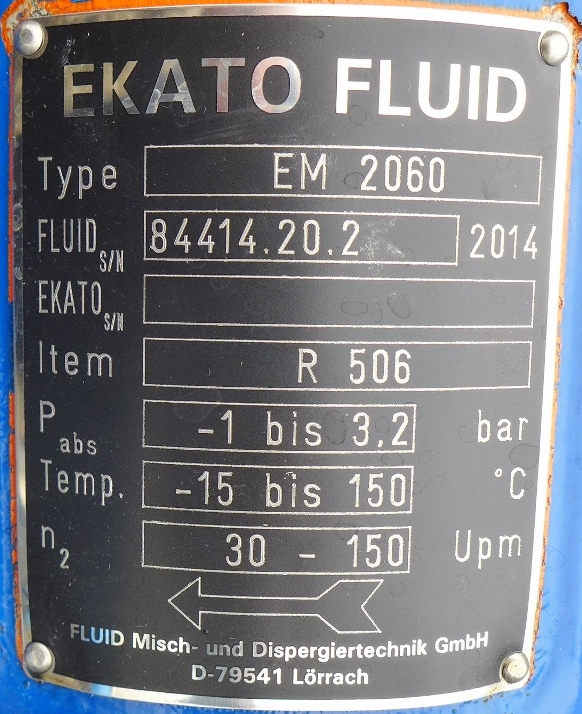

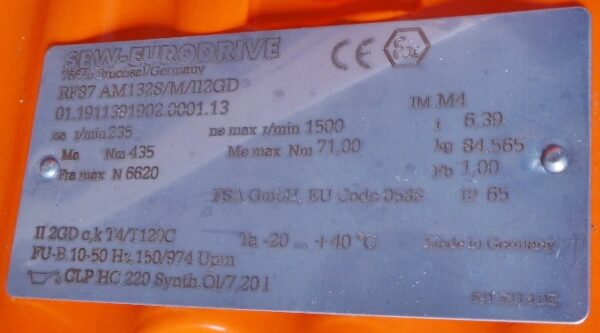

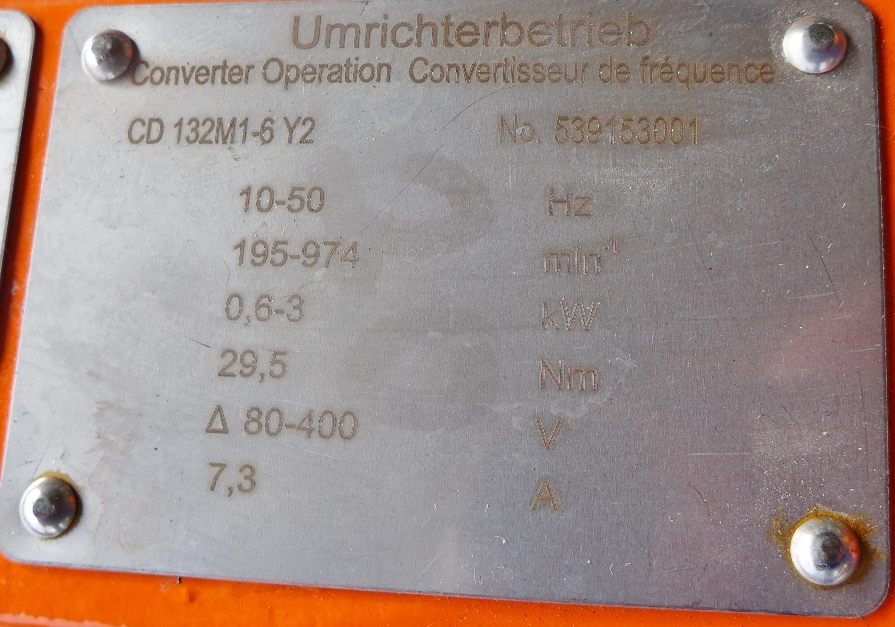

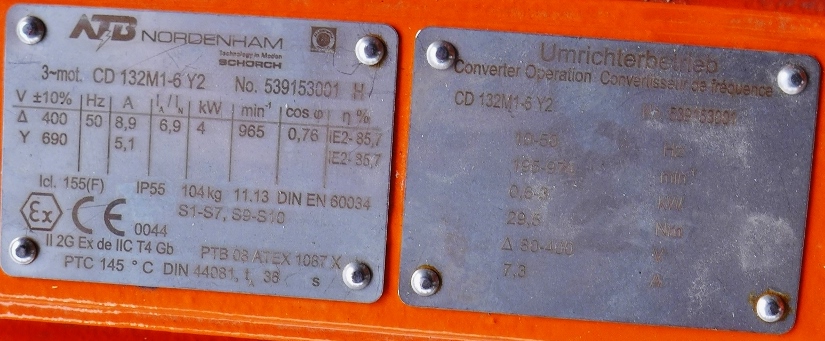

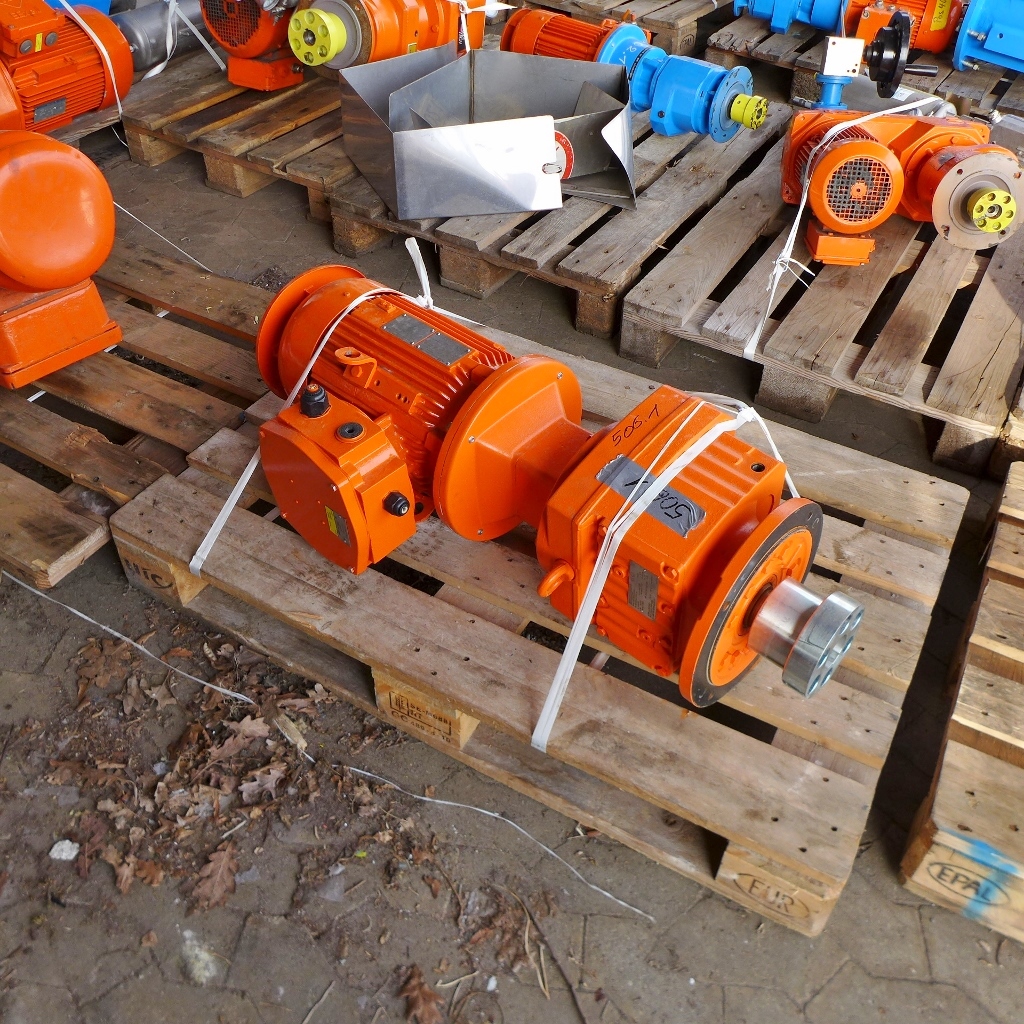

Omrörare

Kraft (kW): 4
Varvtal: 235

Tjocklek på tank

Topp: 7 mm

För mer information om produkten skicka en förfrågan eller kontakta oss direkt via epost info@processoverskott.se
