1500 liter i Syrafast 316

item available on order

Article type: brand new storage tank – type K2-H12L
Capacity: 1.500 L
Maximal density of the product: 1.200
Ra inner weld: 0,80
Finish stainless steel: 2b

Working pressure in tank: ATM – atmosferic
Max. working temperature: 100 °C
Min. working temperature: -10 °C
Material wet parts: SS AISI 316L (V4A)
Model: vertical

Configuration: single jacketed with heat-exchanger
Heat exchanger: yes
Insulation: no
Agitator: yes, optional
Mobile tank: no

Top type: conical 15 °
Shape of tank: cylindrical
Bottom type: conical 15 °
Total discharge: yes
Fixation points: 3 adjustable feet

Legs: Set of baseplates and adjusting pieces included
Type of HE on the cylinder: half pipe welded onto the outside of the innertank
Position HE: the complet cilinder
Number of windings: 6
Height HE: 918 mm

Number of sections: 1
Water pressure HE: 3 Bar
Steam pressure HE: 0,49 Bar
Contact surface cylinder: 2,30 m²
Connection HE: 1″ BSP

Working temperature HE cylinder: 111 °C
Type of HE on the bottom: dimple-jacket
Water pressure HE: 3 Bar
Steam pressure HE: 0,49 Bar
Contact surface bottom: 0,35

Connection HE: 1″ BSP
Heat exchanger: RVS 304
Manway(s): RVS 316
Gasket manway(s): EPDM
Suitable for food industry: yes

Documents included: yes, optional

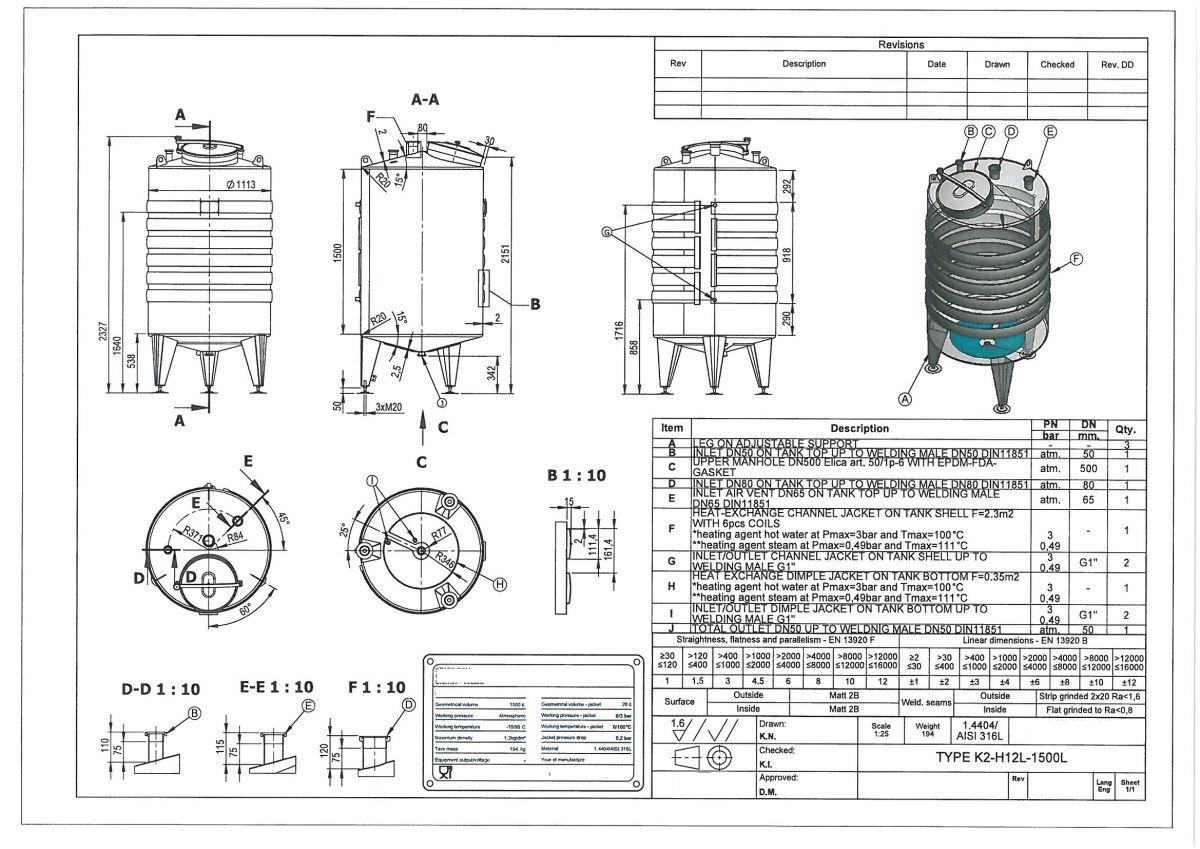

Technical drawing included: yes
Registration plate on the tank: yes
with inspection of: TUV
Flange for agitator: no

Number of manways: 1
Manway 1: 500 mm
Spray ball: yes, optional
Tank outlet: inside Ø 50 mm
Outlet type: DIN11851 male

Top: 2 mm
Cylinder: 2 mm
Bottom: 2,50 mm
Distance from outlet to ground: 342 mm
Outer diameter tank: 1.113 mm

Cylinder height: 1.500 mm
Feet height: 538 mm
Total height of tank: 2.327 mm
Empty weight tank: 194
