1500 liter i Rostfritt 304

Vi erbjuder finansiering via:

Art.nr: 7415

211,000.00 SEK/st exkl moms

Lagersaldo: 2st

Mer information

Volym i liter

1500

Nytillverkad/Begagnad

Nytillverkad

Livsmedelsklassad

Ja

Modell

Vertikal

Material

Rostfritt 304

Omrörare

Ja

Uppvärmning/kylning

Ja

Isolerad

Ja

Ritning

Öppna

Ritning-2

Öppna

item available on order

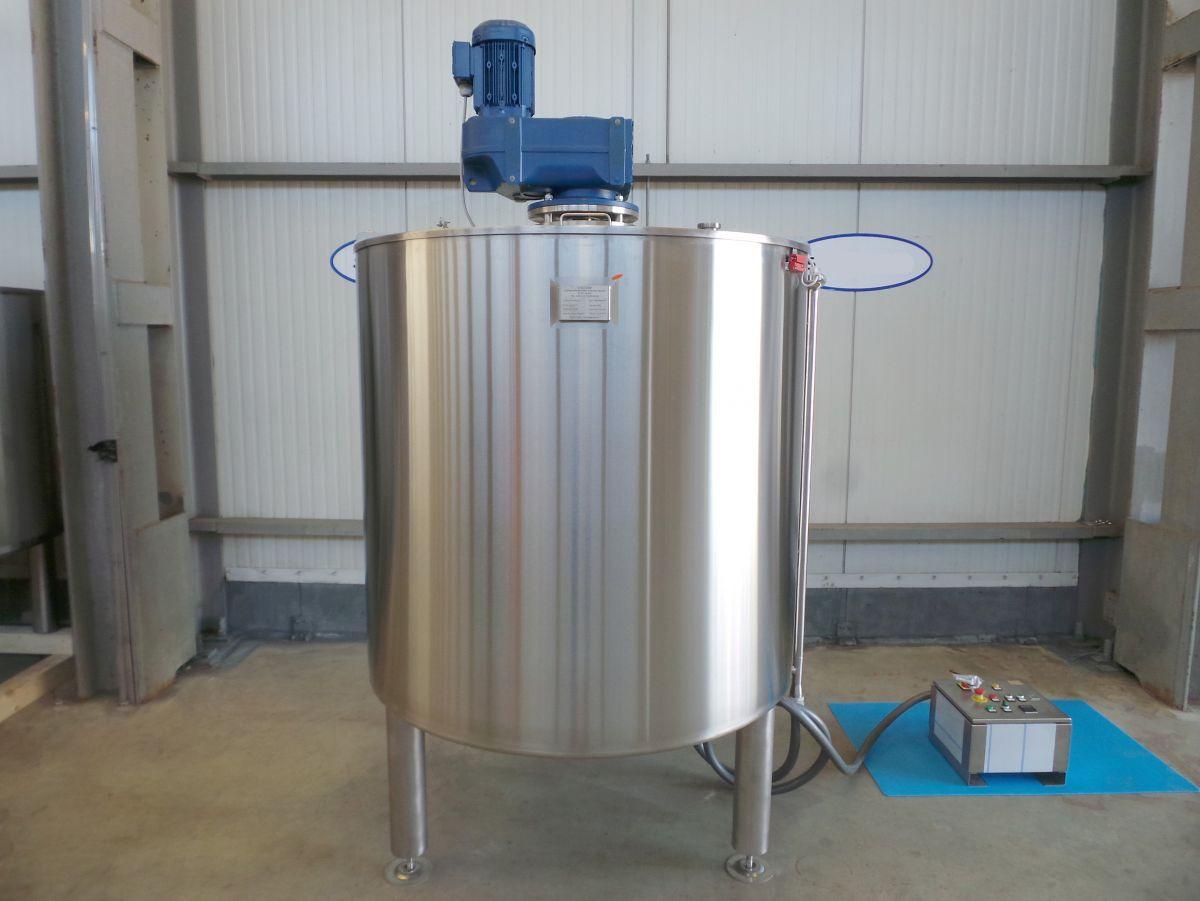

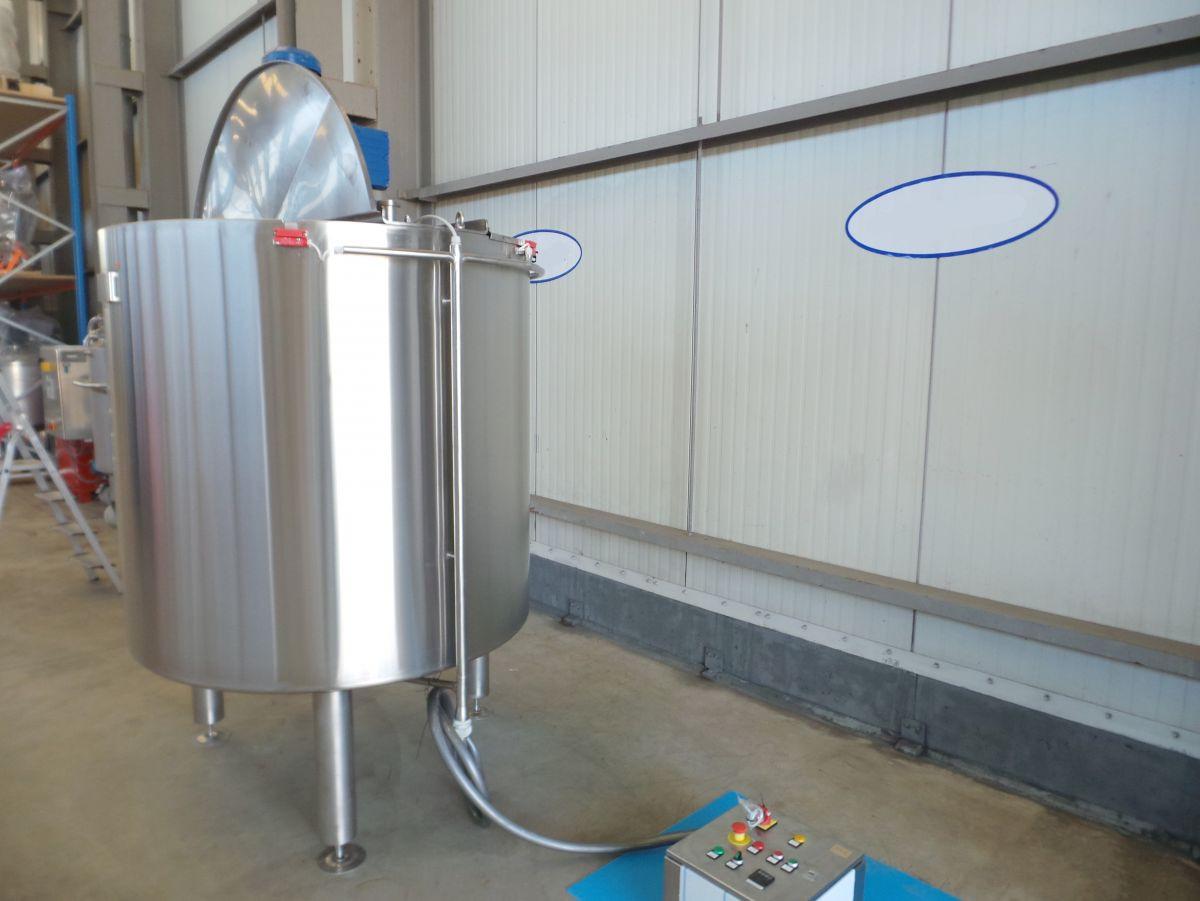

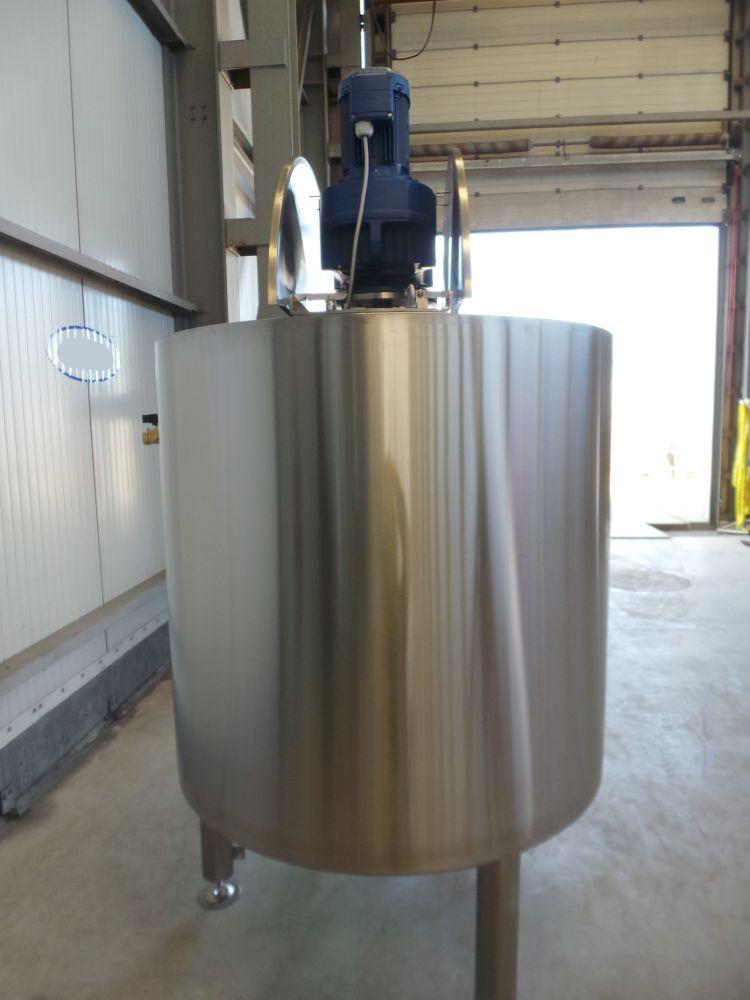

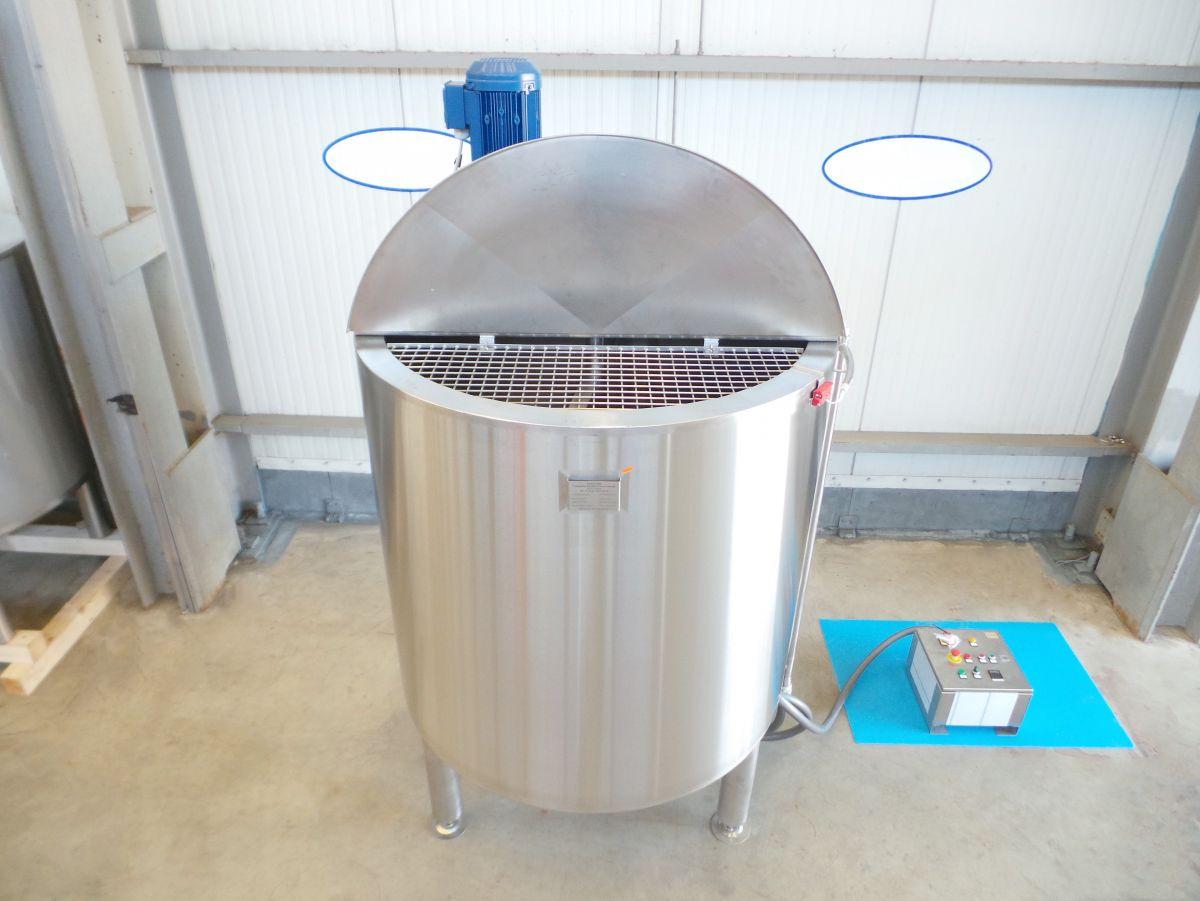

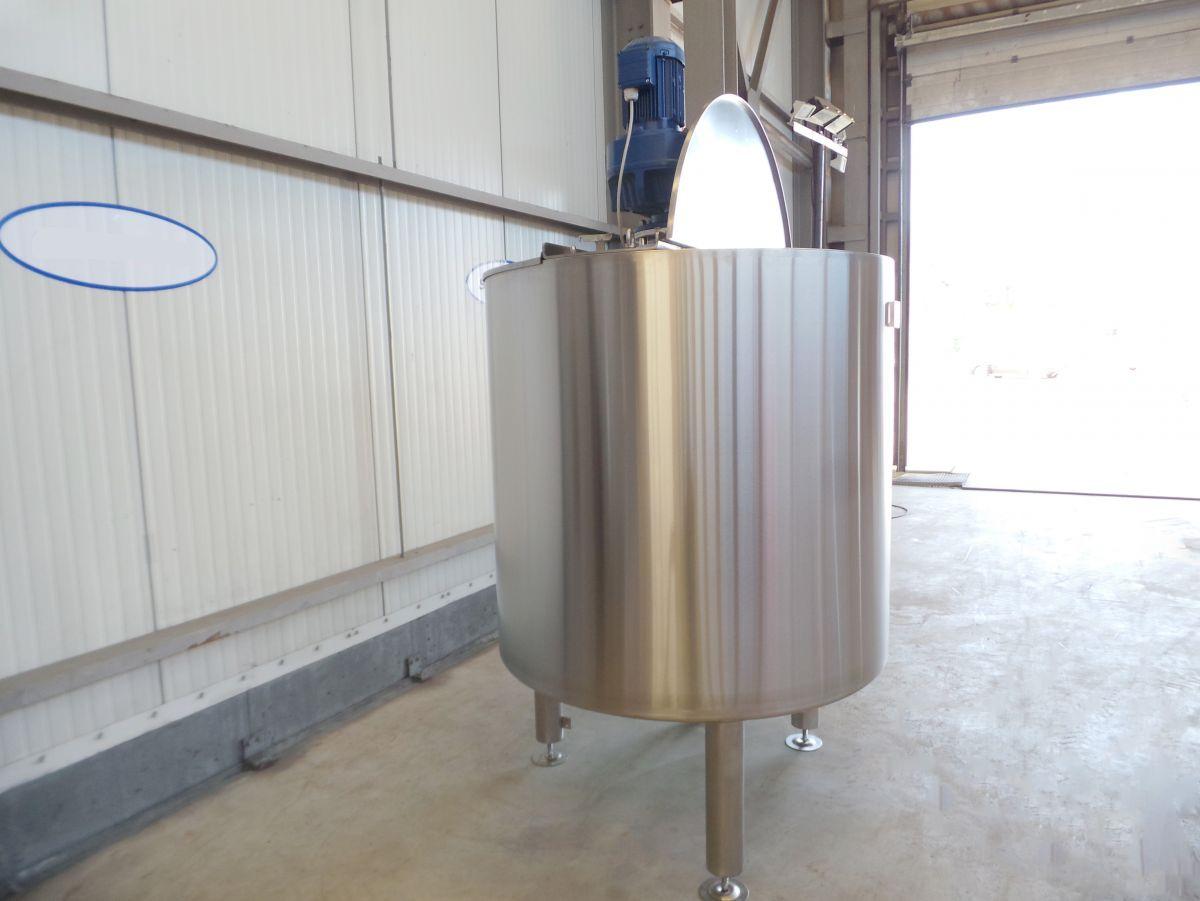

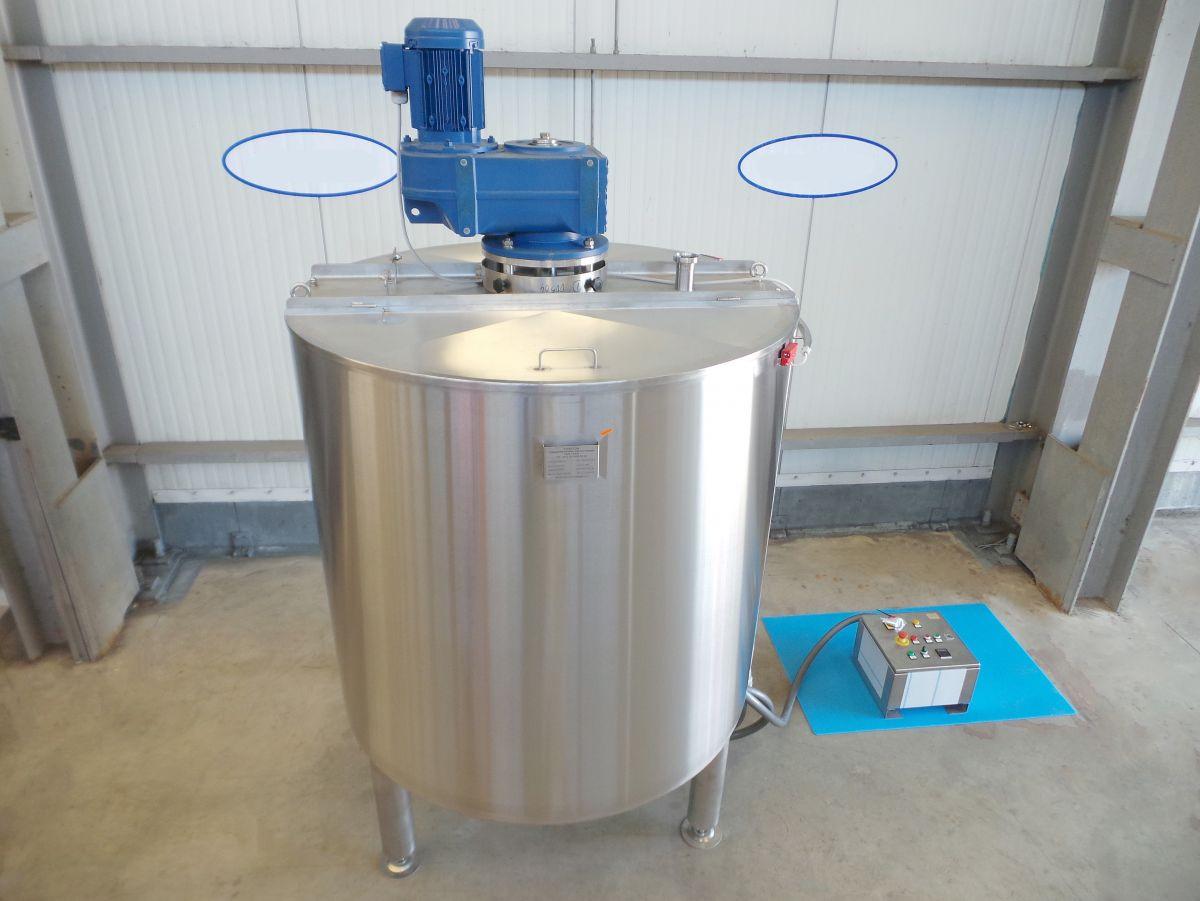

Article type: brand new production tank – type CHC-HILA

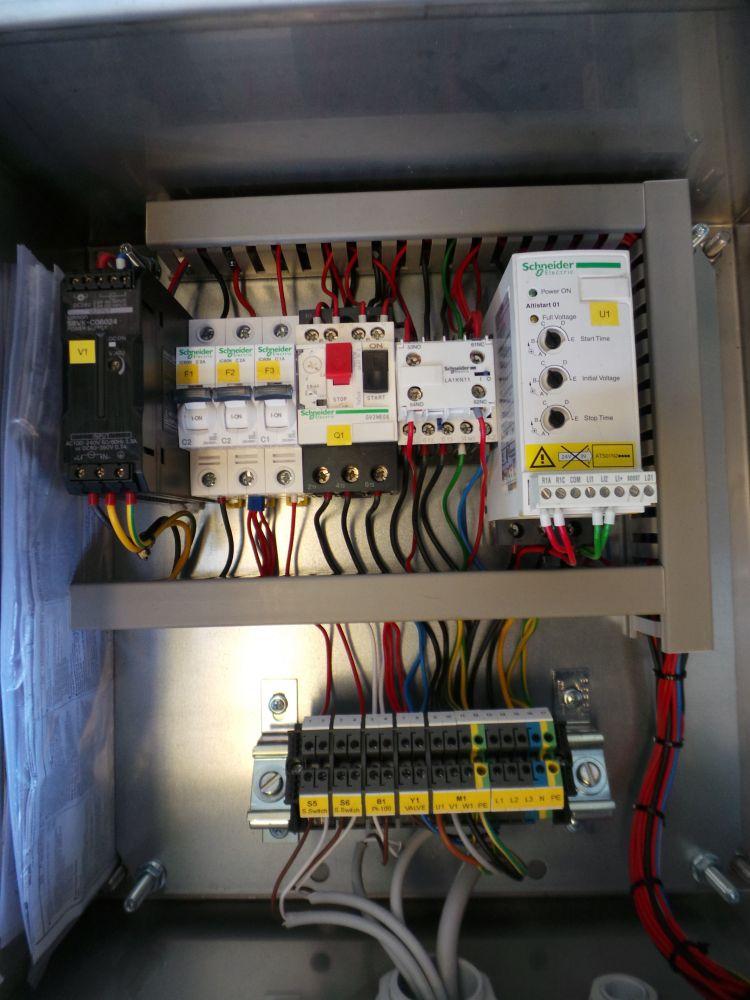

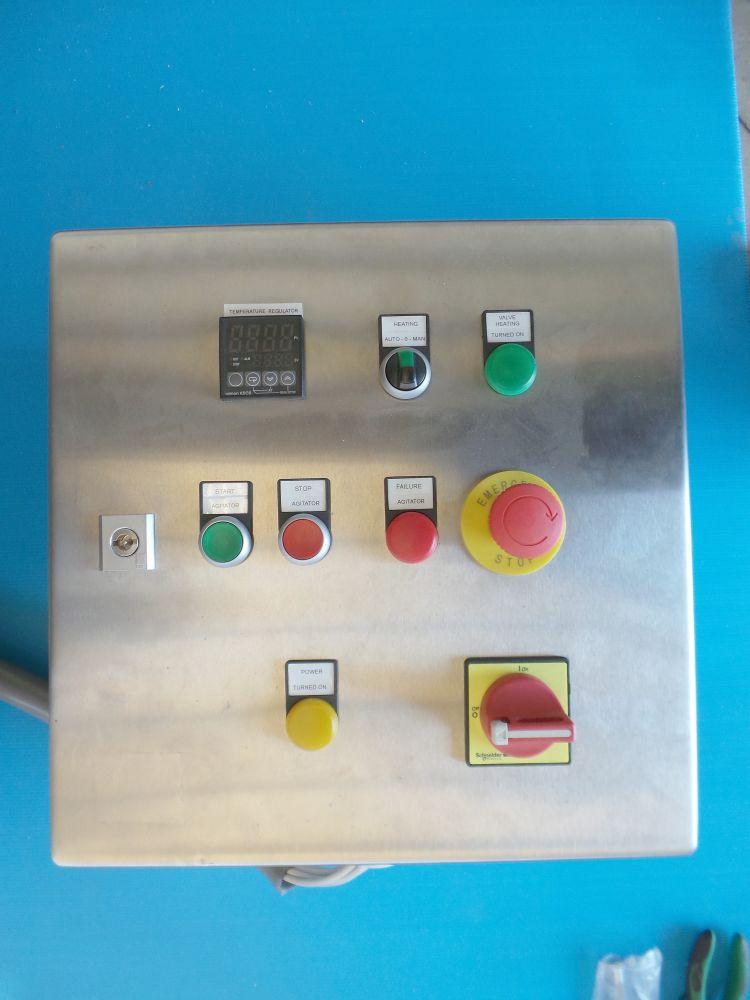

Additional information: Delivered with food certificate; article price without control panel; see options; (The article can also be purchased without options)
Capacity: 1.500 L
Maximal density of the product: 1.200
Working pressure in tank: ATM – atmosferic

Max. working temperature: 120 °C
Material wet parts: SS AISI 304 (V2A)
Model: vertical
Configuration: insulated with heat-exchanger
Heat exchanger: yes

Insulation: yes
Agitator: yes
Mobile tank: no

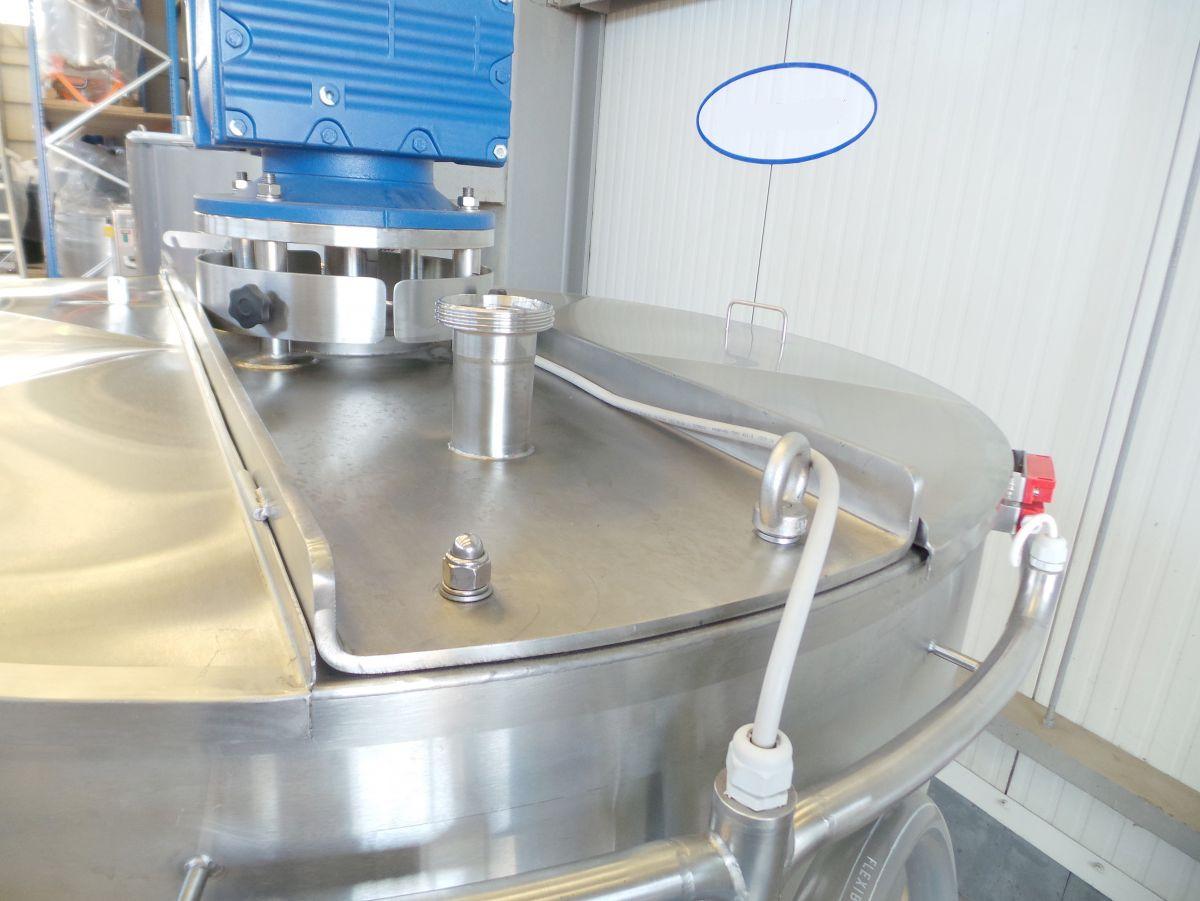

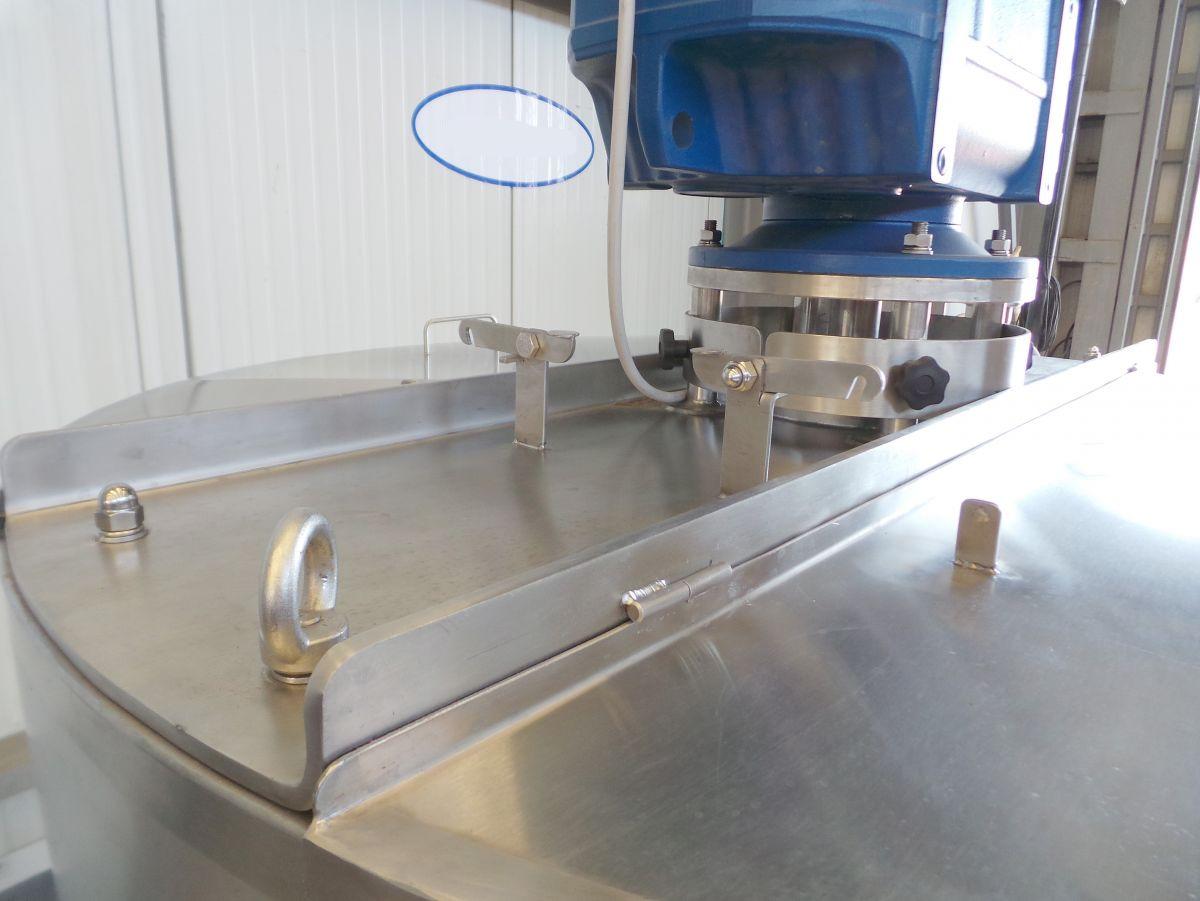

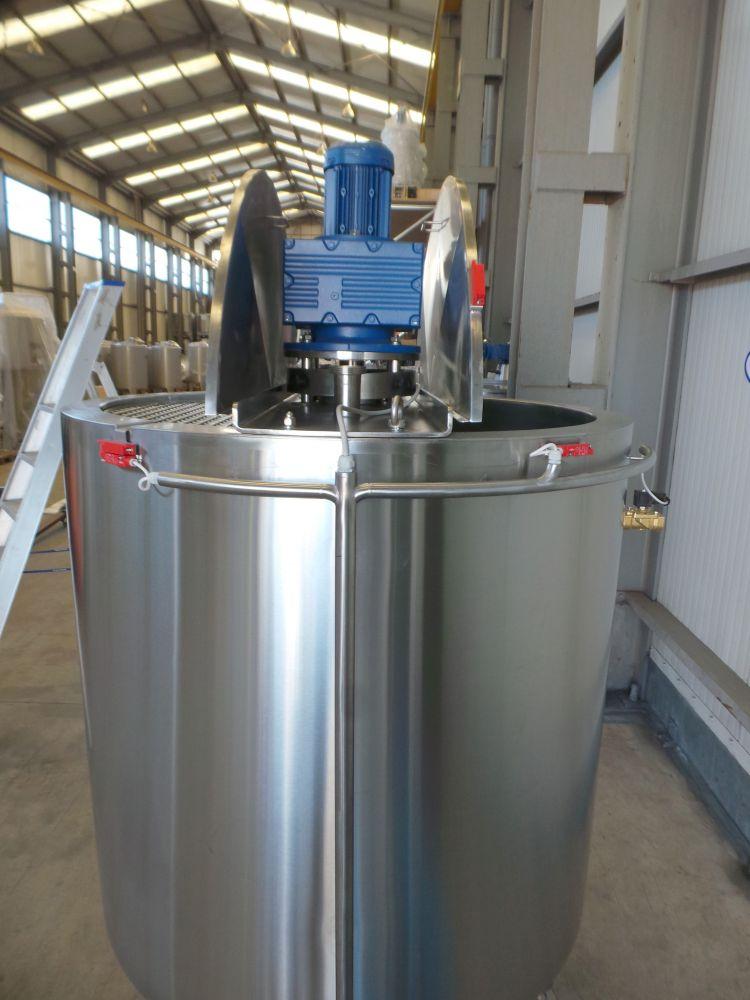

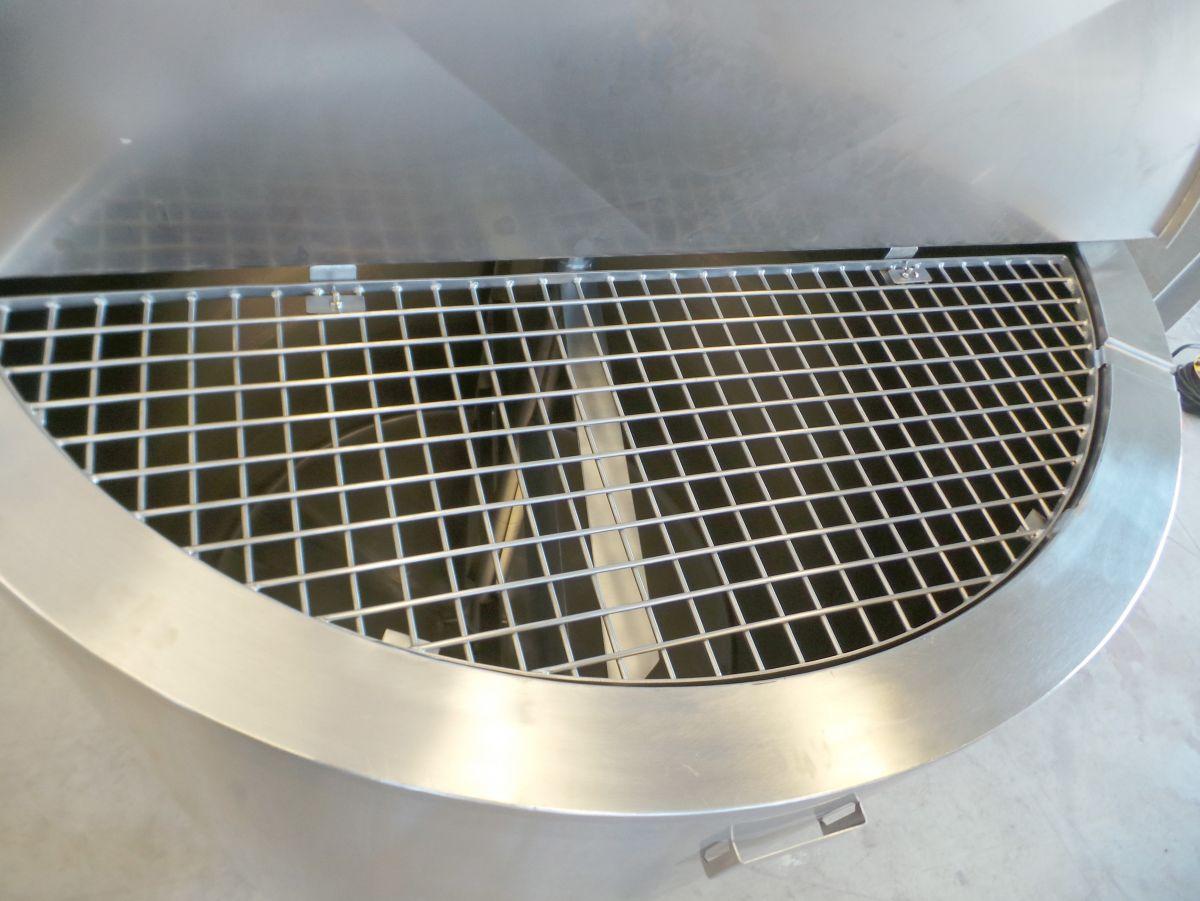

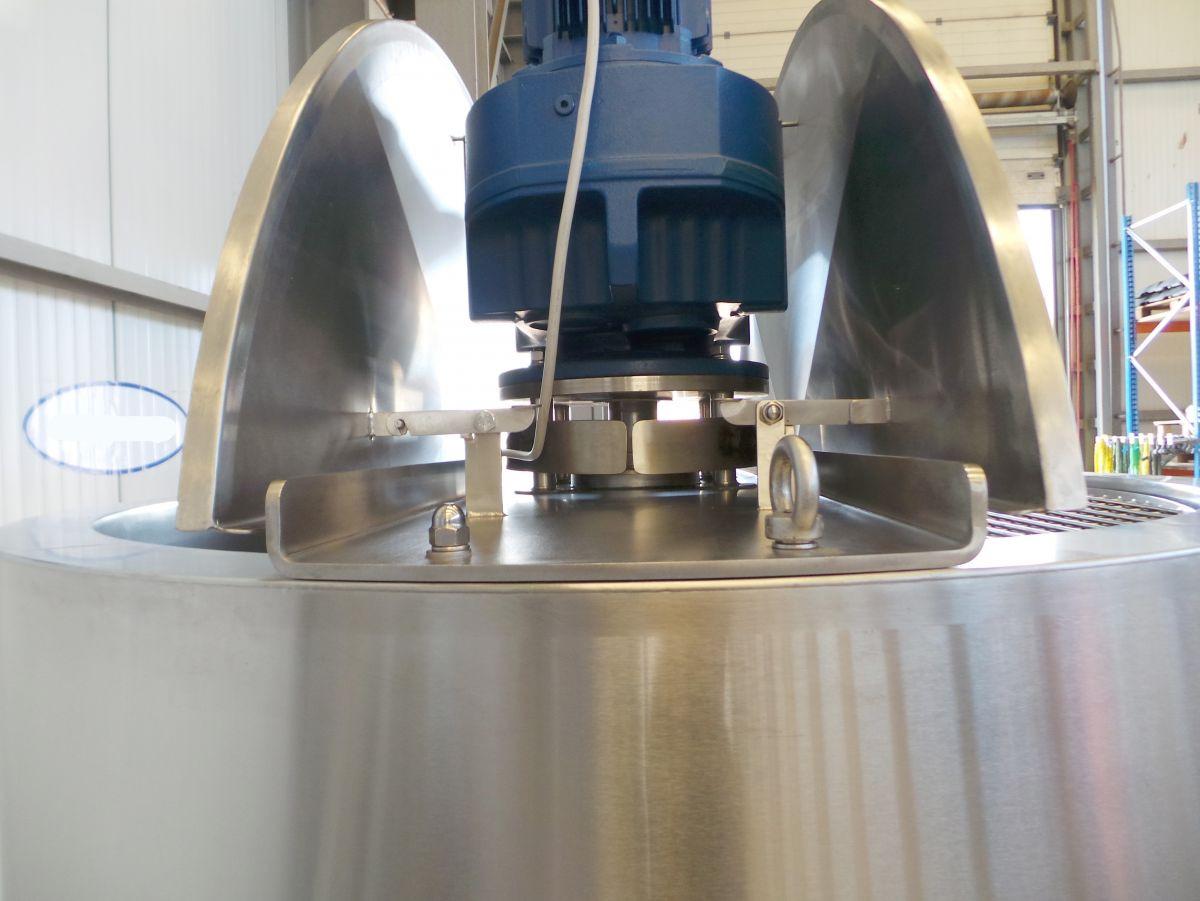

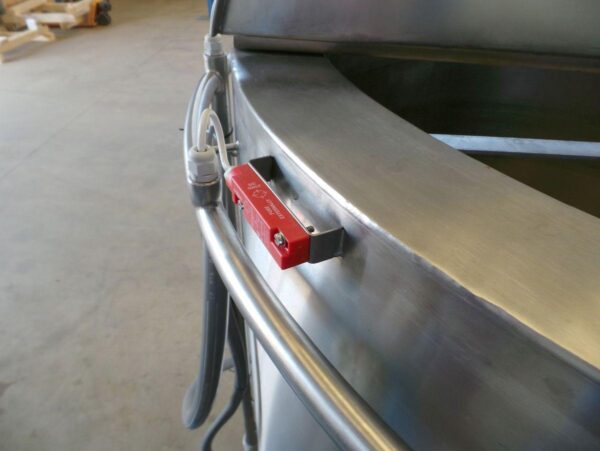

Top type: bridge with 2 lids
Shape of tank: cylindrical

Bottom type: conical 15 °
Total discharge: yes

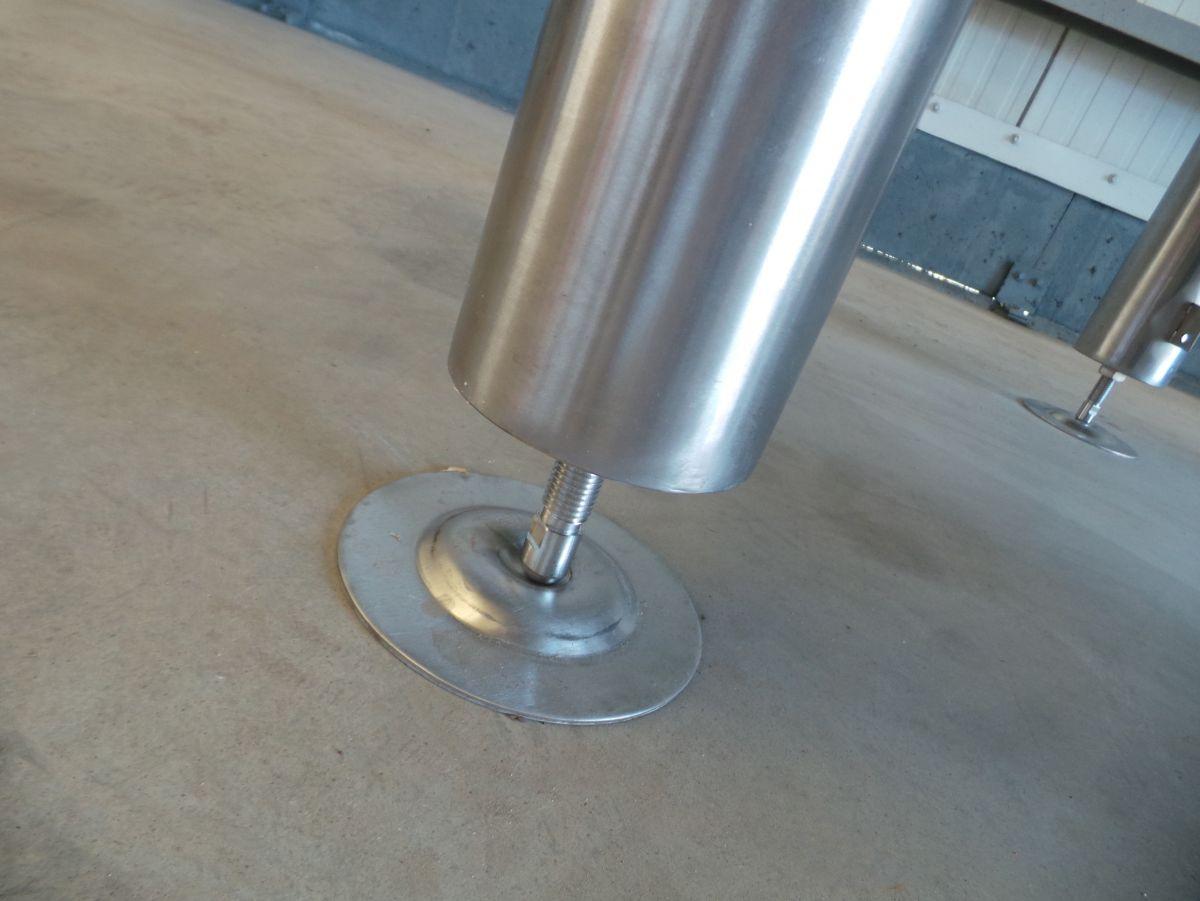

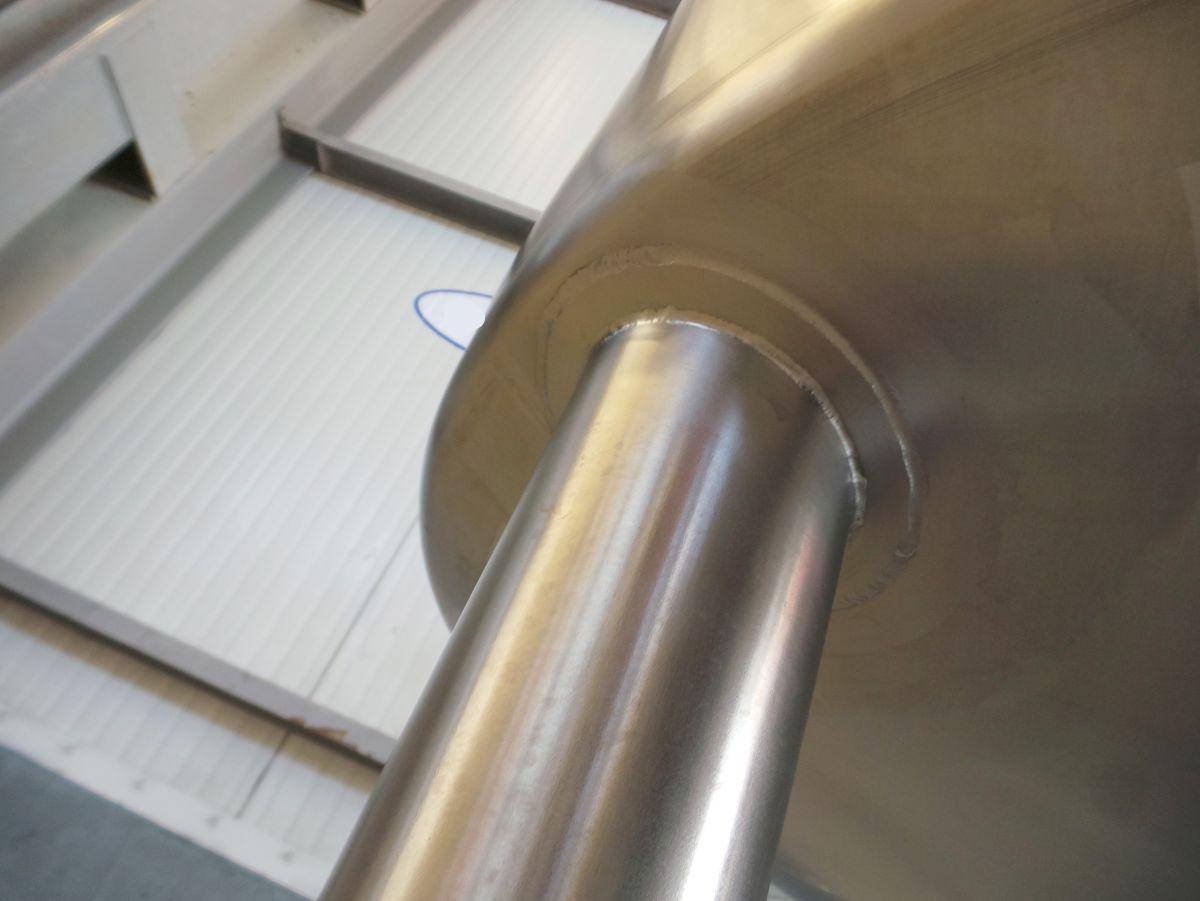

Fixation points: 3 adjustable feet
Legs: Set of baseplates and adjusting pieces included

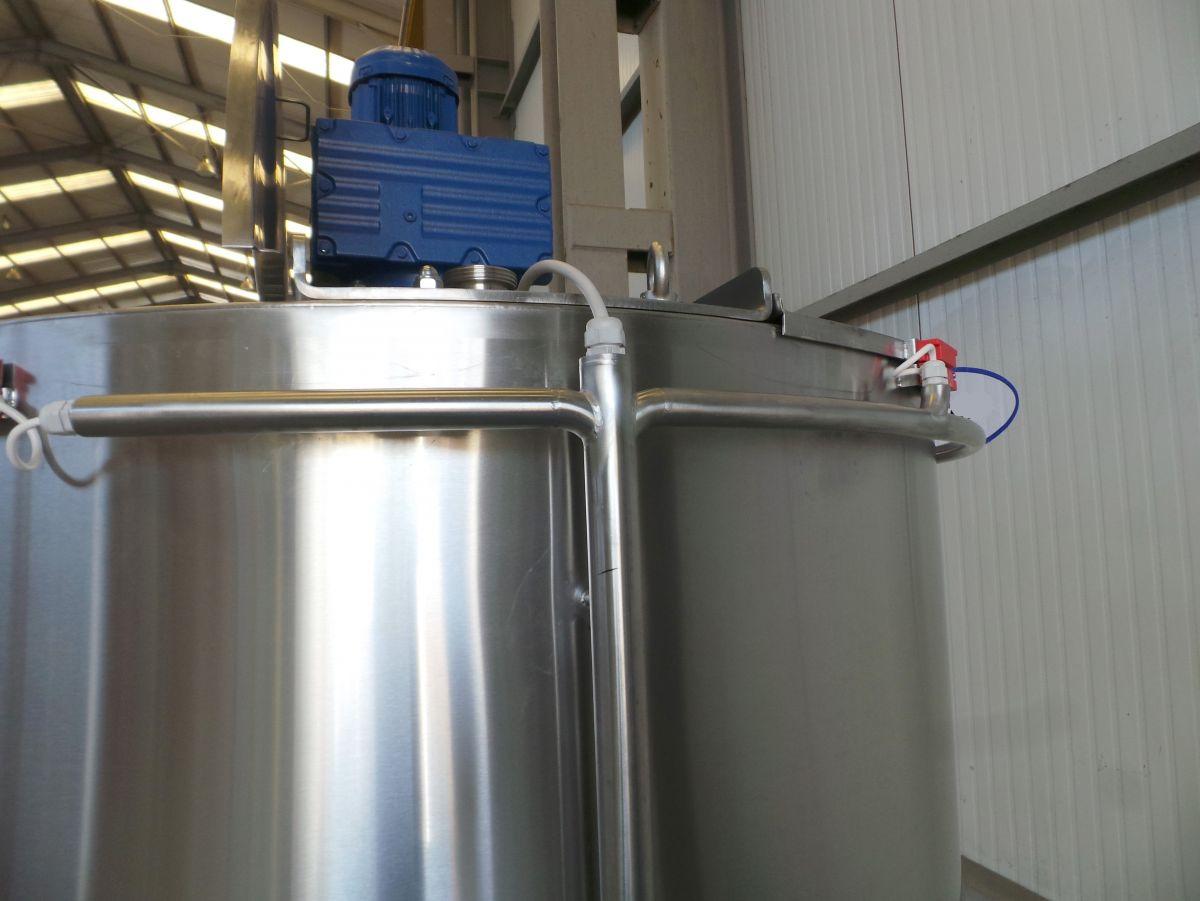

Type of HE on the cylinder: half pipe welded onto the outside of the innertank

Position HE: the complet cilinder
Water pressure HE: 2,50 Bar
Steam pressure HE: 1 Bar
Hydraulic test pressure: 3 Bar
Contact surface cylinder: 2,60 m²

Connection HE: 1″BSP male
Working temperature HE cylinder: 120 °C
Type of HE on the bottom: dimple-jacket
Heat exchanger bottom connected with cylinder: yes
Connection of the bottom to the cylinder: binnen isolatie

Water pressure HE: 2,50 Bar
Steam pressure HE: 1 Bar
Hydraulic test pressure: 3 Bar
Contact surface bottom: 0,60
Total contact surface: 3,20

Connection HE: 1″BSP male
Working temperature HE bottom: 120 °C
Heat exchanger: RVS 304
Outer jacket (ornamental wall): RVS 304
Valve: RVS 316L

Fixation point(s): RVS 304
Suitable for food industry: yes
Documents included: yes, optional
Technical drawing included: yes
Registration plate on the tank: yes

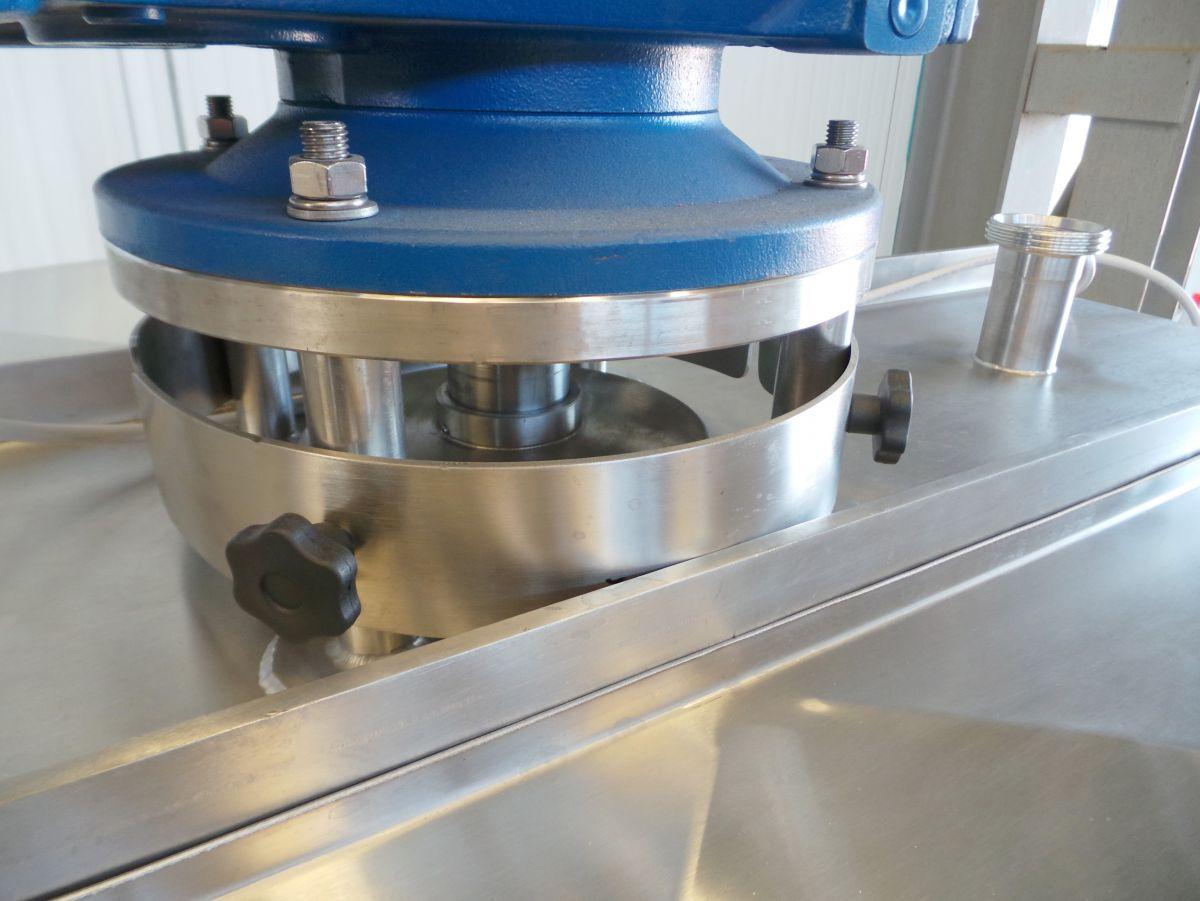

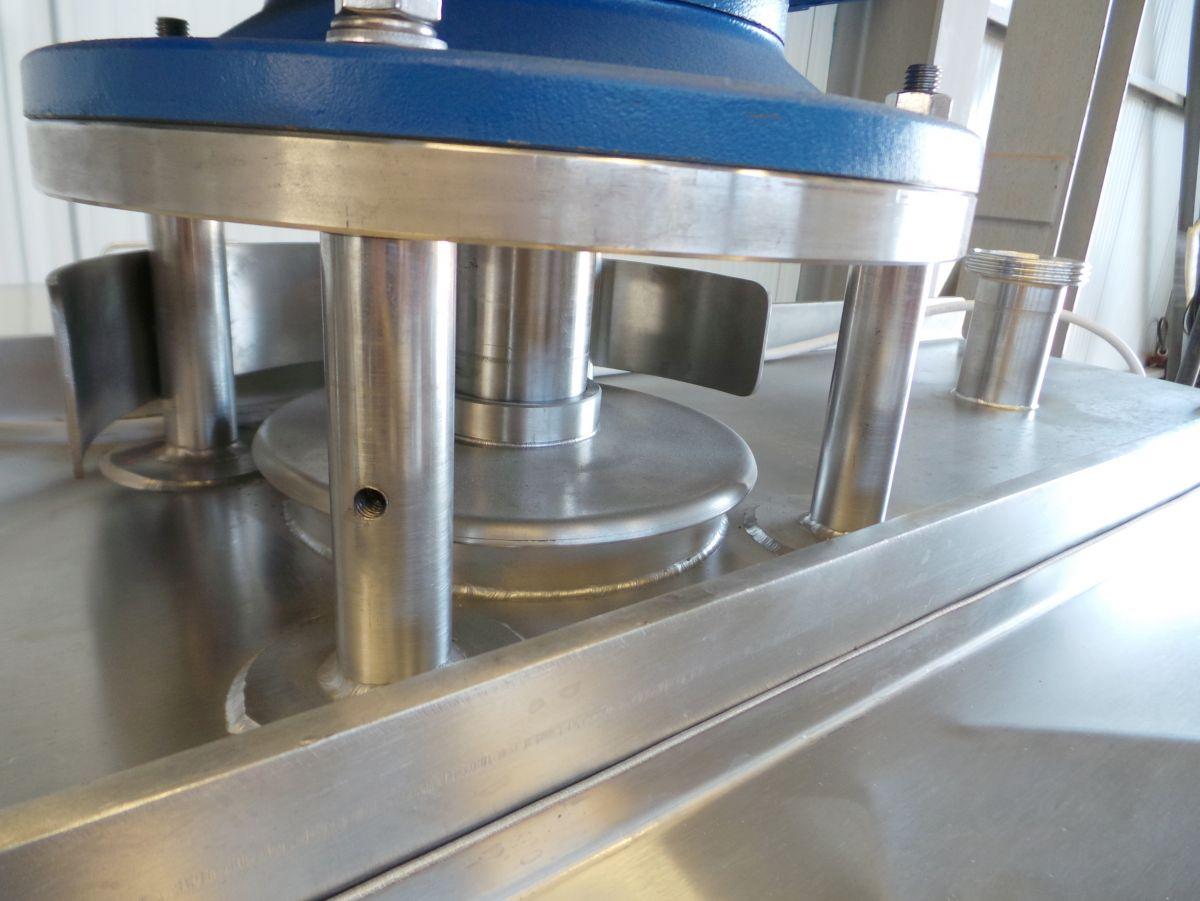

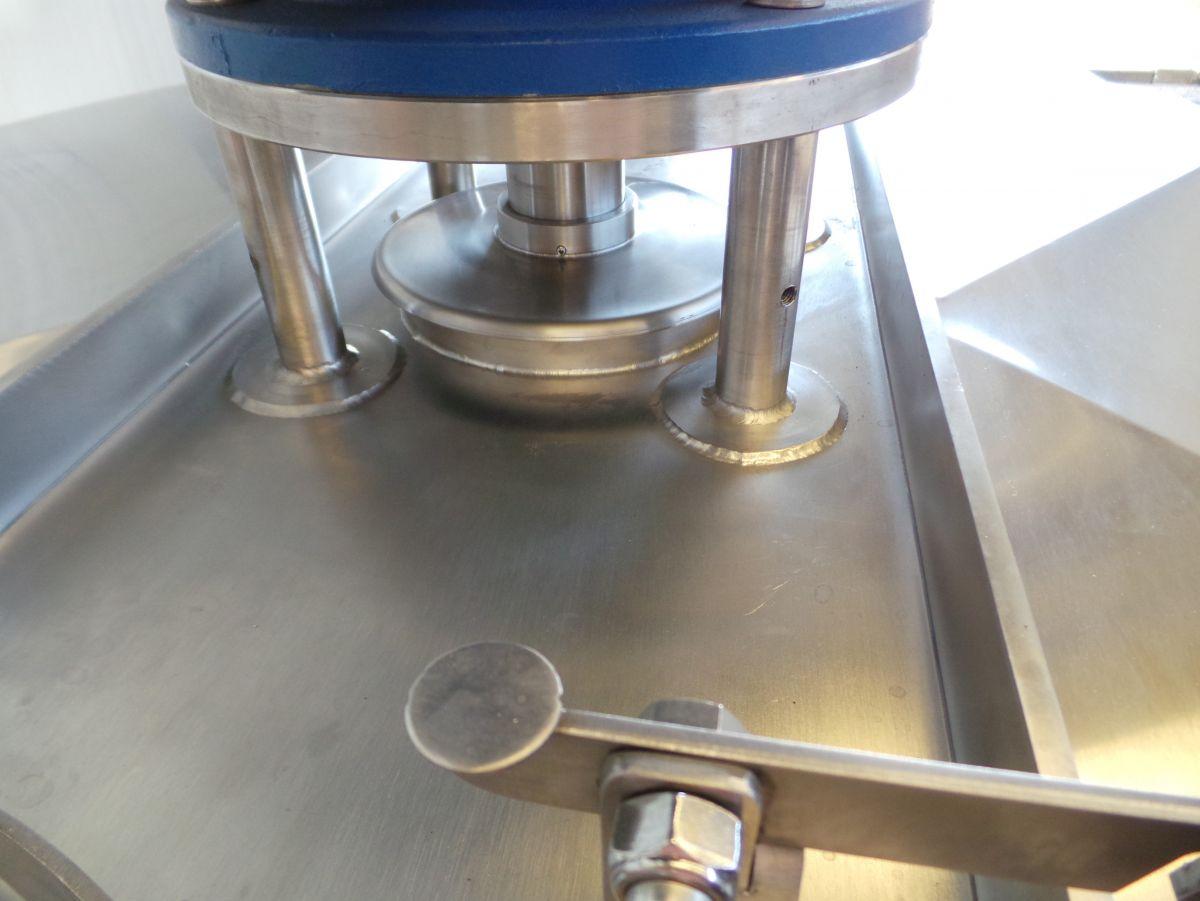

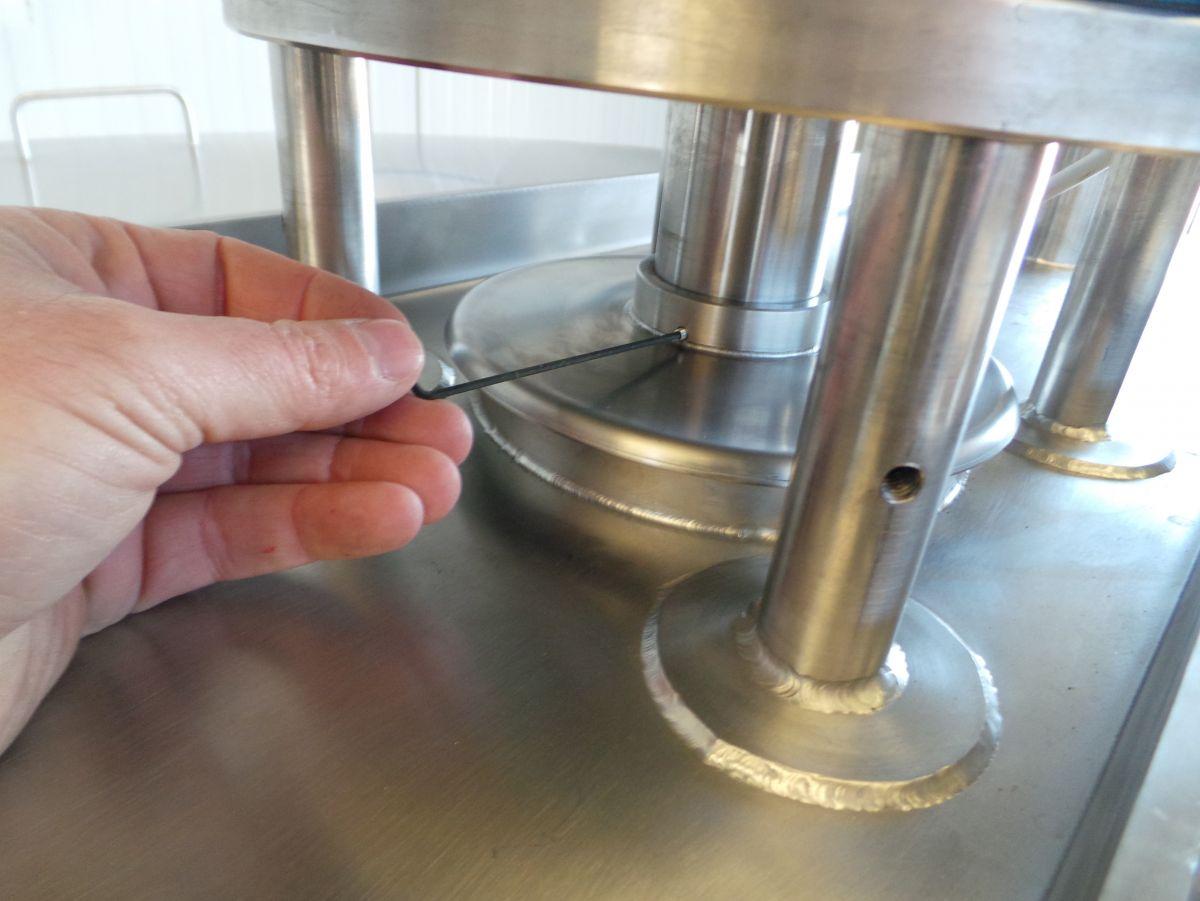

Flange for agitator: yes
Spray ball: no

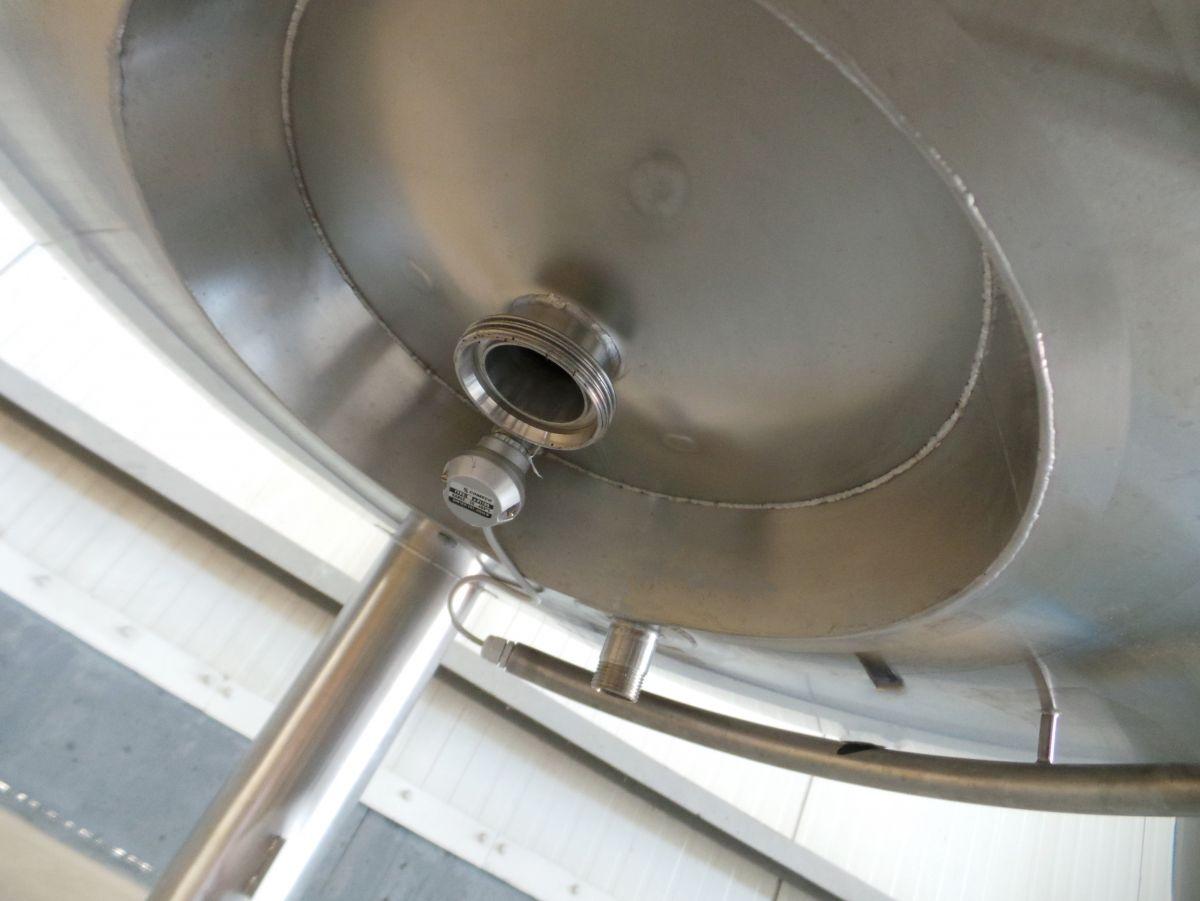

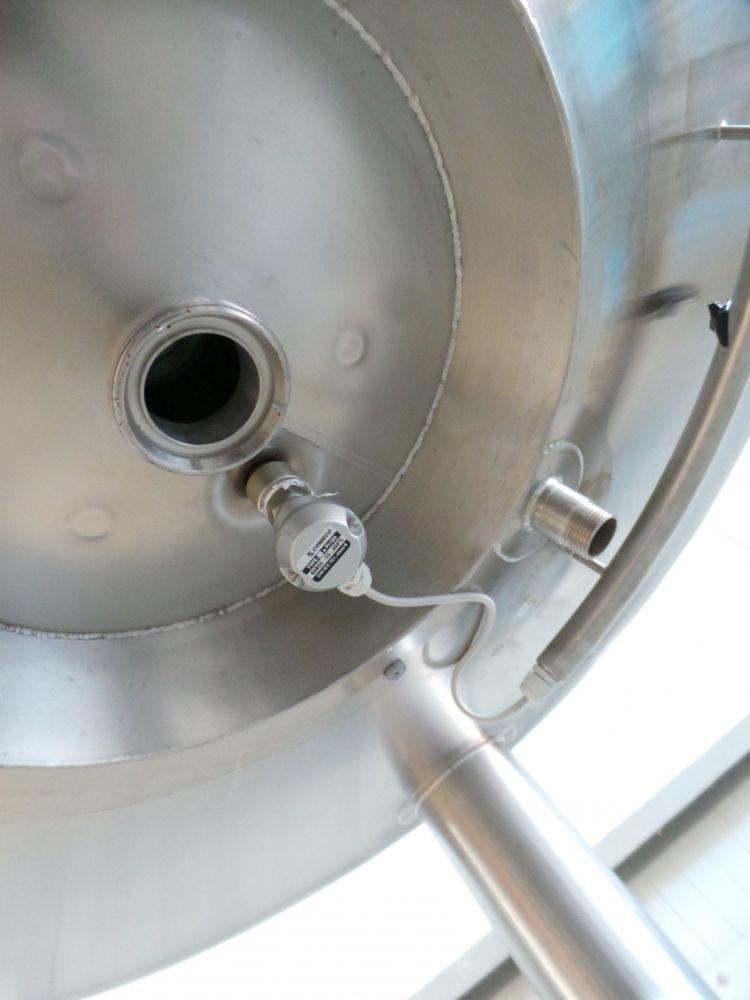

Tank outlet: inside Ø 50 mm
Outlet type: DIN11850
Total outlet valve: yes, optional

Type shut-off valve: butterfly valve
Adjustable legs: yes

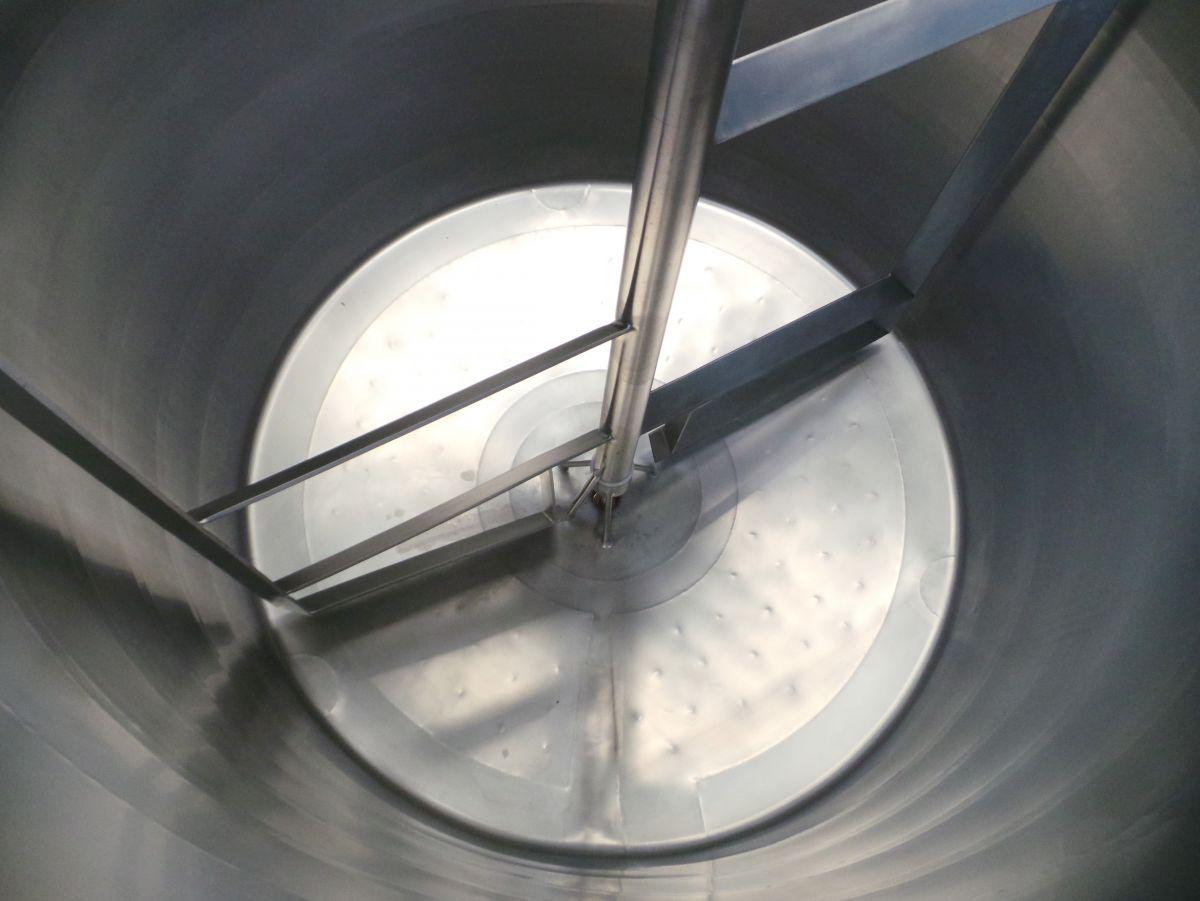

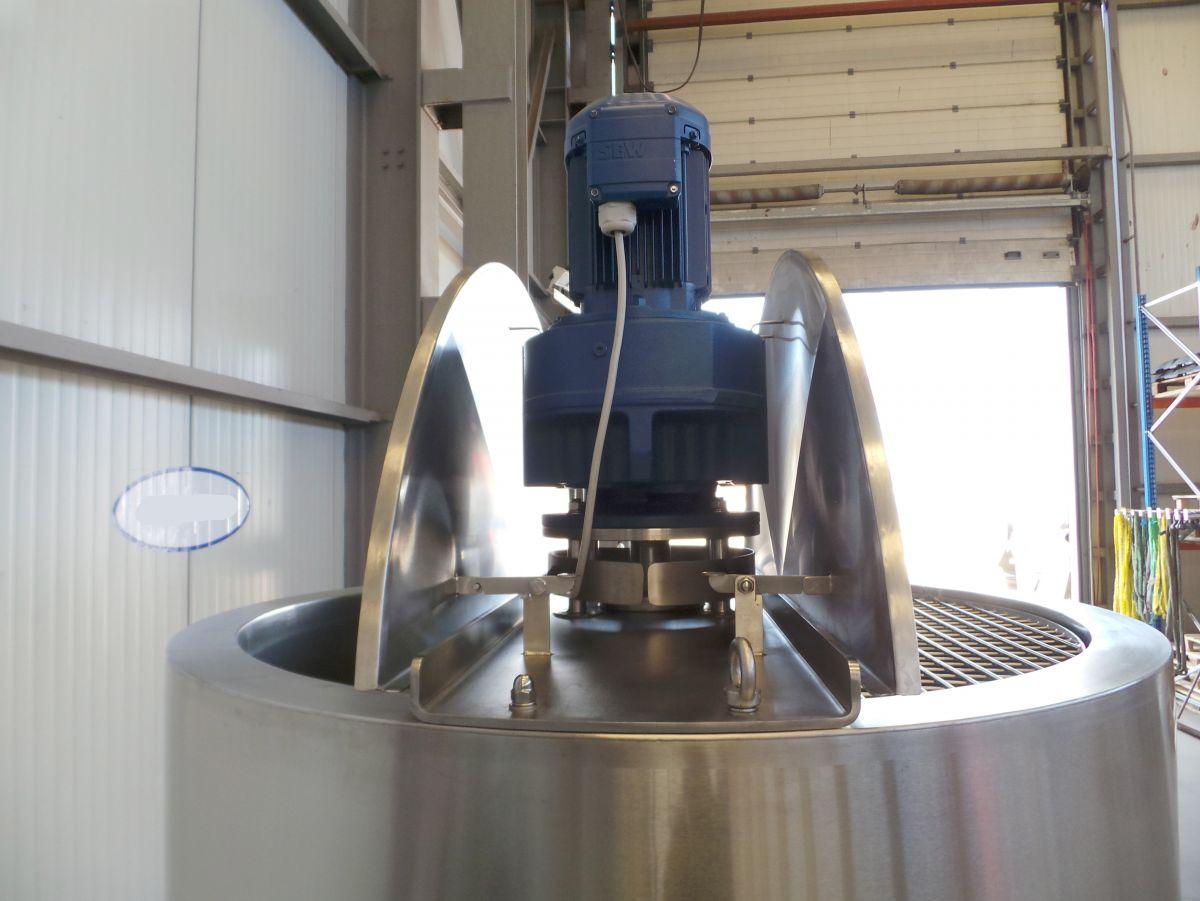

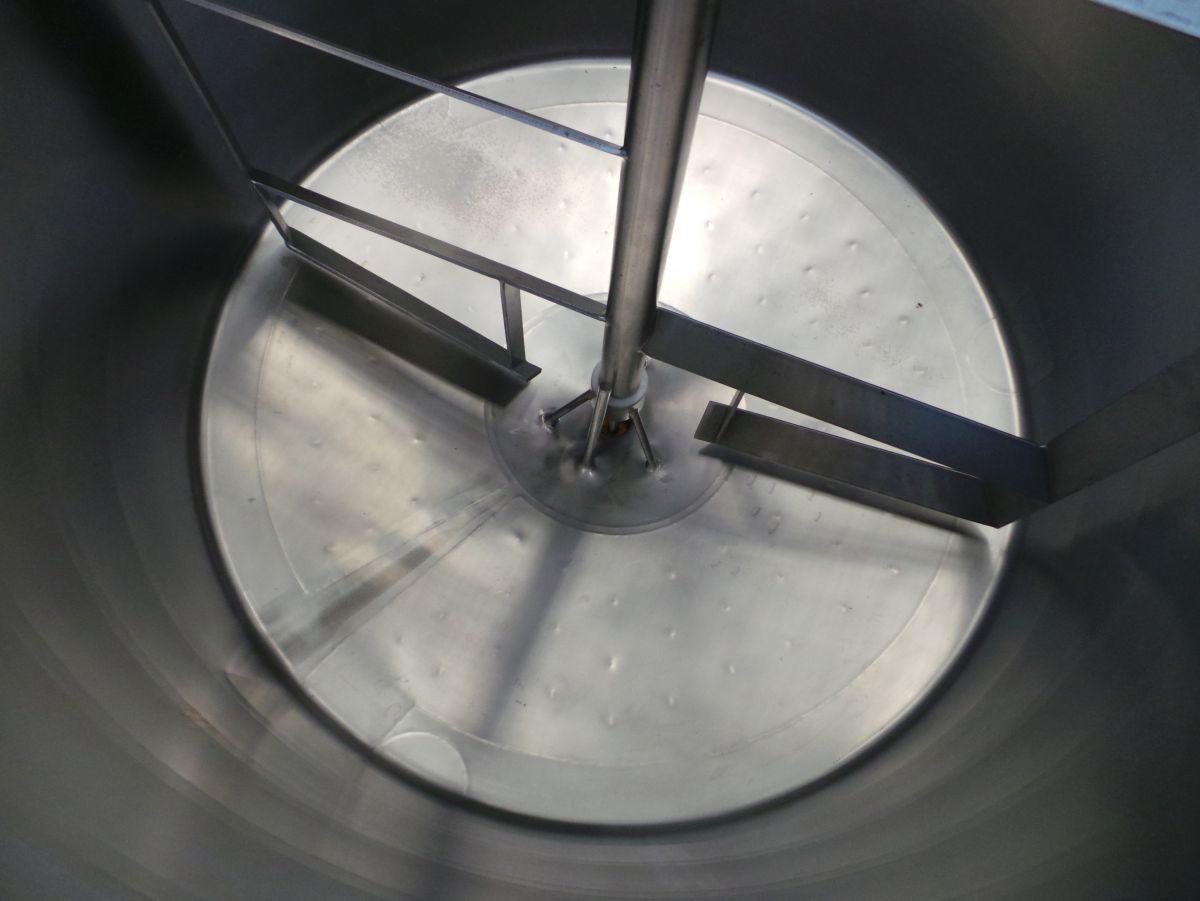

Agitator type: gate

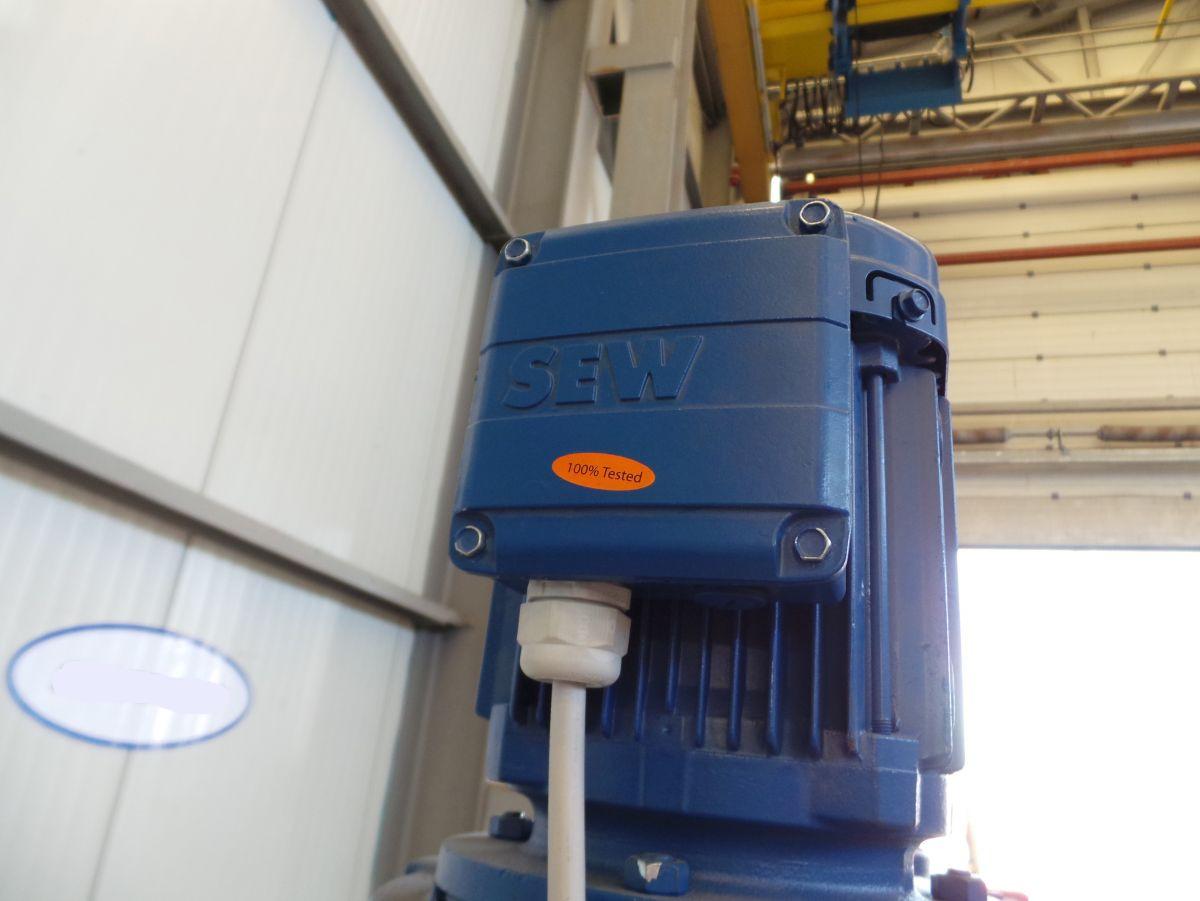

Position engine: at the top
Storage below: yes

Number of revolutions: 11
Power: 2,20
Voltage: three-phase
Top: 2 mm
Cylinder: 3 mm

Bottom: 3 mm
Internal diameter tank: 1.233 mm
Distance from outlet to ground: 350 mm
Outer diameter tank: 1.395 mm
Total height of tank: 2.567 mm

Empty weight tank: 650
