1000 liter i Rostfritt 304

item available on order

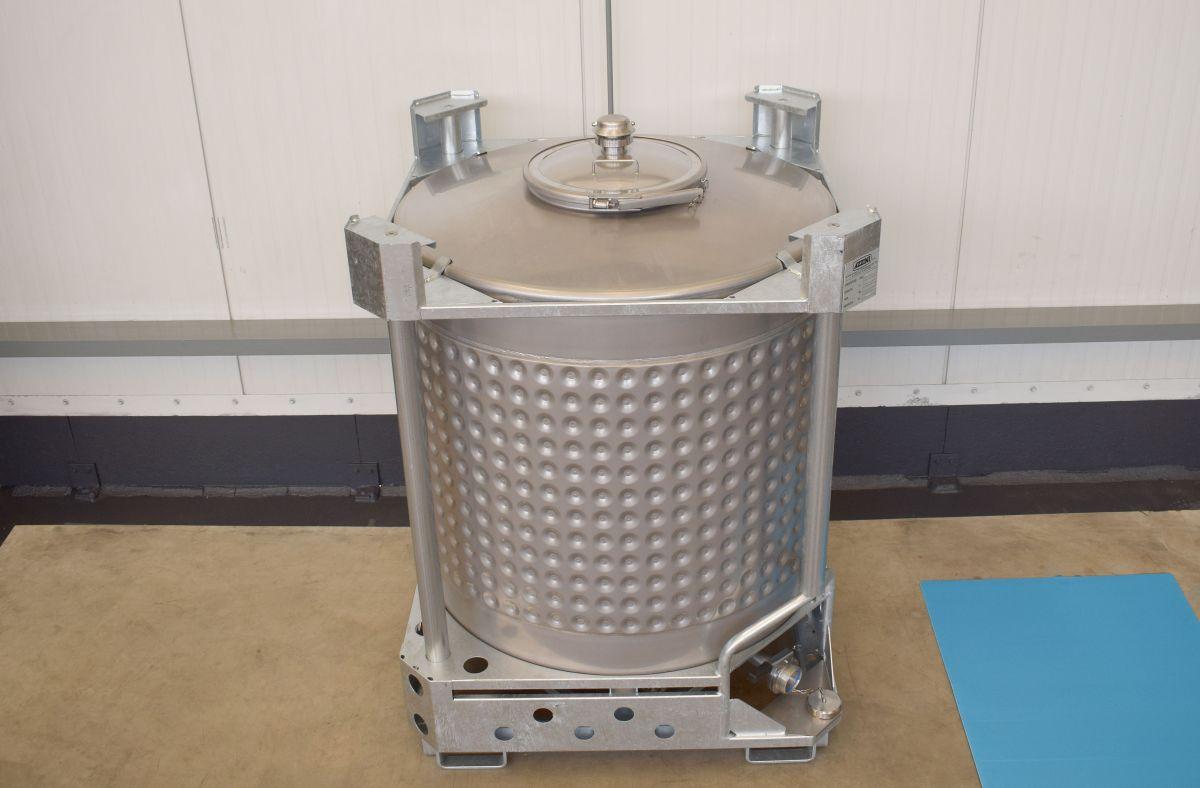

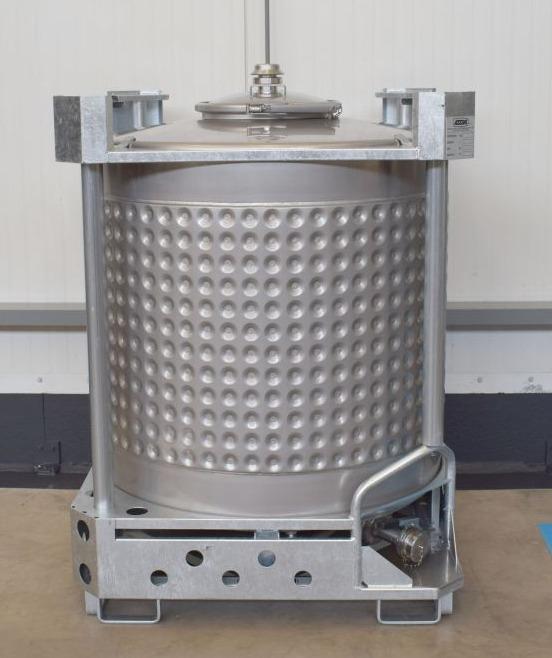

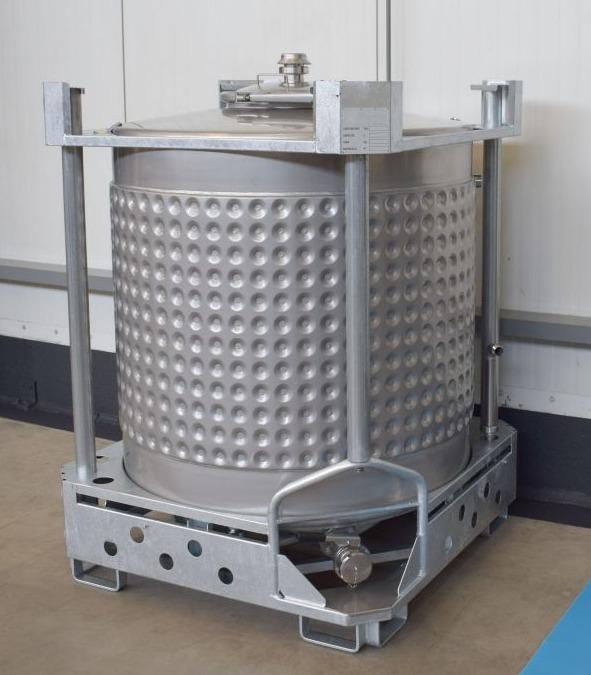

Article type: brand new transport tank – type IBC-PL
Capacity: 1.000 L
Maximal density of the product: 1.400
Ra inner weld: 0,80
Finish stainless steel: 2b

Working pressure in tank: ATM – atmosferic
Overpressure: 0,15 Bar
Max. working temperature: 100 °C
Material wet parts: SS AISI 304L (V2A)
Model: vertical

Configuration: single jacketed with heat-exchanger
Heat exchanger: yes
Insulation: no
Agitator: yes, optional
Mobile tank: no

Top type: dished
Shape of tank: cylindrical

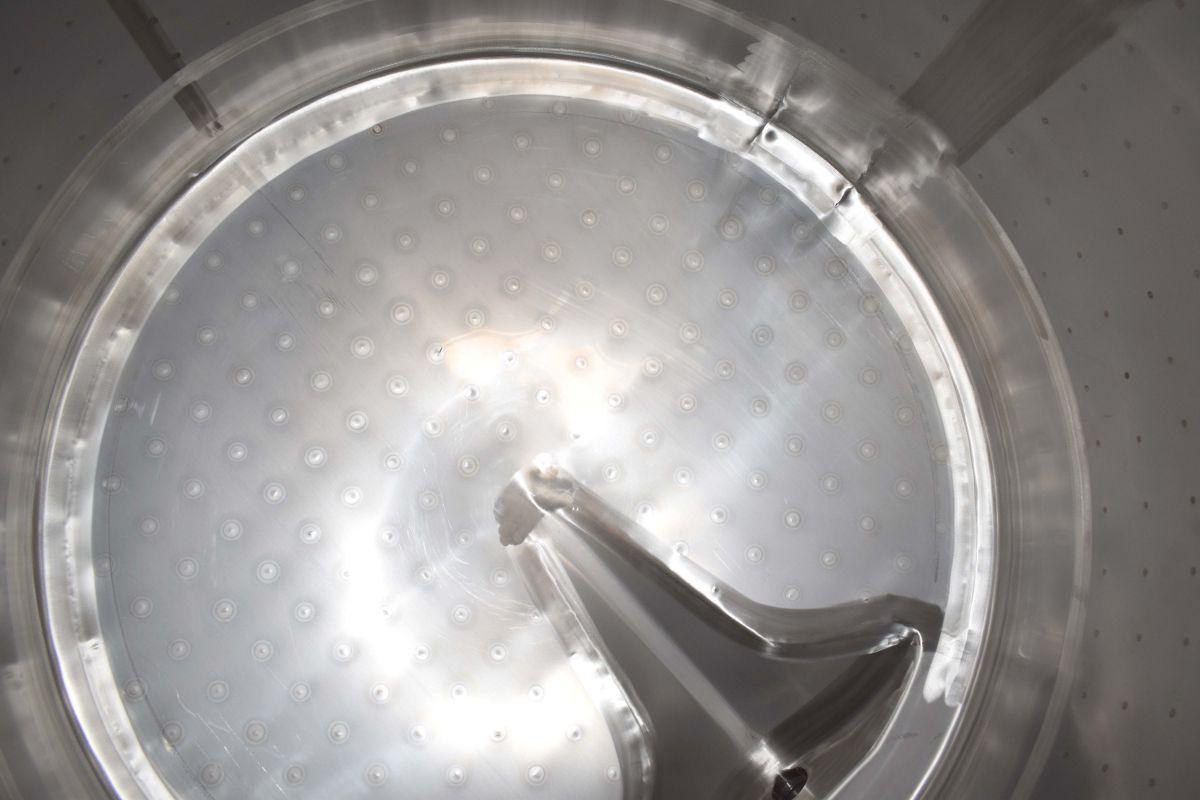

Bottom type: flat sloping
Wall type: flat
Total discharge: yes

Fixation points: 4 stackable frame

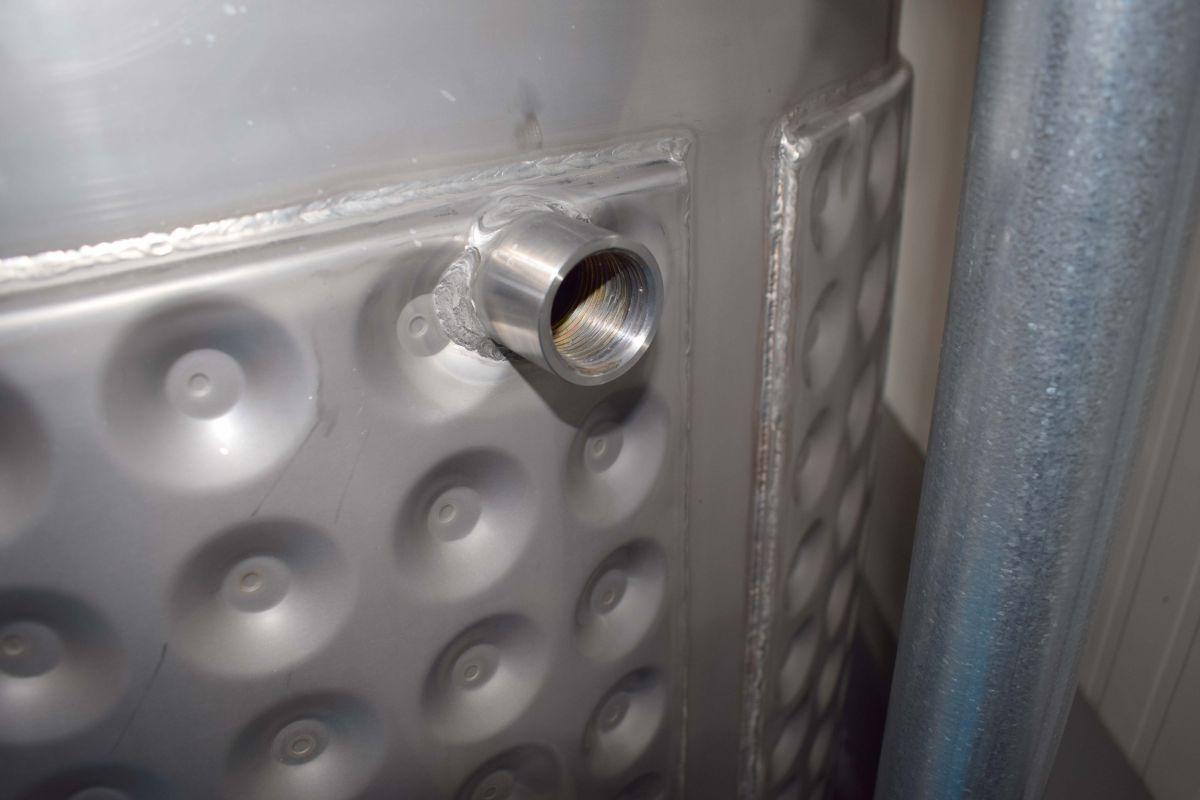

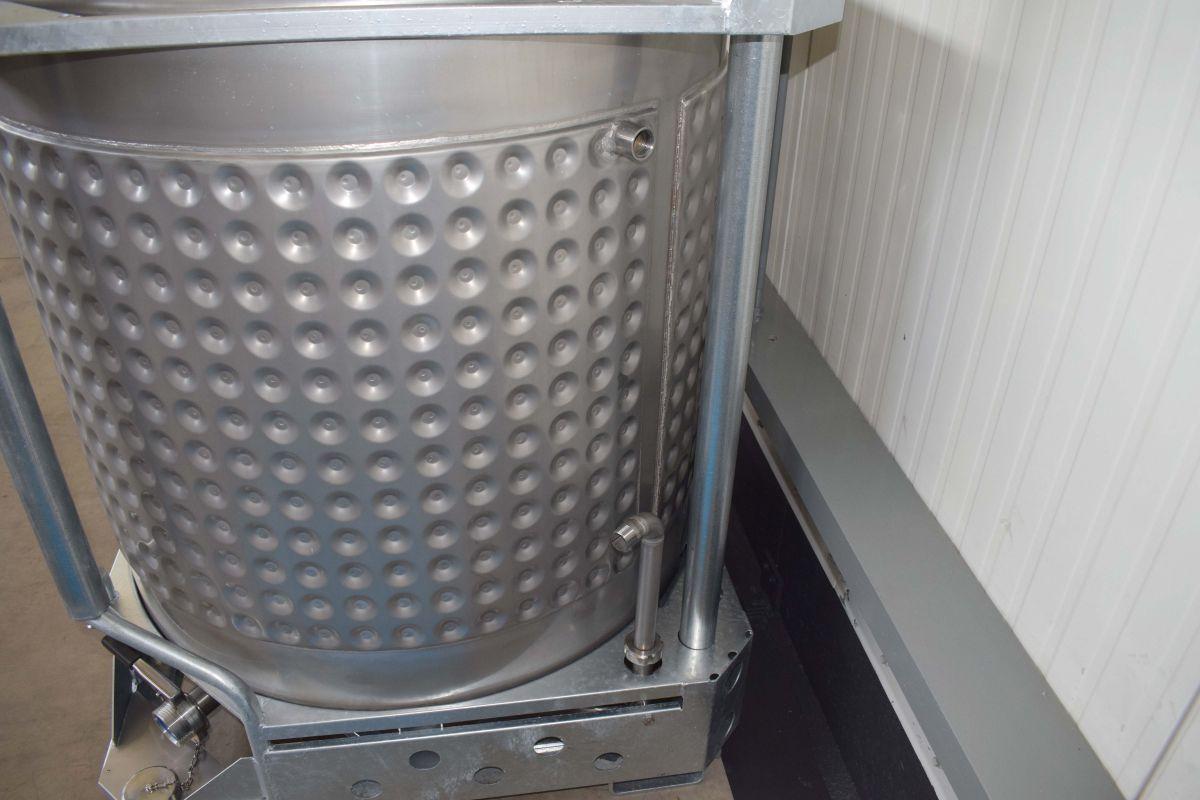

Type of HE on the cylinder: dimple-jacket
Position HE: the complet cilinder
Water pressure HE: 2,50 Bar
Working temperature HE cylinder: 80 °C

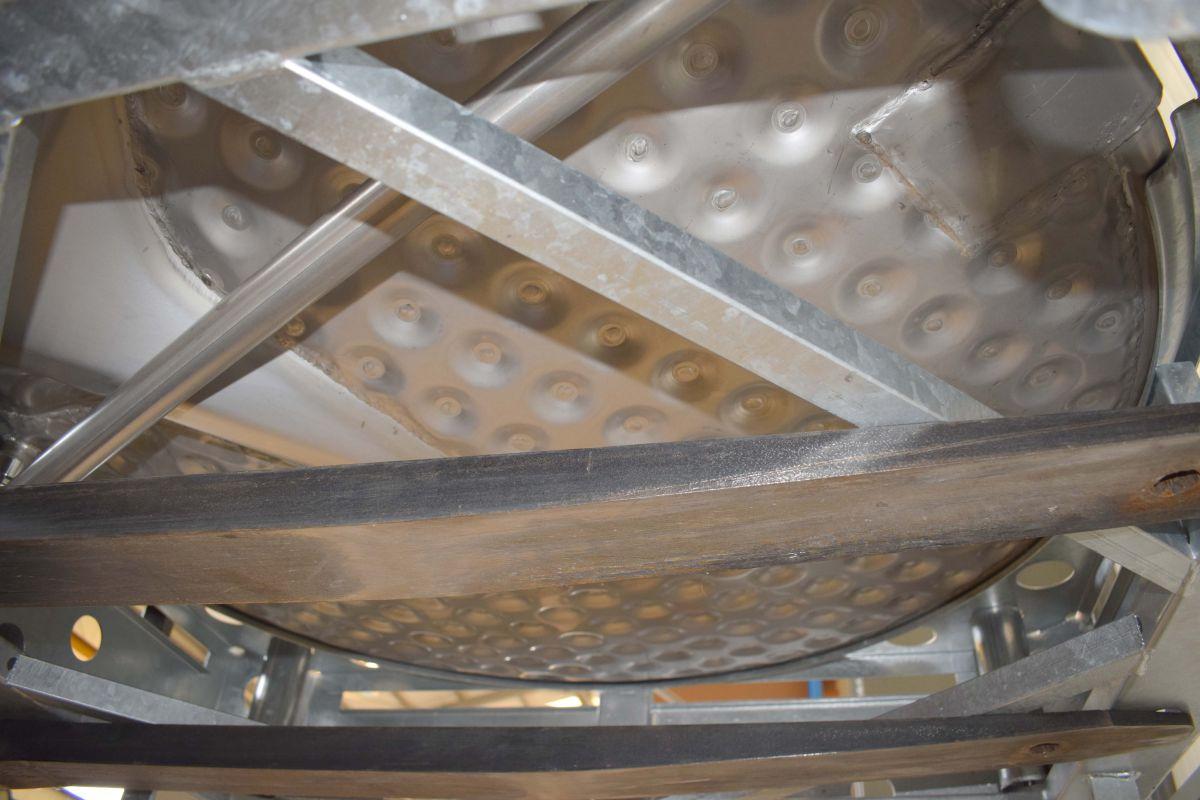

Type of HE on the bottom: dimple-jacket
Water pressure HE: 2,50 Bar
Working temperature HE bottom: 80 °C
Heat exchanger: RVS 304
Manway(s): RVS 304

Gasket manway(s): EPDM
Valve: RVS 304
Gasket shut-off valve (mat): EPDM
Fixation point(s): galvanised steel
Suitable for food industry: yes

Documents included: yes, optional
Technical drawing included: yes
Registration plate on the tank: yes
Flange for agitator: no

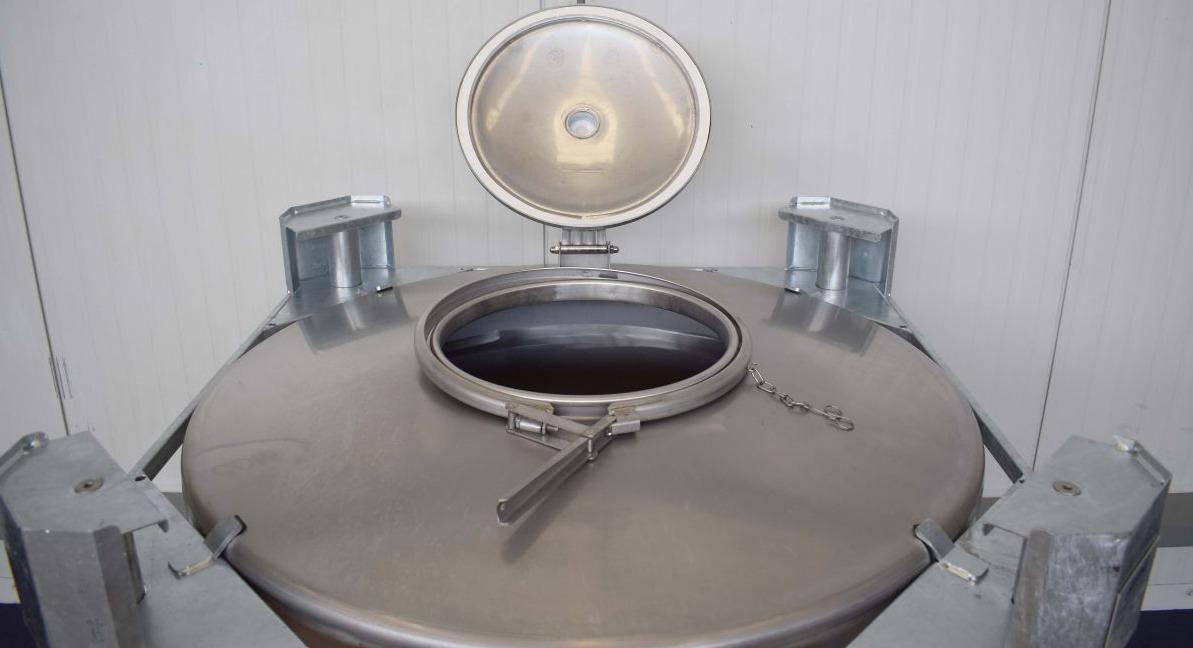

Number of manways: 1

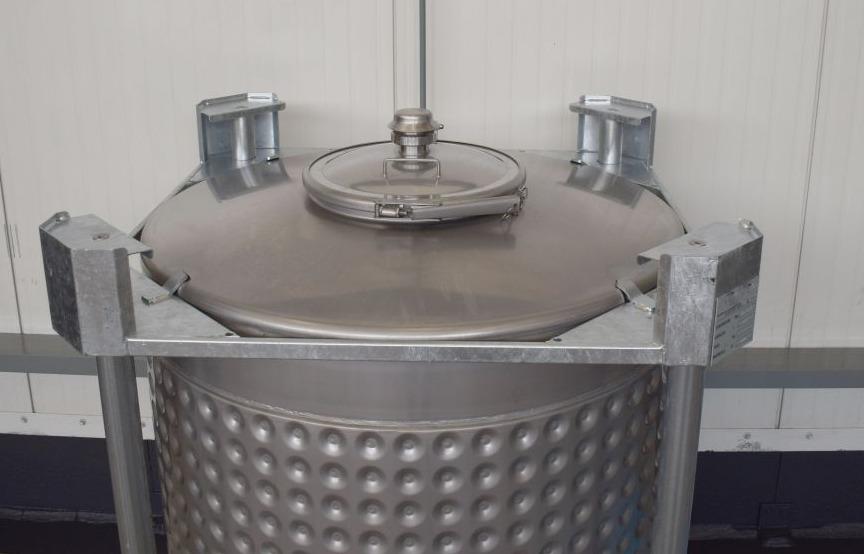

Position manway: at the top
Manway 1: 400 mm

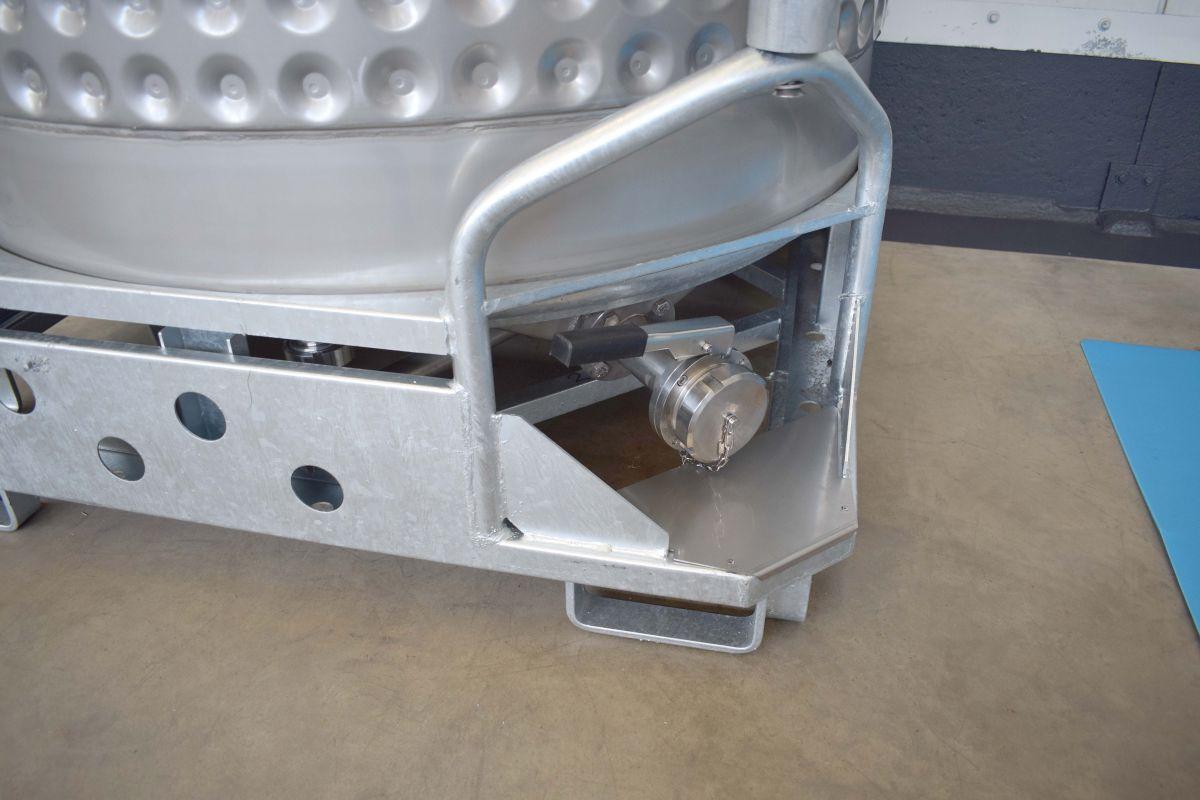

Tank outlet: inside Ø 50 mm
Outlet type: DIN11851 male
Total outlet valve: yes

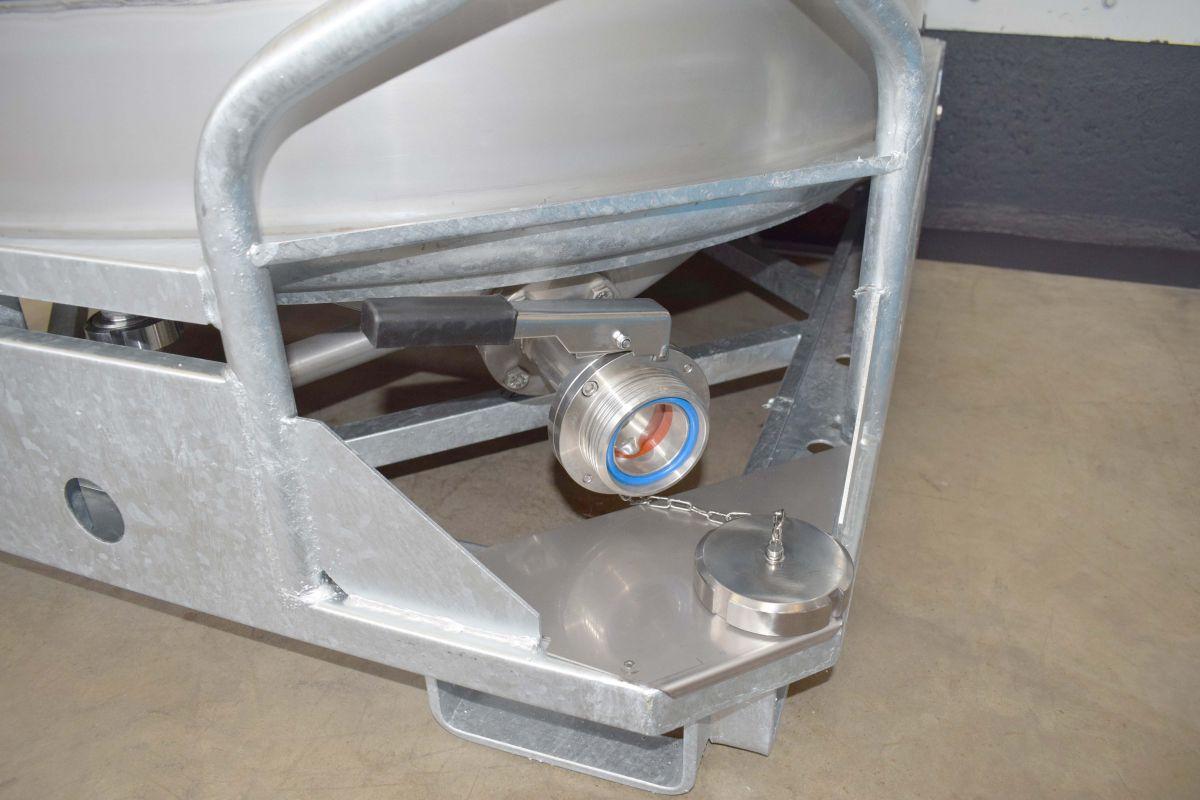

Type shut-off valve: butterfly valve
Distance from outlet to ground: 240 mm
Outer diameter tank: 1.000 mm
Cylinder height: 1.000 mm
Total height of tank: 1.542 mm

Total outer width: 1.121 mm
Total outer length: 1.121 mm
Empty weight tank: 165
