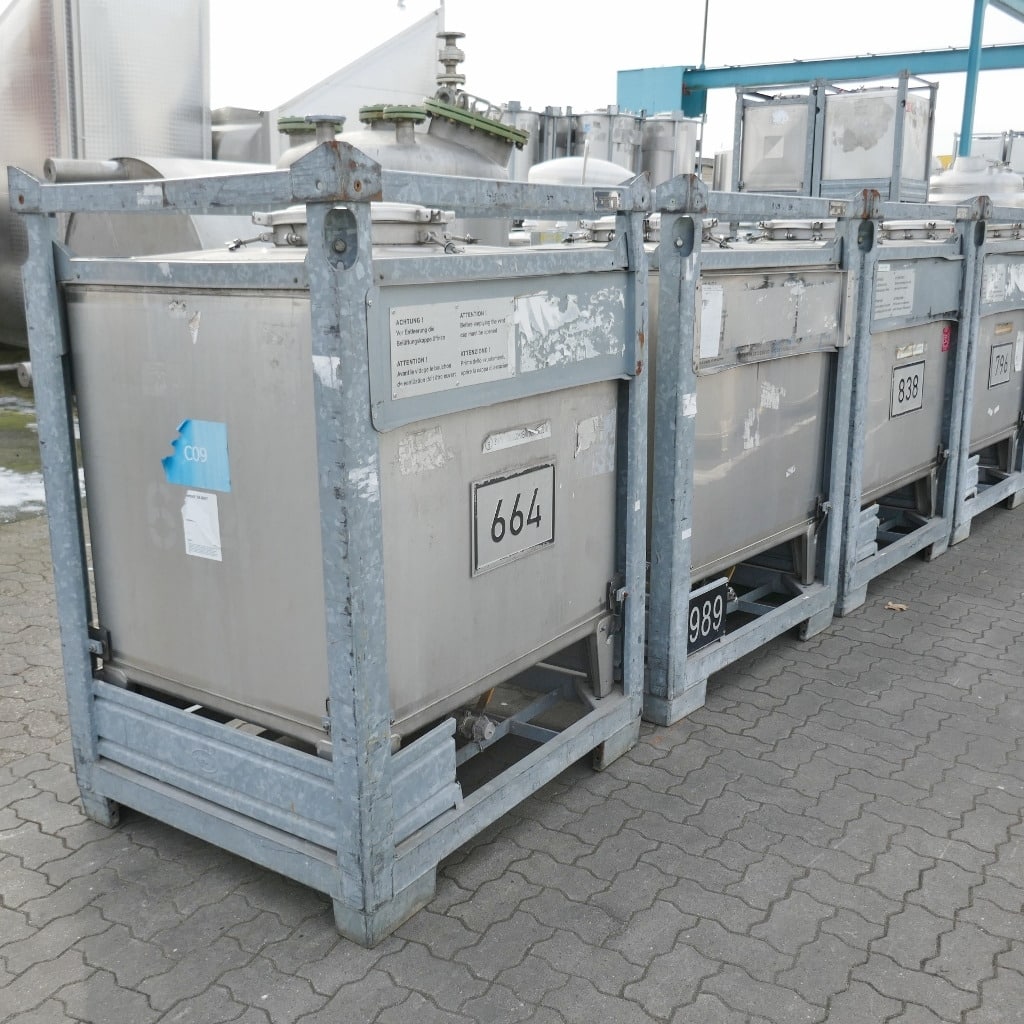

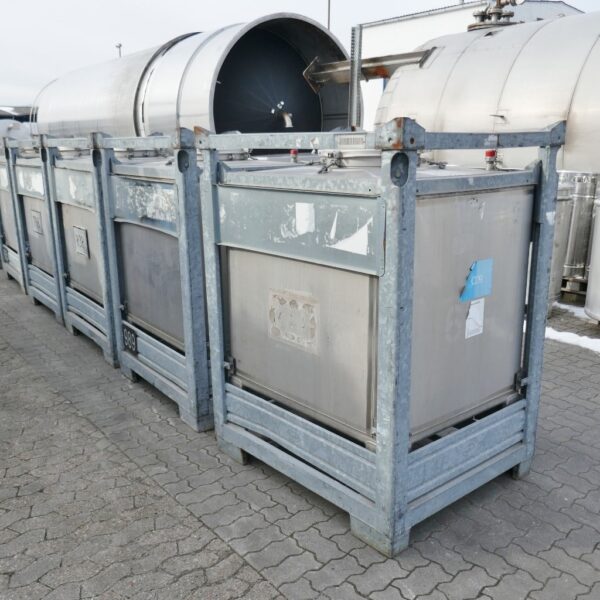

1000 liter tank i Rostfritt 304

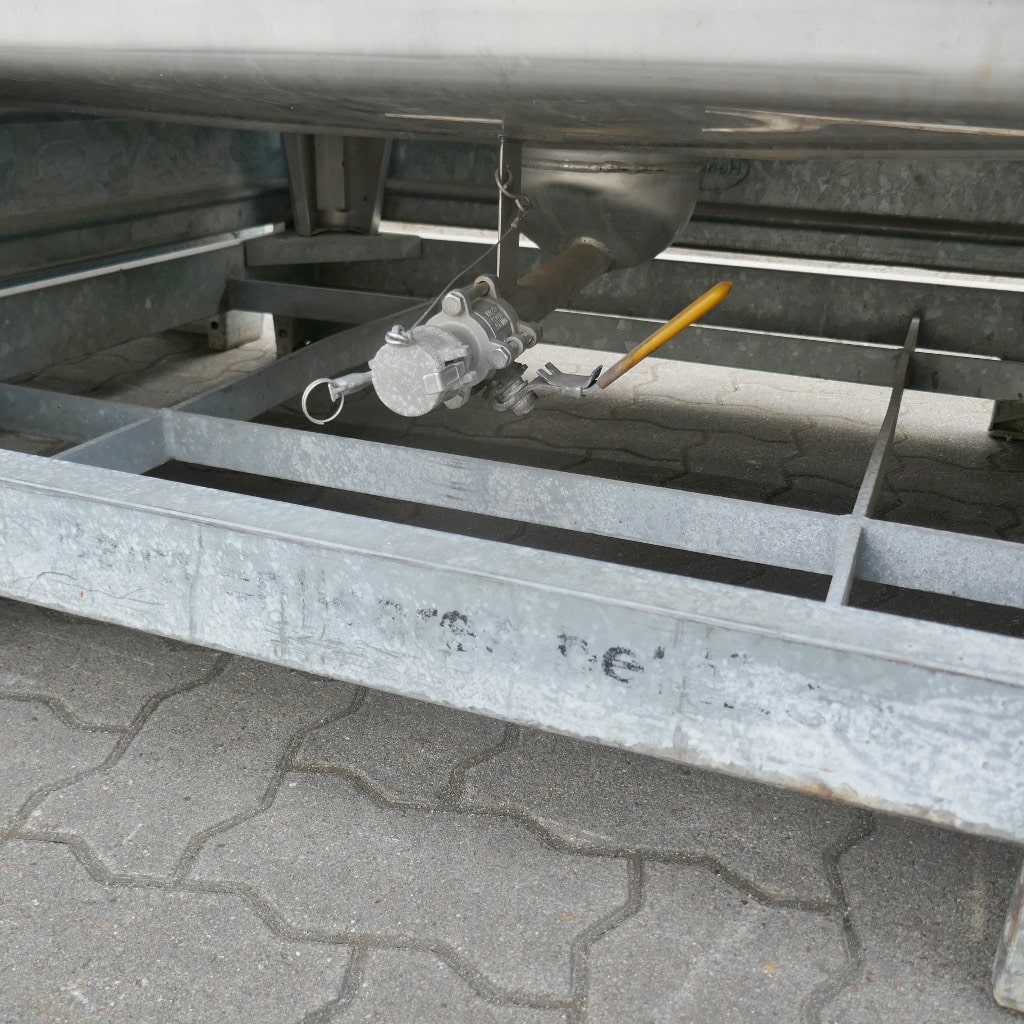

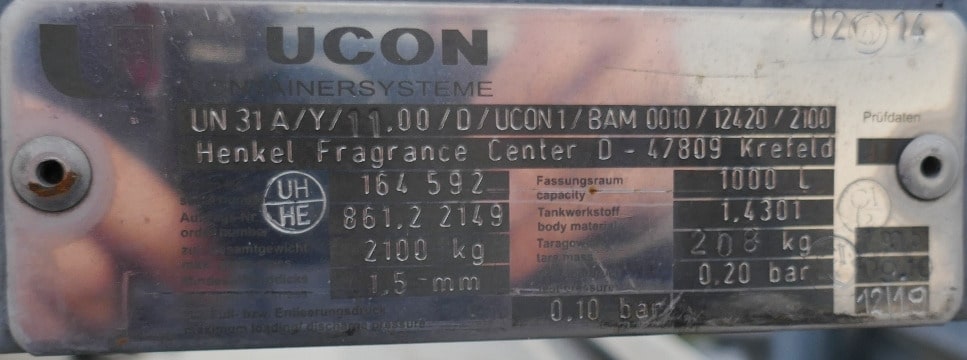

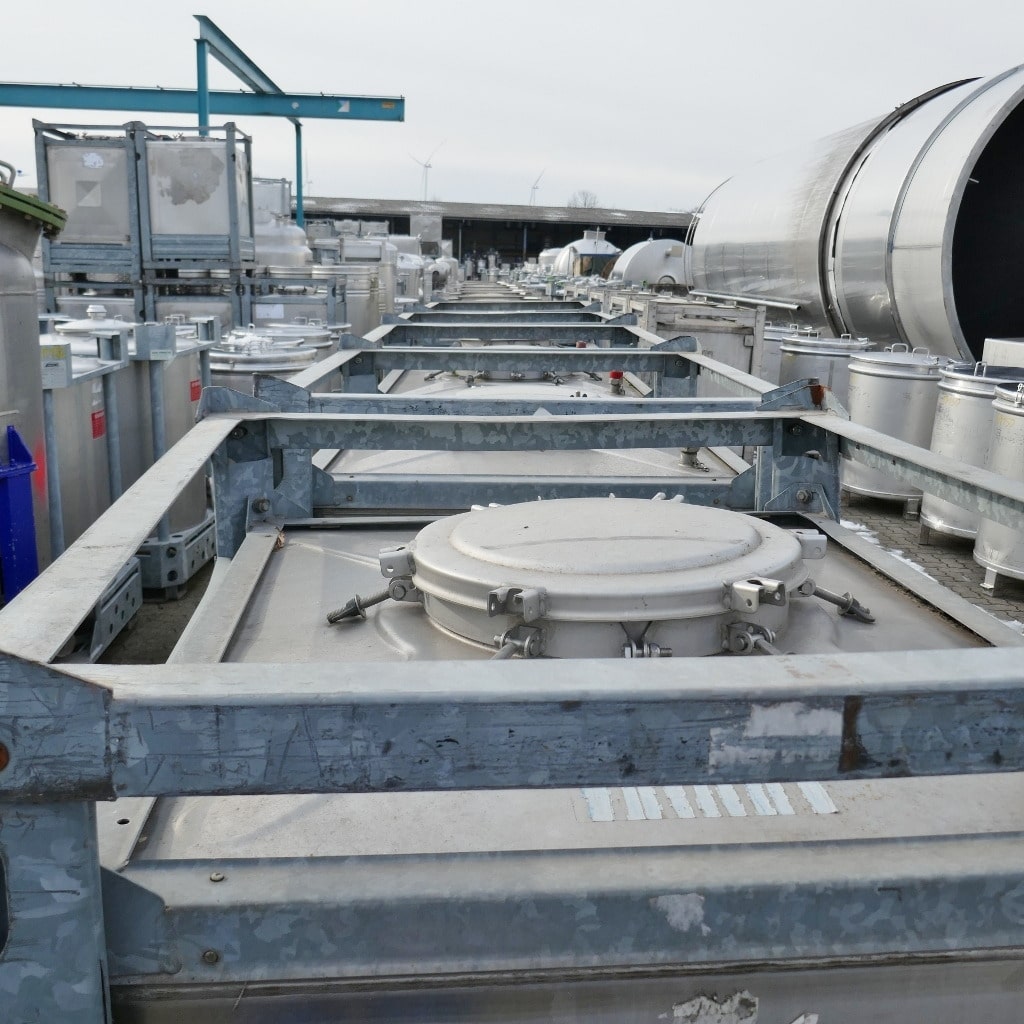

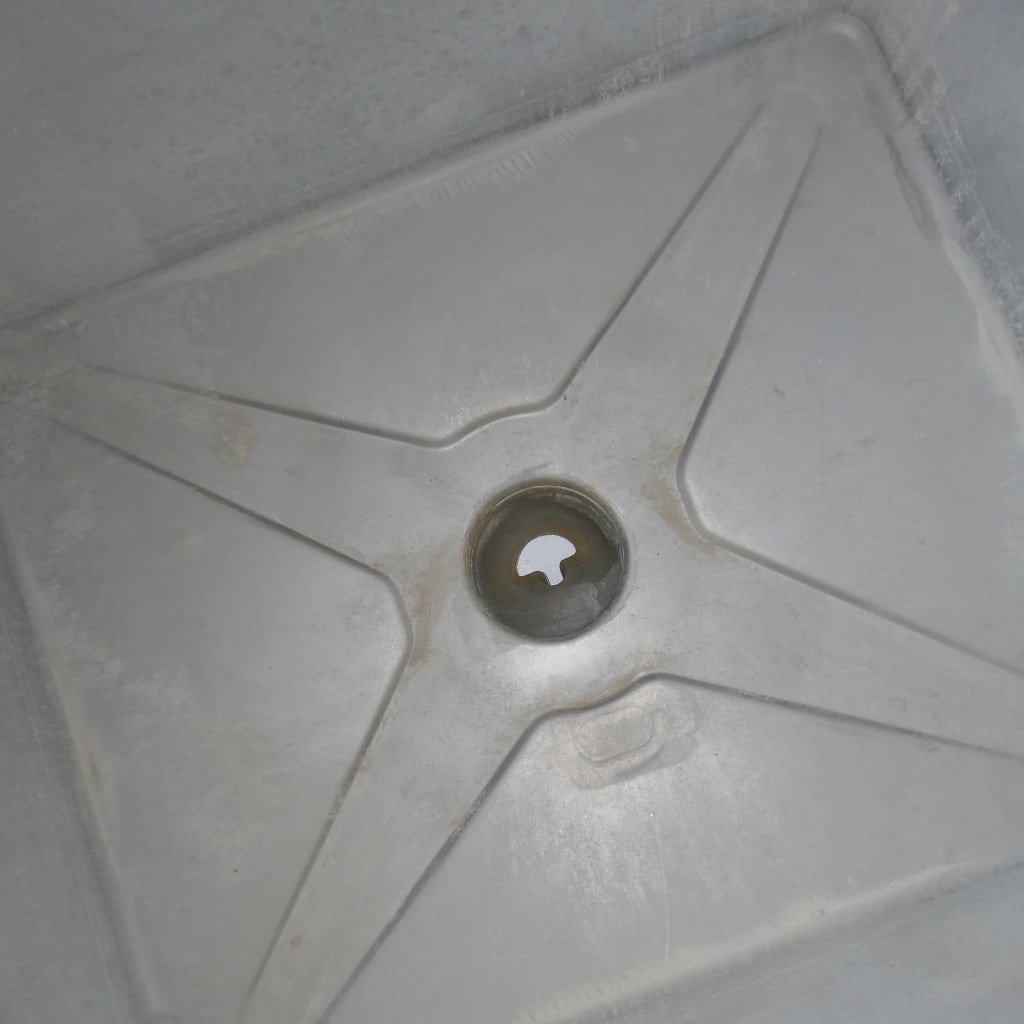

Additional information: Flavors / fragrances; Frame, Fe (galvanized); some residues of previous content; traces of usage Volumetric volume (L): 1.000 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: headside Outlet of tank: 22 Total height of tank: 1.630 mm Total outer width: 1.220 mm Total outer length: 1.020 mm
