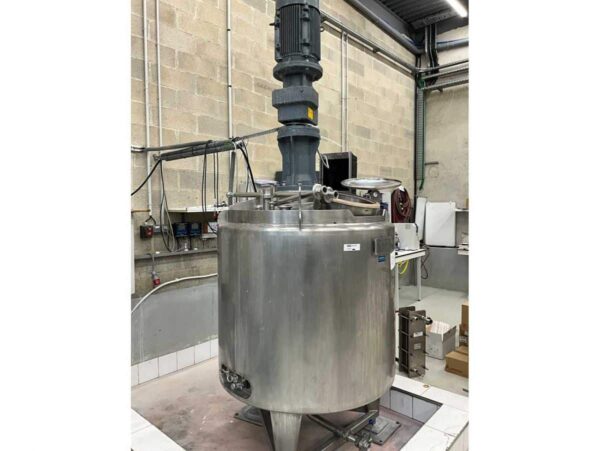

1000 liter tank i Syrafast 316

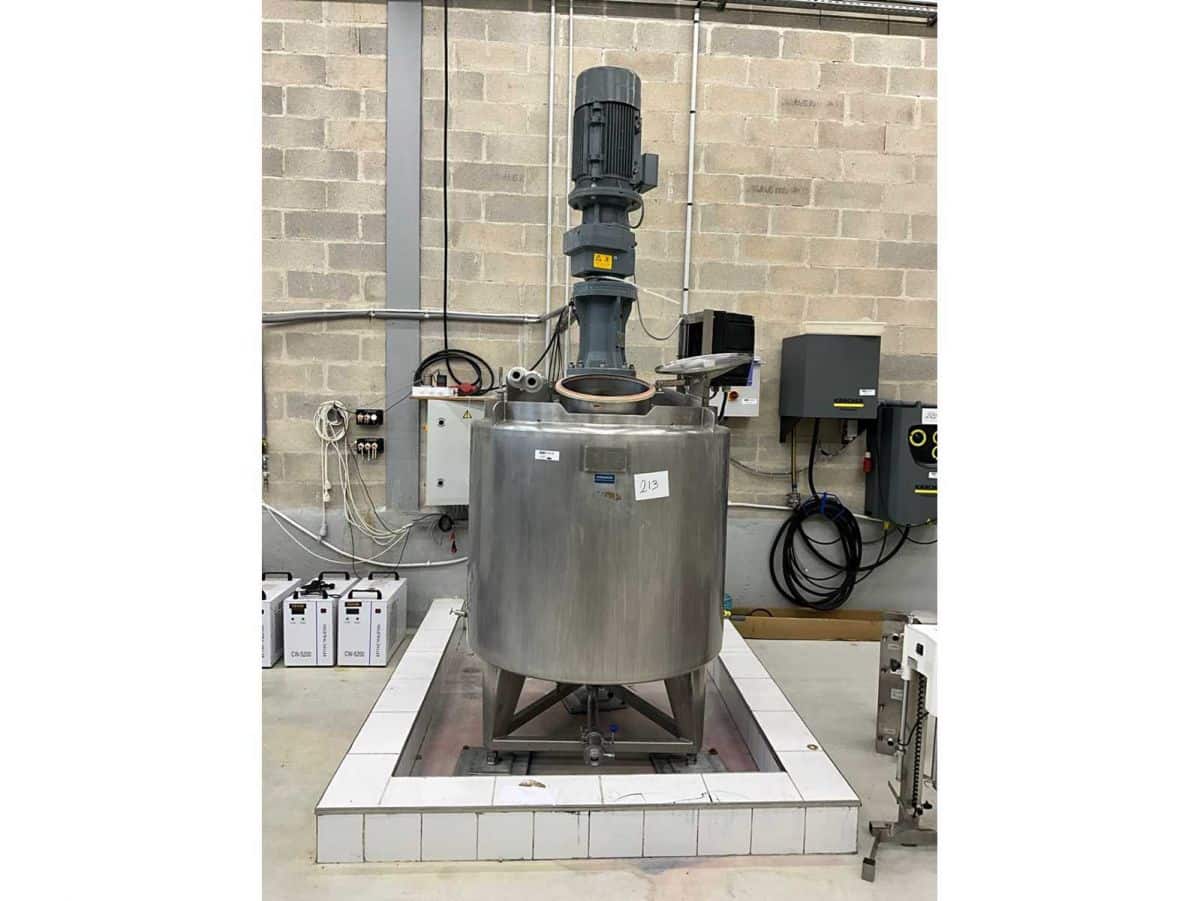

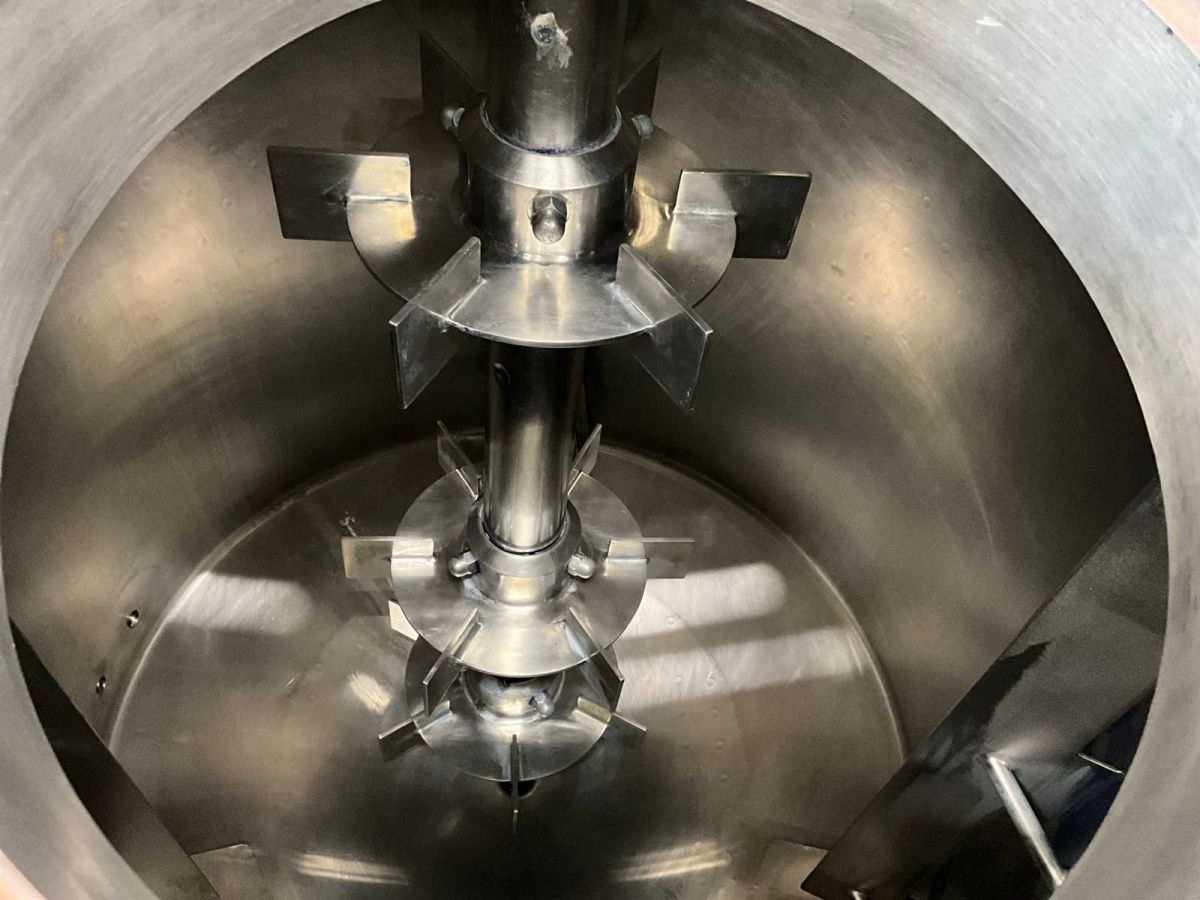

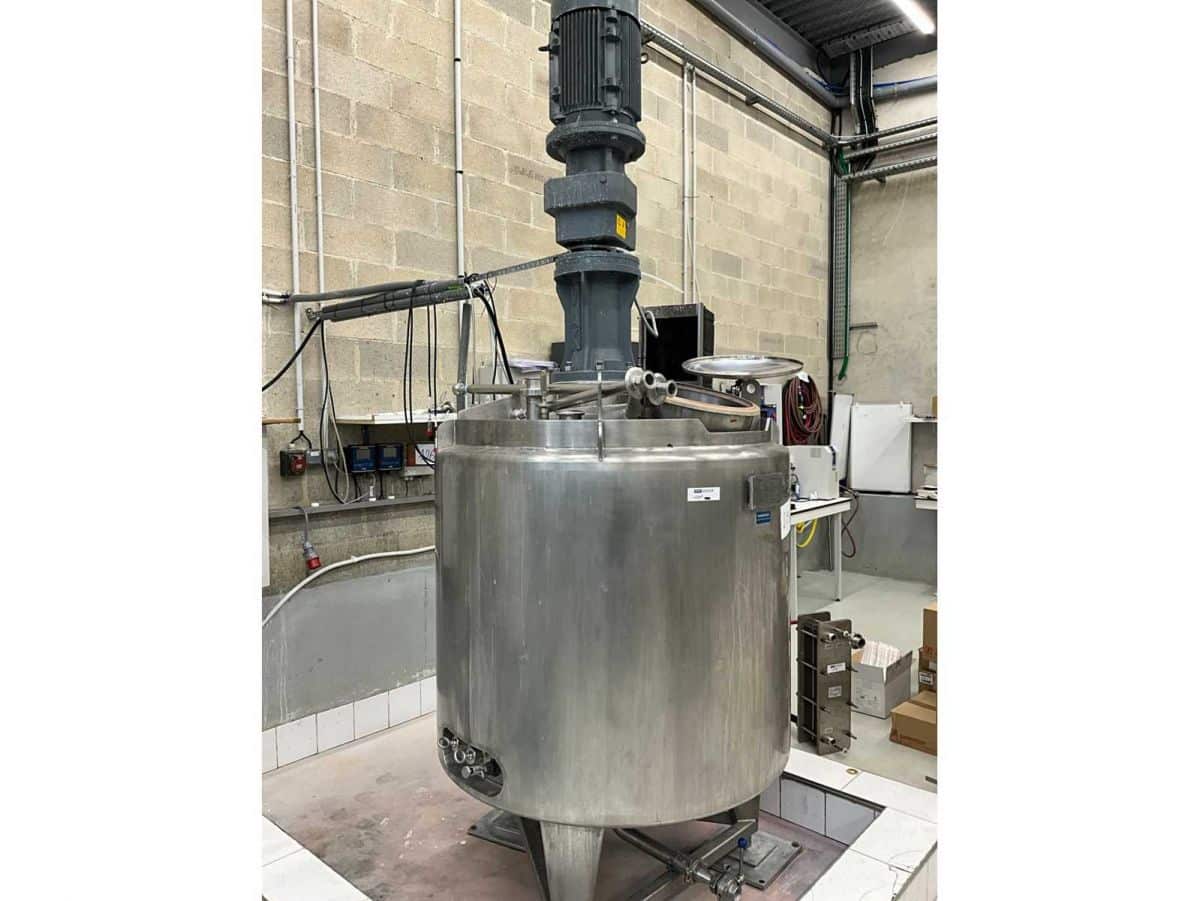

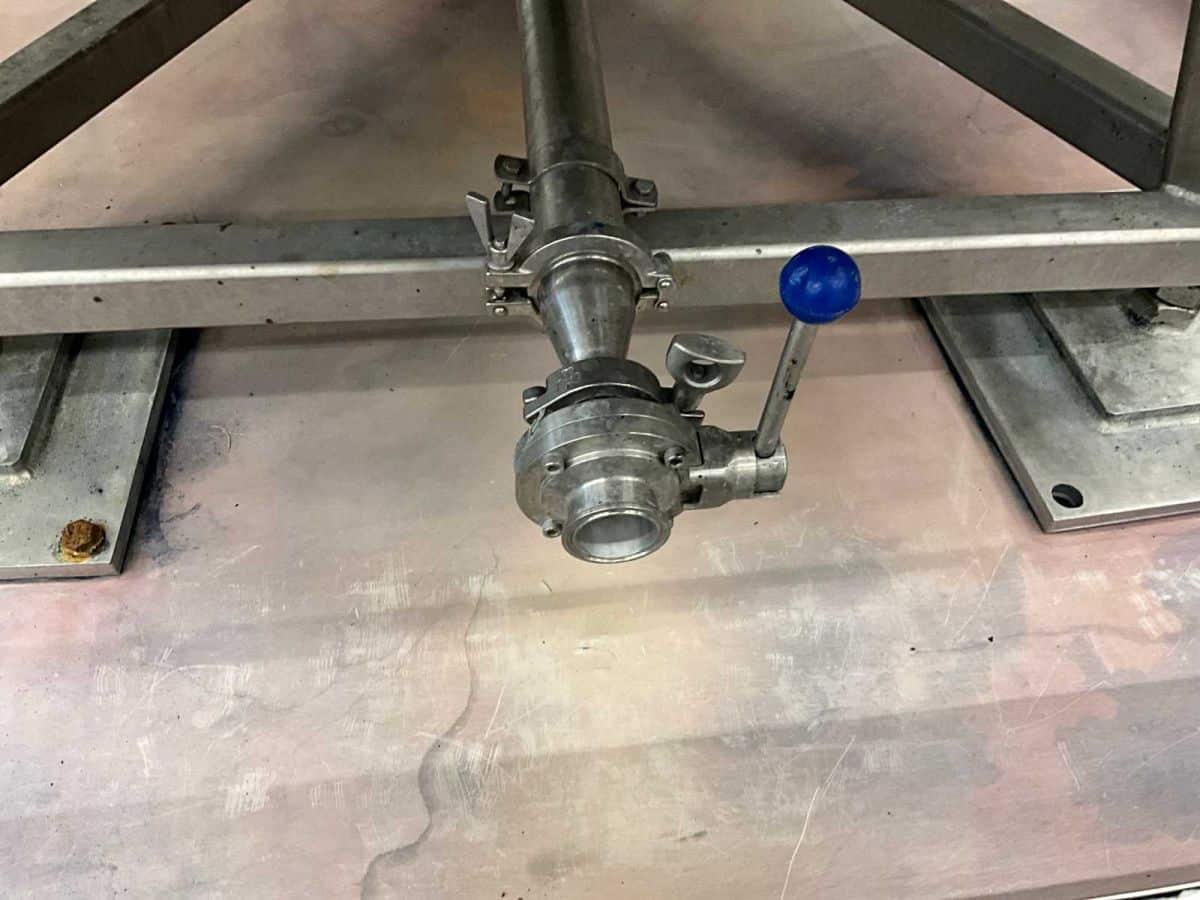

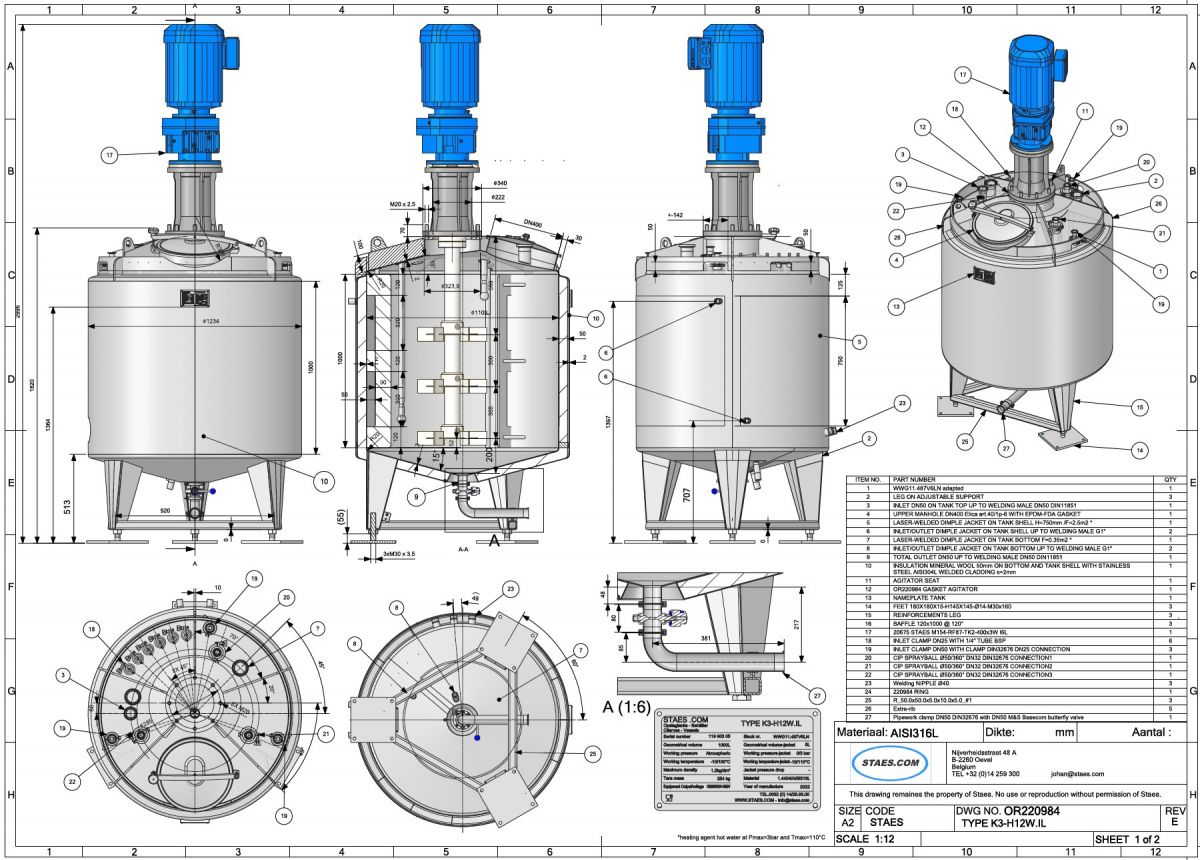

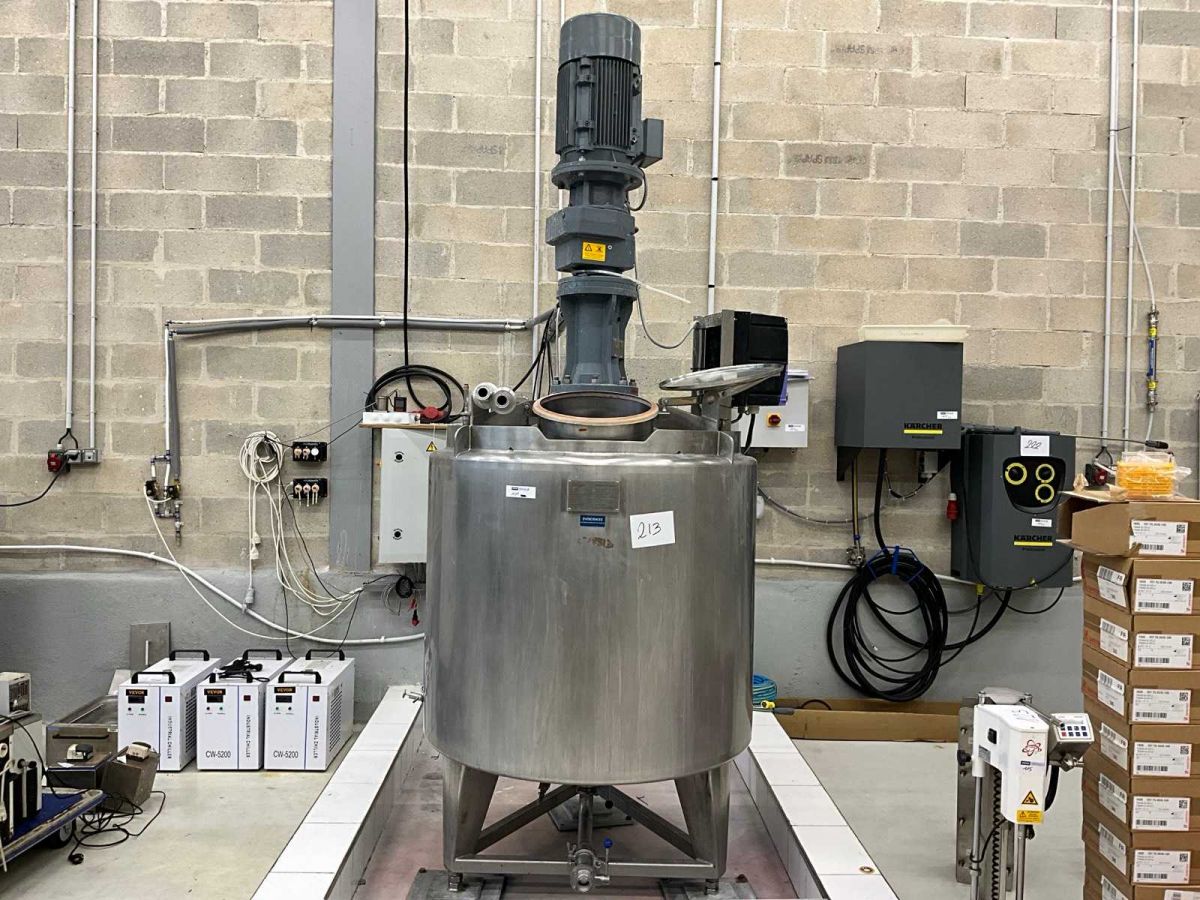

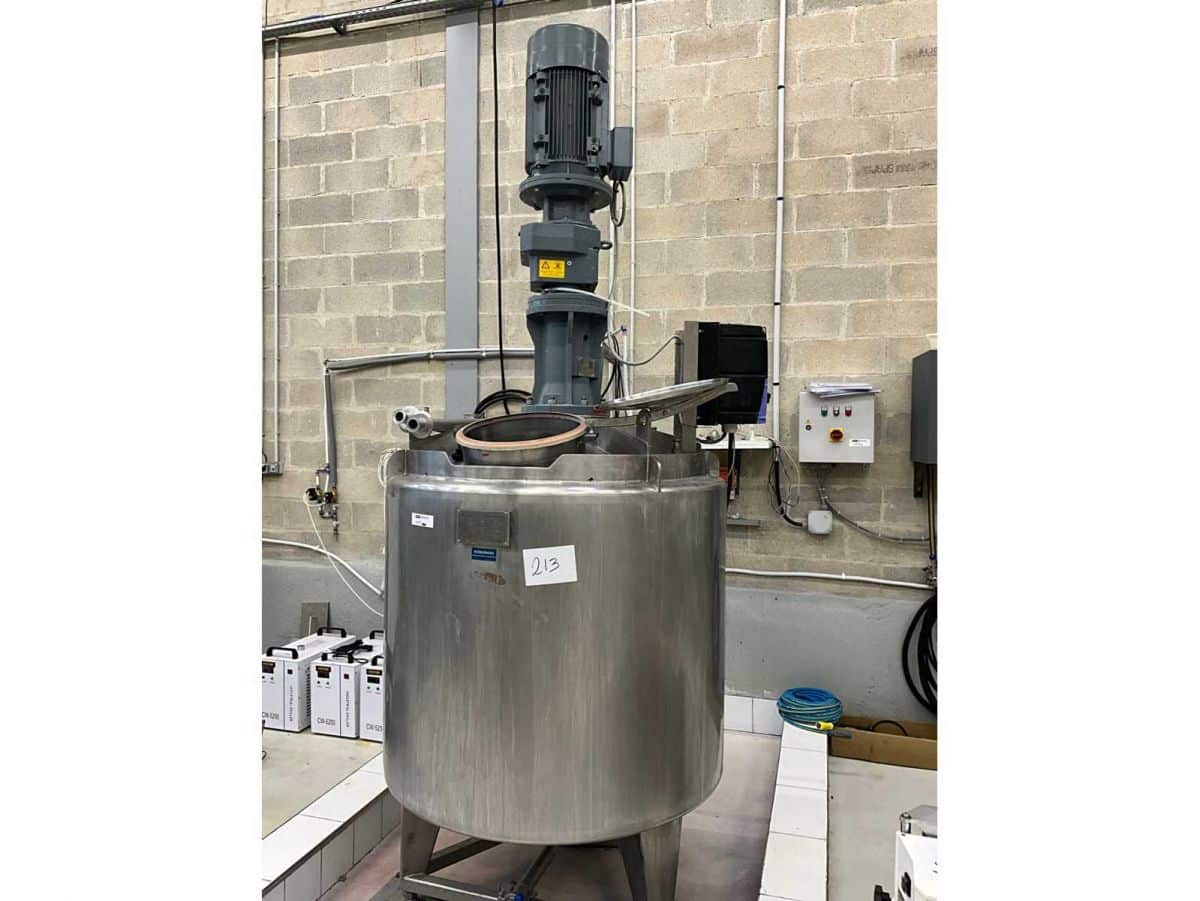

Article type: second-hand mixing tank Additional information: Previous product was Bacteria. The tank was built by us and includes a complete file. A 1-year warranty on everything. The tank is in very good condition and has not been used much. Built in 2023, the tank will be completely cleaned, photos will follow as soon as possible; we can’t give any guarantees about the heating/cooling jacket; we can’t give any guarantees about the agitator Volumetric volume (L): 1.000 L Max. density P (kg/m³): 1.200 Ra inner weld: 0,80 Finish stainless steel: 2B Pressure in tank: ATM - atmosferic Max. temperature (°C): -10 °C Min. temperature (°C): 100 °C Material wet parts: SS AISI 316L (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Top type: conical 15 ° Shape of tank: cylindrical Bottom type: conical 15 ° Total discharge: yes Fixation points: 3 adjustable feet Type of HE on the cylinder: dimple-jacket Position HE: the complet cilinder Height HE: 750 mm Number of sections: 1 Water pressure HE: 3 Bar Steam pressure HE: 0,49 Bar Contact surface cylinder: 2,50 m² Connection HE: 1 inch BSP Working temperature HE cylinder: 100 °C Type of HE on the bottom: dimple-jacket Water pressure HE: 3 Bar Steam pressure HE: 0,49 Bar Contact surface bottom: 0,35 Connection HE: 1 inch BSP Working temperature HE bottom: 100 °C Heat exchanger: RVS 304 Insulation material: Rockwool Outer jacket (ornamental wall): RVS 304L Manway(s): RVS 316 Gasket manway(s): EPDM Fixation point(s): RVS 304L Wet parts agitator(s): SS AISI 316L (V4A) Suitable for food industry: yes Documents included: yes, optional Technical drawing included: yes Registration plate on the tank: yes Flange for agitator: no Number of manways: 1 Position of manway: at the top Height manhole 1 (mm): 400 mm CIP spray ball: yes Tank outlet: inside Ø 50 mm Agitator: yes Agitator type: disk agitator Number of revolutions: 215 Power: 15 Voltage: three-phase Top: 2 mm Cylinder: 2 mm Bottom: 3 mm Cylinder: 2 Insulation body: yes Bottom: 2 Insulation bottom/sides: yes finish of the outer jacket: welded Insulation thickness: 50 Internal diameter tank: 1.108 mm Distance from outlet to ground: 250 mm Outer diameter tank: 1.234 mm Cylinder height: 1.000 mm Total height of tank: 3.000 mm Empty weight tank: 500
