Volym i liter Volym i literAnvänd draglisten för det volymspann ni önskar se. Klicka sen i t.ex. (material, omrörare, isolering etc.) för att slutligen klicka på FILTRERA, då visas endast de tankar som finns inom de krav ni angett.
Additional information: Pharmacy; Mobile Frame, AISI 304 (the control cabinet boxes shown in the photos are empty); smaller dents inside the tanks; Upper bottoms, Aisi 304 (hangings and fastening screws of the upper bottoms are missing); pipe end cut flush; Metallic discolouration inside Volumetric volume (L): 313 L Pressure in tank: pressure Max. pressure (Bar): 3 Bar Max. temperature (°C):…
Additional information: chemistry; 3-footed frame, Fe (lacquered; 1 foot shortened); clamp srews, Fe (with corrosion); some residues of previous content Volumetric volume (L): 313 L Pressure in tank: pressure Max. pressure (Bar): 3 Bar Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single jacketed with heat-exchanger Heat exchanger: yes Insulation: no Mobile tank: no Total discharge: yes Volume:…
Additional information: Cosmetics; Rounded heating coil inside the vessel (see photos); diameter of hand hole approx. 300 mm Volumetric volume (L): 318 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 143 °C Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Volume:…

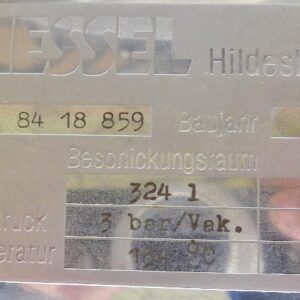

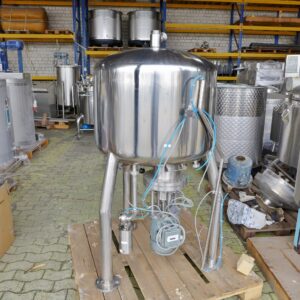

Additional information: Tank hanging on 3 "feet" in frame or ceiling; Hand hole diameter approx. 300 mm; Outlet fitting is missing; some residues of previous content Volumetric volume (L): 324 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 134 °C Material wet parts: SS AISI 316 (V4A) Model:…
Additional information: Tank slightly out of round; 1 welded bottom bearing inside the tank (see photos) Volumetric volume (L): 330 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Top type: open Total discharge: yes Documents included: no Technical drawing included: no Registration…
item available on order Article type: brand new storage tank - type K2-SL Additional information: Ra=<0.8µm Volumetric volume (L): 340 L Max. density P (kg/m³): 1.200 Ra inner weld: 0,80 Finish stainless steel: 2b Pressure in tank: ATM - atmosferic Design pressure (Bar): 0,05 Bar Max. temperature (°C): 100 °C Min. temperature (°C): -10 °C Material wet parts: SS AISI…
item available on order Article type: brand new storage tank - type K3-H12S-L Volumetric volume (L): 340 L Max. density P (kg/m³): 1.500 Ra inner weld: 0,80 Finish stainless steel: 2B Pressure in tank: pressure Max. pressure (Bar): 0,49 Bar Min. pressure (Bar): -0,60 Bar Max. temperature (°C): 150 °C Min. temperature (°C): -10 °C Material wet parts: SS AISI…
item available on order Article type: brand new storage tank - type K3-H12W.IL Additional information: Ra=<0.8µm Volumetric volume (L): 340 L Max. density P (kg/m³): 1.200 Ra inner weld: 0,80 Finish stainless steel: 2b Pressure in tank: ATM - atmosferic Max. temperature (°C): 130 °C Min. temperature (°C): -10 °C Material wet parts: SS AISI 316L (V4A) Model: vertical Configuration:…
Additional information: Suspended design on 4 mild steel beams, which were bolted under a working platform; specified total height including these beams (total height of vessel only without beams approx. 1,830 mm); some residues of previous content Volumetric volume (L): 340 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3,45 Bar Min. pressure (Bar): 1 Bar Max. temperature…
item available on order Article type: brand new storage tank - type K3-IL Volumetric volume (L): 340 L Max. density P (kg/m³): 1.200 Ra inner weld: 0,80 Finish stainless steel: 2B Pressure in tank: ATM - atmosferic Max. temperature (°C): 100 °C Min. temperature (°C): -10 °C Material wet parts: SS AISI 316L (V4A) Model: vertical Configuration: insulated Heat exchanger:…
item available on order Article type: brand new storage tank - type K2-H12L Additional information: Ra=<0.8µm Volumetric volume (L): 340 L Max. density P (kg/m³): 1.200 Ra inner weld: 0,80 Finish stainless steel: 2b Pressure in tank: ATM - atmosferic Max. temperature (°C): 100 °C Min. temperature (°C): -10 °C Material wet parts: SS AISI 316L (V4A) Model: vertical Configuration:…
item available on order Article type: brand new storage tank - type K-SC Volumetric volume (L): 340 L Max. density P (kg/m³): 1.200 Finish stainless steel: 2B Pressure in tank: ATM - atmosferic Max. temperature (°C): 80 °C Material wet parts: SS AISI 316L (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: yes Top type: conical…
Additional information: Wine storage; 1 manhole approx. 300 x 390 mm in the front bottom; 1 screwed outlet fitting with butterfly valve enlarges the outlet to DN 50 DIN 11851 Volumetric volume (L): 350 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: horizontal Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no…
Additional information: Smaller dents in the insulation jacket (see photos) Volumetric volume (L): 350 L Pressure in tank: ATM - atmosferic Configuration: insulated Heat exchanger: no Insulation: yes Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator: no Outlet of tank: 35 Agitator: yes Internal diameter tank:…
Additional information: 1 stronger and smaller dents in the insulation jacket; lower heating connection cut off; some residues of previous content; pipe end cut flush; scratches inside; Functionality of the double jacket not checked Volumetric volume (L): 350 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger:…

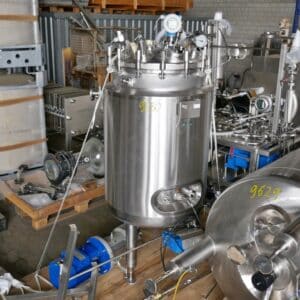

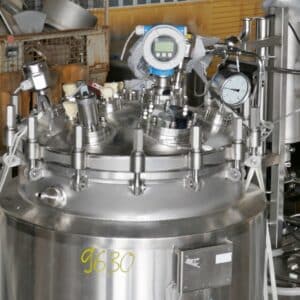

Additional information: Pharmacy; 1 pump is included in delivery (no guarantee of functionality) Volumetric volume (L): 390 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 4 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 150 °C Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Volume: 26 L Max Overpressure: 6…
Additional information: plastics industry; stronger adhesions inside; working pressure according to drawing (type plate not available); various changes of the connections by the former operator (not shown in the drawing); foot frame, 304 Volumetric volume (L): 396 L Pressure in tank: pressure Max. pressure (Bar): 3 Bar Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated with heat-exchanger…
Article type: second-hand mixing tank Additional information: Stainless steel V-mixer with a capacity of 400 liters equipped with an intensification bar (prepared for inerting or liquid injection) to improve mixing. Supply through the two upper holes with manual cover and discharge with a 200 mm diameter butterfly valve. The intensifier bar motor is 5.5 hp (1430 rpm) * With electrical…
Additional information: Pharmacy; Outlet fitting incomplete (see photos); Technical documentation is available from the manufacturer and can be requested and purchased there Volumetric volume (L): 400 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 165 °C Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no…
Additional information: Biomass; Cone height appr. 400 mm; 3-legged frame, Aisi 304; 3 short pipes inside the tank Volumetric volume (L): 400 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate…
Additional information: Biochemistry; some residues of previous content Volumetric volume (L): 400 L Pressure in tank: ATM - atmosferic Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator: no Outlet of tank: flange DN50 Internal diameter tank: 990 mm Cylinder…

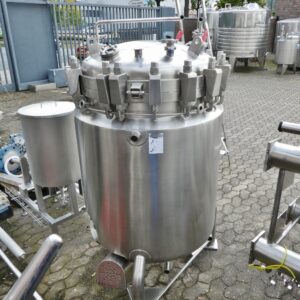

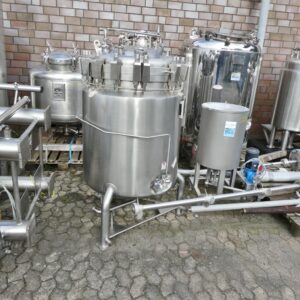

Additional information: Pharmacy; Make: Bohle; Frame, Aisi 304 (dimensions approx. 1200 x 800 mm); 1 longitudinal sight glass in the cylinder; Sampling lances and 1 sieve insert inside the container Volumetric volume (L): 400 L Pressure in tank: ATM - atmosferic Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included:…
Additional information: cleaning supplies; insulation was added later by the previous owner; insulation slightly torn; ; some residues of previous content Volumetric volume (L): 400 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: insulated Heat exchanger: no Insulation: yes Mobile tank: no Top type: open Total discharge: yes Documents included: no…
Article type: second-hand mixing tank Additional information: Both were never used because the startup company never started actual production. This combination is ideal for producing a wide range of liquids/liquids with powders/thickeners, such as eggnog, hair gel, pharmaceutical creams, lip gloss, polymers, adhesives, praline, sauces, mayonnaise, etc. The seal is suitable for pressure applications, for example, to empty the contents…
Volym i liter
Använd draglisten för det volymspann ni önskar se. Klicka sen i t.ex. (material, omrörare, isolering etc.) för att slutligen klicka på FILTRERA, då visas endast de tankar som finns inom de krav ni angett.
