Volym i liter Volym i literAnvänd draglisten för det volymspann ni önskar se. Klicka sen i t.ex. (material, omrörare, isolering etc.) för att slutligen klicka på FILTRERA, då visas endast de tankar som finns inom de krav ni angett.
Additional information: Pharmacy; Slight differences in the design of the vessels; differences in the connections in the manhole cover; overall height slightly lower in some cases (depending on the connections in the manhole cover) Volumetric volume (L): 500 L Pressure in tank: pressure Max. pressure (Bar): 3 Bar Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single-skin Heat…
item available on order Article type: brand new pressure tank - type BBT-ES-SL Volumetric volume (L): 500 L Ra inner weld: 0,80 Pressure in tank: pressure Max. pressure (Bar): 2 Bar Max. temperature (°C): 130 °C Min. temperature (°C): -10 °C Material wet parts: SS AISI 316L (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no…
Additional information: chemistry; tanks with differences in design (e. g. stirring elements and the number of windings of the heating coil; see pictures); some residues of previous content Volumetric volume (L): 500 L Pressure in tank: ATM - atmosferic Configuration: single jacketed with heat-exchanger Heat exchanger: yes Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing…
Additional information: Hand hole diameter: approx. 140mm with sight glass Volumetric volume (L): 500 L Pressure in tank: ATM - atmosferic Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator: no Outlet of tank: DN25 DIN 11851 Agitator: yes Number…
Additional information: Biochemistry; Several pipes inside the tank; loose flanges made of Fe (galvanized) Volumetric volume (L): 500 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: yes…
Article type: brand new storage tank - type K-HL Volumetric volume (L): 500 L Max. density P (kg/m³): 1.200 Ra inner weld: 1,60 Finish stainless steel: 2b Pressure in tank: ATM - atmosferic Max. temperature (°C): 100 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single jacketed with heat-exchanger Heat exchanger: yes Insulation: no Mobile tank: no…
item available on order Article type: brand new transport tank - type VC-SCO Additional information: example picture; Ra=<0.8µm Volumetric volume (L): 500 L Max. density P (kg/m³): 1.200 Ra inner weld: 0,80 Finish stainless steel: 2b Pressure in tank: ATM - atmosferic Max. temperature (°C): 60 °C Min. temperature (°C): -10 °C Material wet parts: SS AISI 316L (V4A)…
Article type: second-hand mixing tank Additional information: V-mixer make GLATT in stainless steel model K with a volume of 500 liters. Unloading with manual butterfly valve.; we can’t give any guarantees about the agitator Volumetric volume (L): 500 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation:…
Additional information: Dairy; Outlet with bead and 2 connections, inner diameter approx. 60 mm; 3 plastic base plates; slight metallic discoloration inside Volumetric volume (L): 500 L Pressure in tank: ATM - atmosferic Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange…
Additional information: Hand hole diameter 200 mm; Foot frame, Aisi 304 with upper ring made of Fe; other external parts made of Fe (e.g. heating connections; el clamp screws of the upper bottom); double jacket by approx. 600 mm of the cylinder height; 1 small dent in the upper bottom; some residues of previous content Volumetric volume (L): 500 L…
item available on order Article type: brand new mixing tank - type VC-SLA Additional information: delivered with food certificate; article price without agitator; choice of 2 different types of agitators; see options; (The article can also be purchased without options); Ra=<0.8µm Volumetric volume (L): 500 L Max. density P (kg/m³): 2.000 Ra inner weld: 0,80 Finish stainless steel: 2b Pressure in…
Additional information: Brewery; Tanks loose on frames, Aisi 304 (different versions of the frames, some screwed together; see photos); 1 hand hole each approx. 190 x 240 mm in the front bottom (plastic hand hole cover) Volumetric volume (L): 500 L Pressure in tank: pressure Max. pressure (Bar): 3 Bar Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no…
Additional information: Pharmacy Volumetric volume (L): 500 L Pressure in tank: pressure Max. pressure (Bar): 2 Bar Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: headside…
Additional information: Pharmacy Volumetric volume (L): 500 L Pressure in tank: ATM - atmosferic Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator: no Outlet of tank: 28 Internal diameter tank: 790 mm Cylinder height: 1.100 mm Total height of…
Additional information: An internal double jacket was subsequently welded into the tank by the previous operator, which reduces the volume specified on the type plate to approx. 500 liters (see photos); Unfortunately, we do not know to what extent the pressure and temperature information given on the type plate is still valid; total inner diameter of the tank approx. 900…
item available on order Article type: brand new mixing tank - type CHC-HILA Additional information: Delivered with food certificate; article price without control panel; see options; (The article can also be purchased without options) Volumetric volume (L): 500 L Max. density P (kg/m³): 1.200 Pressure in tank: ATM - atmosferic Max. temperature (°C): 100 °C Min. temperature (°C): -10 °C…
Additional information: Pharmaceutical Chemistry; 4 support brackets, stainless steel; 1 manhole diameter 400 mm in the front bottom; manhole cover plated Volumetric volume (L): 500 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 2 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single-skin Heat exchanger:…
Article type: brand new storage tank - type K-SL Volumetric volume (L): 500 L Max. density P (kg/m³): 1.200 Ra inner weld: 0,80 Finish stainless steel: 2b Pressure in tank: ATM - atmosferic Max. temperature (°C): 60 °C Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Top type: conical…
item available on order Article type: brand new mixing tank - type VC-SCA Additional information: example picture; delivered with food certificate; article price without agitator; choice of 2 different types of agitators; see options; (The article can also be purchased without options); Ra=<0.8µm Volumetric volume (L): 500 L Max. density P (kg/m³): 1.200 Ra inner weld: 0,80 Pressure in tank: ATM…
item available on order Article type: brand new mixing tank - type VC-HILA Additional information: delivered with food certificate; article price without agitator; choice of 2 different types of agitators; see options; (The article can also be purchased without options); Ra=<0.8µm Volumetric volume (L): 500 L Max. density P (kg/m³): 1.200 Ra inner weld: 0,80 Finish stainless steel: 2b Pressure in…

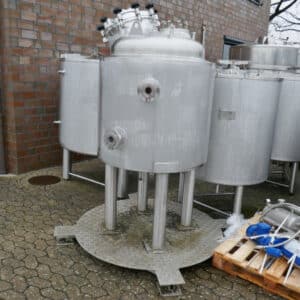

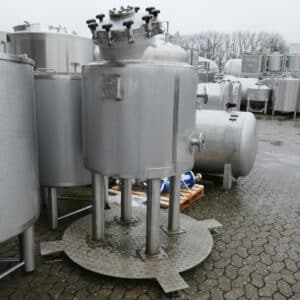

Additional information: Vessel currently bolted to an aluminum frame Volumetric volume (L): 507 L Pressure in tank: pressure Max. pressure (Bar): 6,60 Bar Max. temperature (°C): 180 °C Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Volume: 2 L Max Overpressure: 6 Bar Max. working temperature: 180 °C Documents included: no Technical drawing…
item available on order Article type: brand new storage tank - type K-SC Volumetric volume (L): 520 L Max. density P (kg/m³): 1.200 Finish stainless steel: 2B Pressure in tank: ATM - atmosferic Max. temperature (°C): 80 °C Material wet parts: SS AISI 316L (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: yes Top type: conical…
item available on order Article type: brand new storage tank - type K3-H12W.IL Additional information: Ra=<0.8µm Volumetric volume (L): 520 L Max. density P (kg/m³): 1.200 Ra inner weld: 0,80 Finish stainless steel: 2b Pressure in tank: ATM - atmosferic Max. temperature (°C): 130 °C Min. temperature (°C): -10 °C Material wet parts: SS AISI 316L (V4A) Model: vertical Configuration:…
item available on order Article type: brand new storage tank - type K3-IL Volumetric volume (L): 520 L Max. density P (kg/m³): 1.200 Ra inner weld: 0,80 Finish stainless steel: 2B Pressure in tank: ATM - atmosferic Max. temperature (°C): 100 °C Min. temperature (°C): -10 °C Material wet parts: SS AISI 316L (V4A) Model: vertical Configuration: insulated Heat exchanger:…
