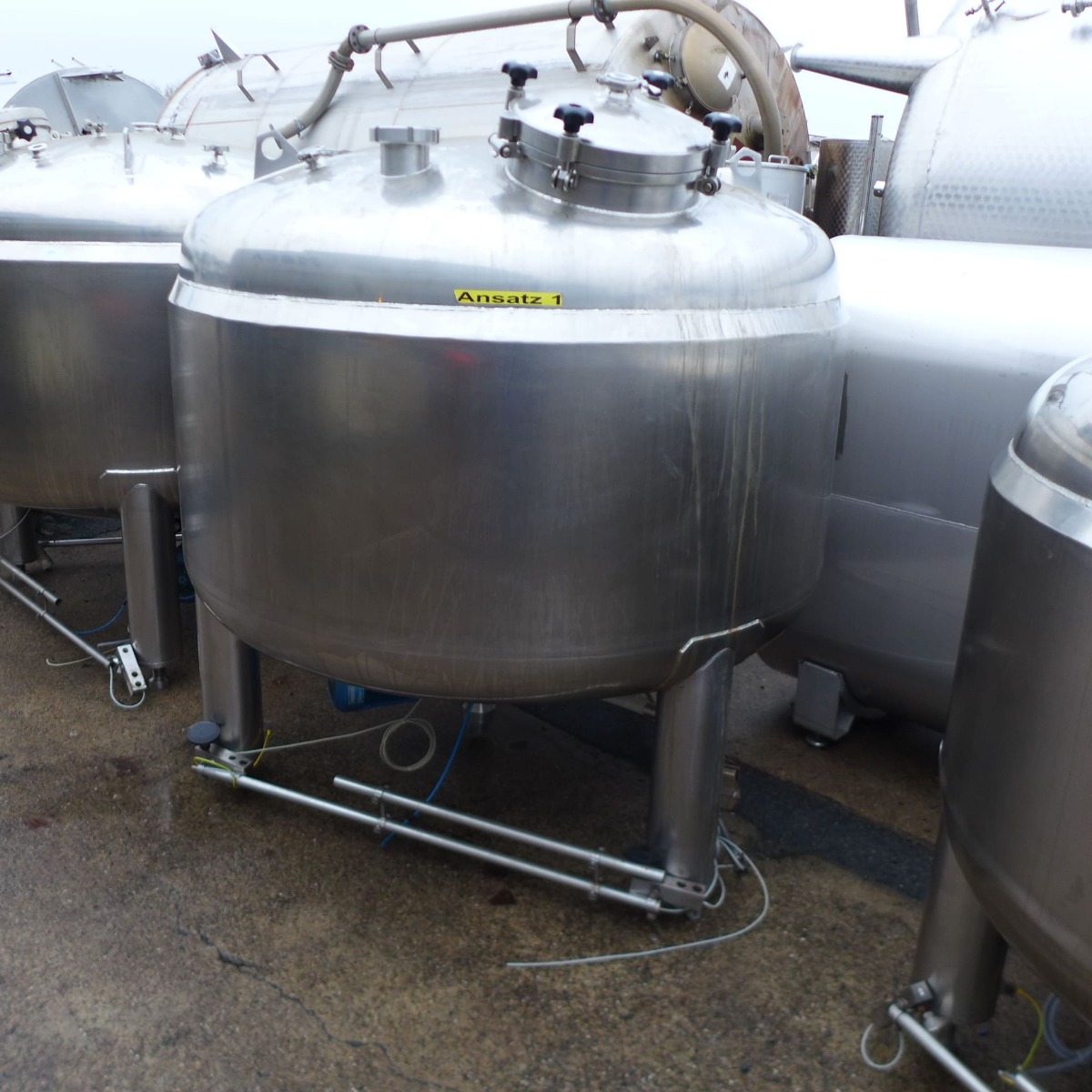

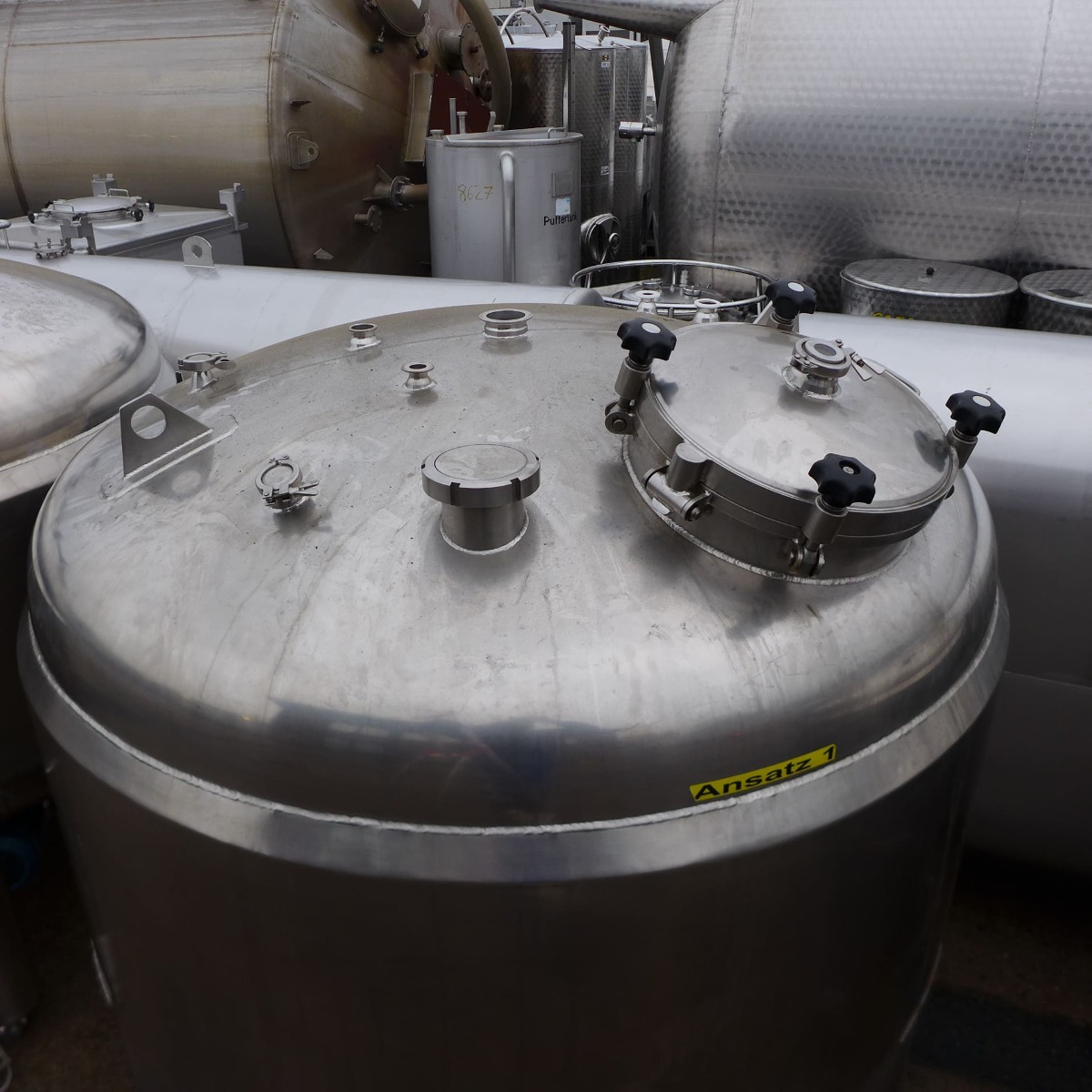

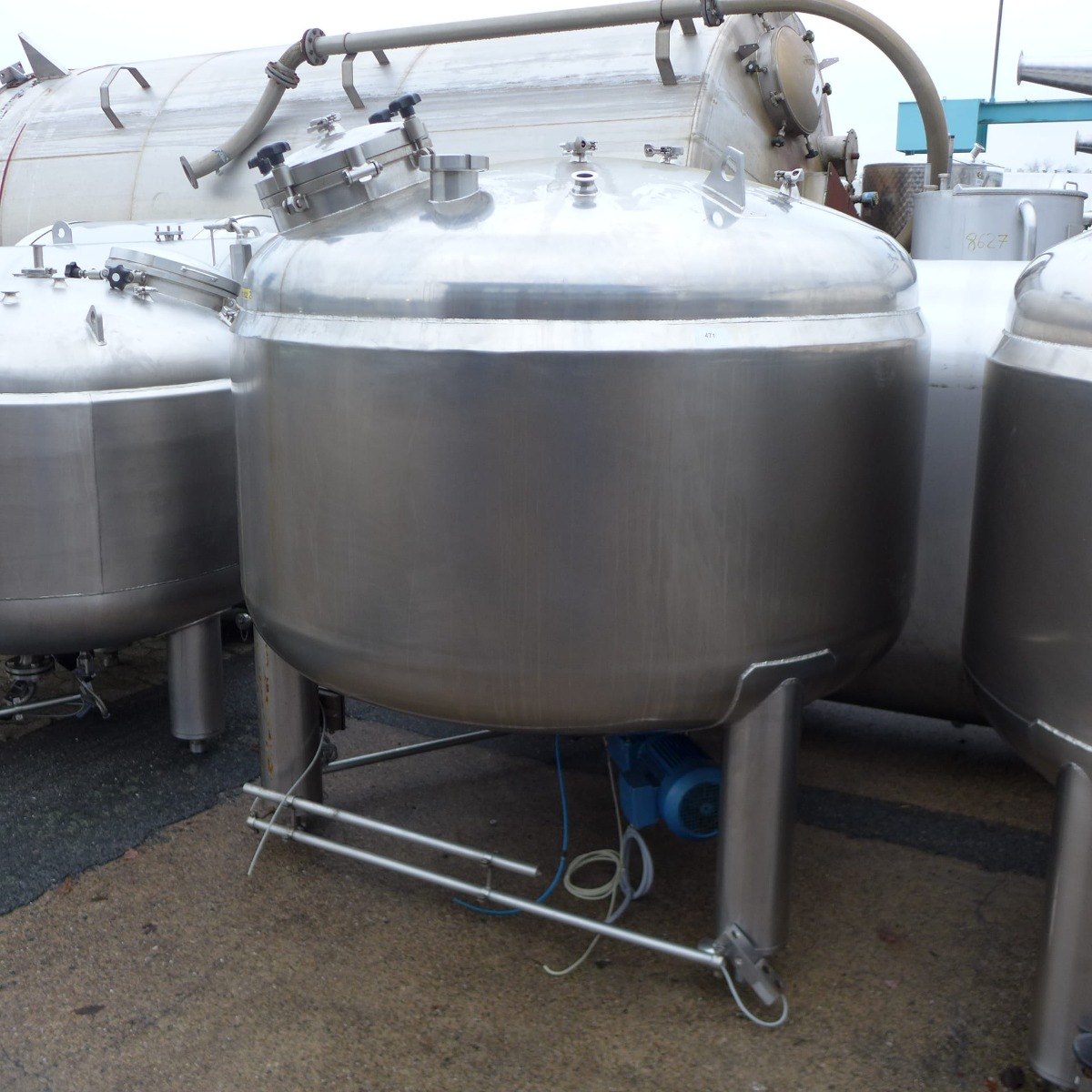

2330 liter tank i Rostfritt 304

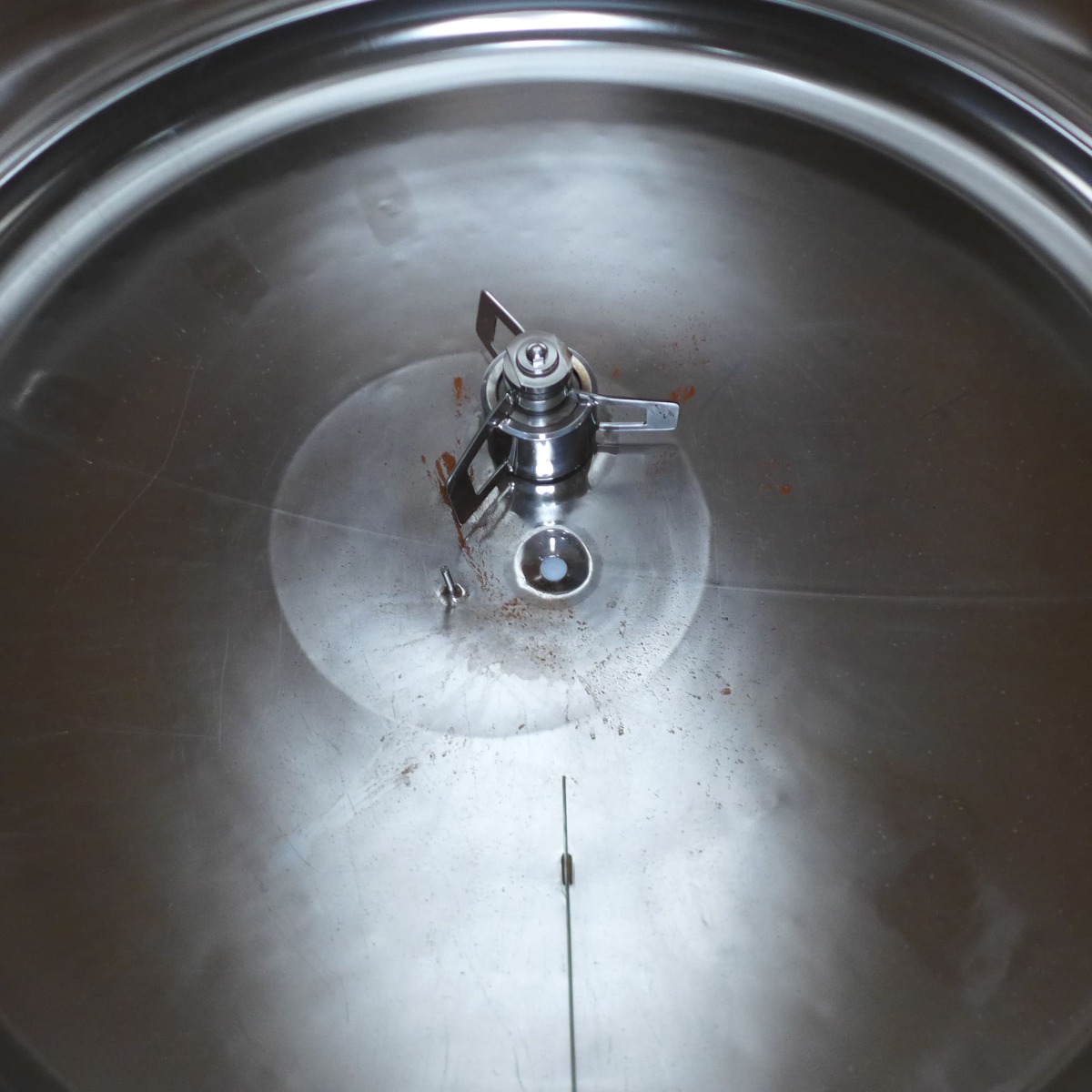

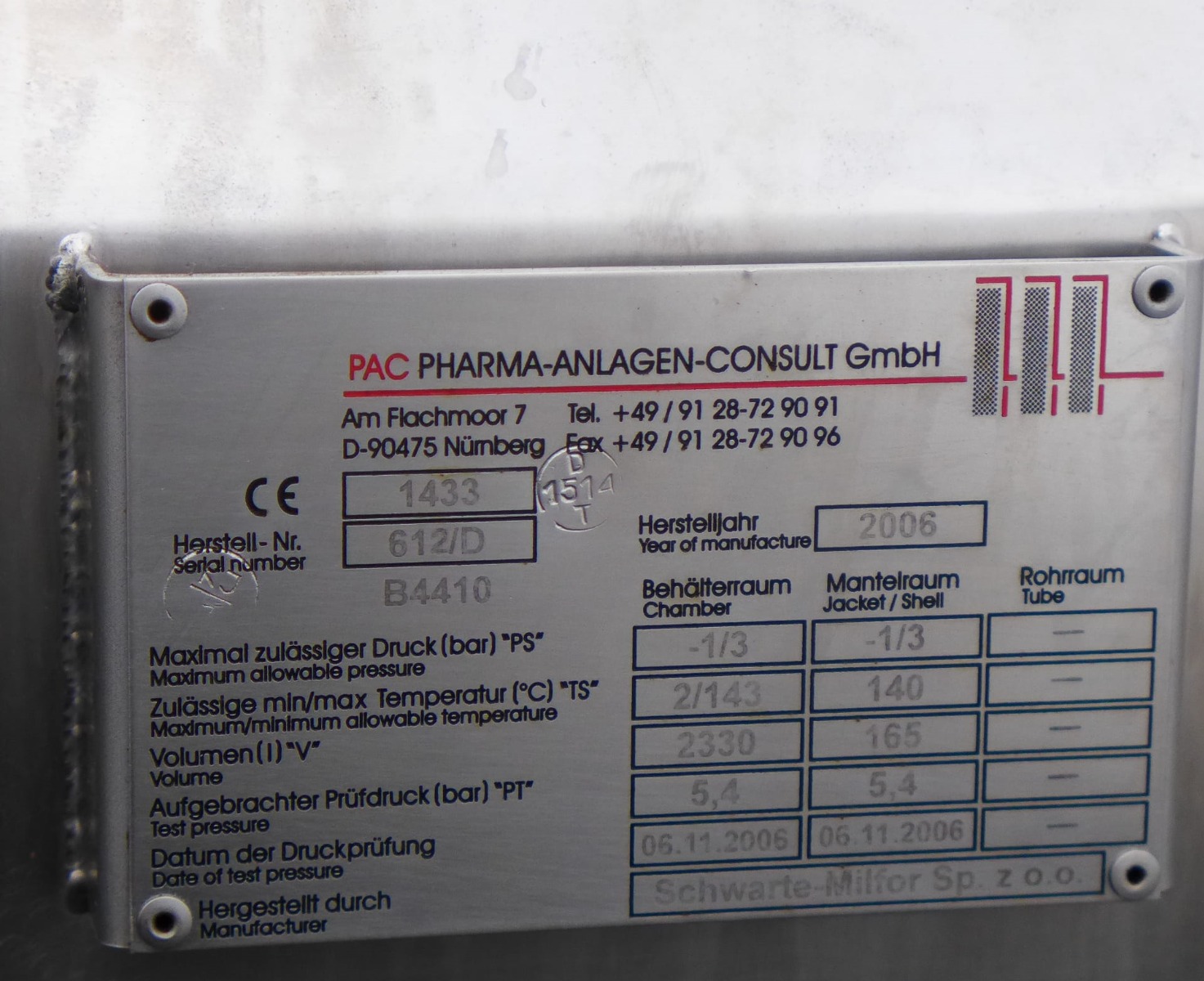

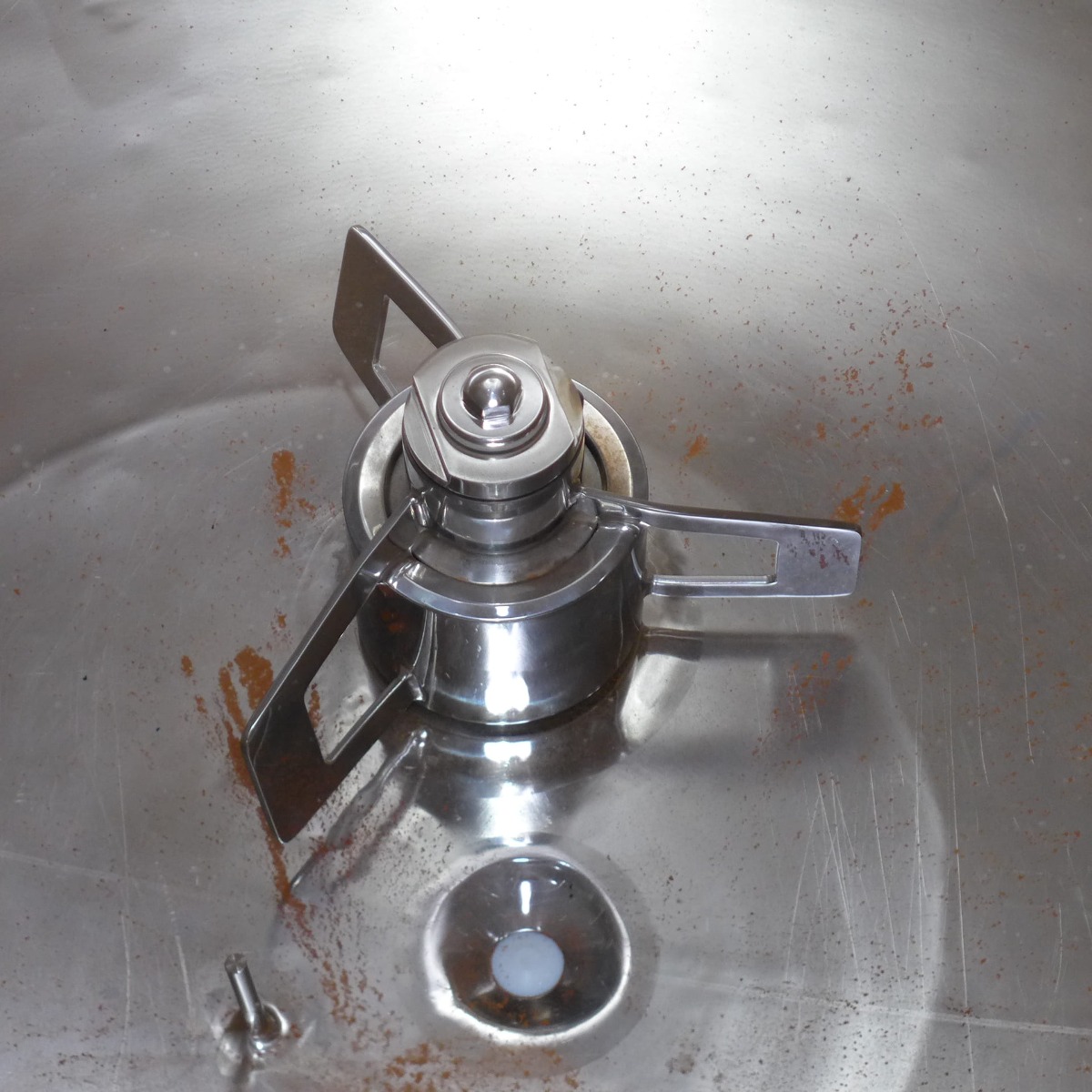

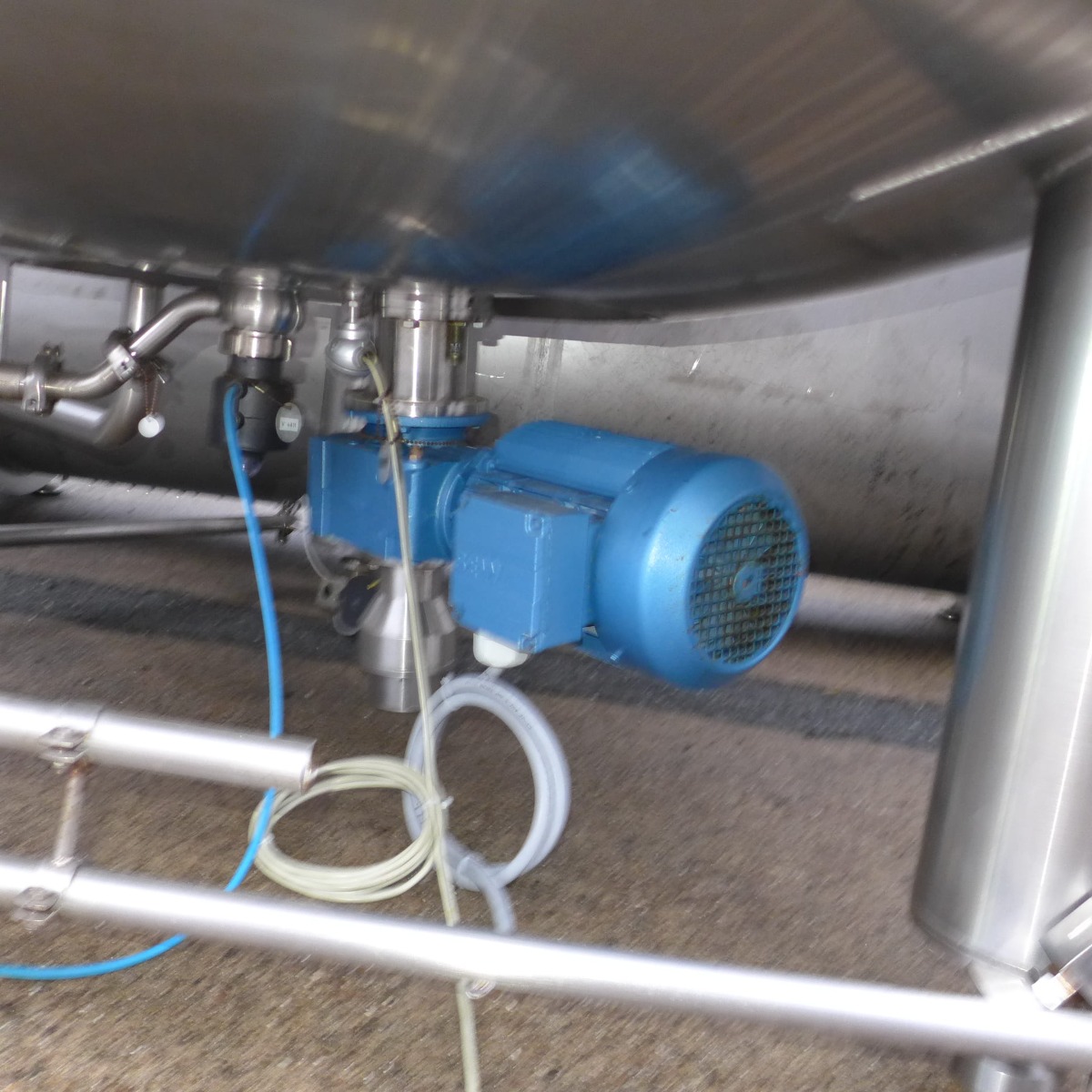

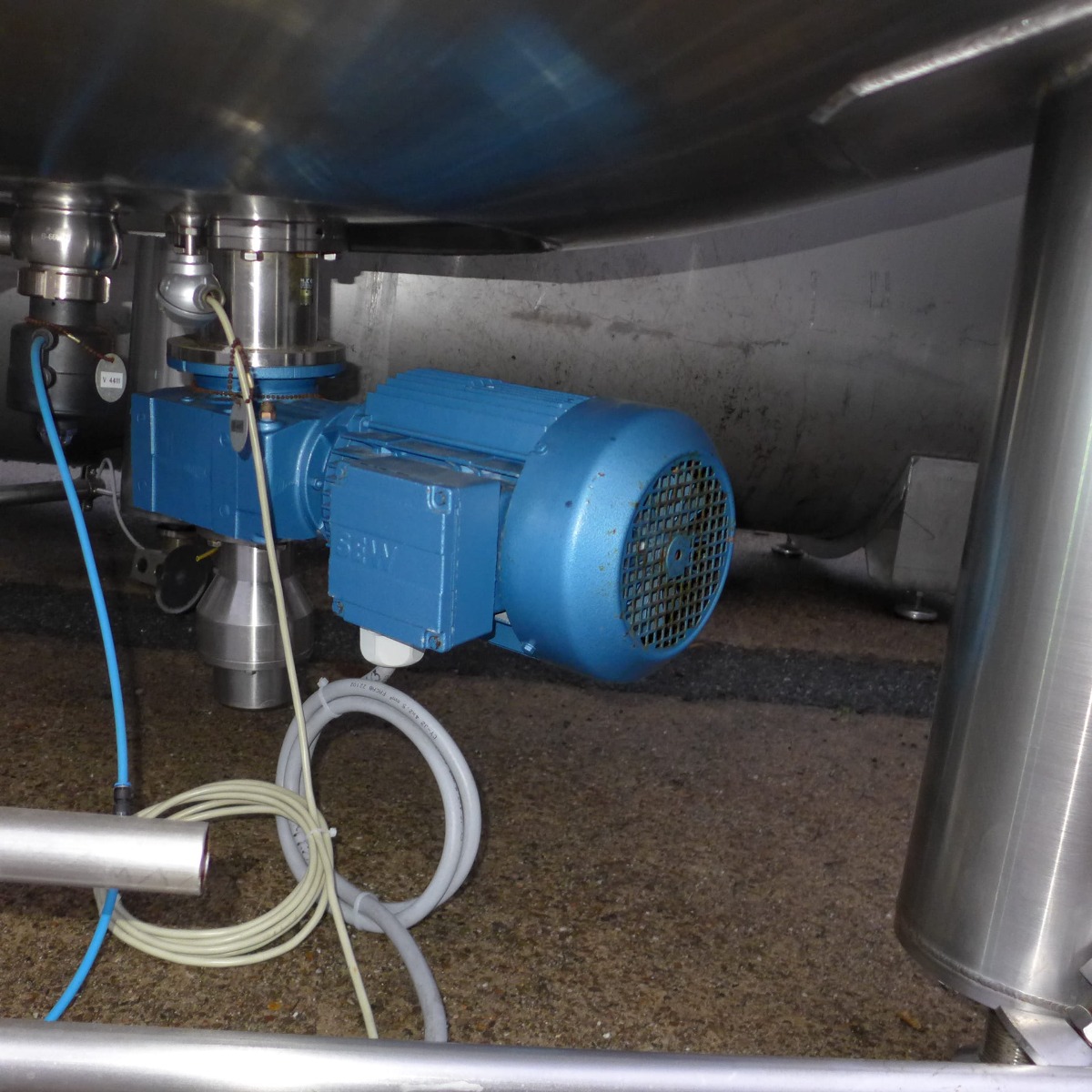

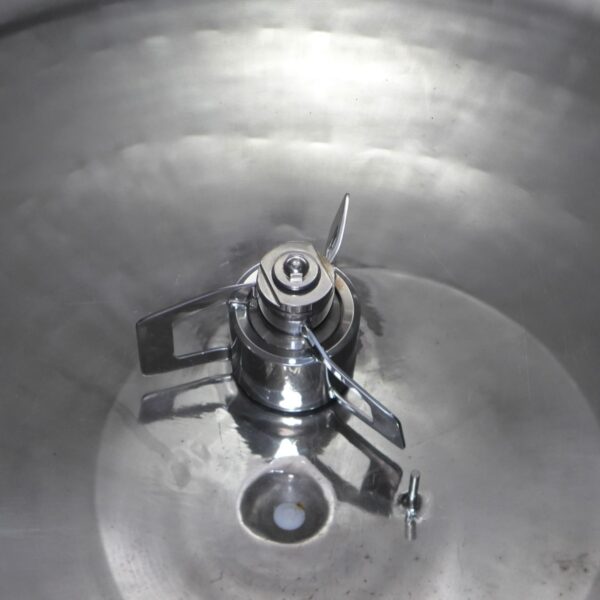

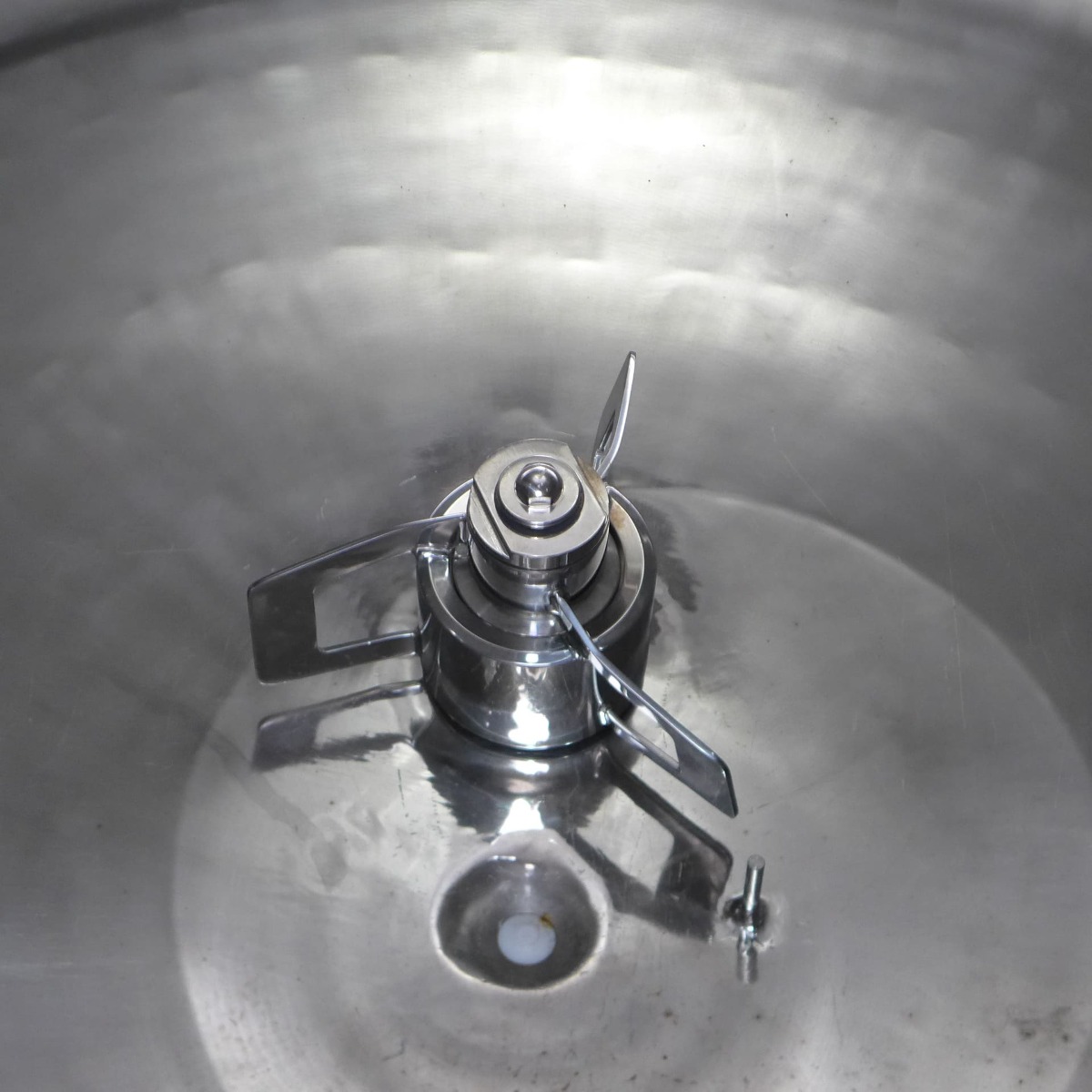

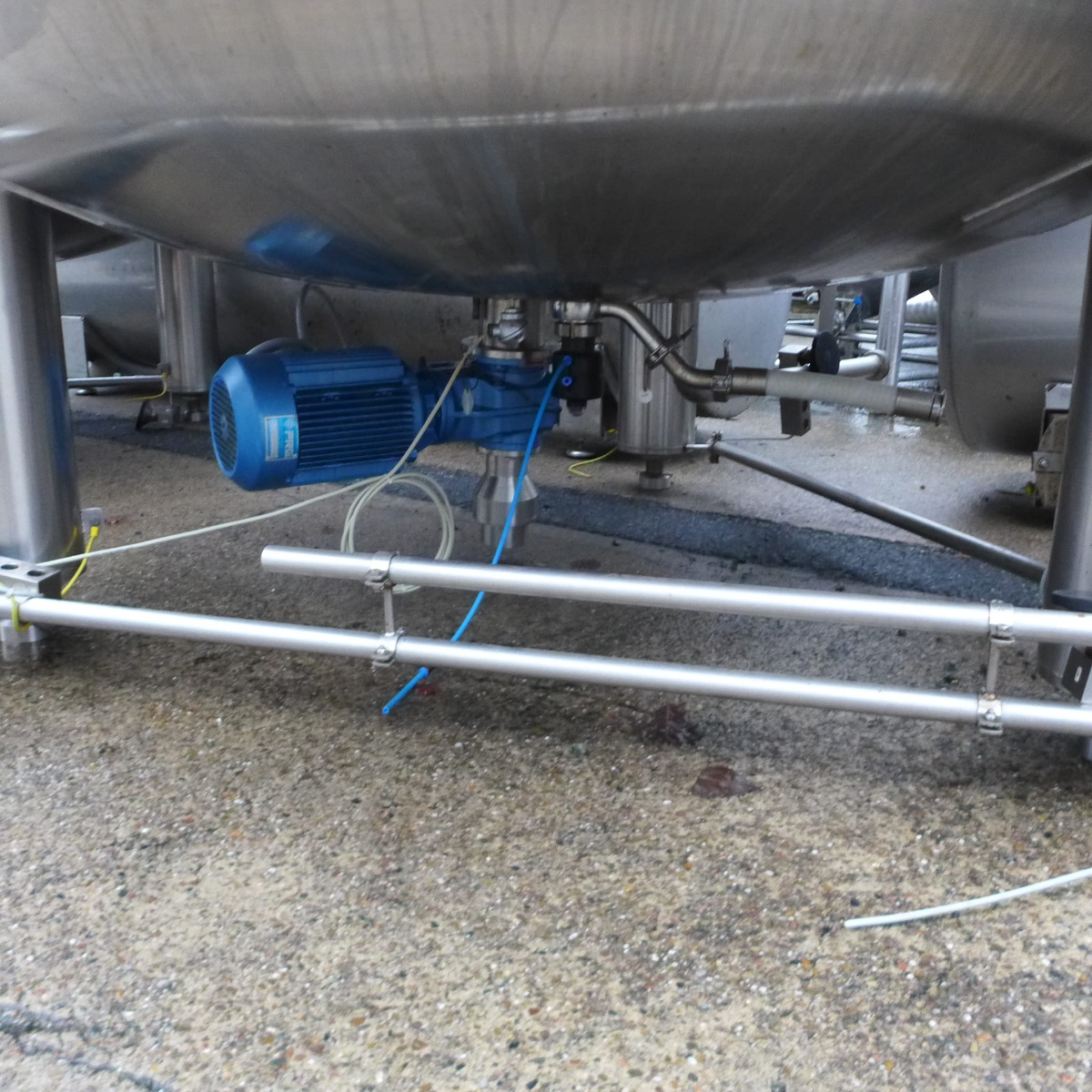

Additional information: Pharma Volumetric volume (L): 2.330 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 143 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single jacketed with heat-exchanger Heat exchanger: yes Insulation: no Mobile tank: no Total discharge: yes Volume: 165 L Max Overpressure: 3 Bar Max onderdruk: 1 Bar Max. working temperature: 140 °C Type HE on the bottom: heating/cooling jacket Type HE on the cylinder: heating/cooling jacket Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: in the bottom Outlet of tank: 25 Agitator: yes Number of revolutions: 263 Power: 2,20 Internal diameter tank: 1.650 mm Outer diameter tank: 1.720 mm Total height of tank: 2.000 mm
