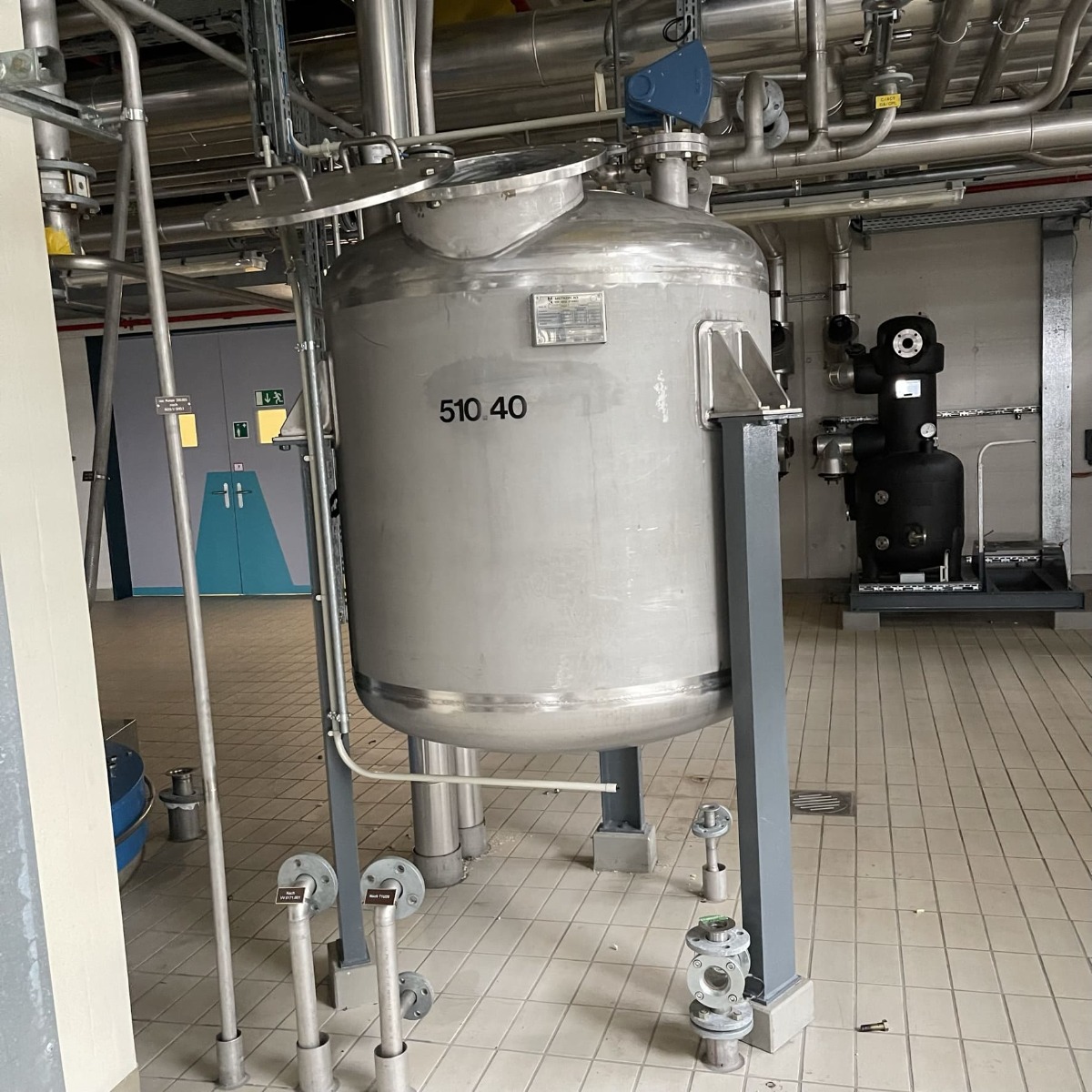

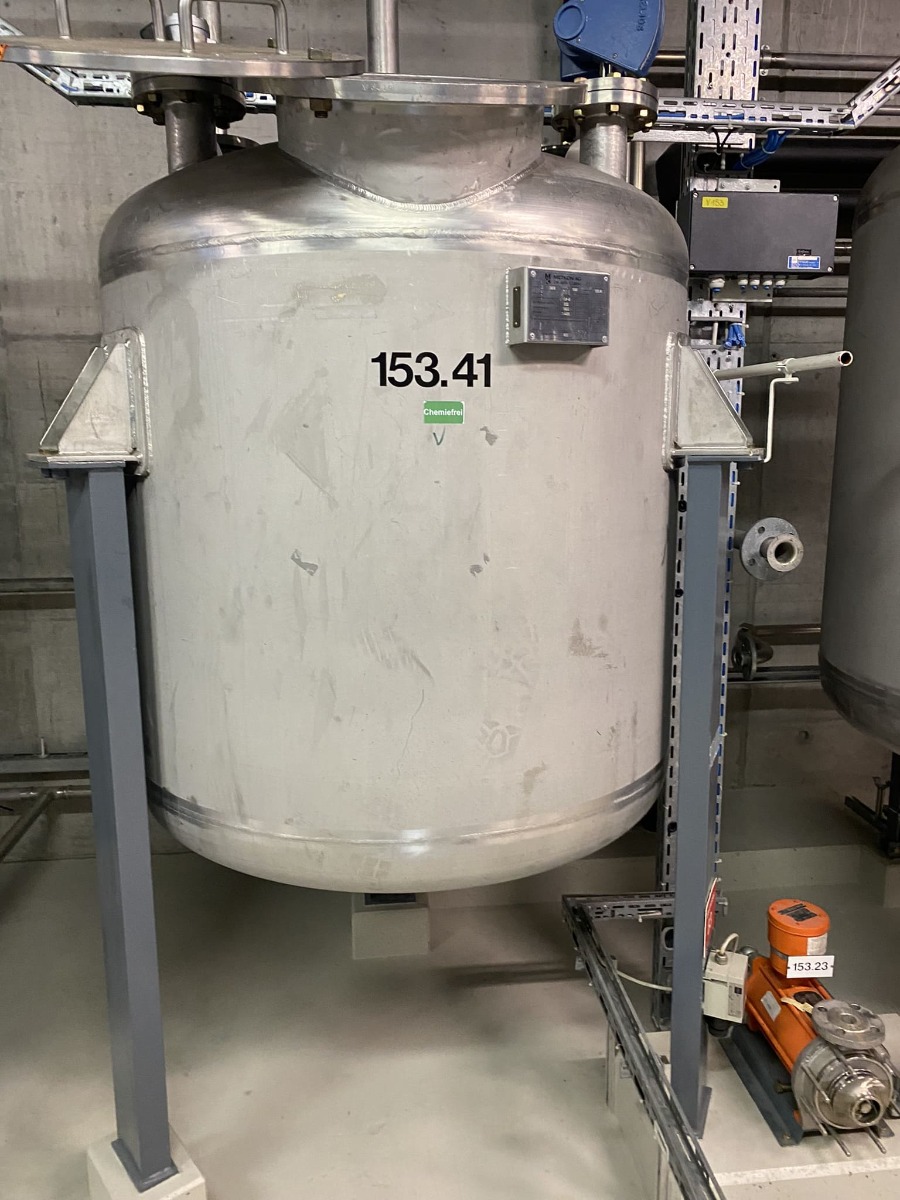

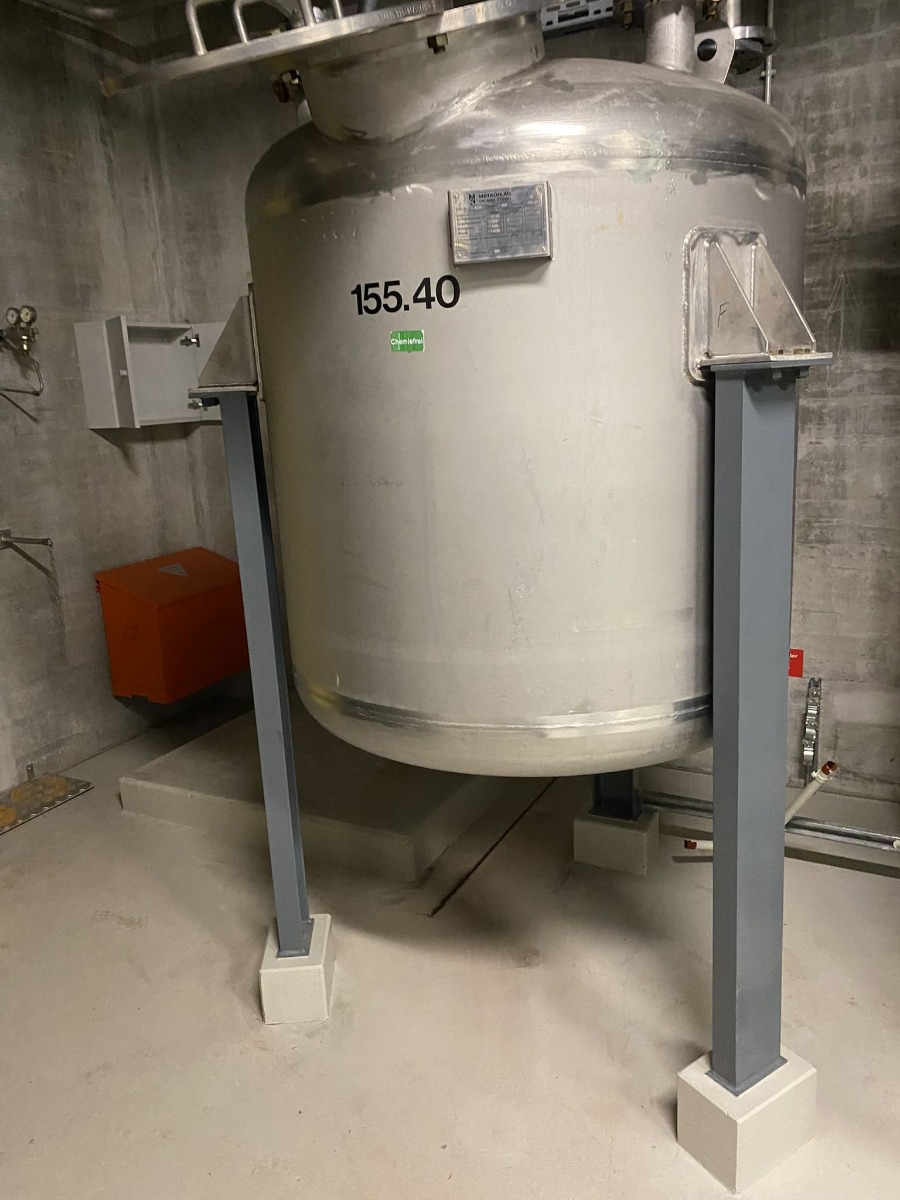

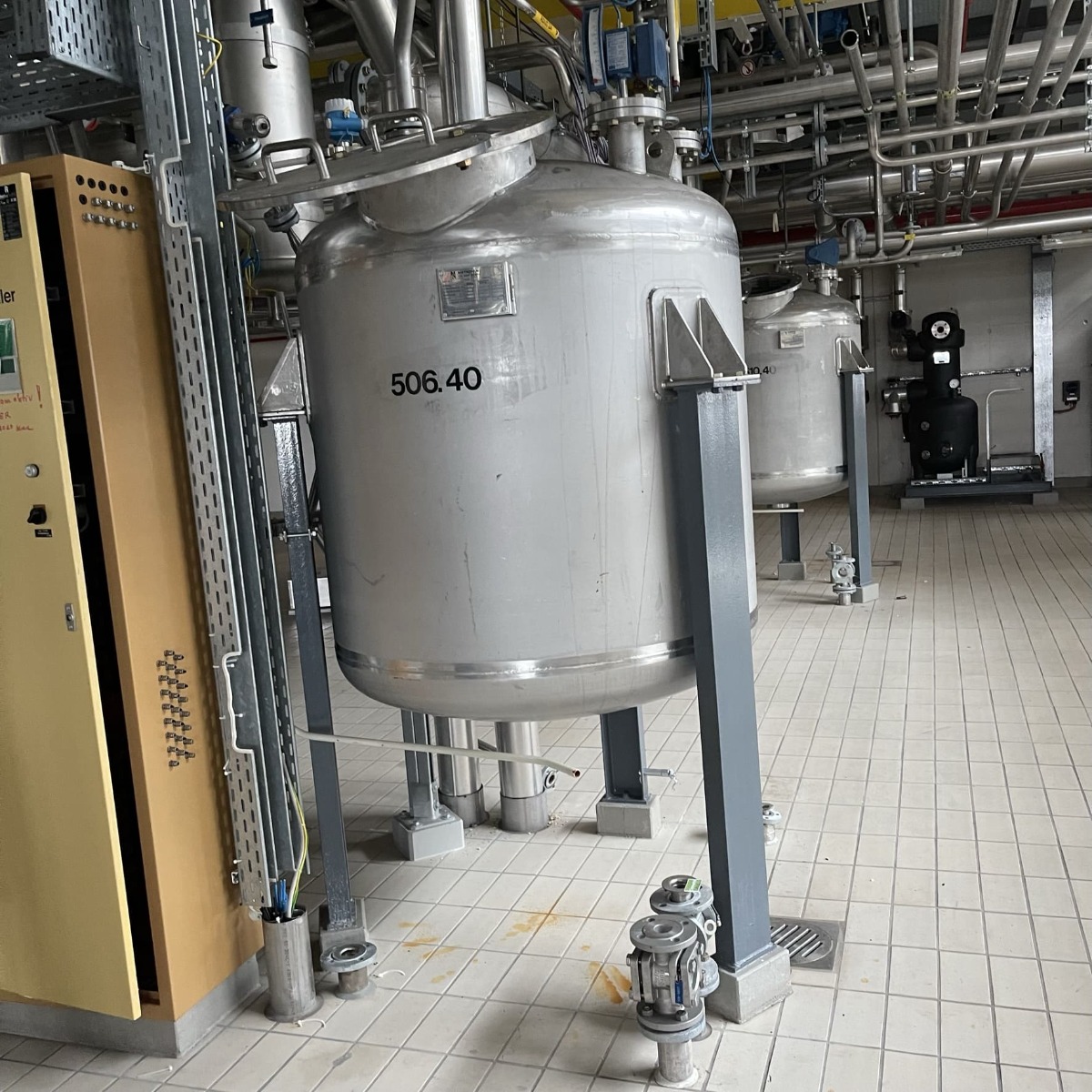

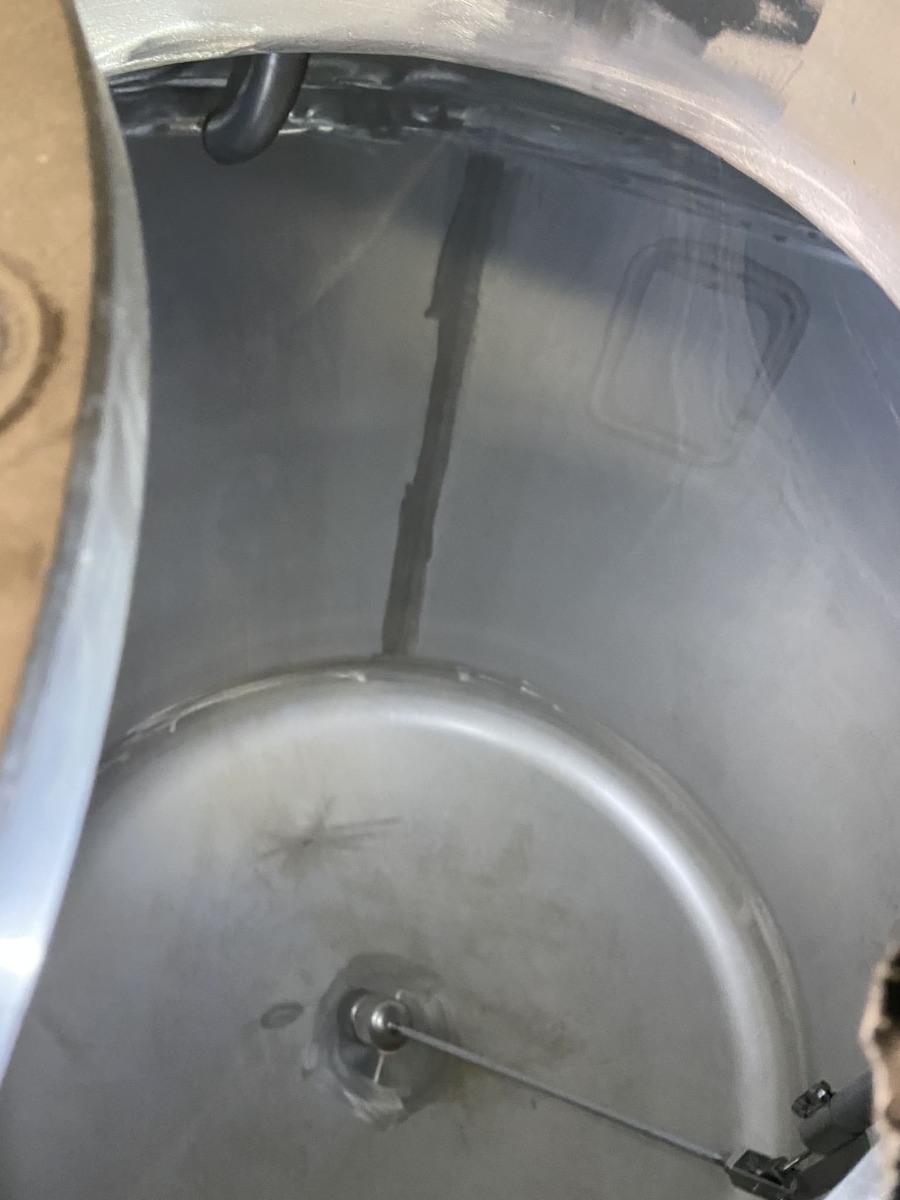

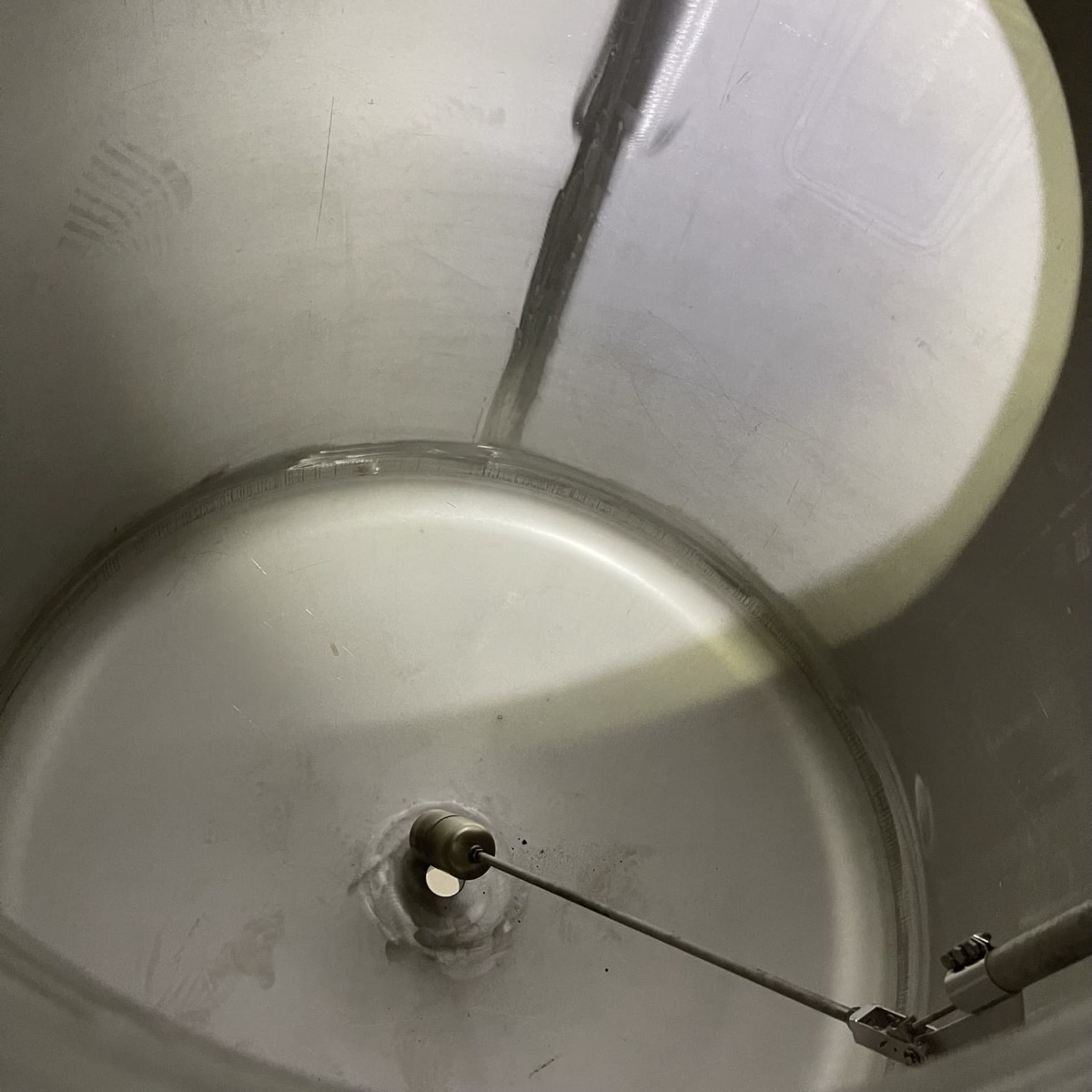

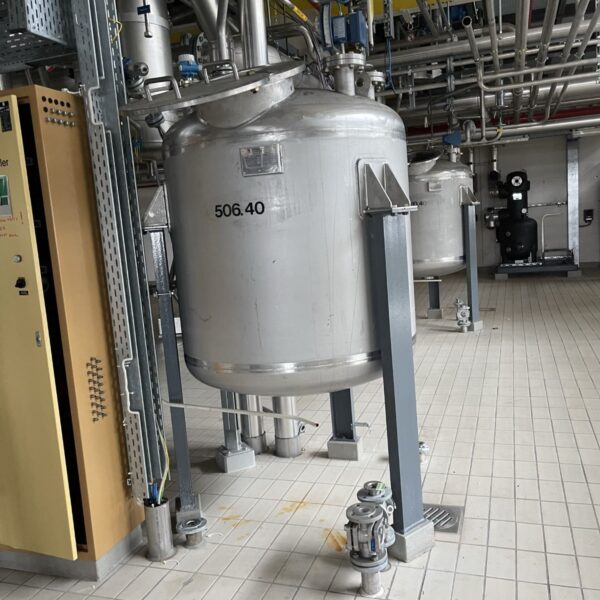

1495 liter tank i Syrafast 316

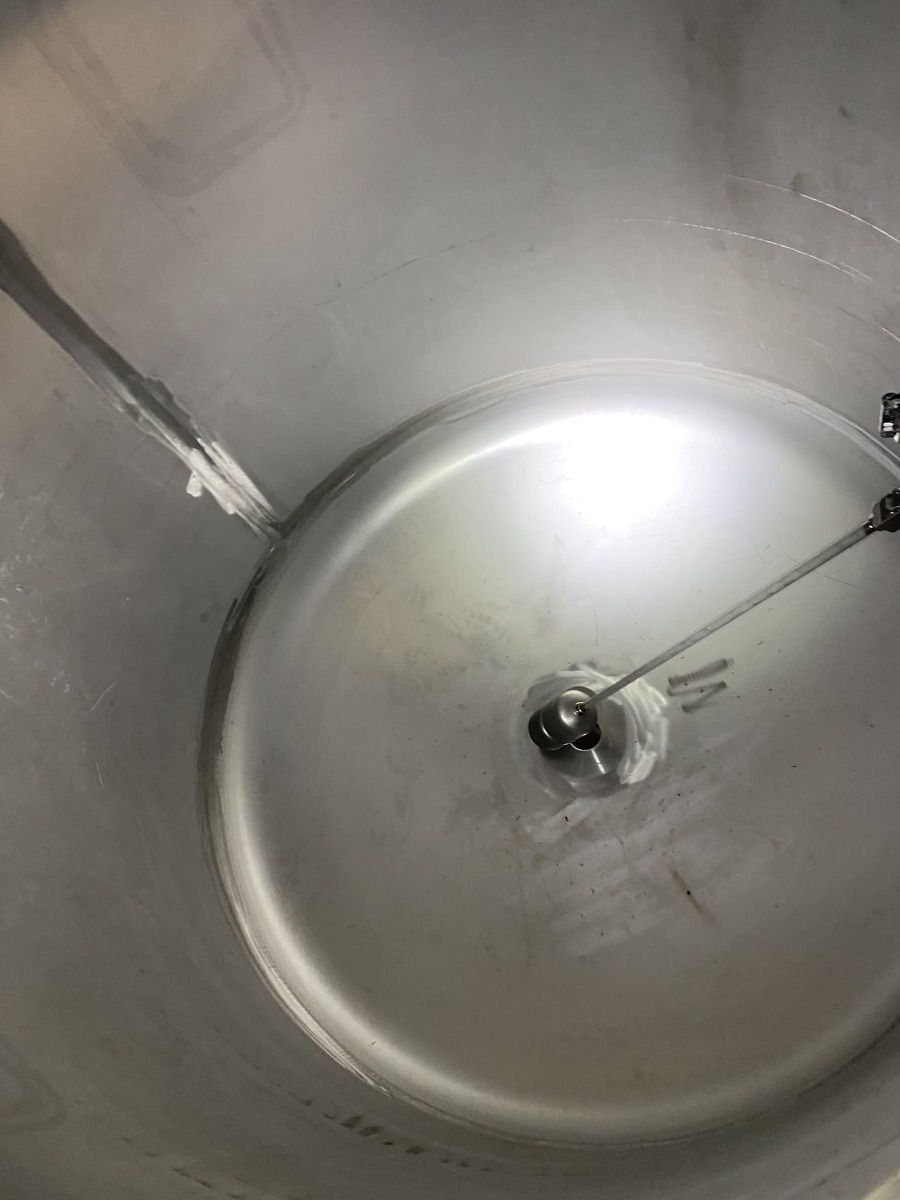

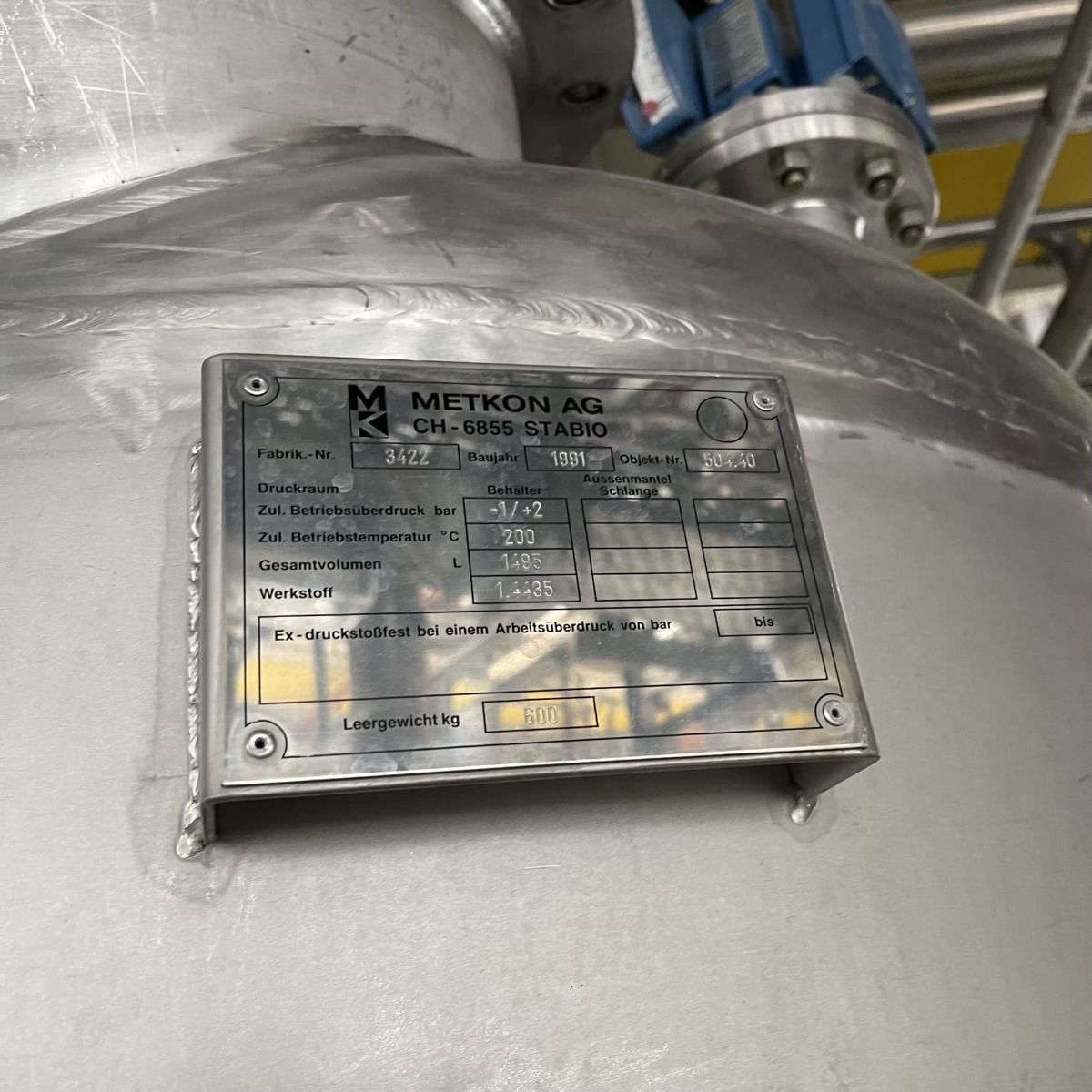

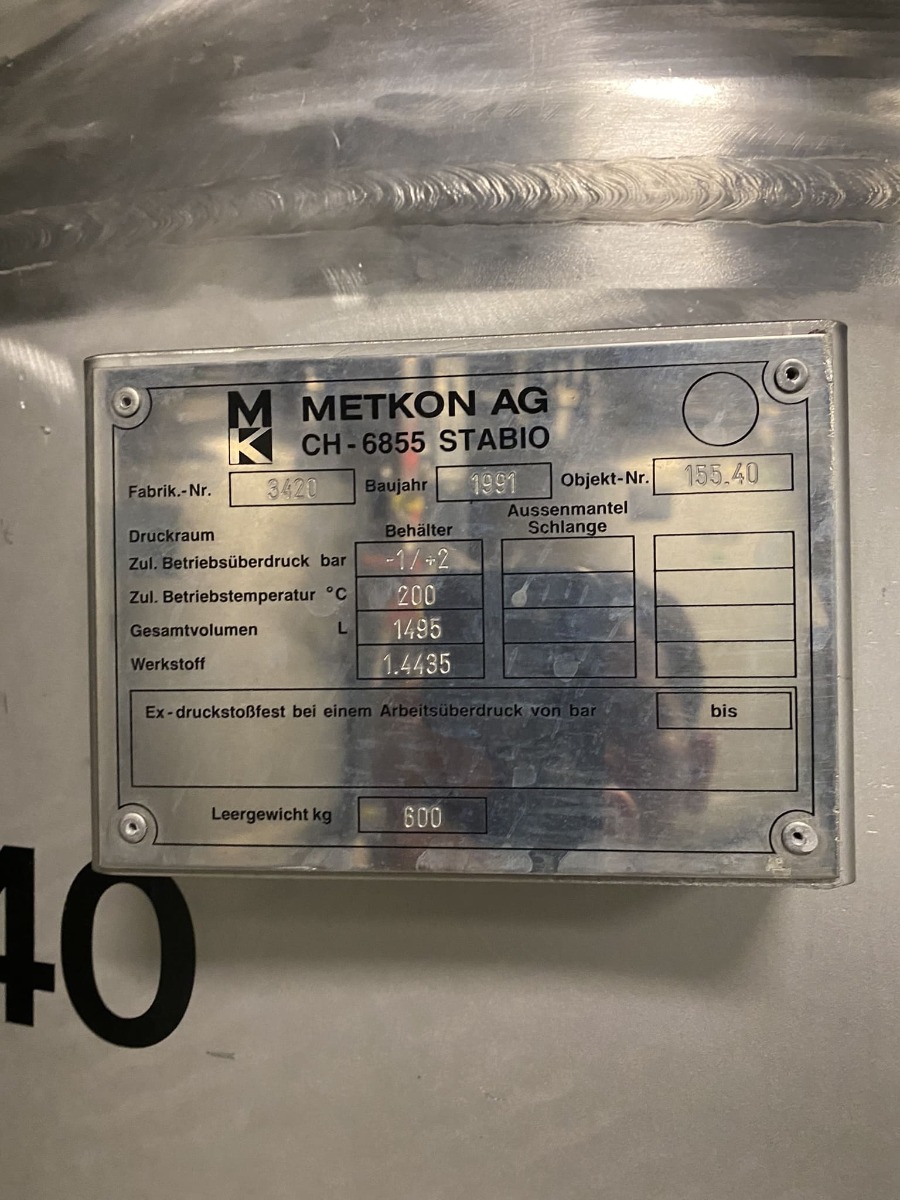

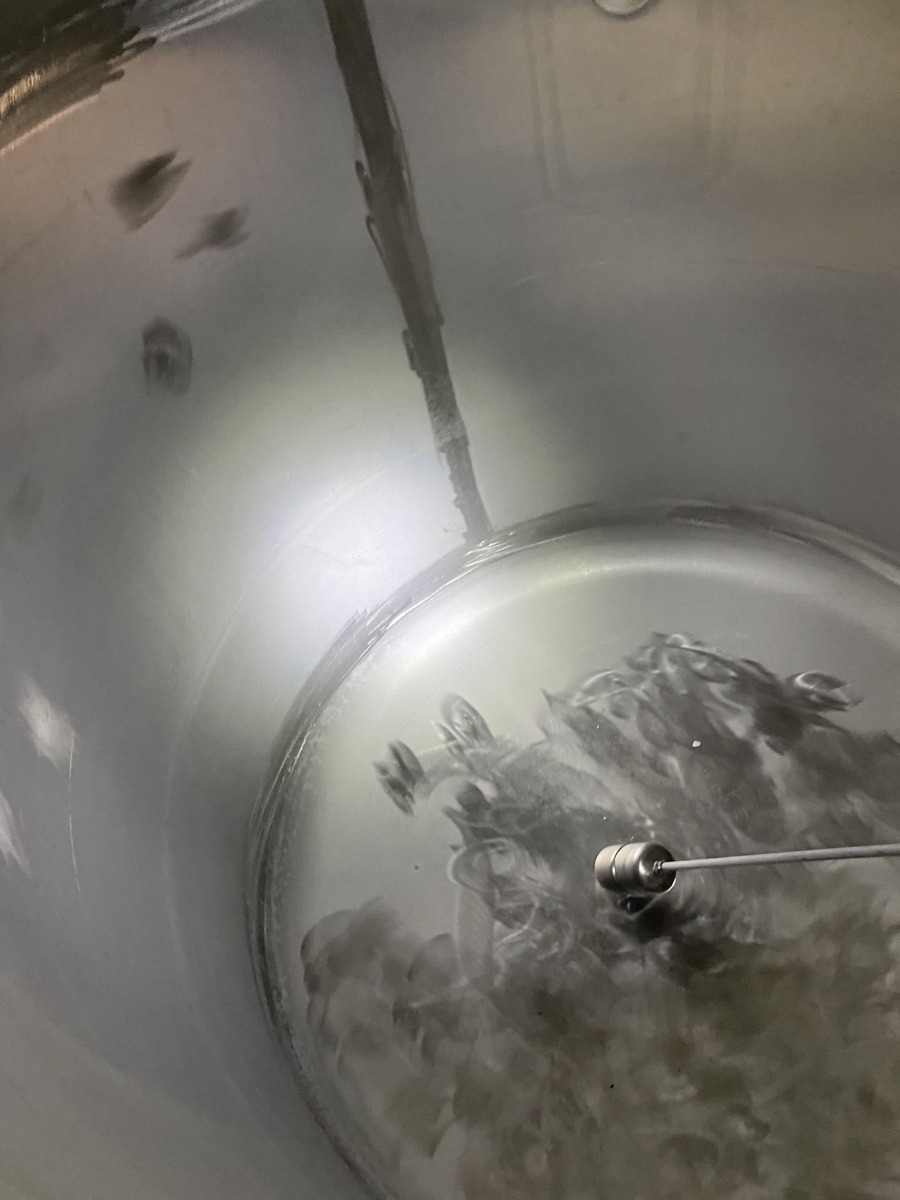

Additional information: Pharmaceutical chemistry; 3 feet, Fe screwed to support brackets, st. st. Volumetric volume (L): 1.495 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 2 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Max Overpressure: 2 Bar Max onderdruk: 1 Bar Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: in the bottom Outlet of tank: flange DN50 Top: 8 mm Cylinder: 5 mm Bottom: 5 mm Internal diameter tank: 1.200 mm Cylinder height: 980 mm Total height of tank: 2.350 mm Empty weight tank: 600
