5685 liter tank i Syrafast 316

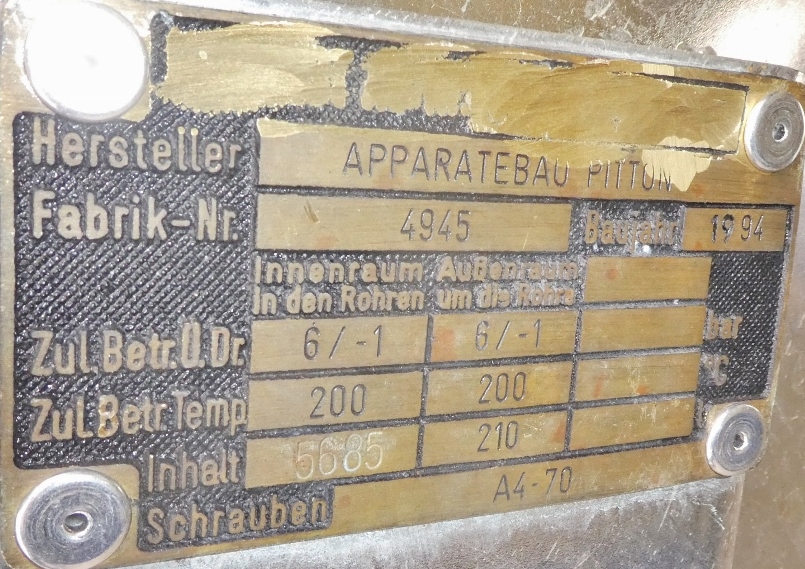

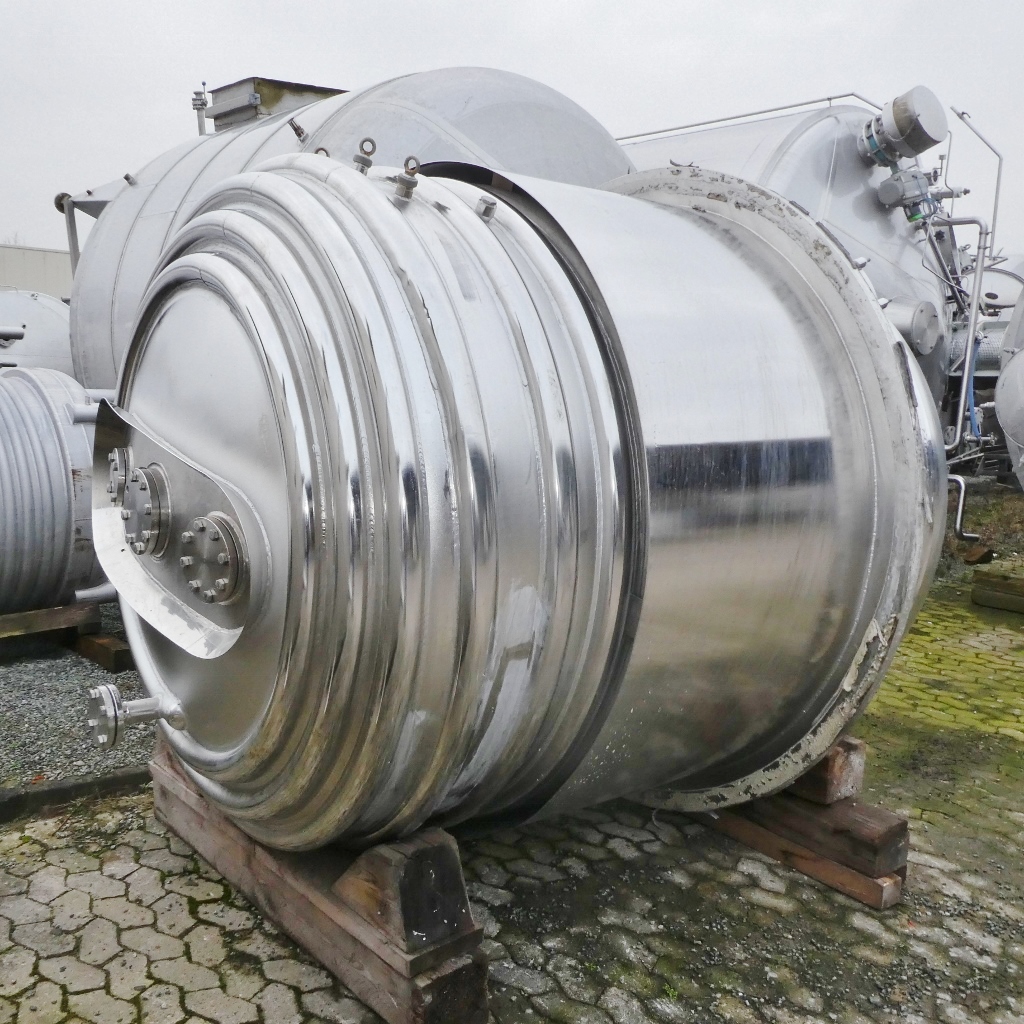

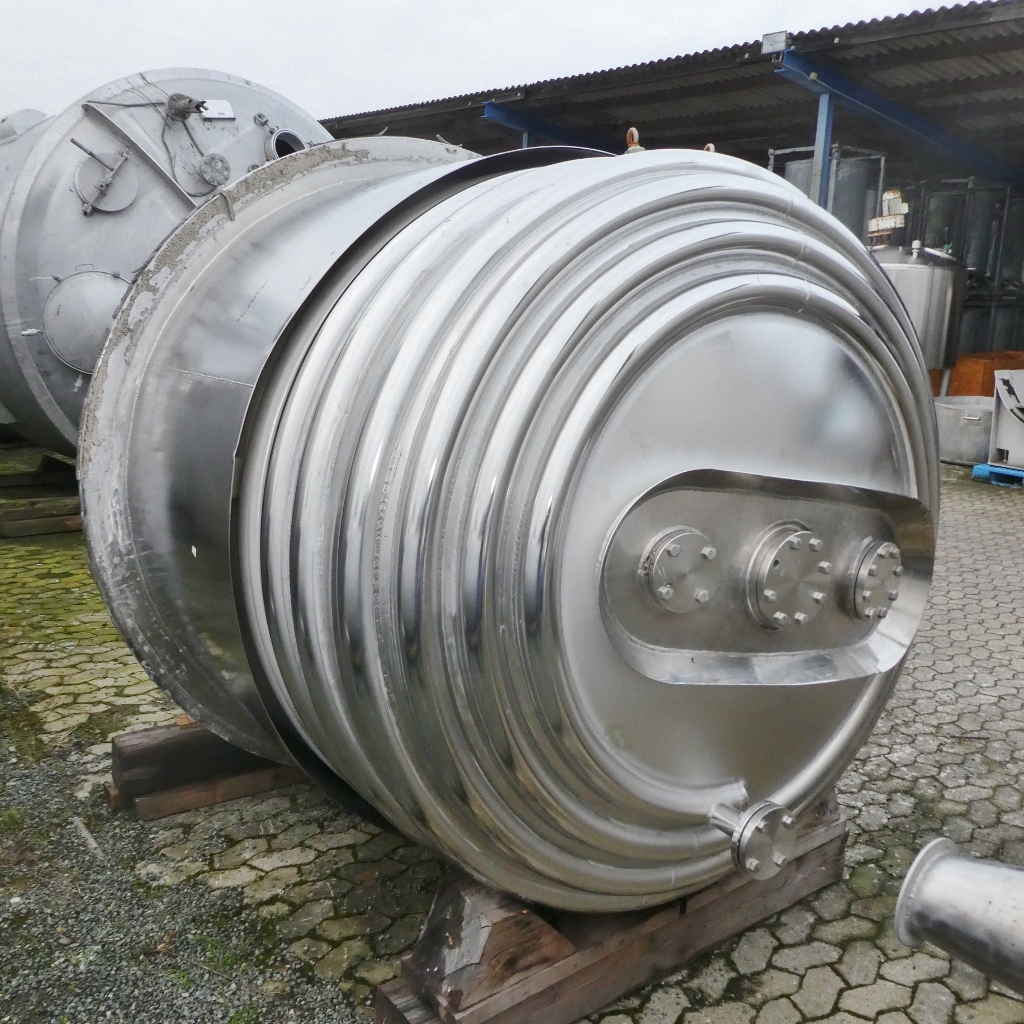

Additional information: Remnants of the insulating jacket on the outside of the cylinder; 1 DN 100 connection in the manhole cover Volumetric volume (L): 5.685 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 6 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single jacketed with heat-exchanger Heat exchanger: yes Insulation: no Mobile tank: no Total discharge: yes Volume: 210 L Max Overpressure: 6 Bar Max onderdruk: 1 Bar Max. working temperature: 200 °C Type HE on the bottom: half pipe welded onto the outside of the innertank Type HE on the cylinder: half pipe welded onto the outside of the innertank Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: yes Position of manway: headside Outlet of tank: 130 Internal diameter tank: 1.780 mm Cylinder height: 1.720 mm Total height of tank: 2.850 mm
