5300 liter i rostfritt 304

Art.nr: 1664

Tipsa en kollega

Email

Beskrivning

https://www.staes.com/en/available-from-stock/WW7127V4N

Mer information

Antal

Isolerad

Material

Modell

Omrörare

Uppvärmning/kylning

Volym i liter

Description of the article

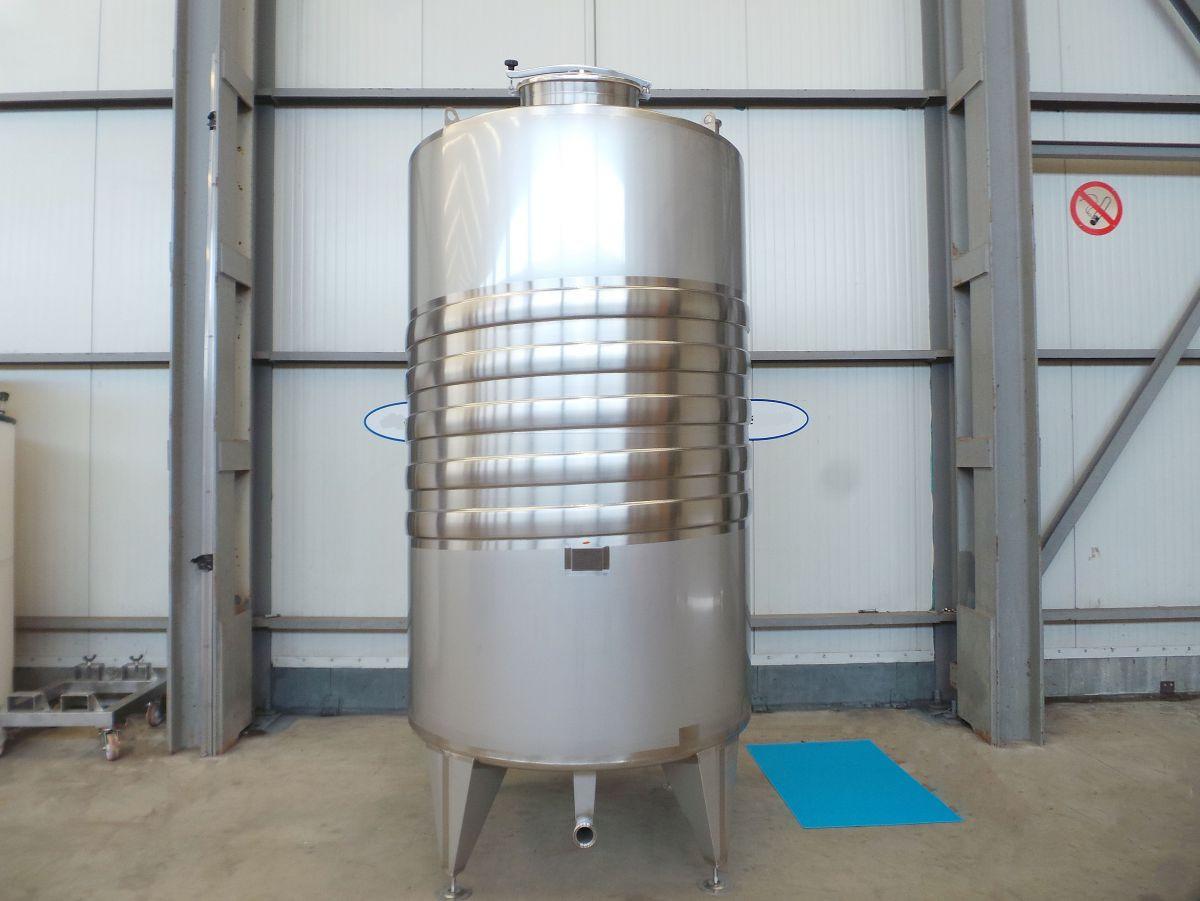

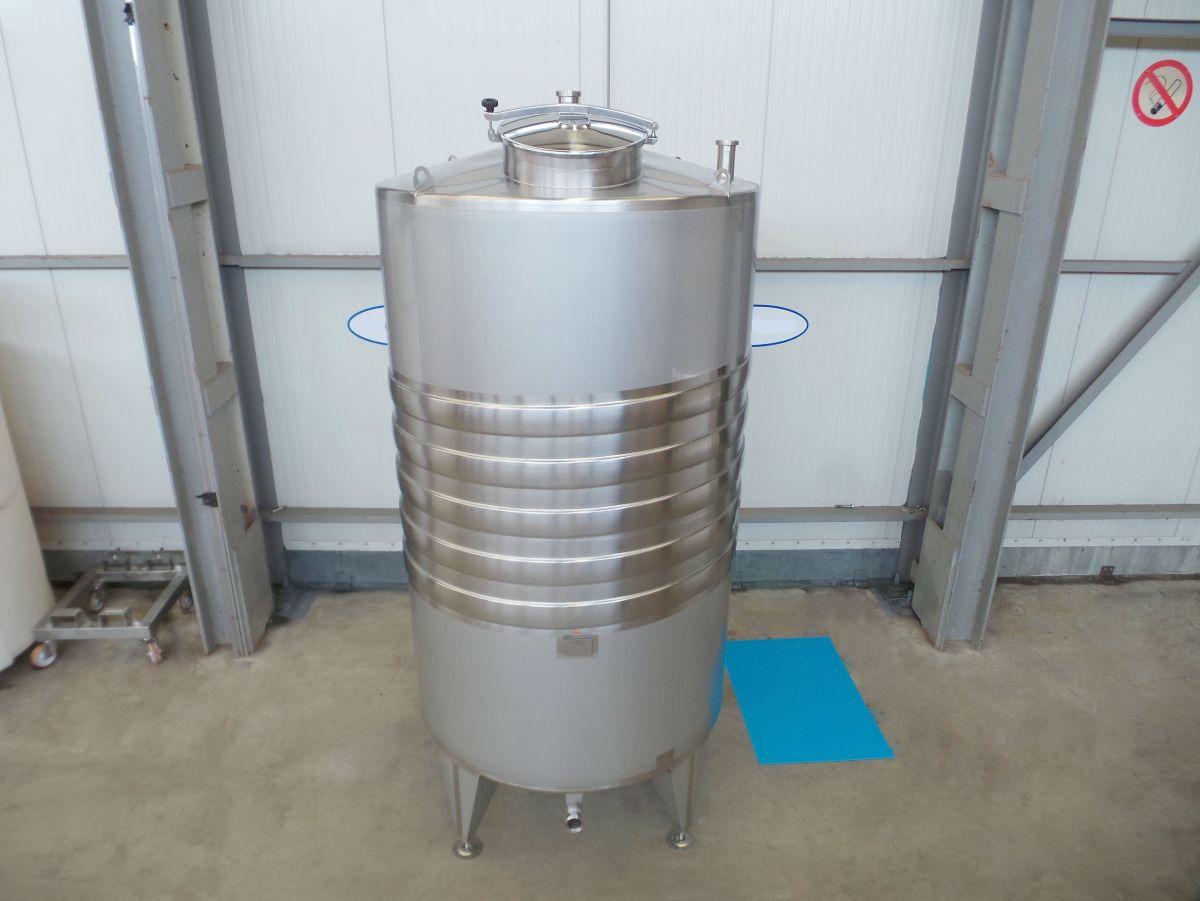

  • Article type: brand new storage tank
  • Capacity: 5.300 L
  • Maximal density of the product: 1.150 kg/m³
  • Working pressure in tank: pressure
  • Max. working temperature: 100 °C
  • In contact with the product: SS AISI 304 (V2A)
  • Model: vertical
  • Configuration: single jacketed with heat-exchanger
  • Heat exchanger: yes
  • Insulation: no
  • Agitator: yes, optional
  • Mobile tank: no
  • Top type: conical 18 °
  • Shape of tank: cylindrical
  • Bottom type: conical 18 °
  • Total discharge: yes
  • Fixation points: 4 adjustable feet
  • Legs: Set of baseplates and adjusting pieces included

Heat Exchanger (HE)

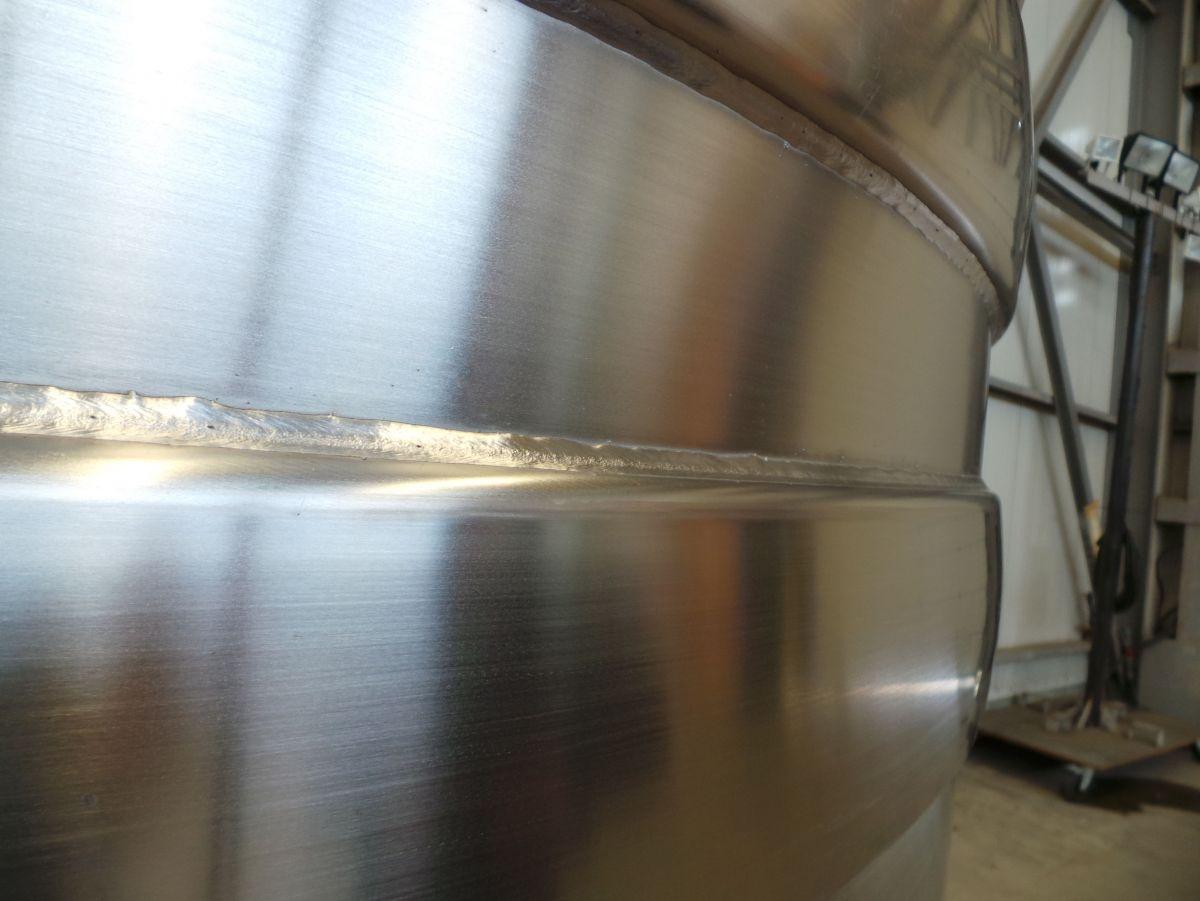

  • Type of HE on the cylinder: half pipe welded onto the outside of the innertank
  • Position HE: the middle part of the cilinder
  • Number of windings: 5
  • Height HE: 1.061 mm
  • Number of sections: 1
  • Water pressure HE: 2,50 Bar
  • Steam pressure HE: 2,50 Bar
  • Contact surface cylinder: 3 m²
  • Type HE: half pipe welded onto the outside of the innertank

Overview materials

  • Mat. wet parts: SS AISI 304 (V2A)
  • Heat exchanger: RVS 304
  • Manway(s): RVS 304
  • Gasket manway(s): parra rubber
  • Valve: RVS 316L
  • Fixation point(s): RVS 304

Equipment

  • Suitable for food industry: yes
  • Documents included: yes, optional
  • Technical drawing included: yes
  • Registration plate on the tank: yes
  • Flange for agitator: no

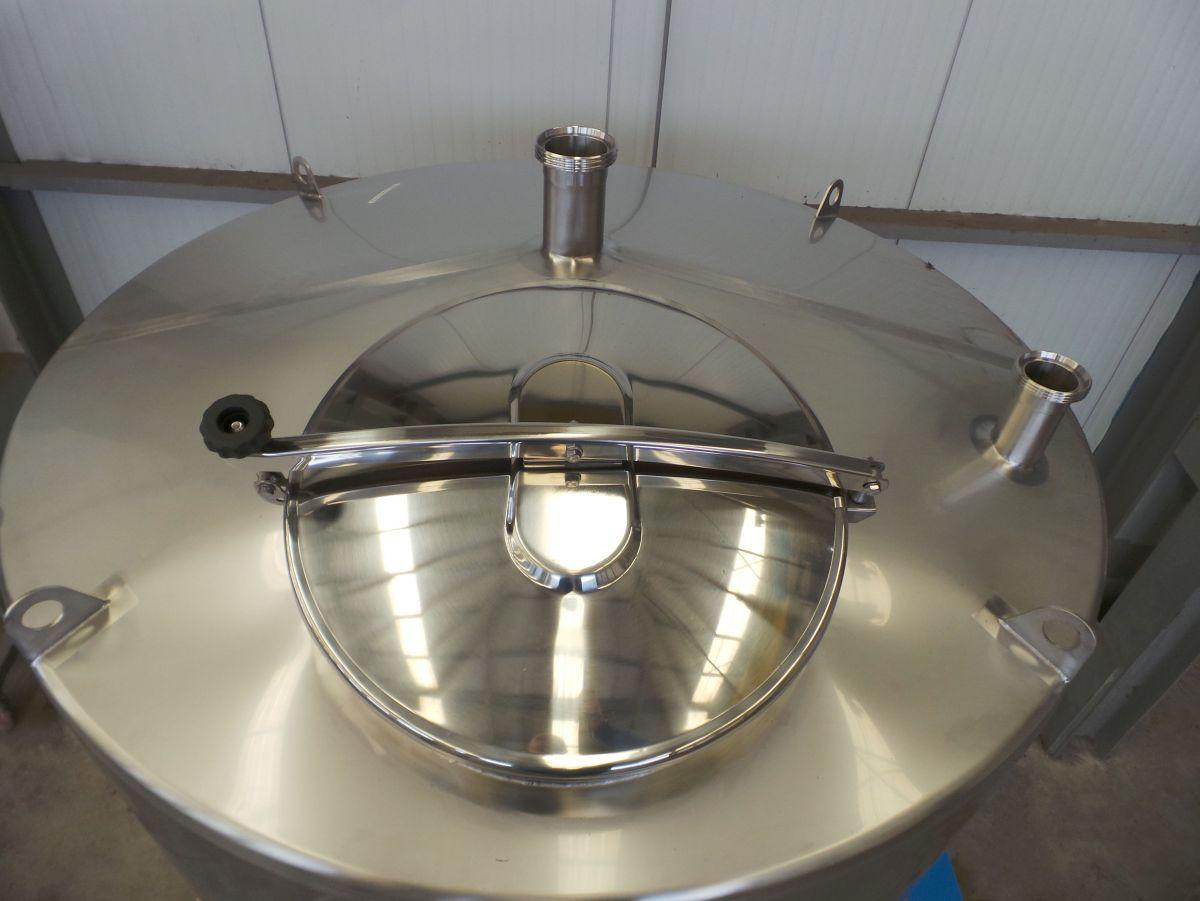

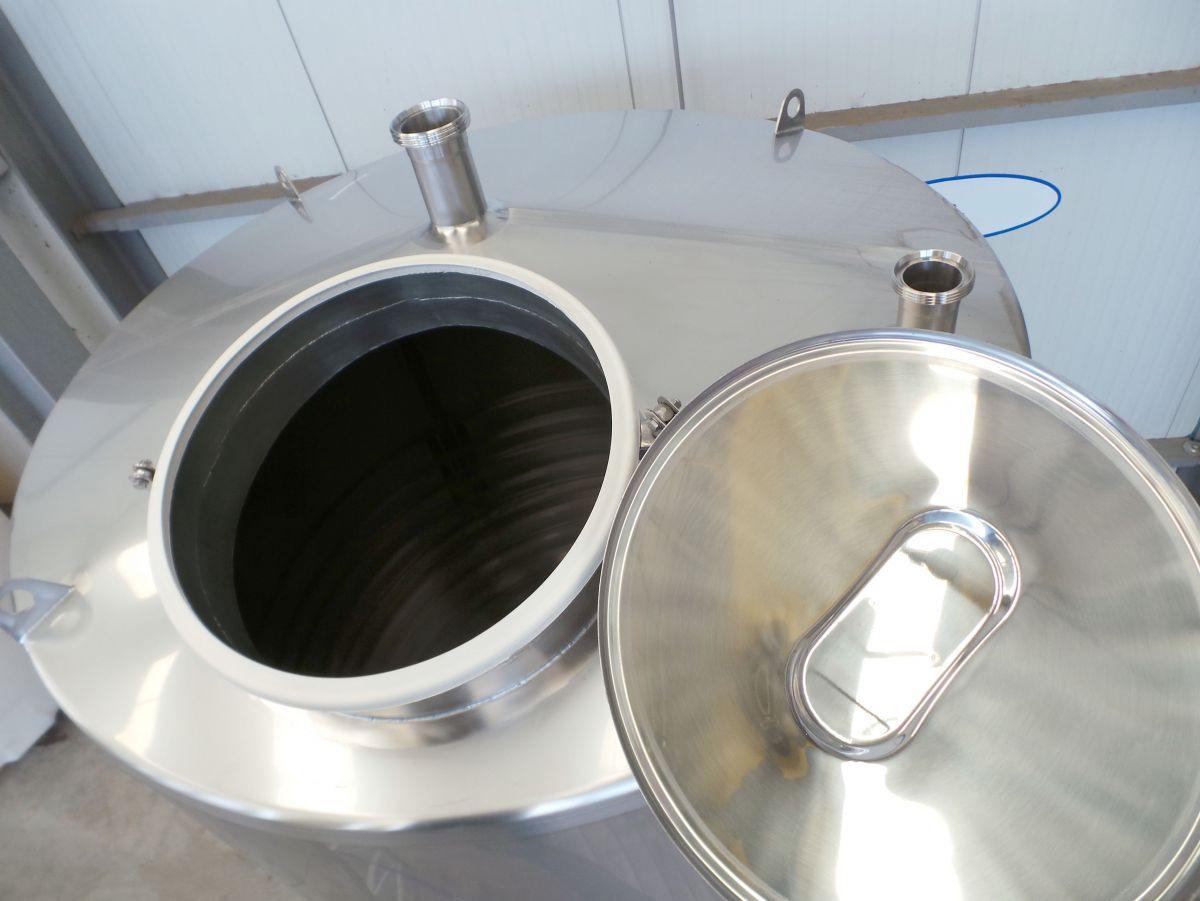

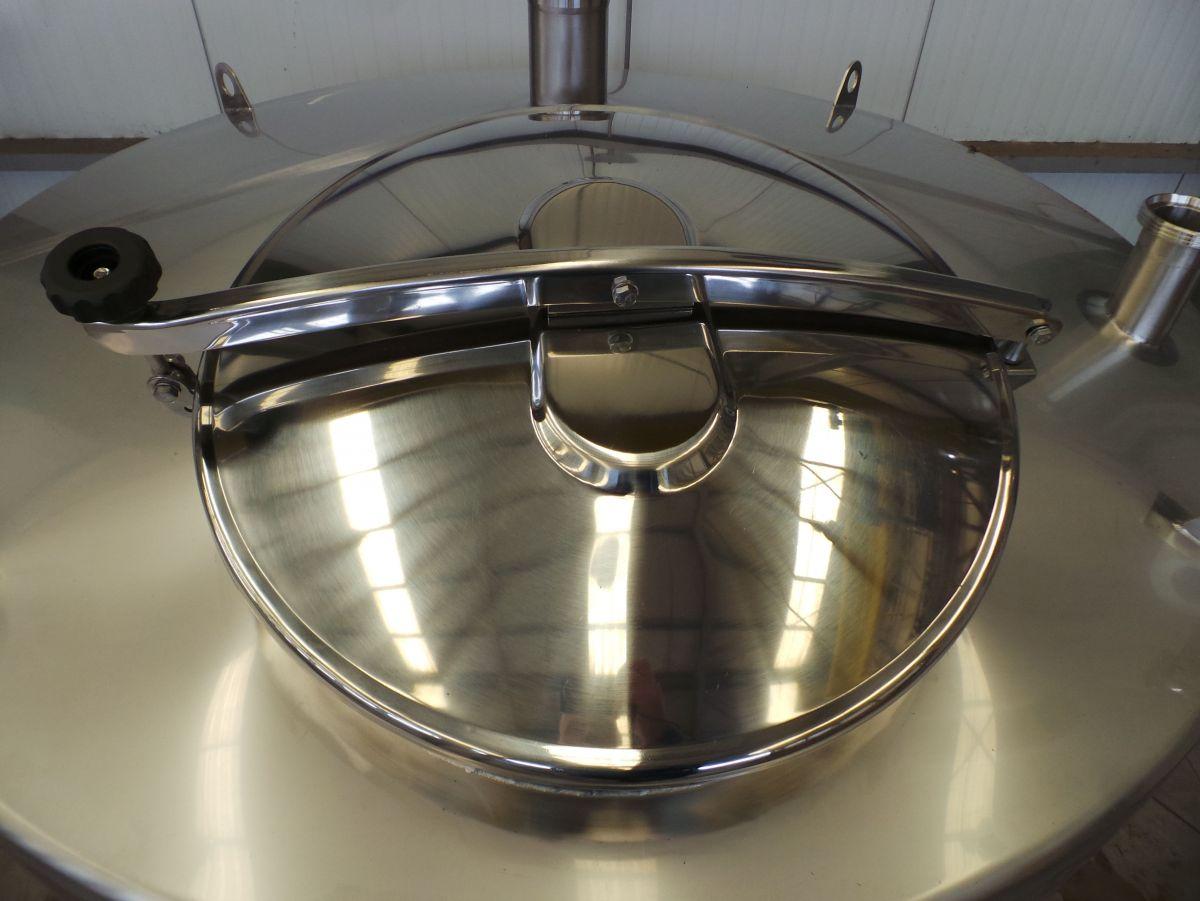

  • Number of manways: 1
  • Position manway: at the top
  • Manway 1: Ø 500 mm
  • Hinged lid: yes
  • Spray ball: no

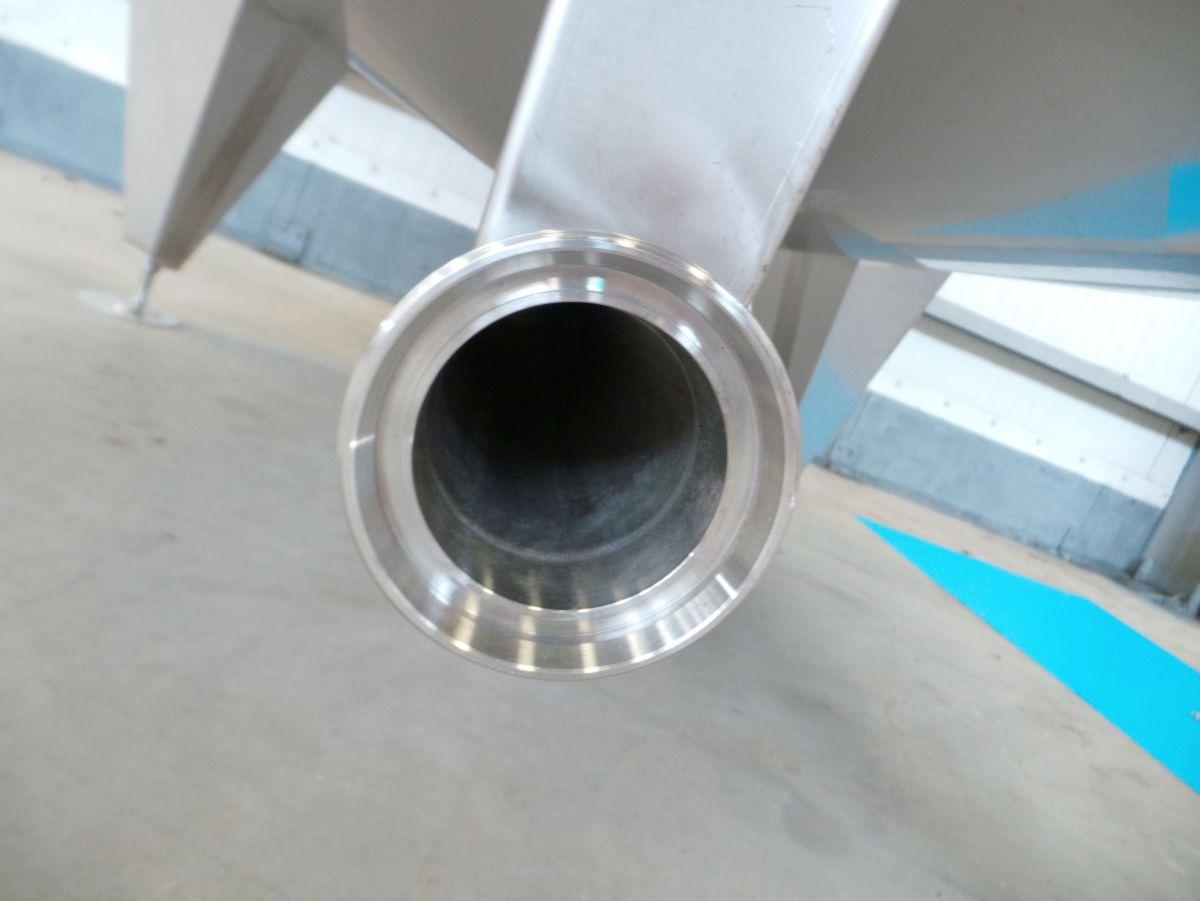

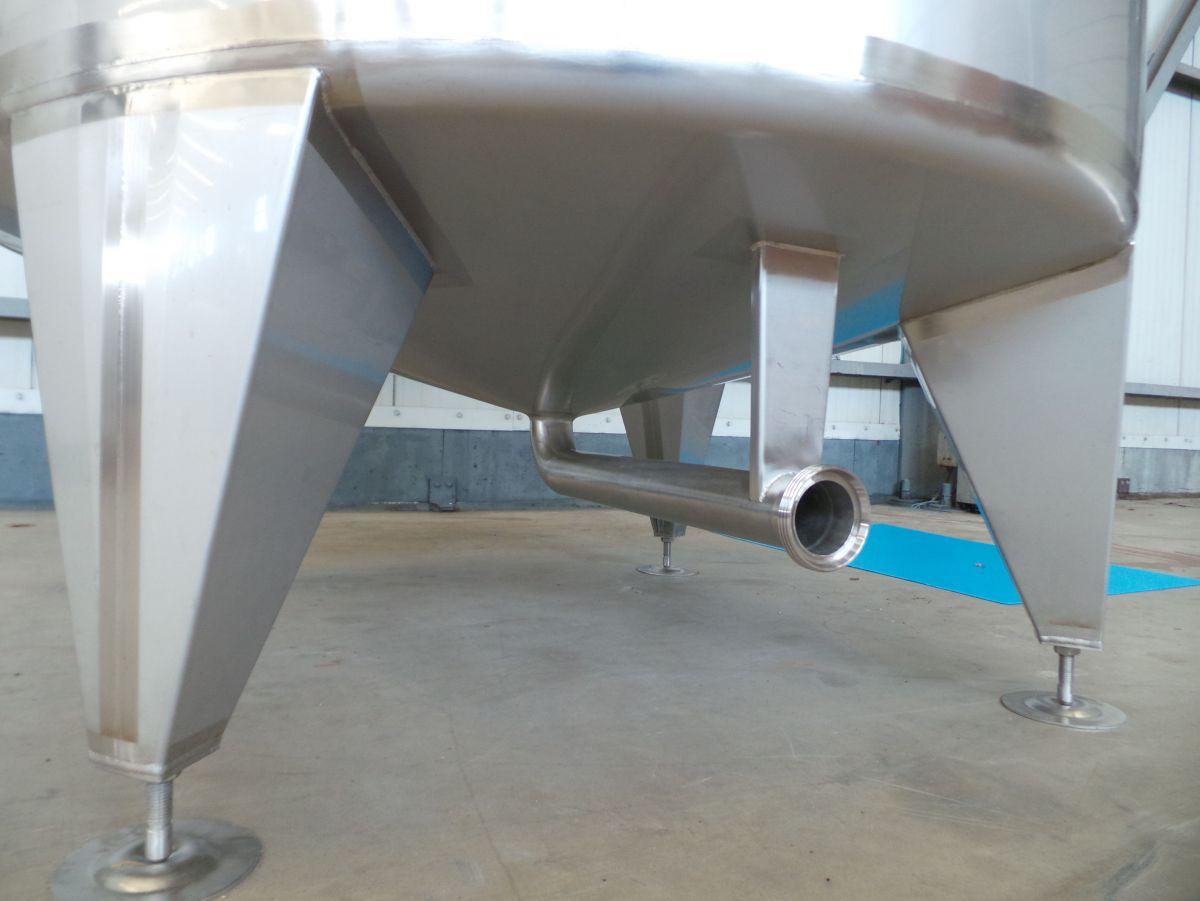

  • Tank outlet: inside Ø 65 mm
  • Outlet type: DIN11851 male
  • Total outlet valve: yes, optional
  • Type shut-off valve: butterfly valve
  • Adjustable legs: yes

Wall thicknesses of the inner tank

  • Top: 1,50 mm
  • Cylinder: 2 mm
  • Bottom: 2 mm

Dimensions of the tank

  • Internal diameter tank: 1.592 mm
  • Distance from outlet to ground: 230 mm
  • Outer diameter tank: 1.622 mm
  • Cylinder height: 2.500 mm
  • Feet height: 570 mm
  • Total height of tank: 3.500 mm
  • Empty weight tank: 341 Kg
