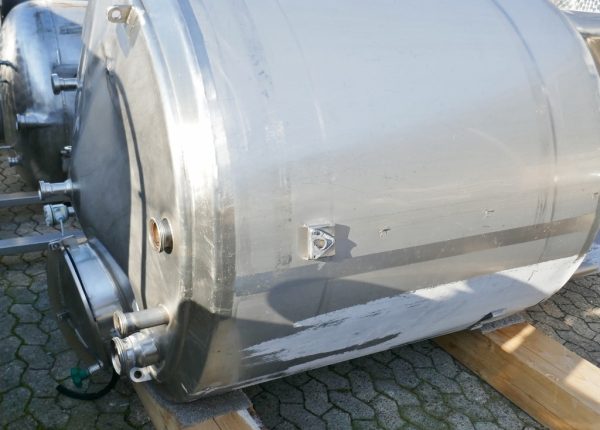

Additional information: Food; Manhole is located in the front floor Volumetric volume (L): 20.000 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: horizontal Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator: no…
Additional information: Pharmacy; 4 stainless steel 304 brackets; total height indicated is estimated Volumetric volume (L): 2.950 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 2,50 Bar Min. pressure (Bar): 0,90 Bar Max. temperature (°C): 138 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no…
Additional information: Rinse water tank (Cip system) in a dairy; Cone height approx. 1000 mm; manhole approx. 430 mm (slightly unround); dents in the upper bottom; insulation jacket cut open at the end of the cone bottom (see photos); some residues of previous content; bump at the insulation jacket; pipe end cut flush Volumetric volume (L): 2.000 L Pressure in…
Additional information: Frame, Aisi 304 (currently 4 wooden blocks are screwed under; see photos); Manhole approx. 345 x 440 mm; some residues of previous content Volumetric volume (L): 5.000 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included:…
Additional information: Saline solution; Dents in the insulation jacket possible; The production and documentation drawings are available from the manufacturer and can be purchased separately from there; some residues of previous content; pipe end cut flush Volumetric volume (L): 5.500 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 2,50 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C):…
item available on order Article type: brand new storage tank - type K-HL Volumetric volume (L): 5.300 L Max. density P (kg/m³): 1.150 Pressure in tank: pressure Max. temperature (°C): 100 °C Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single jacketed with heat-exchanger Heat exchanger: yes Insulation: no Mobile tank: no Top type: conical 18 ° Shape…
