520 liter i syrafast 316

Description of the article

• Article type: brand new storage tank
• Additional information: Ra=<0.8µm
• Capacity: 520 L
• Maximal density of the product: 1.200 kg/m³
• Ra inner weld: 0,80 µ
• Finish stainless steel: 2b
• Working pressure in tank: ATM – atmosferic
• Max. working temperature: 130 °C
• Min. working temperature: -10 °C
• In contact with the product: SS AISI 316L (V4A)
• Model: vertical
• Configuration: insulated with heat-exchanger
• Heat exchanger: yes
• Insulation: yes
• Agitator: yes, optional
• Mobile tank: no
• Top type: conical
• Shape of tank: cylindrical
• Bottom type: conical 15 °
• Wall type: conical 15 °
• Total discharge: yes
• Fixation points: 3 adjustable feet

Heat Exchanger (HE)

• Type of HE on the cylinder: dimple-jacket
• Position HE: the complet cilinder
• Water pressure HE: 3 Bar
• Steam pressure HE: 0,49 Bar
• Contact surface cylinder: 1,40 m²
• Connection HE: 1″ BSP
• Working temperature HE cylinder: 110 °C
• Type of HE on the bottom: dimple-jacket
• Water pressure HE: 3 Bar
• Steam pressure HE: 0,49 Bar
• Contact surface bottom: 0,19 m²
• Connection HE: 1″ BSP
• Working temperature HE bottom: 110 °C

Overview materials

• Mat. wet parts: SS AISI 316L (V4A)
• Heat exchanger: RVS – 304 with rockwool insulation
• Insulation material: Rockwool
• Outer jacket (ornamental wall): RVS 304L
• Manway(s): RVS 316
• Gasket manway(s): EPDM
• Fixation point(s): RVS 304L

Equipment

• Suitable for food industry: yes
• Documents included: yes, optional

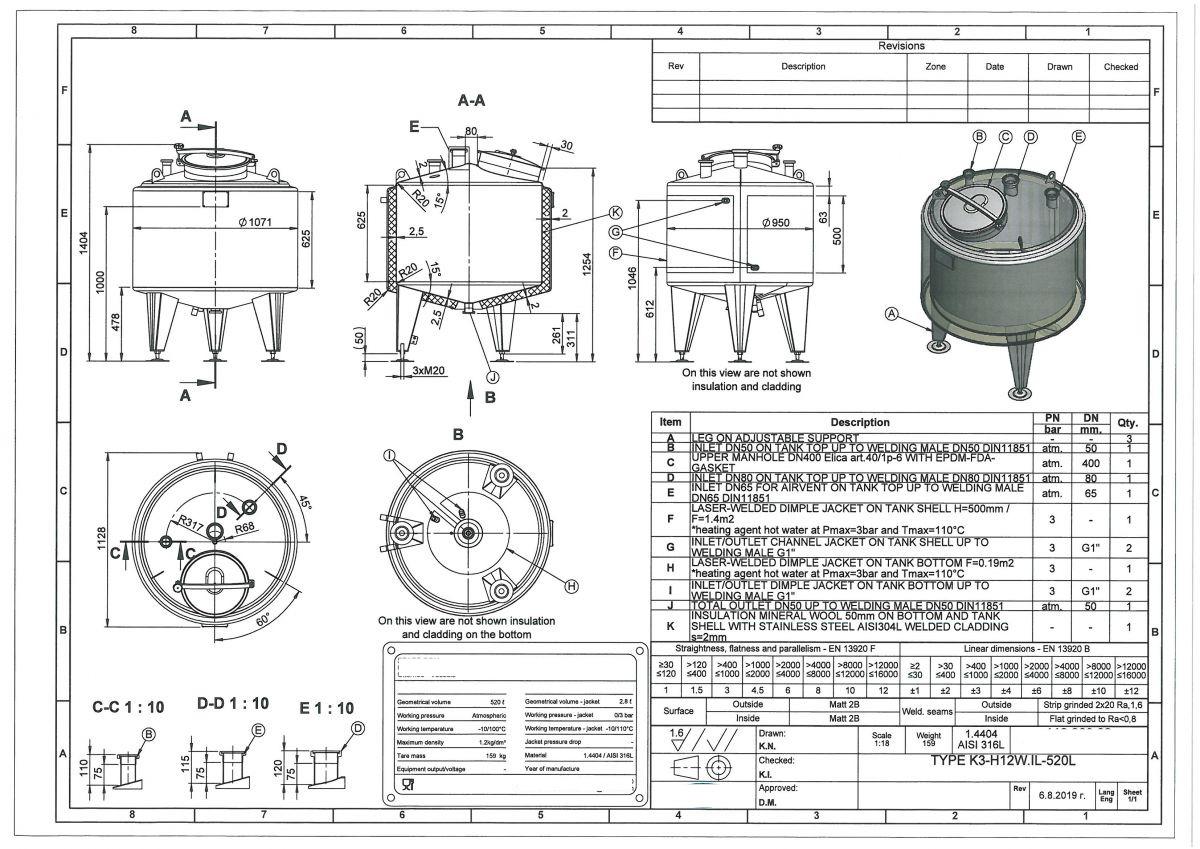

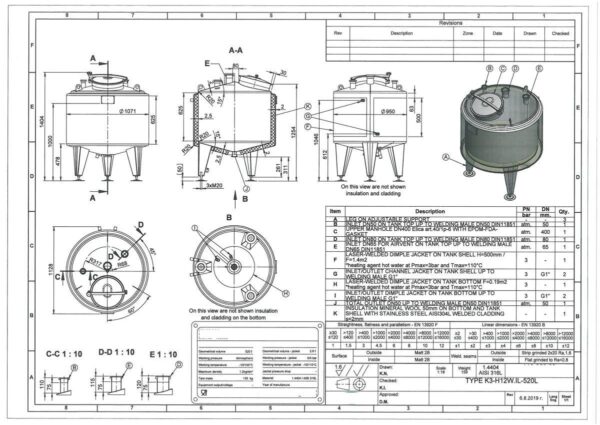

• Technical drawing included: yes
• Registration plate on the tank: yes
• with inspection of: TUV
• Flange for agitator: no
• Number of manways: 1
• Position manway: at the top
• Manway 1: Ø 400 mm
• Spray ball: yes, optional
• Tank outlet: inside Ø 50 mm
• Outlet type: DIN11851 male

Wall thicknesses of the inner tank

• Top: 2 mm
• Cylinder: 2,50 mm
• Bottom: 2,50 mm

Wall thicknesses of the ornamental wall and insulation

• Cylinder: 2
• Insulation body: yes
• Bottom: 2
• Insulation bottom/sides: yes
• finish of the outer jacket: welded
• Insulation material: Rockwool
• Insulation thickness: 50

Dimensions of the tank

• Internal diameter tank: 950 mm
• Distance from outlet to ground: 311 mm
• Outer diameter tank: 1.071 mm
• Cylinder height: 625 mm
• Total height of tank: 1.404 mm
• Empty weight tank: 159 Kg
