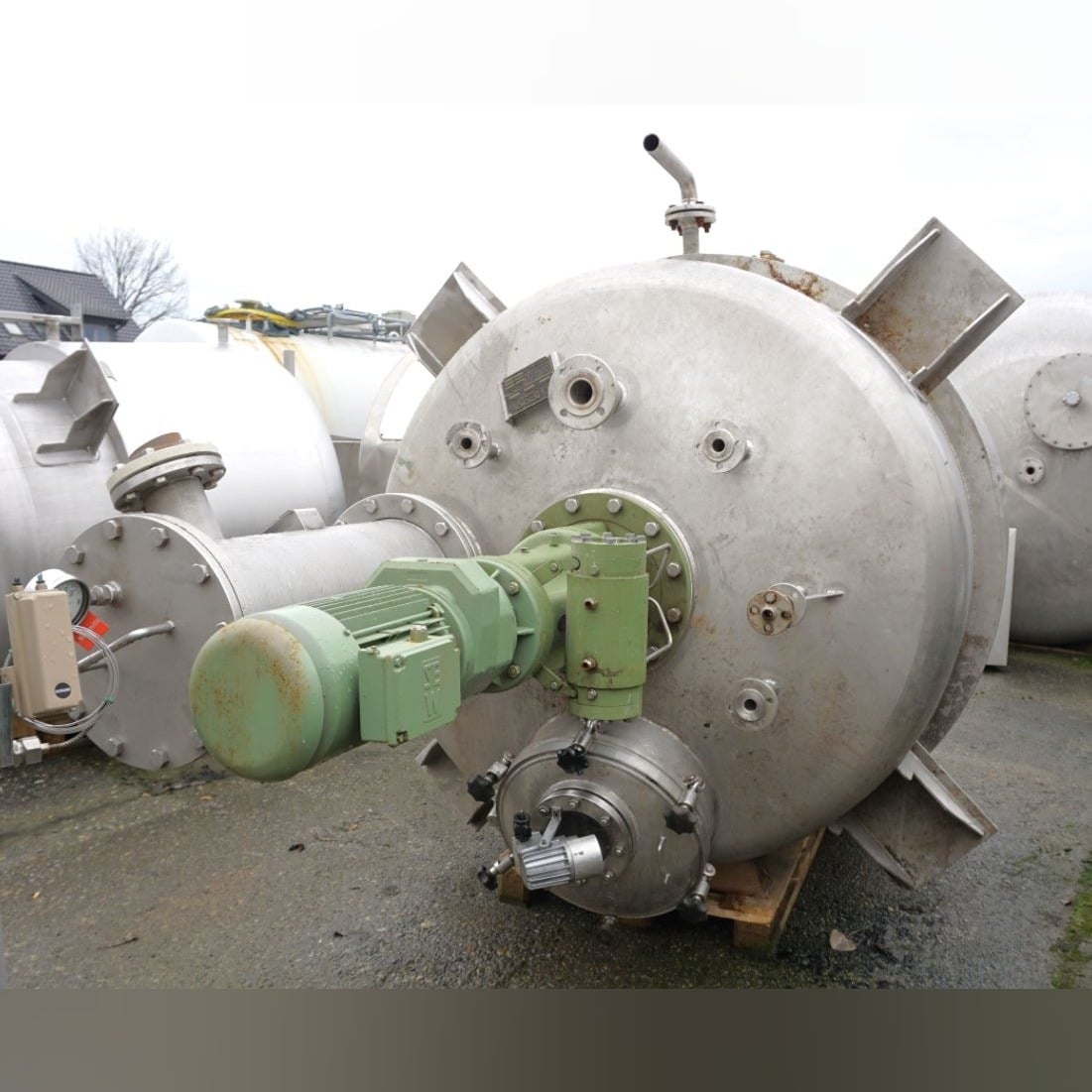

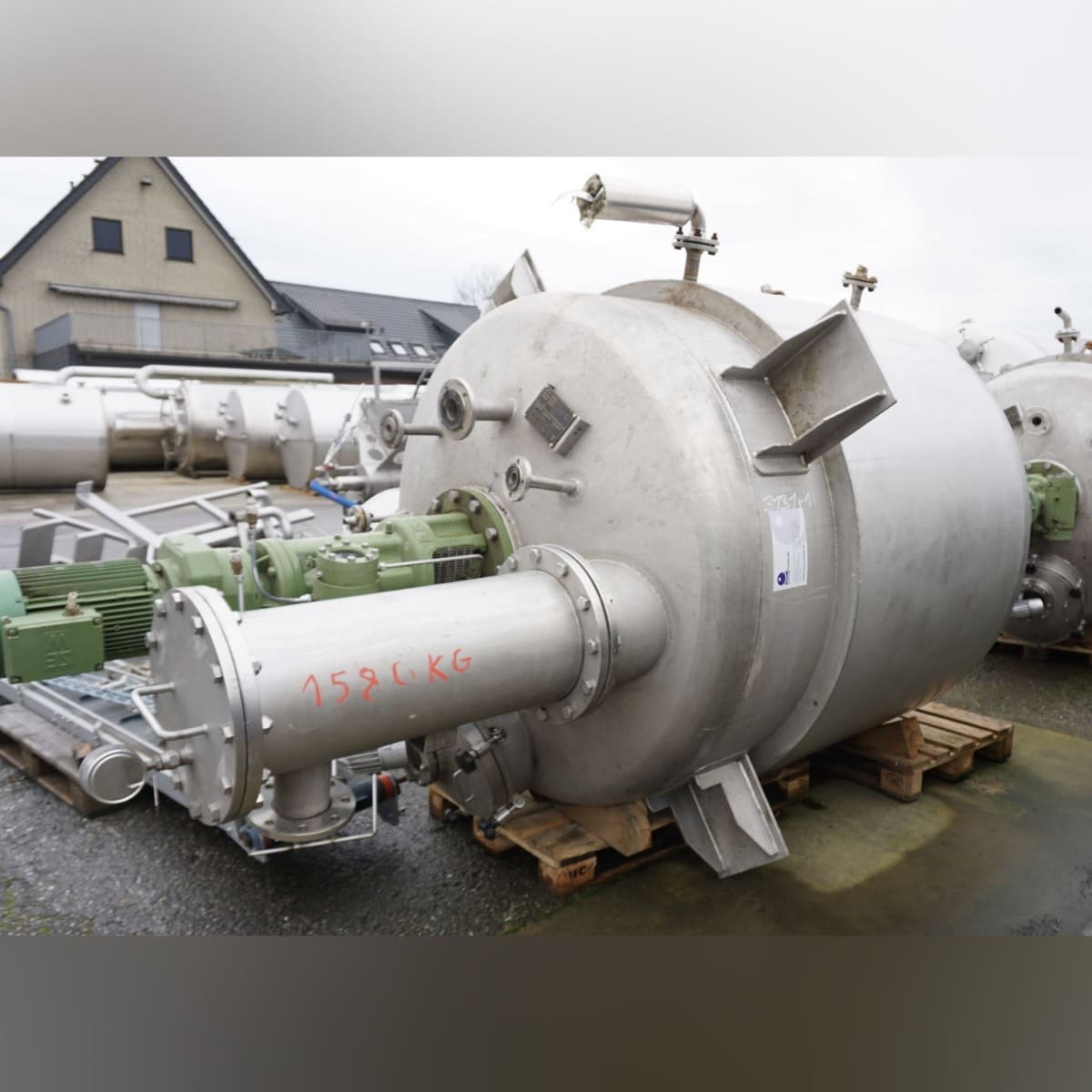

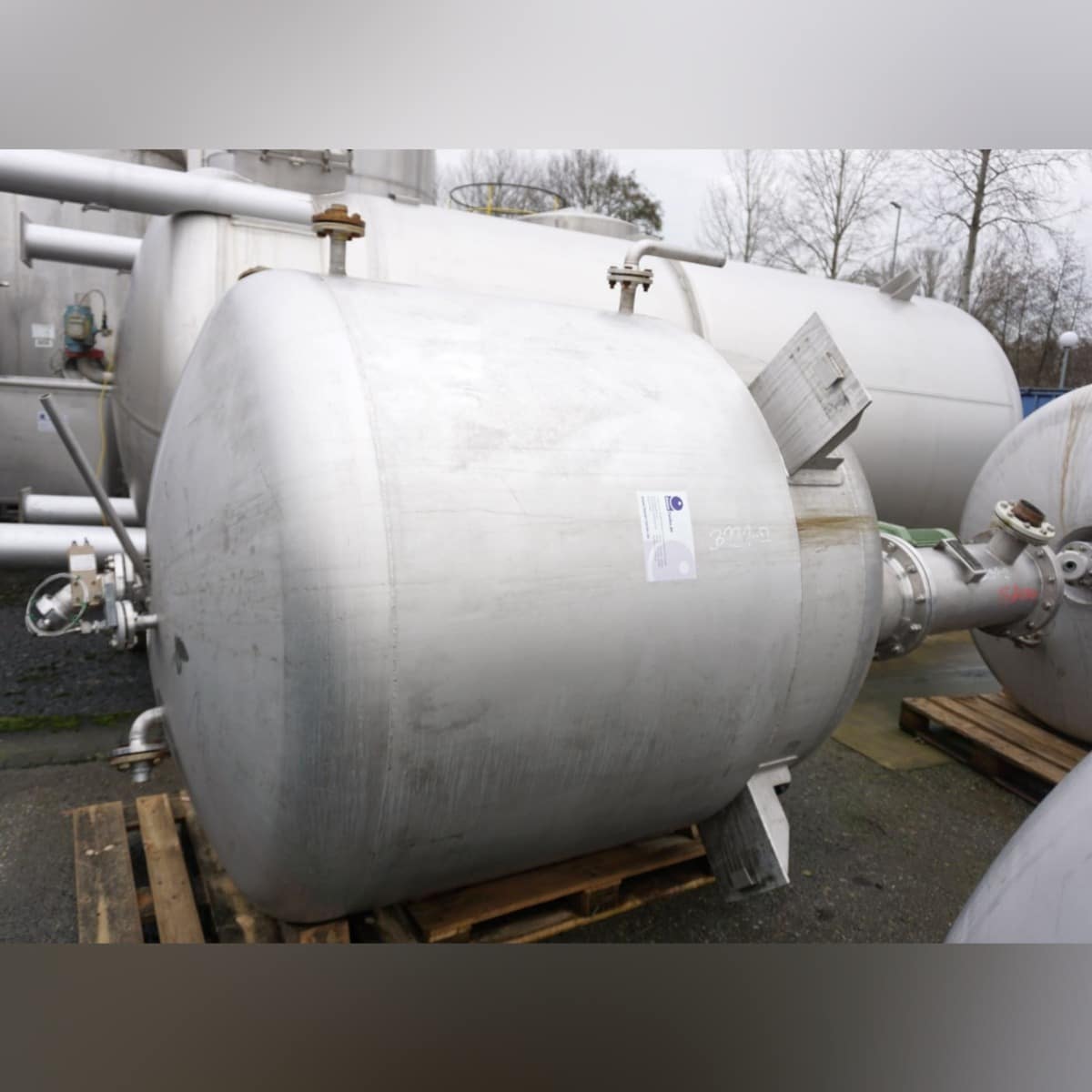

3640 liter tank i Syrafast 316

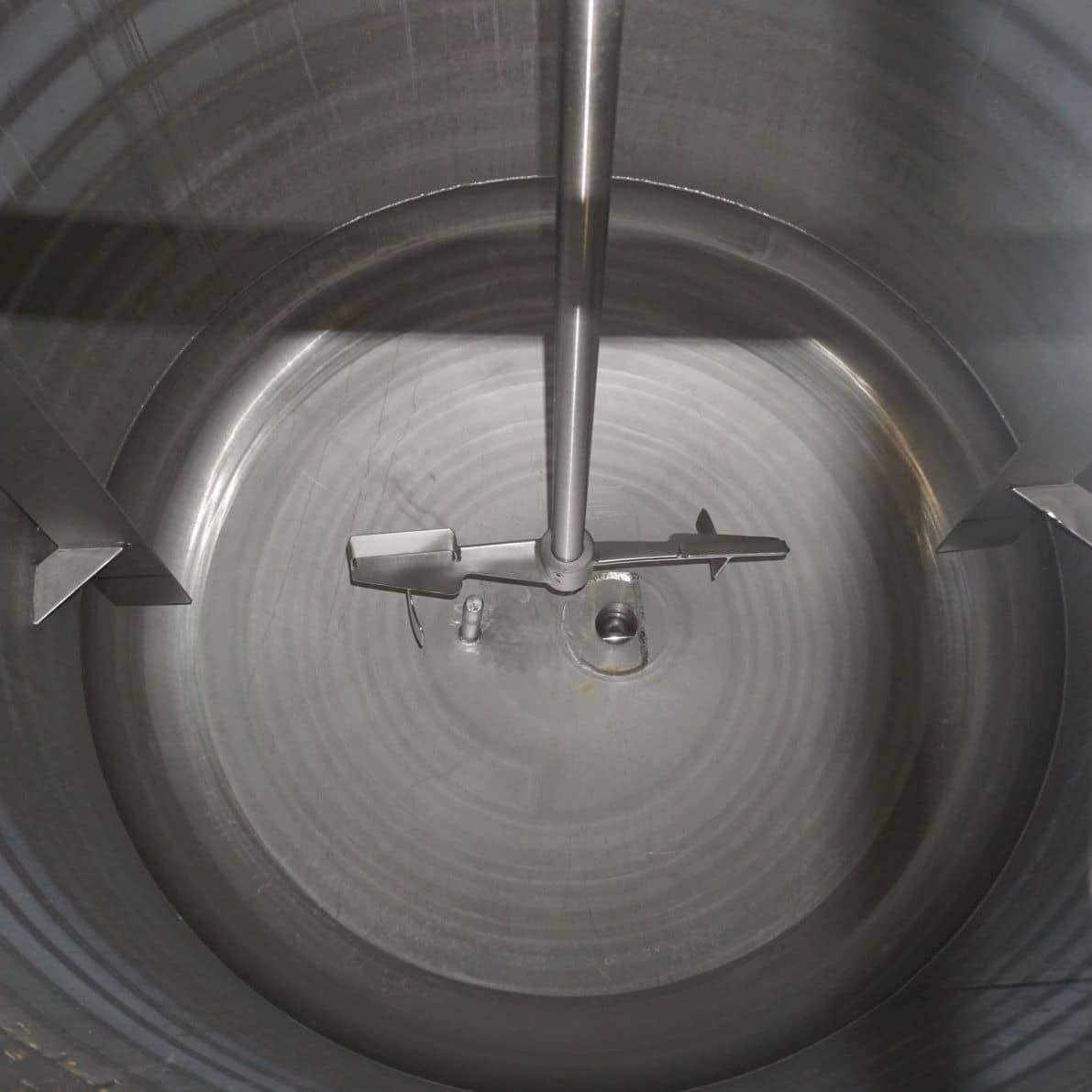

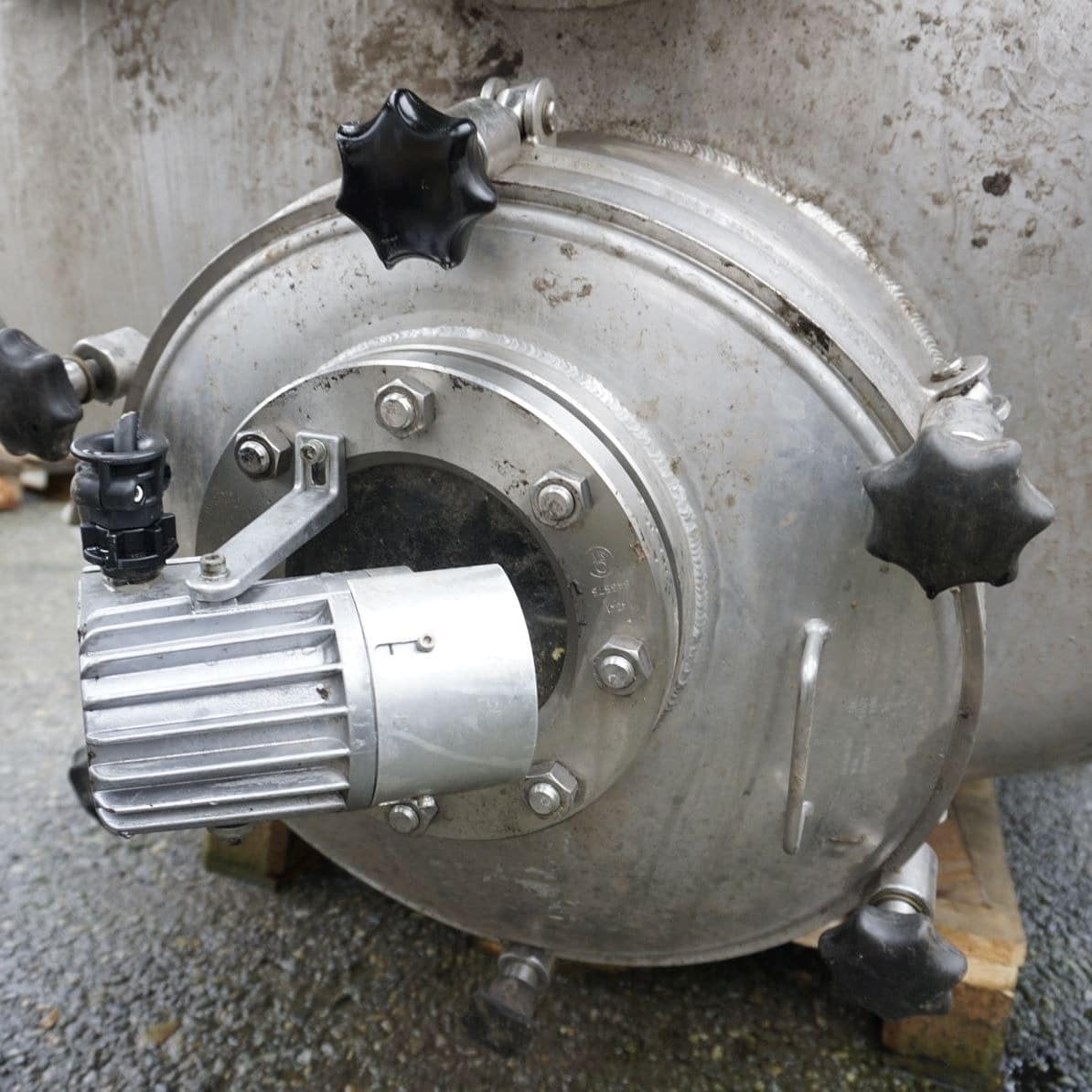

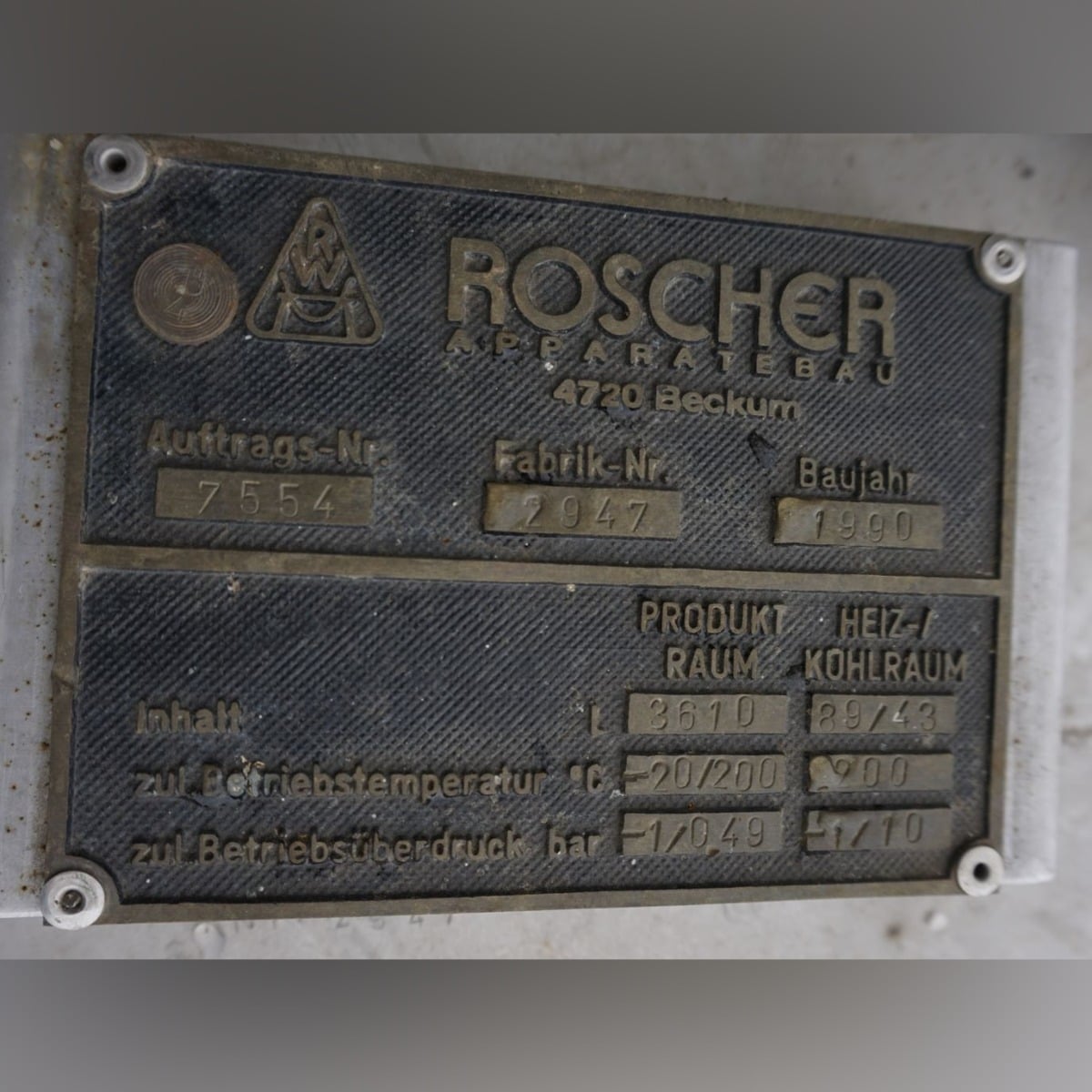

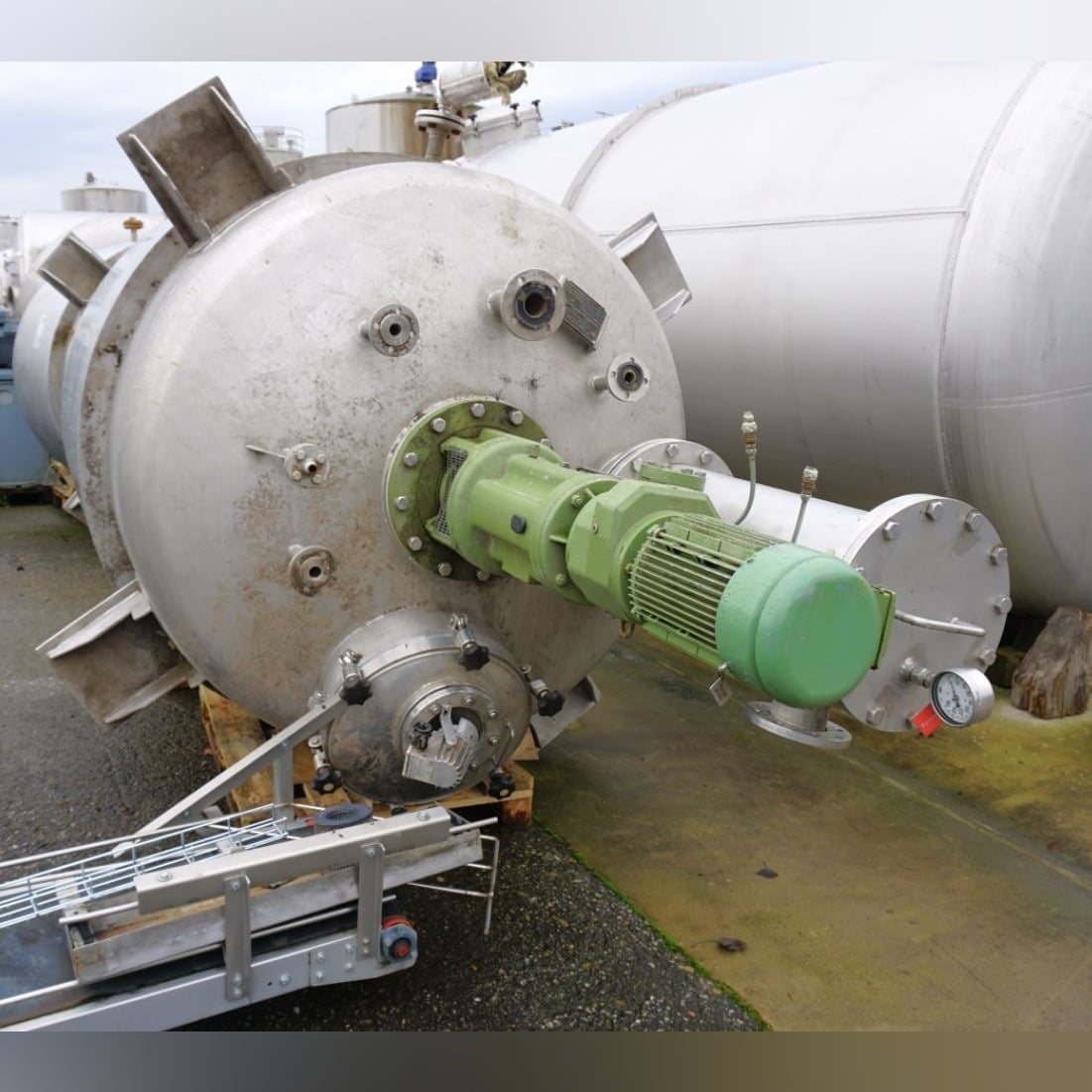

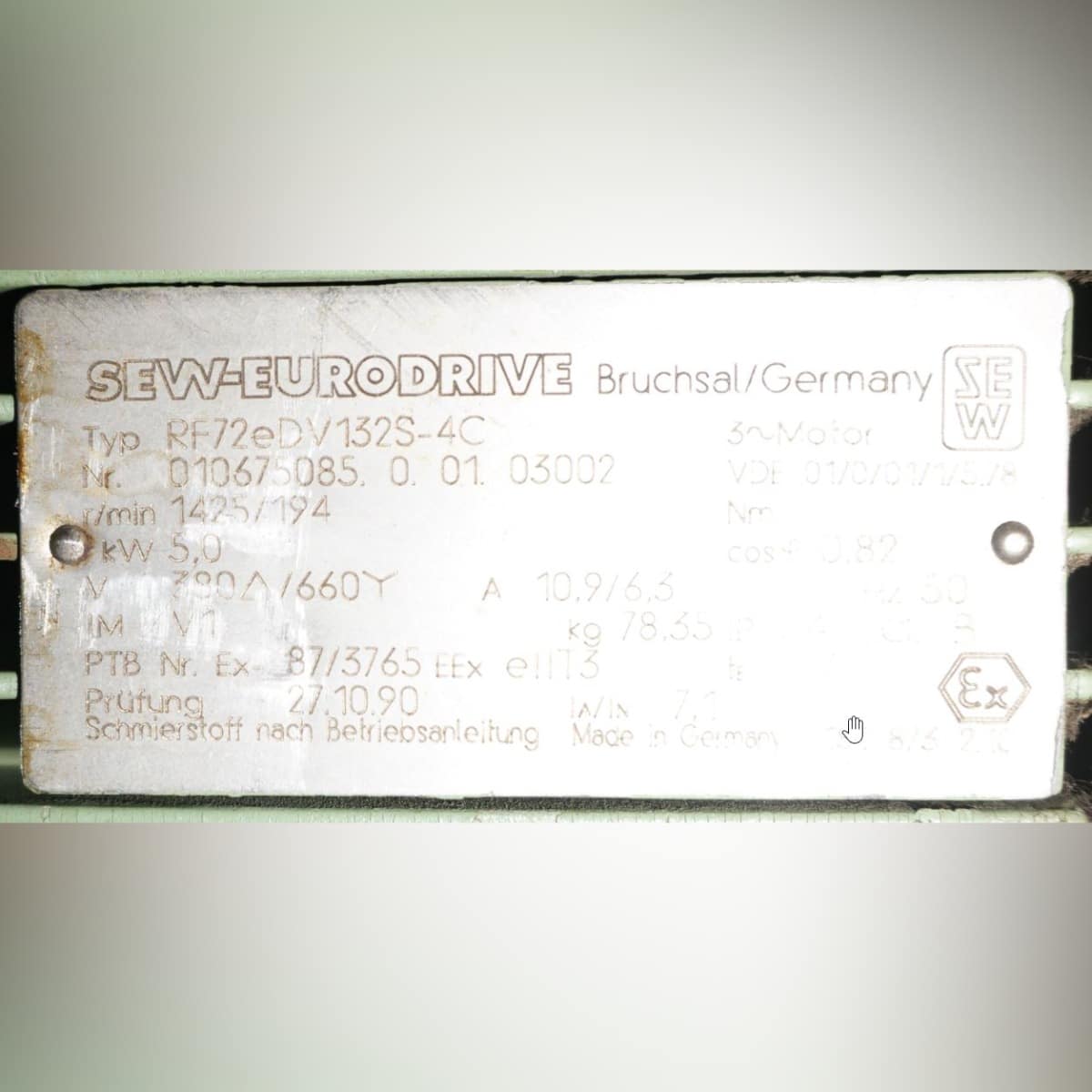

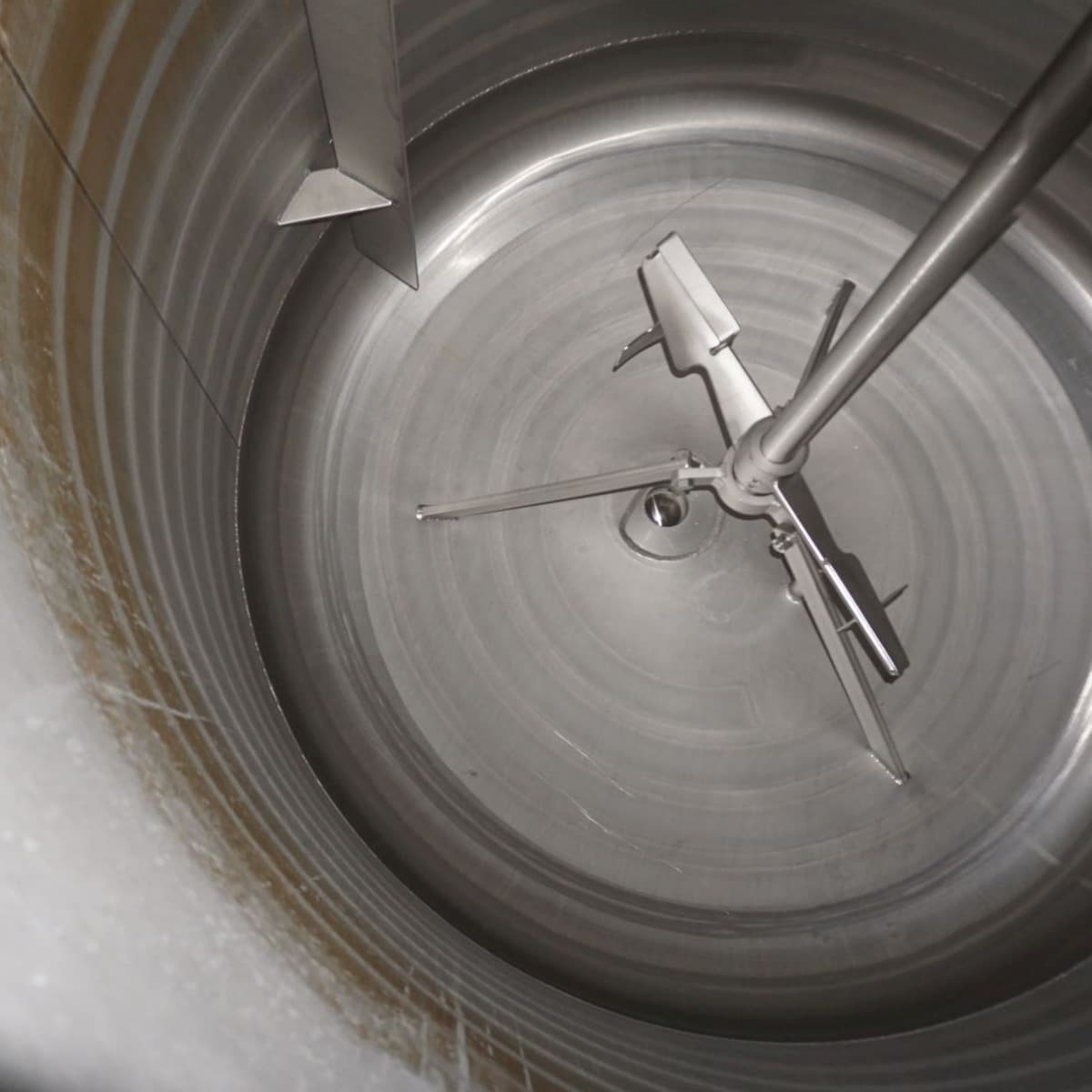

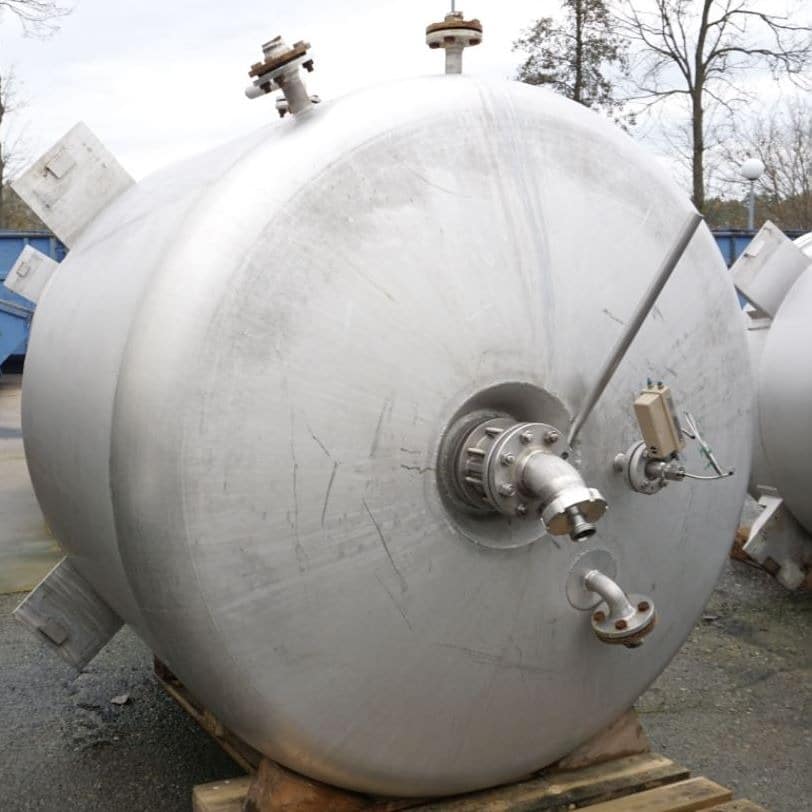

Additional information: Chemistry Volumetric volume (L): 3.640 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 0,49 Bar Min. pressure (Bar): 1 Bar Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Volume: 132 L Max Overpressure: 10 Bar Max. working temperature: 200 °C Type HE on the bottom: half pipe welded onto the outside of the innertank Type HE on the cylinder: half pipe welded onto the outside of the innertank Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: headside Outlet of tank: available Agitator: yes Number of revolutions: 194 Power: 5 Internal diameter tank: 1.600 mm Cylinder height: 1.450 mm Total height of tank: 3.500 mm
