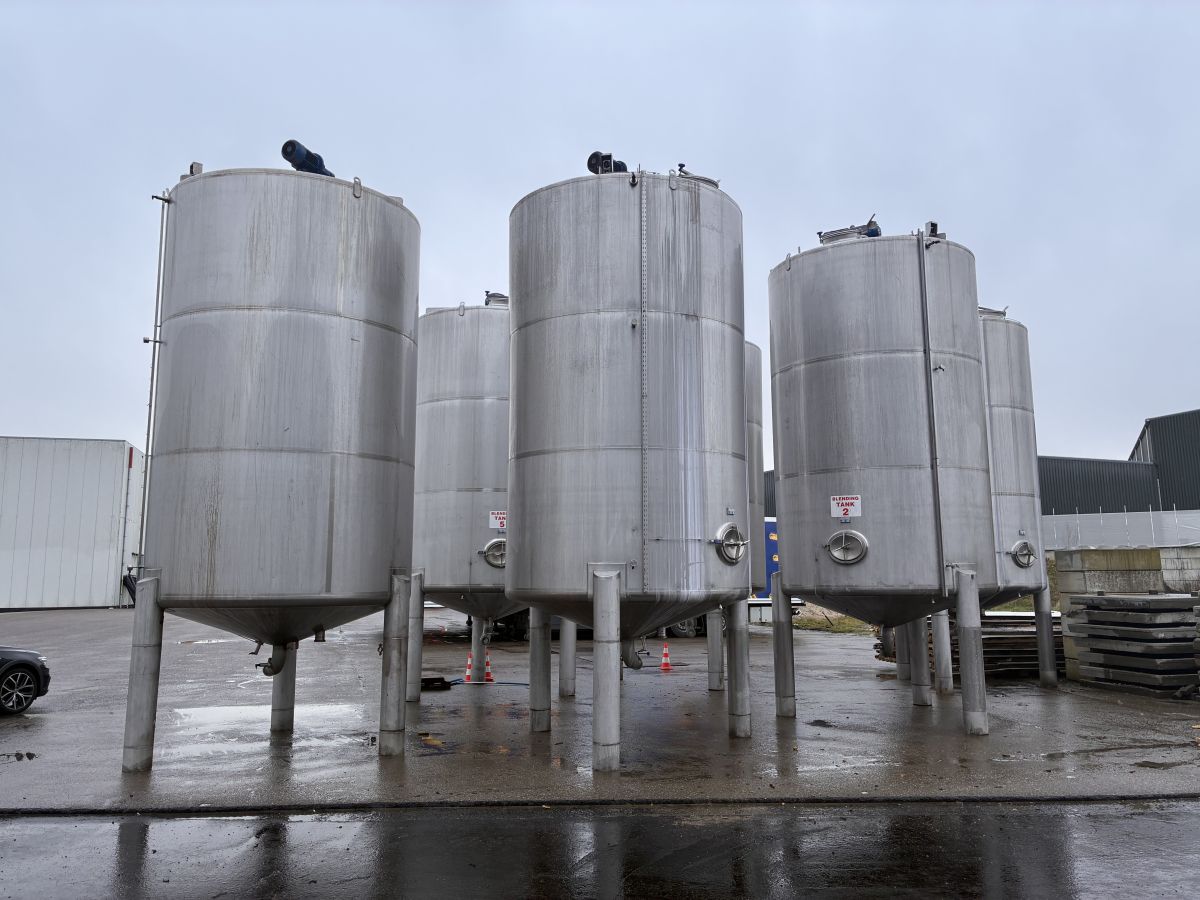

30000 liter tank i Rostfritt 304

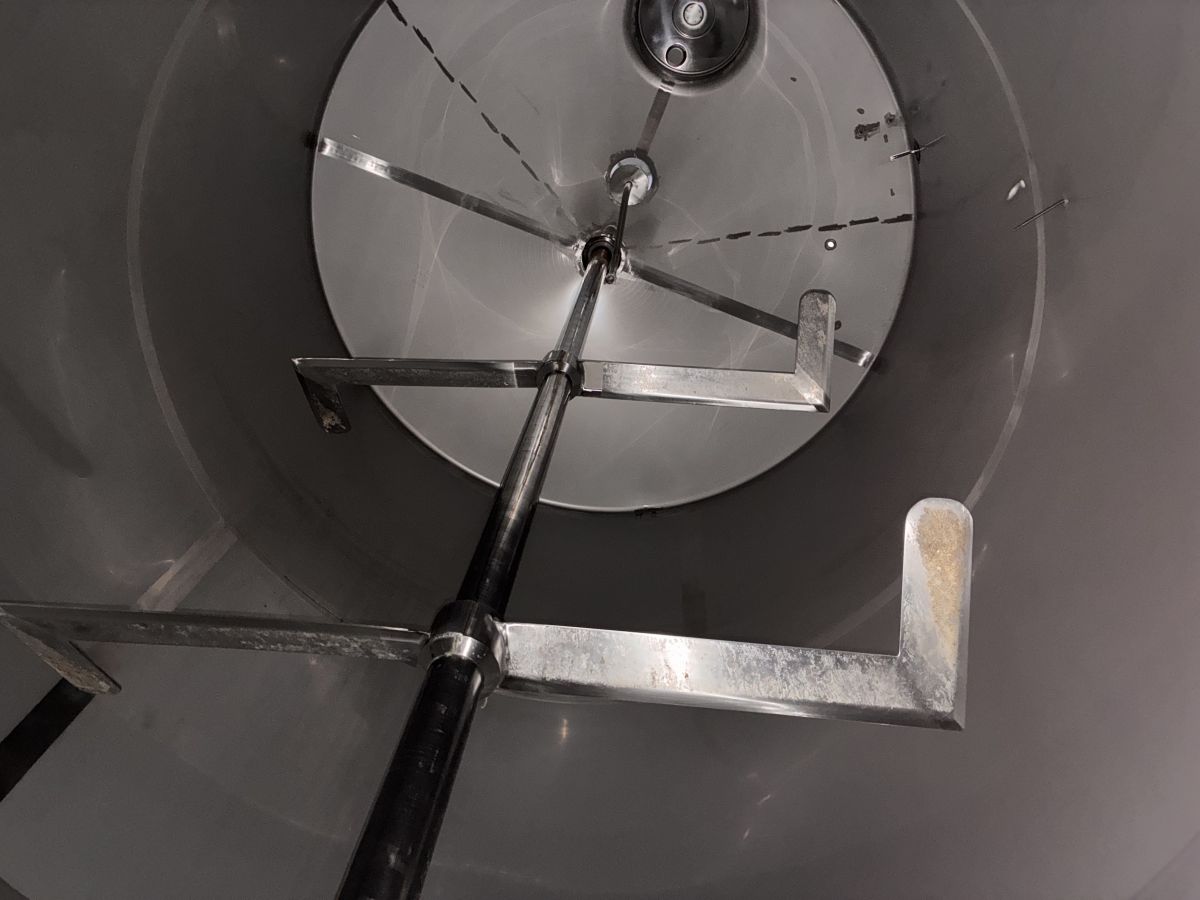

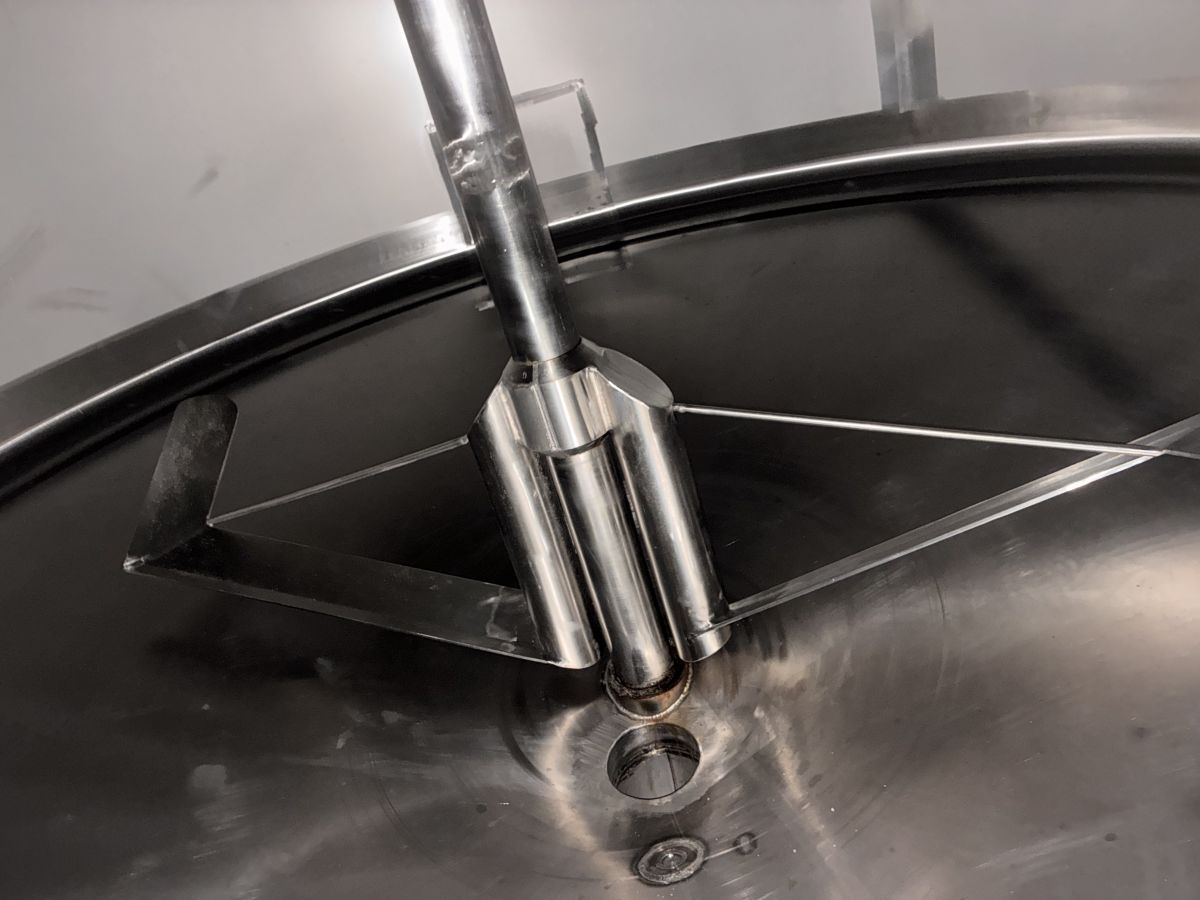

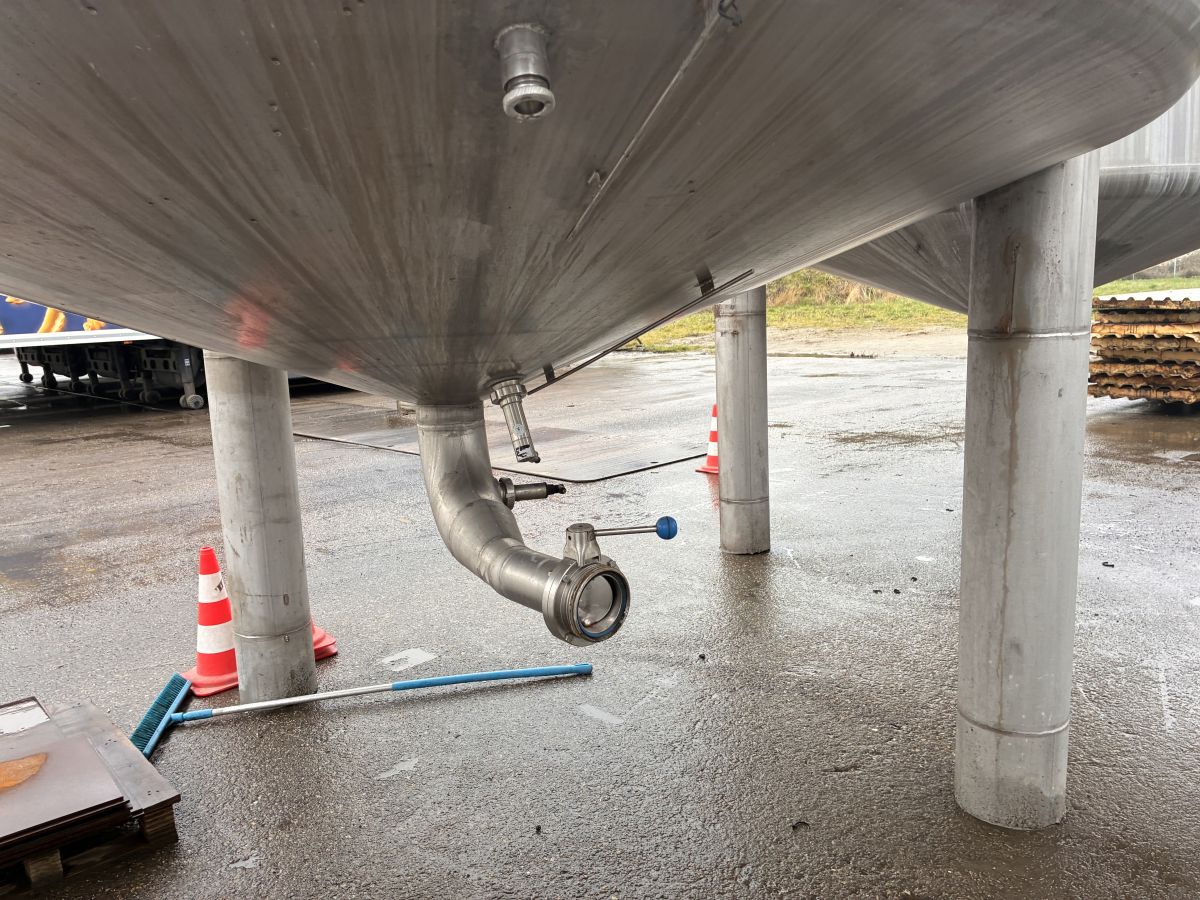

Article type: second-hand mixing tank Additional information: we can’t give any guarantees about the agitator Volumetric volume (L): 30.000 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Top type: conical Shape of tank: cylindrical Bottom type: conical Total discharge: yes Fixation points: 3 non adjustable feet Manway(s): RVS 304 Fixation point(s): RVS 304 Suitable for food industry: yes Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator: no Number of manways: 2 Position of manway: at the top Height manhole 1 (mm): 500 mm Position 2nd manway: cylinder Height manhole 2 (mm): 340 x 430 mm Tank outlet: inside Ø 100 mm Outlet type: DIN11851 Agitator: yes Agitator type: anchor Position engine: at the top Number of revolutions: 35 Power: 9,50 Voltage: three-phase Top: 3 mm Cylinder: 3 mm Bottom: 4 mm Distance from outlet to ground: 700 mm Outer diameter tank: 3.000 mm Cylinder height: 4.550 mm Total height of tank: 7.000 mm Empty weight tank: 2.000
