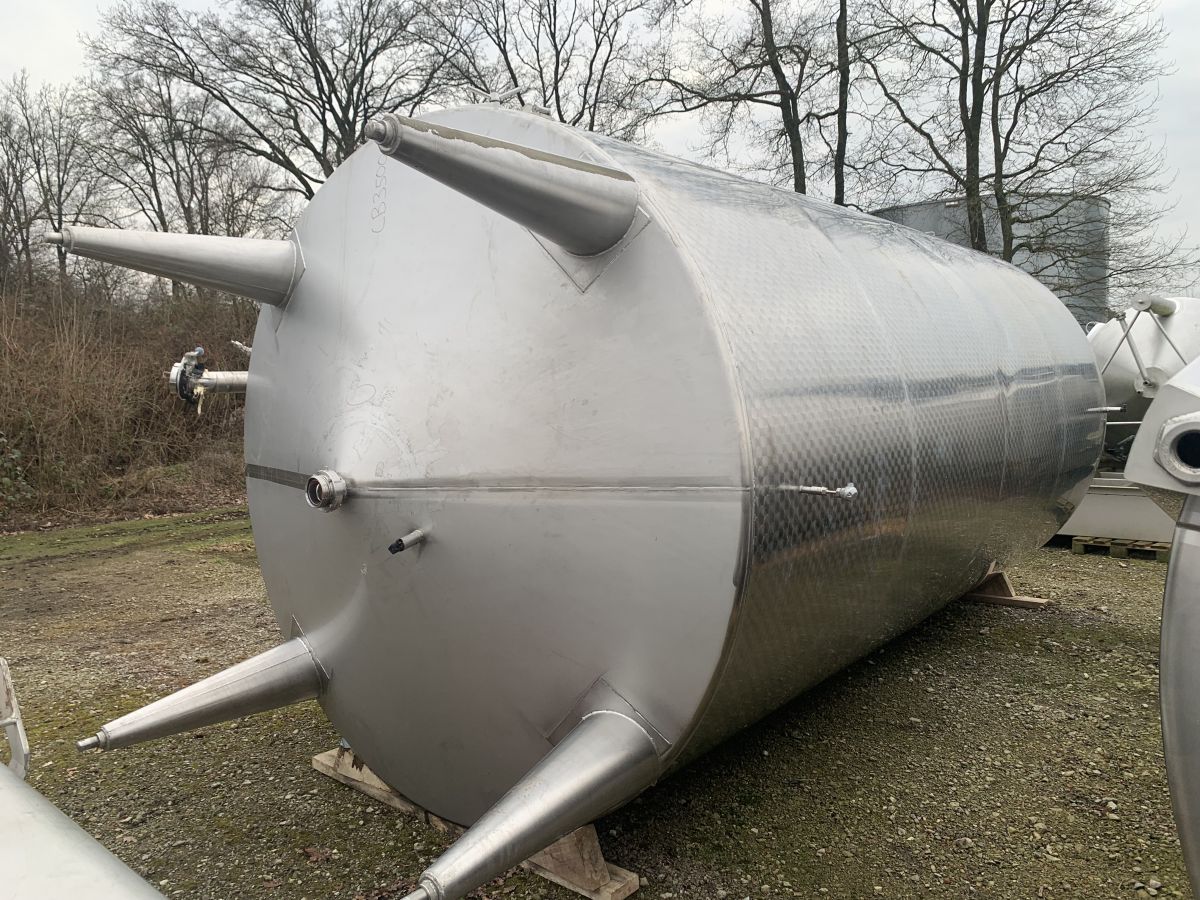

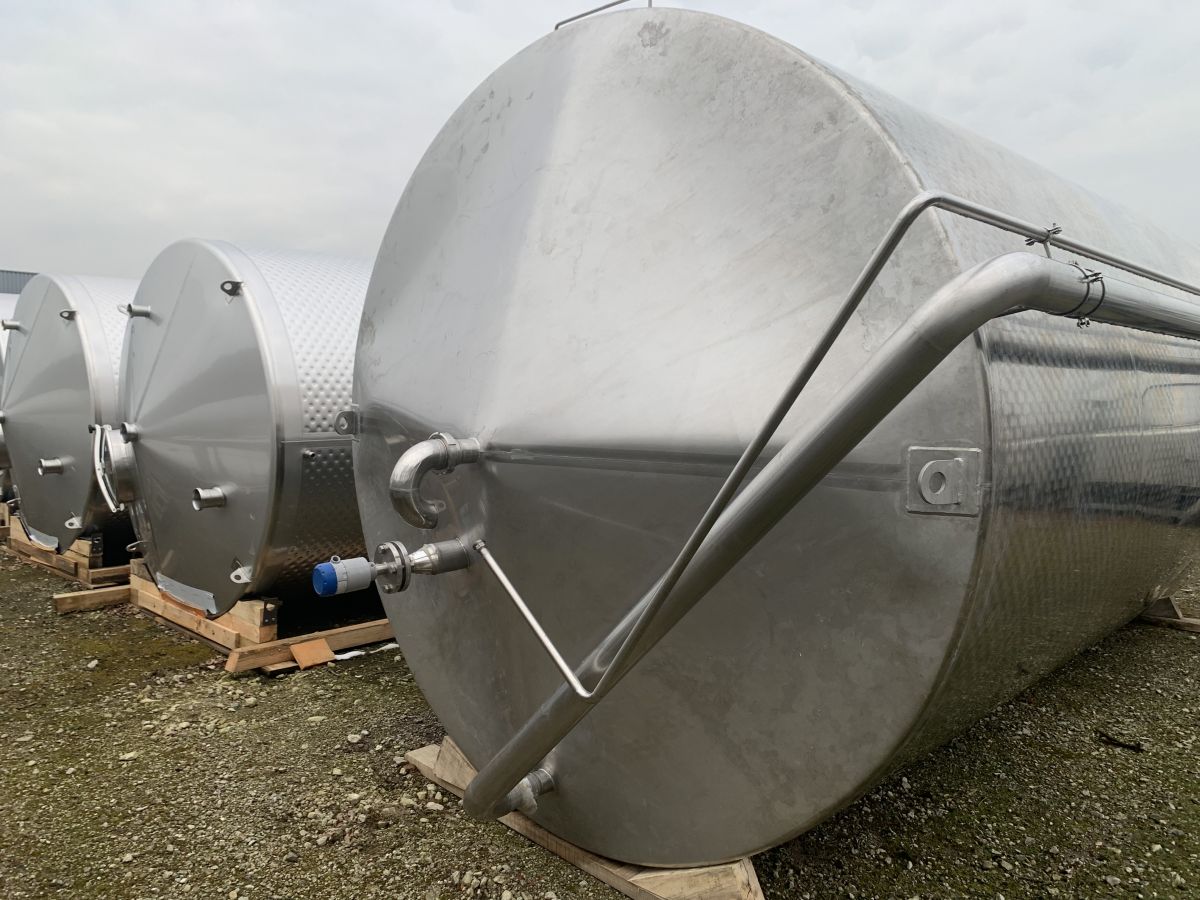

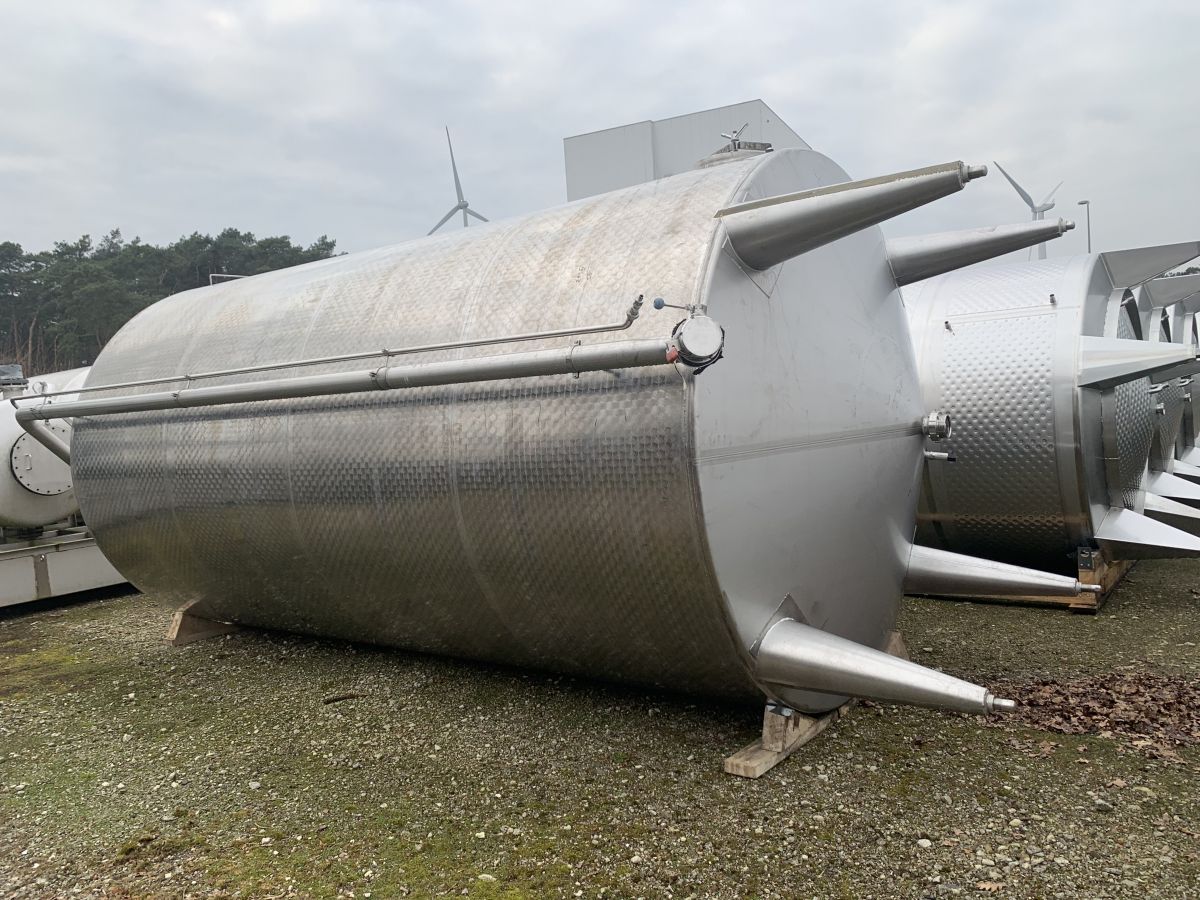

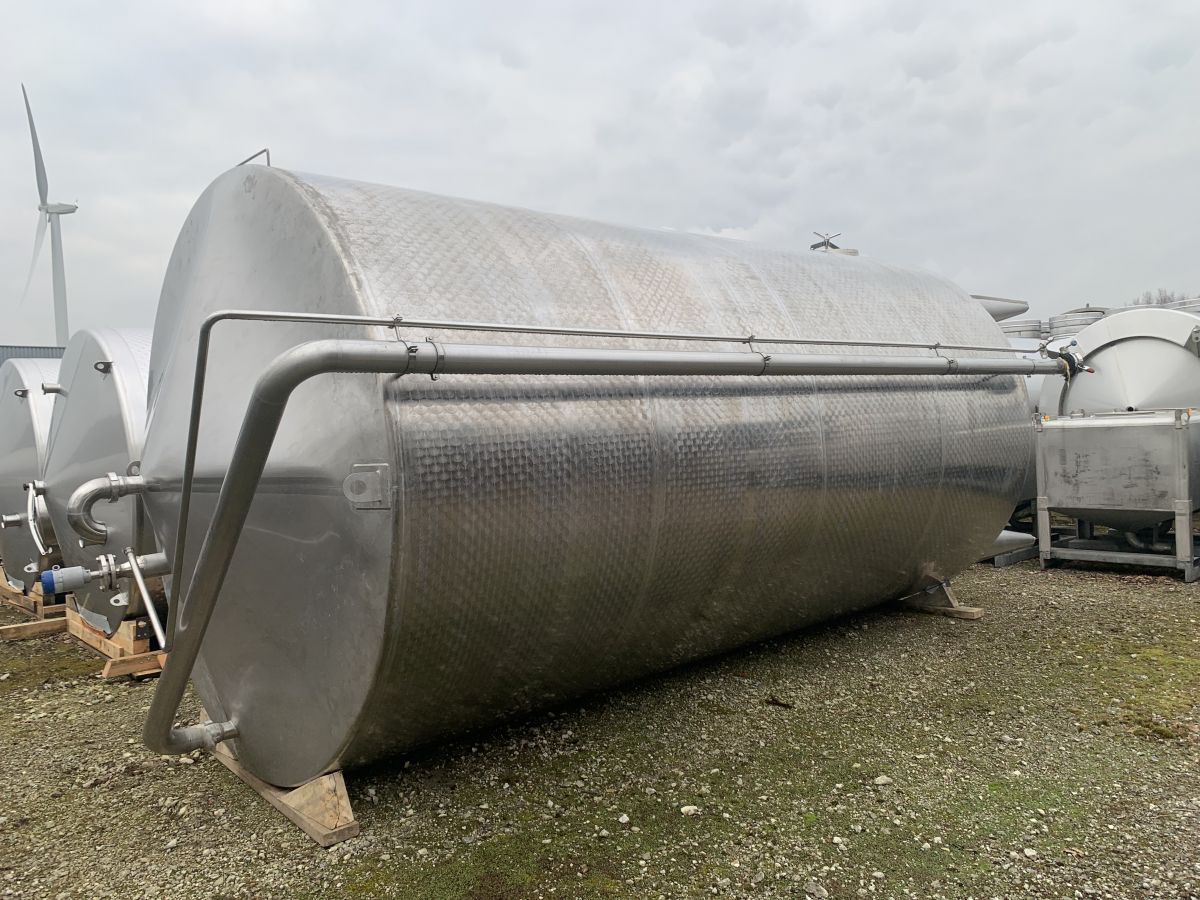

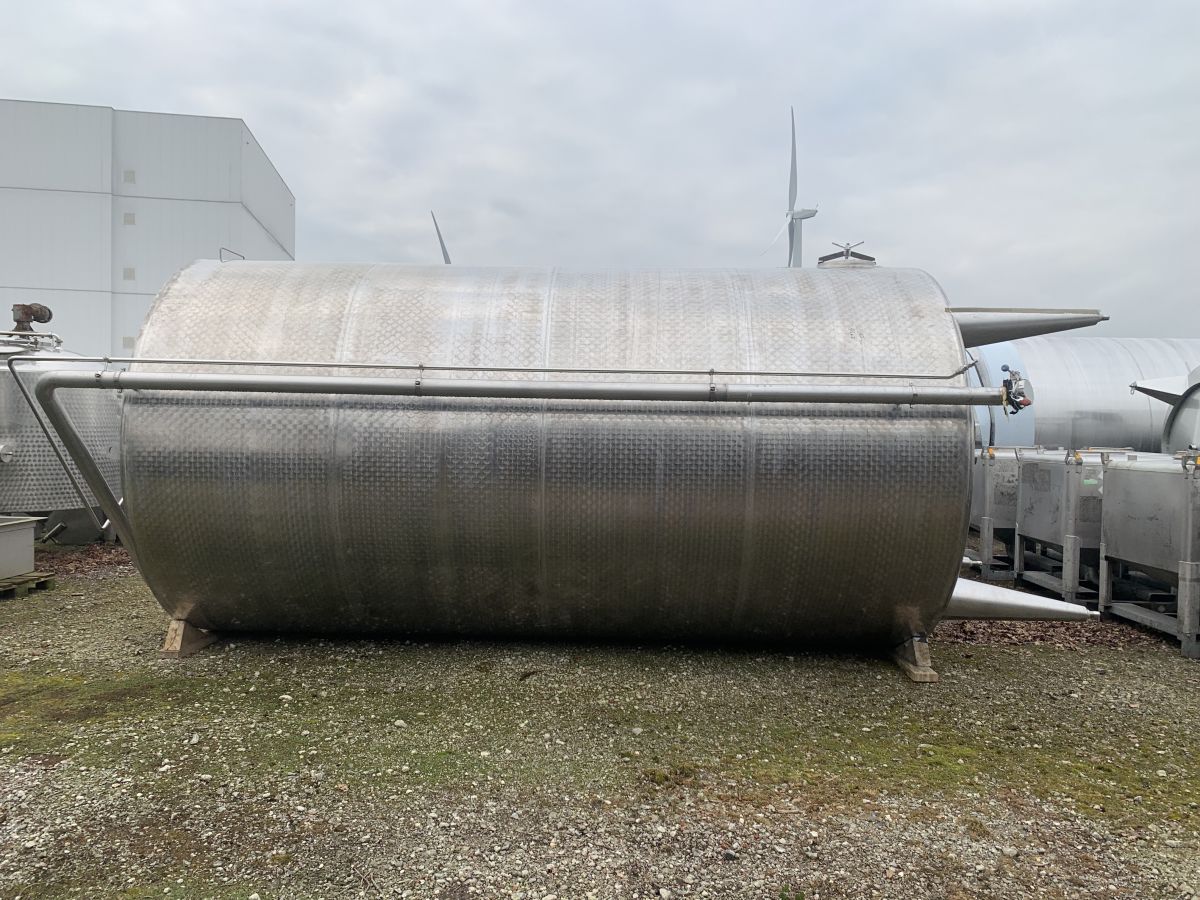

Article type: second-hand storage tank
Additional information: the conical top has slight deformation
Volumetric volume (L): 30.000 L
Max. density P (kg/m³): 1.000
Ra inner weld: 0,80
Pressure in tank: ATM - atmosferic
Material wet parts: SS AISI 316 (V4A)
Model: vertical
Configuration: single-skin
Heat exchanger: no
Insulation: no
Mobile tank: no
Top type: conical
Shape of tank: cylindrical

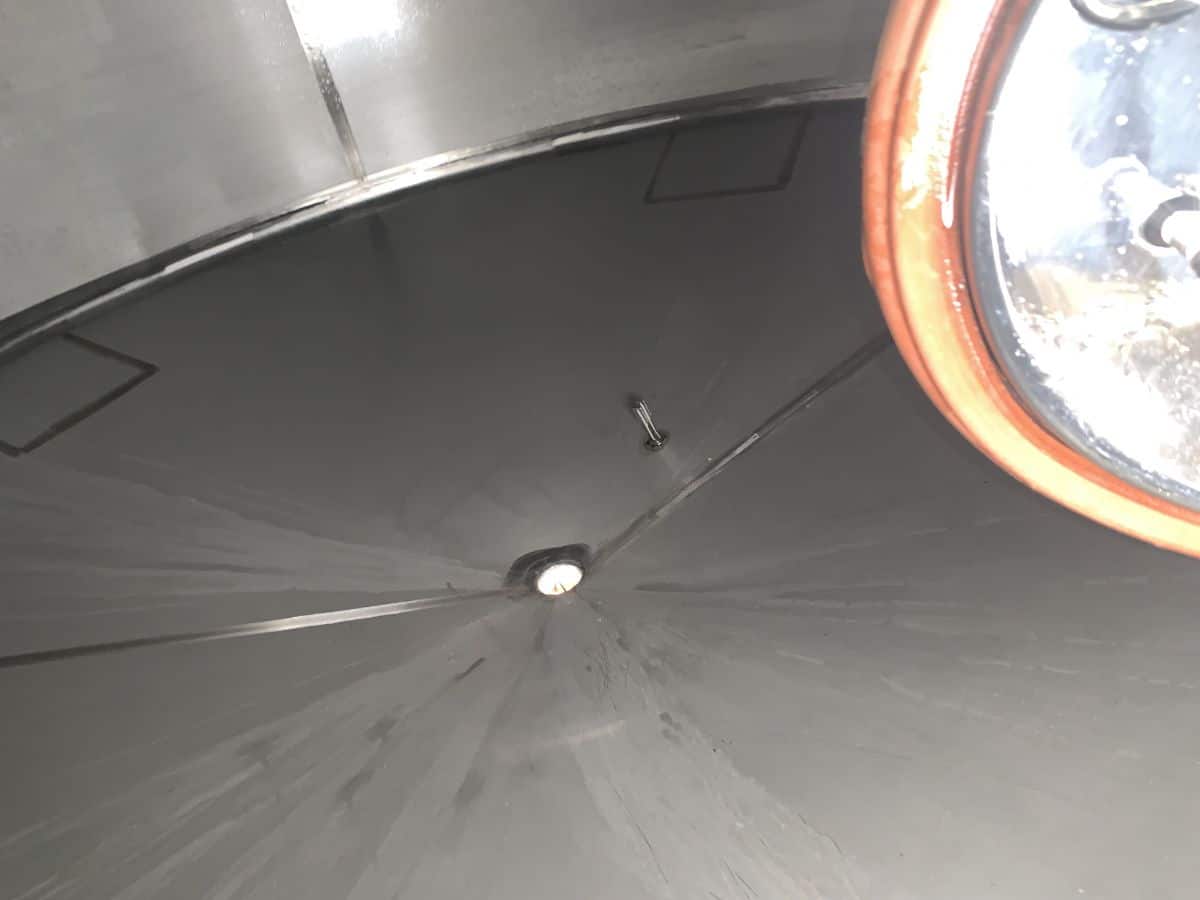

Bottom type: conical
Total discharge: yes

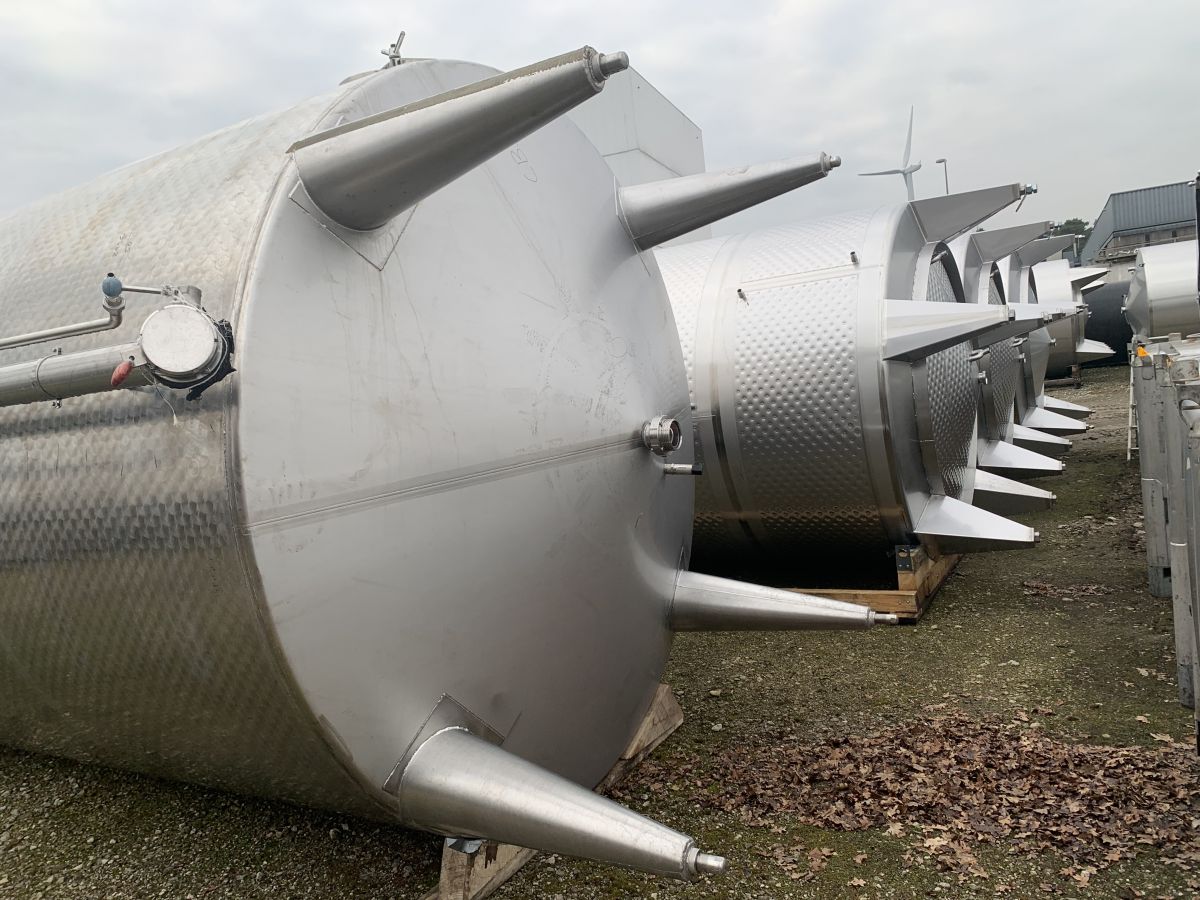

Fixation points: 4 adjustable feet

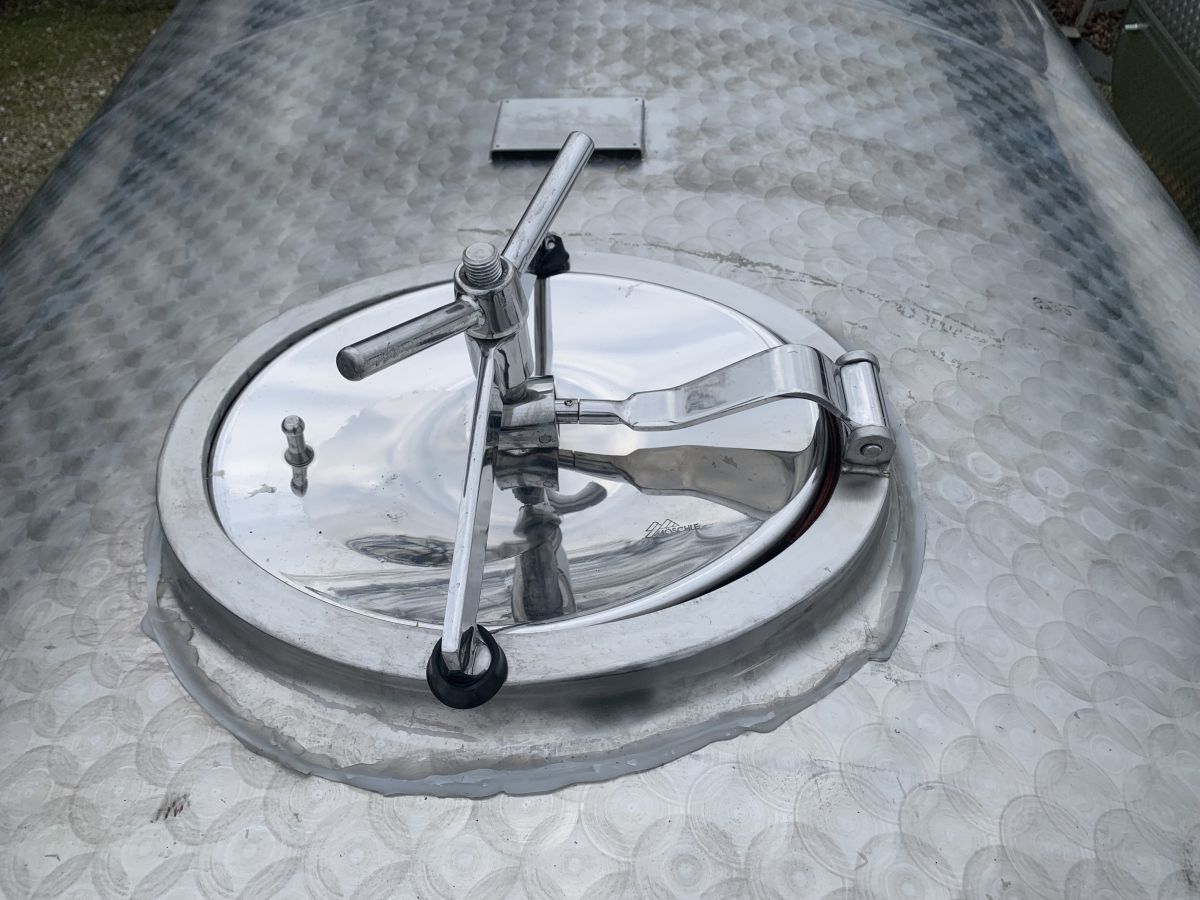

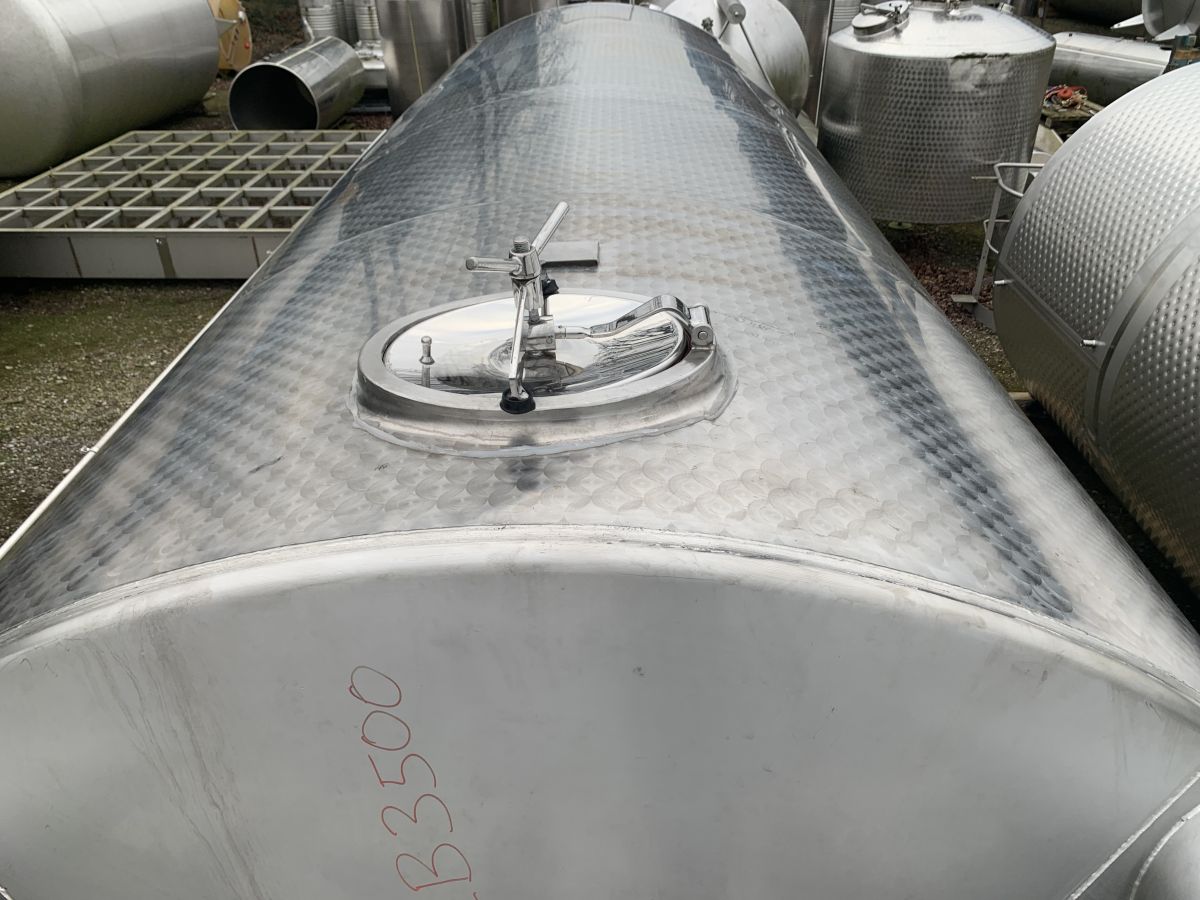

Manway(s): RVS 316
Gasket manway(s): unknown
Fixation point(s): RVS 304
Suitable for food industry: yes
Documents included: no
Technical drawing included: no
Registration plate on the tank: no
Flange for agitator: no
Number of manways: 1
Position of manway: cylinder
Height manhole 1 (mm): 320 mm x H 430 mm
Tank outlet: inside Ø 80 mm
Outlet type: DIN11851
Agitator: no, optional
Distance from outlet to ground: 350 mm
Outer diameter tank: 2.750 mm
Cylinder height: 5.050 mm
Total height of tank: 6.700 mm
Empty weight tank: 2.500
Dokument finns: Nej Fläns för omrörare: Nej Märkskylt: Nej Livsmedelsklassad: Ja Tankutlopp: inside Ø 80 mm Teknisk ritning finns: Nej Utloppstyp: DIN11851
