30000 liter tank i Rostfritt 304

Art.nr: 189089

144,000,00 kr /st exkl moms

Isolerad:
Material:
Modell:
Nytillverkad eller begagnad:
Trycktank:
Uppvärmning/kylning:
Omrörare:

Lagersaldo:

Slut i lager

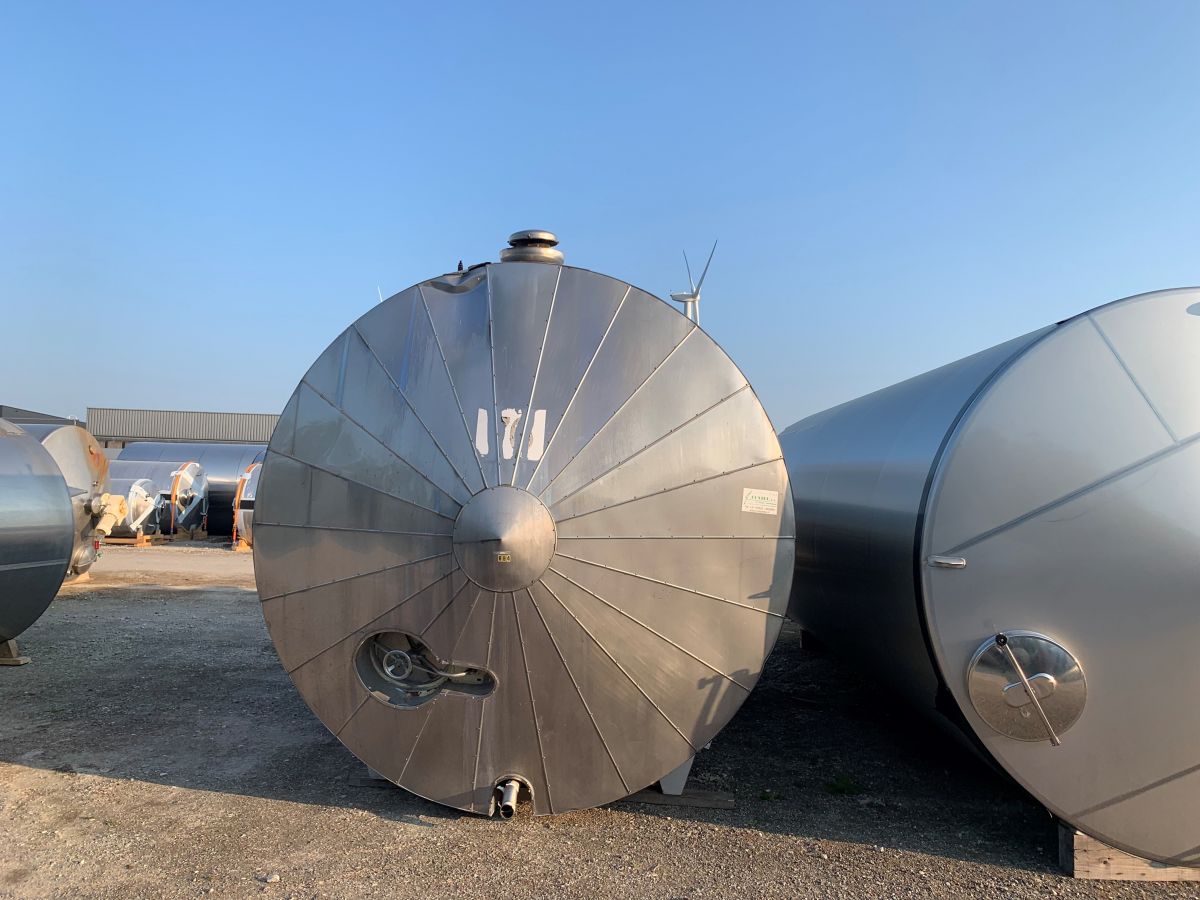

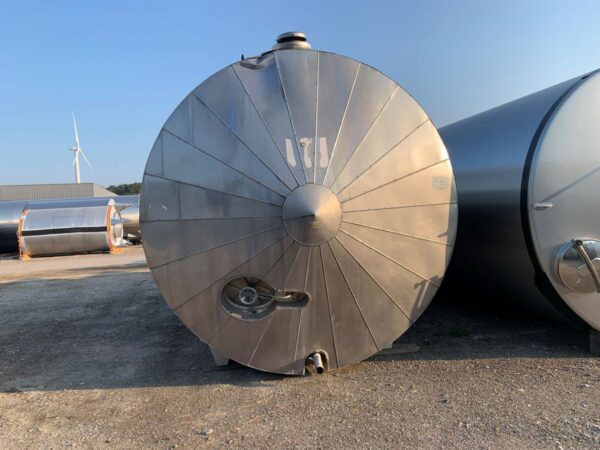

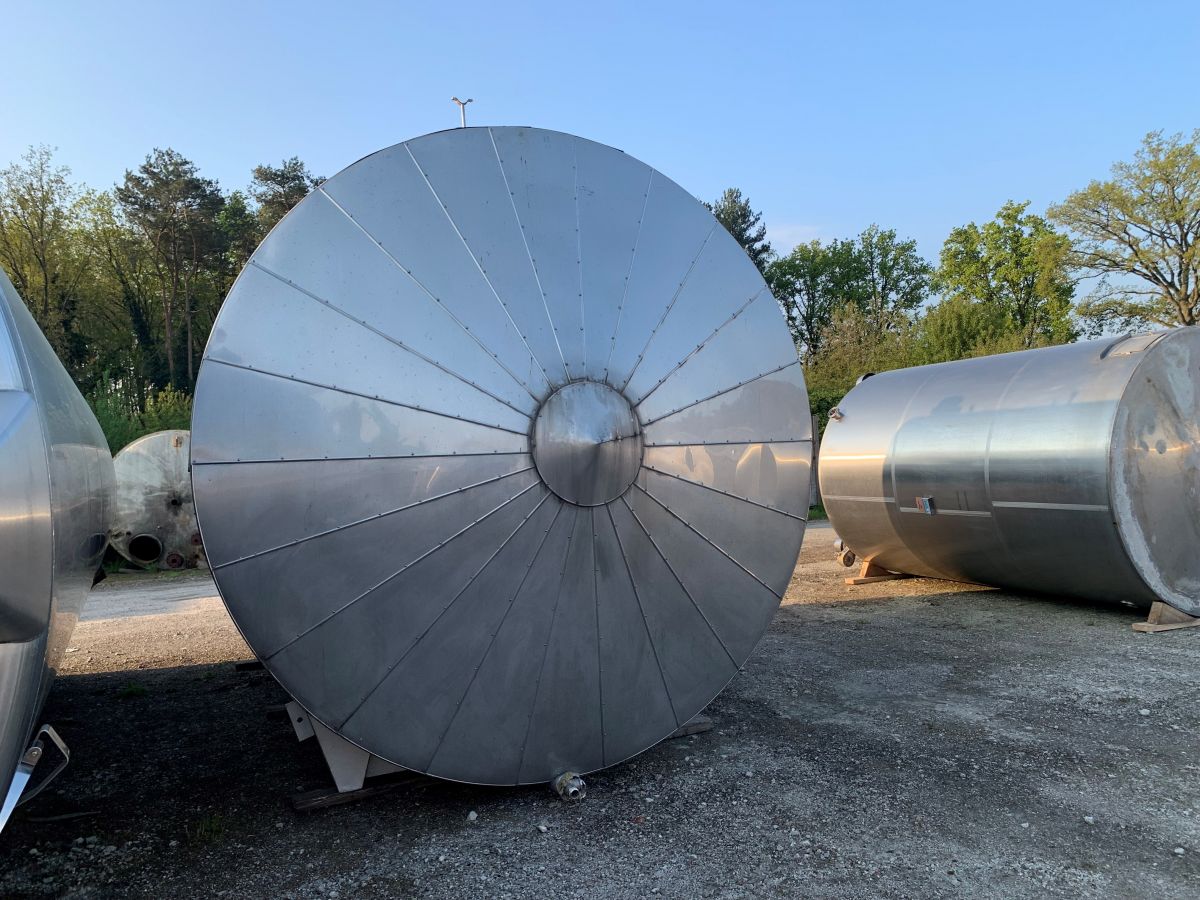

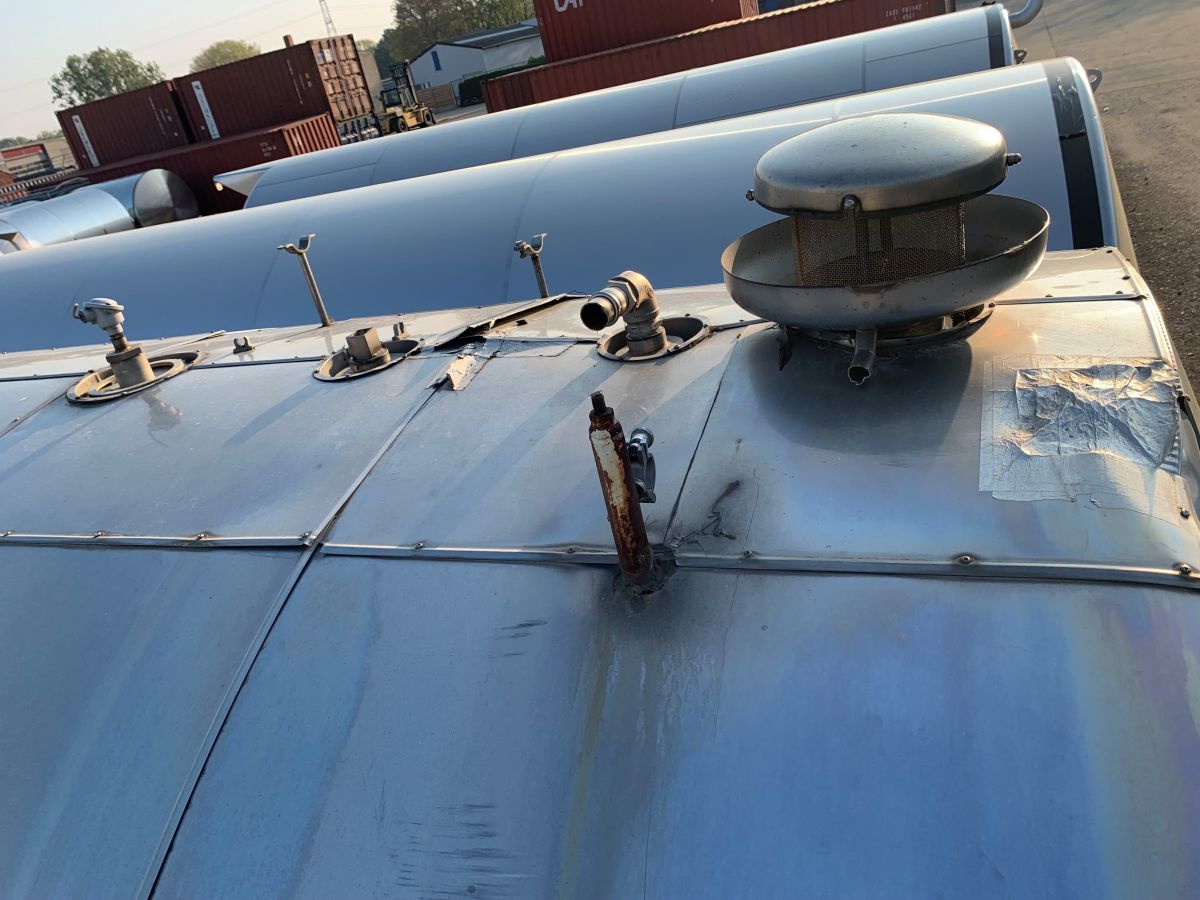

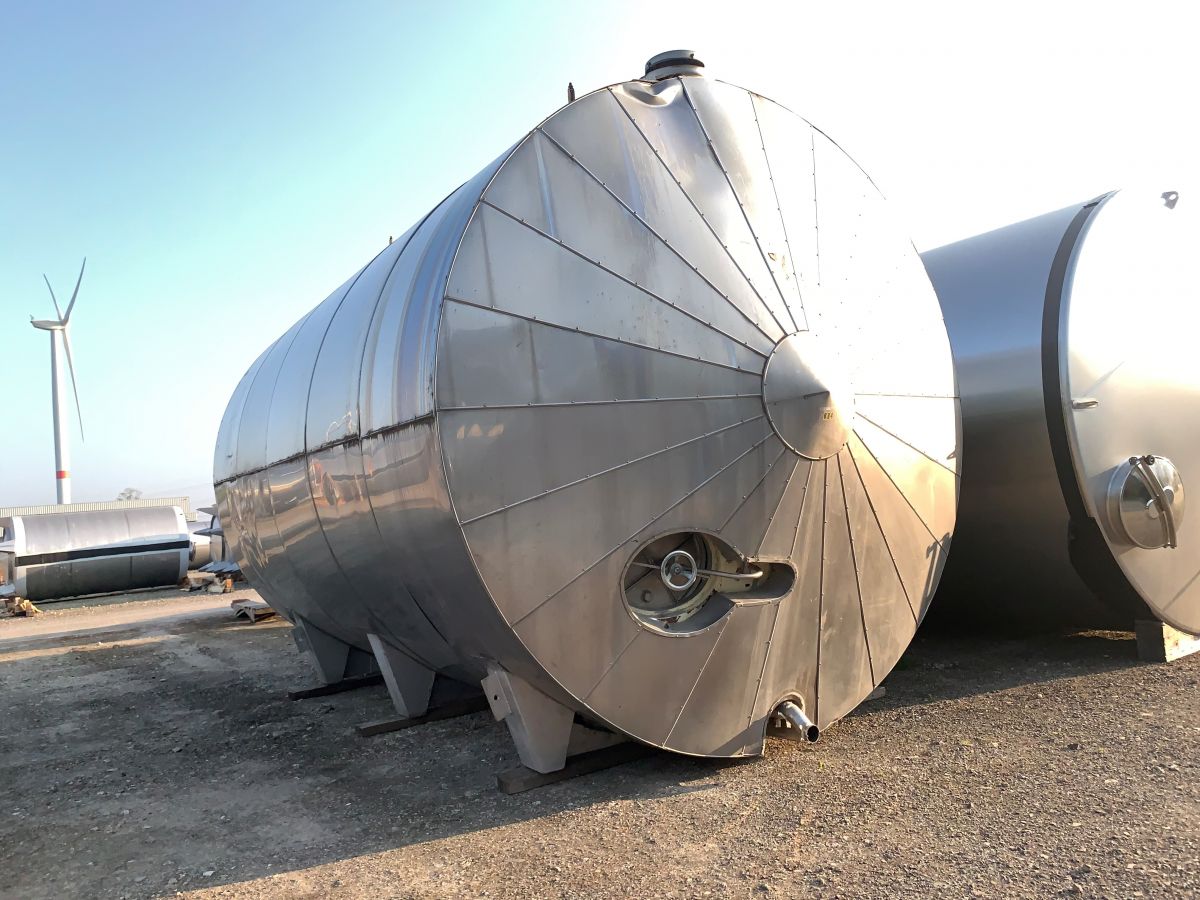

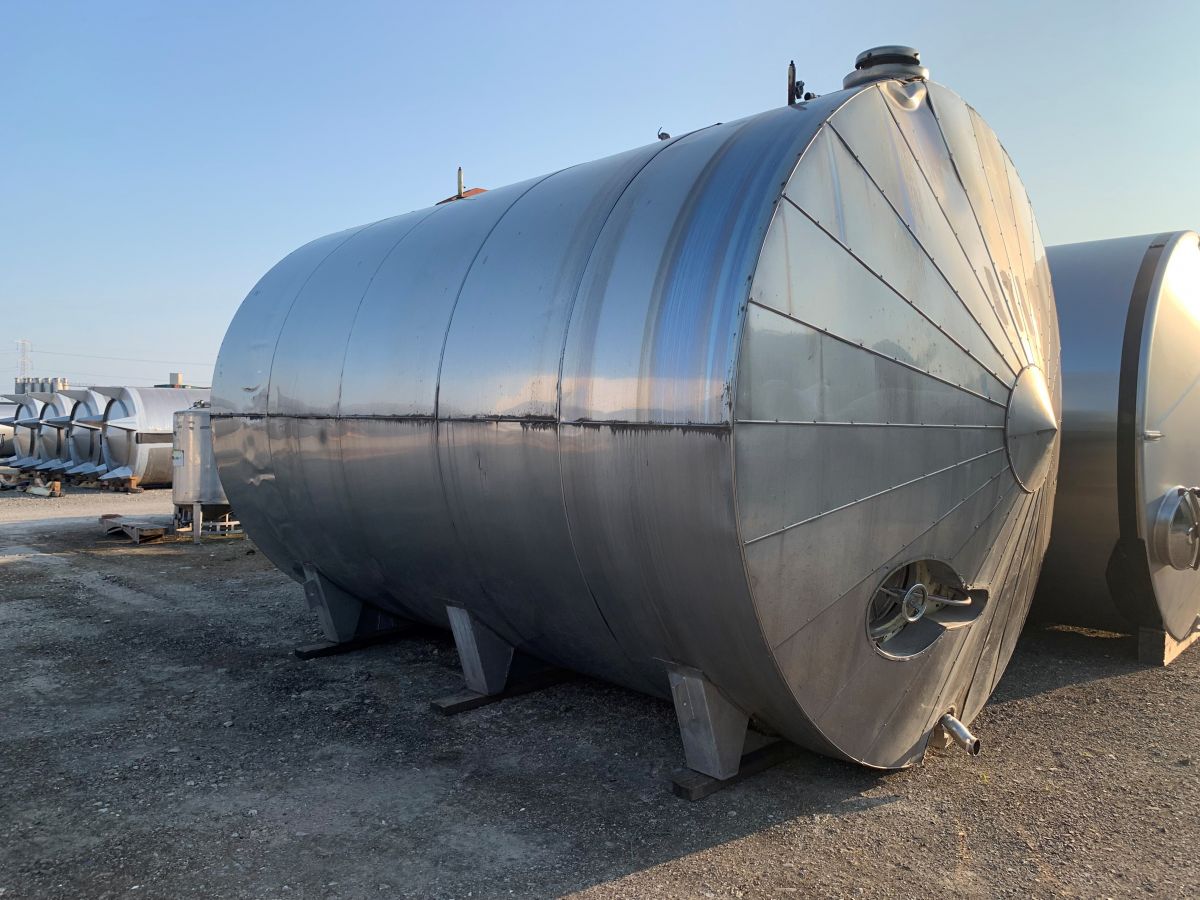

30000 liter tank i Rostfritt 304

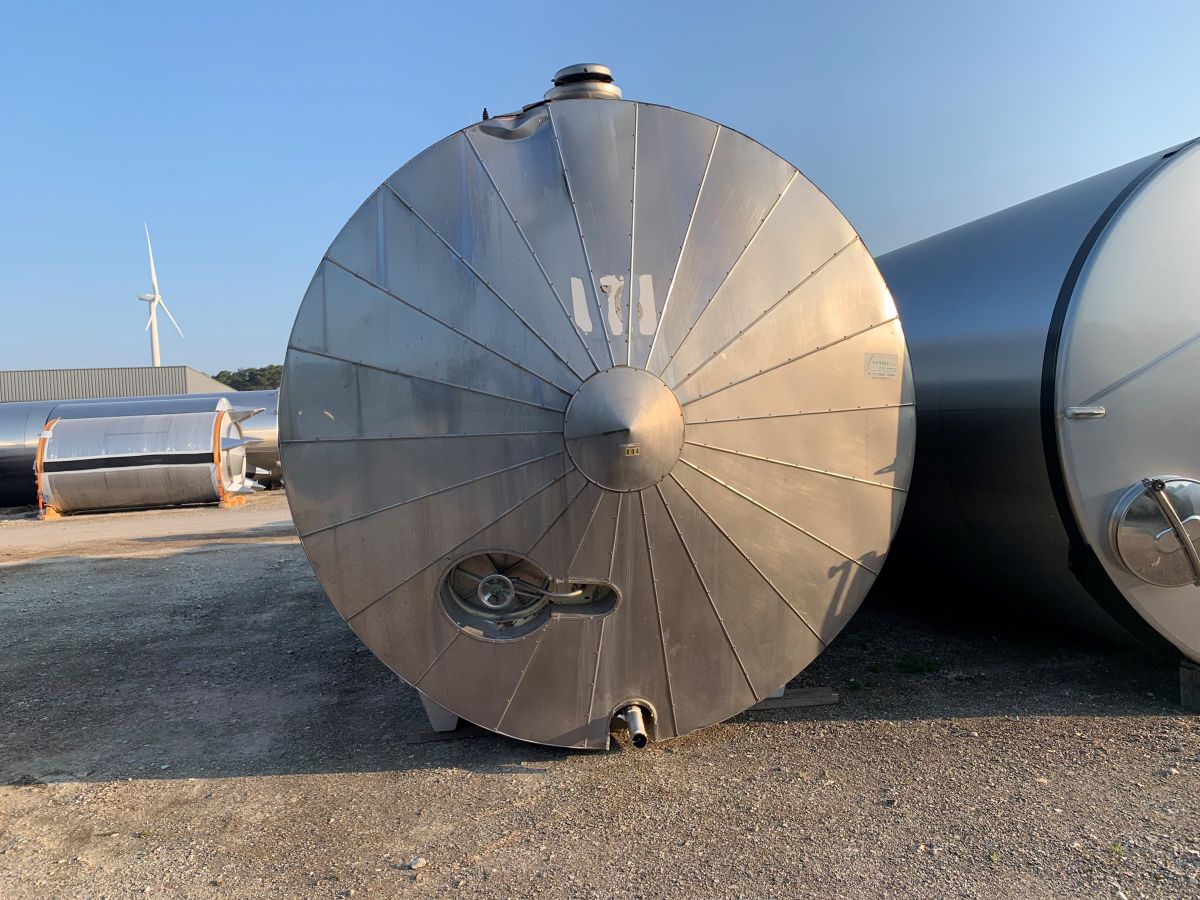

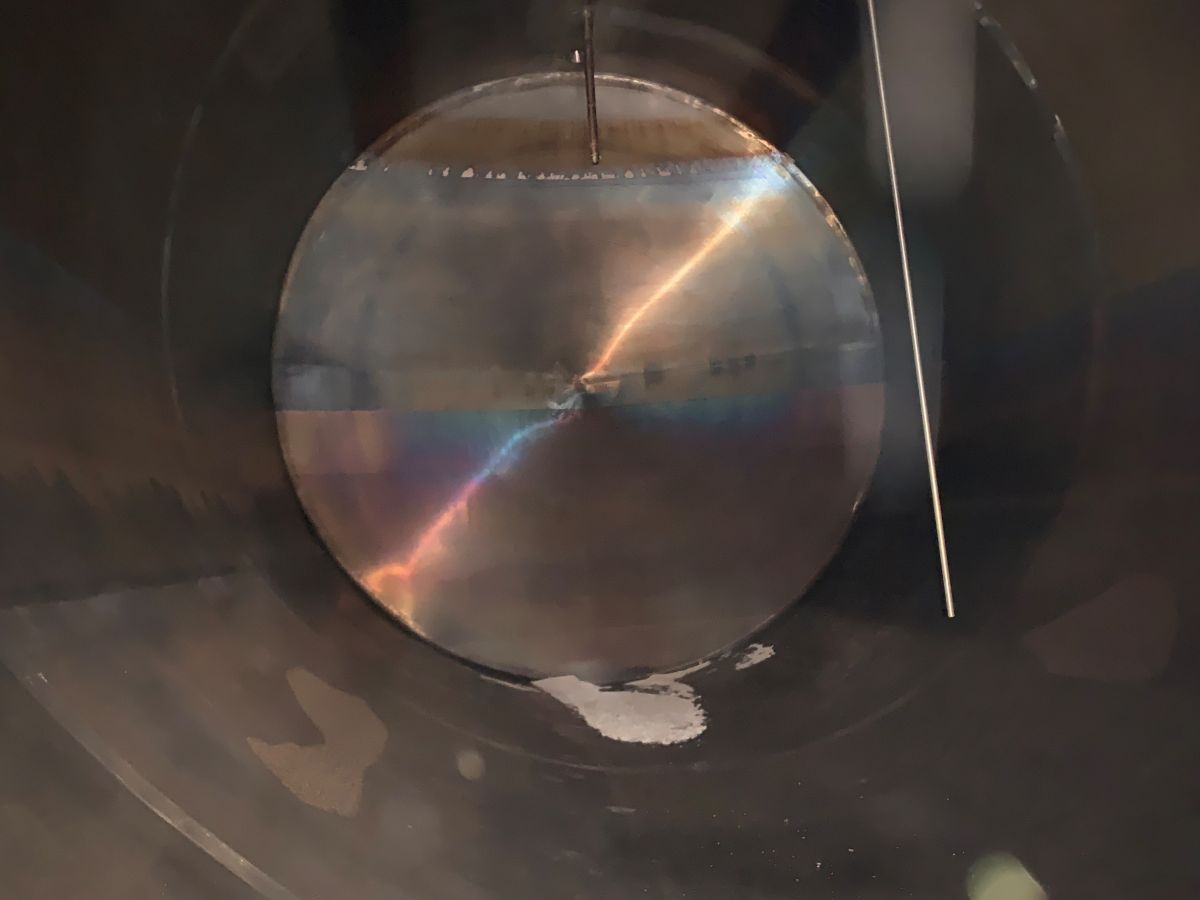

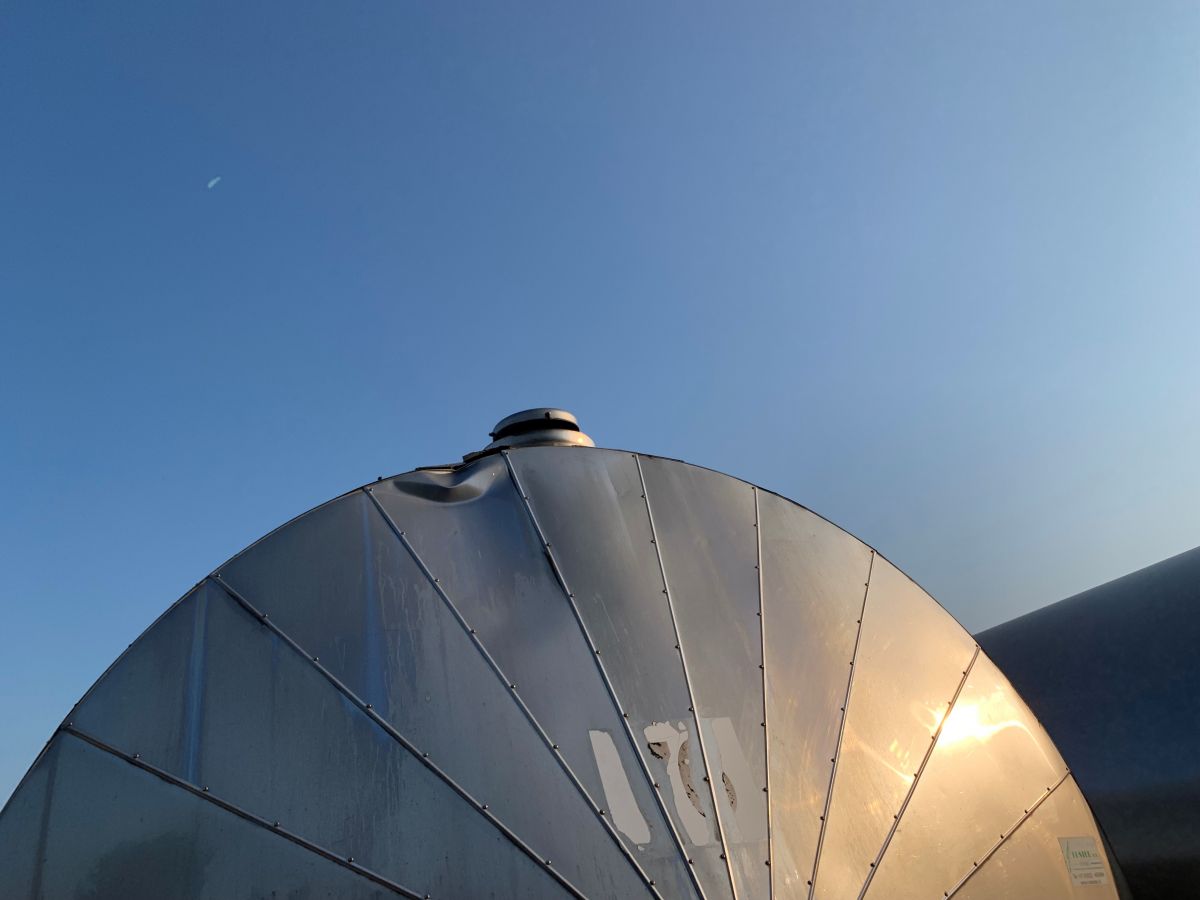

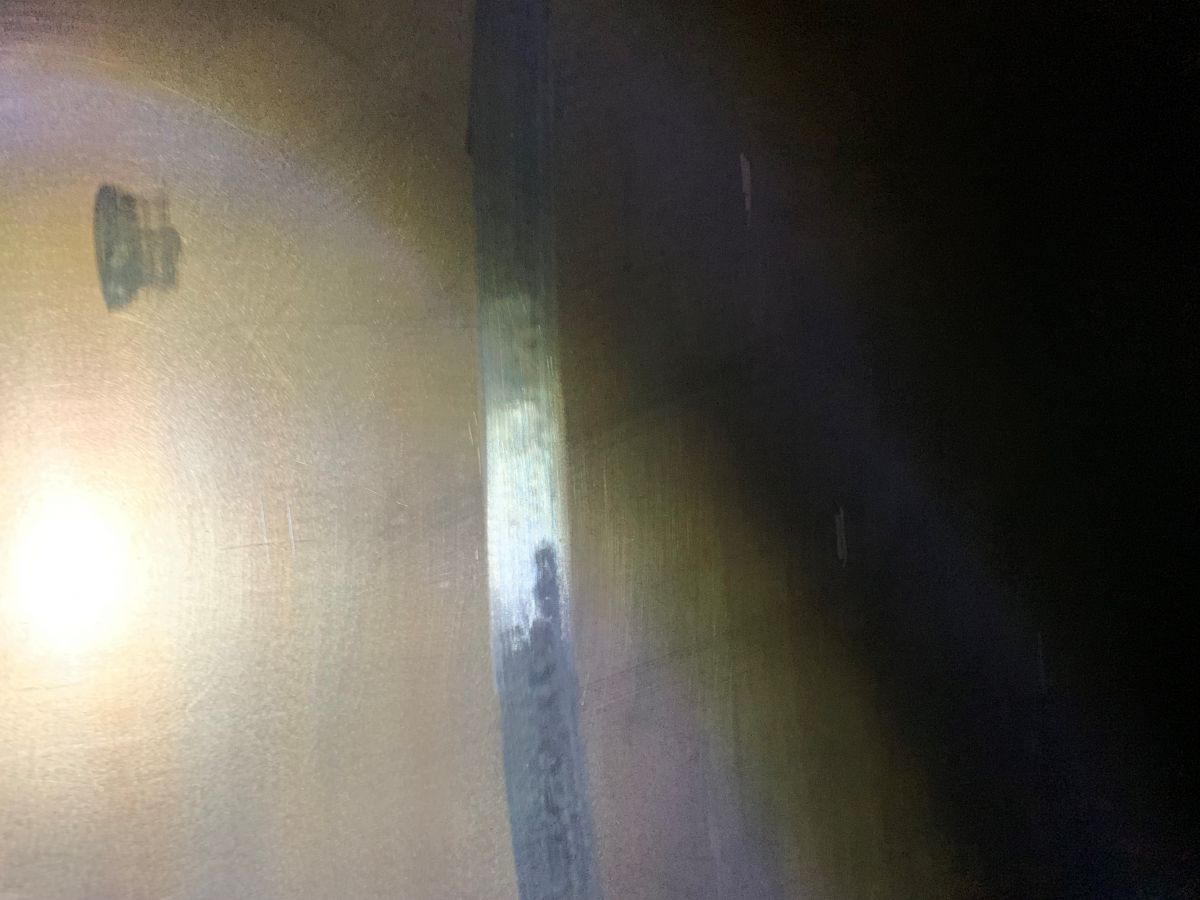

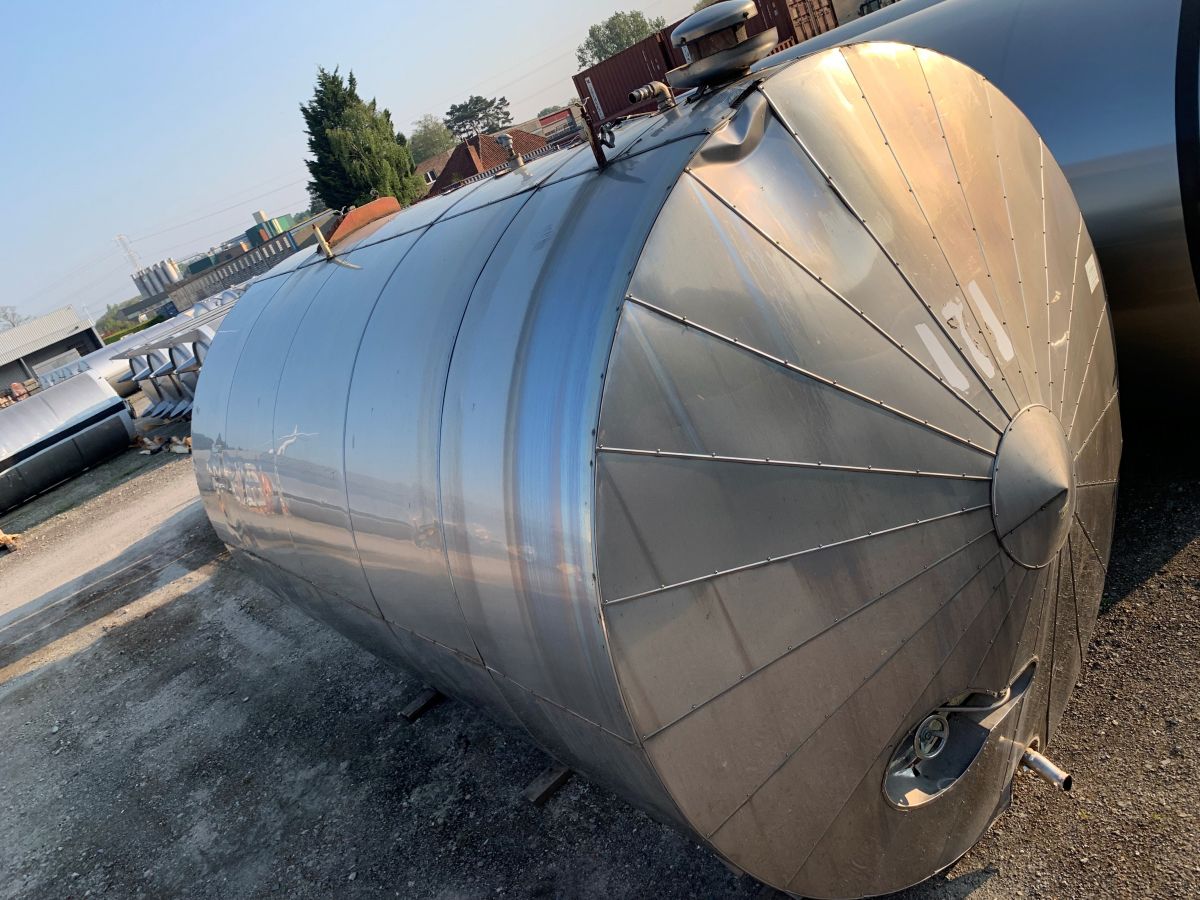

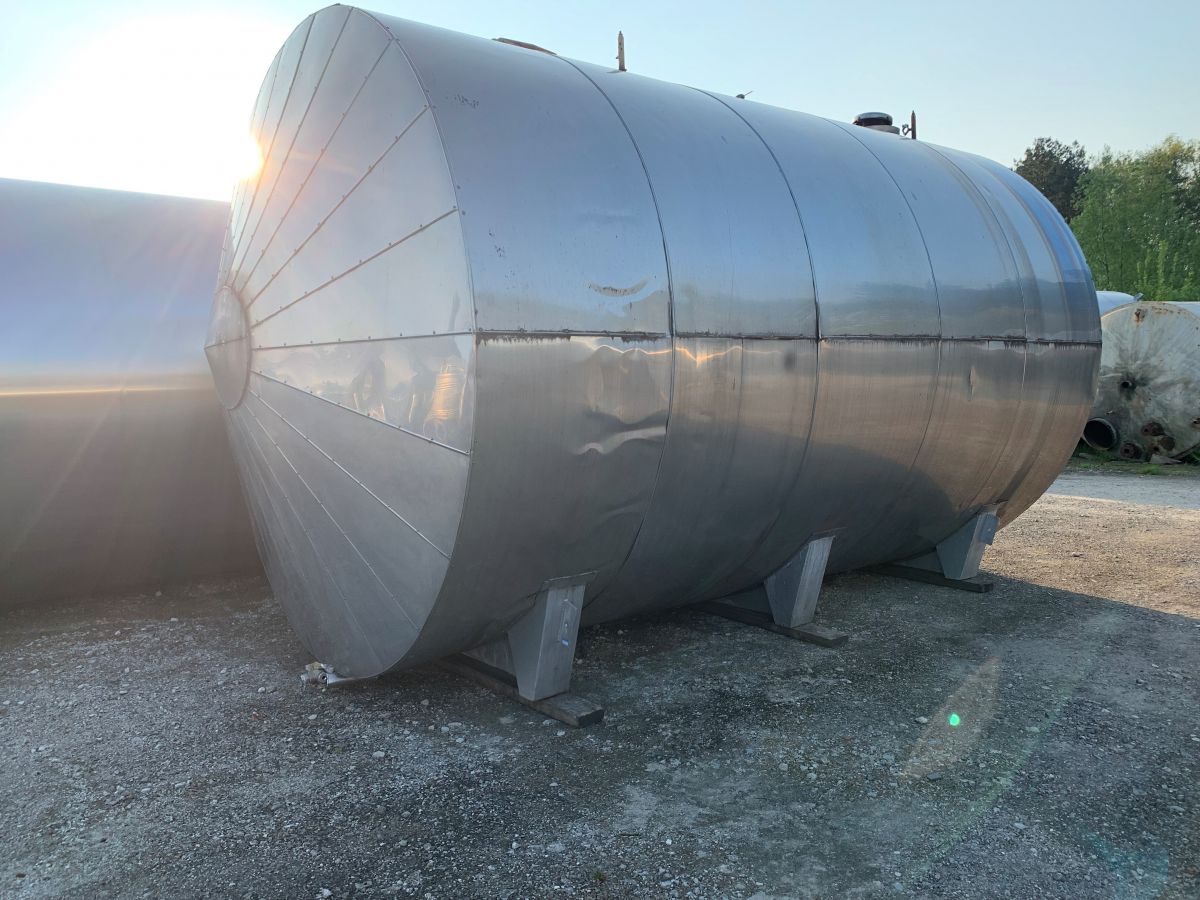

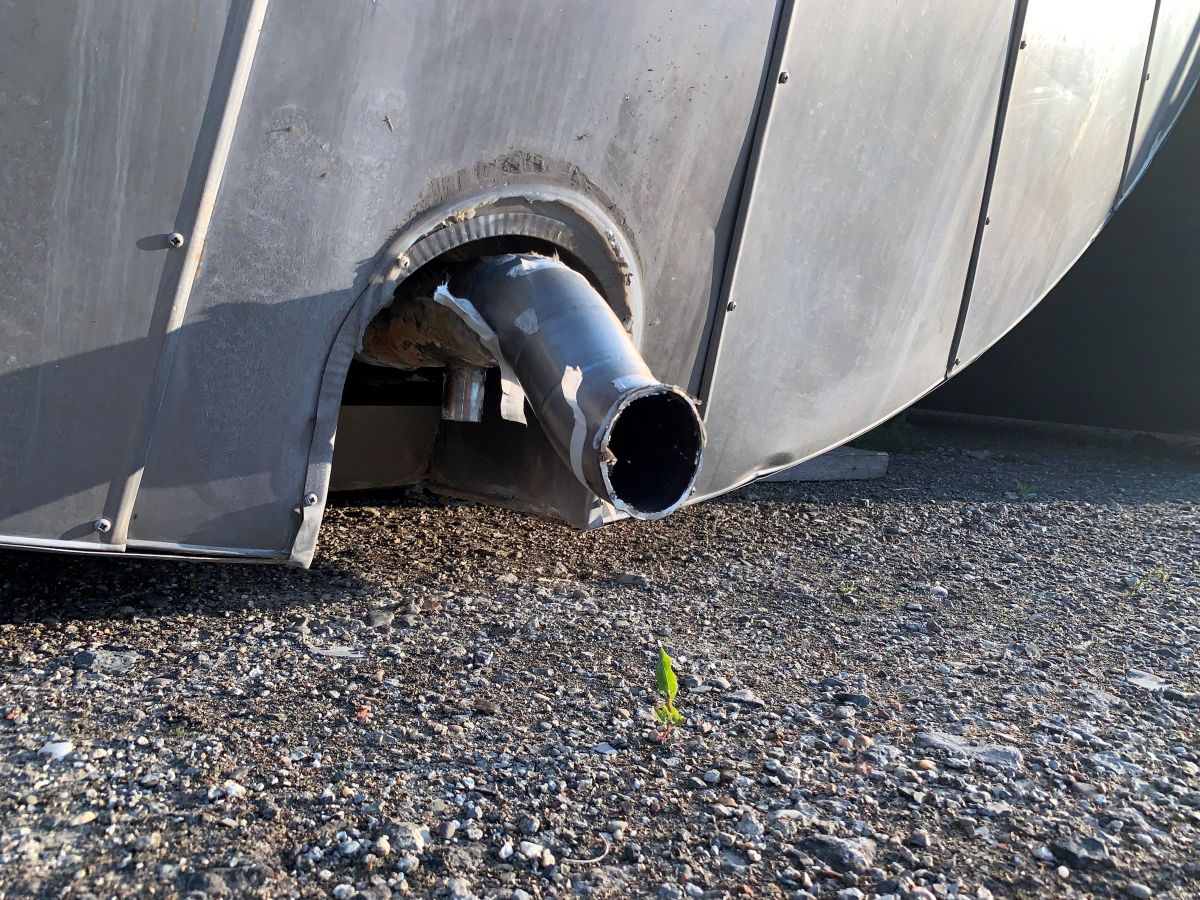

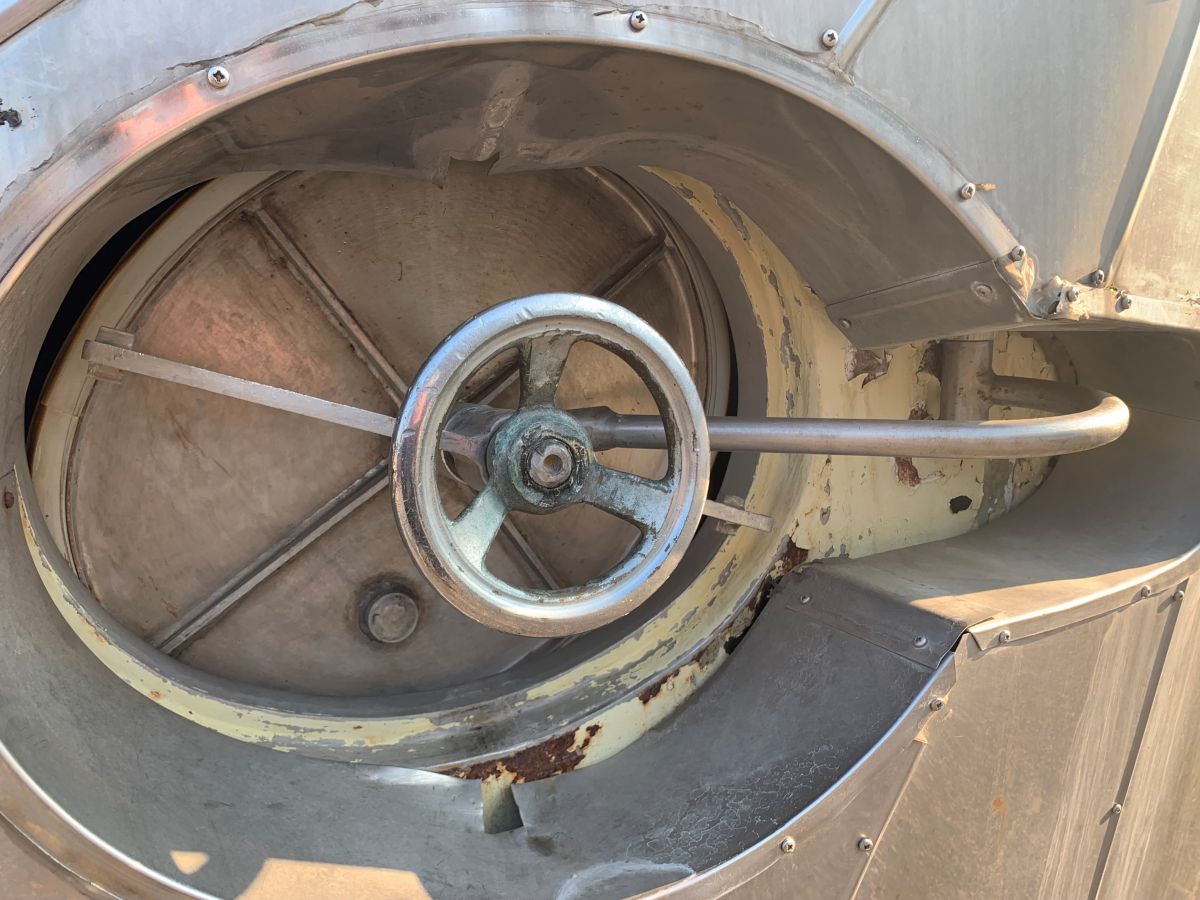

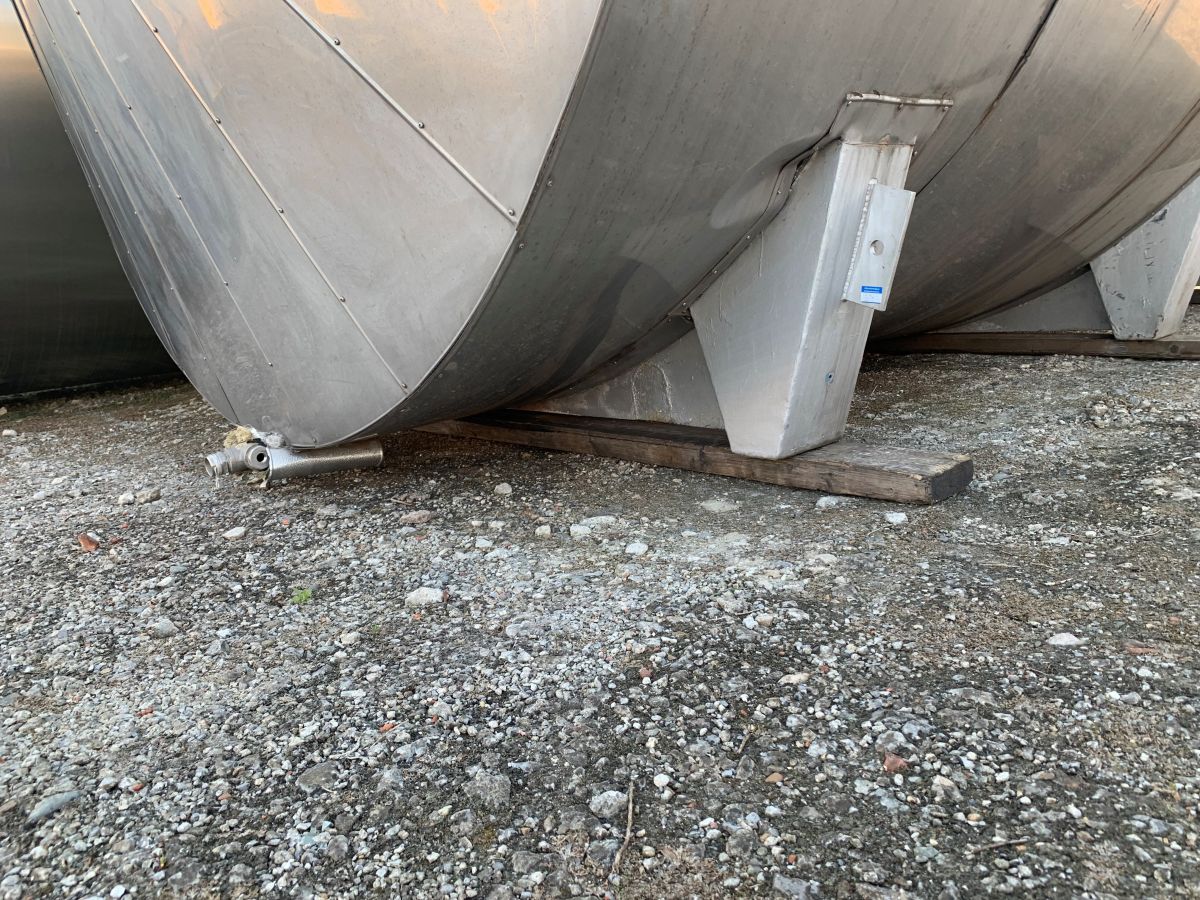

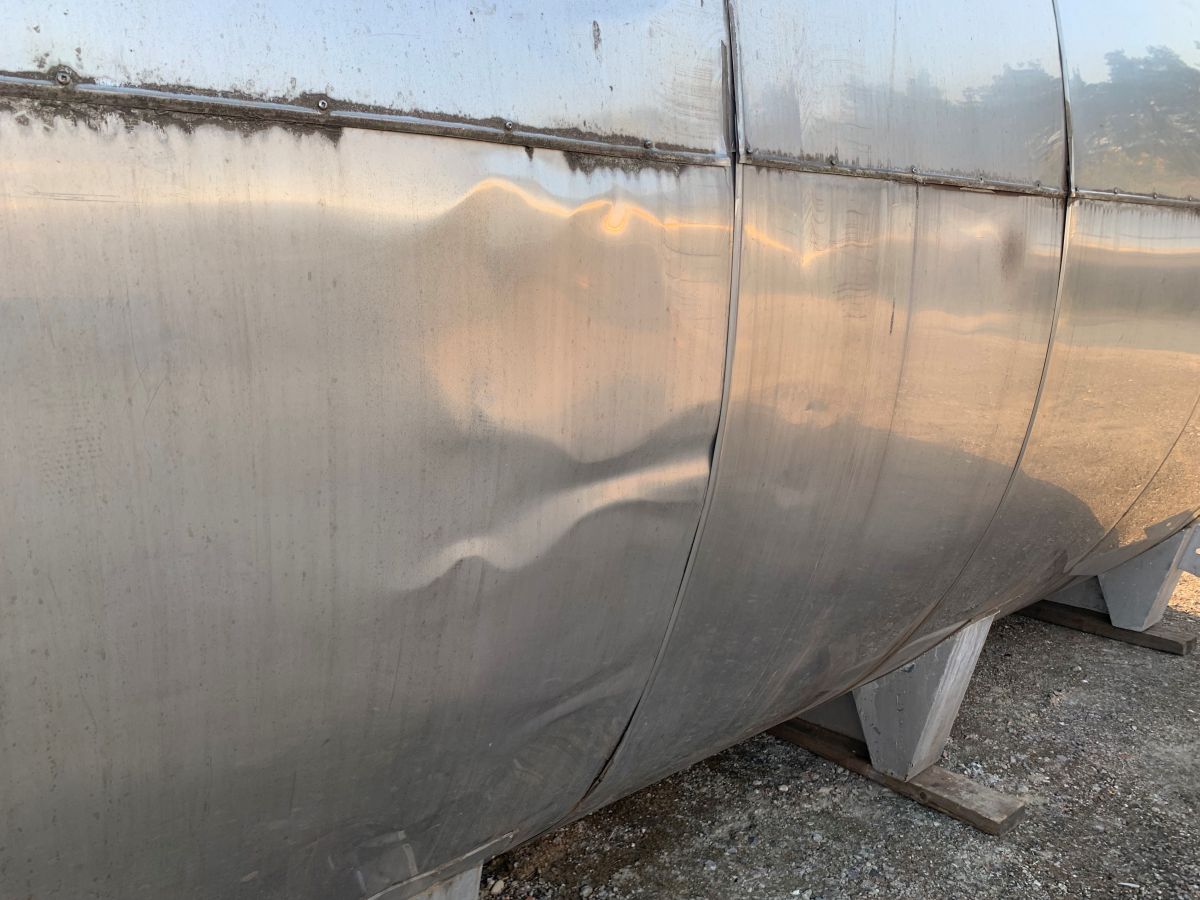

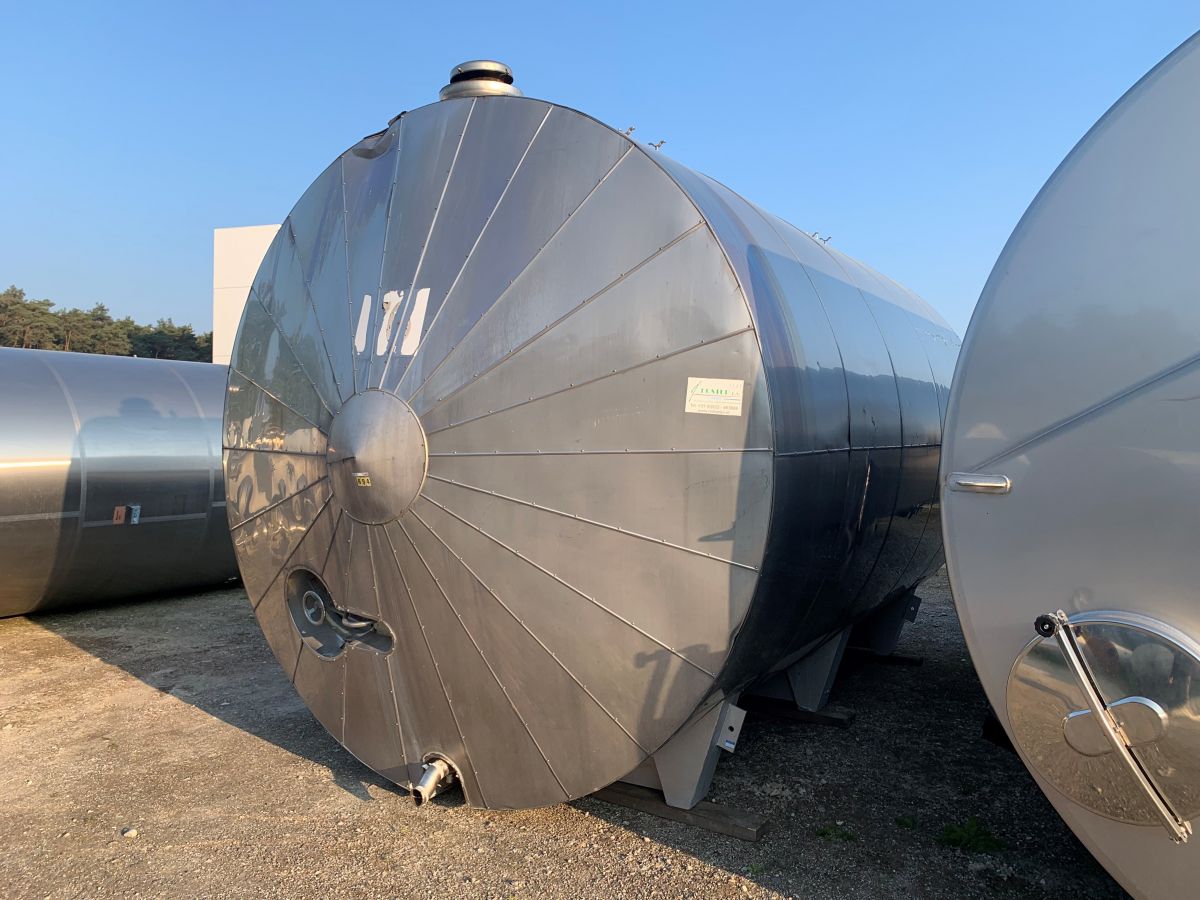

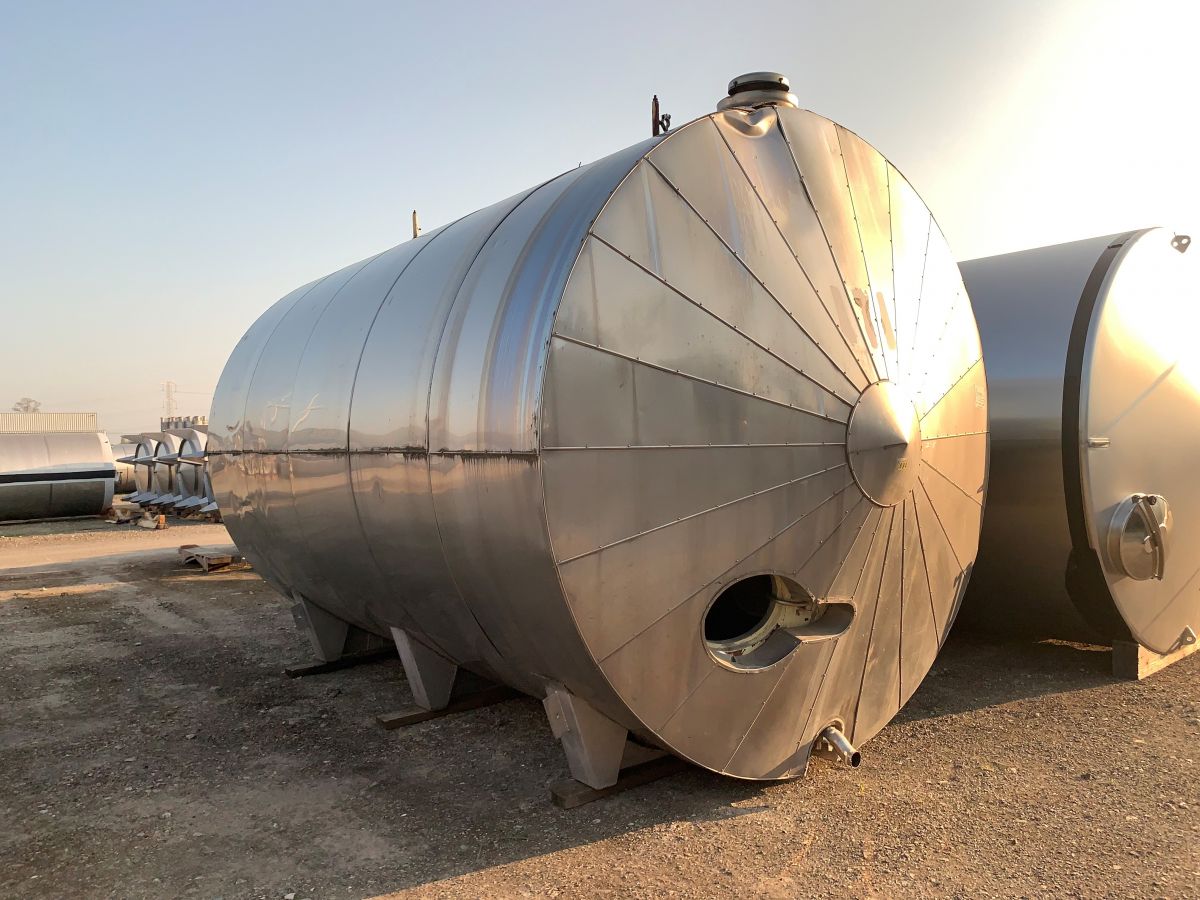

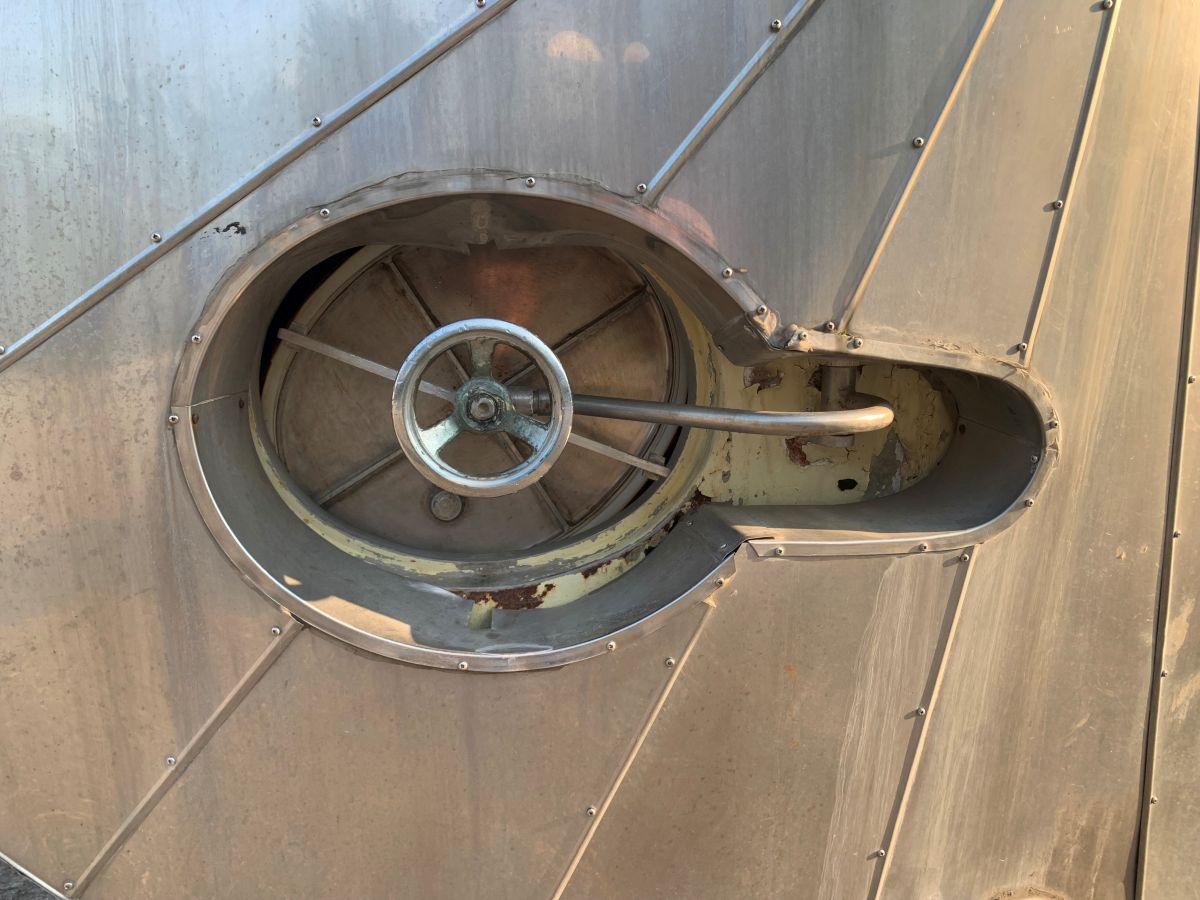

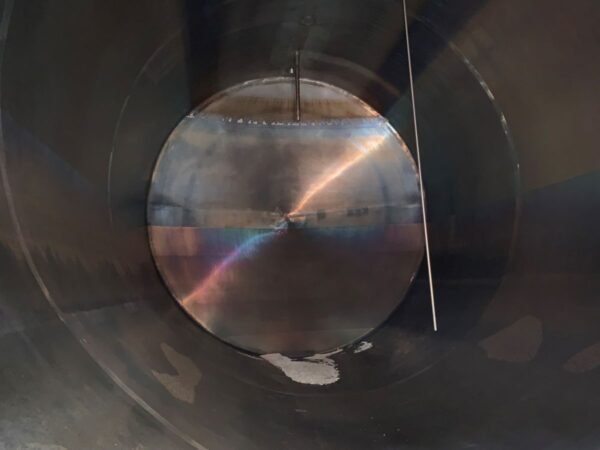

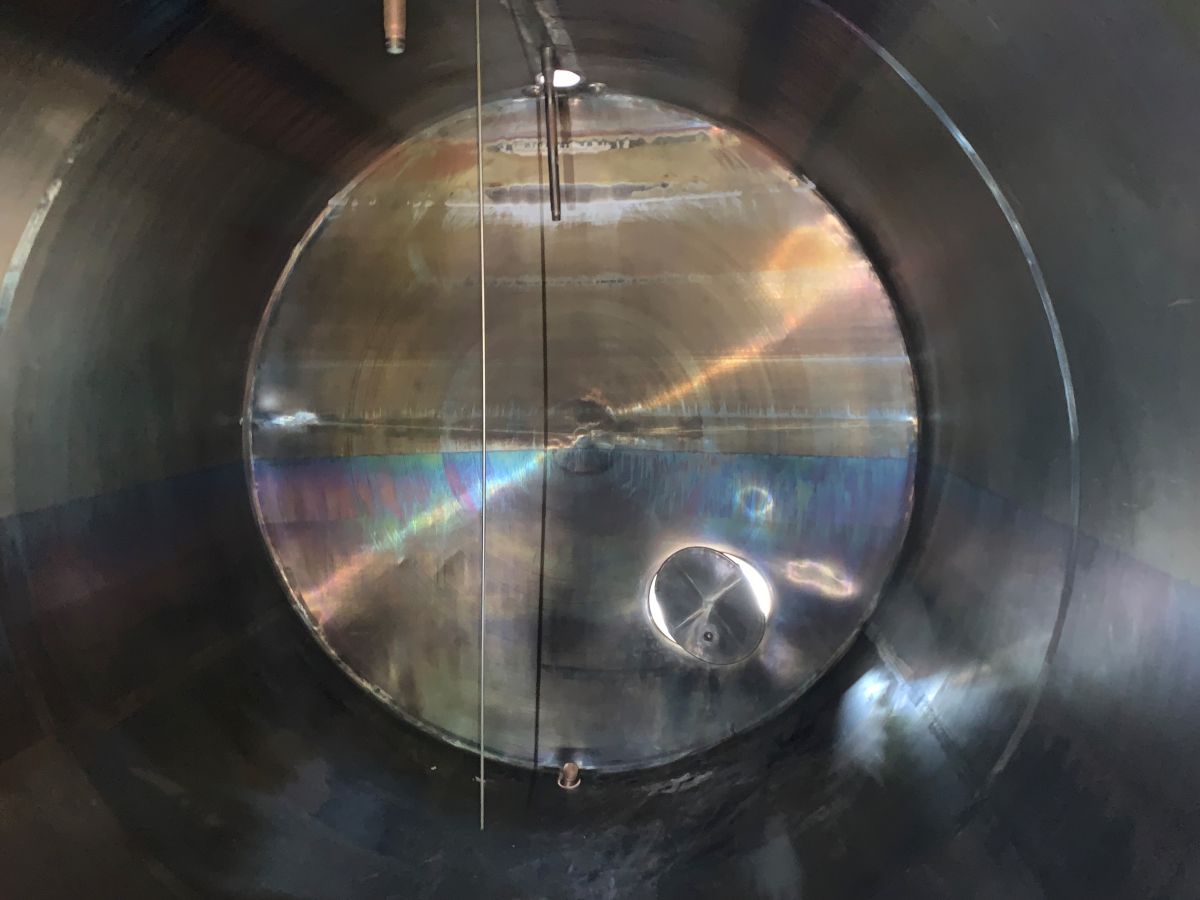

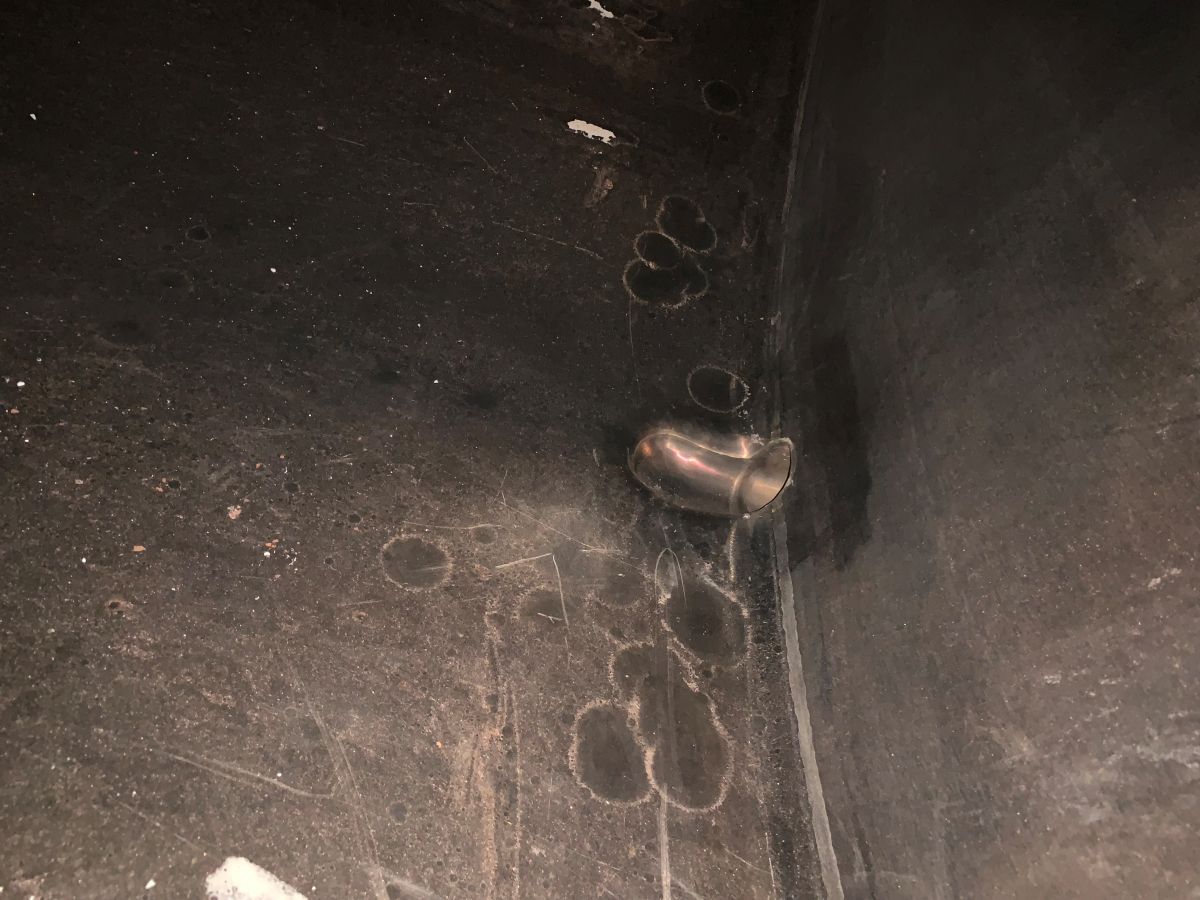

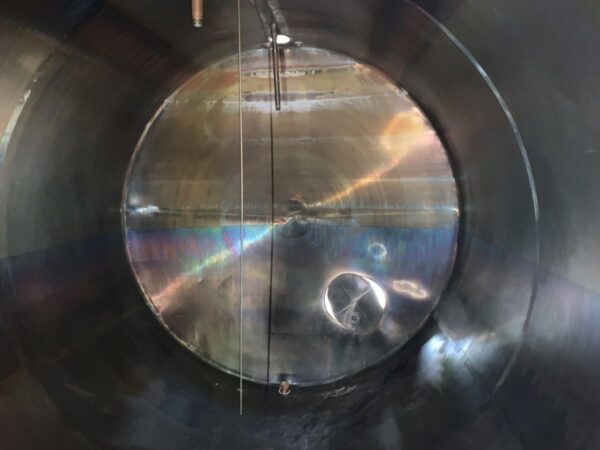

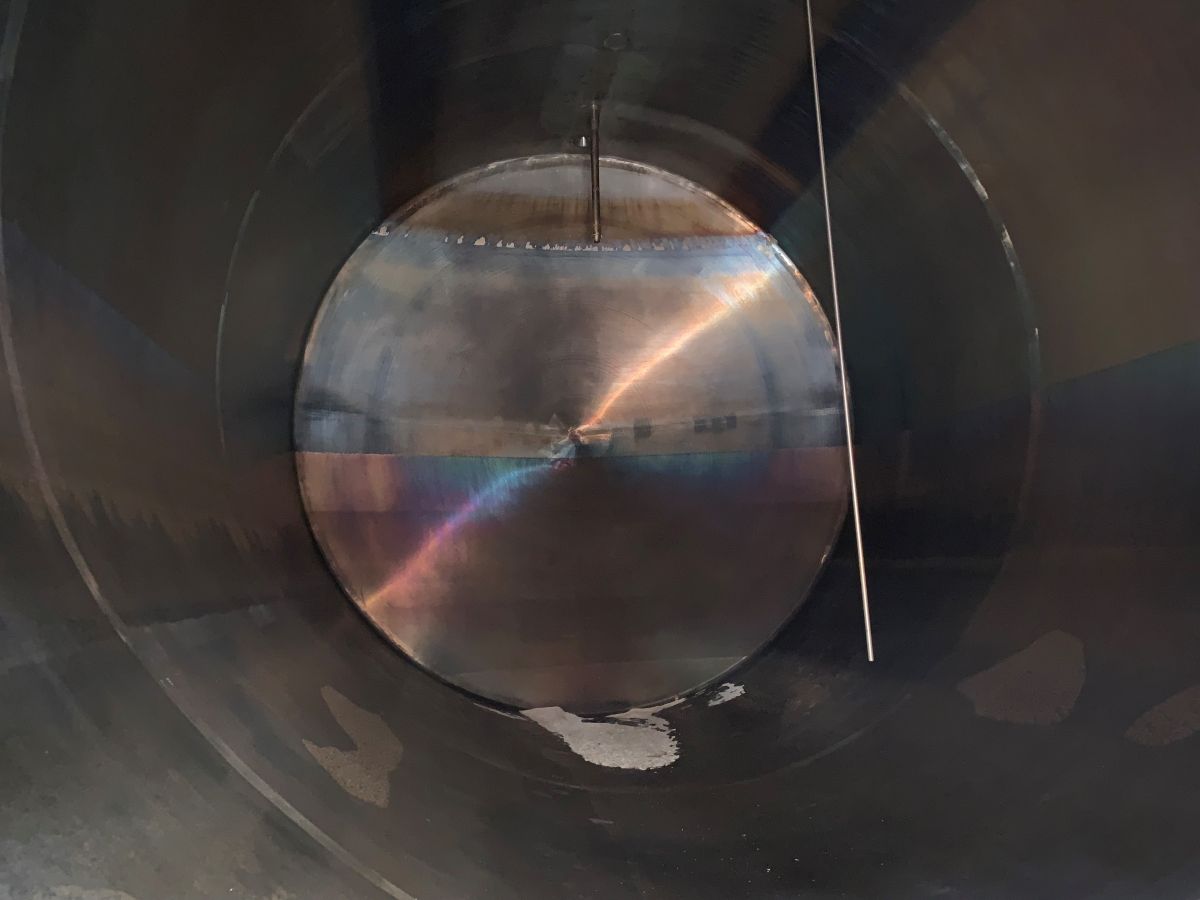

Article type: second-hand storage tank Additional information: Stainless steel tank with steel painted outer jacket. The outer jacket is insulated with 150mm PIR and cladded with screwed stainless steel plates. Volumetric volume (L): 30.000 L Ra inner weld: 0,80 Finish stainless steel: 2B Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: horizontal Configuration: insulated Heat exchanger: no Insulation: yes Mobile tank: no Shape of tank: cylindrical Wall type: conical Total discharge: yes Fixation points: 6 non adjustable feet Insulation material: PIR Outer jacket (ornamental wall): RVS 304 Manway(s): RVS 304 Gasket manway(s): unknown Suitable for food industry: yes Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator: no Number of manways: 1 Position of manway: headside Height manhole 1 (mm): 500 mm x H 390 mm Tank outlet: inside Ø 70 mm Agitator: no, optional finish of the outer jacket: riveted Insulation thickness: 150 Internal diameter tank: 2.880 mm Distance from outlet to ground: 200 mm Outer diameter tank: 3.200 mm Cylinder height: 4.450 mm Total height of tank: 3.500 mm Total outer length: 5.800 mm Empty weight tank: 4.000

Fakta
