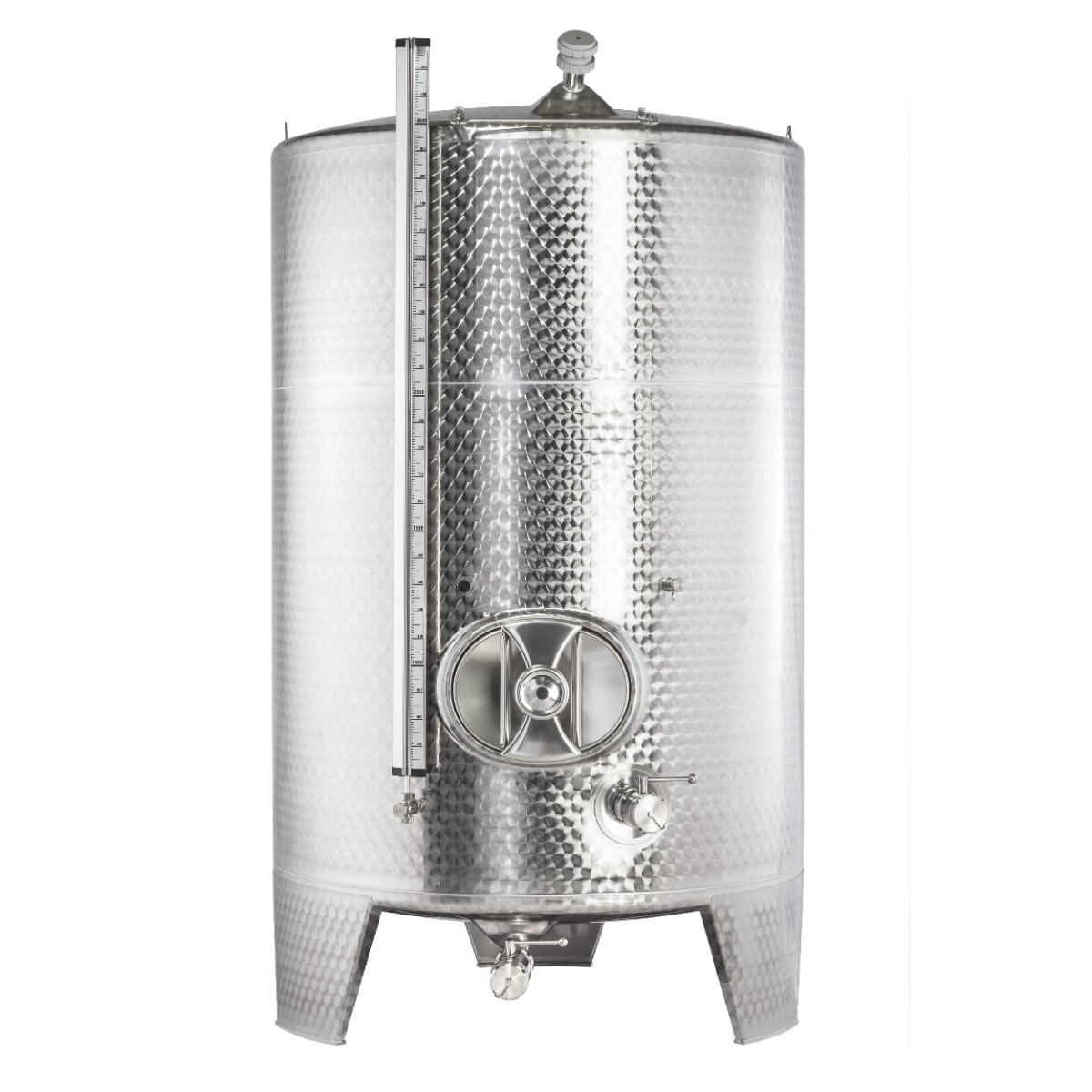

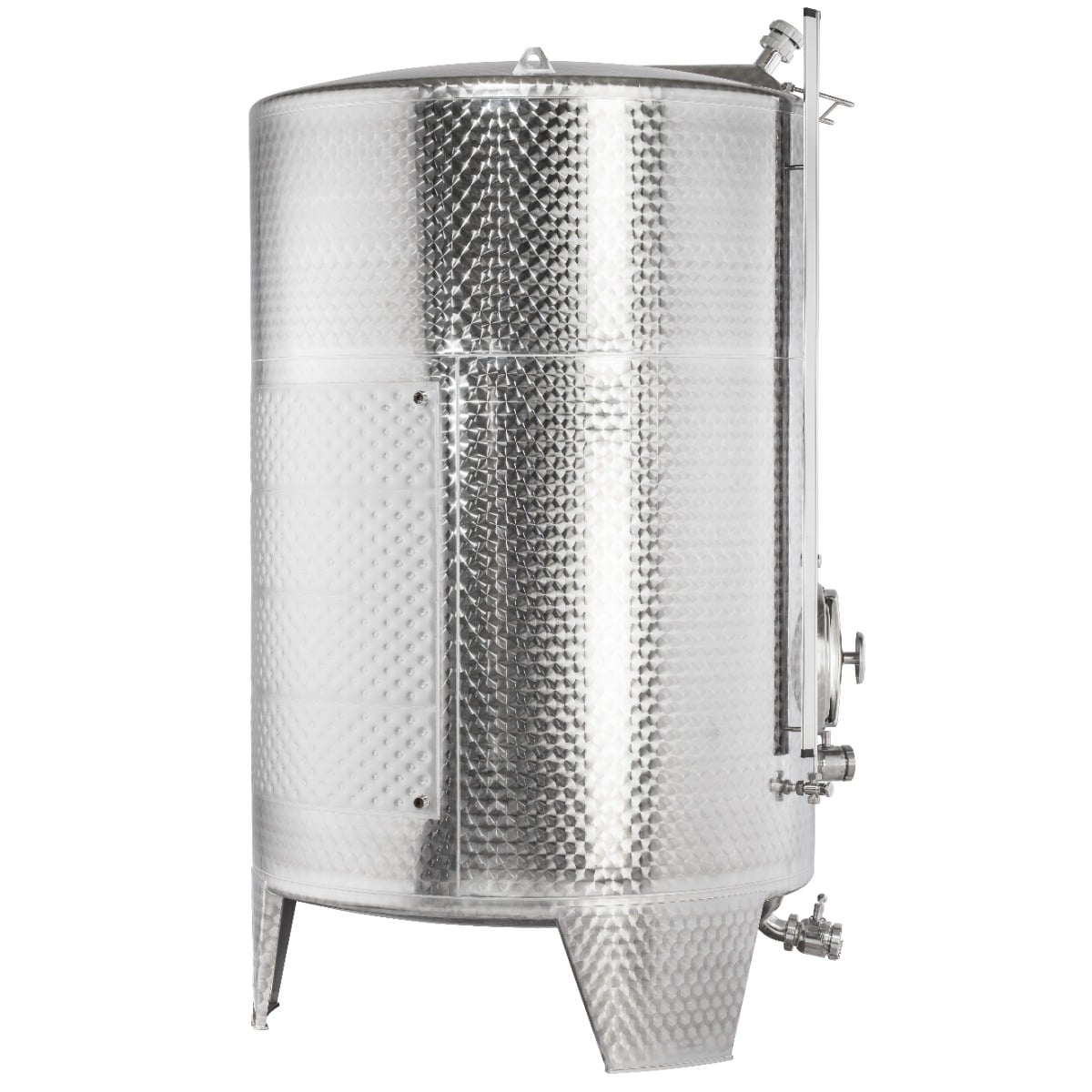

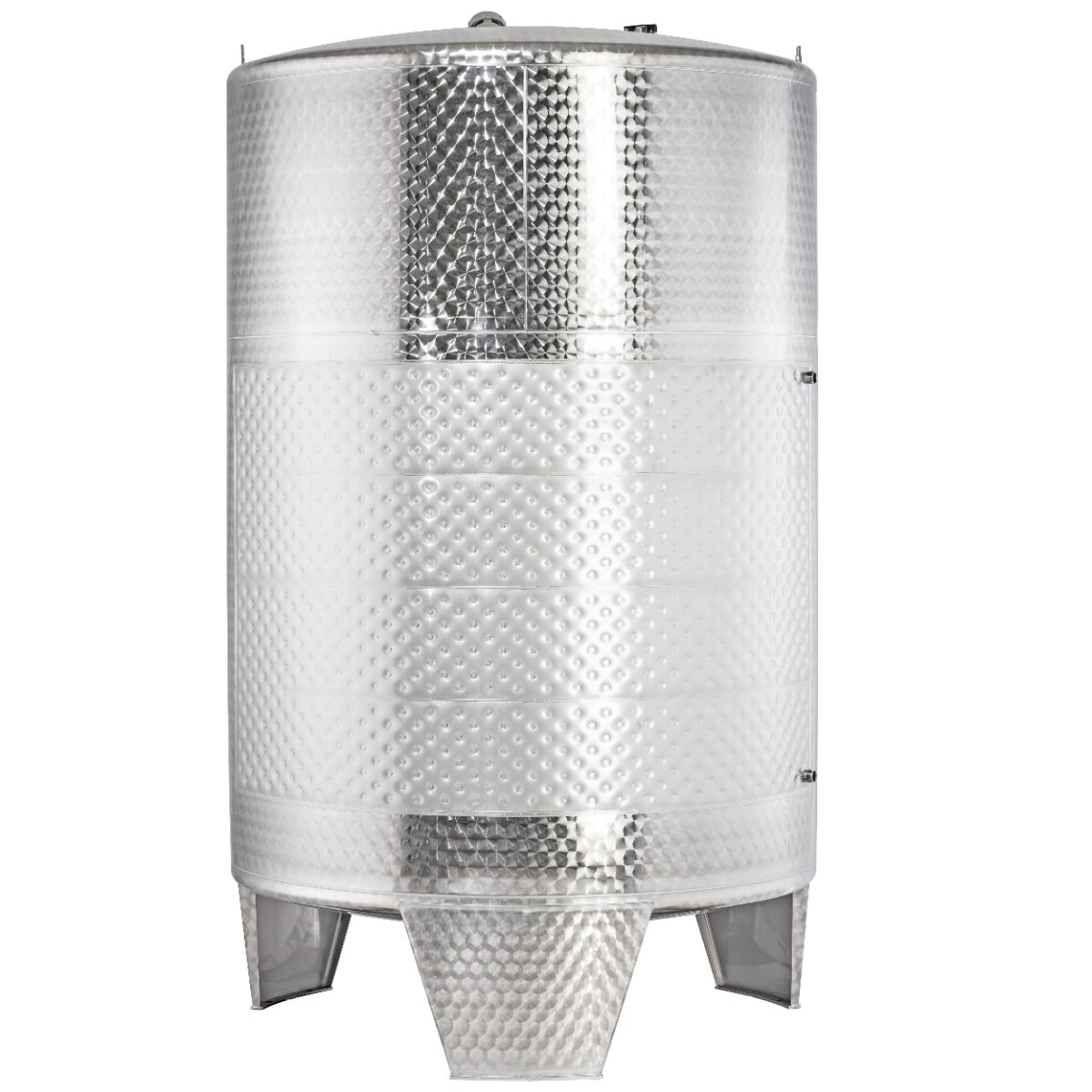

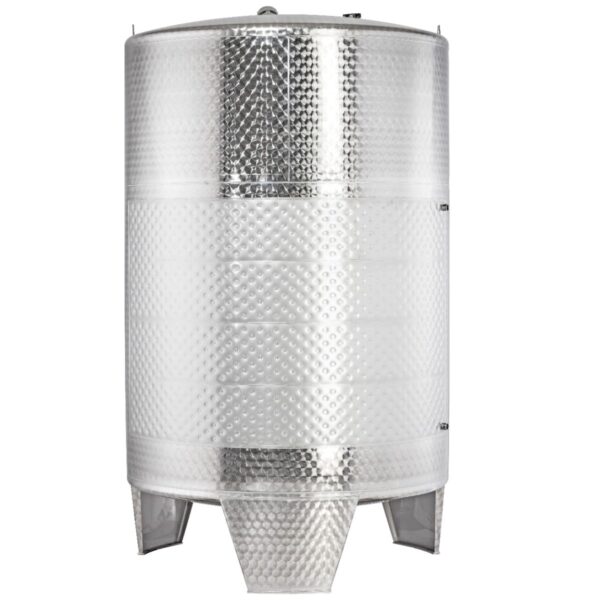

3000 liter tank i Rostfritt 304

Additional information: Manhole diameter: approx. 420 x 320 mm Volumetric volume (L): 3.000 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single jacketed with heat-exchanger Heat exchanger: yes Insulation: no Mobile tank: no Total discharge: no Max Overpressure: 6 Bar Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator: no Position of manway: cylinder Outlet of tank: DN50 DIN 11851 Internal diameter tank: 1.400 mm Cylinder height: 1.818 mm Total height of tank: 2.465 mm
