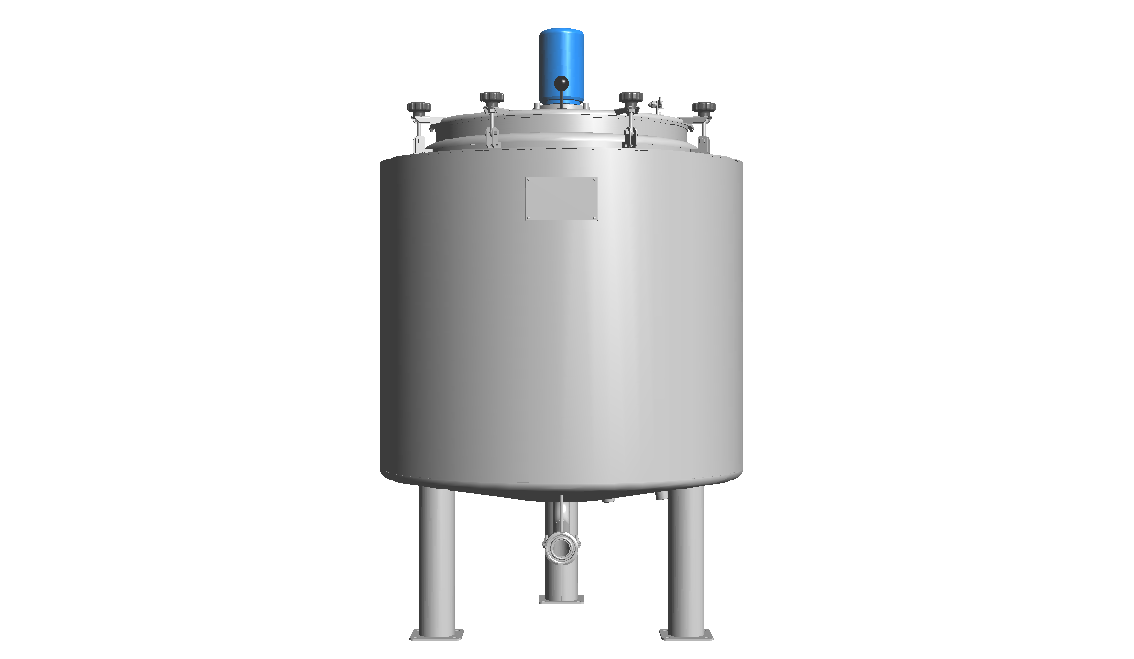

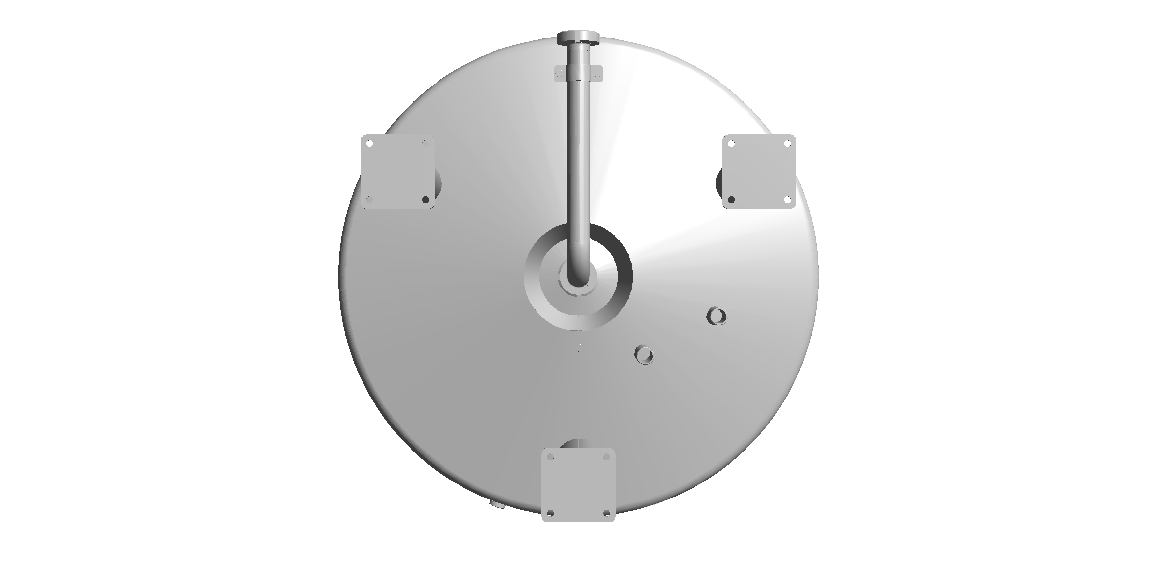

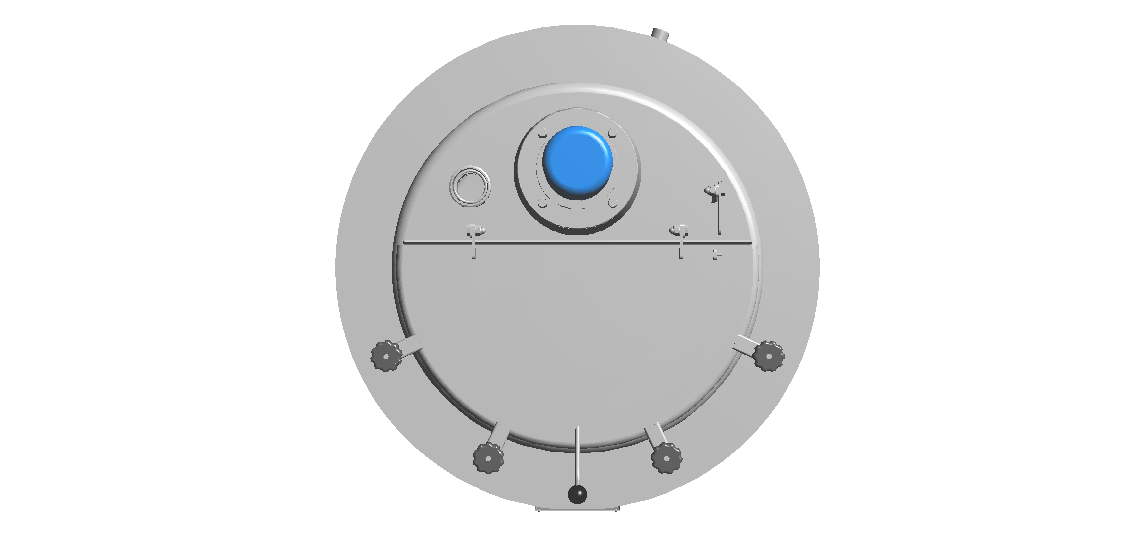

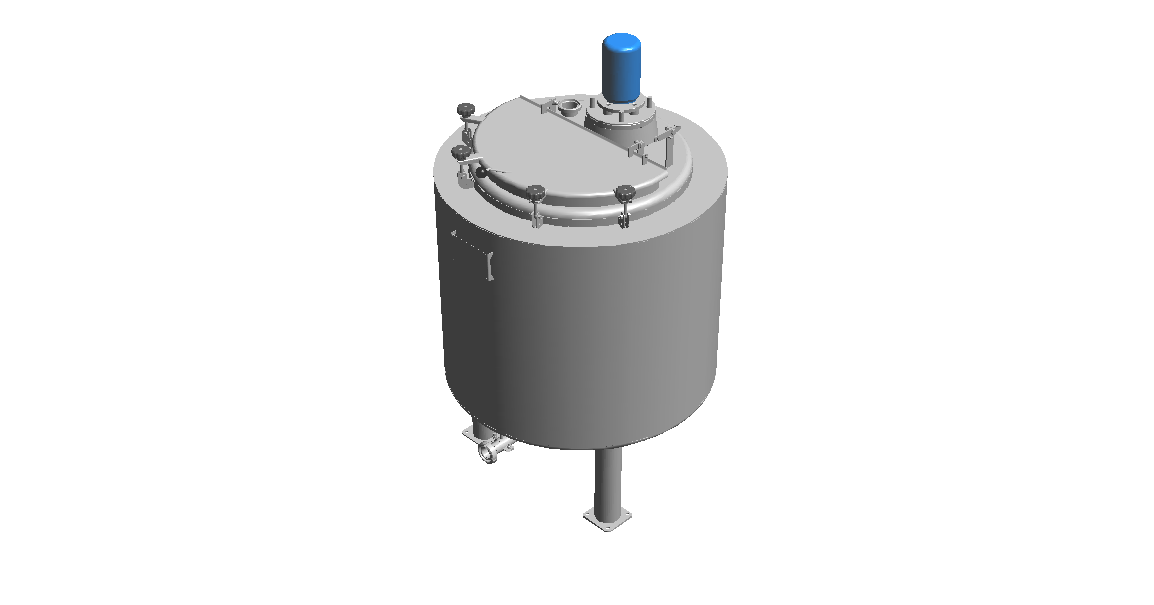

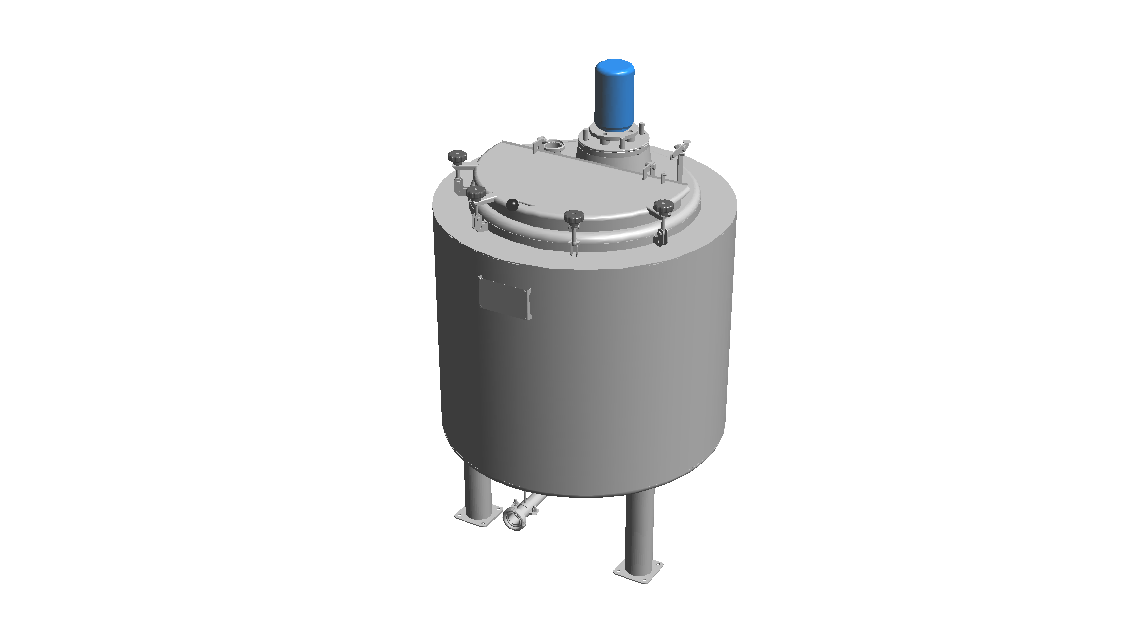

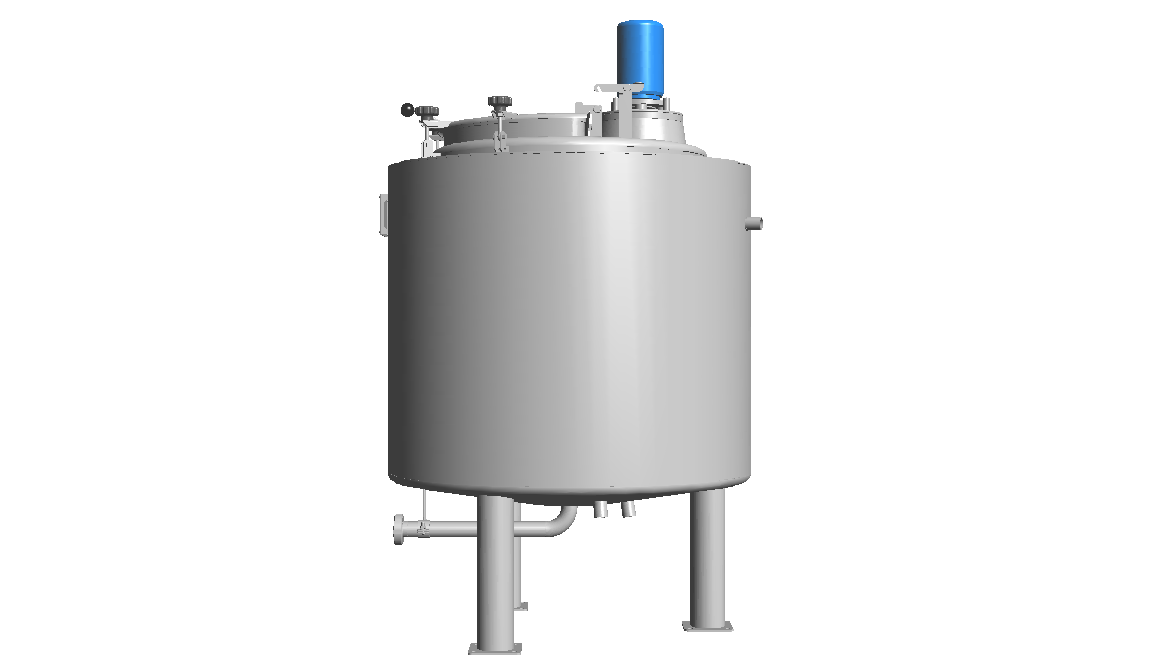

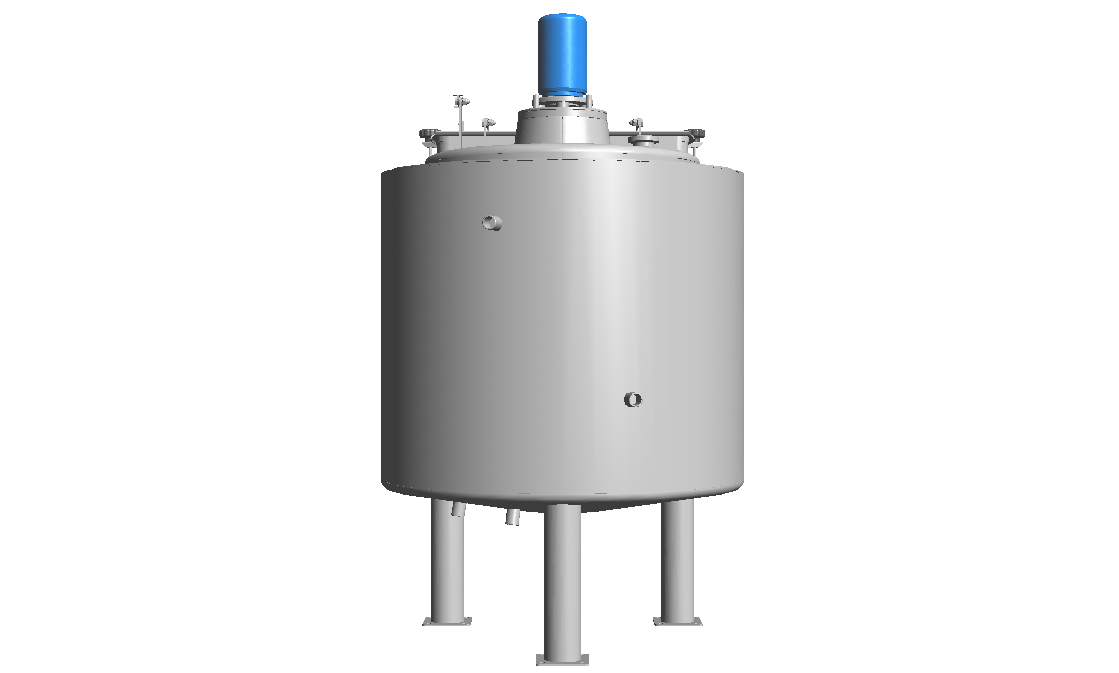

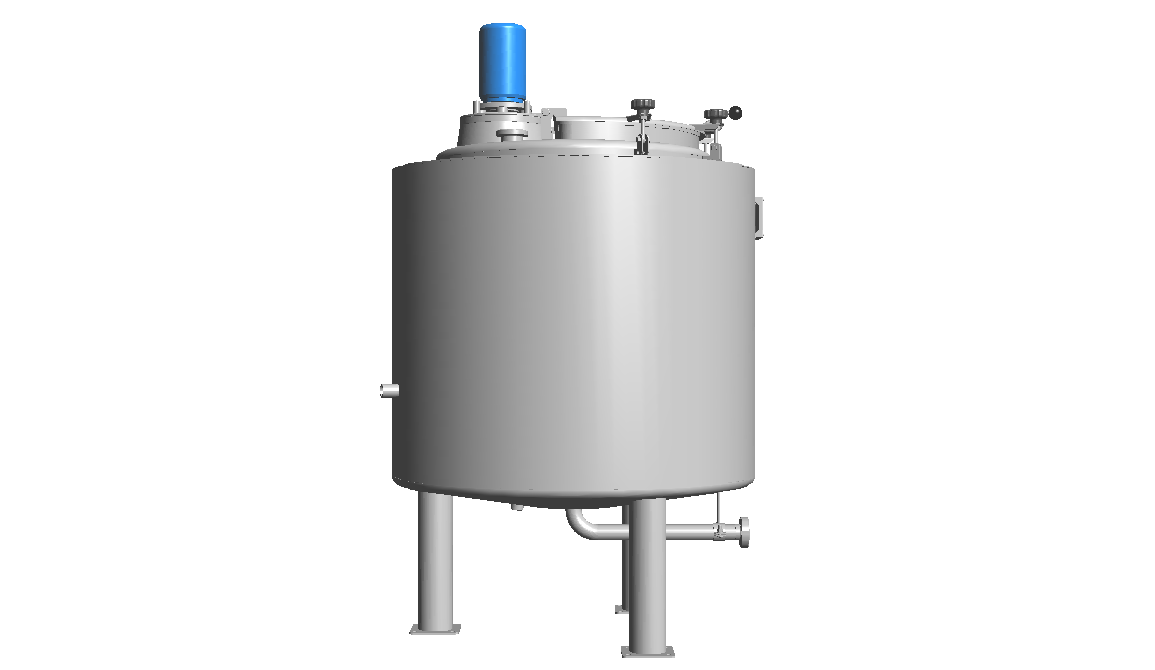

300 liter tank i Syrafast 316

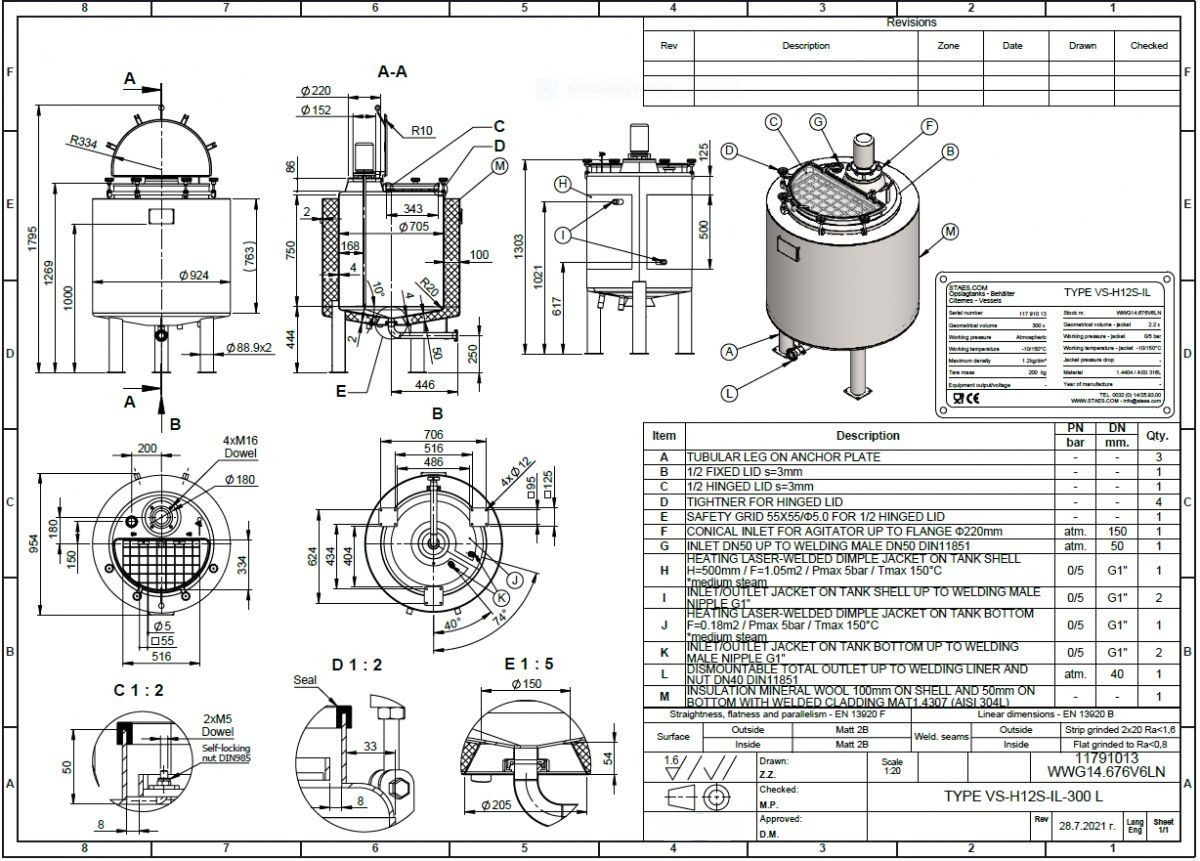

item available on order Article type: brand new mixing tank - type VS-H12S-IL Additional information: Heat exchanger on cylinder and bottom steam, hot water or thermal oil, as well as ice water or glycol; article price without agitator; Volumetric volume (L): 300 L Max. density P (kg/m³): 2.000 Ra inner weld: 0,80 Finish stainless steel: 2B Pressure in tank: ATM - atmosferic Max. temperature (°C): 150 °C Min. temperature (°C): -10 °C Material wet parts: SS AISI 316L (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Top type: flat Shape of tank: cylindrical Bottom type: conical 10 ° Total discharge: yes Fixation points: 3 non adjustable feet Type of HE on the cylinder: dimple-jacket Position HE: the complet cilinder Height HE: 500 mm Number of sections: 1 Water pressure HE: 5 Bar Steam pressure HE: 3 Bar Contact surface cylinder: 1,05 m² Connection HE: 1" BSP Working temperature HE cylinder: 150 °C Water pressure HE: 5 Bar Steam pressure HE: 3 Bar Contact surface bottom: 0,18 Total contact surface: 1,23 Connection HE: 1" BSP Working temperature HE bottom: 150 °C Heat exchanger: RVS 304 Insulation material: Rockwool Outer jacket (ornamental wall): RVS 304L Gasket manway(s): silicone Fixation point(s): RVS 304L Suitable for food industry: yes Documents included: yes, optional Technical drawing included: yes Registration plate on the tank: yes Inspection of: tuv Flange for agitator: no CIP spray ball: no, optional Tank outlet: inside Ø 40 mm Outlet type: DIN11851 Total outlet valve: no, optional Agitator: no, optional Top: 3 mm Cylinder: 4 mm Bottom: 4 mm Cylinder: 2 Insulation body: yes Bottom: 2 Insulation bottom/sides: yes finish of the outer jacket: welded Insulation thickness: 100 Internal diameter tank: 705 mm Distance from outlet to ground: 250 mm Outer diameter tank: 924 mm Cylinder height: 750 mm Feet height: 444 mm Total height of tank: 1.795 mm Empty weight tank: 200
