300 liter i Syrafast 316
Vi erbjuder finansiering via:
53,000.00 SEK/st exkl moms
Mer information
| Volym i liter | 300 |
|---|---|
| Nytillverkad/Begagnad | Nytillverkad |
| Livsmedelsklassad | Ja |
| Modell | Vertikal |
| Material | Syrafast 316 |
| Omrörare | Nej |
| Uppvärmning/kylning | Nej |
| Isolerad | Nej |
item available on order
Article type: brand new transport tank – type VC-SCO

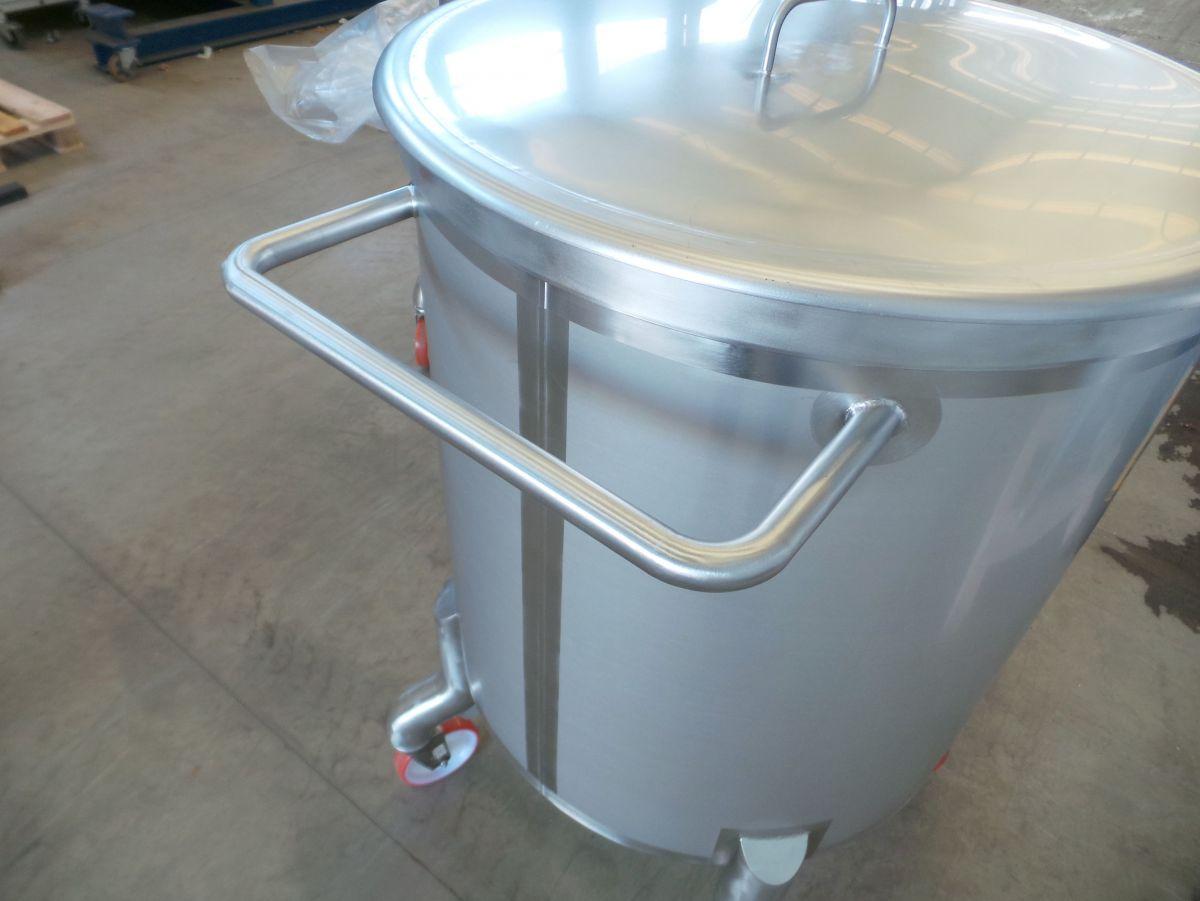

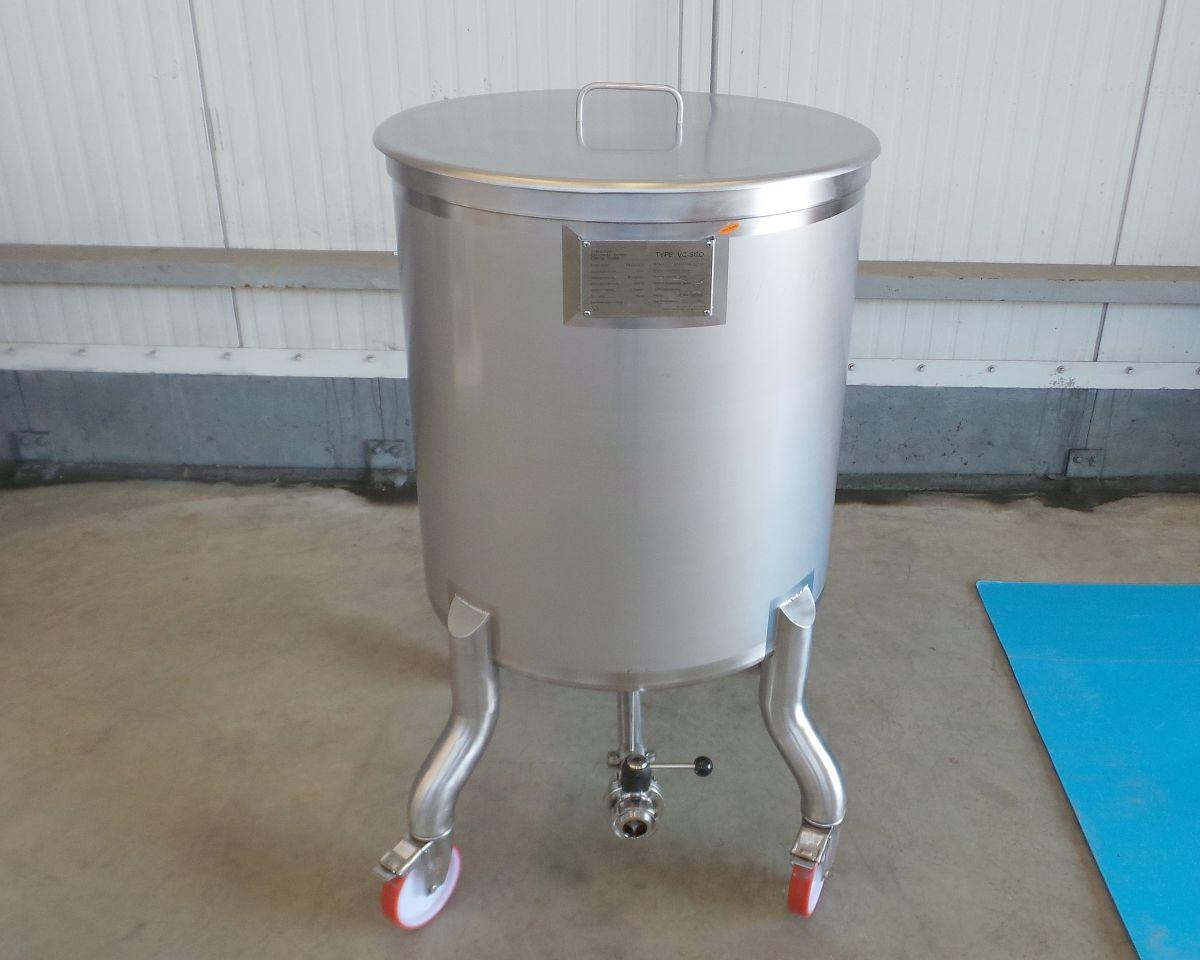

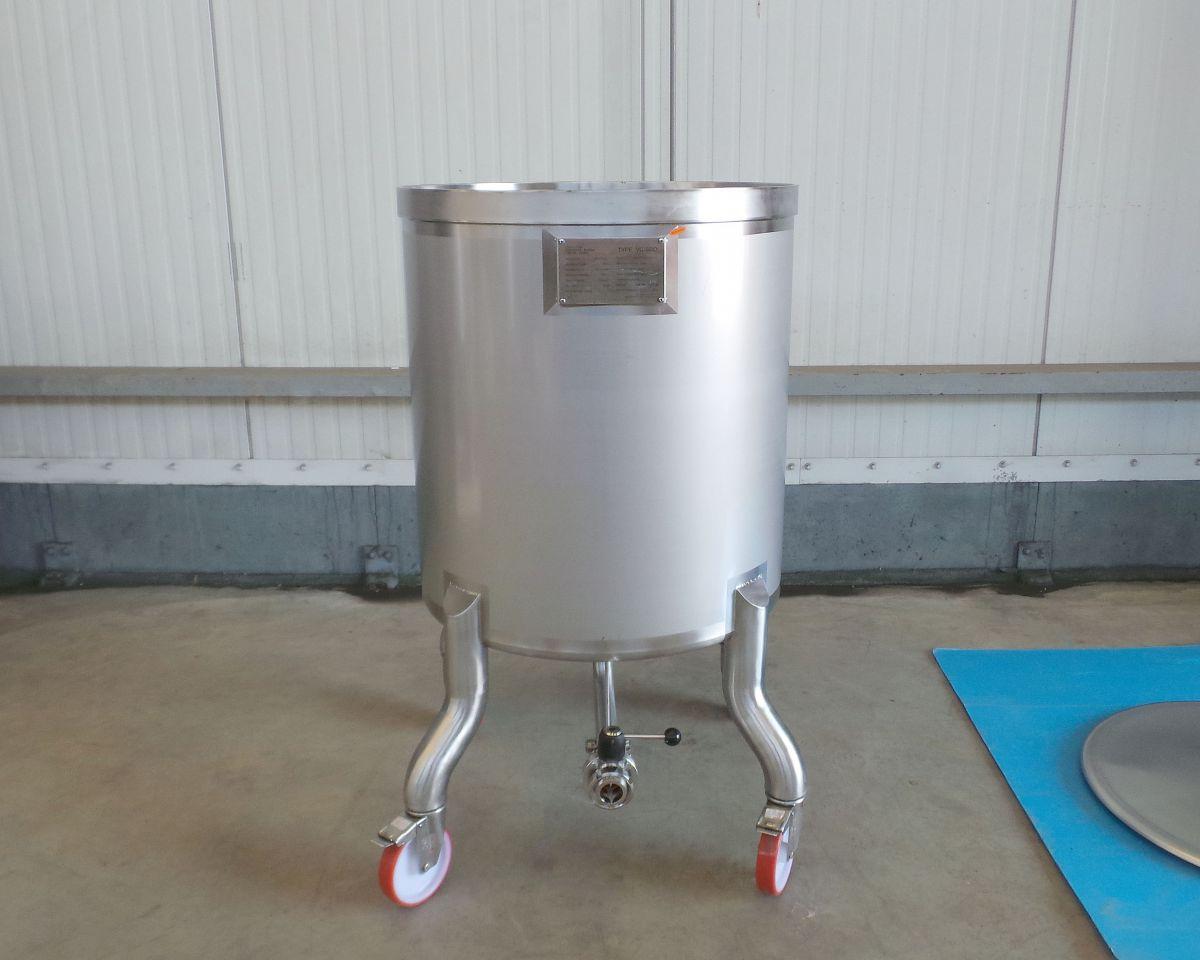

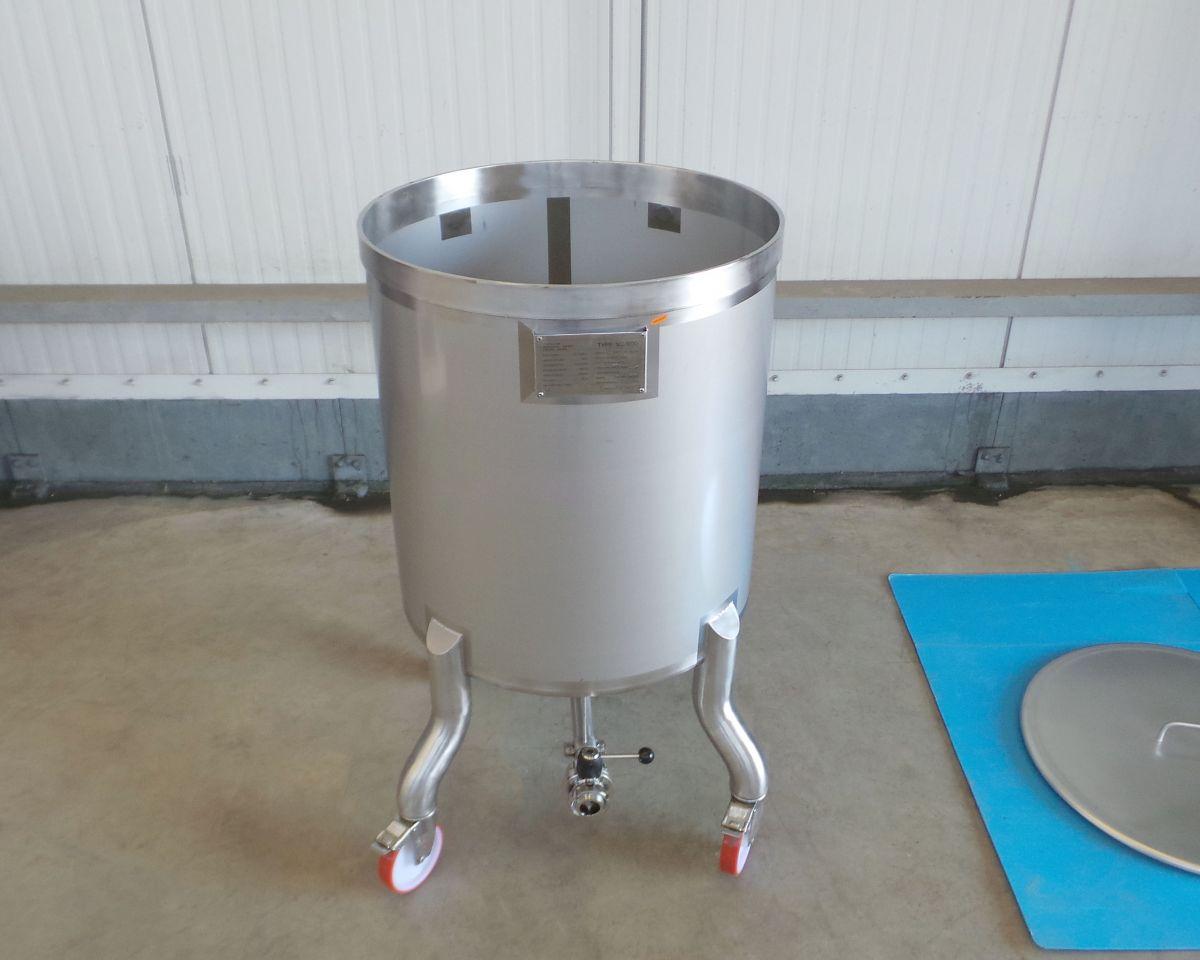

Additional information: example picture
Capacity: 300 L
Maximal density of the product: 1.200

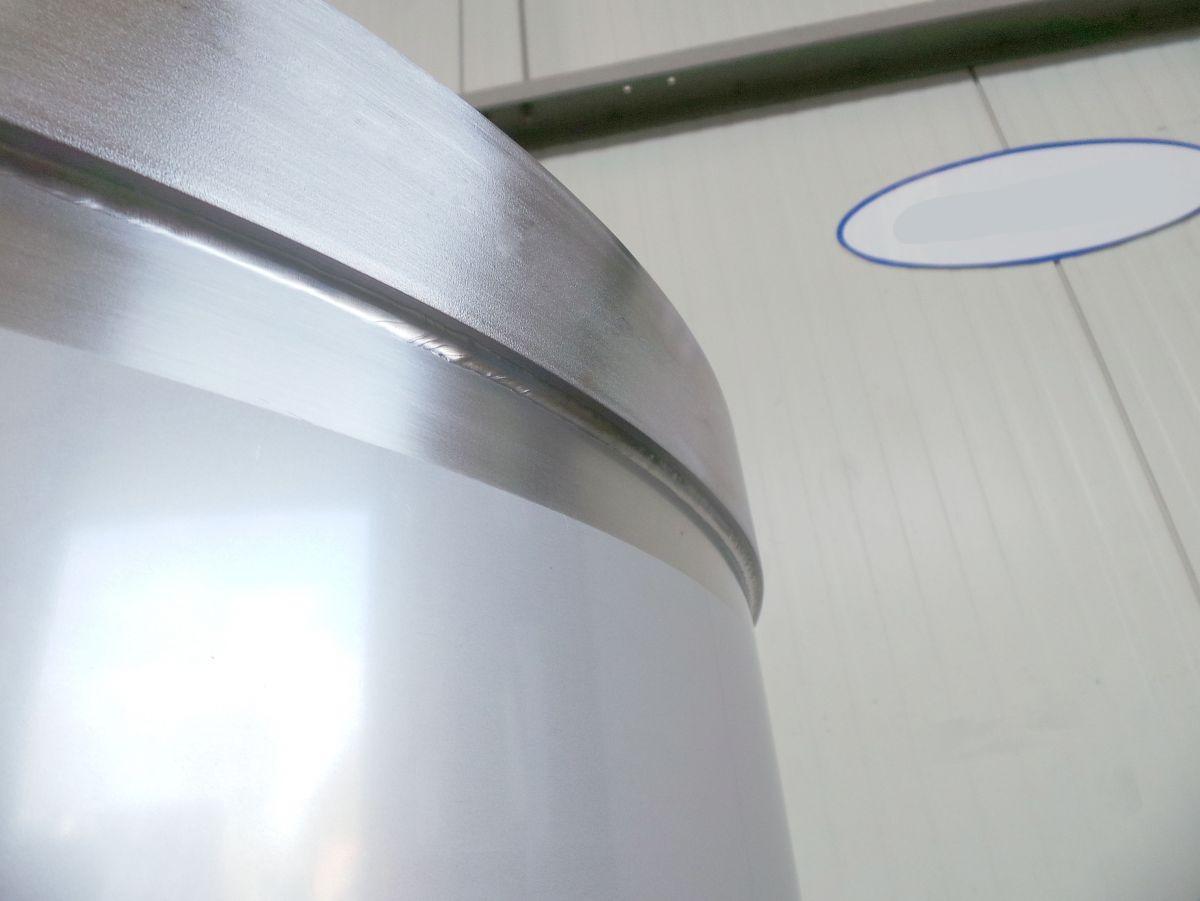

Ra inner weld: 0,80
Finish stainless steel: 2b
Working pressure in tank: ATM – atmosferic
Max. working temperature: 80 °C
Min. working temperature: -10 °C
Material wet parts: SS AISI 316L (V4A)
Model: vertical
Configuration: single-skin
Heat exchanger: no
Insulation: no
Agitator: yes, optional
Mobile tank: yes

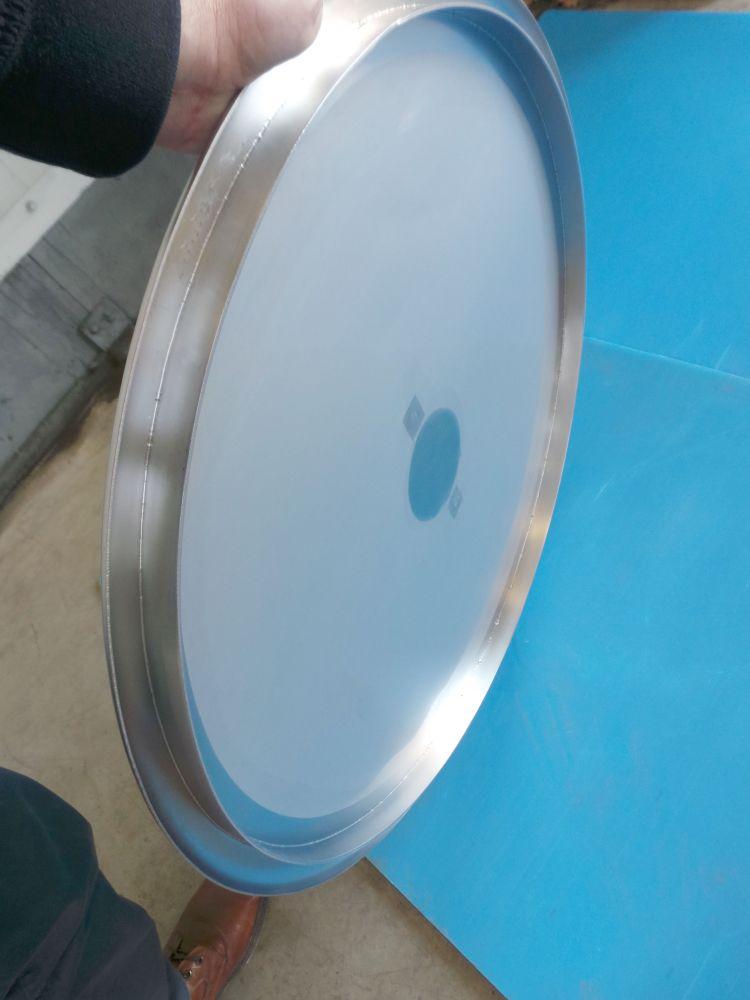

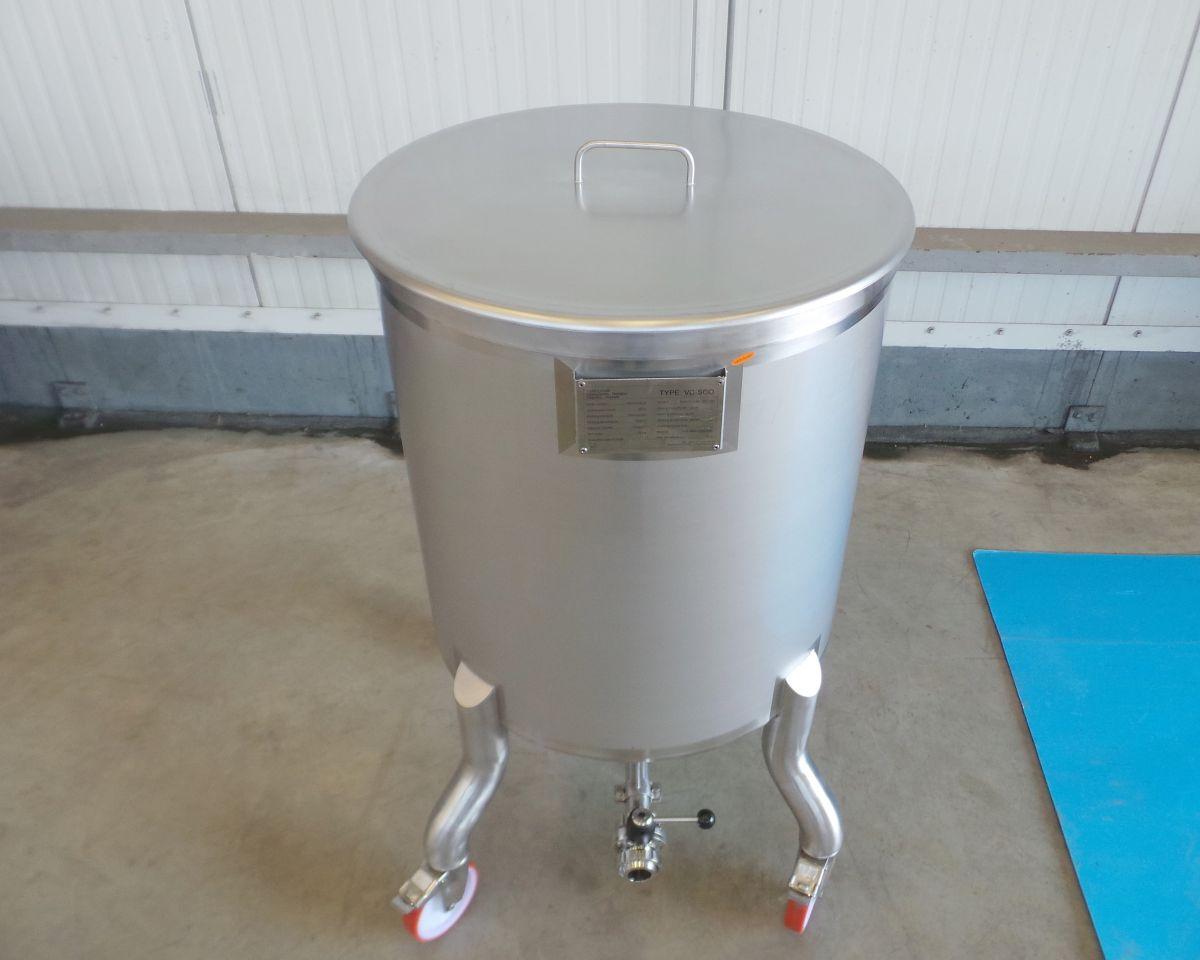

Top type: large seperat lid
Shape of tank: cylindrical

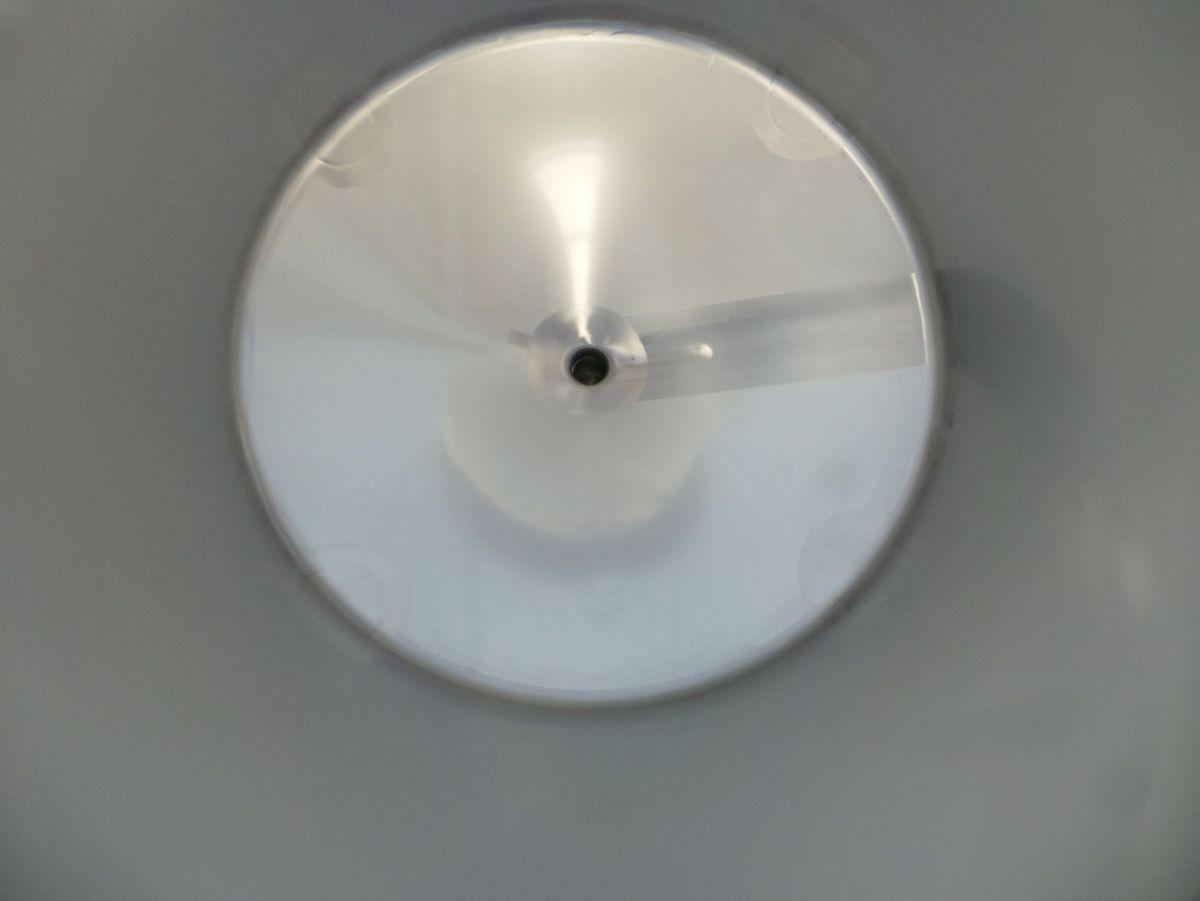

Bottom type: conical 15 °
Total discharge: yes

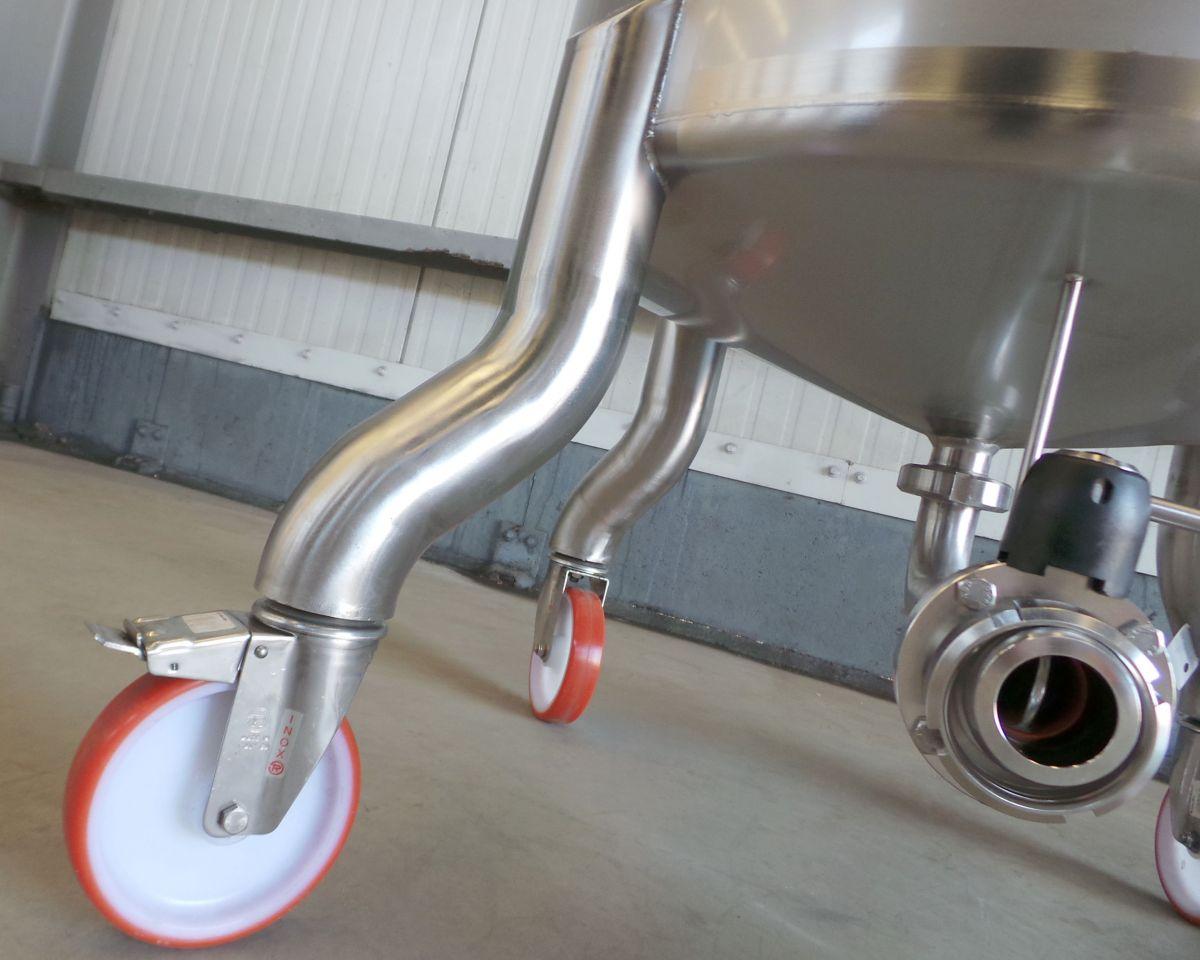

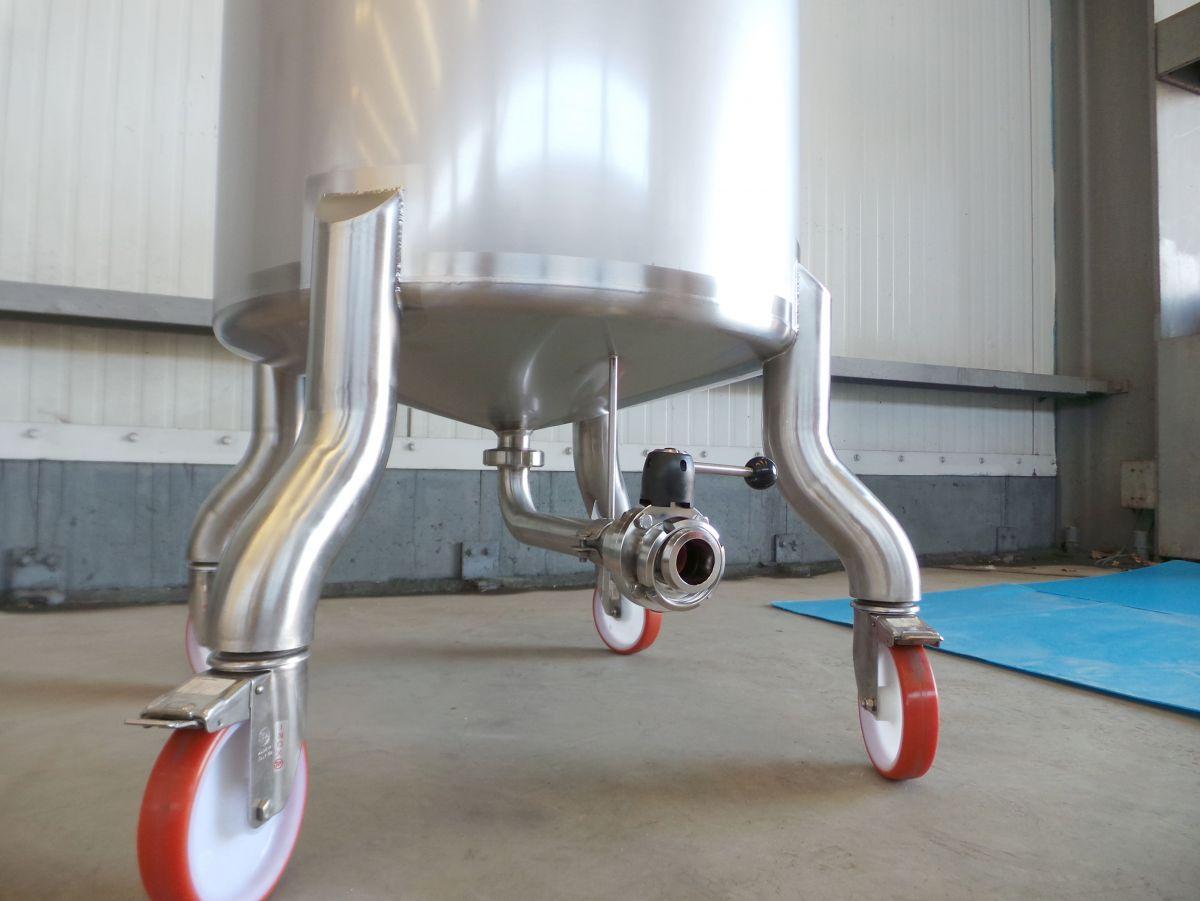

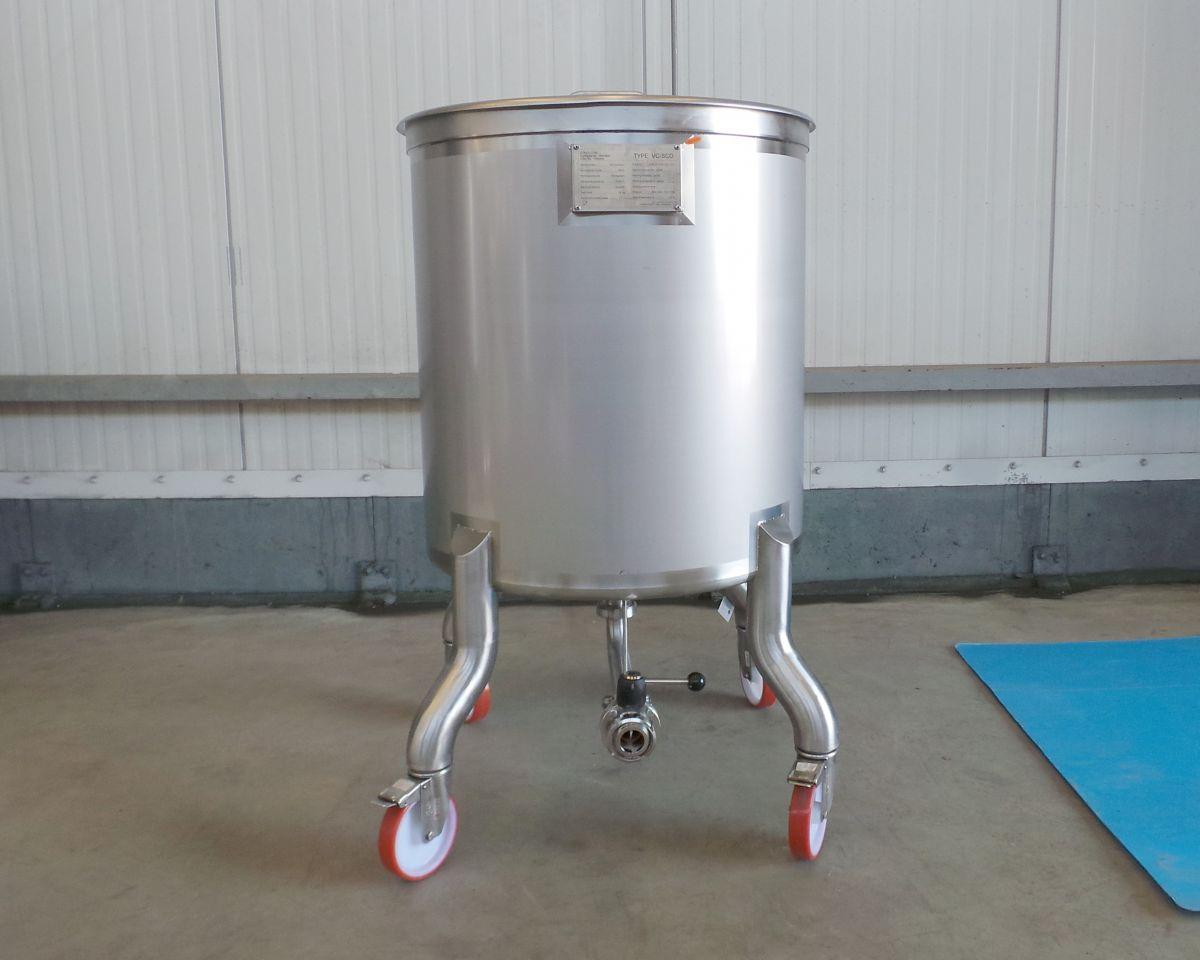

Fixation points: 4 casters
Valve: RVS 316L
Fixation point(s): RVS 304L
Suitable for food industry: yes
Documents included: yes, optional

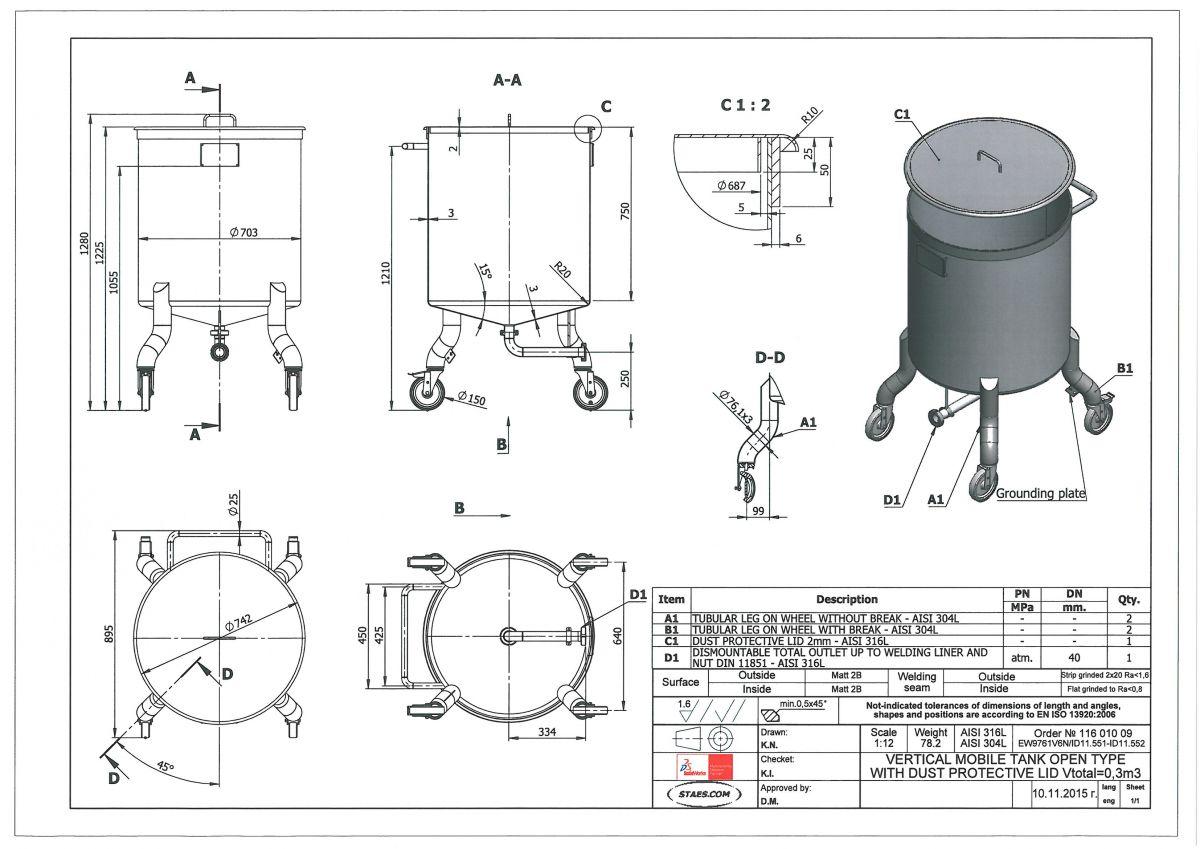

Technical drawing included: yes
Registration plate on the tank: yes
Flange for agitator: no
Spray ball: no
Tank outlet: inside Ø 40 mm
Outlet type: DIN11851
Total outlet valve: yes, optional

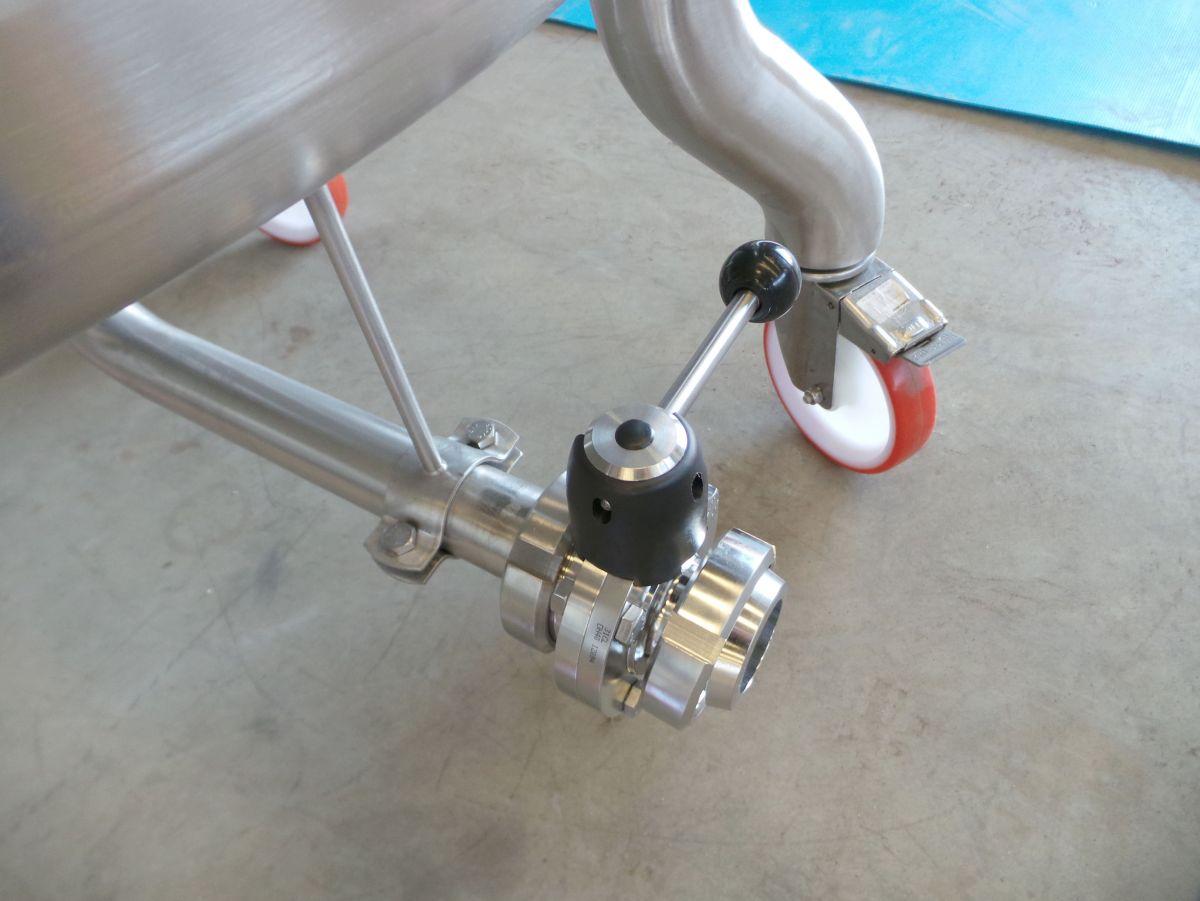

Type shut-off valve: butterfly valve
Top: 2 mm
Cylinder: 3 mm
Bottom: 3 mm
Distance from outlet to ground: 250 mm
Outer diameter tank: 703 mm
Cylinder height: 750 mm
Total height of tank: 1.280 mm
Empty weight tank: 79
