2500 liter tank i Syrafast 316

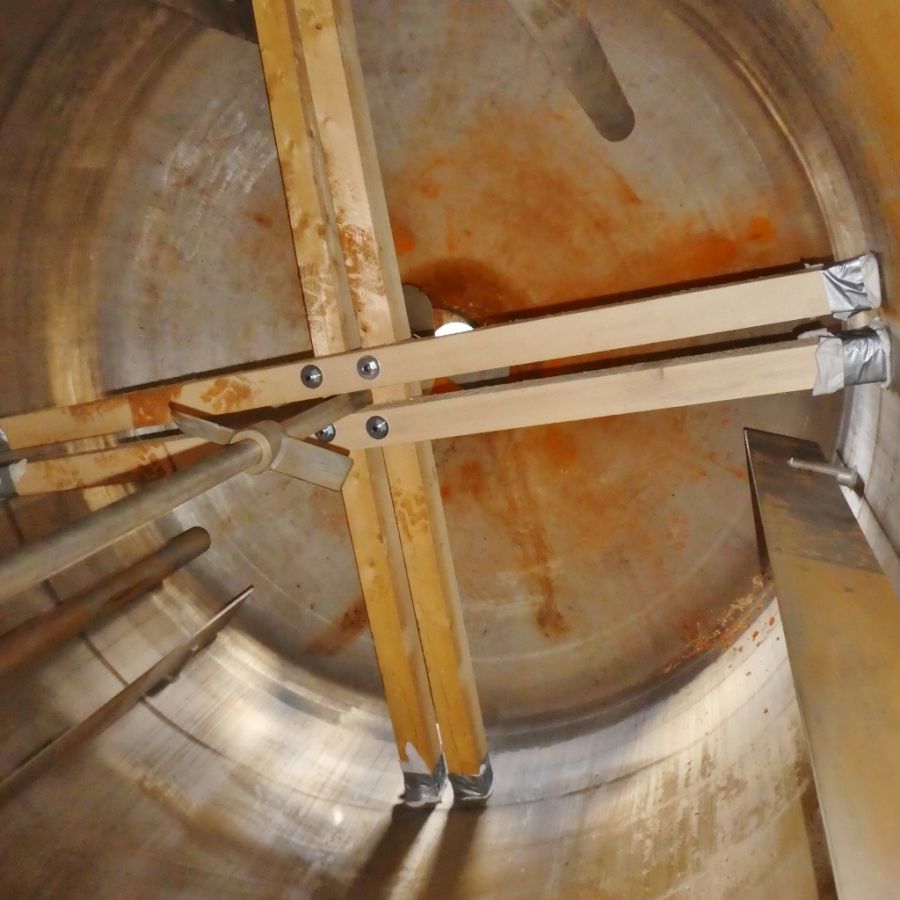

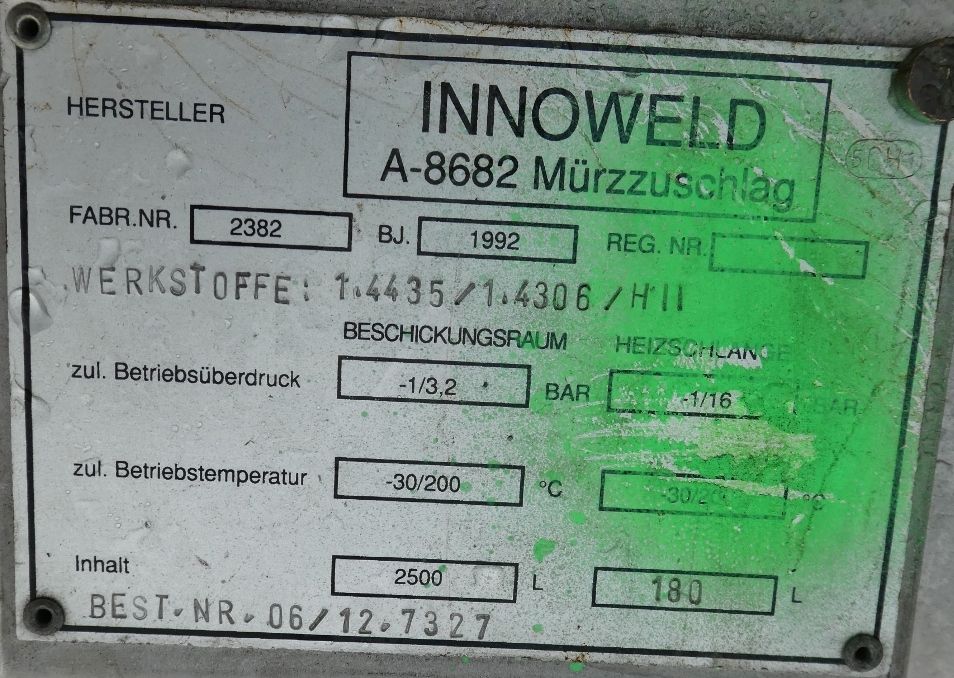

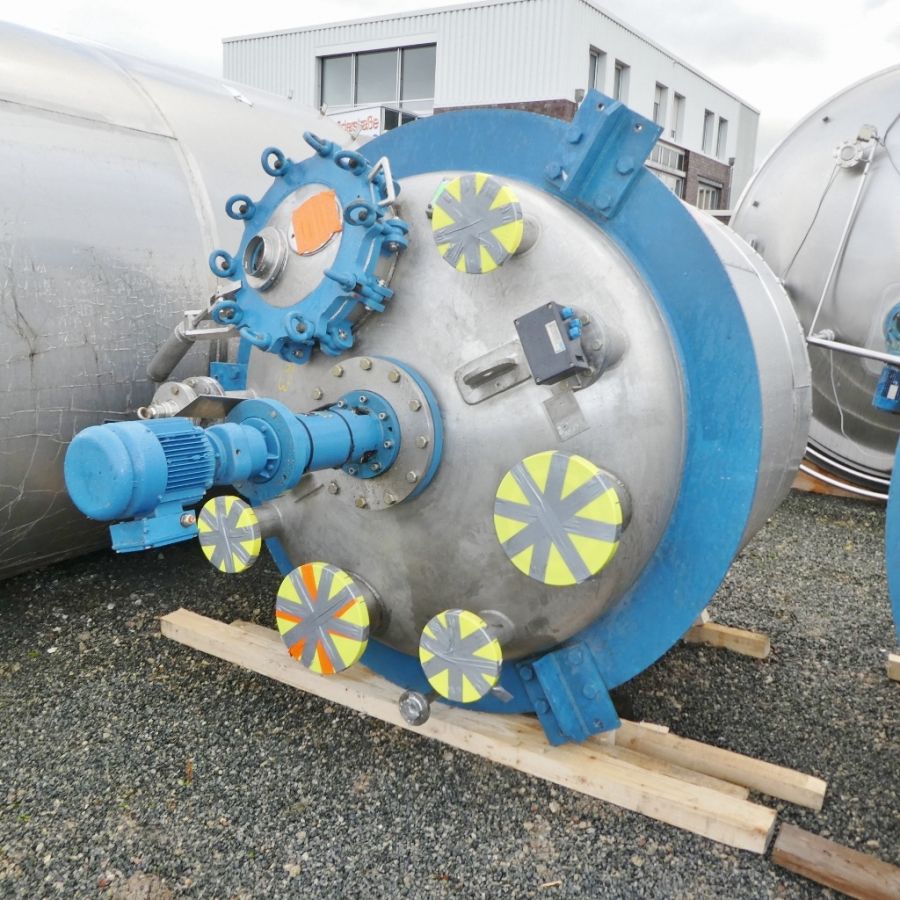

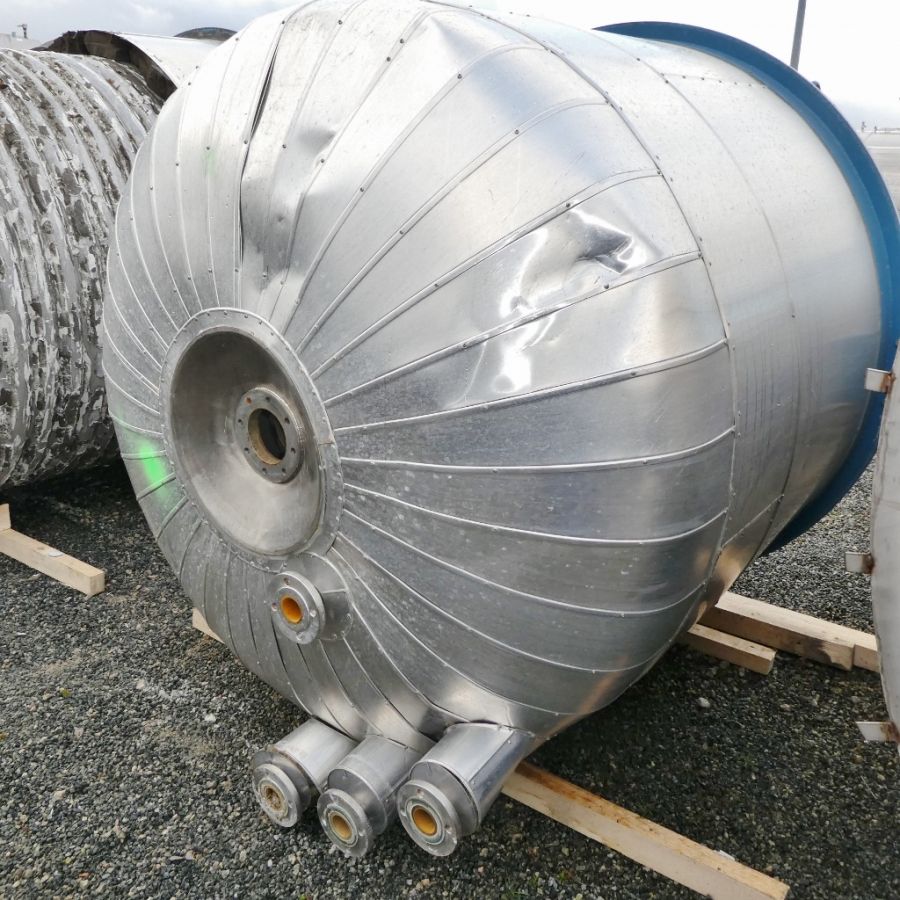

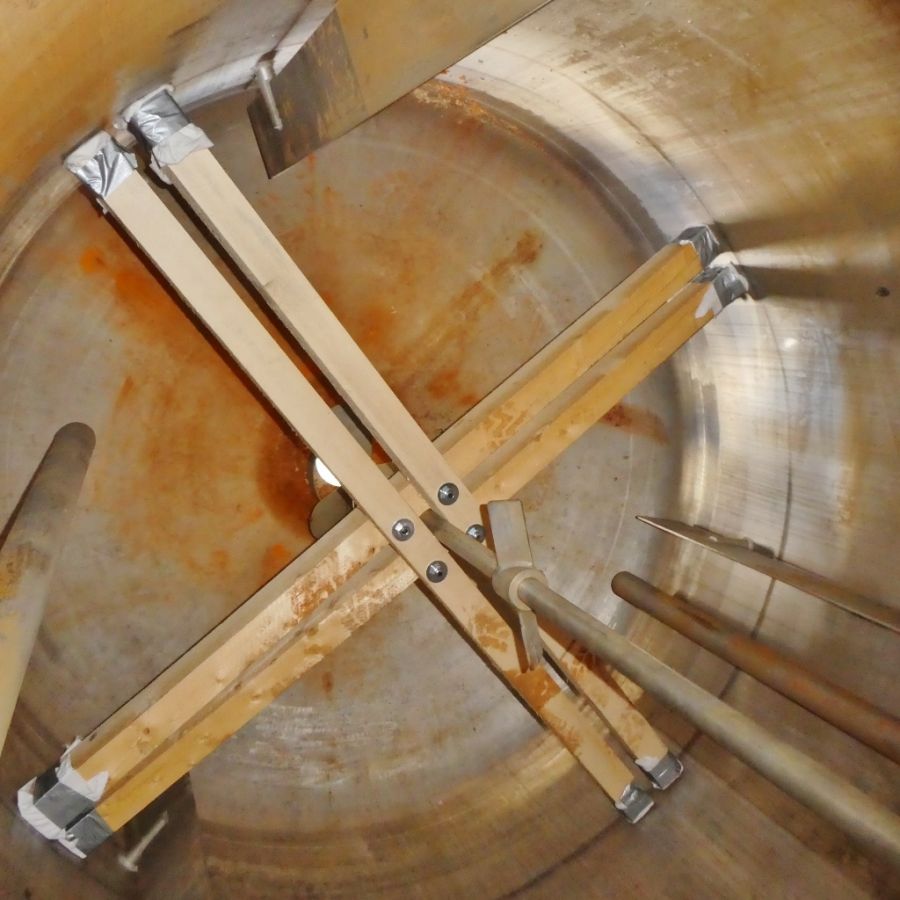

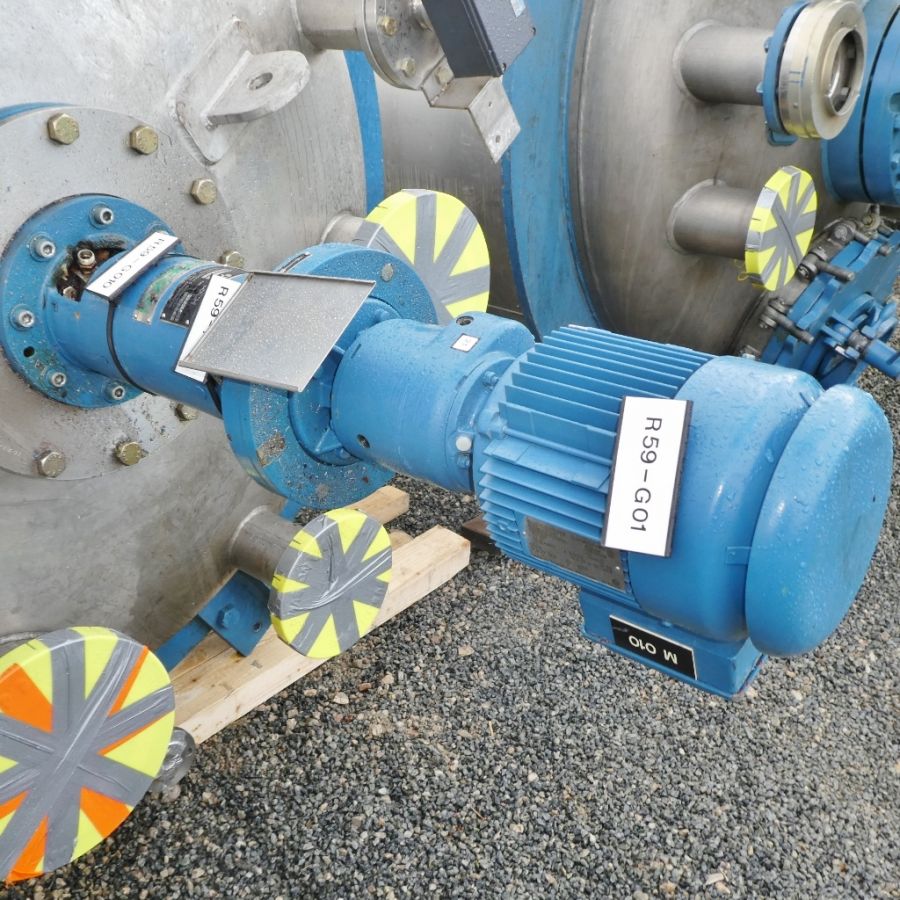

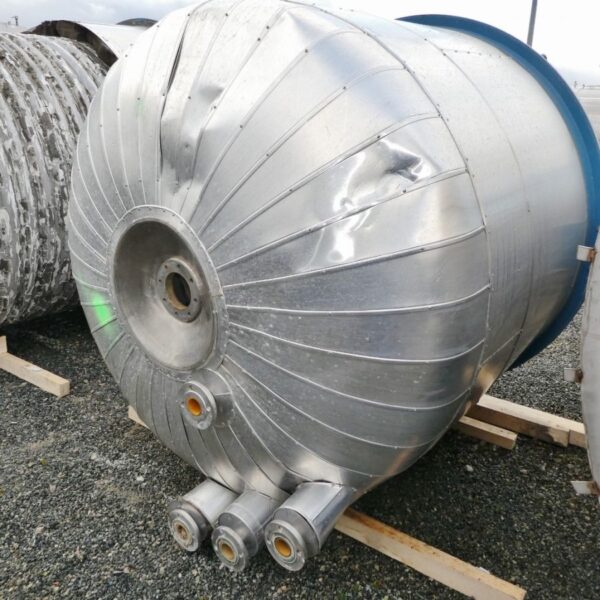

Additional information: Chemistry; Support ring made of Fe; smaller dents in the insulation jacket; Manhole cover partially plated; diameter manhole 490 mm; some residues of previous content Volumetric volume (L): 2.500 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3,20 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Volume: 180 L Max Overpressure: 16 Bar Max onderdruk: 1 Bar Max. working temperature: 200 °C Type HE on the bottom: half pipe welded onto the outside of the innertank Type HE on the cylinder: half pipe welded onto the outside of the innertank Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: headside Outlet of tank: 130 Agitator: yes Number of revolutions: 307 Power: 1,10 Internal diameter tank: 1.590 mm Outer diameter tank: 1.880 mm Cylinder height: 1.380 mm Total height of tank: 3.250 mm
