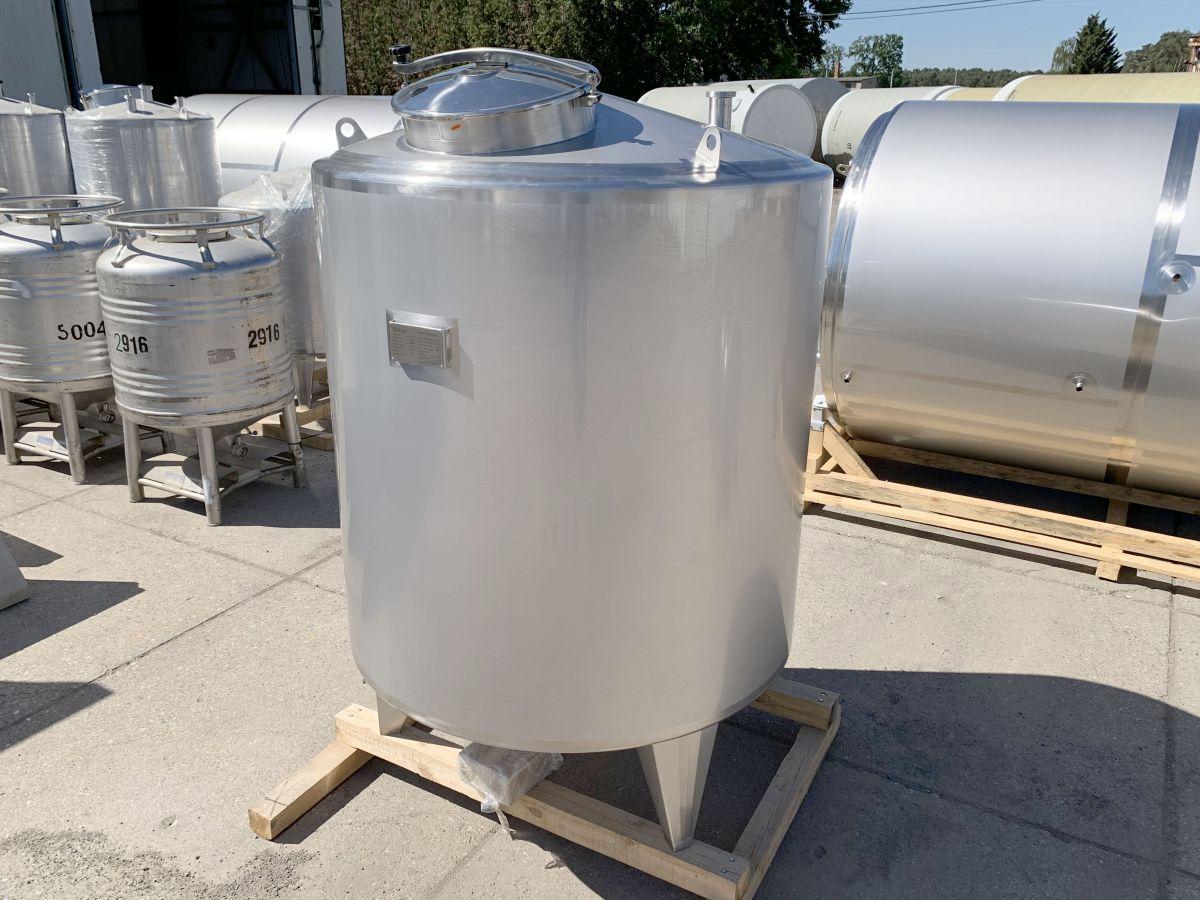

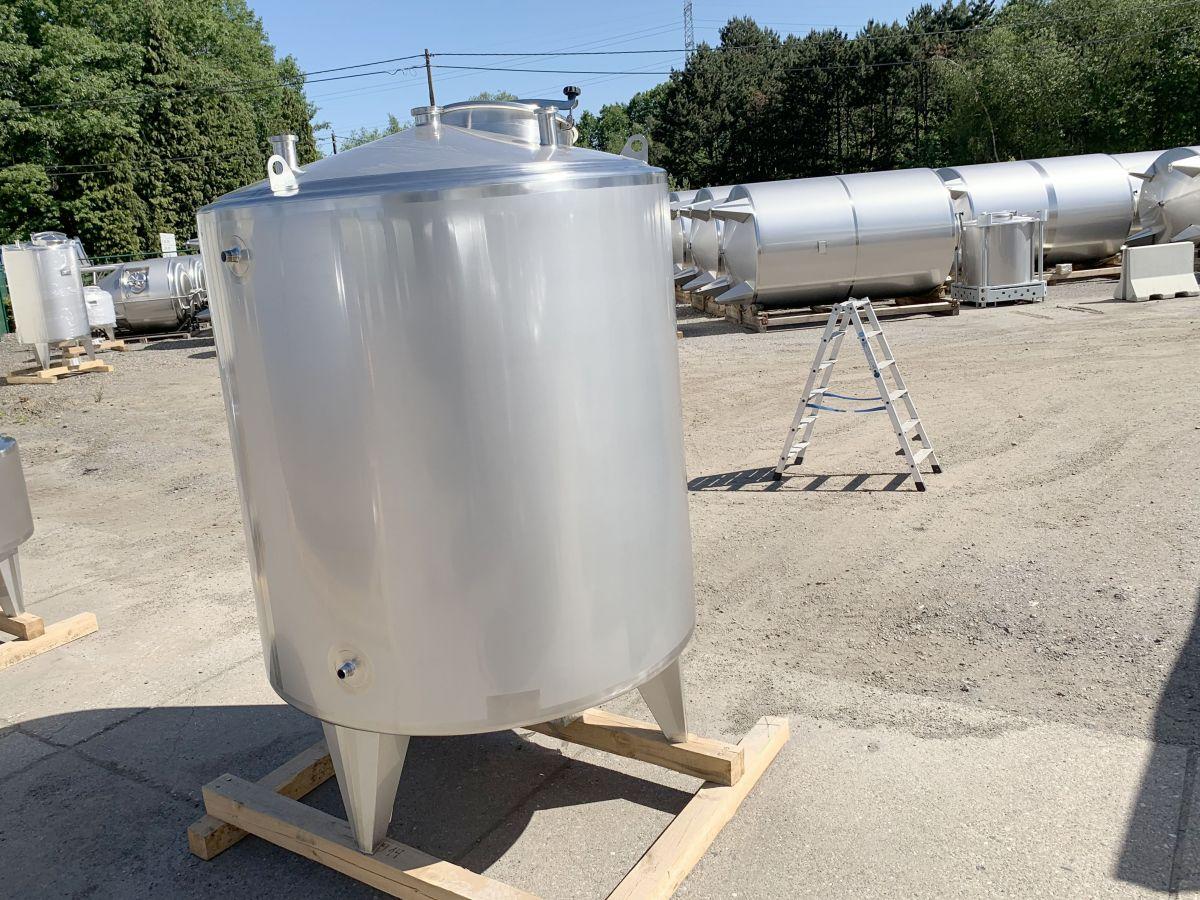

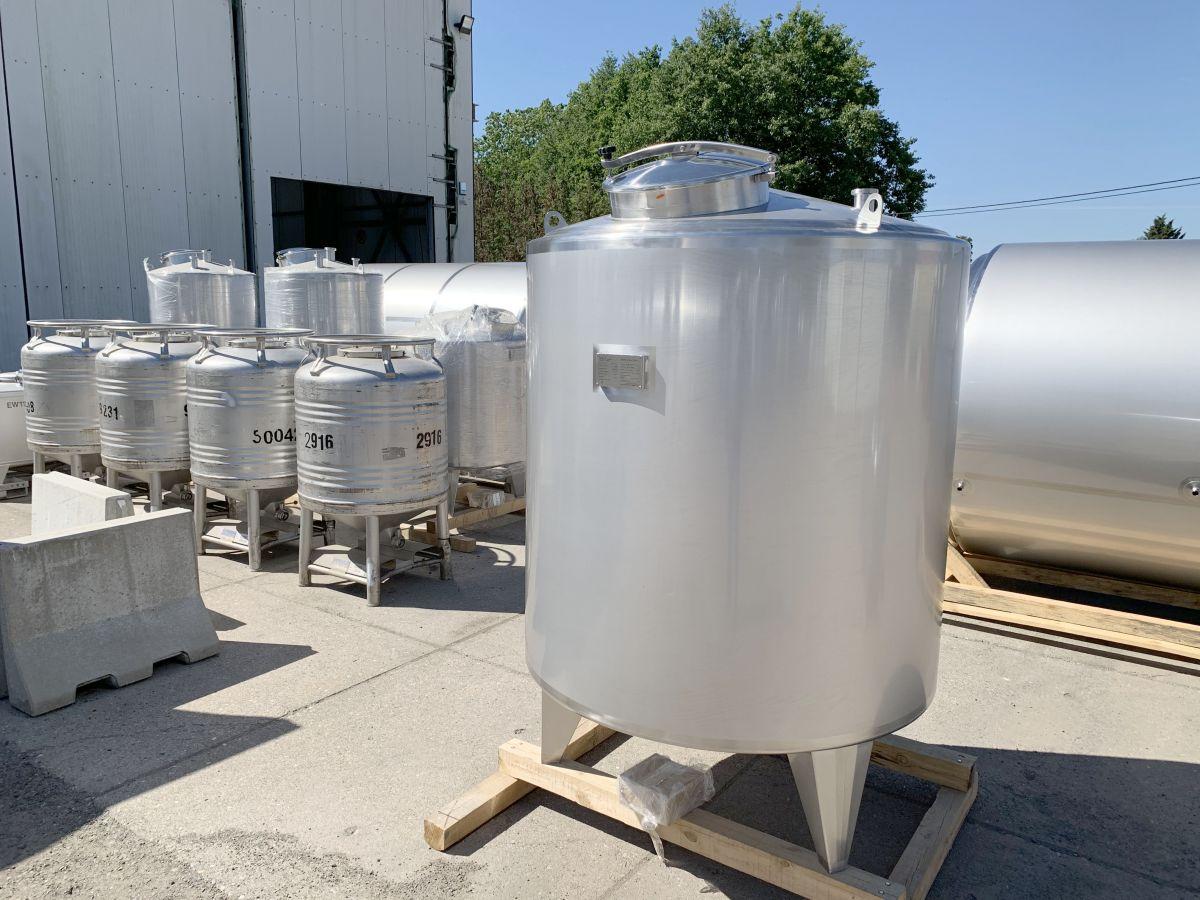

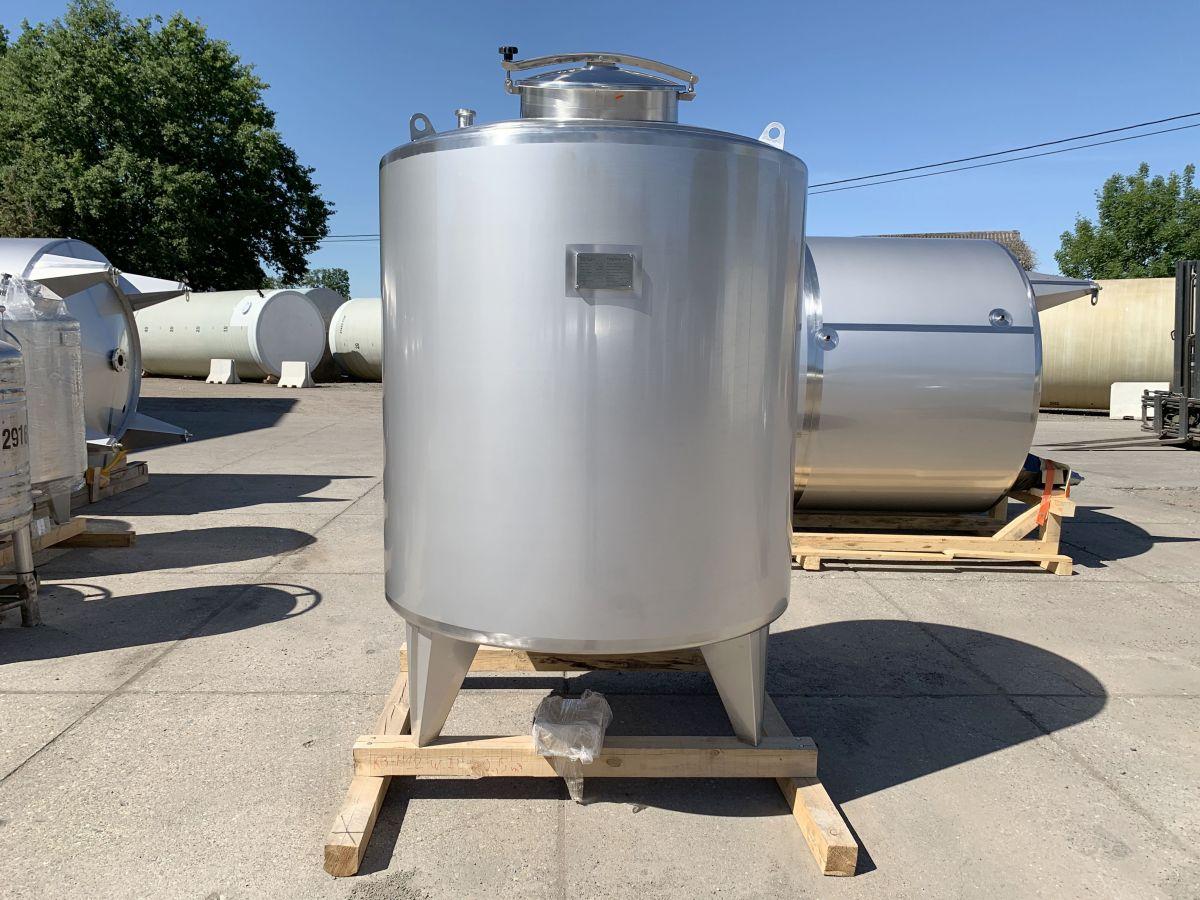

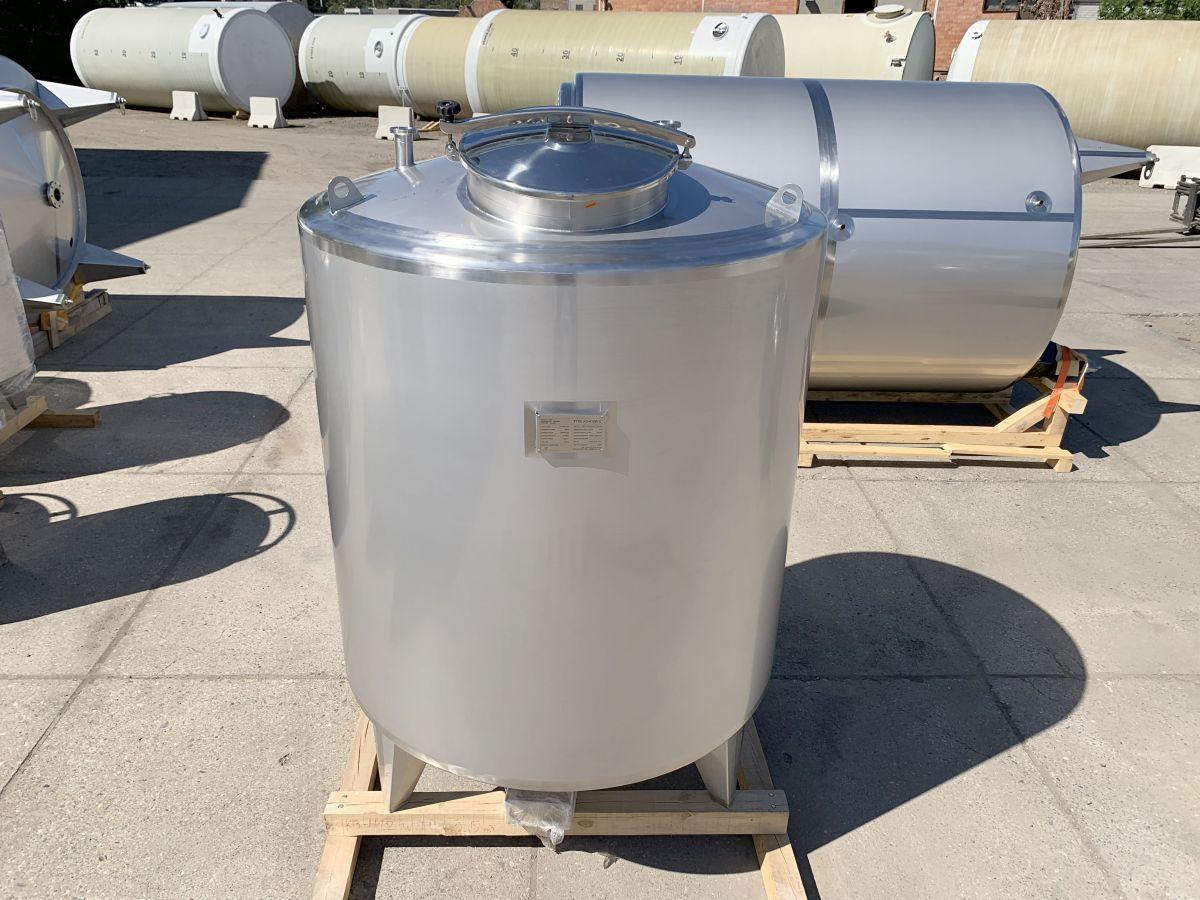

2500 liter i syrafast 316

Description of the article

• Article type: brand new storage tank
• Capacity: 2.500 L
• Maximal density of the product: 1.200 kg/m³
• Working pressure in tank: ATM – atmosferic
• In contact with the product: SS AISI 316 (V4A)
• Model: vertical
• Configuration: single jacketed with heat-exchanger
• Heat exchanger: yes
• Insulation: no
• Agitator: yes, optional
• Mobile tank: no
• Top type: conical 15 °
• Shape of tank: cylindrical

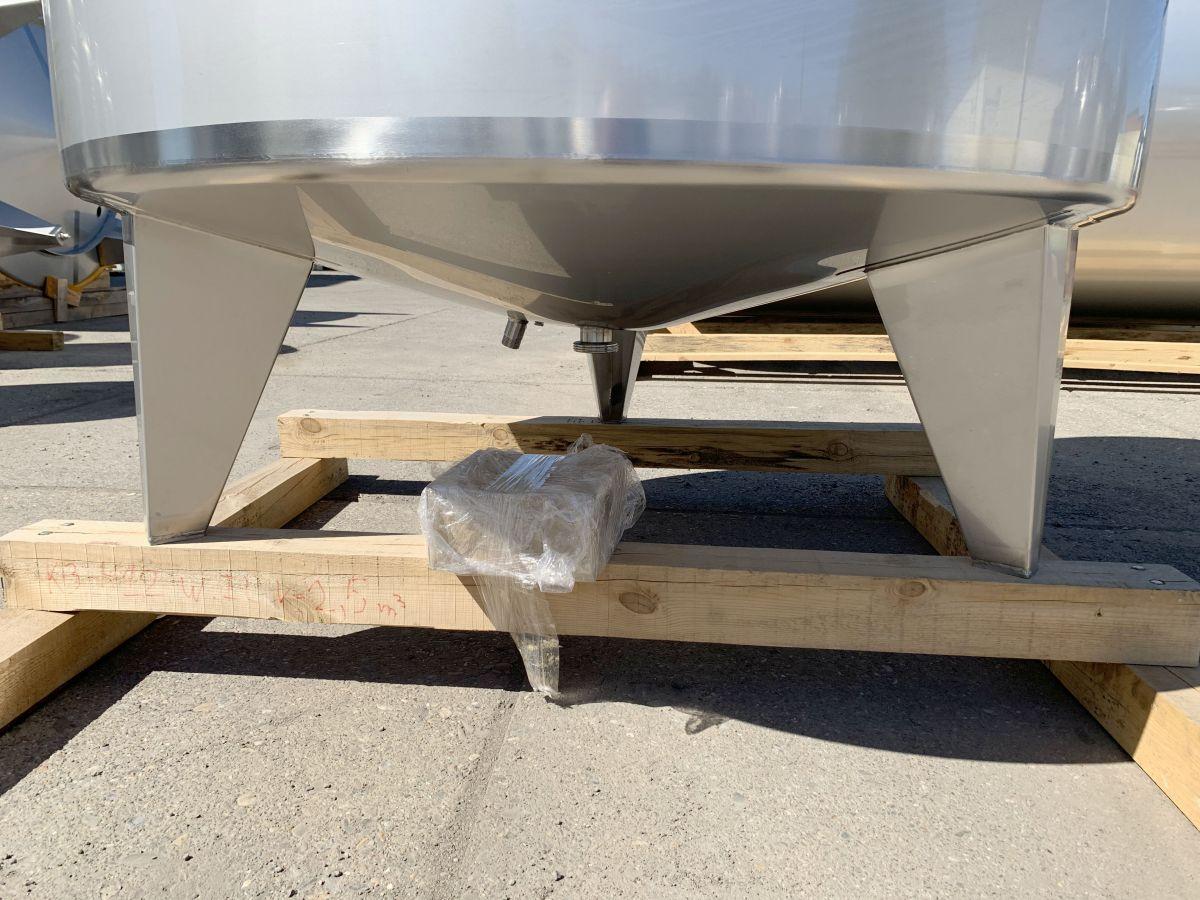

• Bottom type: conical 15 °
• Total discharge: yes
• Fixation points: 4 adjustable feet
• Legs: Set of baseplates and adjusting pieces included

Heat Exchanger (HE)

• Type of HE on the cylinder: half pipe welded onto the outside of the innertank
• Position HE: the complet cilinder
• Number of windings: 5
• Height HE: 1.000 mm
• Number of sections: 1
• Water pressure HE: 2,50 Bar
• Steam pressure HE: 1 Bar
• Contact surface cylinder. 2,40 m²
• Connection HE: 1 BSP
• Working temperature HE cylinder: 100 °C
• Type HE: half pipe welded onto the outside of the innertank

Overview materials

• Mat. wet parts: SS AISI 316 (V4A)
• Heat exchanger: RVS 304
• Manway(s): RVS 316
• Gasket manway(s): EPDM
• Valve: RVS 316L
• Fixation point(s): RVS 304

Equipment

• Suitable for food industry: yes
• Documents included: yes, optional

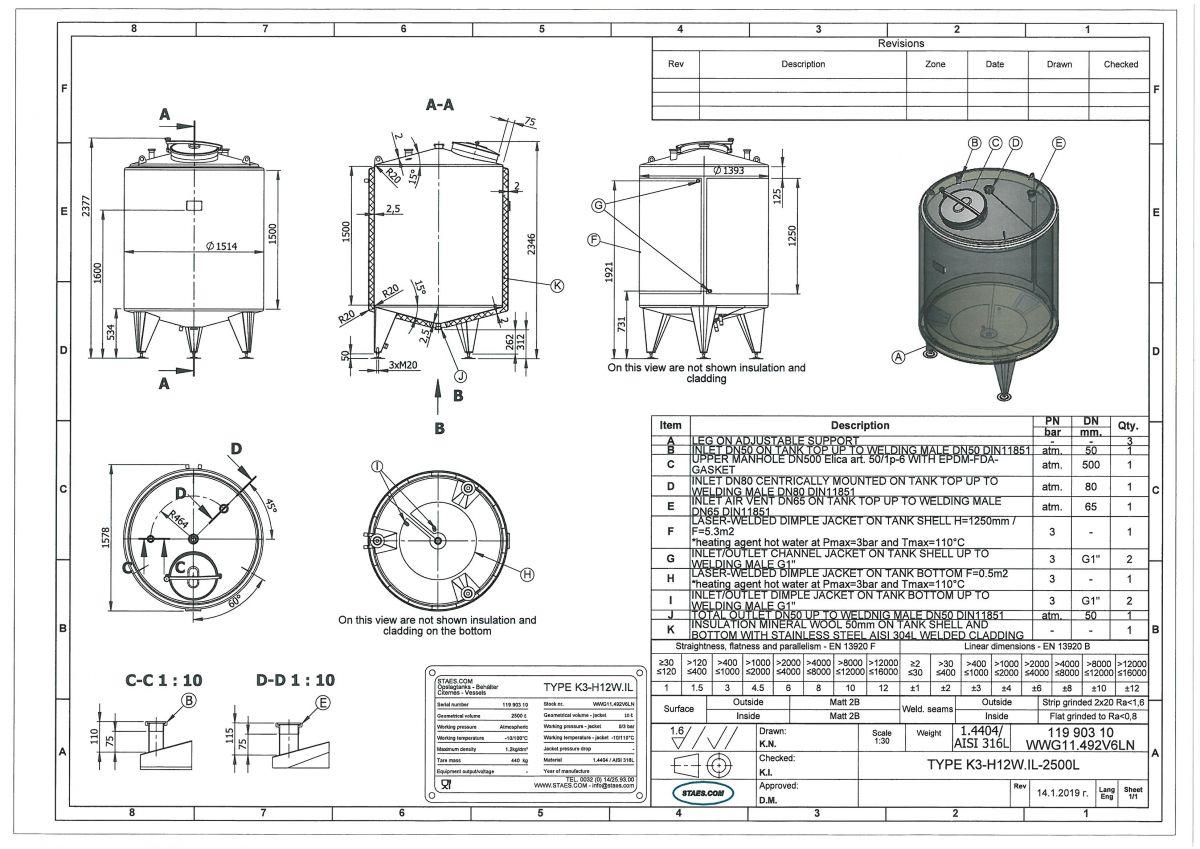

• Technical drawing included: yes
• Registration plate on the tank: yes
• Flange for agitator: no

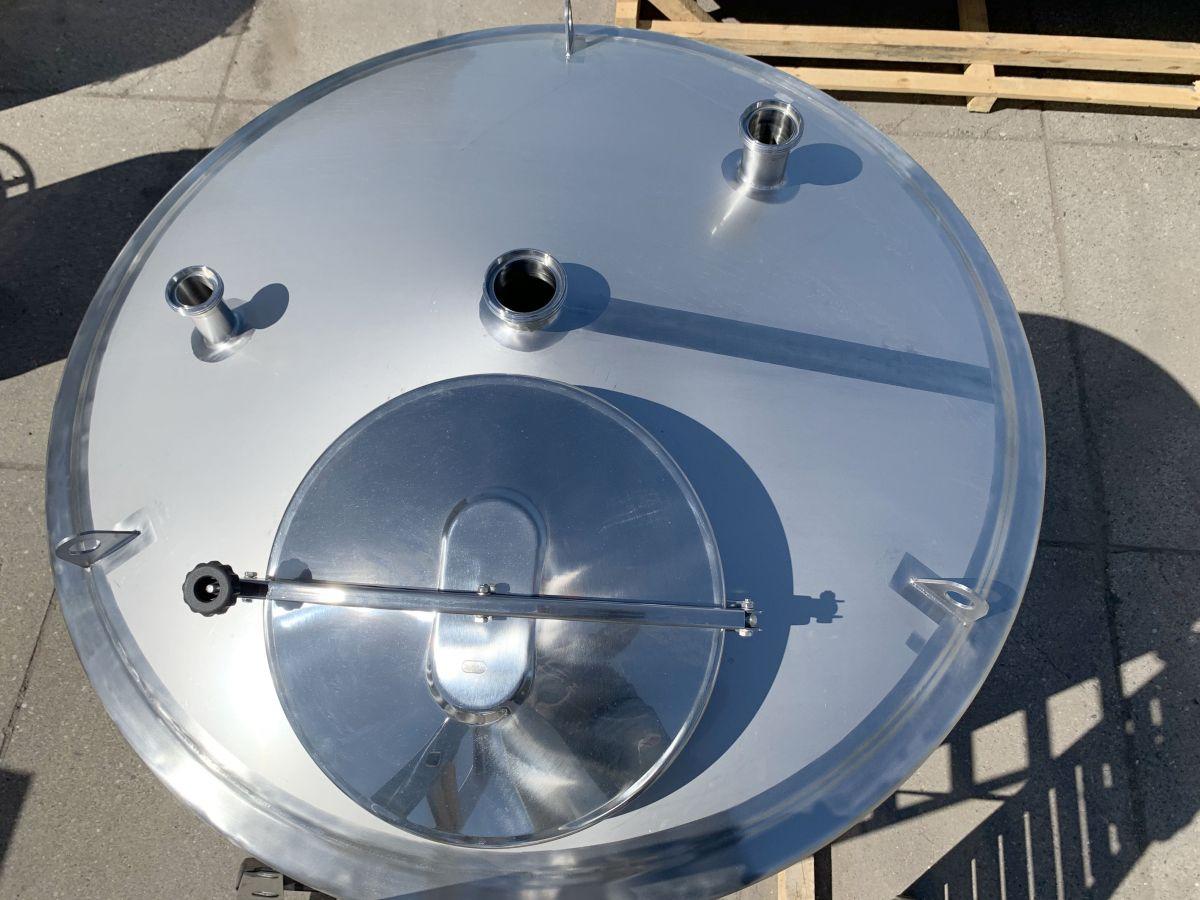

• Number of manways: 1
• Position manway: at the top

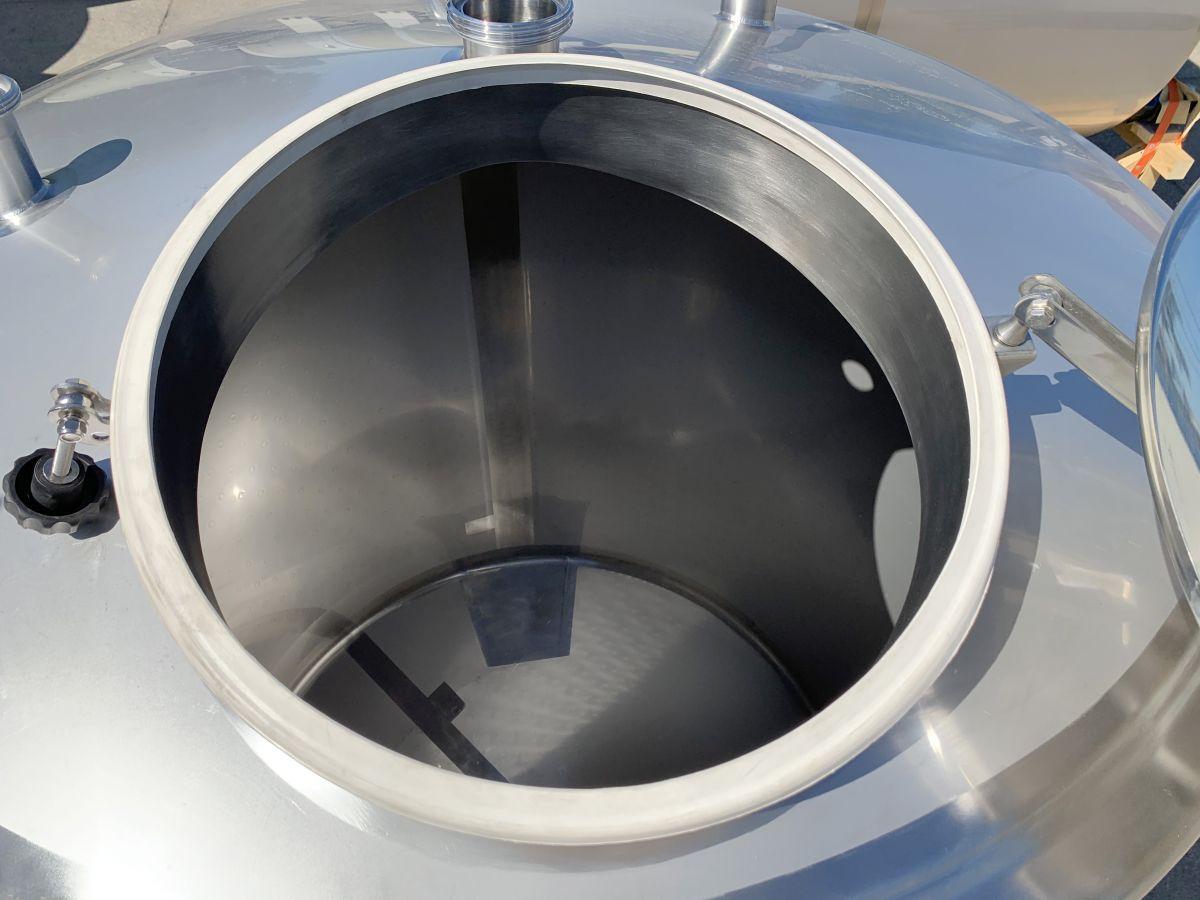

• Manway 1: Ø 500 mm
• Spray ball: no

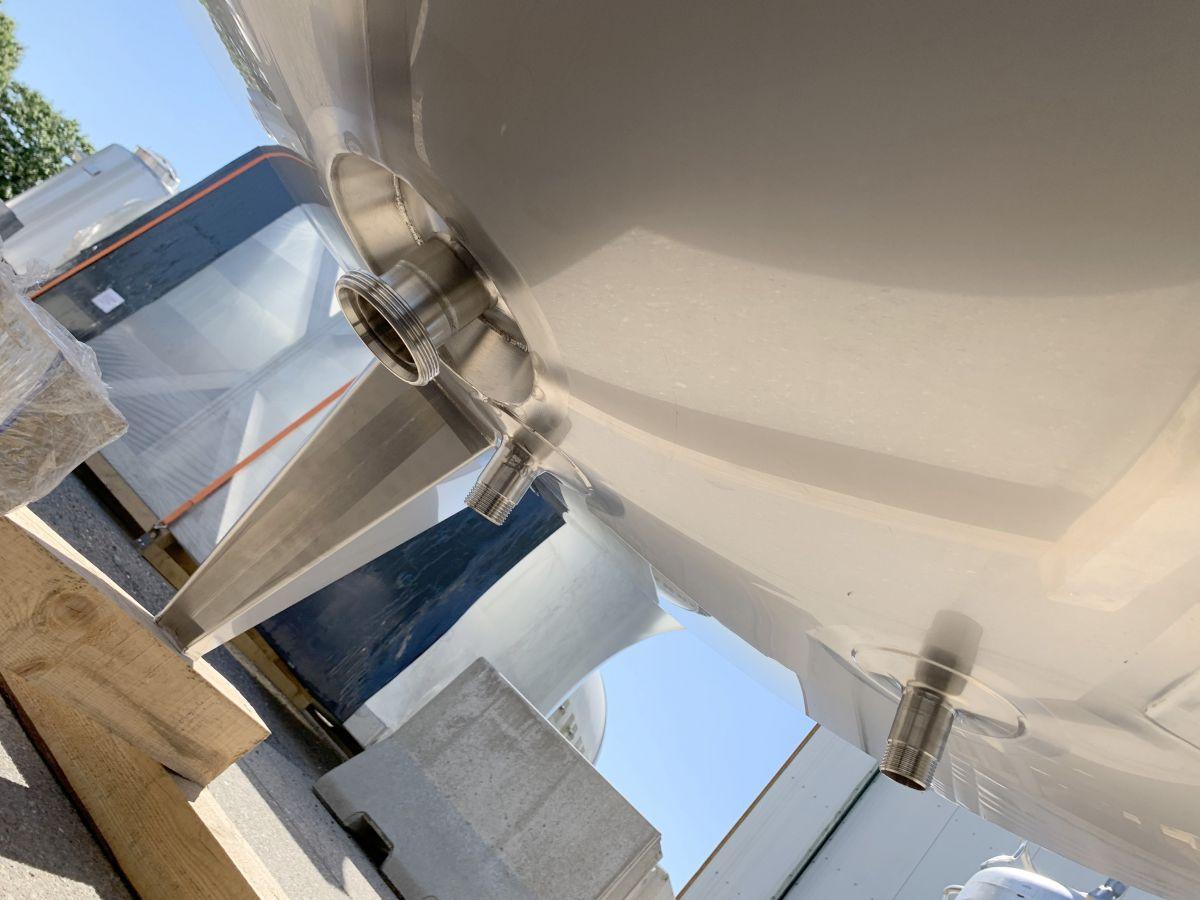

• Tank outlet: inside Ø 65 mm
• Outlet type: DIN11851
• Total outlet valve: yes, optional
• Type shut-off valve: butterfly valve
• Adjustable legs: yes

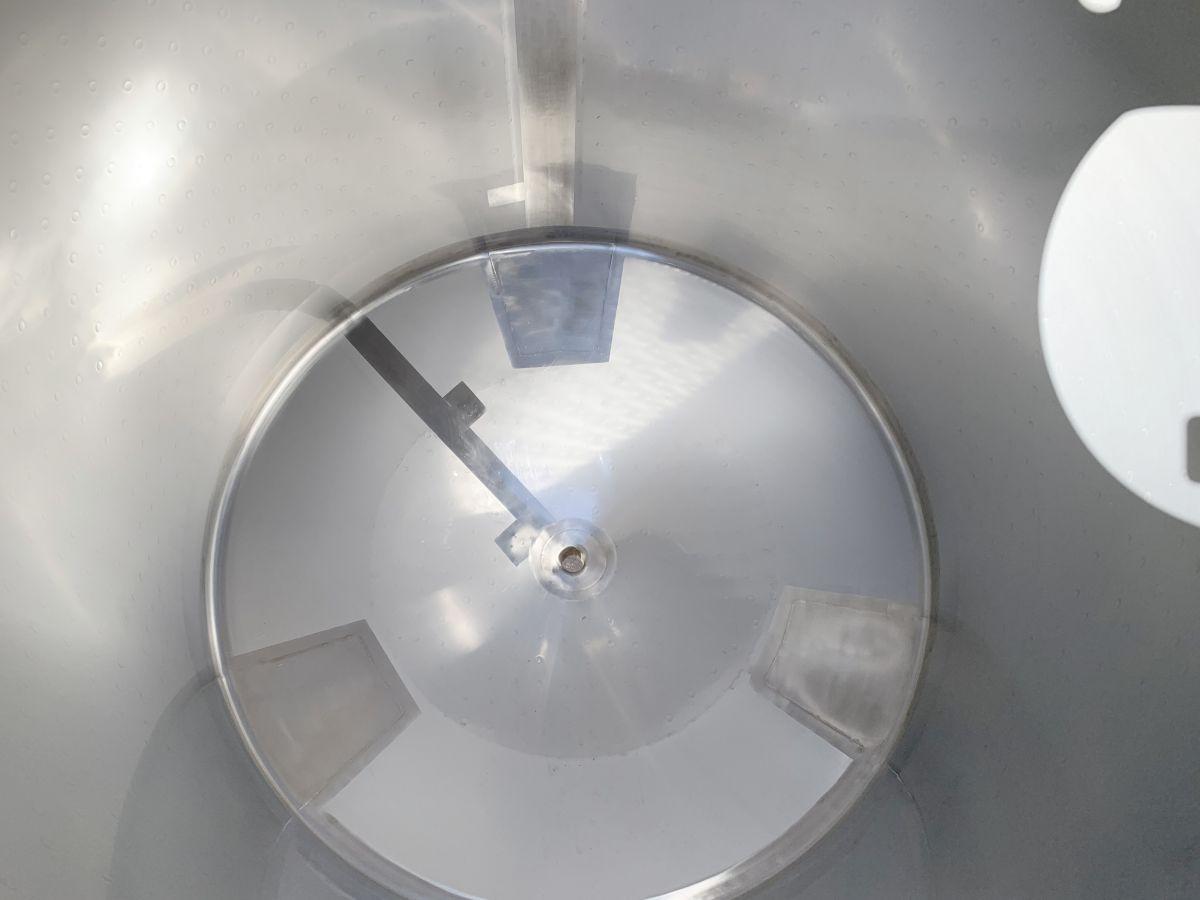

Wall thicknesses of the inner tank

• Top: 2 mm
• Cylinder: 2,50 mm
• Bottom: 2 mm

Dimensions of the tank

• Internal diameter tank: 1.393 mm
• Distance from outlet to ground: 231 mm
• Outer diameter tank: 1.470 mm
• Cylinder height: 1.500 mm
• Total height of tank: 2.370 mm
• Empty weight tank: 300 Kg
