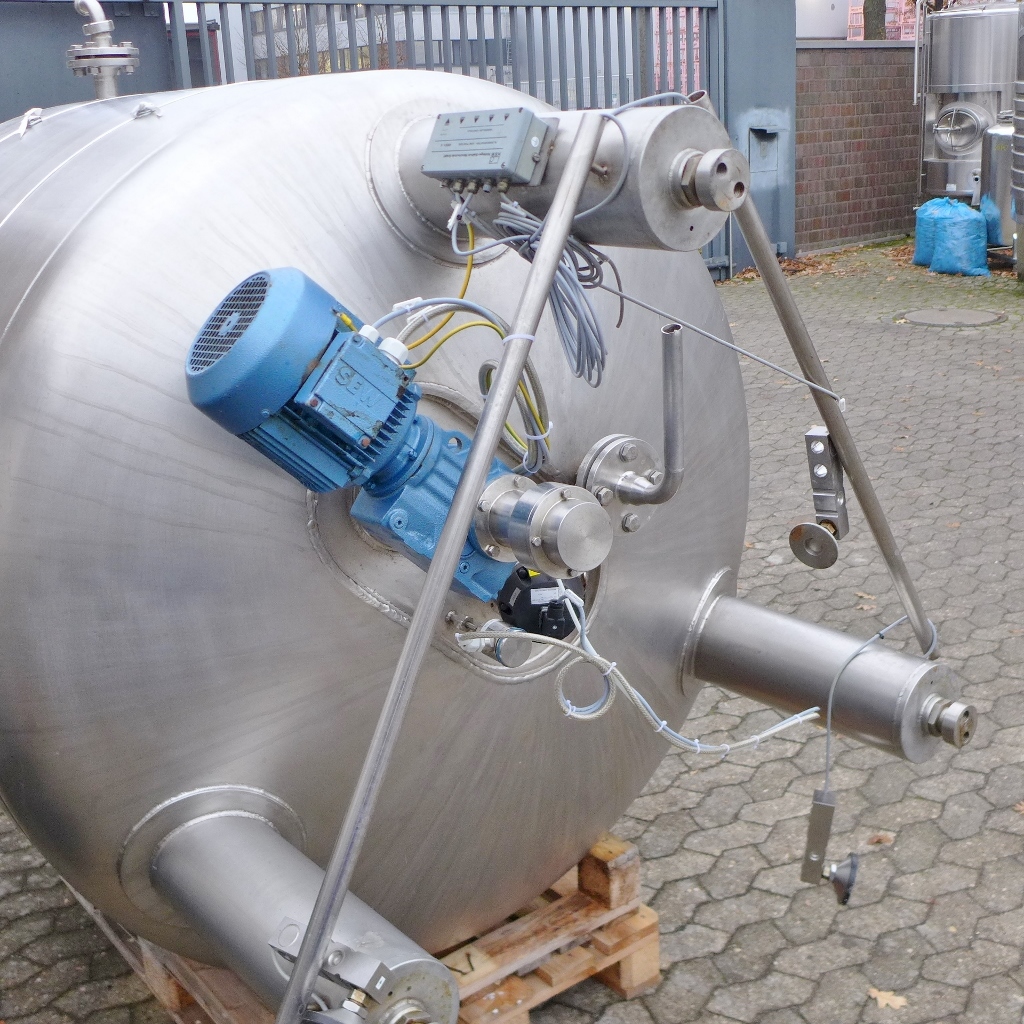

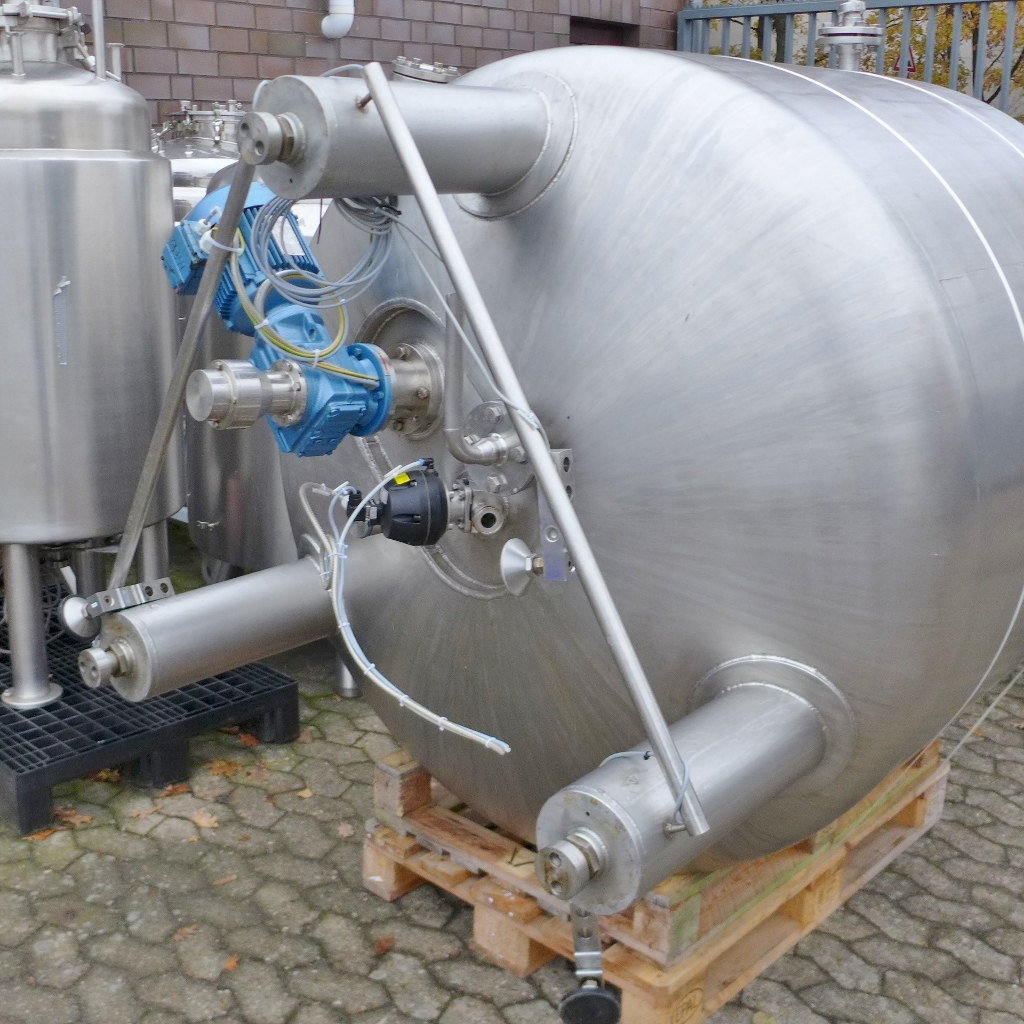

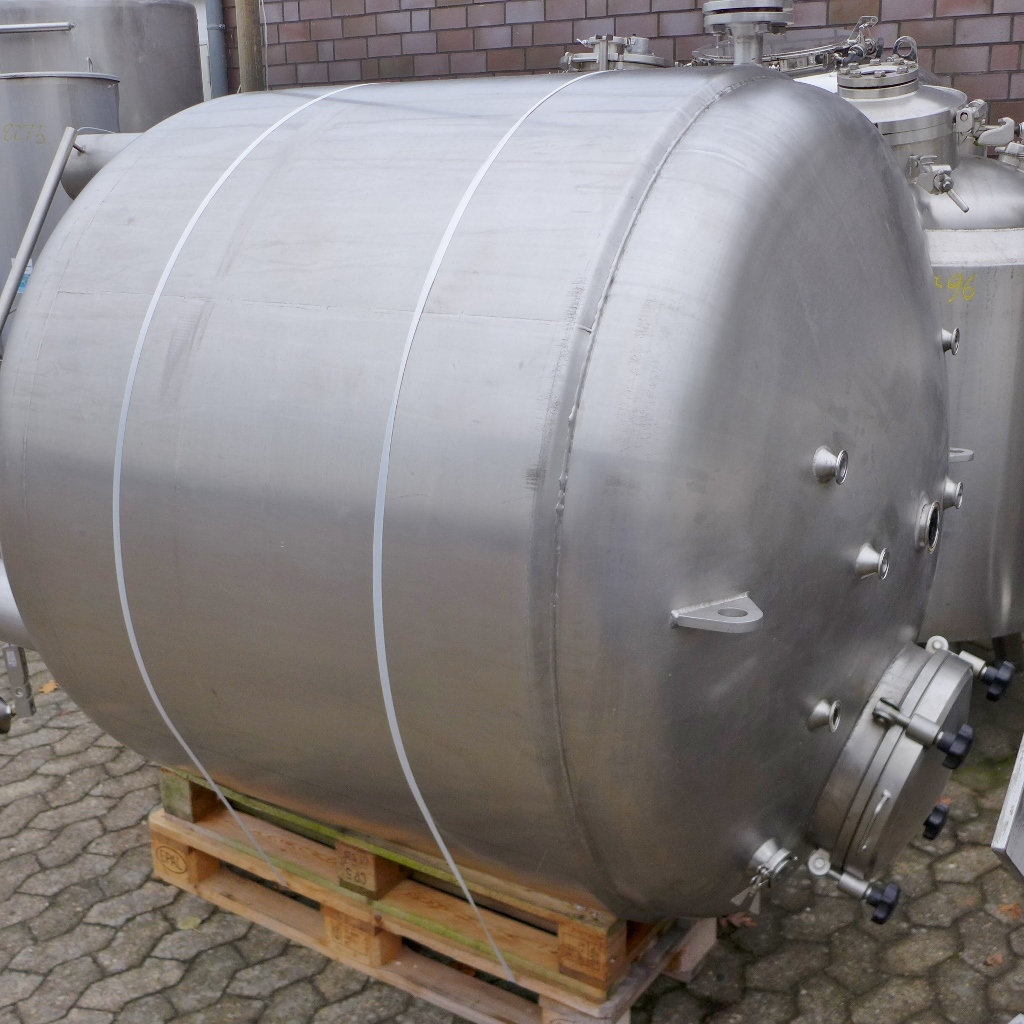

2400 liter tank i Syrafast 316

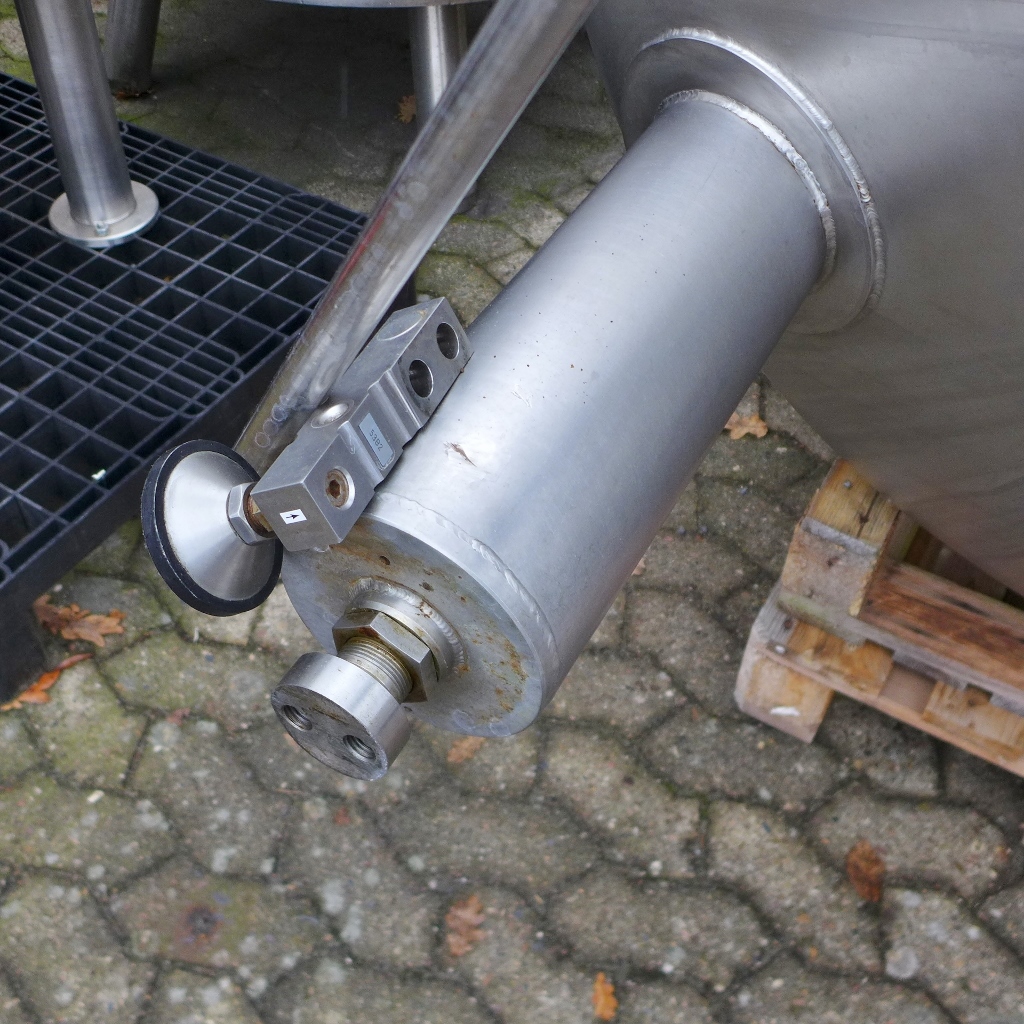

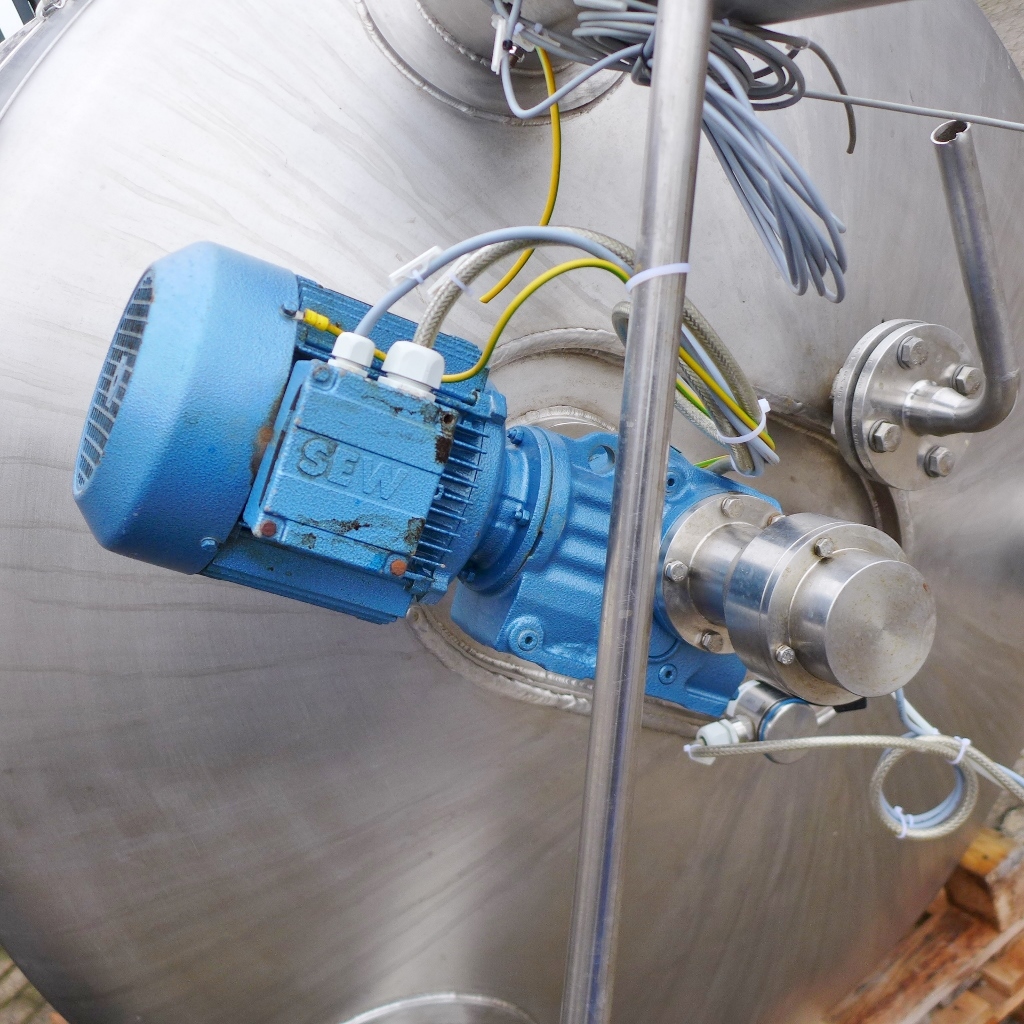

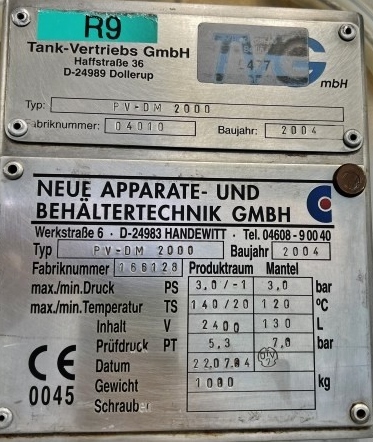

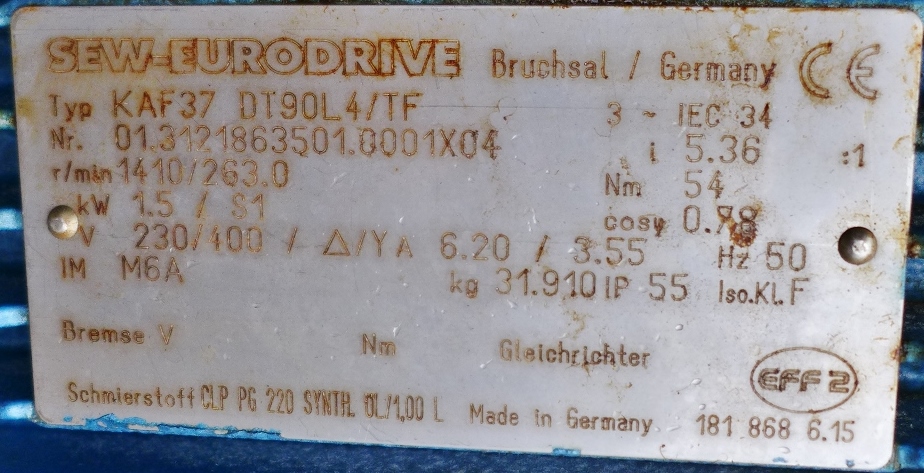

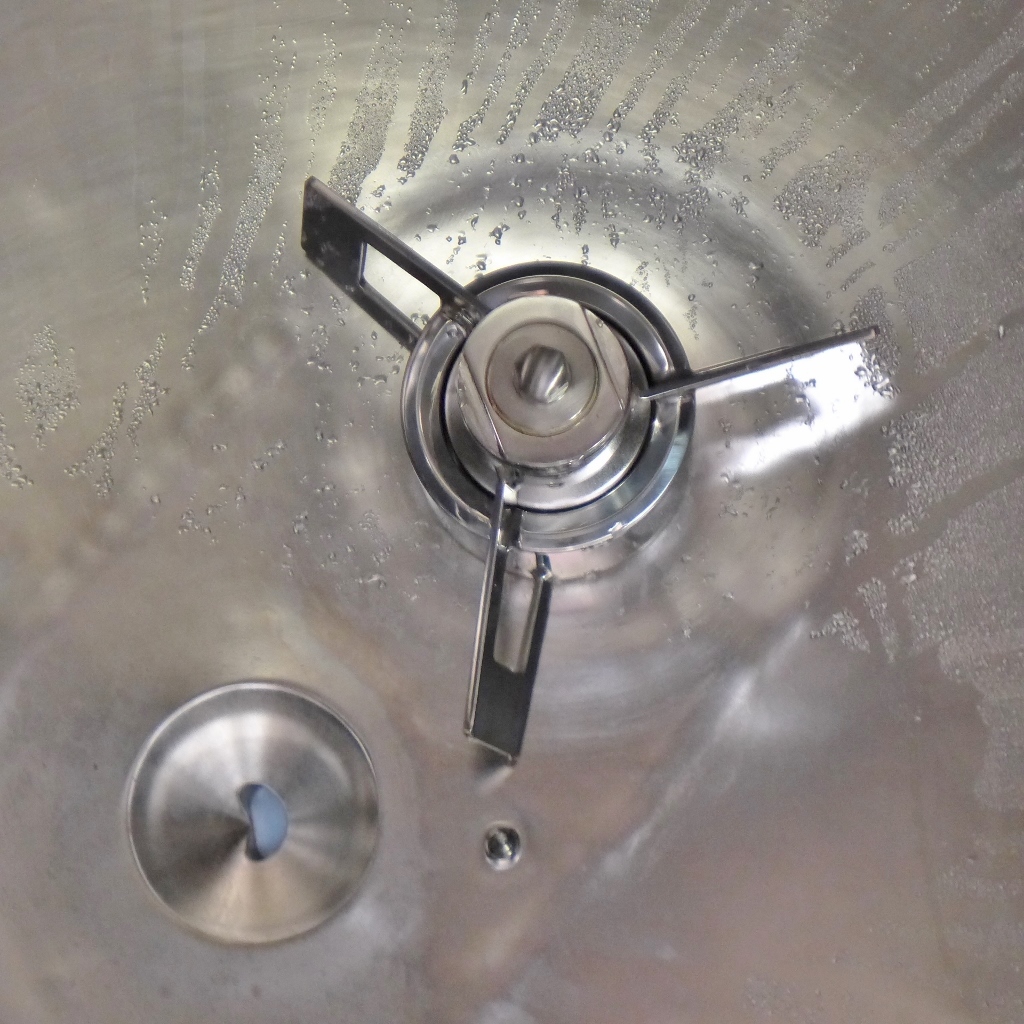

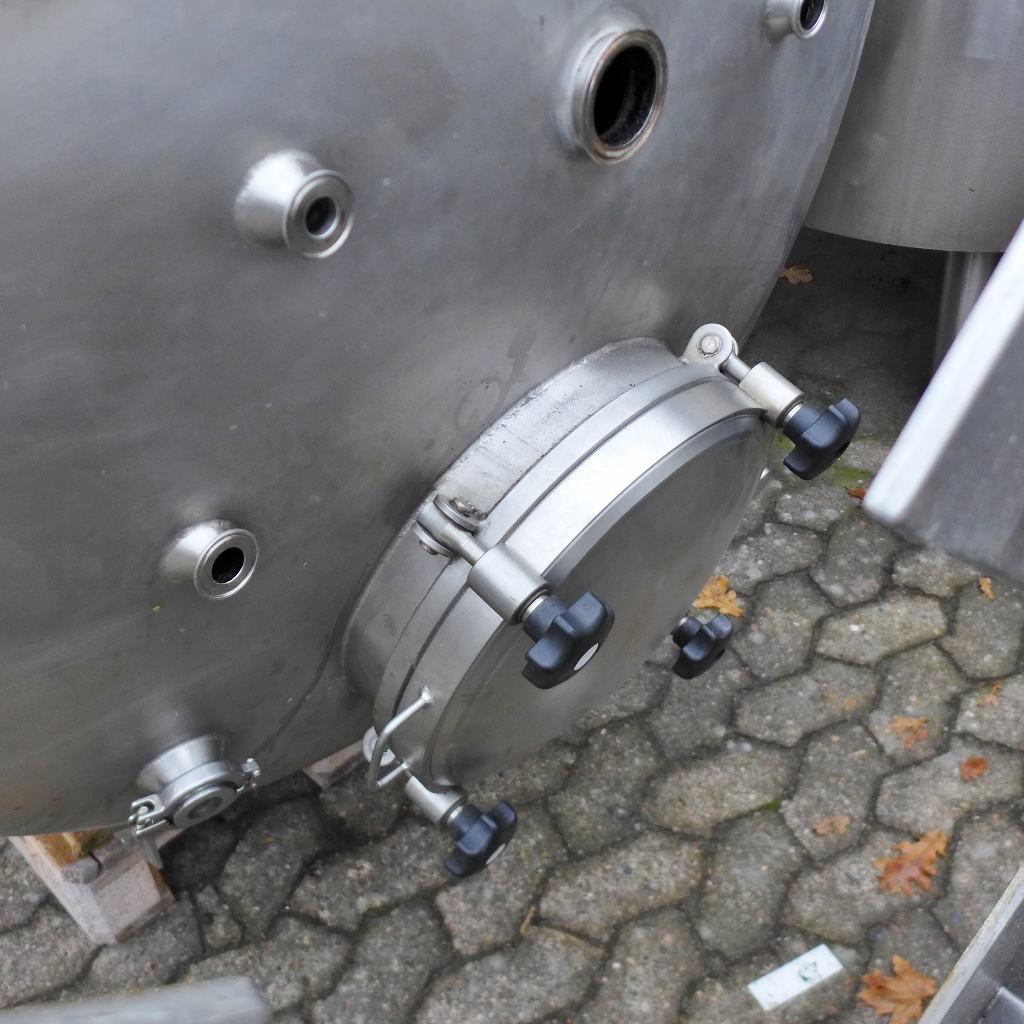

Additional information: Pharmacy; Tank is equipped with 3 load cells (no guarantee of functionality) Volumetric volume (L): 2.400 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 140 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single jacketed with heat-exchanger Heat exchanger: yes Insulation: no Mobile tank: no Total discharge: yes Volume: 130 L Max Overpressure: 3 Bar Max onderdruk: 1 Bar Max. working temperature: 120 °C Type HE on the bottom: heating/cooling jacket Type HE on the cylinder: heating/cooling jacket Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: in the bottom Outlet of tank: 25 Agitator: yes Number of revolutions: 263 Power: 1,50 Cylinder: 8 mm Bottom: 7,10 mm Internal diameter tank: 1.450 mm Outer diameter tank: 1.506 mm Cylinder height: 1.000 mm Total height of tank: 2.350 mm
