2300 liter i rostfritt 304 (trycktank)

Art.nr: 3353

Tipsa en kollega

Email

Beskrivning

https://www.staes.com/en/available-from-stock/WW10661V4LN

Mer information

Antal

Isolerad

Livsmedelsklassad

Material

Modell

Omrörare

Uppvärmning/kylning

Volym i liter

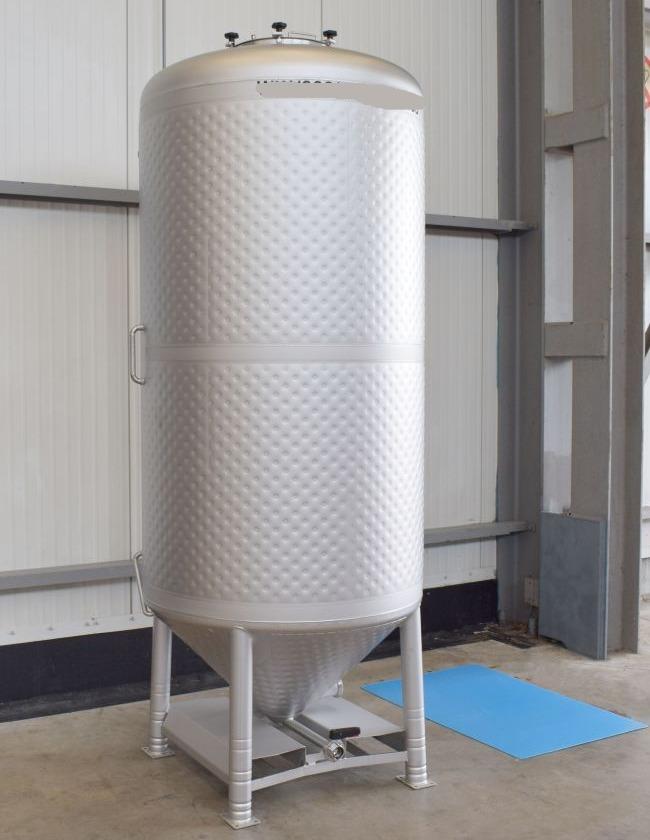

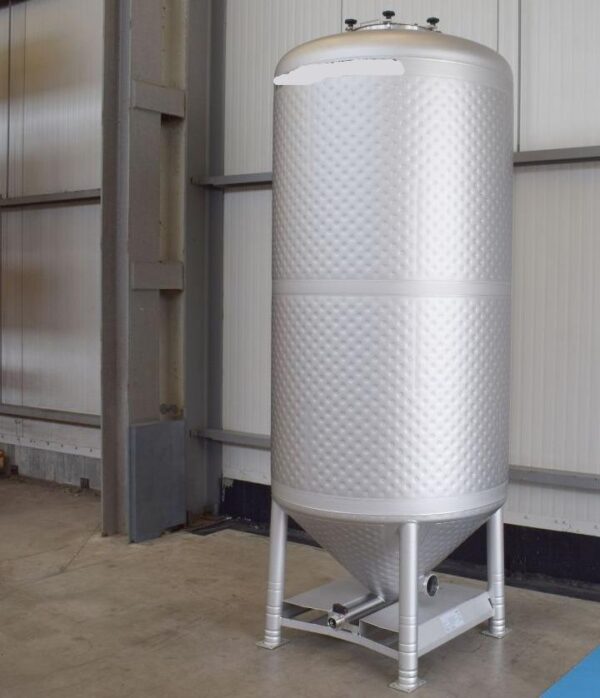

Description of the article

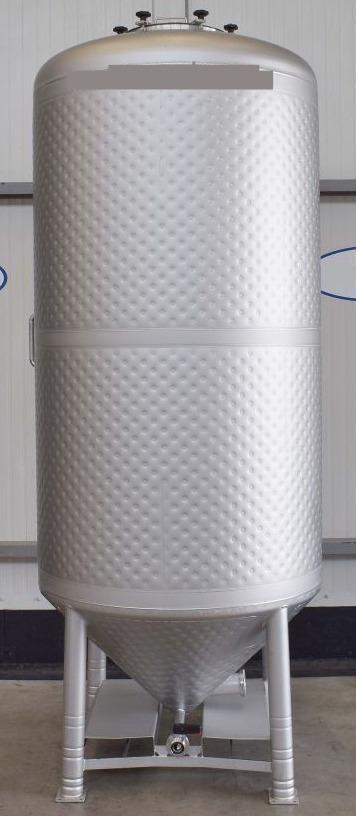

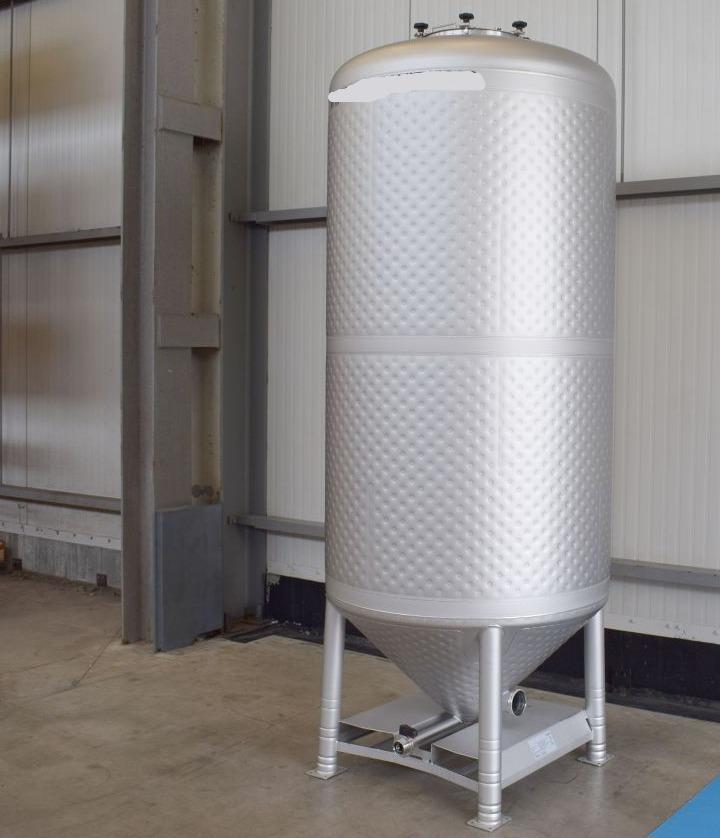

  • Capacity: 2.300 L
  • Maximal density of the product: 1.200 kg/m³
  • Finish stainless steel: pickled
  • Working pressure in tank: pressure
  • Overpressure: 2 Bar
  • Max. working temperature: 130 °C
  • storing products with higher temperatures is possible with different types of gaskets
  • In contact with the product: SS AISI 304L (V2A)
  • Model: vertical
  • Configuration: single jacketed with heat-exchanger
  • Heat exchanger: yes
  • Insulation: no
  • Agitator: yes, optional
  • Mobile tank: no
  • Top type: dished
  • Shape of tank: cylindrical

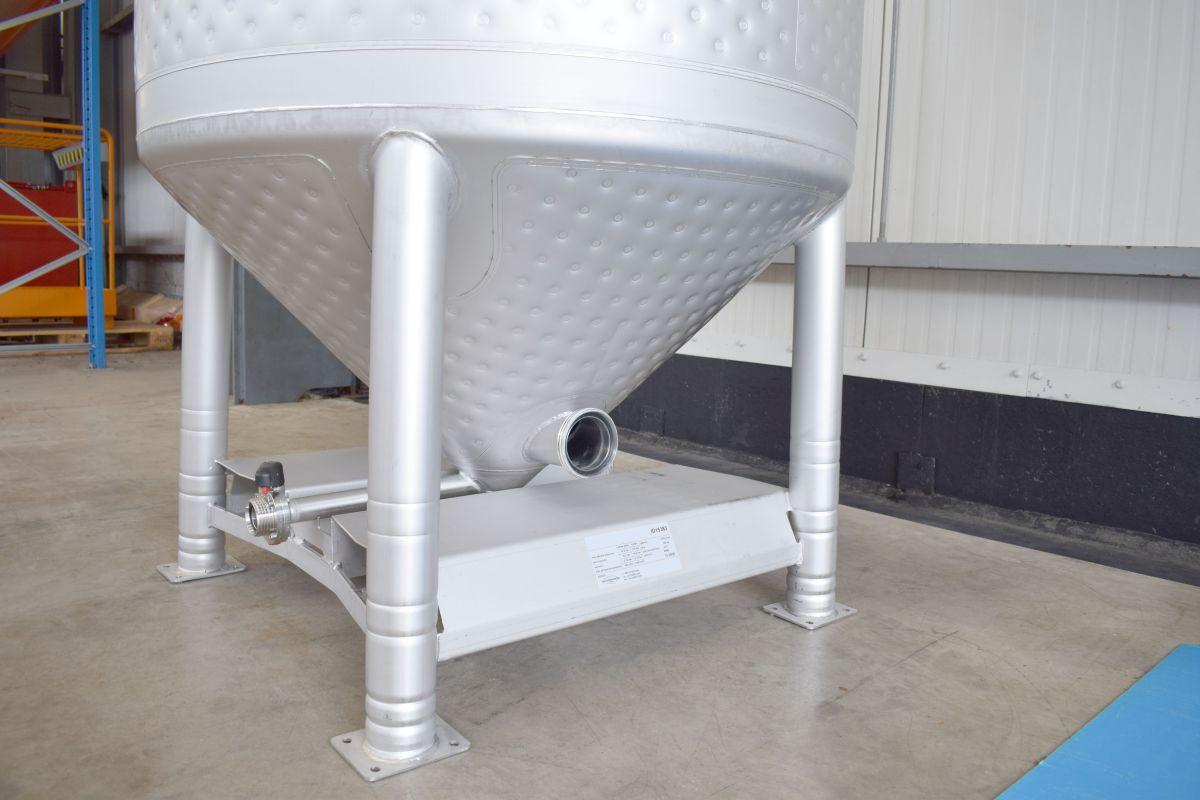

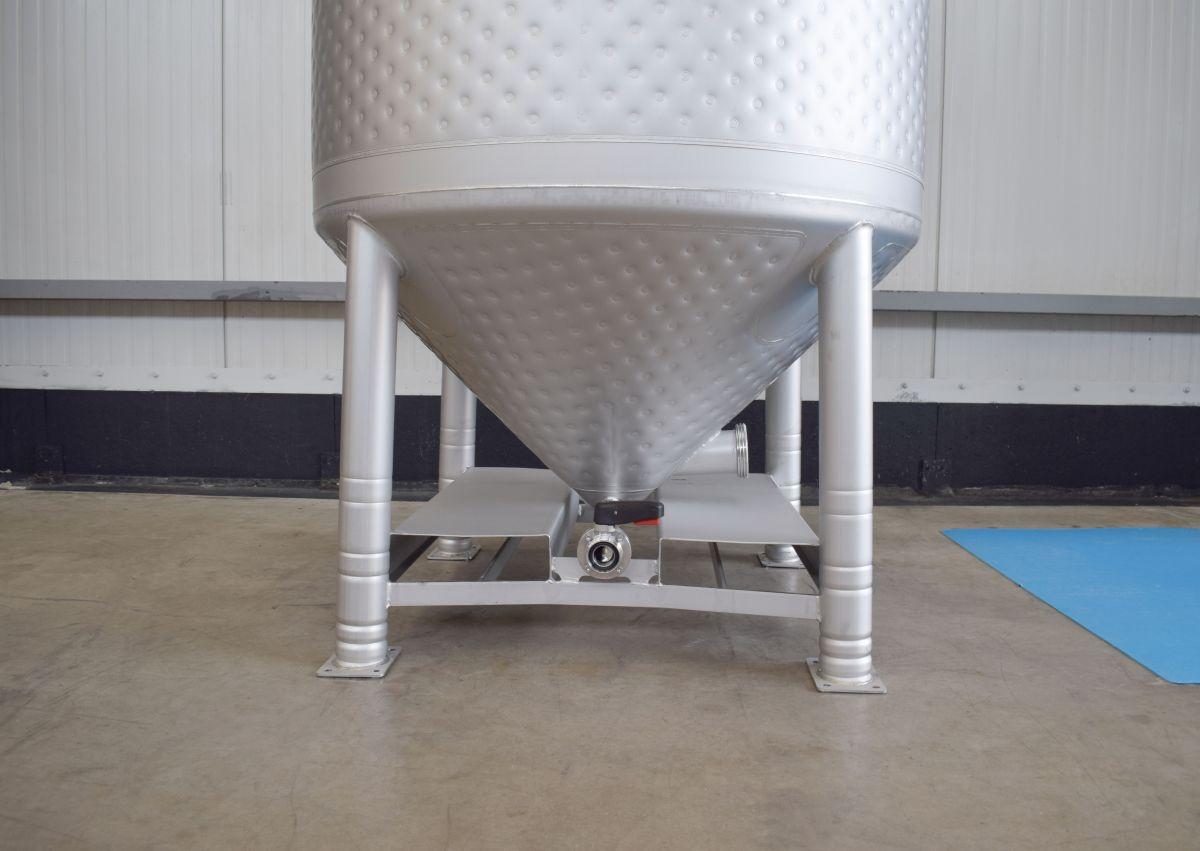

  • Bottom type: strong conical 45 °
  • Total discharge: yes
  • Fixation points: 4 attachment points

Heat Exchanger (HE)

  • Type of HE on the cylinder: dimple-jacket
  • Position HE: the complet cilinder
  • Water pressure HE: 3 Bar
  • Hydraulic test pressure: 5,20 Bar
  • Connection HE: 1/2″
  • Working temperature HE cylinder: 80 °C
  • Type of HE on the bottom: dimple-jacket
  • Heat exchanger bottom connected with cylinder: yes
  • Water pressure HE: 3 Bar
  • Hydraulic test pressure: 5,20 Bar
  • Connection HE: 1/2″
  • Working temperature HE bottom: 80 °C

Overview materials

  • Mat. wet parts: SS AISI 304L (V2A)
  • Heat exchanger: RVS 304
  • Manway(s): RVS 304L
  • Gasket manway(s): EPDM
  • Valve: RVS 304L
  • Gasket shut-off valve (mat): EPDM
  • Fixation point(s): RVS 304

Equipment

  • Suitable for food industry: yes
  • Documents included: yes, optional

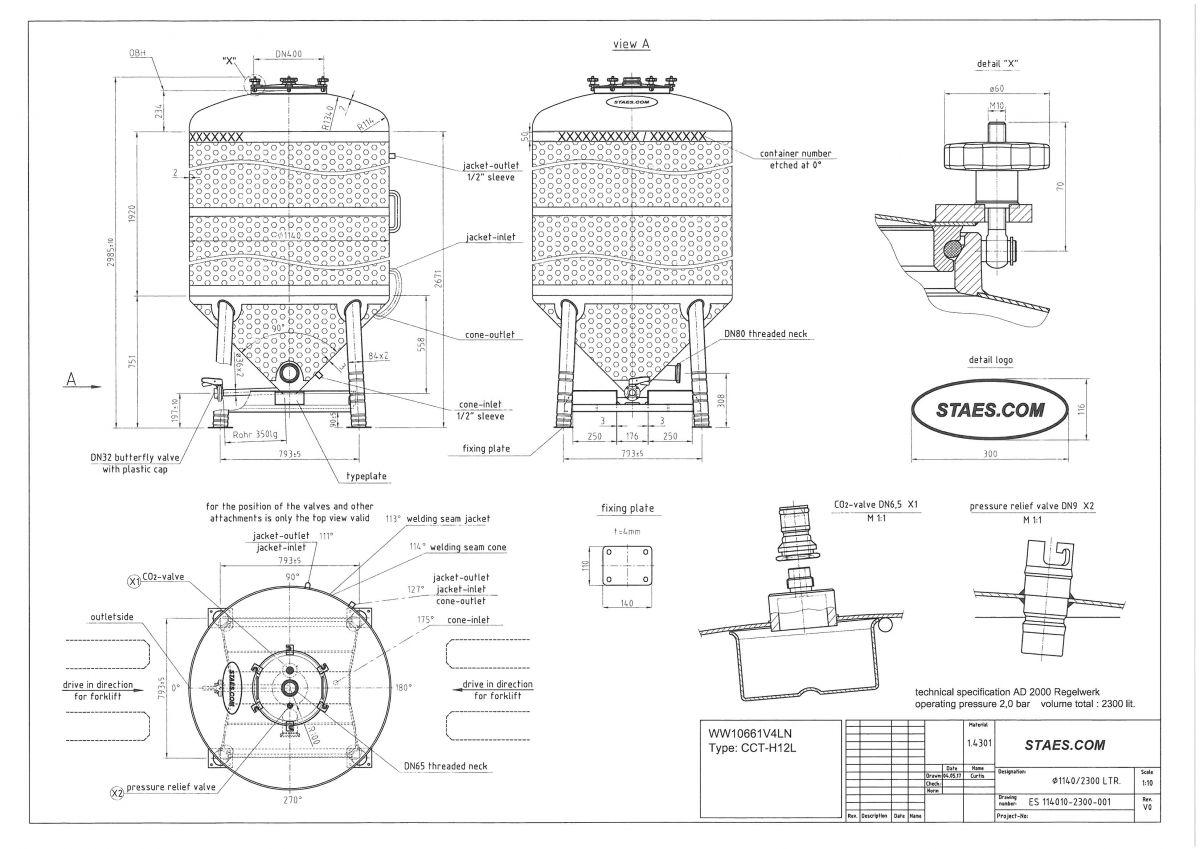

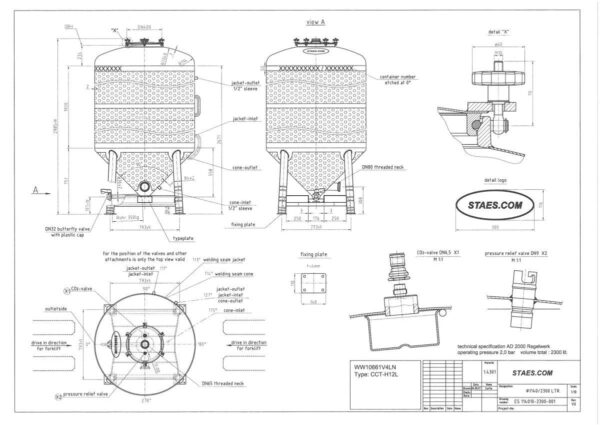

  • Technical drawing included: yes
  • Registration plate on the tank: yes
  • with inspection of: TUV
  • Flange for agitator: no

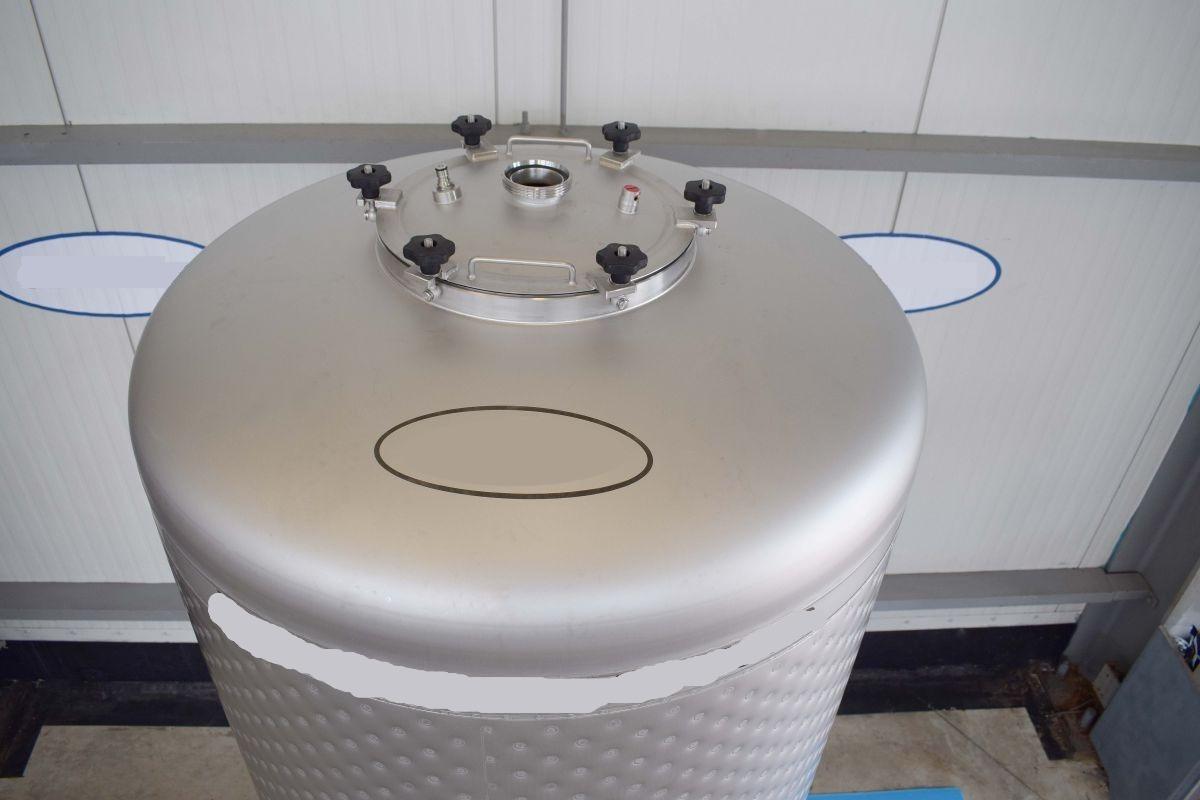

  • Number of manways: 1
  • Position manway: headside

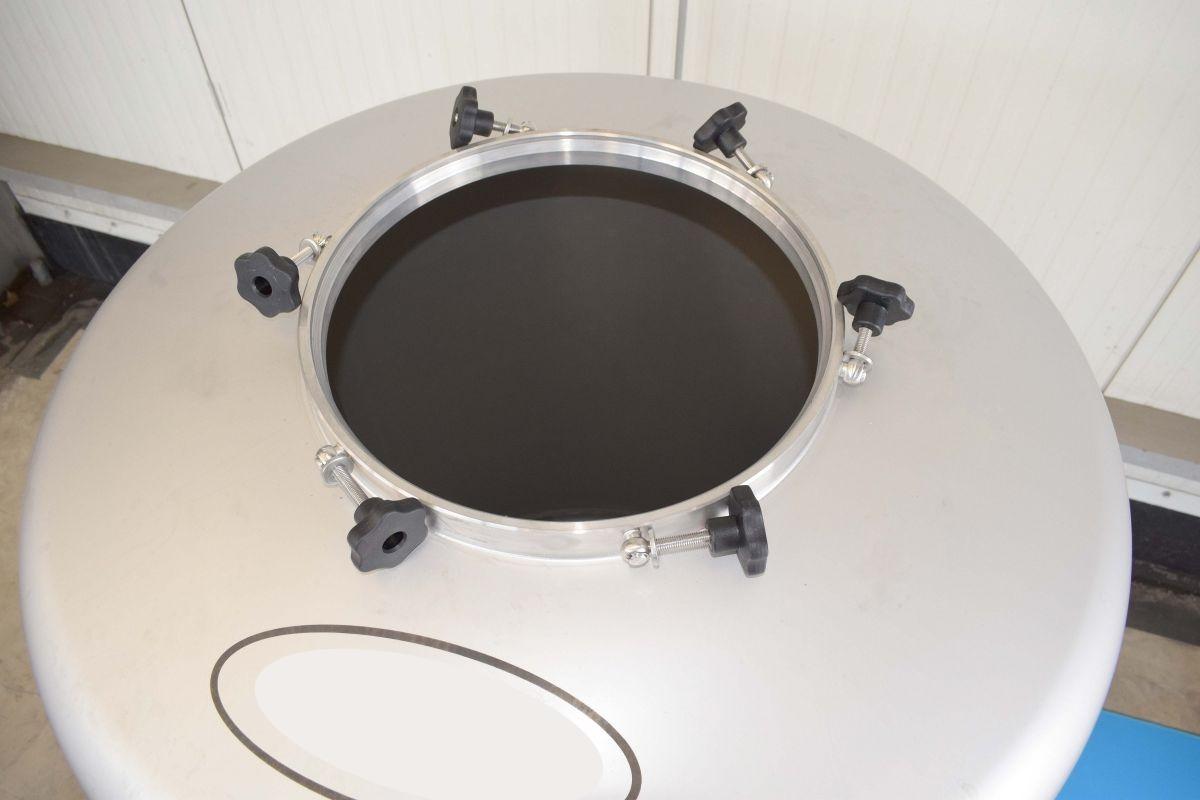

  • Manway 1: Ø 400 mm
  • Spray ball: yes, optional
  • Tank outlet: inside Ø 32 mm
  • Outlet type: DIN11851 male
  • Total outlet valve: yes
  • Type shut-off valve: butterfly valve

Wall thicknesses of the inner tank

  • Top: 2 mm
  • Cylinder: 2 mm
  • Bottom: 3 mm

Dimensions of the tank

  • Distance from outlet to ground: 197 mm
  • Outer diameter tank: 1.140 mm
  • Cylinder height: 1.920 mm
  • Height of top: 234 mm
  • Height of bottom: 558 mm
  • Feet height: 751 mm
  • Total height of tank: 2.985 mm
  • Empty weight tank: 250 Kg
