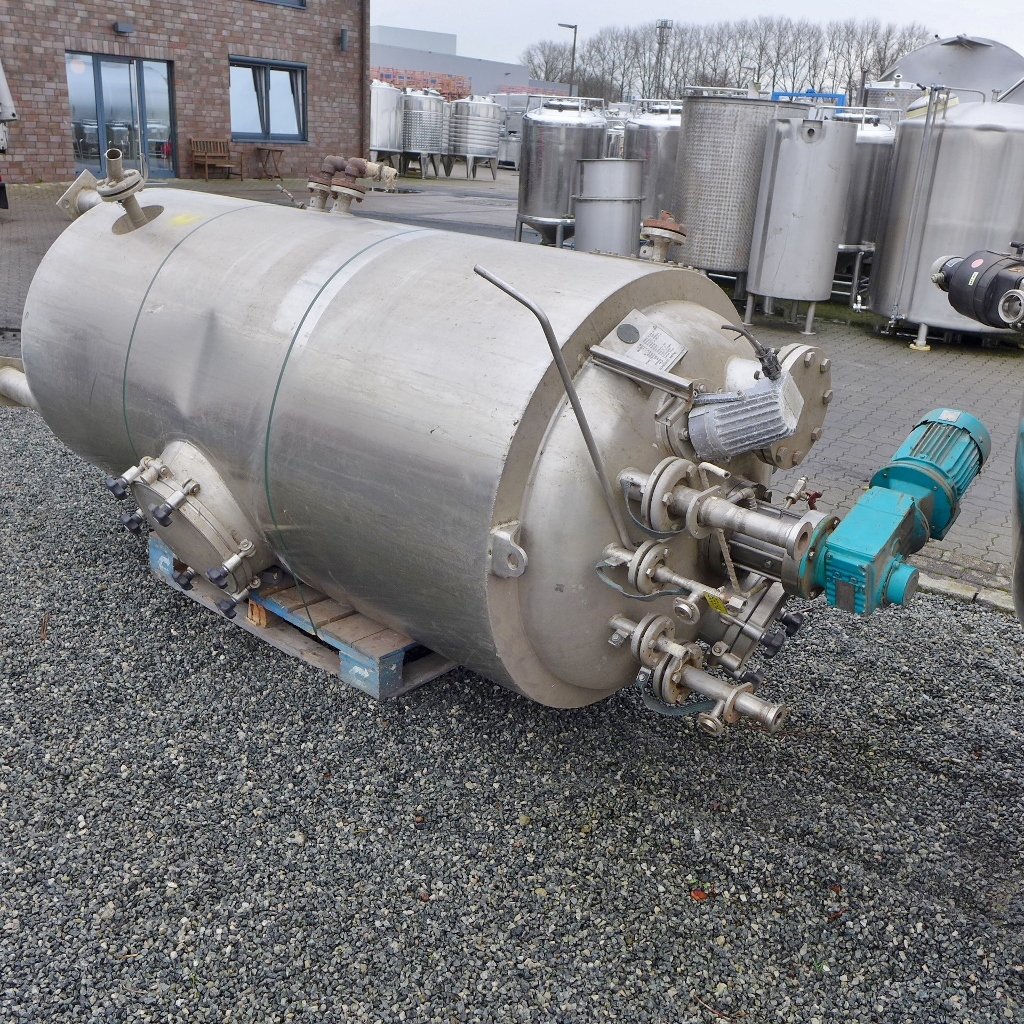

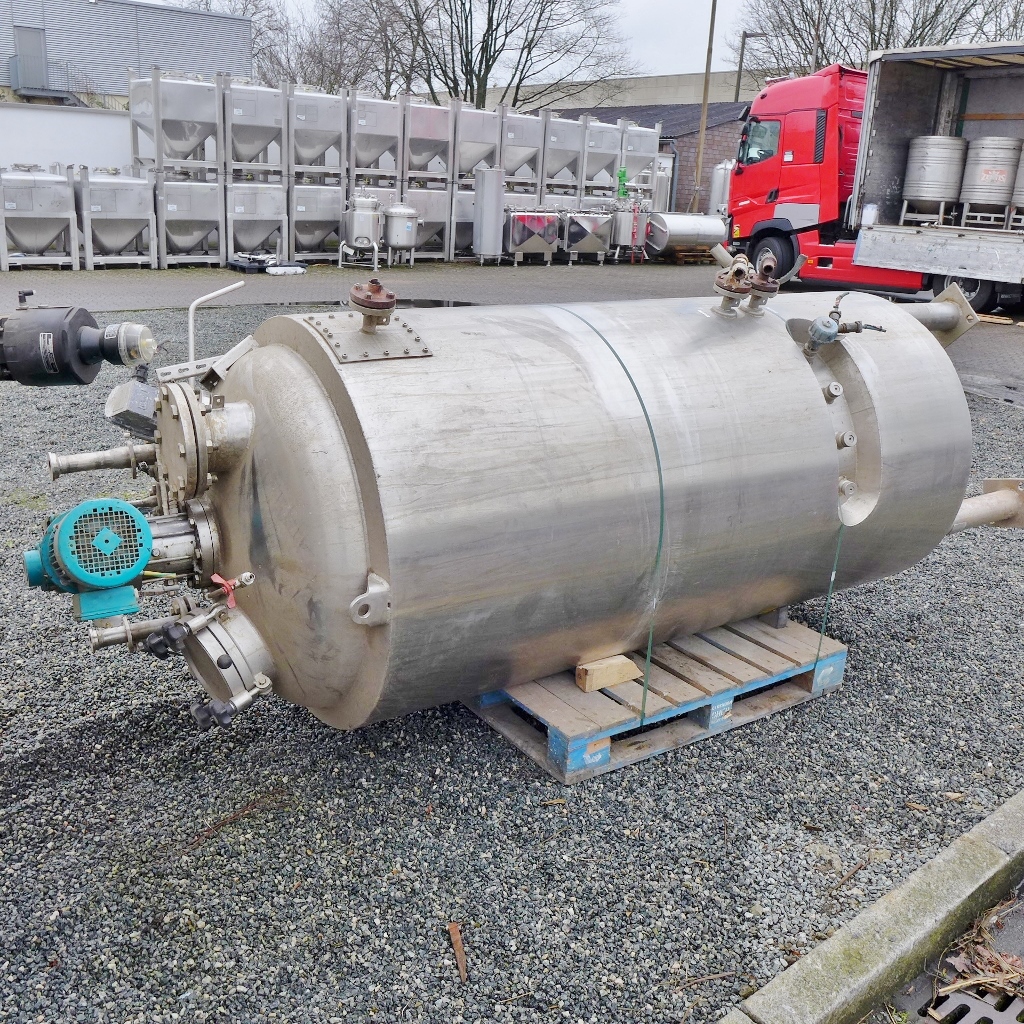

1855 liter tank i Syrafast 316

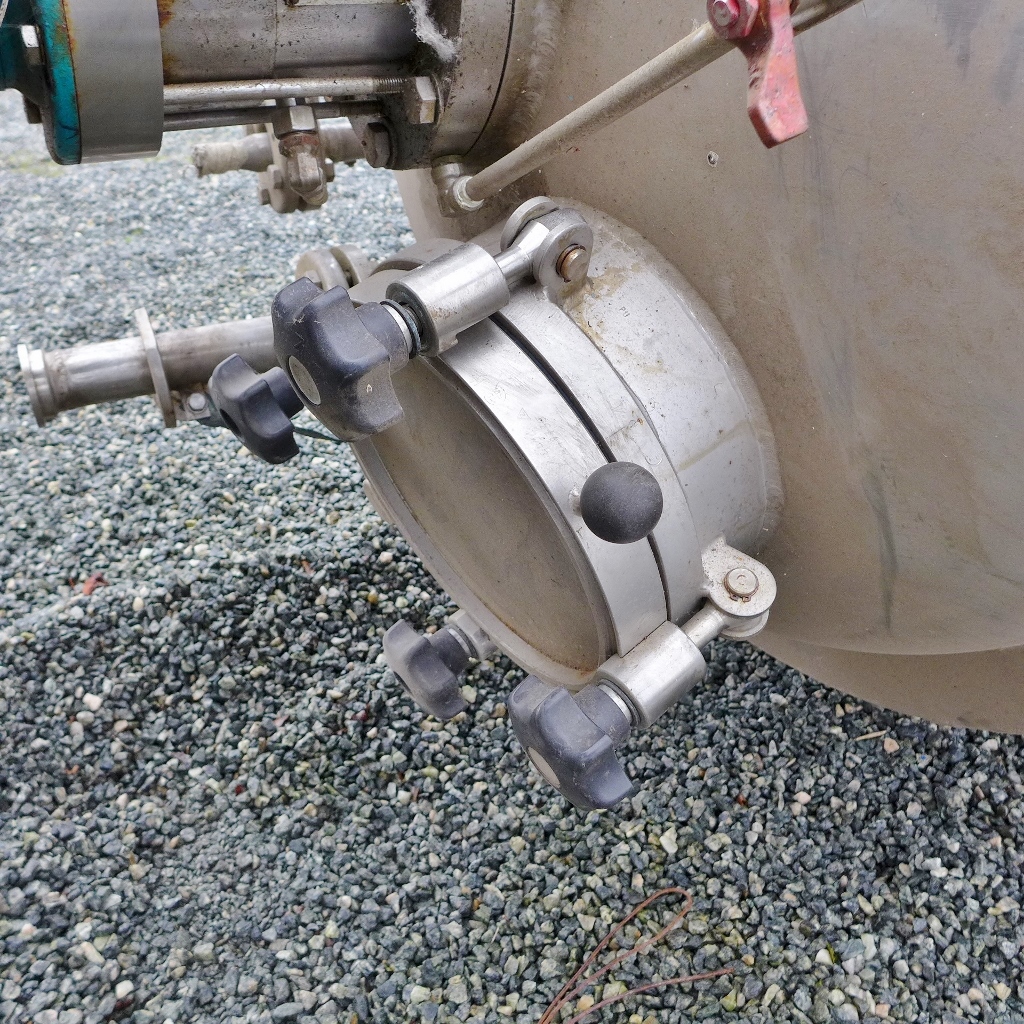

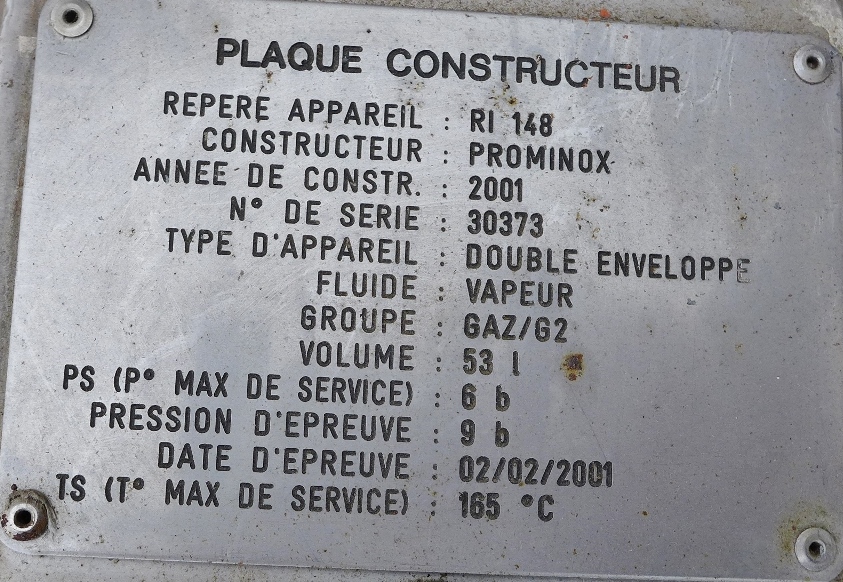

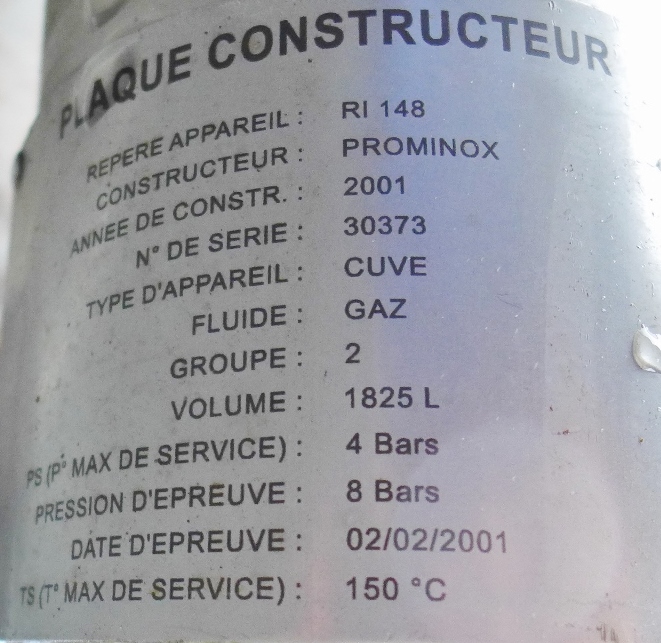

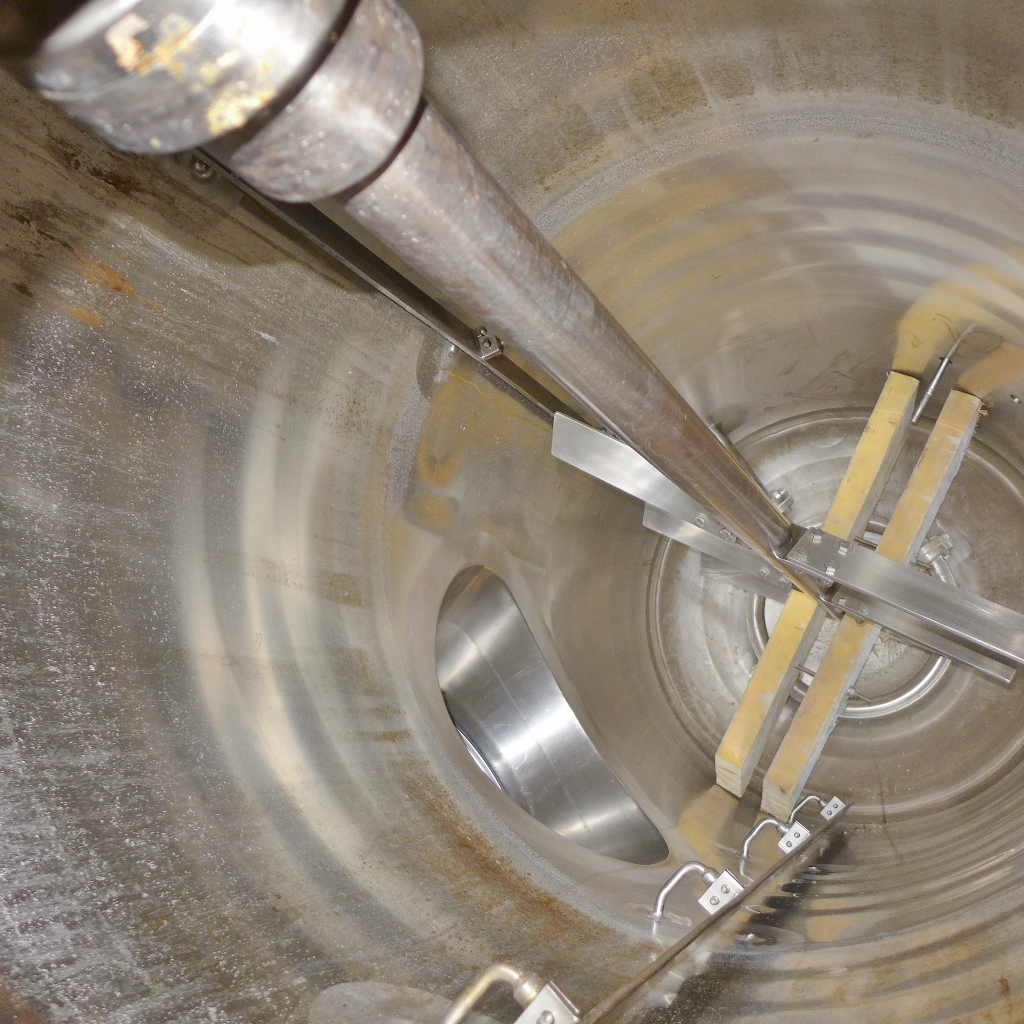

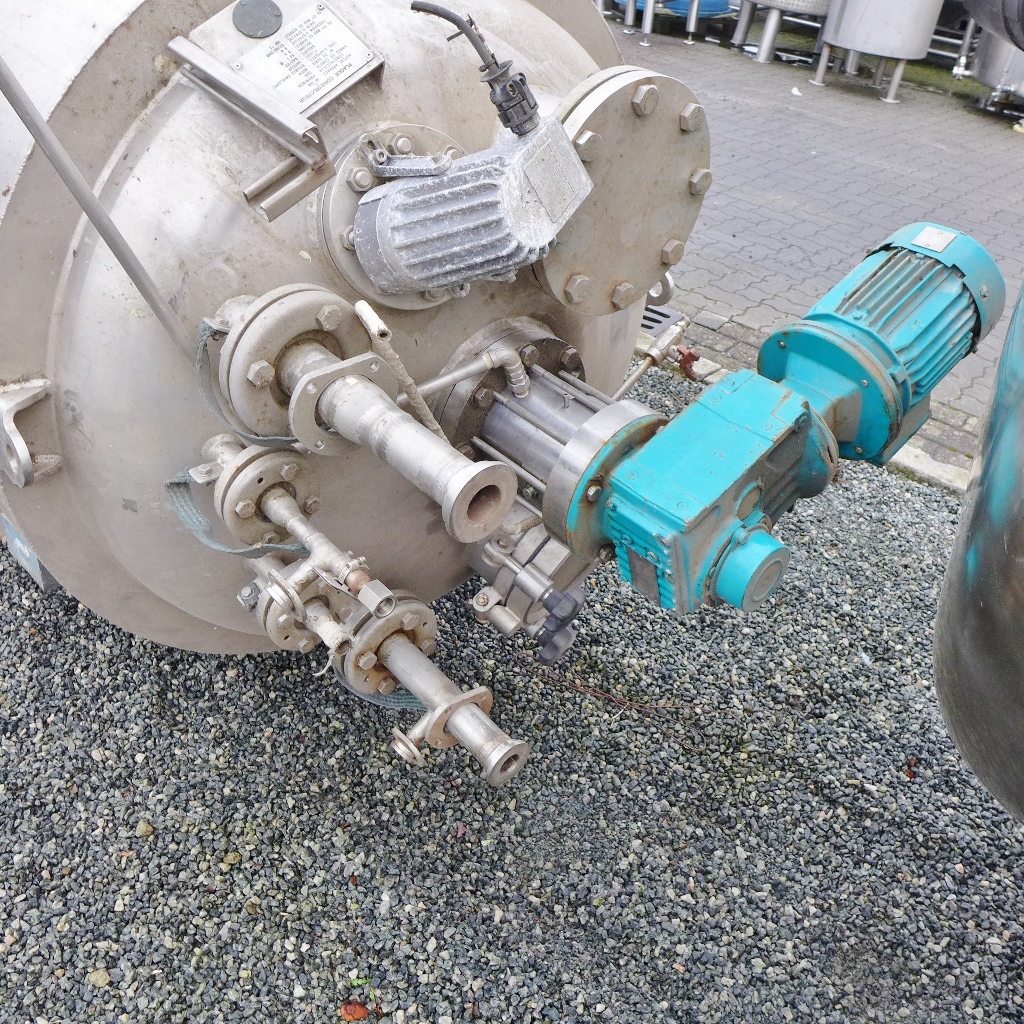

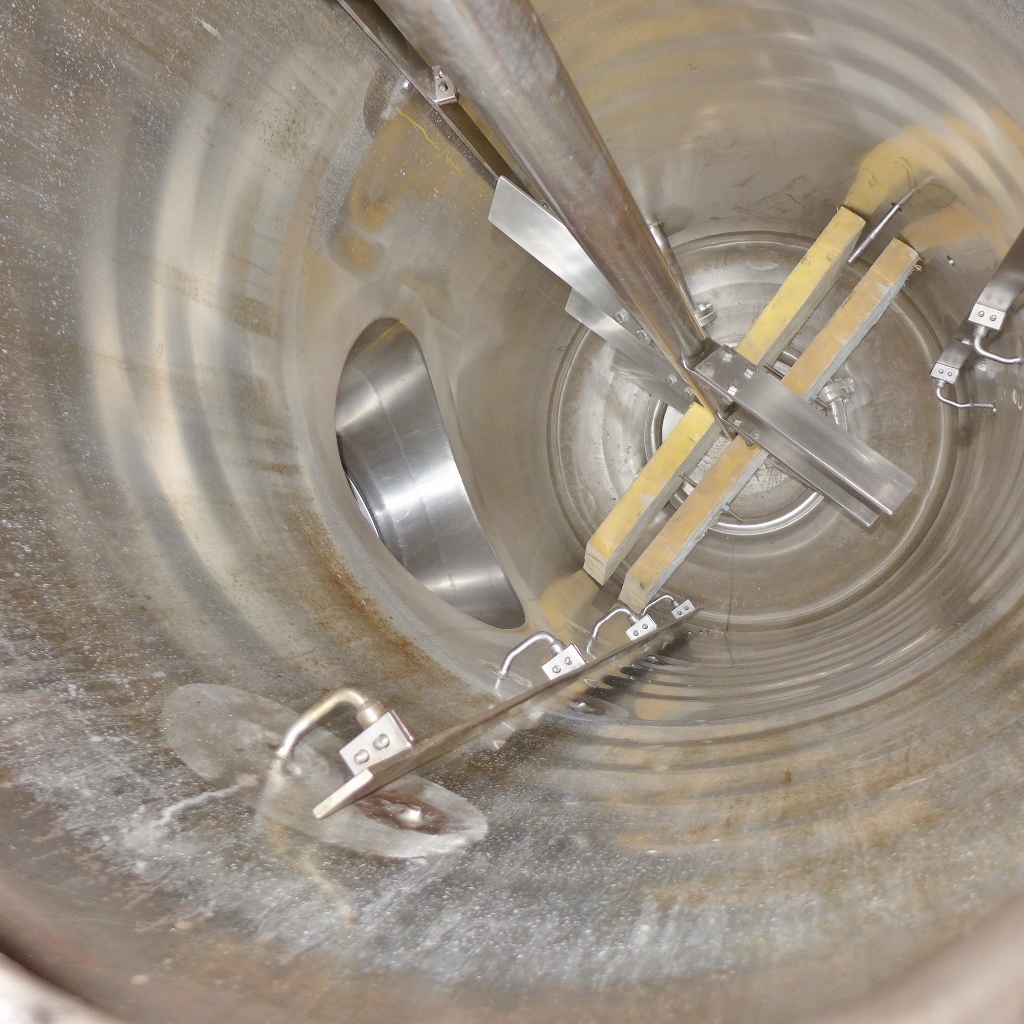

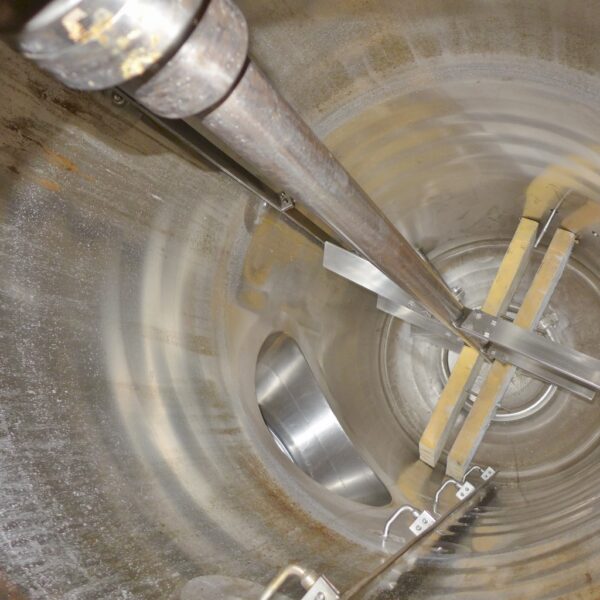

Additional information: Pharmacy; 1 manhole diameter approx. 400 mm in the cylinder, 1 hand hole diameter approx. 250 mm in the upper bottom; 1 perforated pipe inside the lower bottom area (see photos); some residues of previous content; bump at the insulation jacket Volumetric volume (L): 1.855 L Pressure in tank: pressure Max. pressure (Bar): 4 Bar Max. temperature (°C): 150 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Volume: 53 L Max Overpressure: 6 Bar Max. working temperature: 165 °C Type HE on the bottom: half pipe welded onto the outside of the innertank Type HE on the cylinder: half pipe welded onto the outside of the innertank Heat exchanger: RVS 304 Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Outlet of tank: 44 Agitator: yes Number of revolutions: 40 Power: 1,10 Internal diameter tank: 1.000 mm Outer diameter tank: 1.160 mm Total height of tank: 3.550 mm
