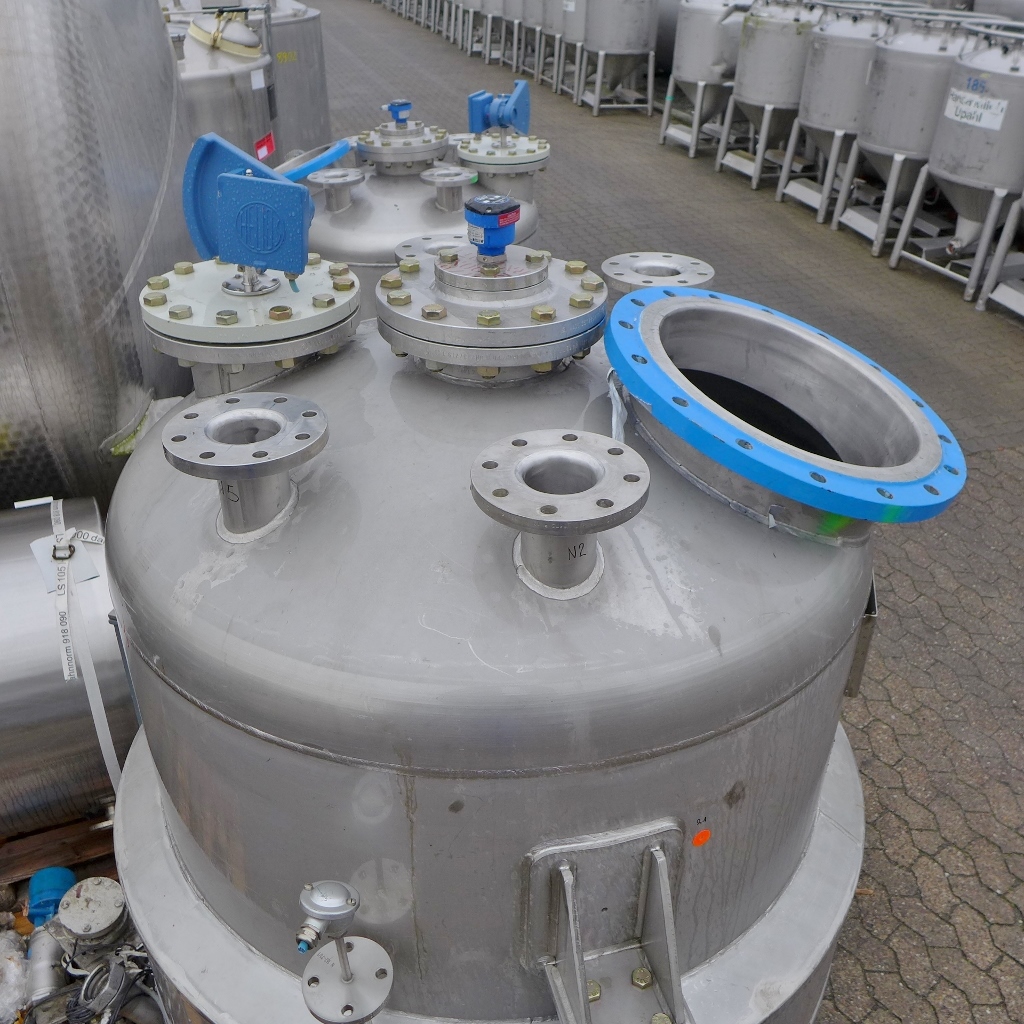

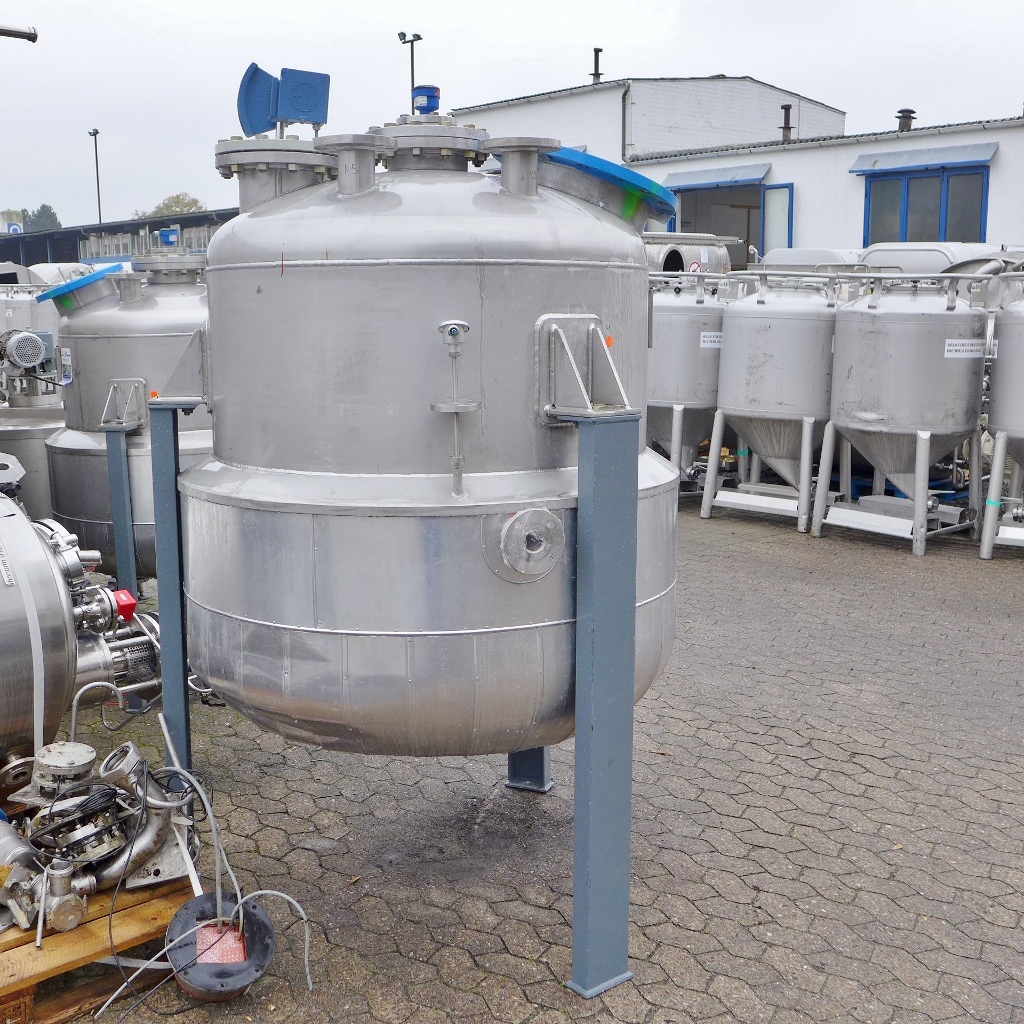

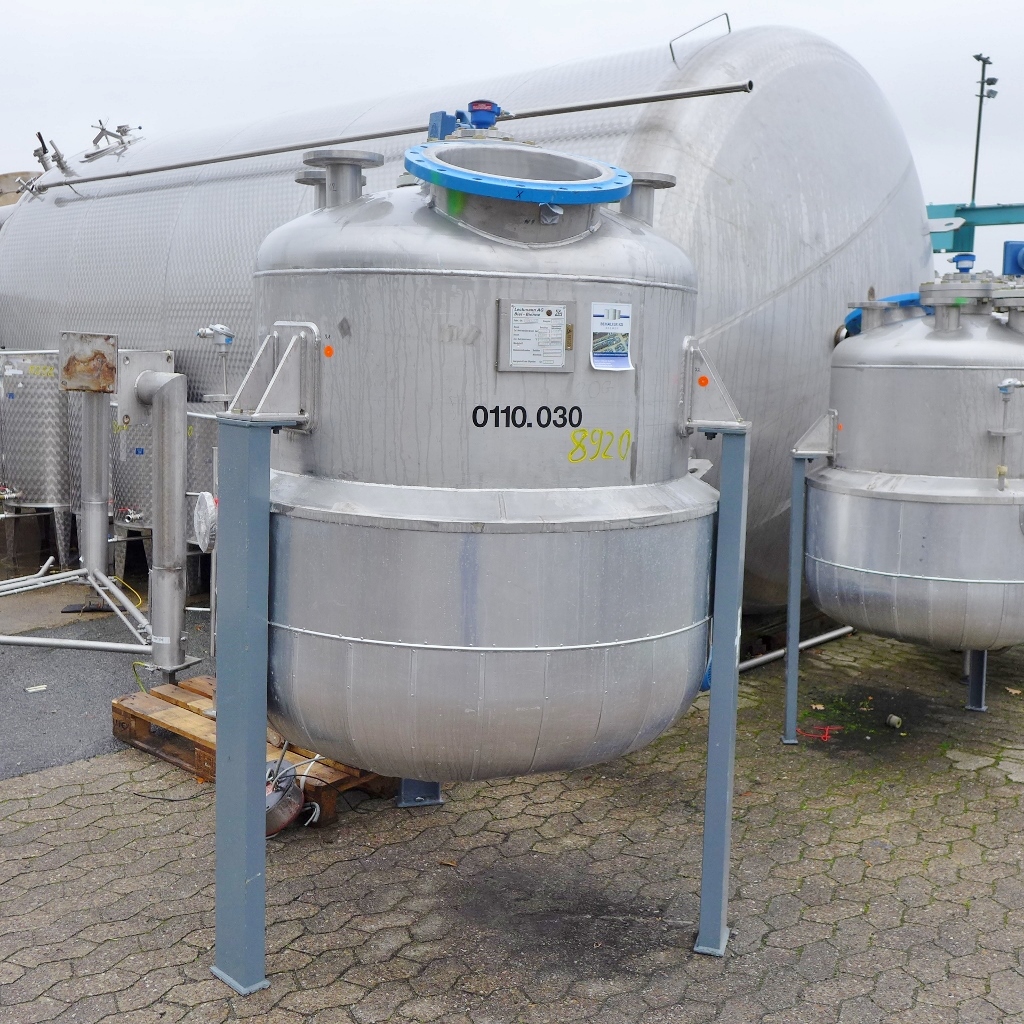

1495 liter tank i Syrafast 316

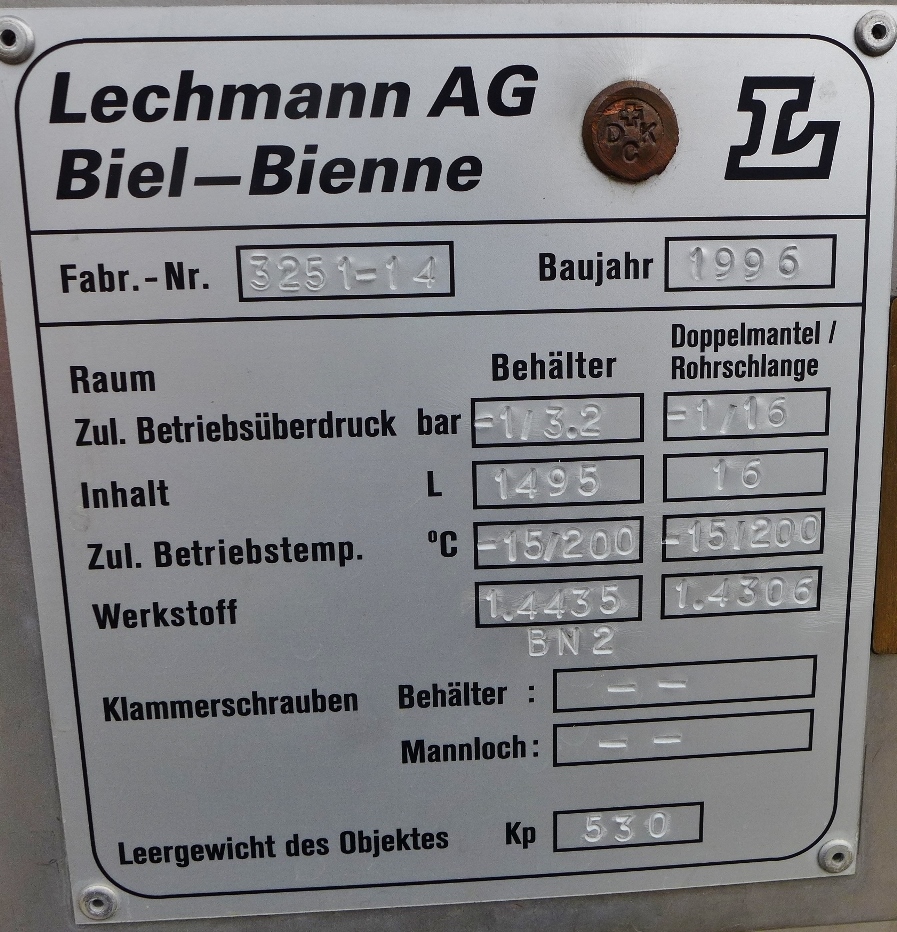

Additional information: Pharmaceutical chemistry; Half-coil, Aisi 304 around the lower cylinder area and the lower bottom; 3 feet, Fe screwed to 3 support brackets, st. st.; bump at the insulation jacket; manhole cover is missing Volumetric volume (L): 1.495 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3,20 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Volume: 16 L Max Overpressure: 16 Bar Max onderdruk: 1 Bar Max. working temperature: 200 °C Type HE on the bottom: half pipe welded onto the outside of the innertank Type HE on the cylinder: half pipe welded onto the outside of the innertank Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: headside Outlet of tank: 50 Top: 7,20 mm Cylinder: 6 mm Bottom: 4,70 mm Internal diameter tank: 1.200 mm Outer diameter tank: 1.390 mm Cylinder height: 980 mm Total height of tank: 2.350 mm
