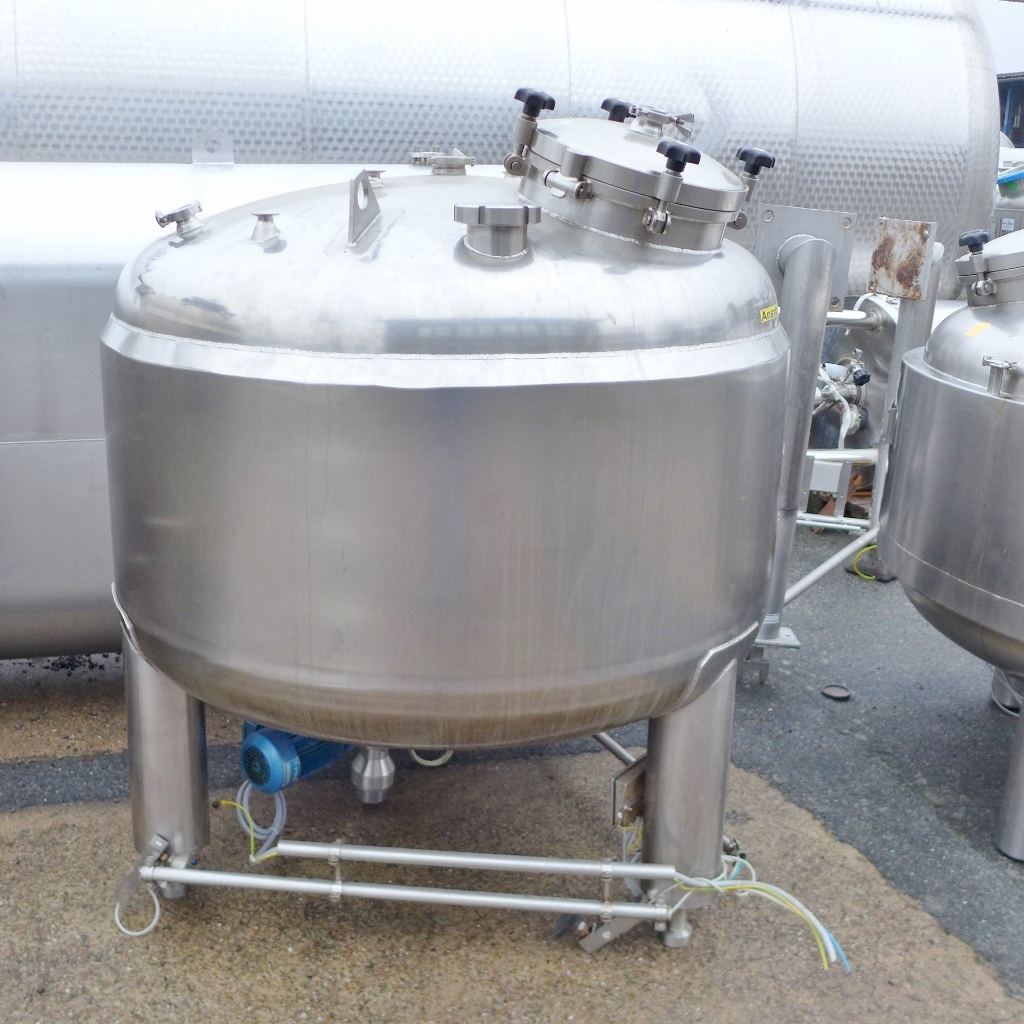

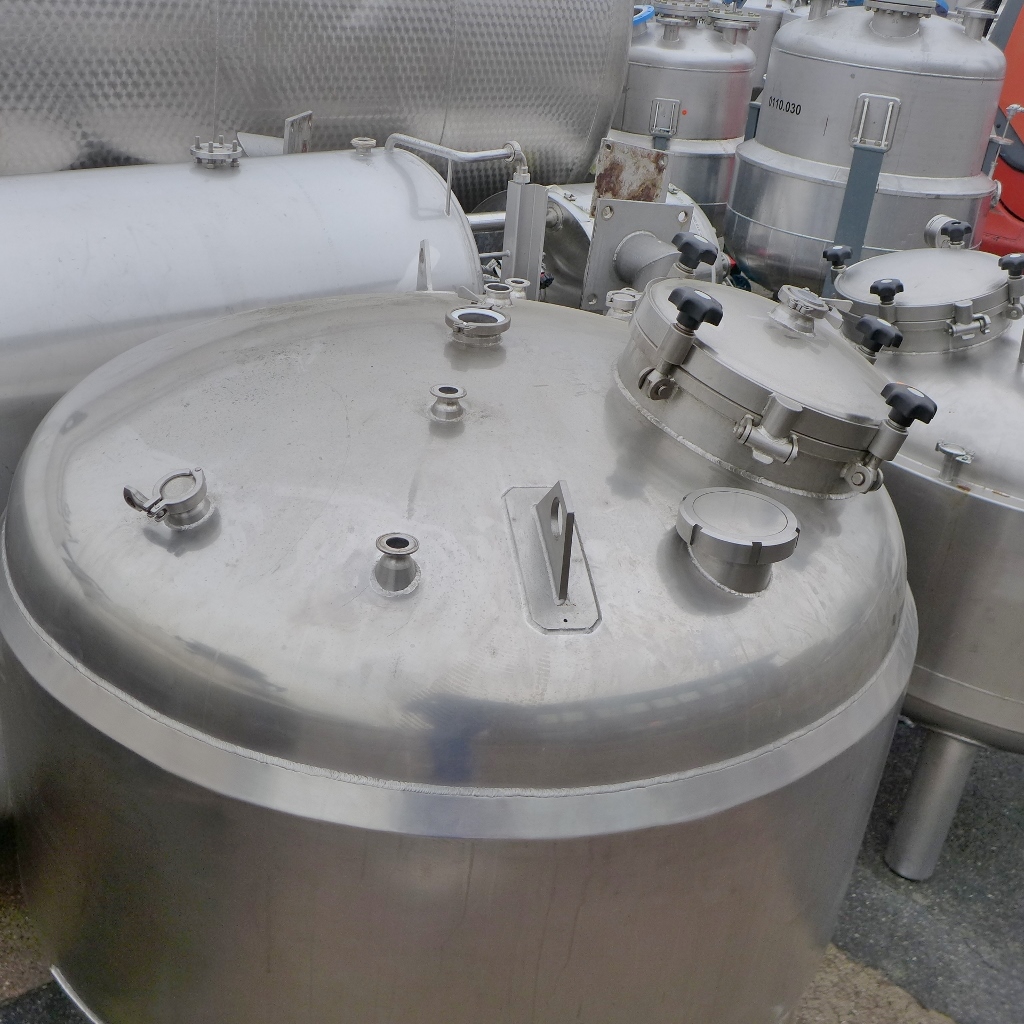

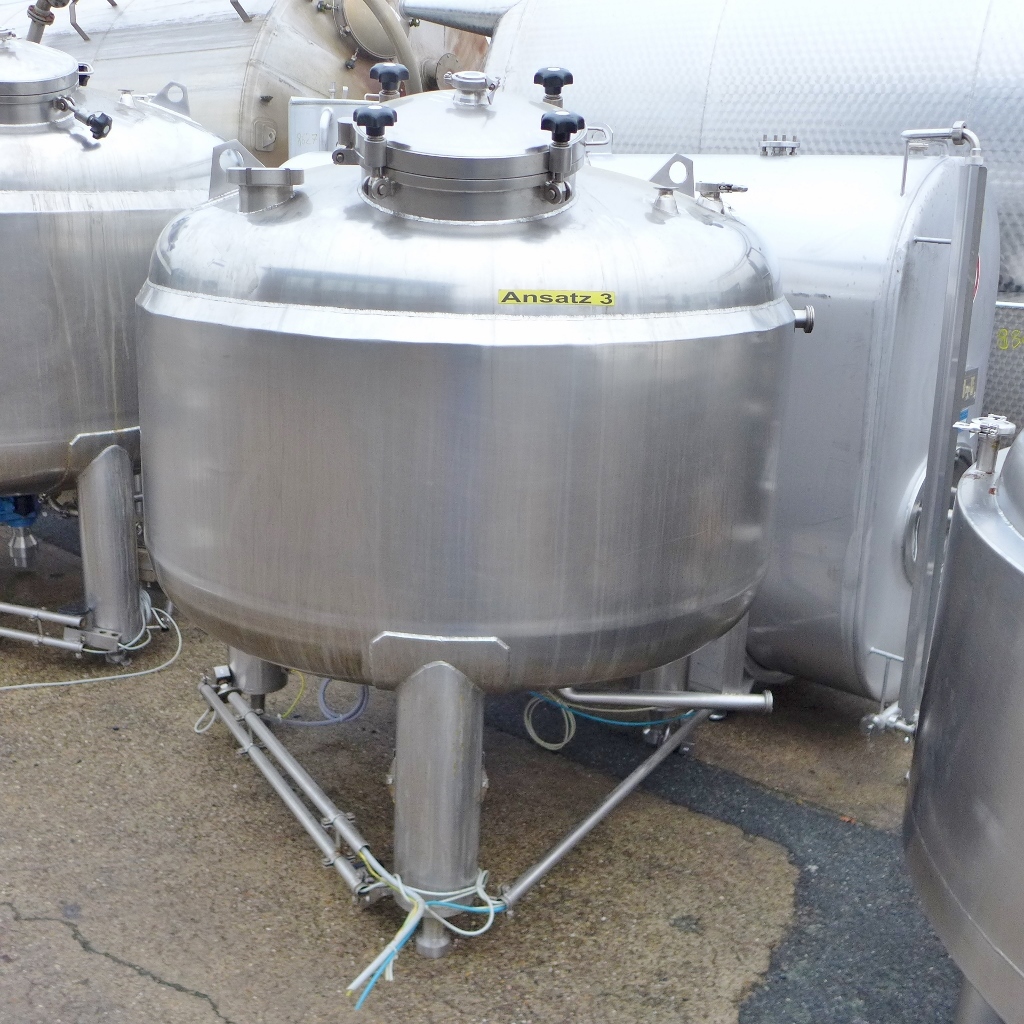

1390 liter tank i Syrafast 316

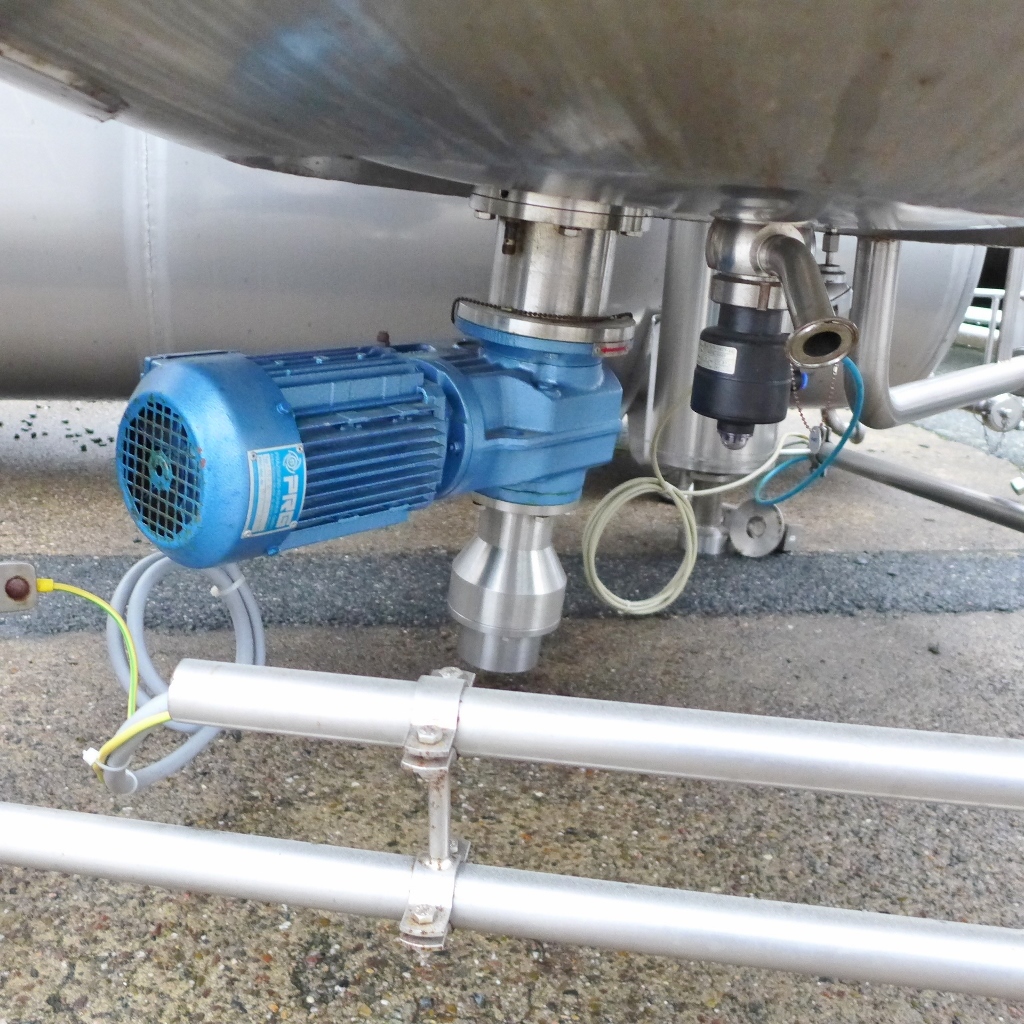

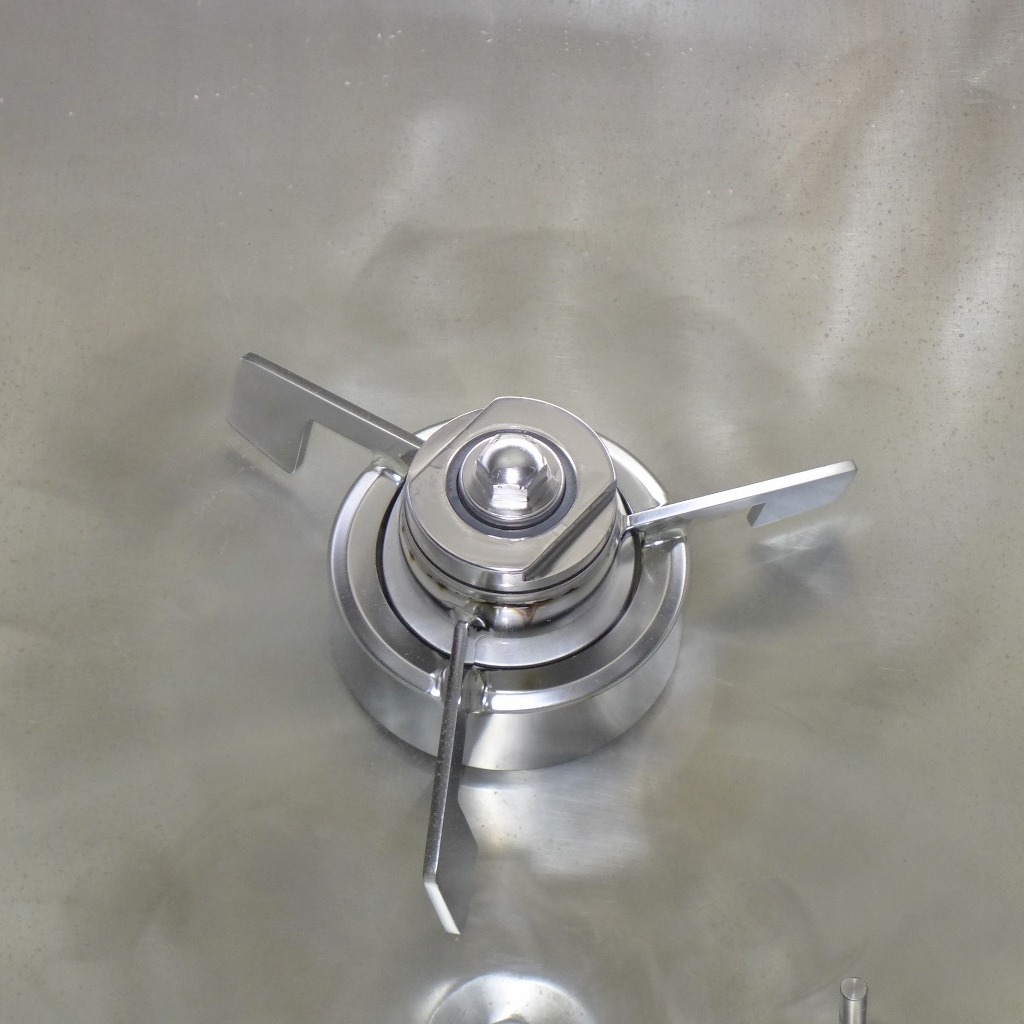

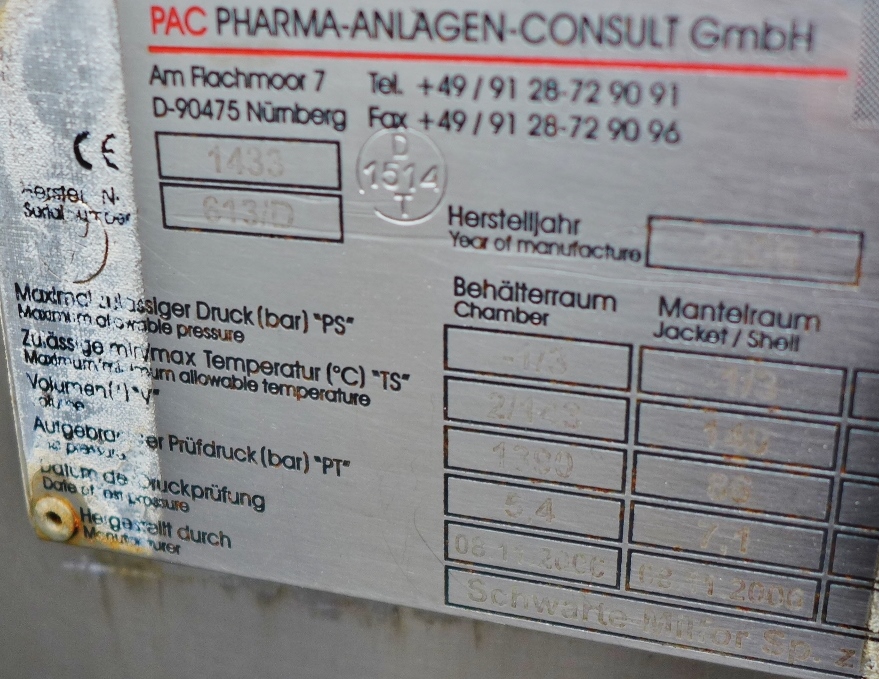

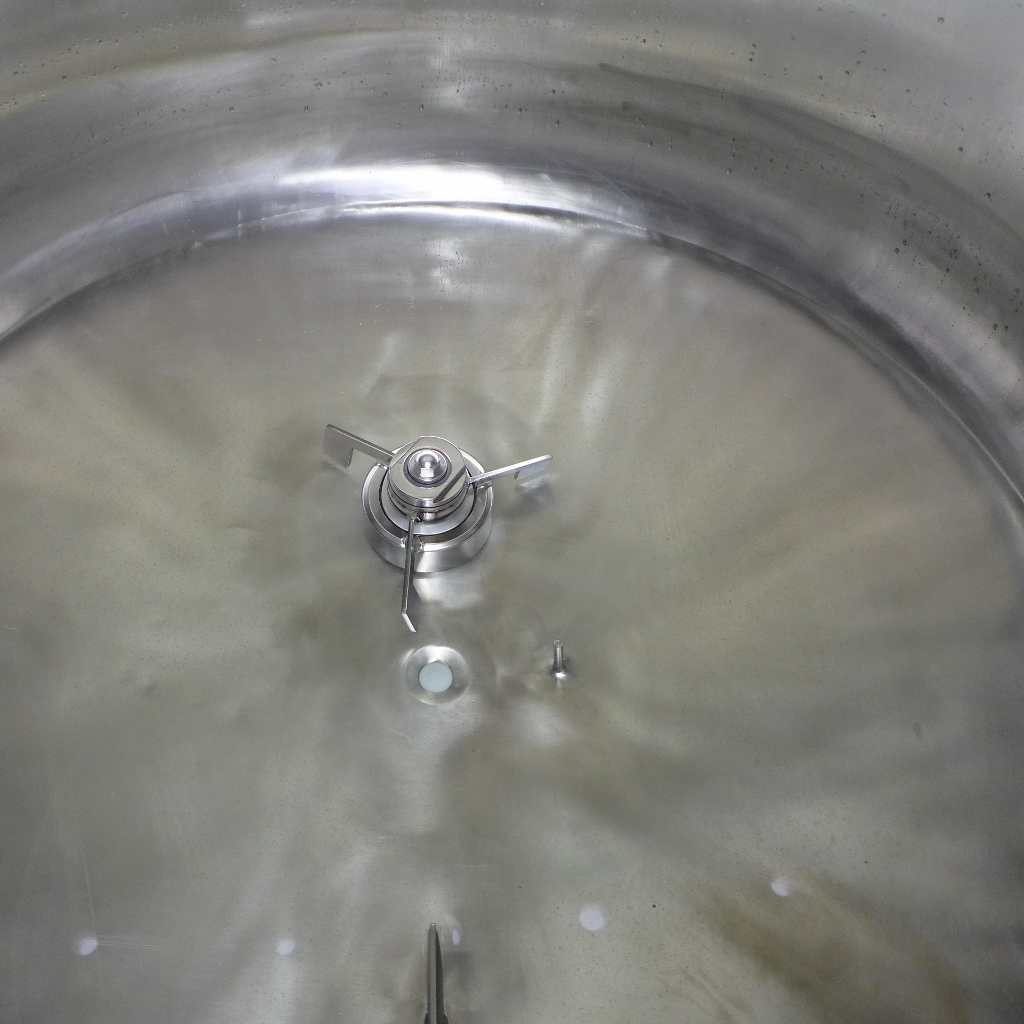

Additional information: Pharmacy Volumetric volume (L): 1.390 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 143 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single jacketed with heat-exchanger Heat exchanger: yes Insulation: no Mobile tank: no Total discharge: yes Volume: 86 L Max Overpressure: 3 Bar Max onderdruk: 1 Bar Max. working temperature: 140 °C Type HE on the bottom: heating/cooling jacket Type HE on the cylinder: heating/cooling jacket Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: in the bottom Outlet of tank: 25 Agitator: yes Number of revolutions: 339 Power: 1,10 Internal diameter tank: 1.390 mm Outer diameter tank: 1.470 mm Total height of tank: 1.750 mm
