13390 liter tank i Syrafast 316

Art.nr: 272881

295,000,00 kr /st exkl moms

Isolerad:
Material:
Modell:
Nytillverkad eller begagnad:
Trycktank:
Uppvärmning/kylning:
Omrörare:

Lagersaldo:

Slut i lager

13390 liter tank i Syrafast 316

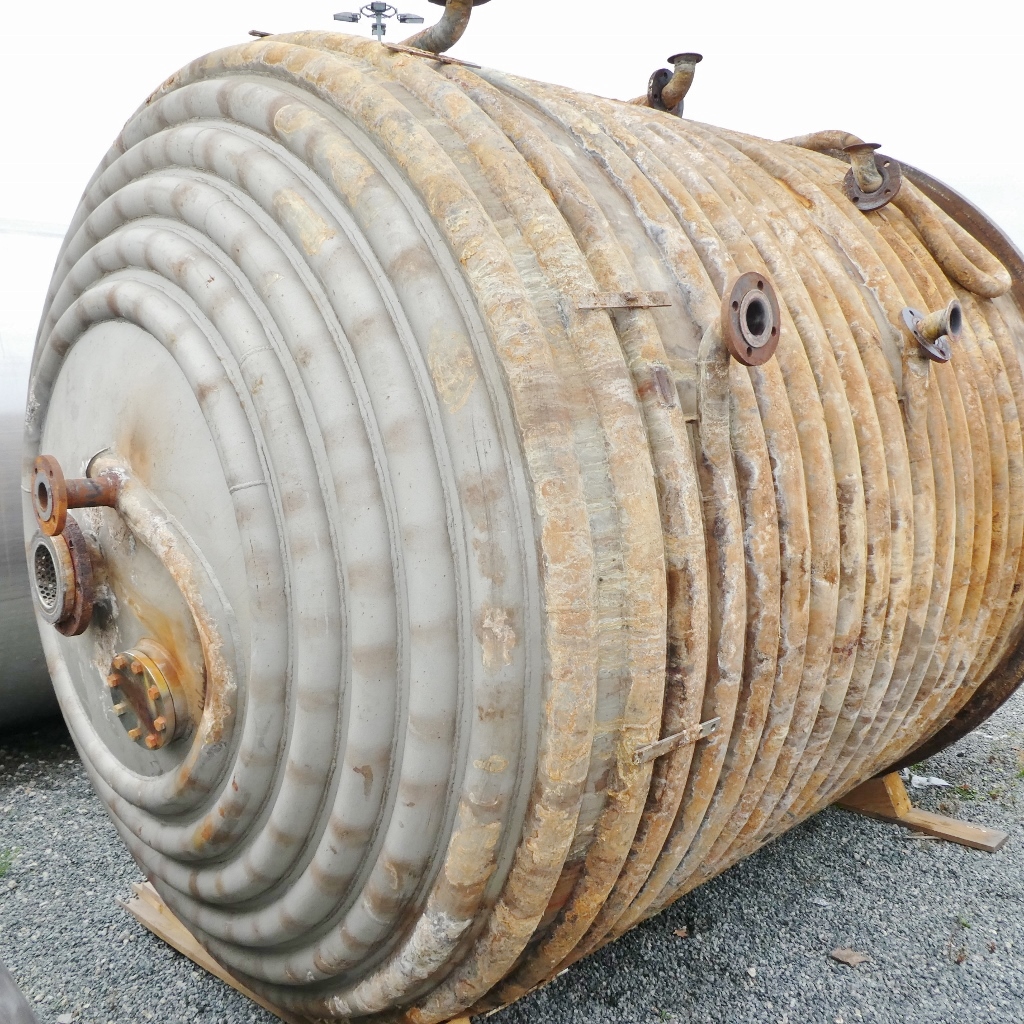

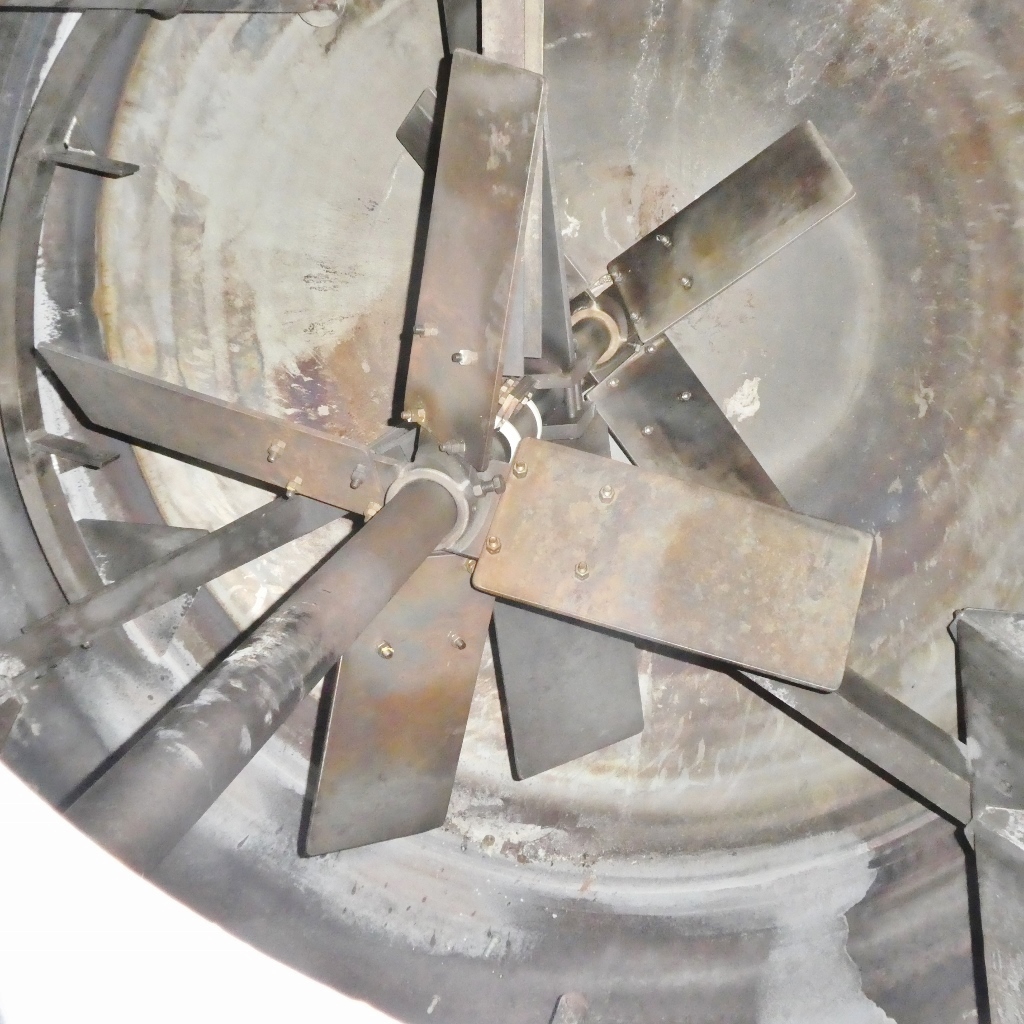

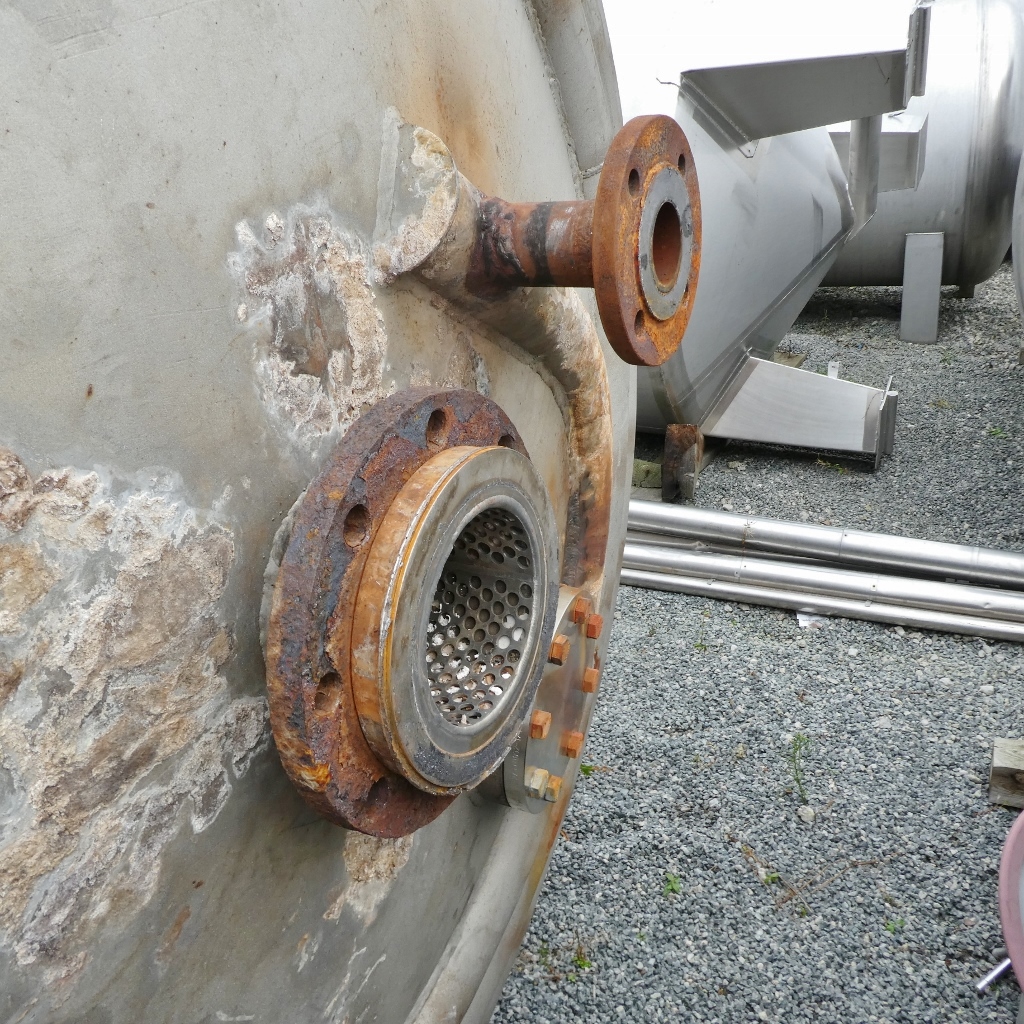

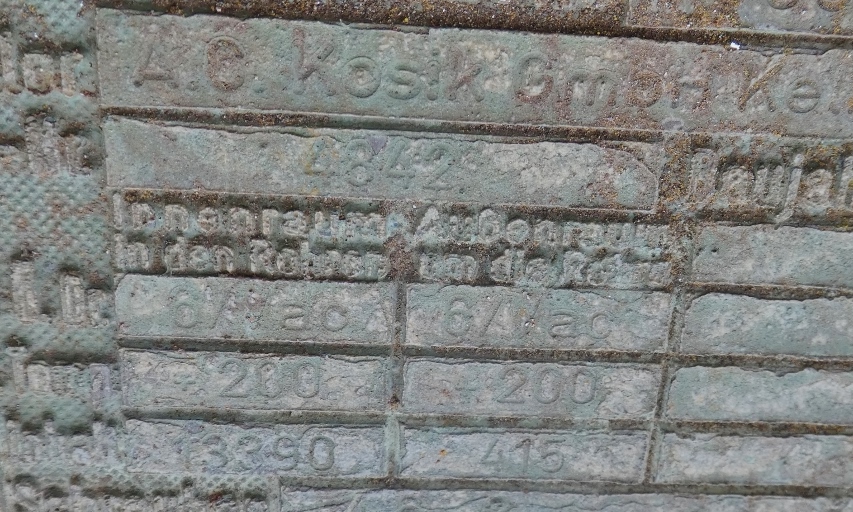

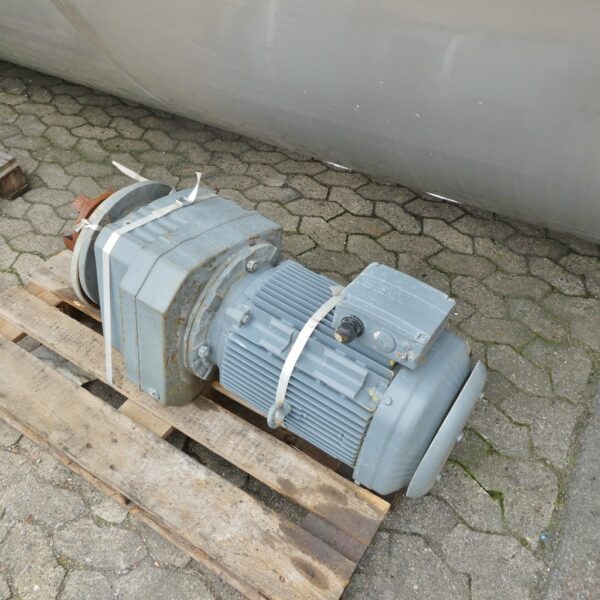

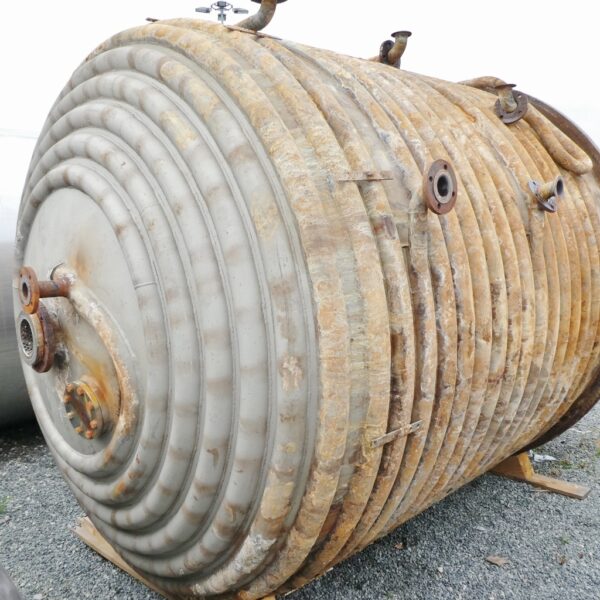

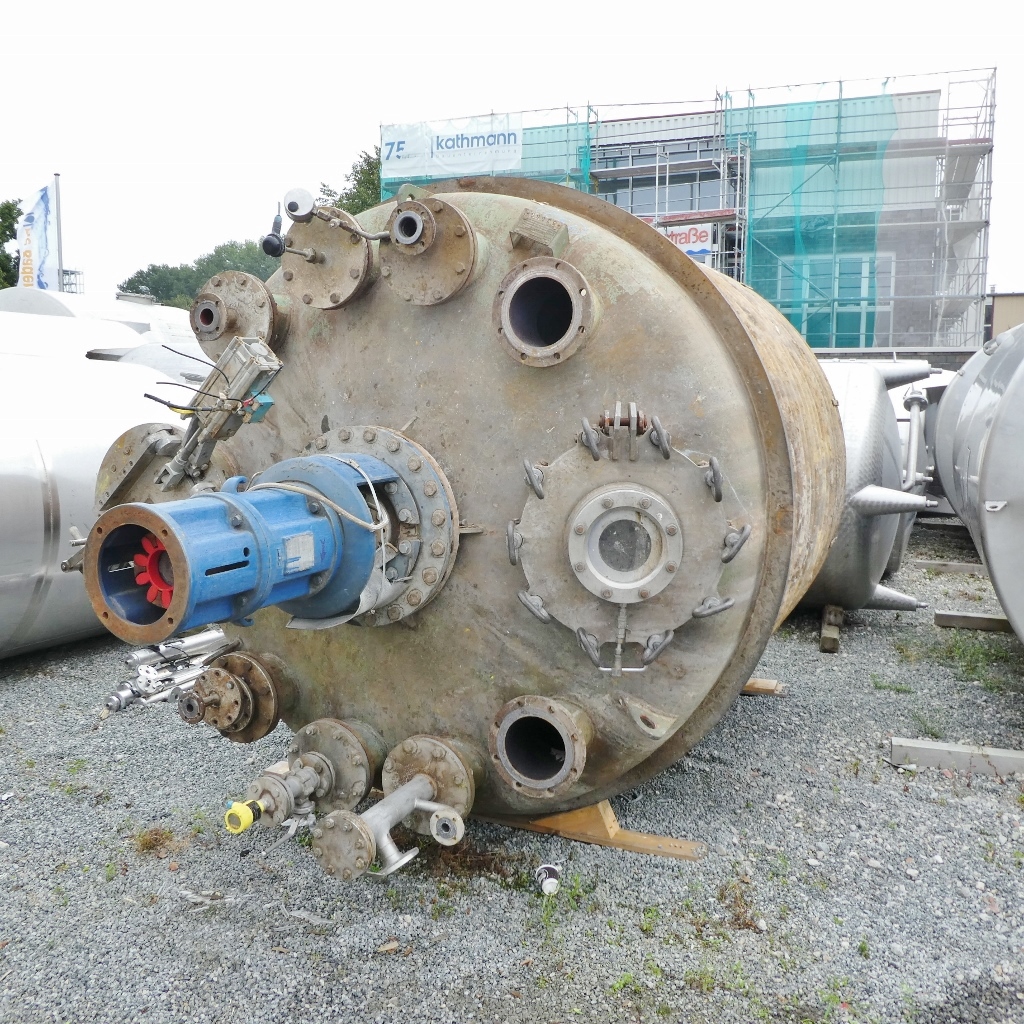

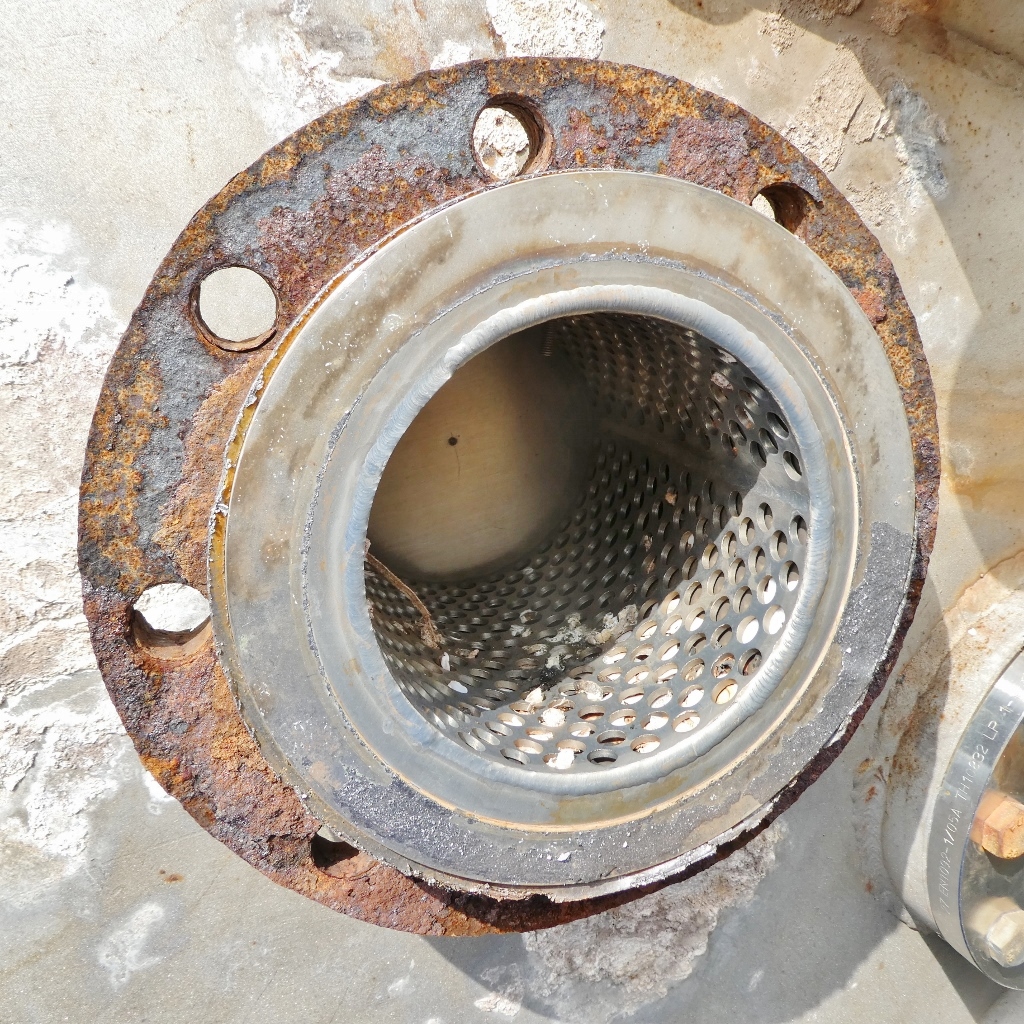

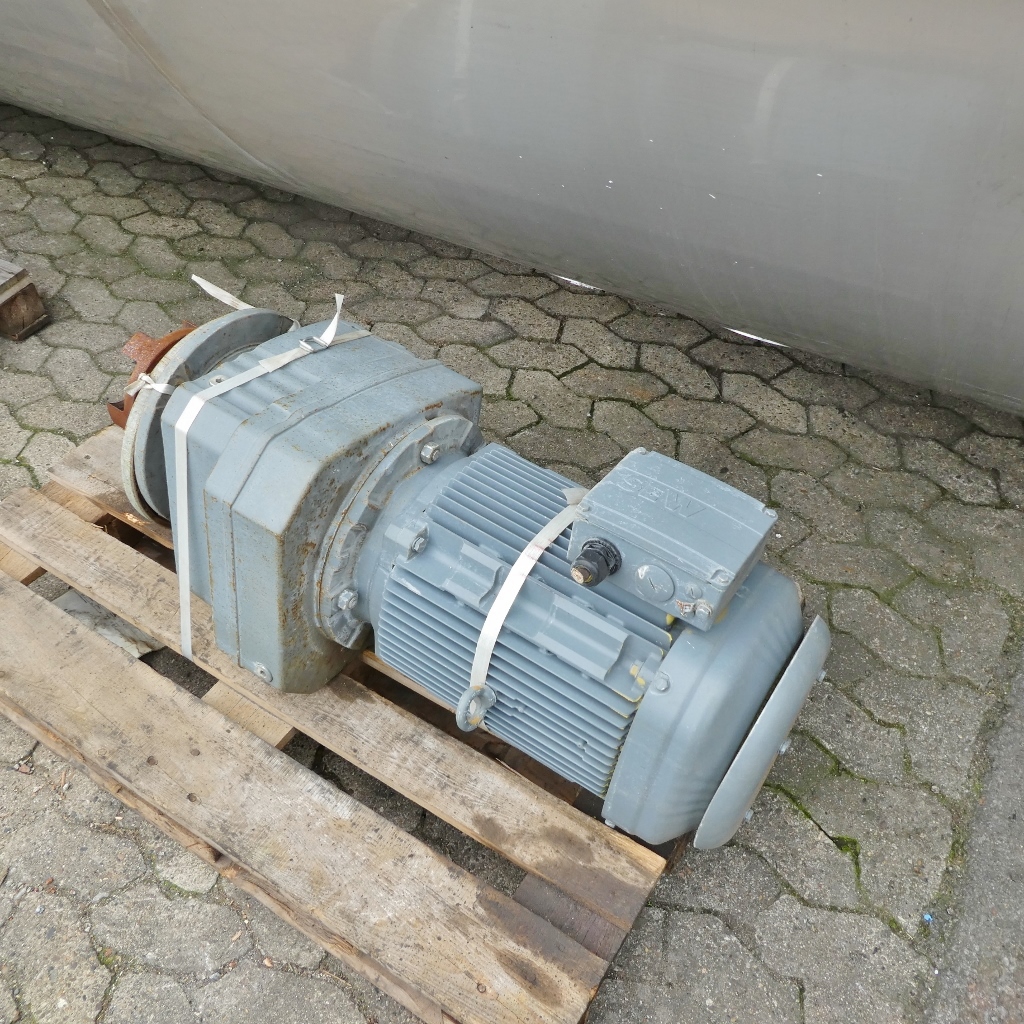

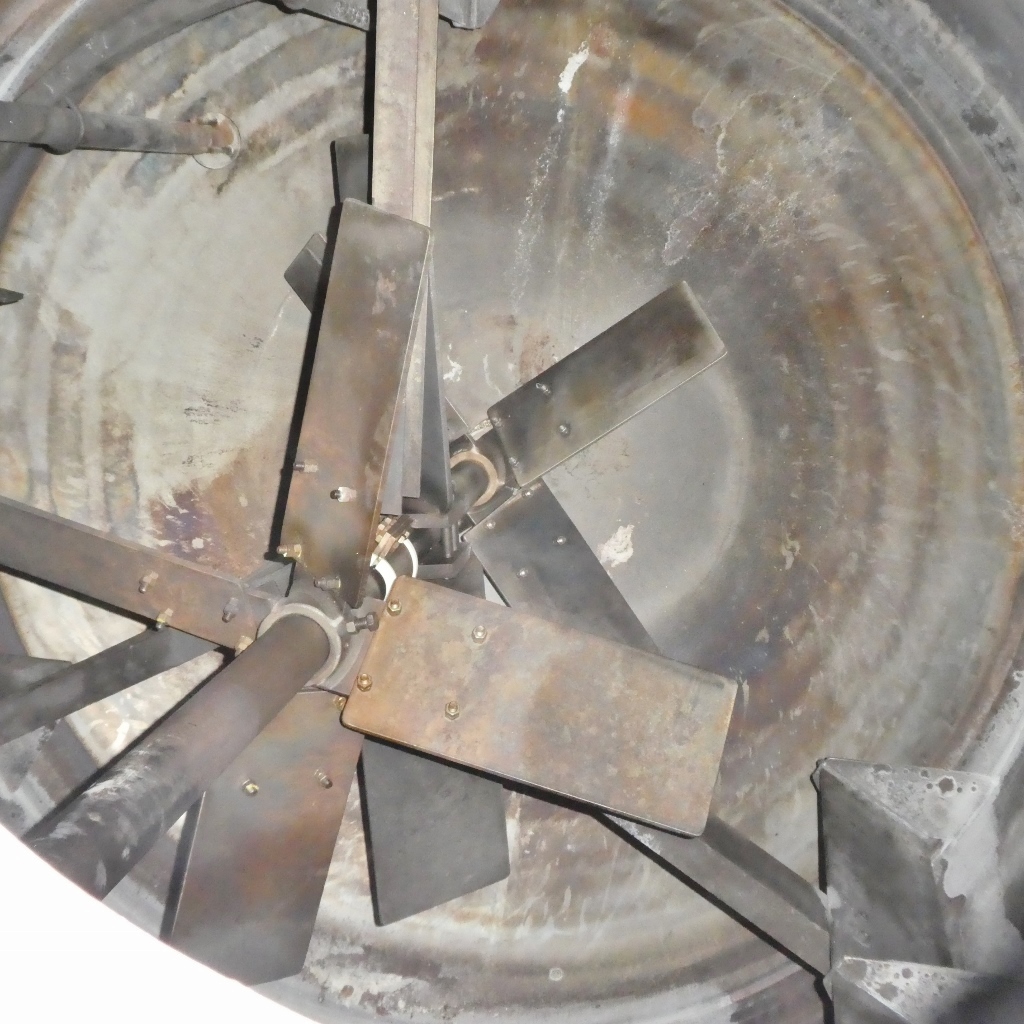

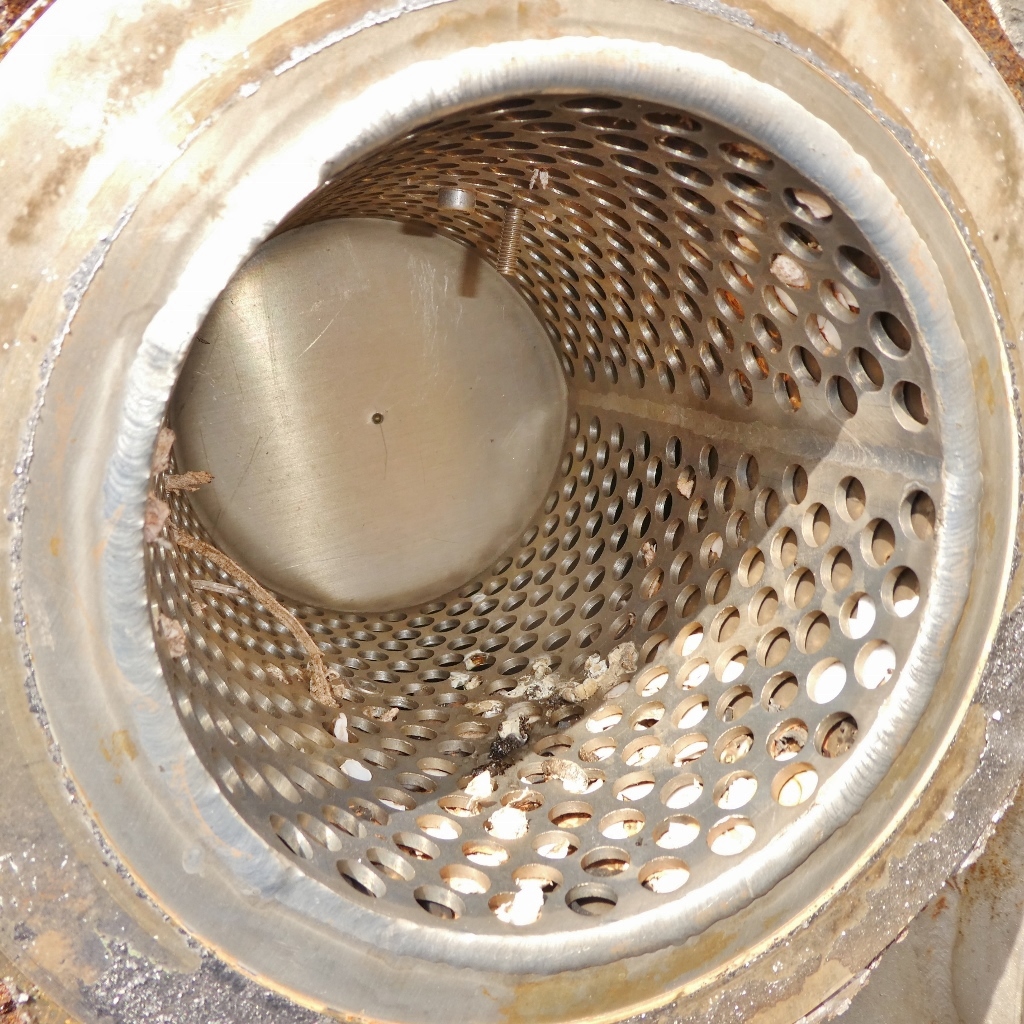

Additional information: Chemistry; Manhole diameter approx. 570 mm; outlet with sieve insert (see photos); some residues of previous content; Metallic discolouration inside Volumetric volume (L): 13.390 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 6 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single jacketed with heat-exchanger Heat exchanger: yes Insulation: no Mobile tank: no Total discharge: yes Volume: 415 L Max Overpressure: 6 Bar Max onderdruk: 1 Bar Max. working temperature: 200 °C Type HE on the bottom: half pipe welded onto the outside of the innertank Type HE on the cylinder: half pipe welded onto the outside of the innertank Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: in the bottom Outlet of tank: 140 Agitator: yes Number of revolutions: 53 Power: 15 Internal diameter tank: 2.390 mm Cylinder height: 2.250 mm Total height of tank: 5.700 mm Empty weight tank: 5.800

Fakta

Offertförfrågan
