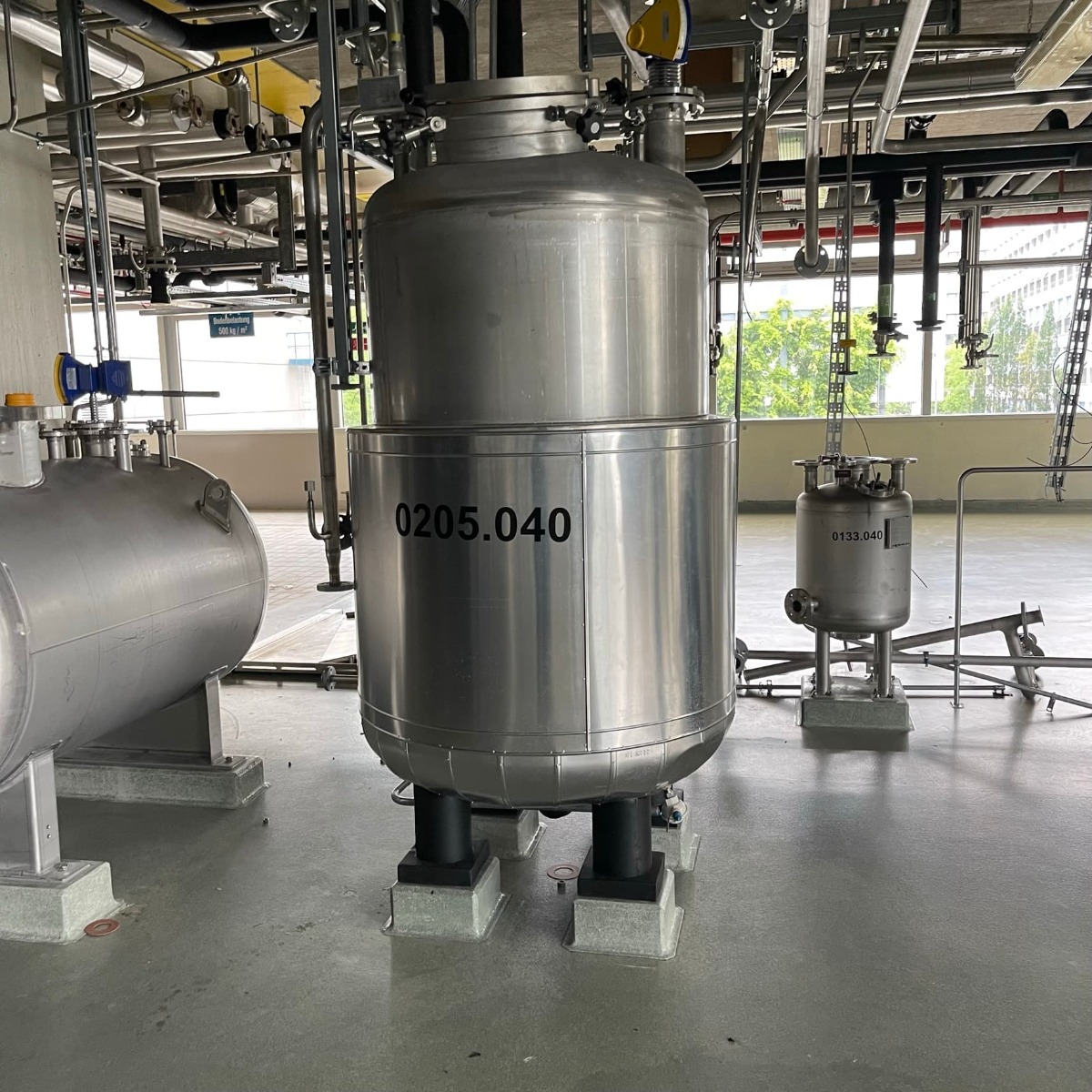

1300 liter tank i Syrafast 316

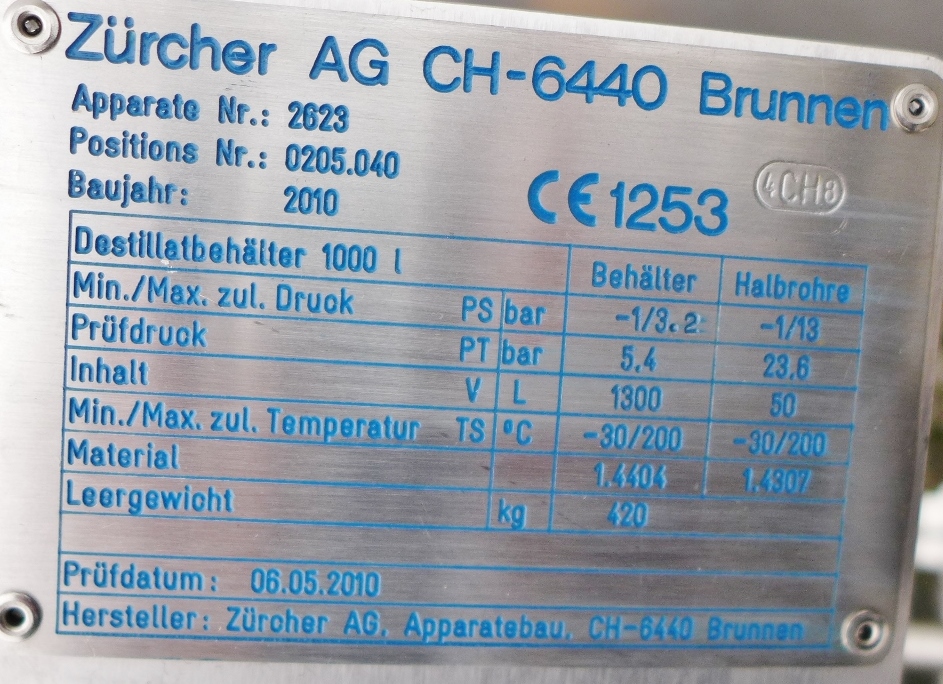

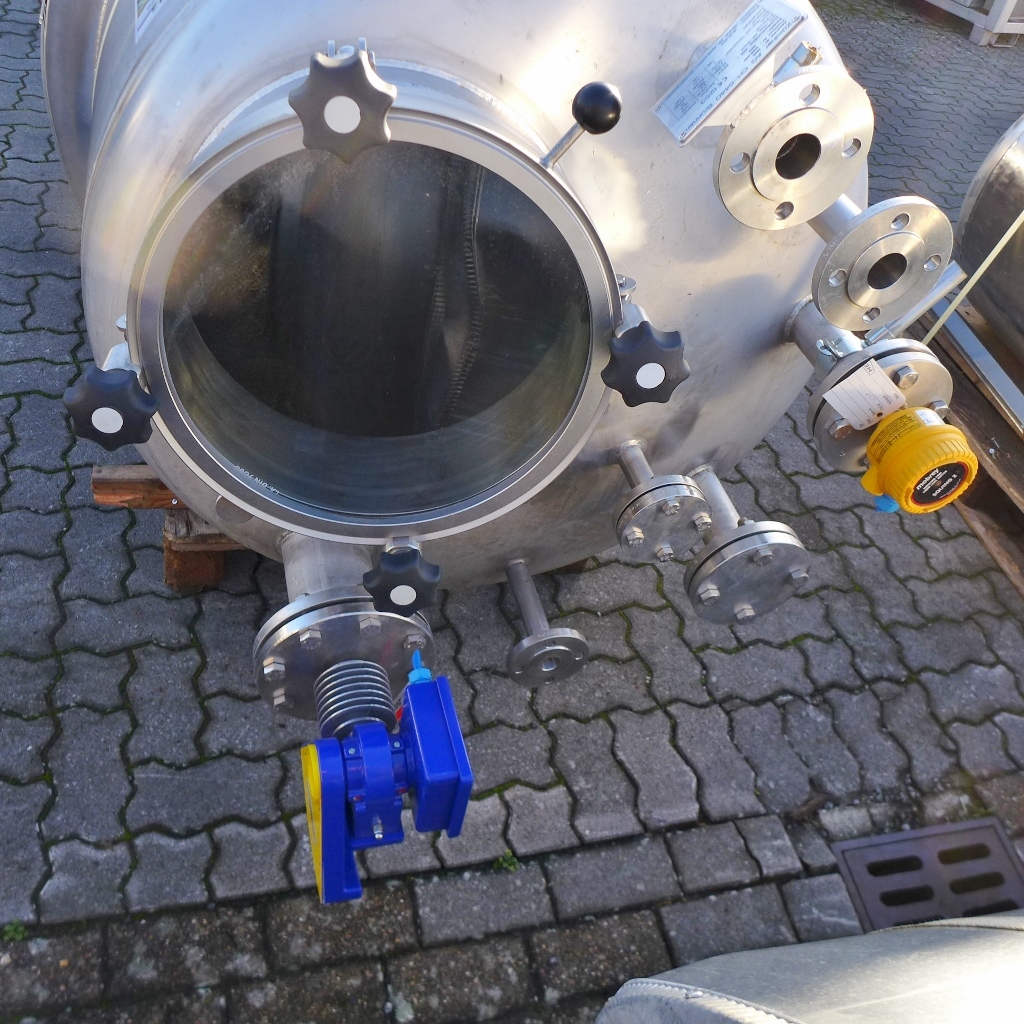

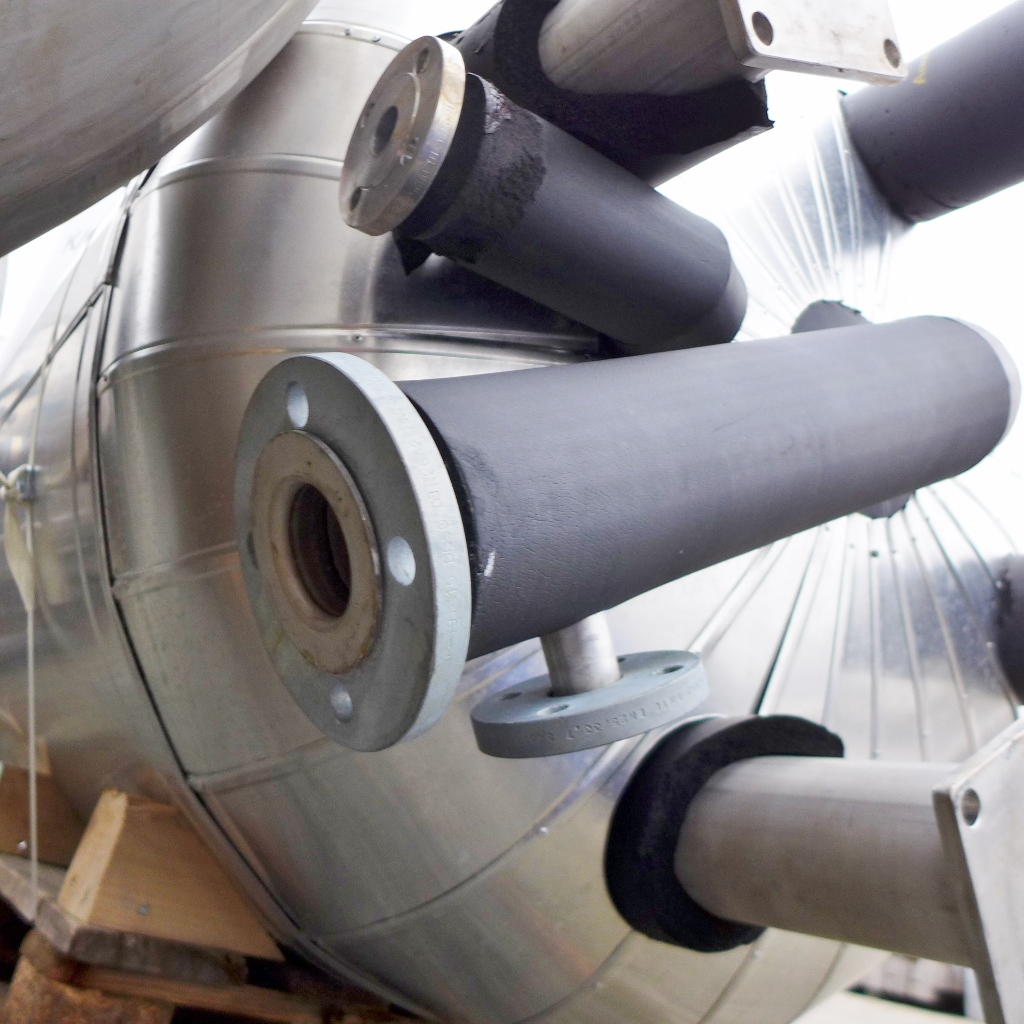

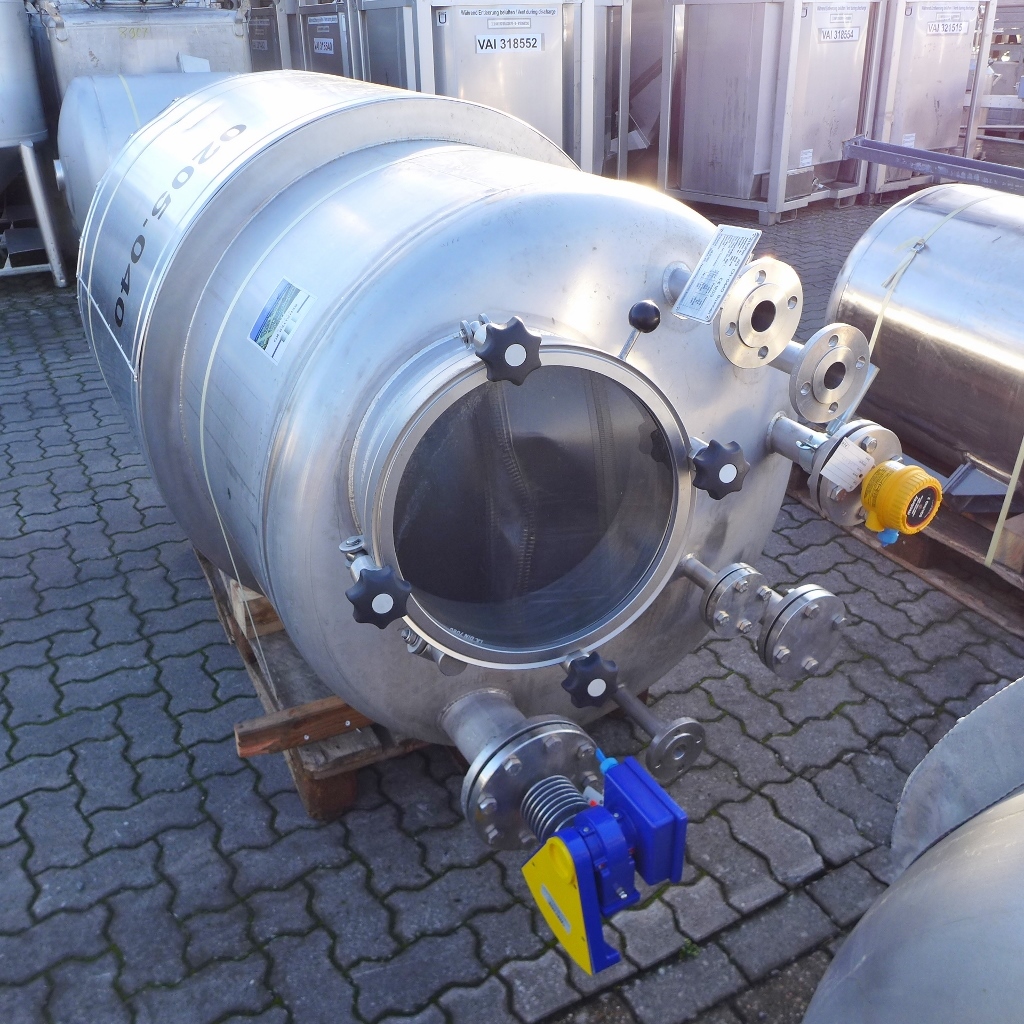

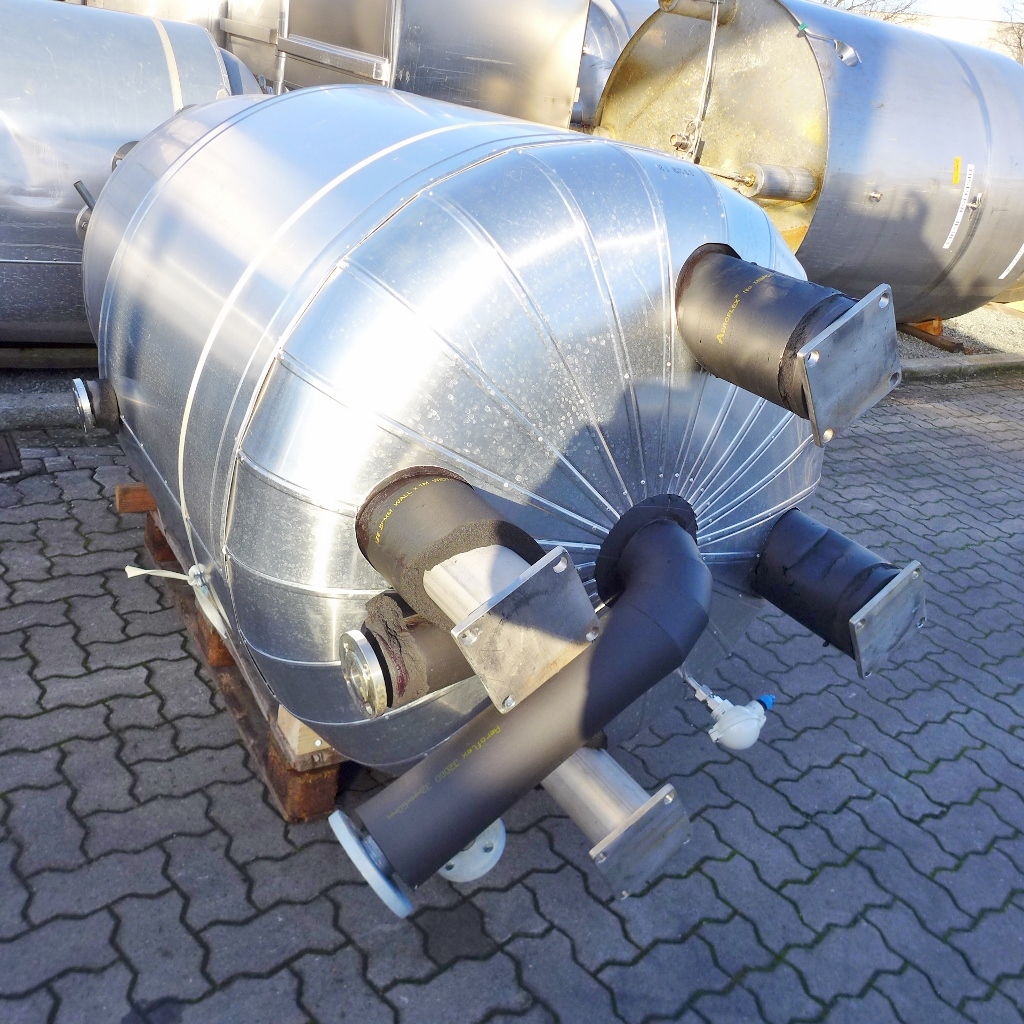

Additional information: Pharmaceutical Chemistry; Further technical documents available; Manhole cover with large sight glass; Loose flanges of the outlet fitting DN 50 & DN 25 made of Fe; bump at the insulation jacket Volumetric volume (L): 1.300 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3,20 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Volume: 50 L Max Overpressure: 13 Bar Max onderdruk: 1 Bar Max. working temperature: 200 °C Type HE on the bottom: half pipe welded onto the outside of the innertank Type HE on the cylinder: half pipe welded onto the outside of the innertank Heat exchanger: RVS 304 Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: in the bottom Outlet of tank: available Cylinder: 5 mm Bottom: 4,70 mm Internal diameter tank: 1.000 mm Outer diameter tank: 1.160 mm Cylinder height: 1.380 mm Total height of tank: 2.450 mm
