1000 liter i Syrafast 316

item available on order

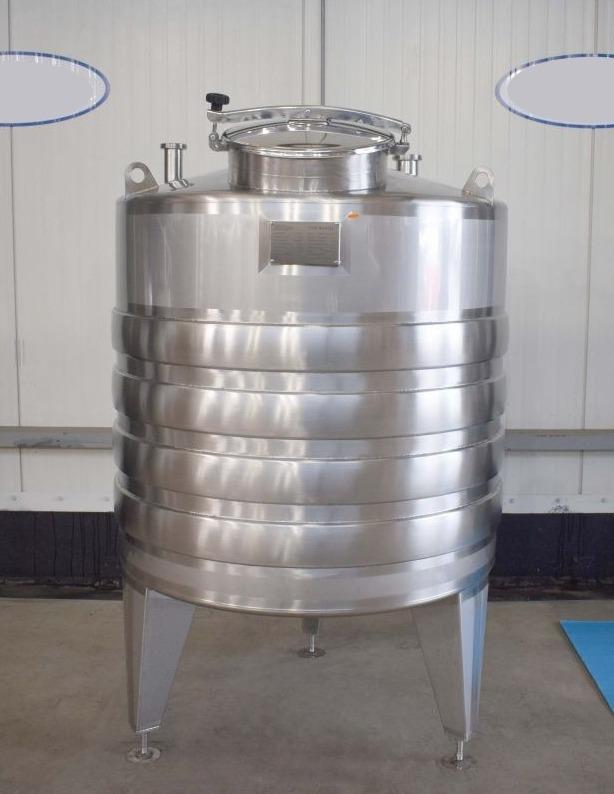

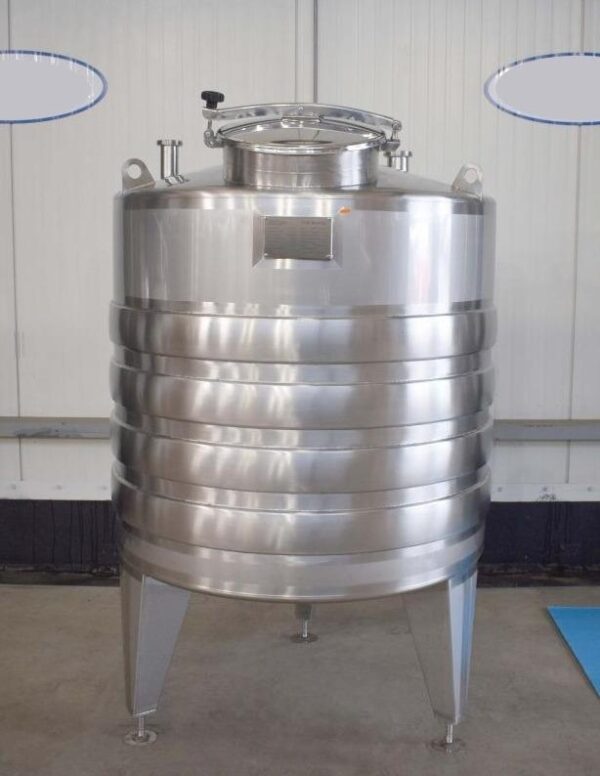

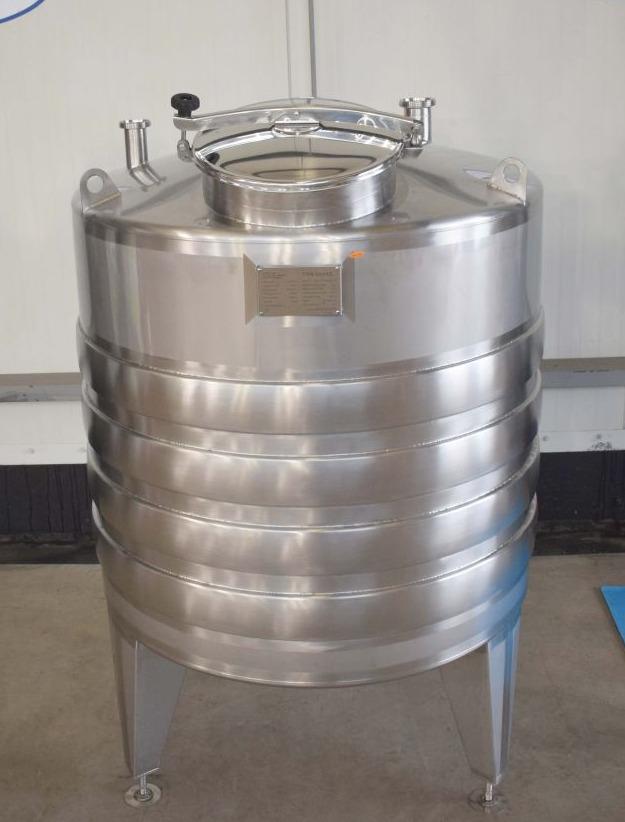

Article type: brand new storage tank – type K2-H12L
Capacity: 1.000 L
Maximal density of the product: 1.200
Ra inner weld: 0,80
Finish stainless steel: 2b

Working pressure in tank: ATM – atmosferic
Max. working temperature: 100 °C
Min. working temperature: -10 °C
Material wet parts: SS AISI 316L (V4A)
Model: vertical

Configuration: single jacketed with heat-exchanger
Heat exchanger: yes
Insulation: no
Agitator: yes, optional
Mobile tank: no

Top type: conical 15 °
Shape of tank: cylindrical
Bottom type: conical 15 °
Total discharge: yes

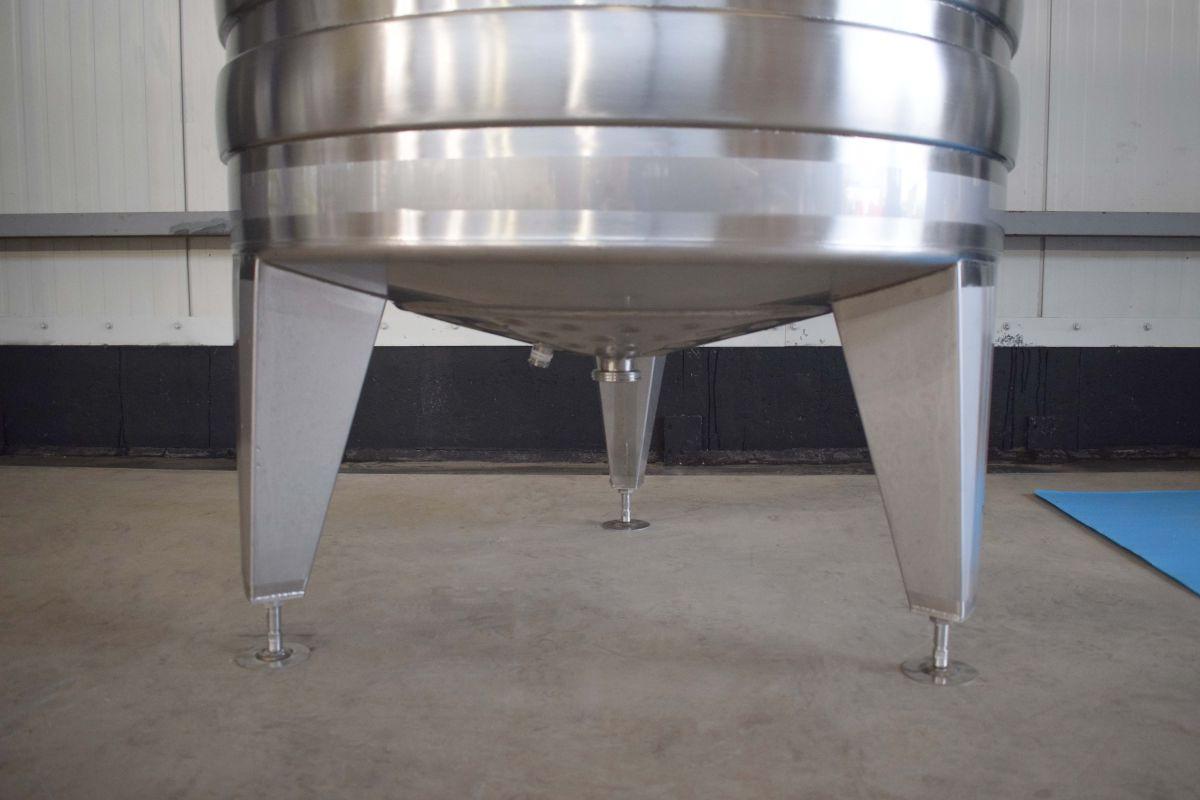

Fixation points: 3 adjustable feet

Legs: Set of baseplates and adjusting pieces included

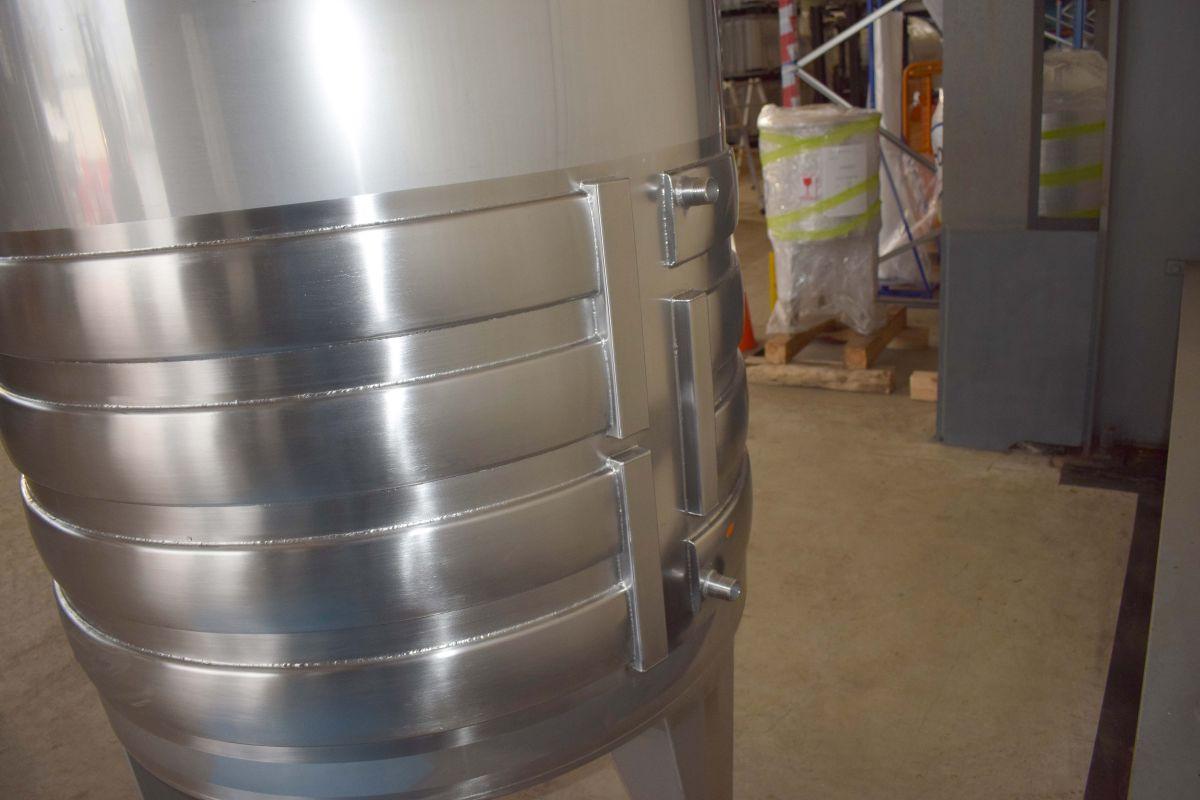

Type of HE on the cylinder: half pipe welded onto the outside of the innertank
Position HE: the complet cilinder
Water pressure HE: 3 Bar
Hydraulic test pressure: 4,50 Bar

Contact surface cylinder: 1,26 m²
Connection HE: 1″BSP male
Working temperature HE cylinder: 100 °C

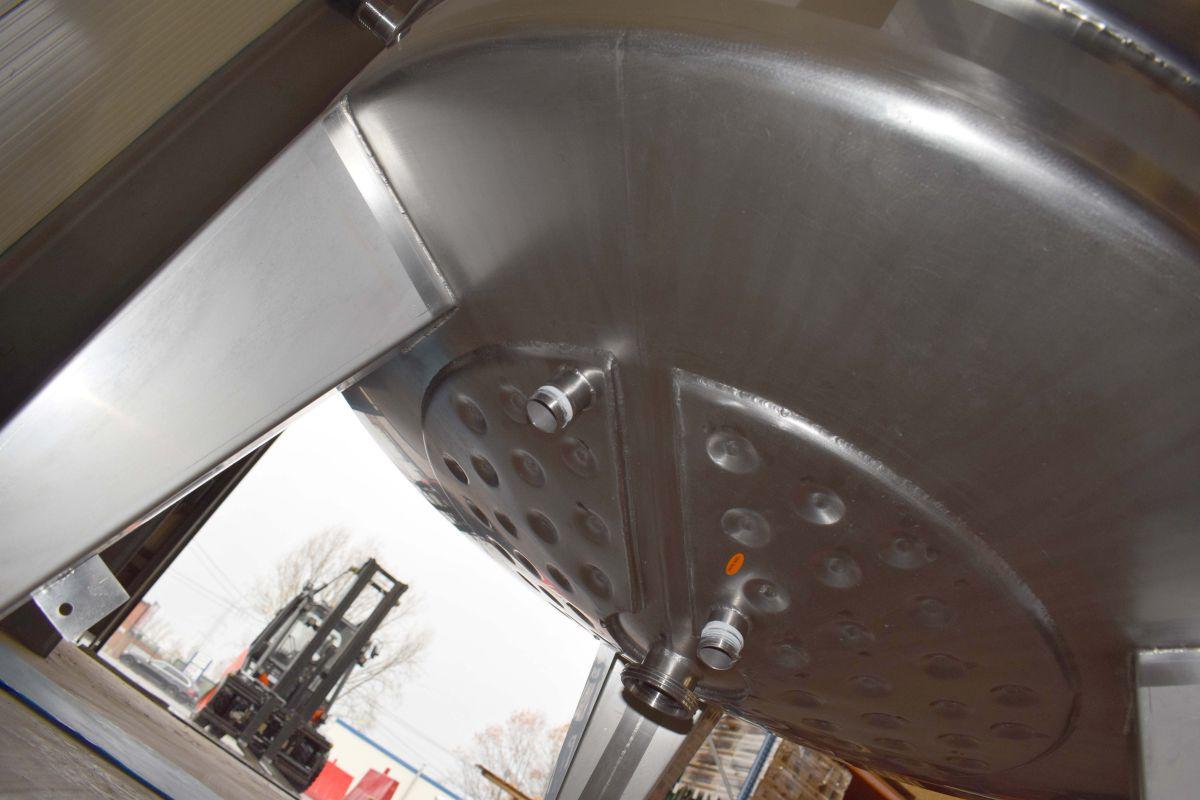

Type of HE on the bottom: dimple-jacket
Water pressure HE: 3 Bar

Contact surface bottom: 0,40
Connection HE: 1″BSP male
Working temperature HE bottom: 100 °C
Heat exchanger: RVS 304
Manway(s): RVS 316

Gasket manway(s): EPDM
Fixation point(s): RVS 304
Suitable for food industry: yes
Documents included: yes, optional

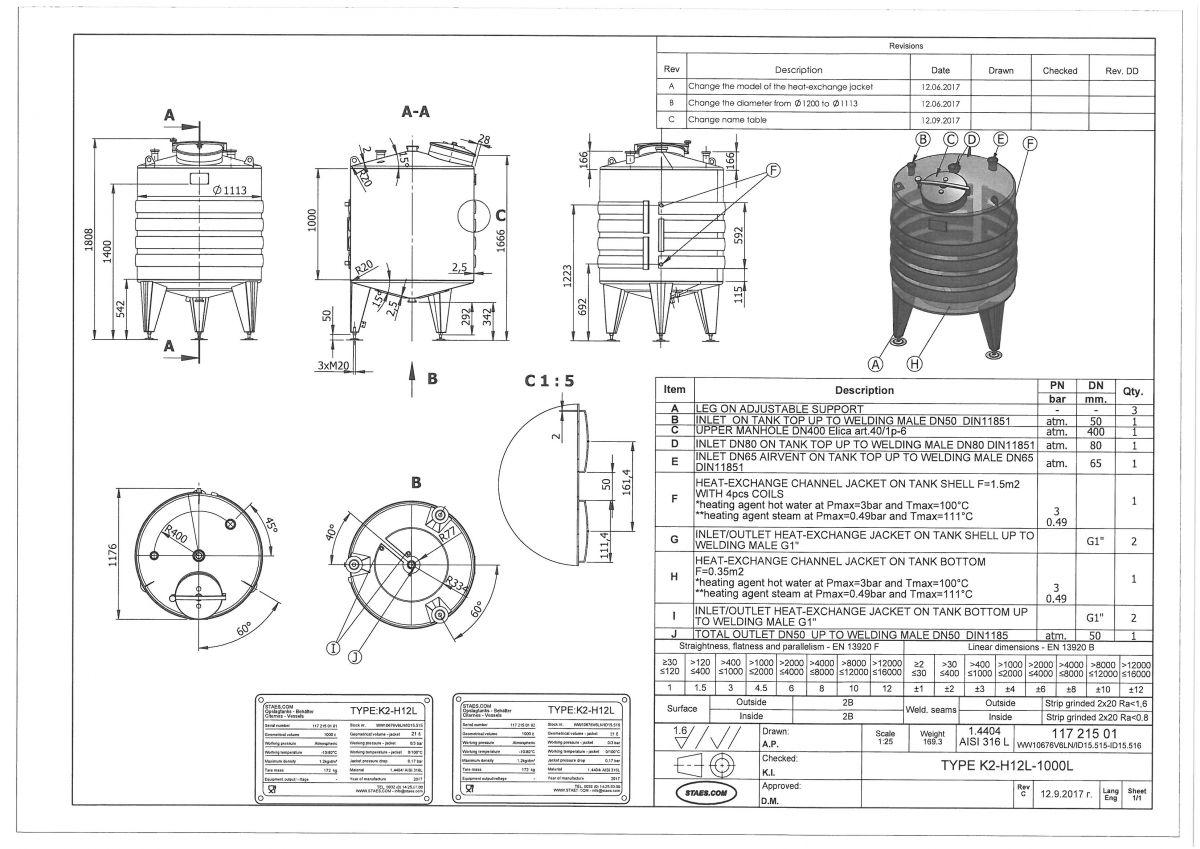

Technical drawing included: yes

Registration plate on the tank: yes
with inspection of: TUV
Flange for agitator: no

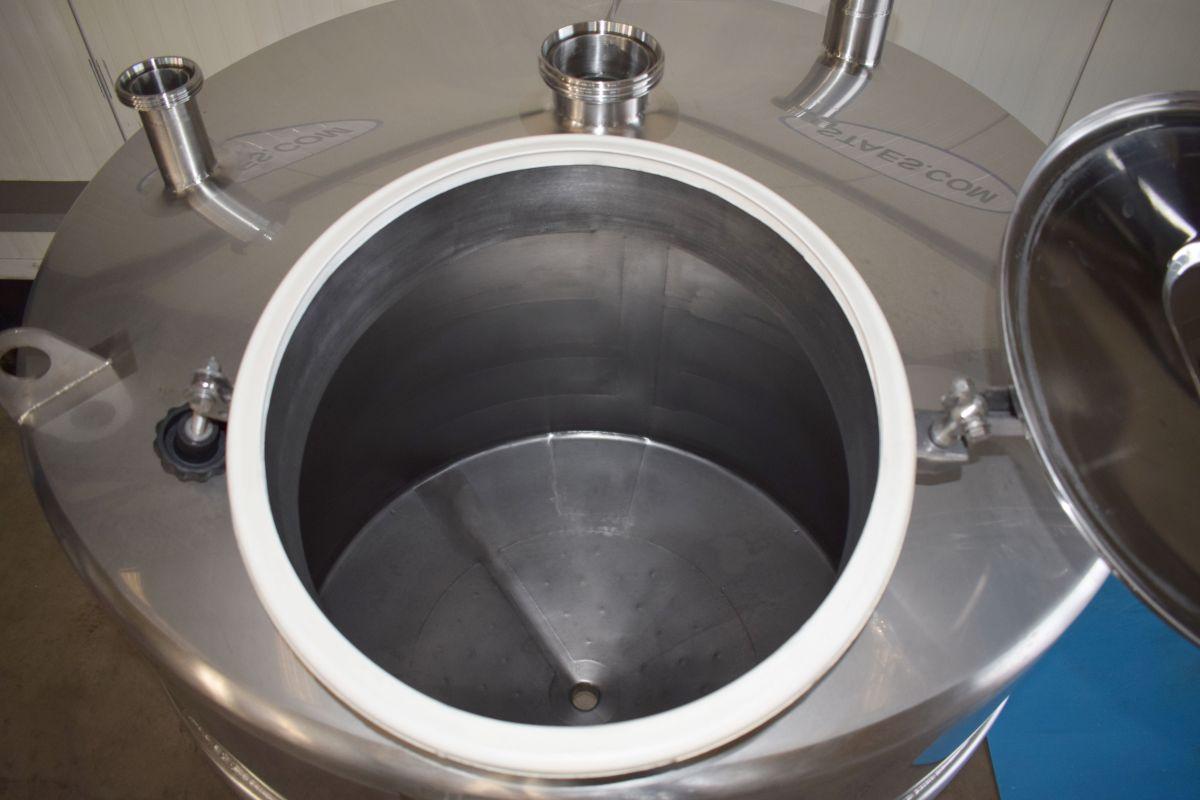

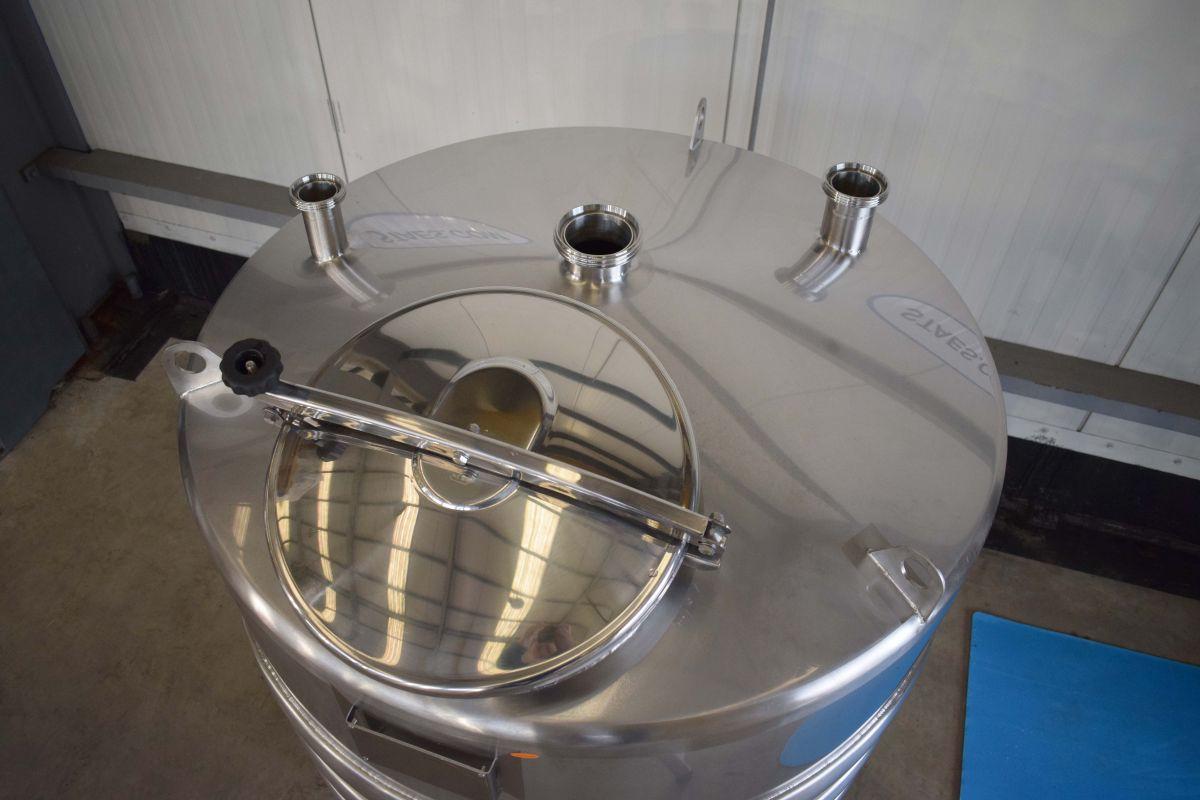

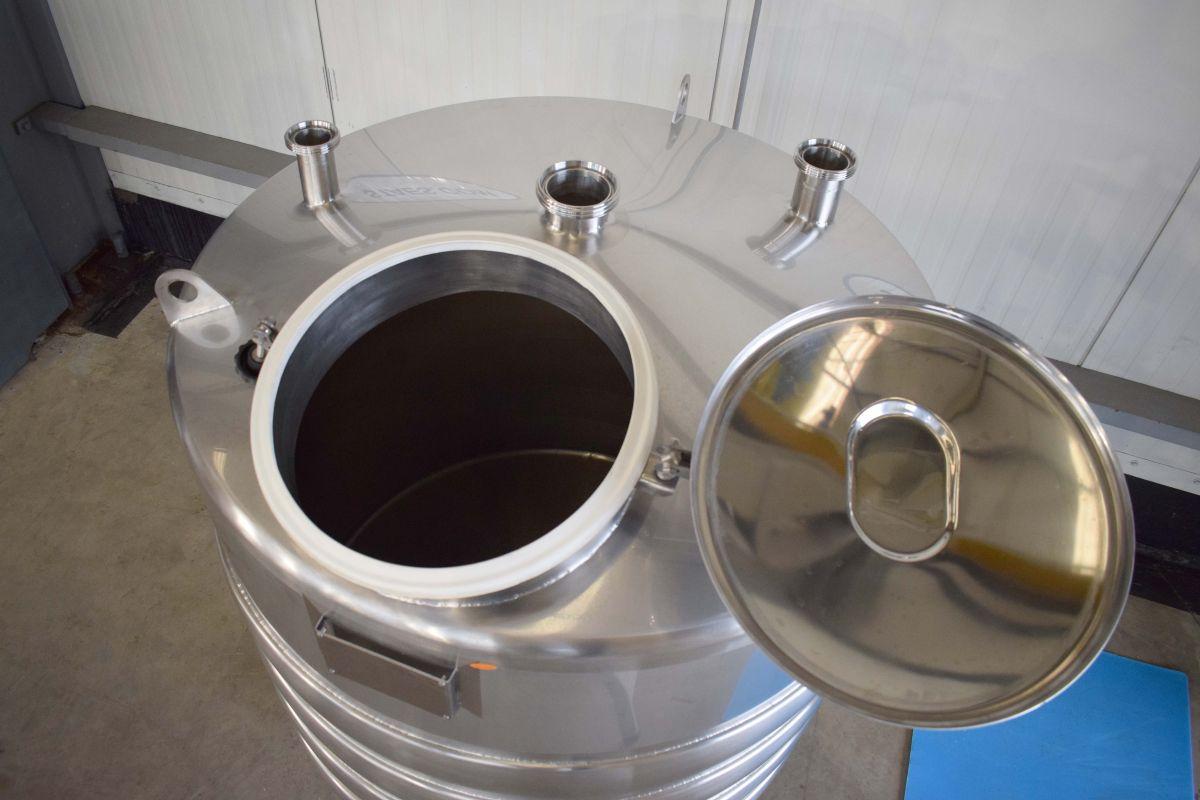

Number of manways: 1

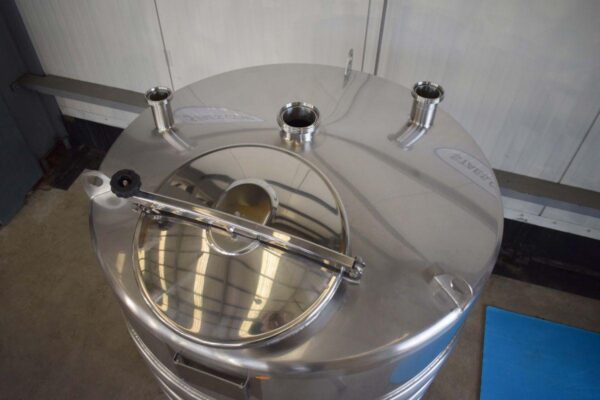

Position manway: at the top

Manway 1: 400 mm
Tank outlet: inside Ø 50 mm
Outlet type: DIN11851 male
Total outlet valve: yes, optional
Top: 2 mm

Cylinder: 2 mm
Bottom: 2,50 mm
Distance from outlet to ground: 291 mm
Outer diameter tank: 1.113 mm
Cylinder height: 750 mm

Total height of tank: 1.807 mm
Empty weight tank: 149
