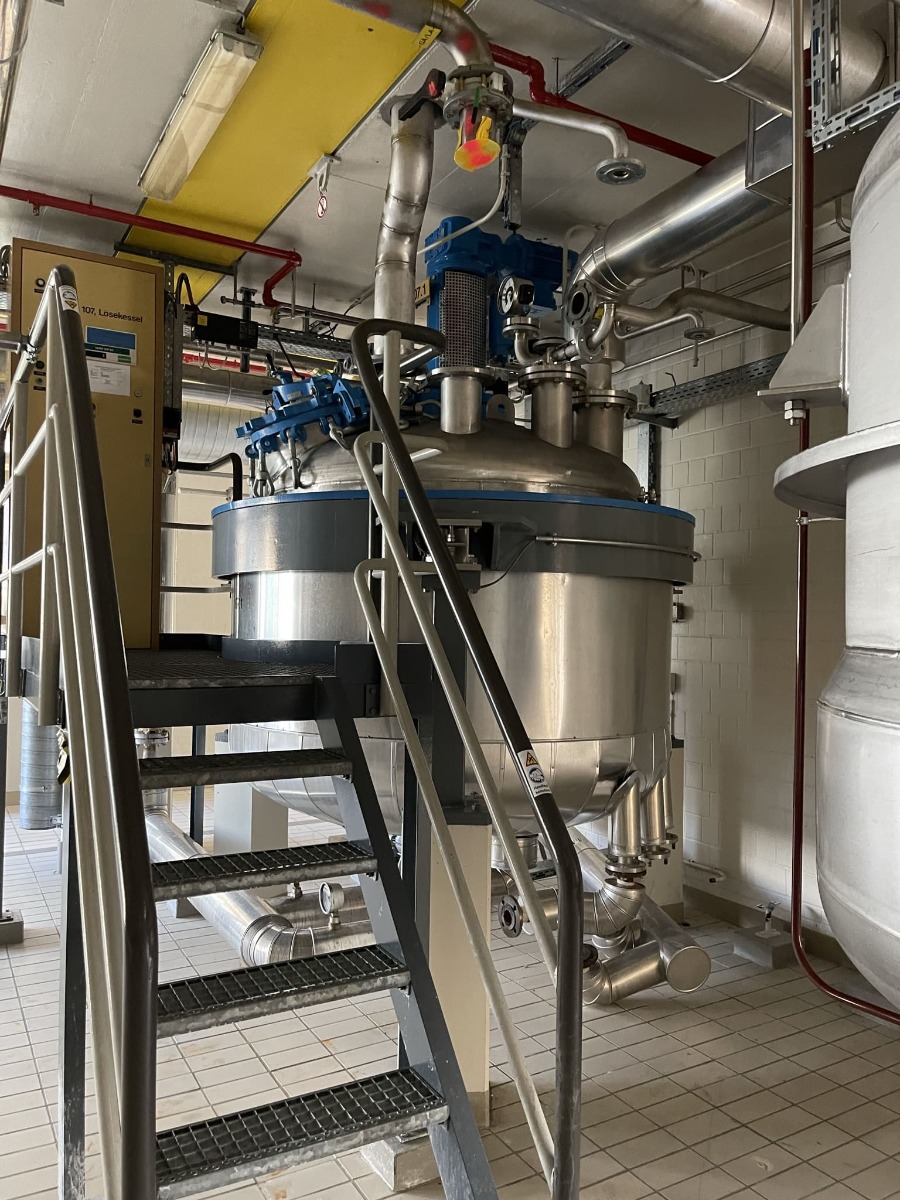

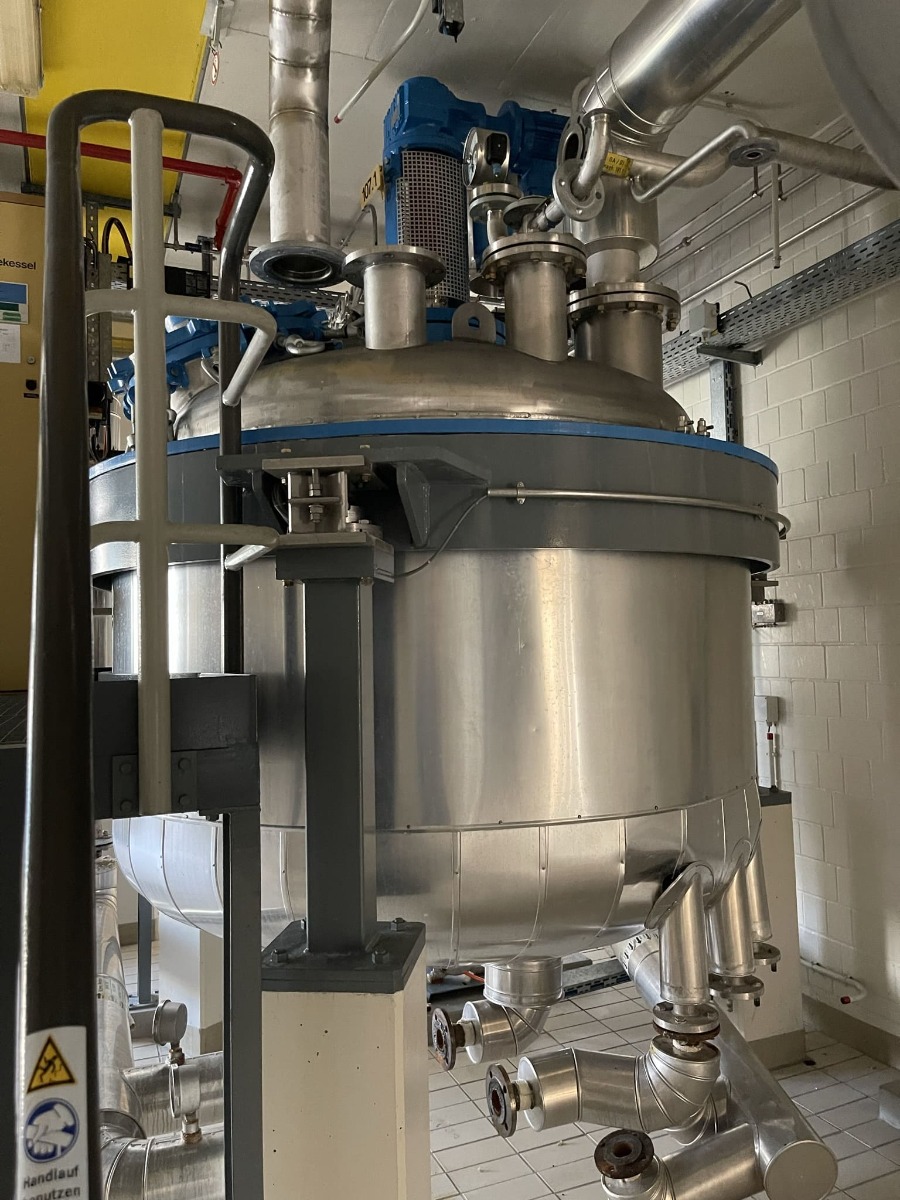

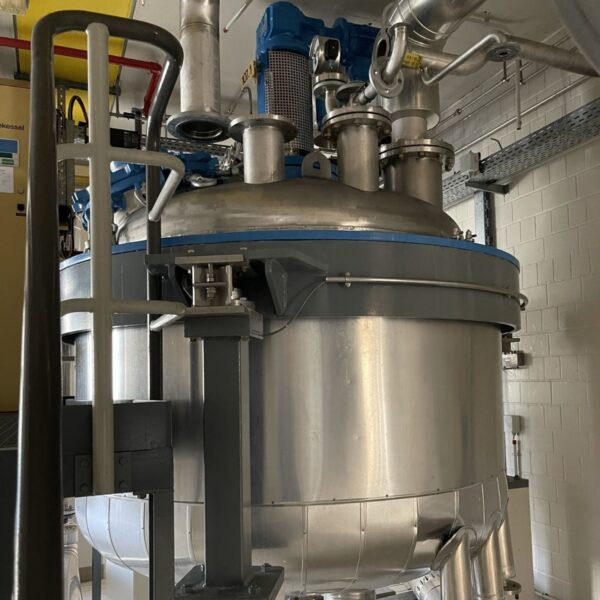

3860 liter tank i Syrafast 316

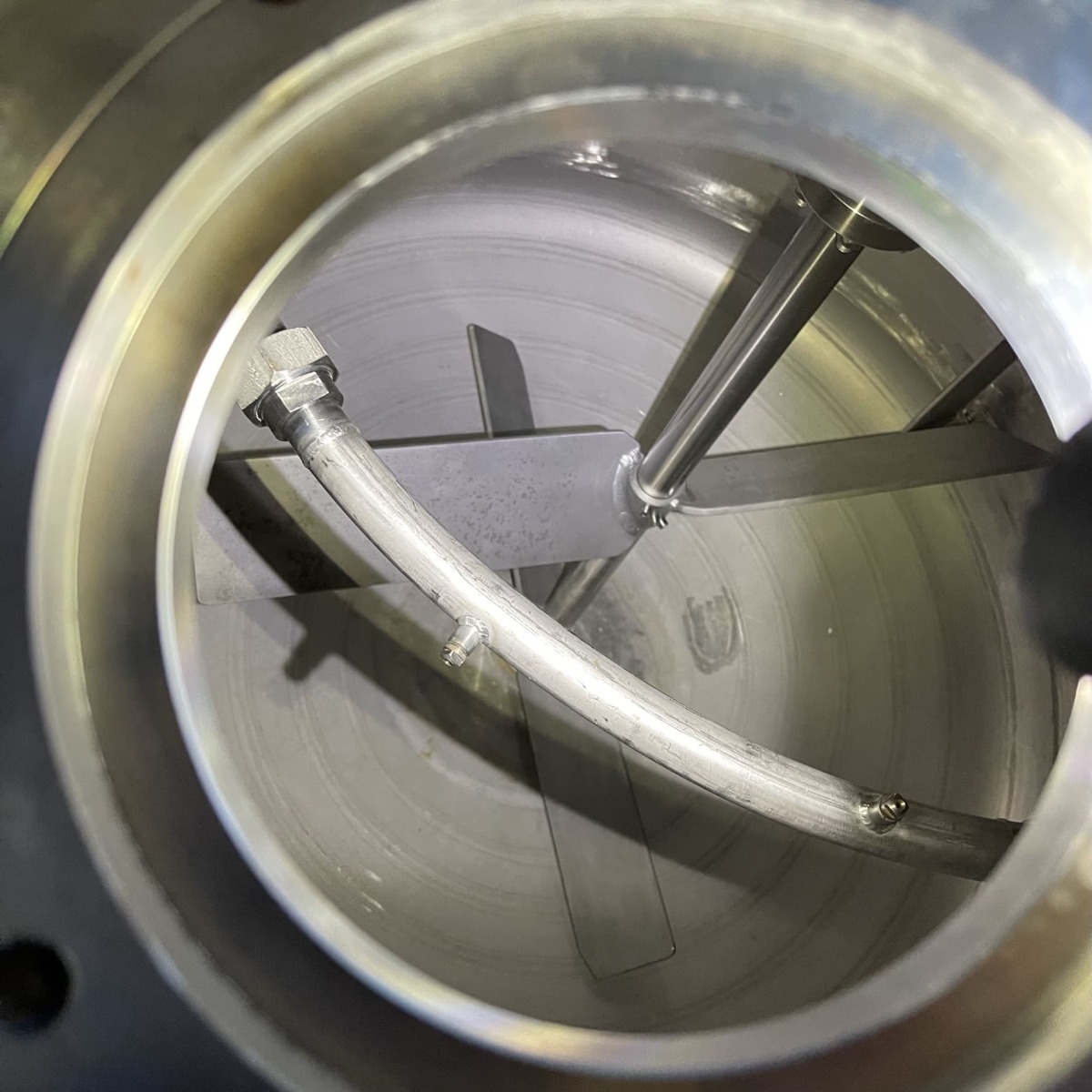

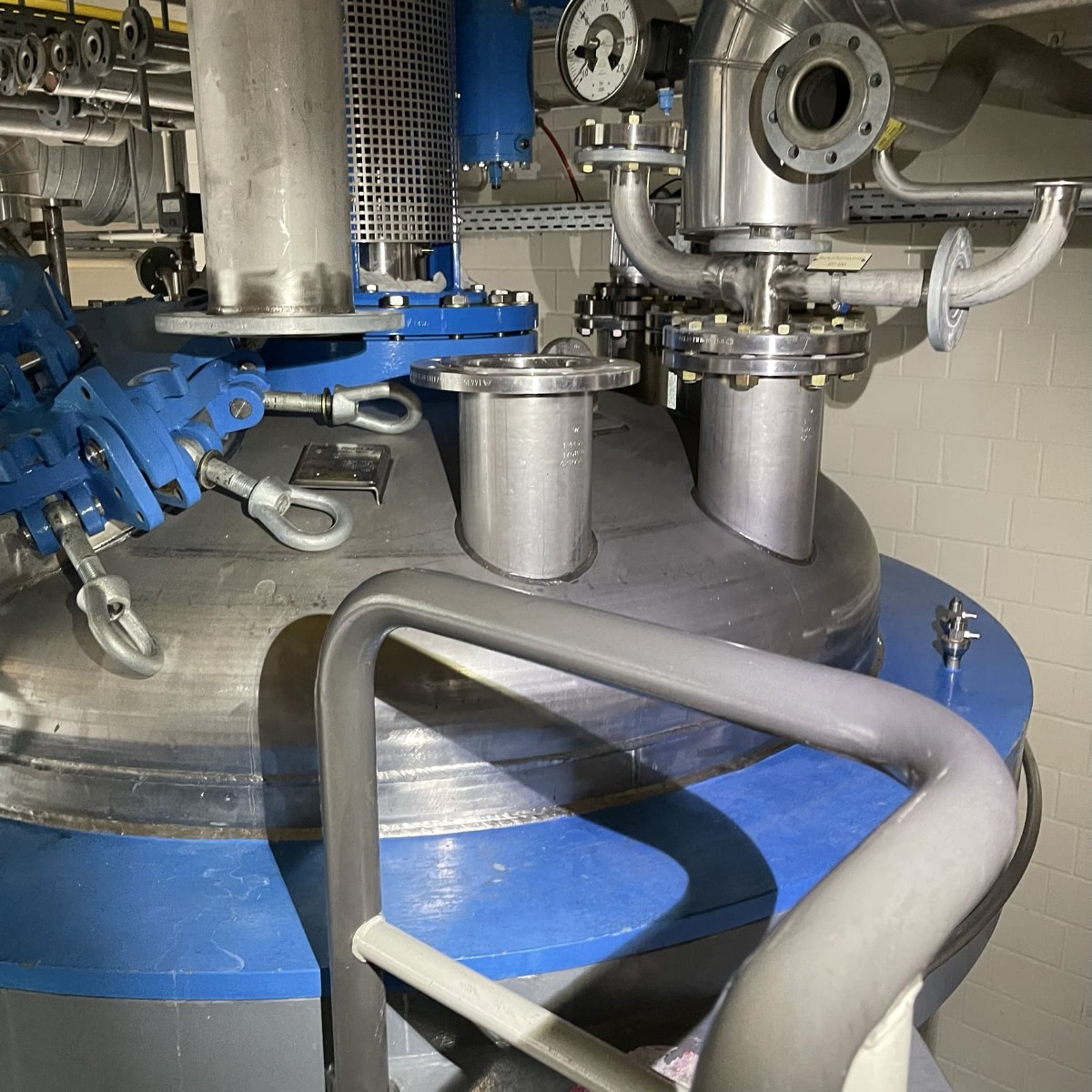

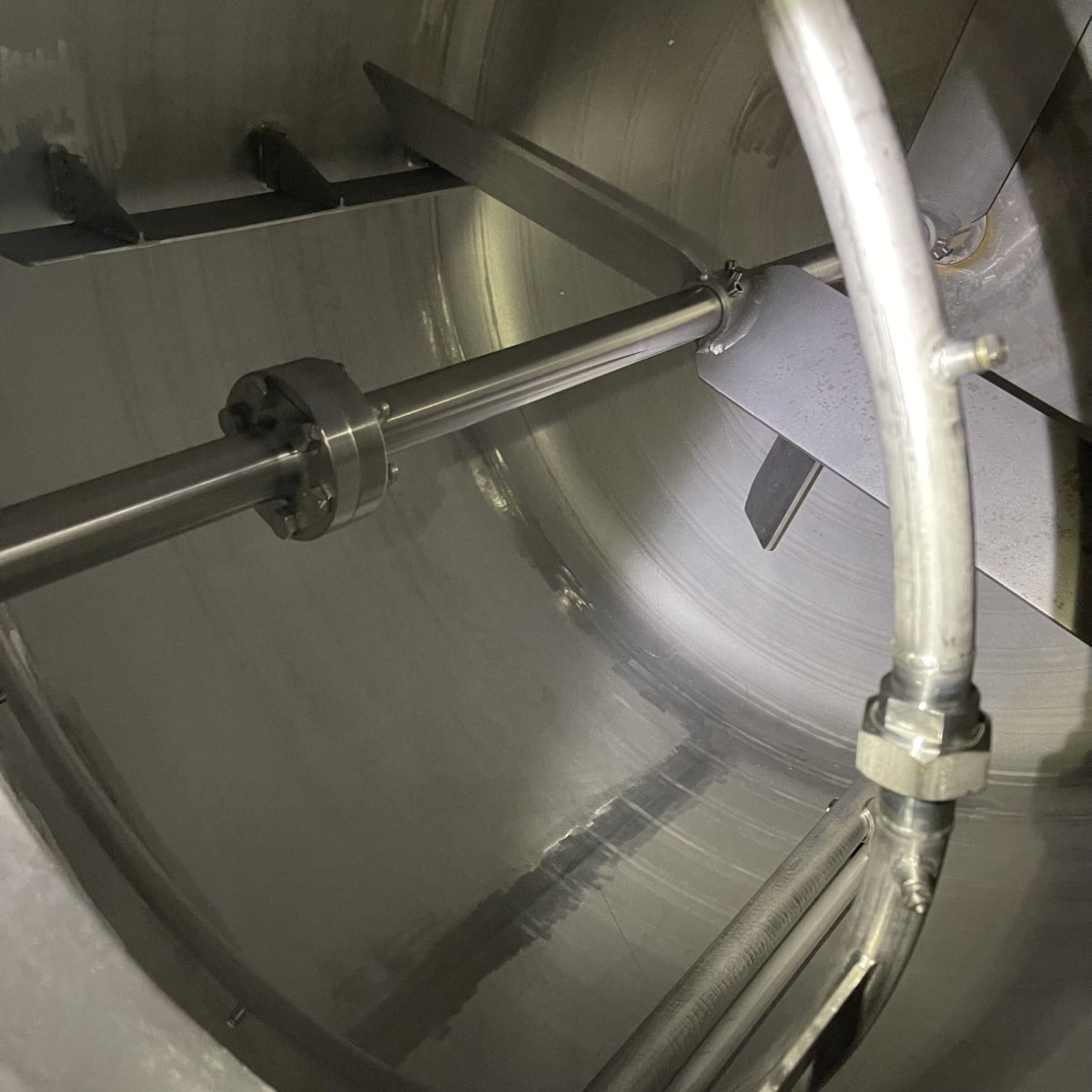

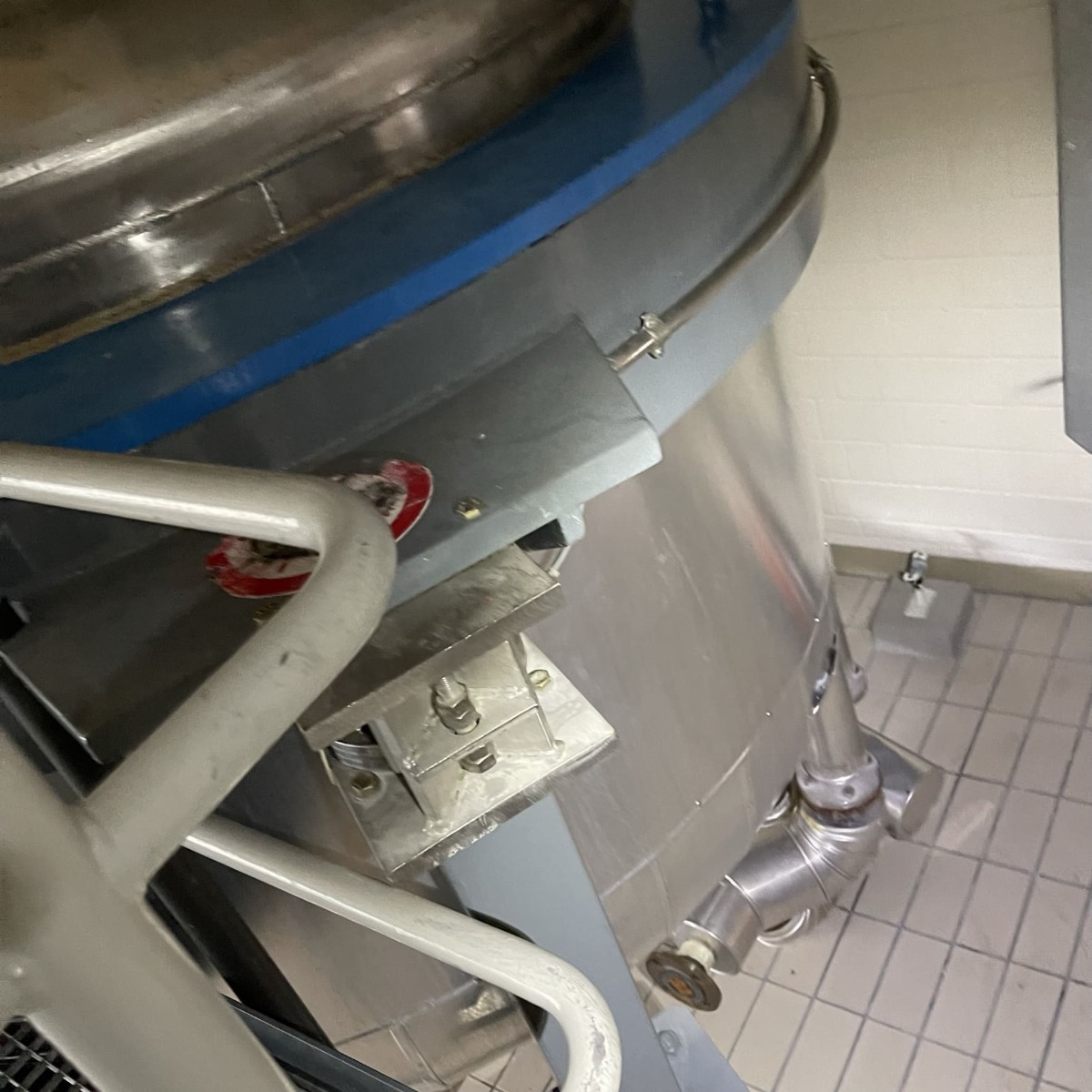

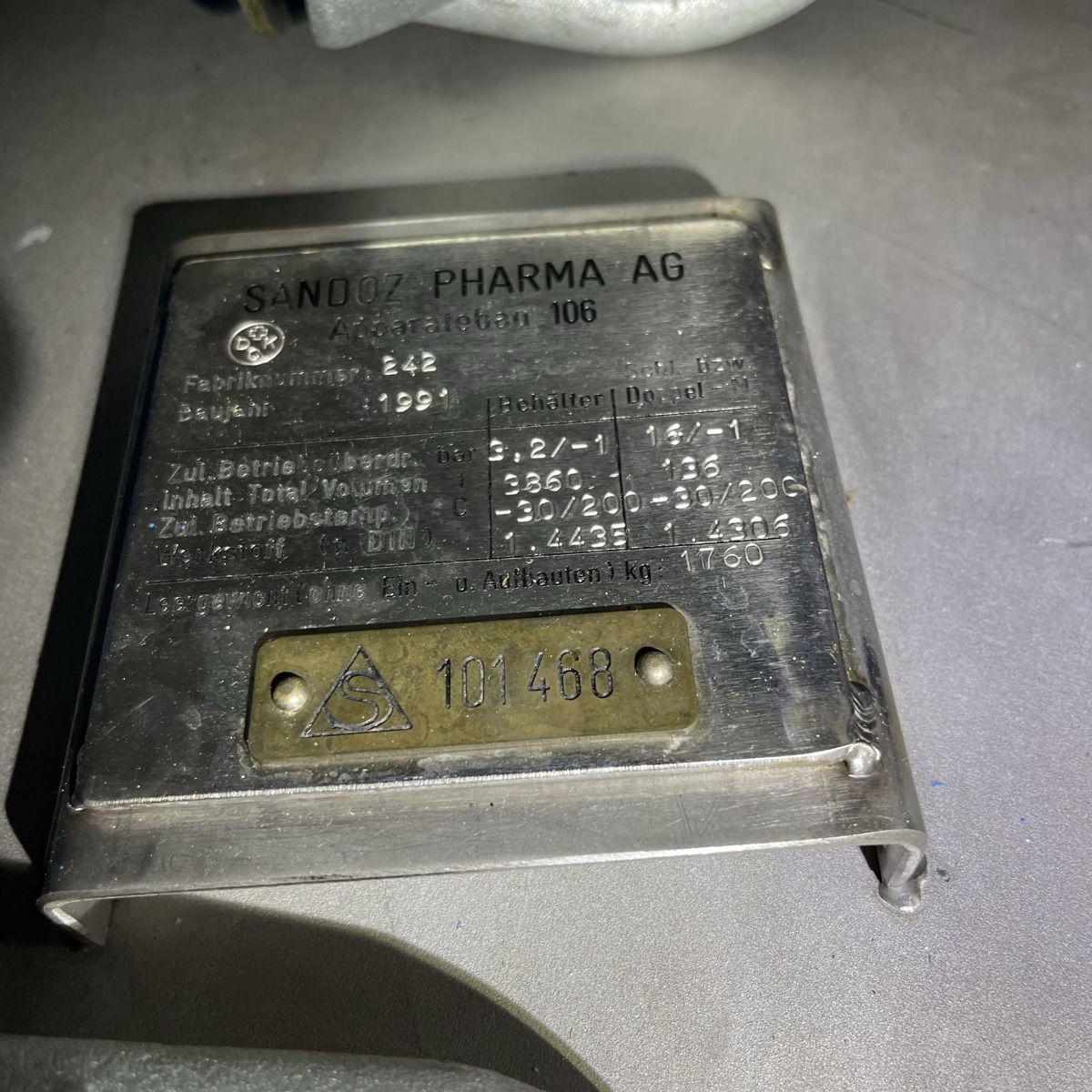

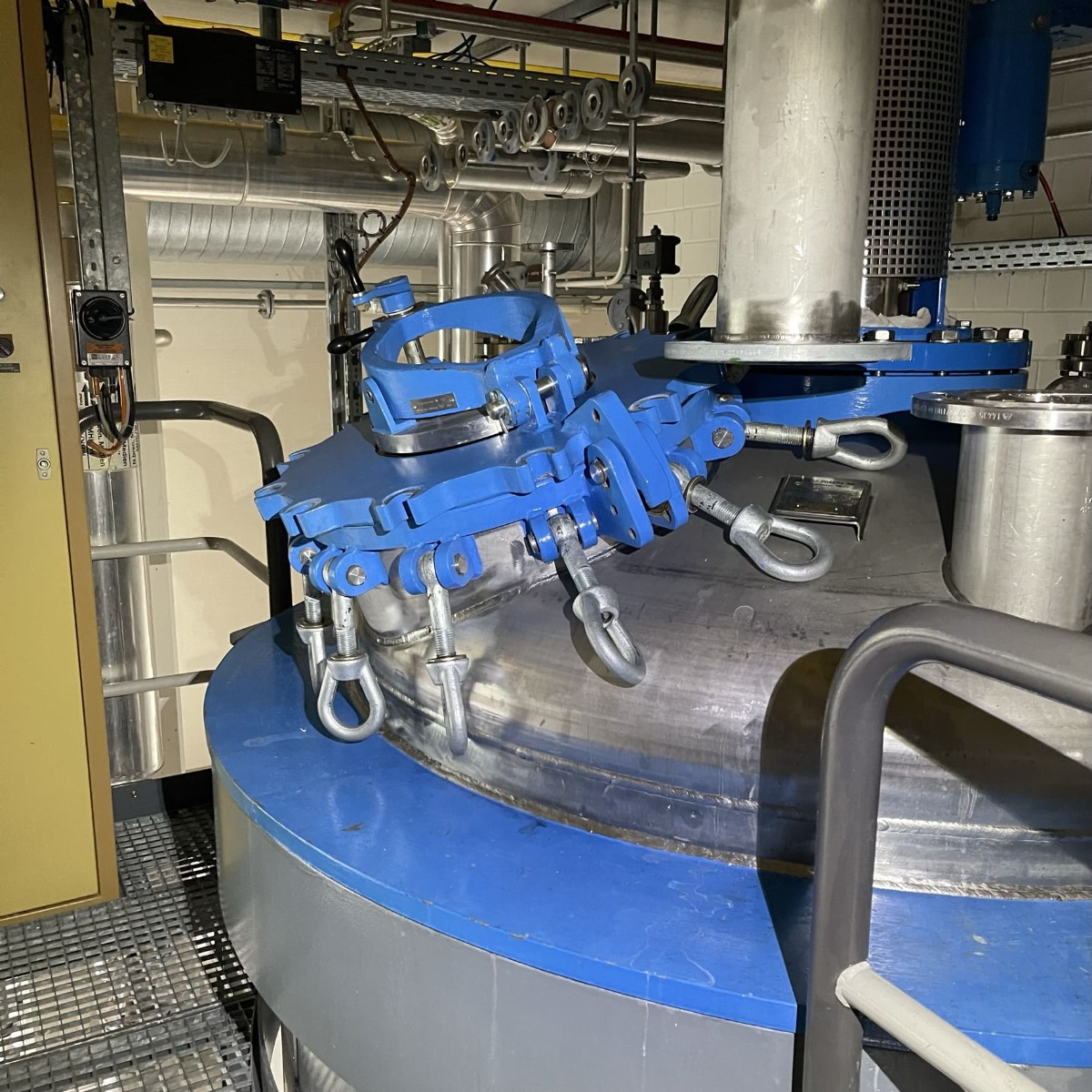

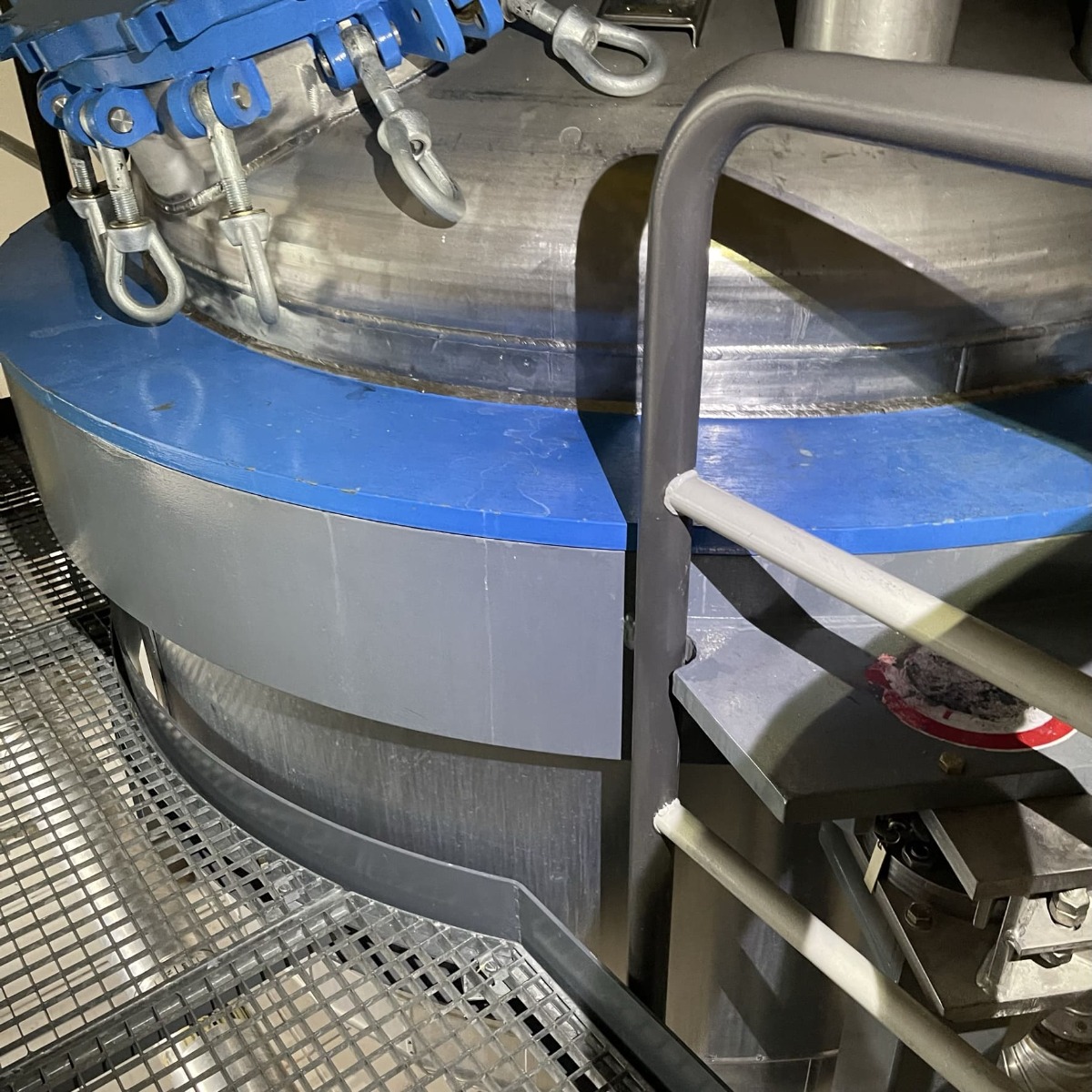

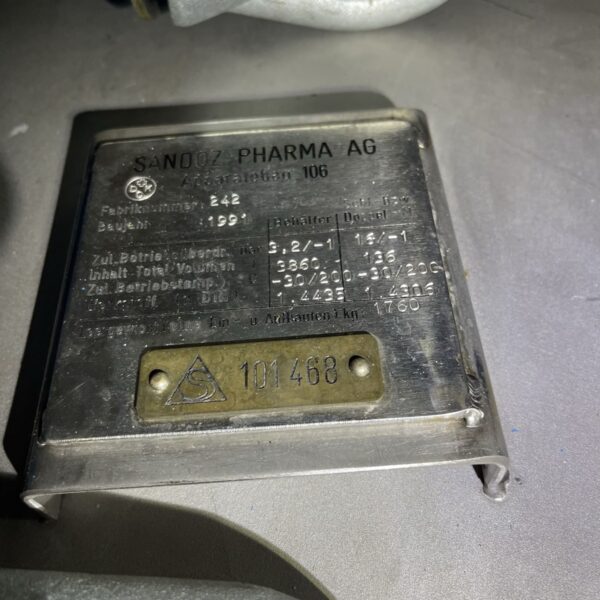

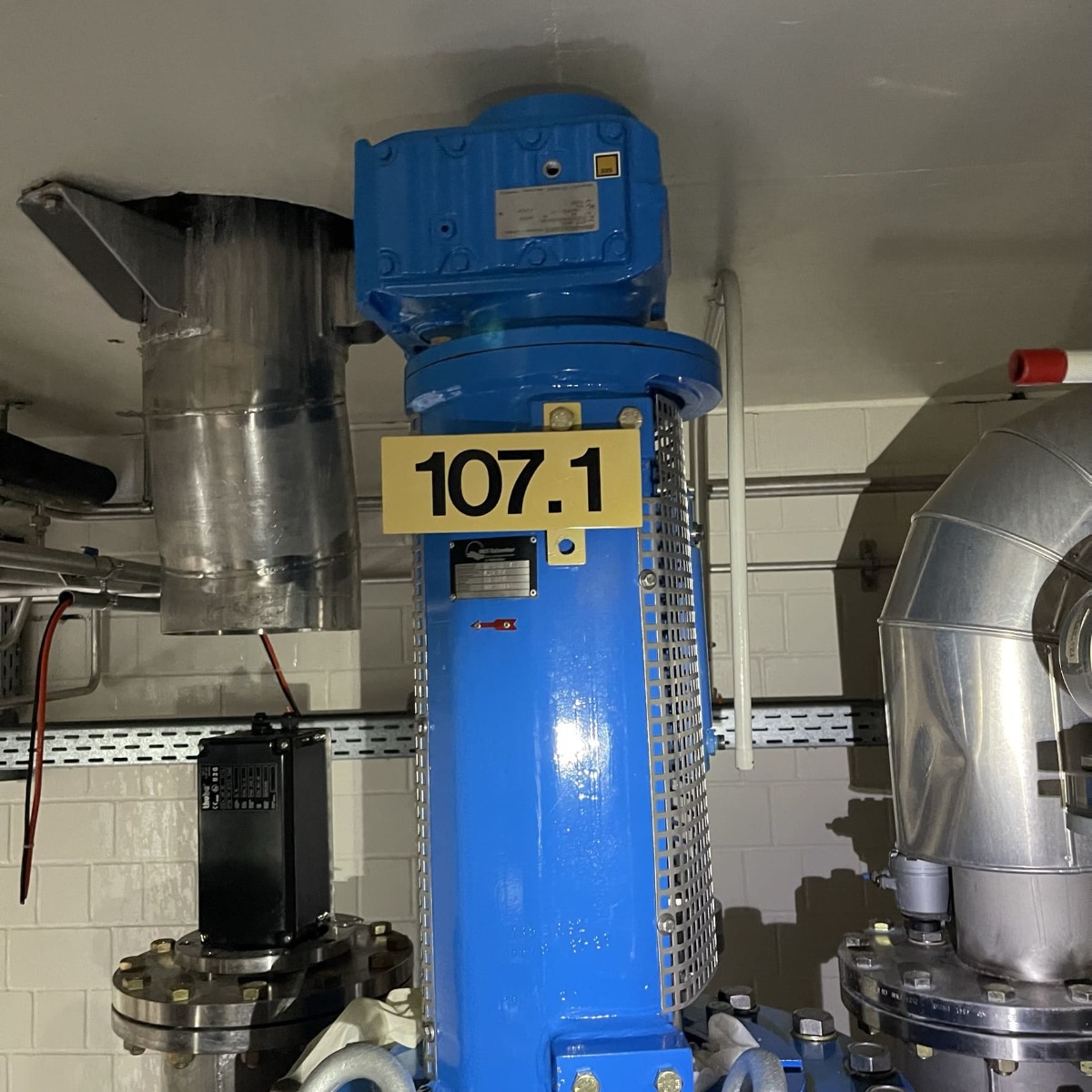

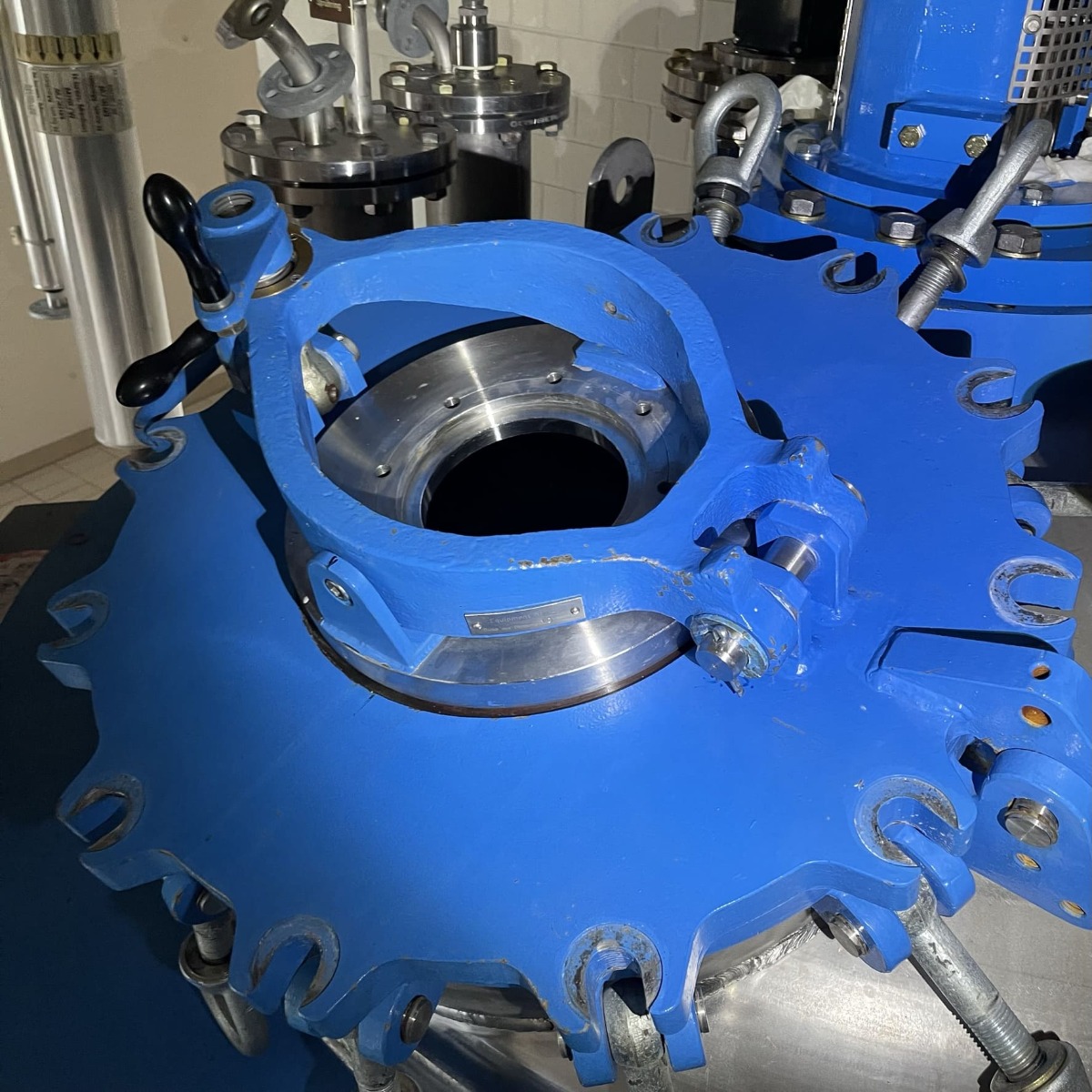

Additional information: Pharmaceutical chemistry; Support ring, Fe; Manhole cover incomplete (see photos); bump at the insulation jacket; manhole cover plated Volumetric volume (L): 3.860 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3,20 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Volume: 136 L Max Overpressure: 16 Bar Max onderdruk: 1 Bar Max. working temperature: 200 °C Type HE on the bottom: half pipe welded onto the outside of the innertank Type HE on the cylinder: half pipe welded onto the outside of the innertank Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: headside Outlet of tank: available Agitator: yes Number of revolutions: 61 Power: 4 Top: 8,14 mm Cylinder: 6 mm Bottom: 5,17 mm Internal diameter tank: 1.800 mm Outer diameter tank: 2.090 mm Total height of tank: 3.050 mm
