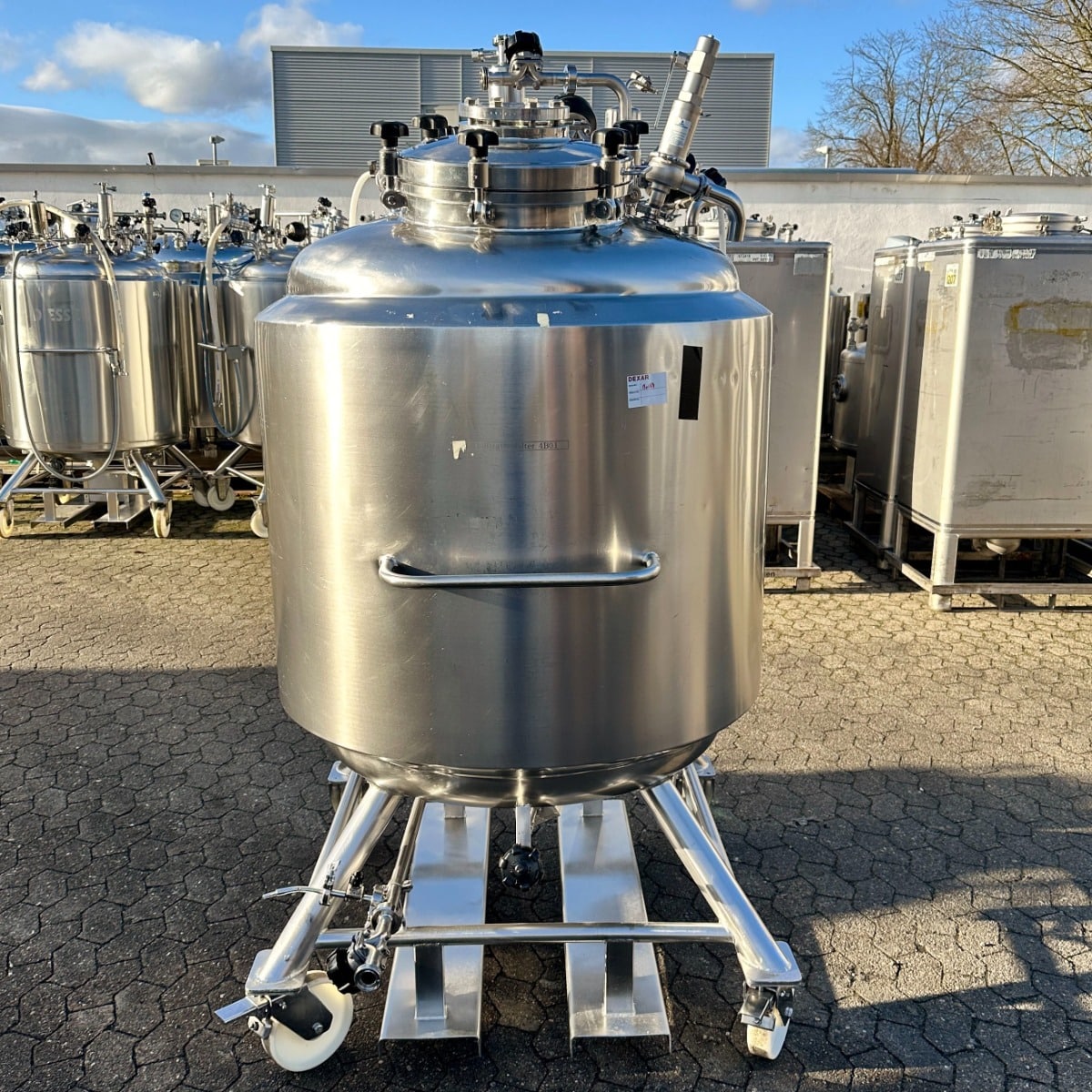

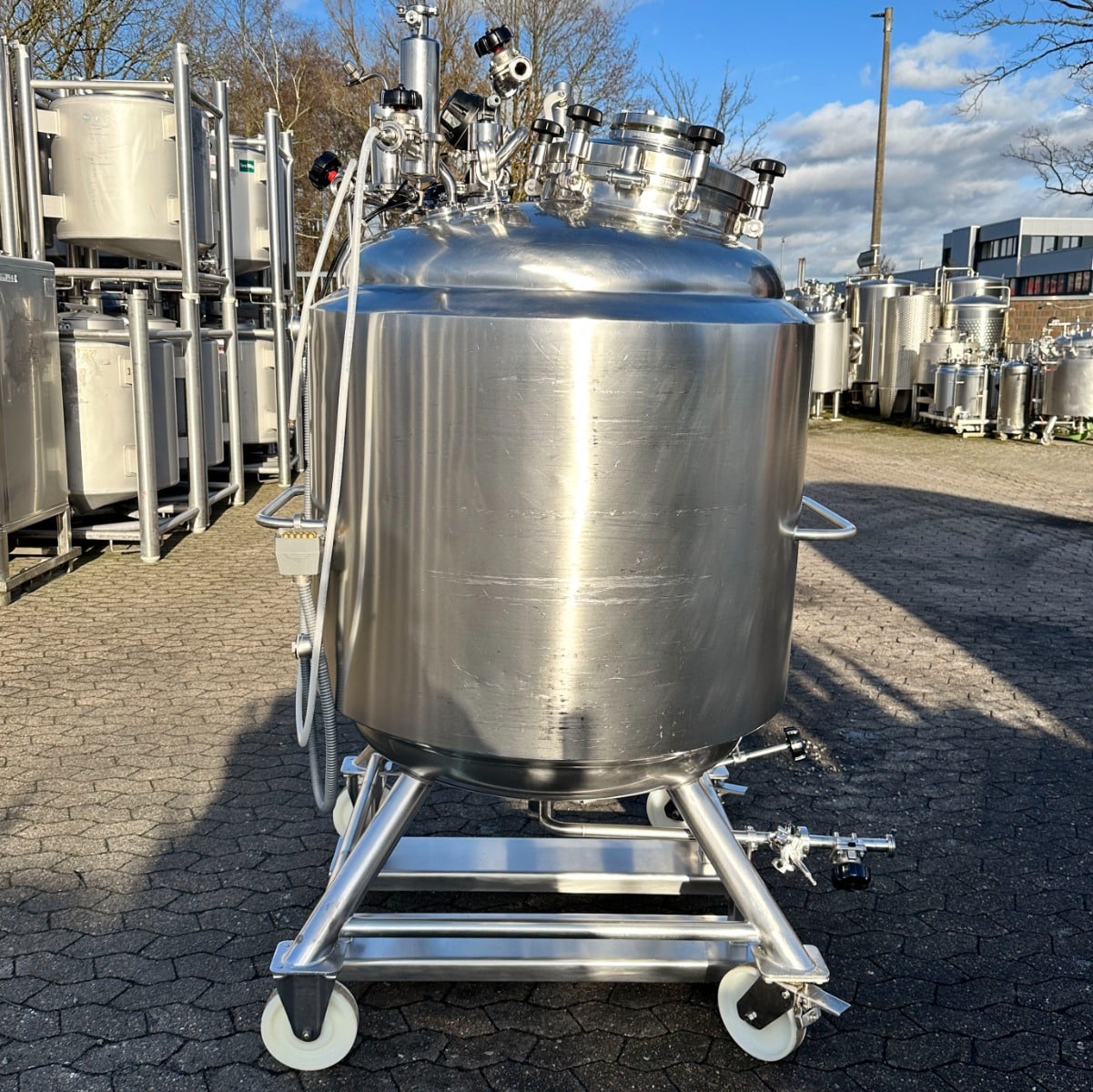

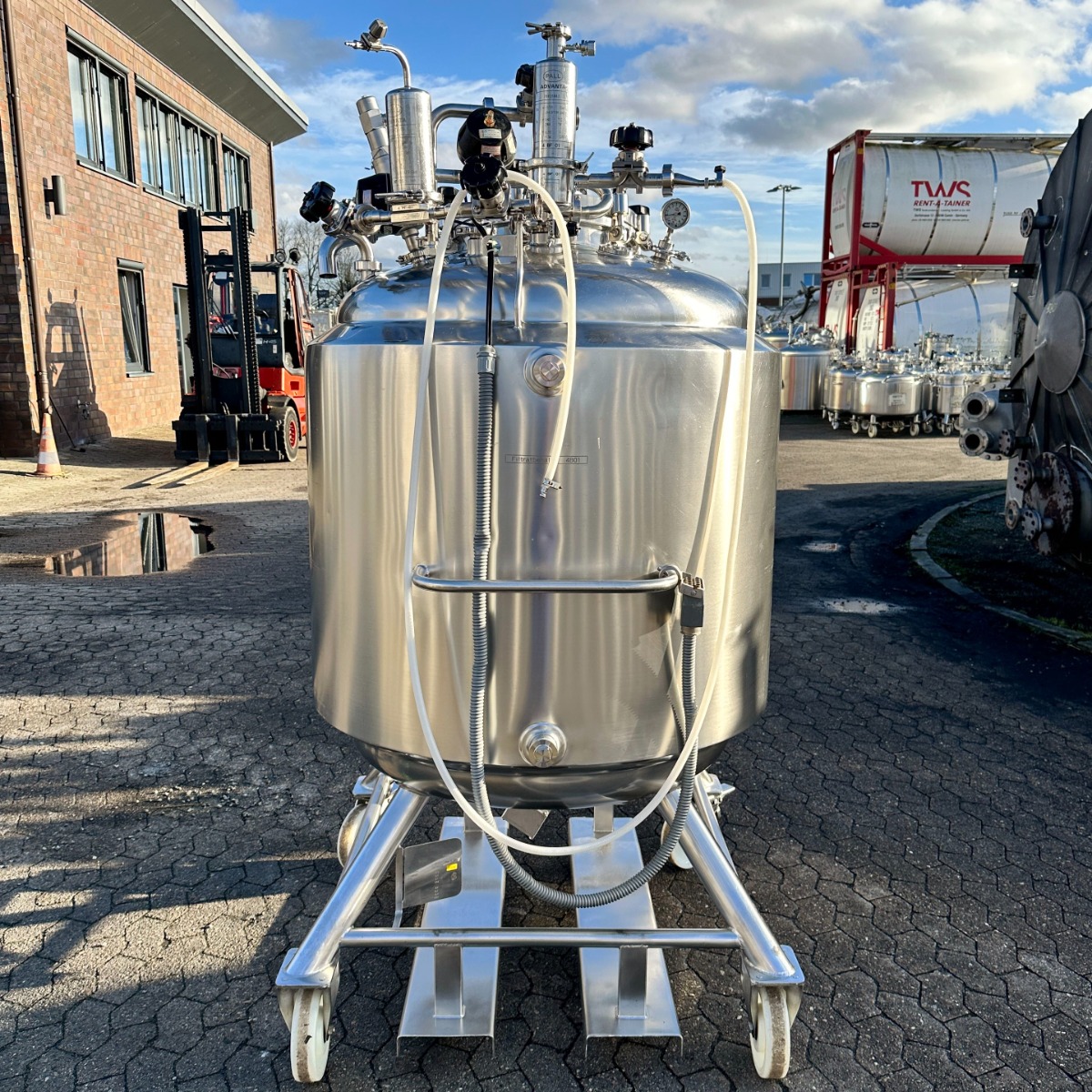

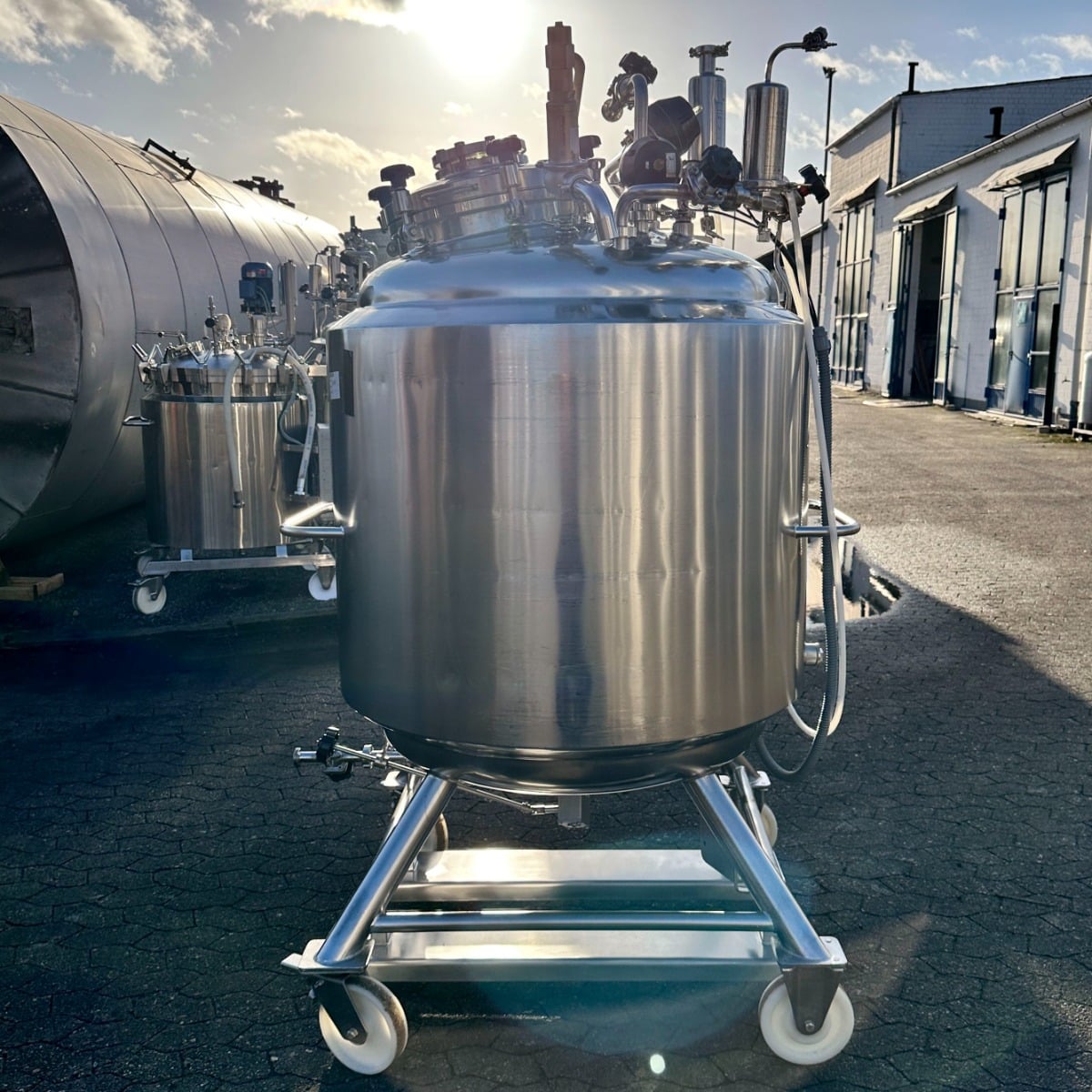

900 liter tank i Syrafast 316

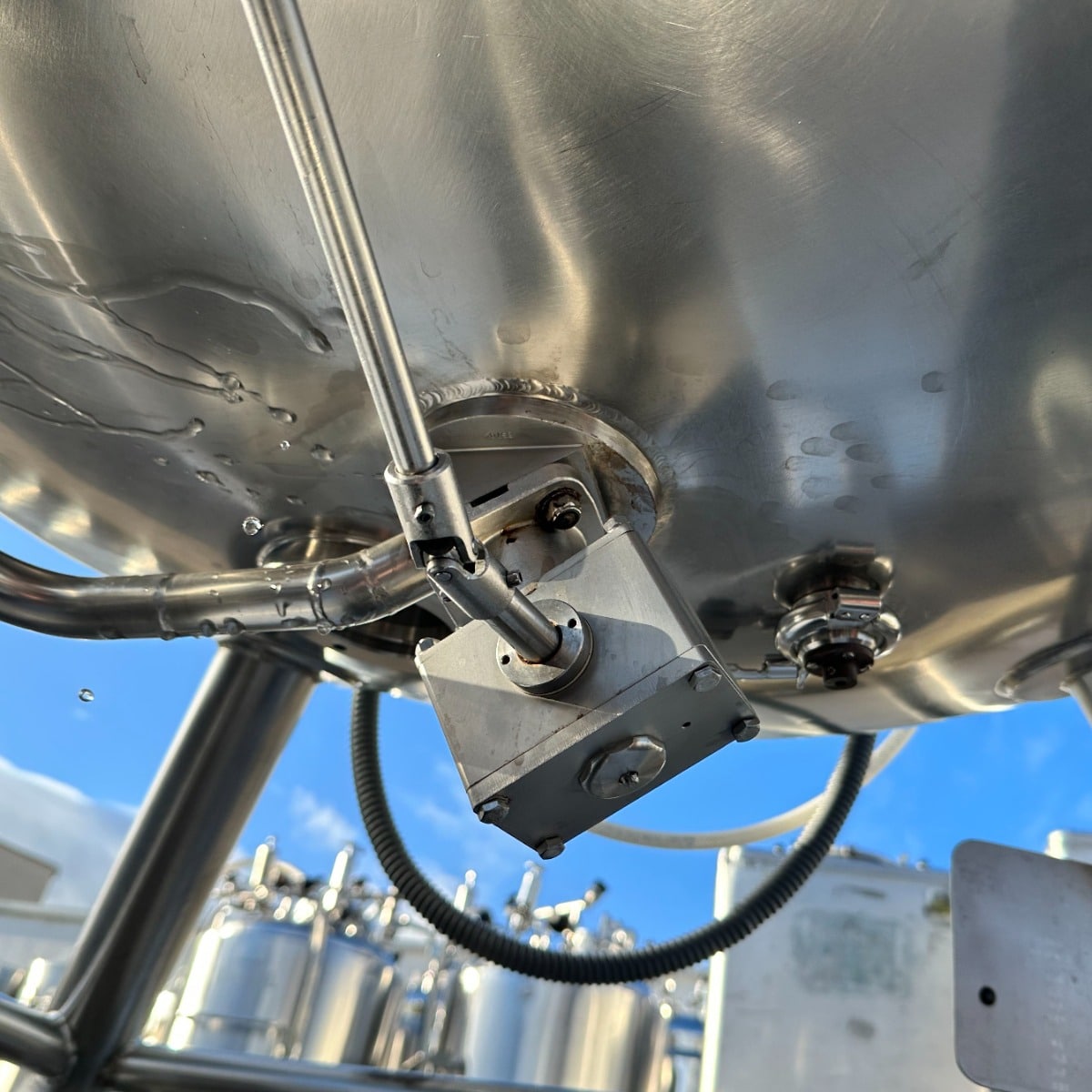

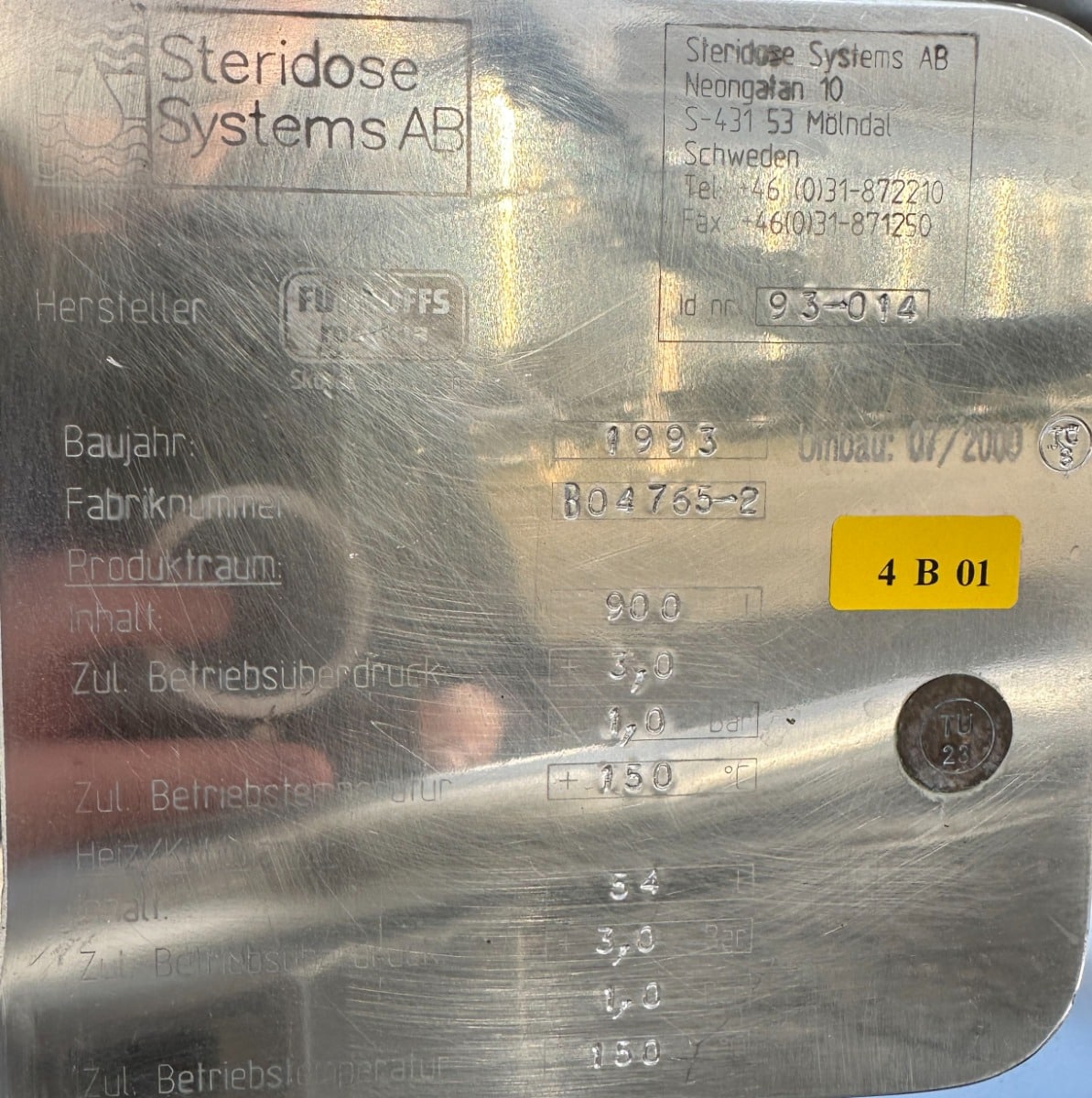

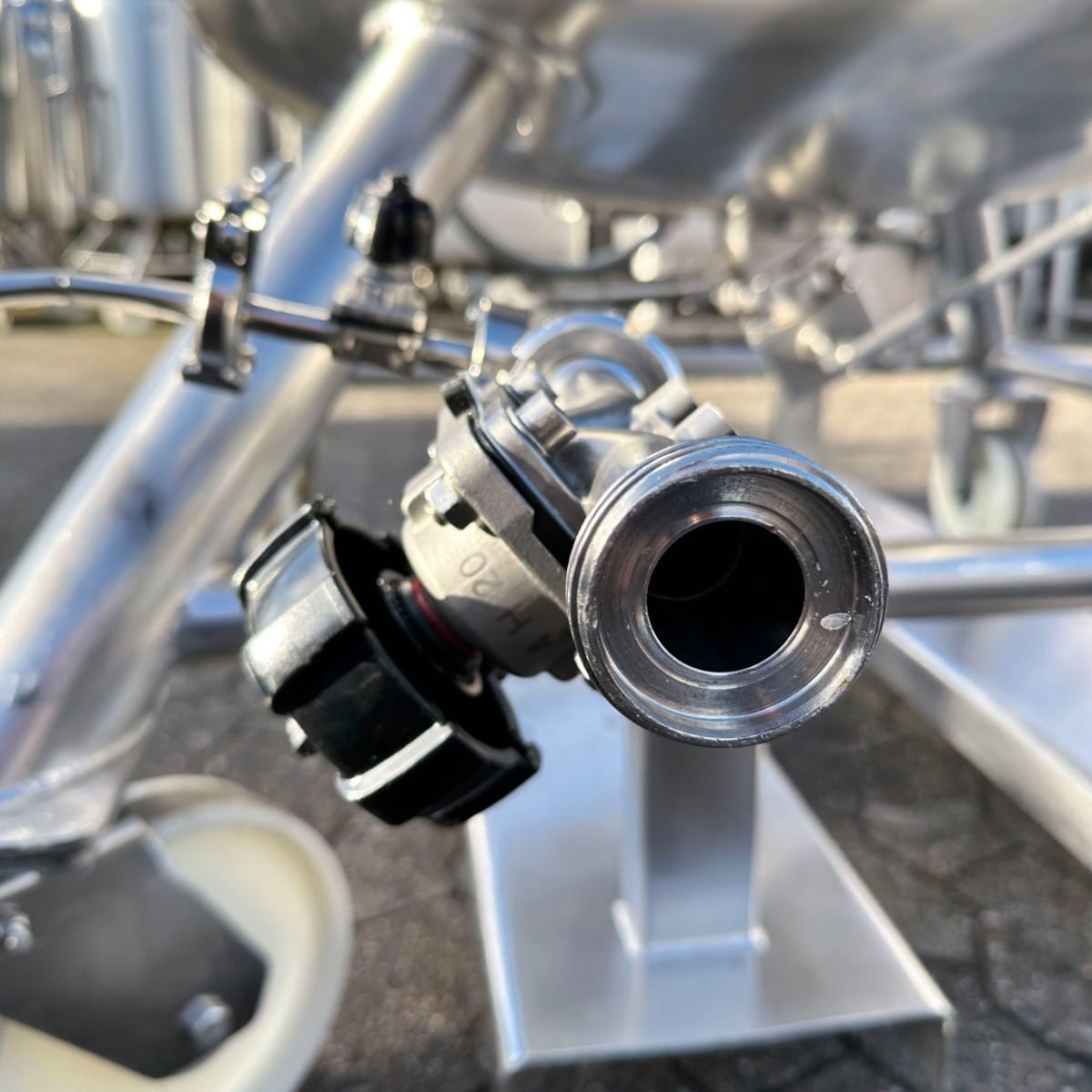

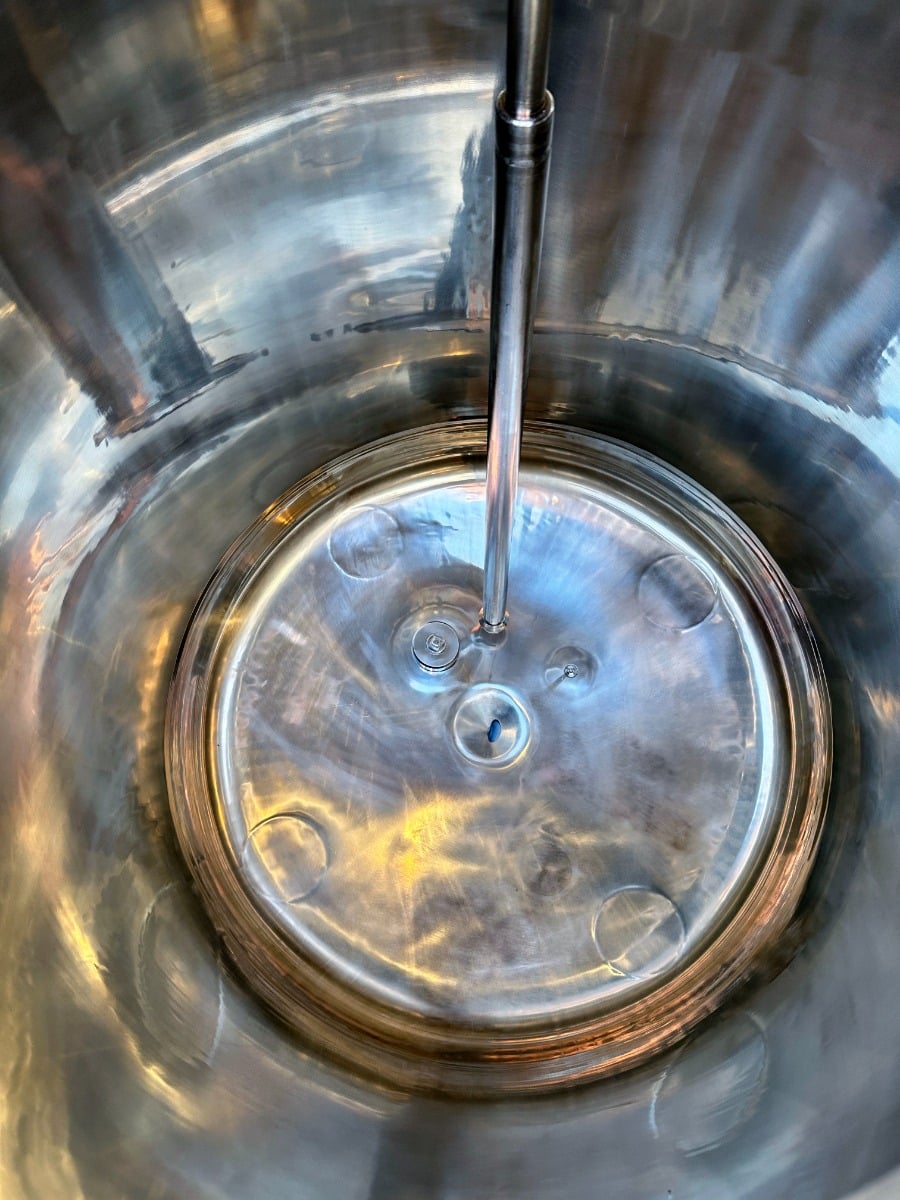

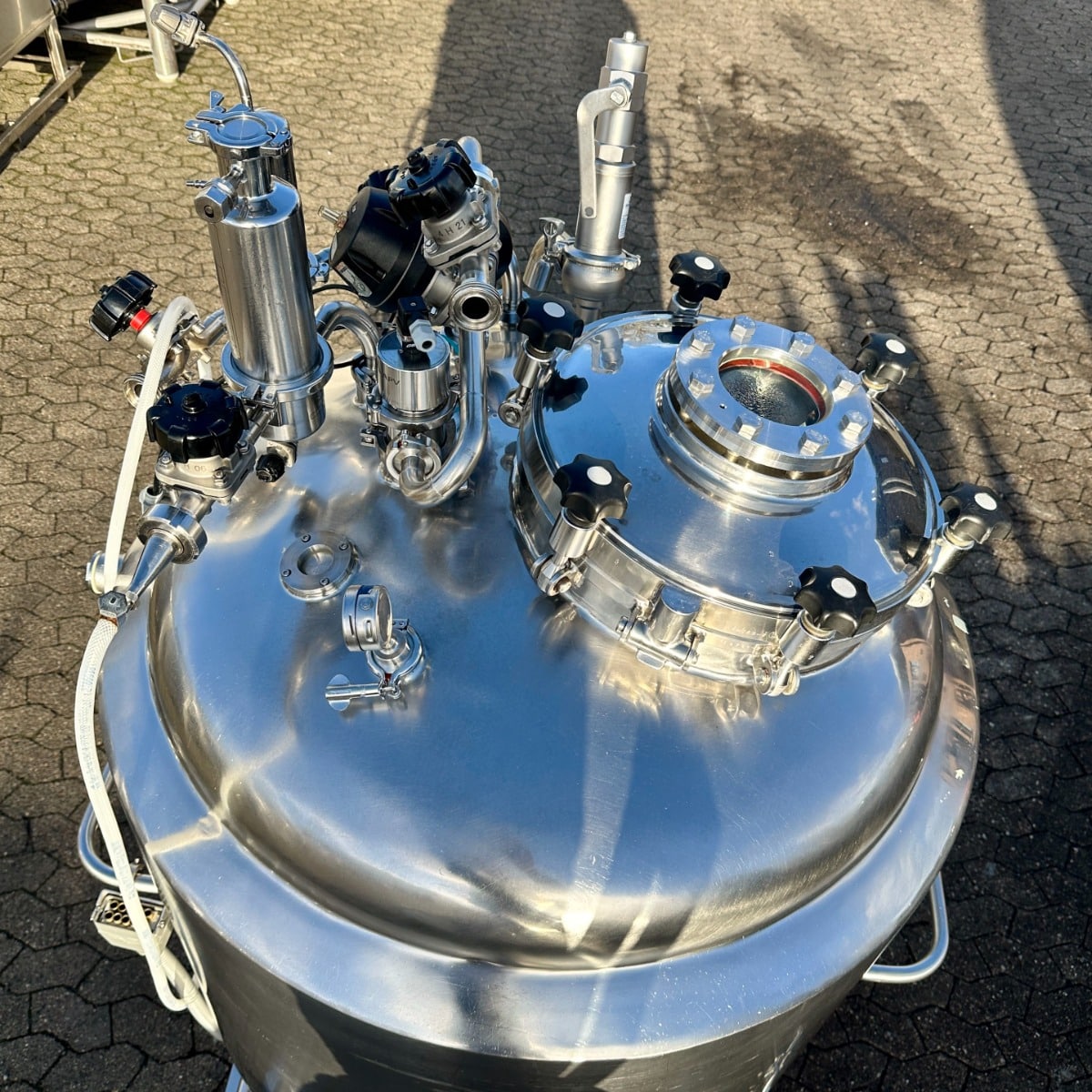

Additional information: pharmacy; Filling pipe including spray head inside the tank (see pictures); GEMÜ diaphragm valve at the outlet Volumetric volume (L): 900 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 150 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Volume: 54 L Max Overpressure: 3 Bar Max onderdruk: 1 Bar Max. working temperature: 150 °C Type HE on the cylinder: heating/cooling jacket Heat exchanger: RVS 304 Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: headside Outlet of tank: DN25 DIN 11851 Internal diameter tank: 980 mm Cylinder height: 850 mm Total height of tank: 2.300 mm
