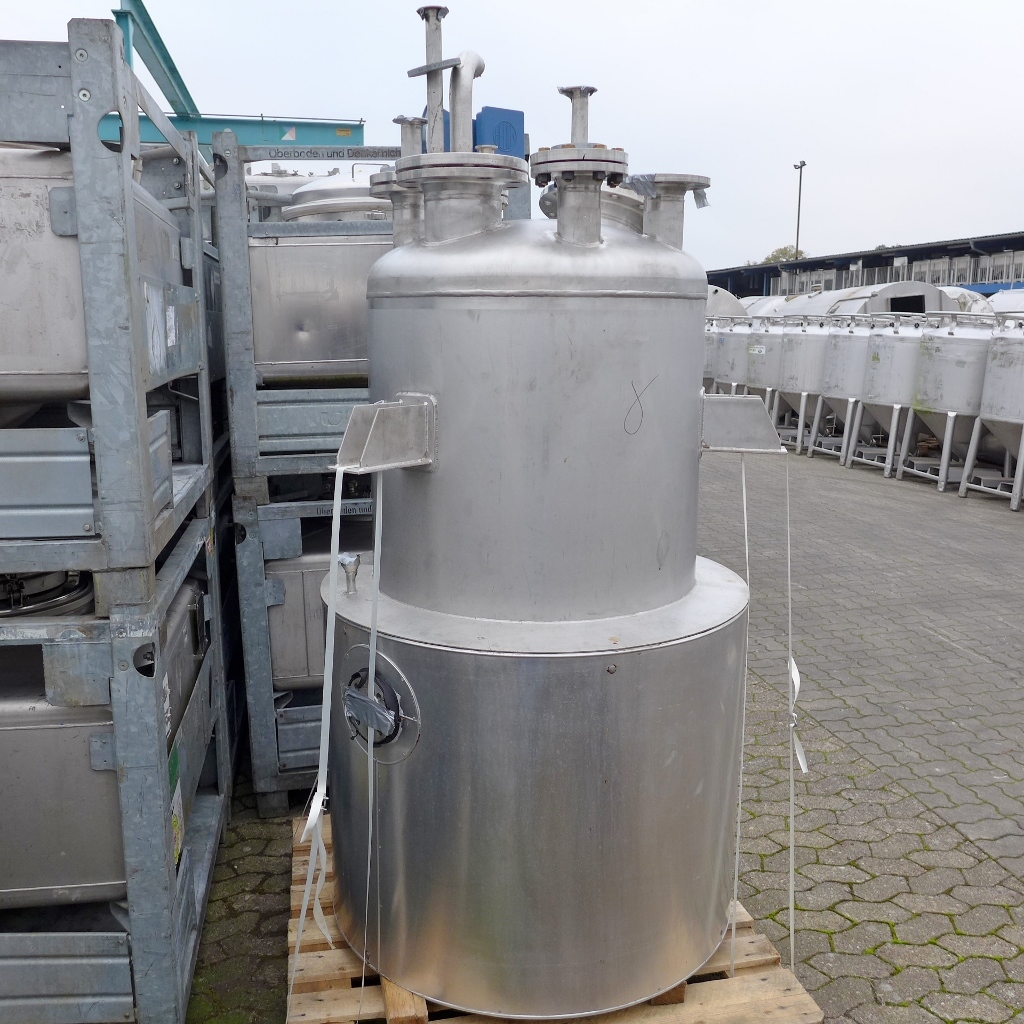

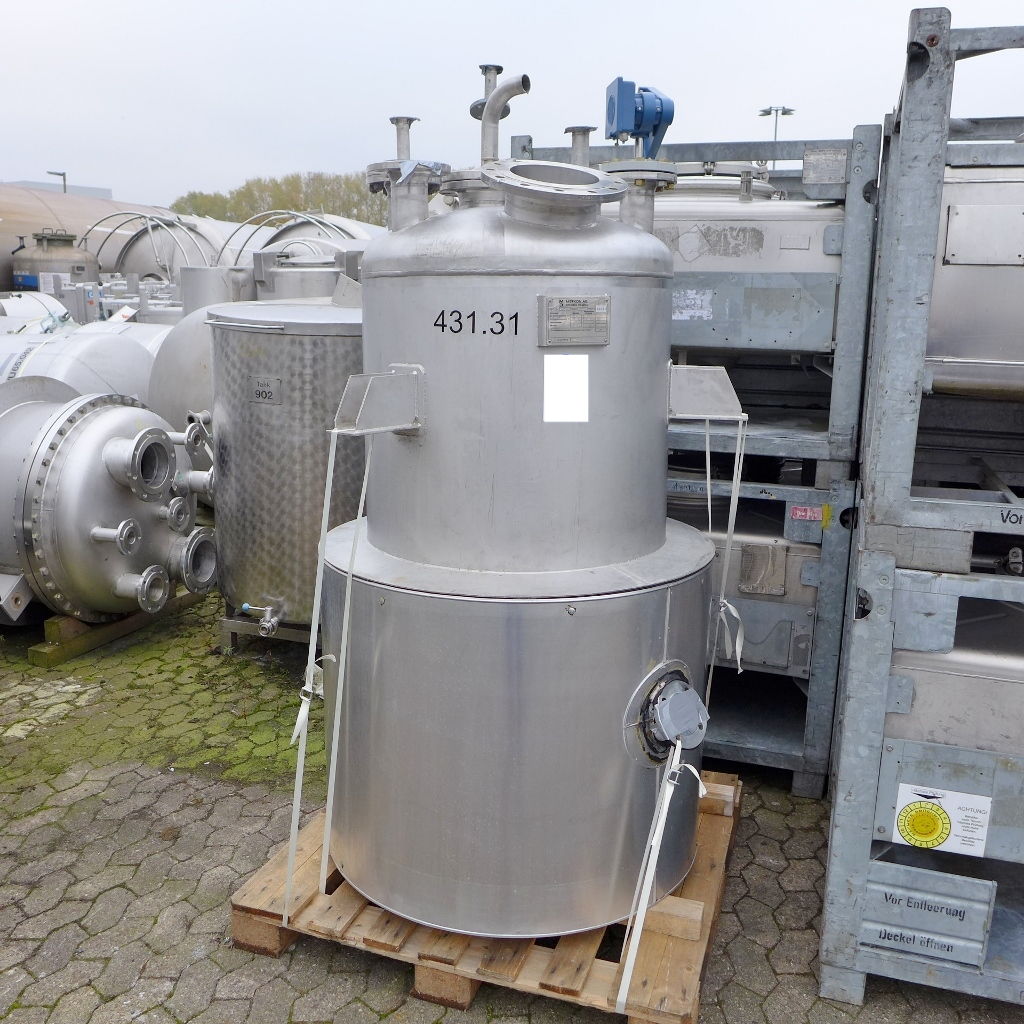

736 liter tank i Syrafast 316

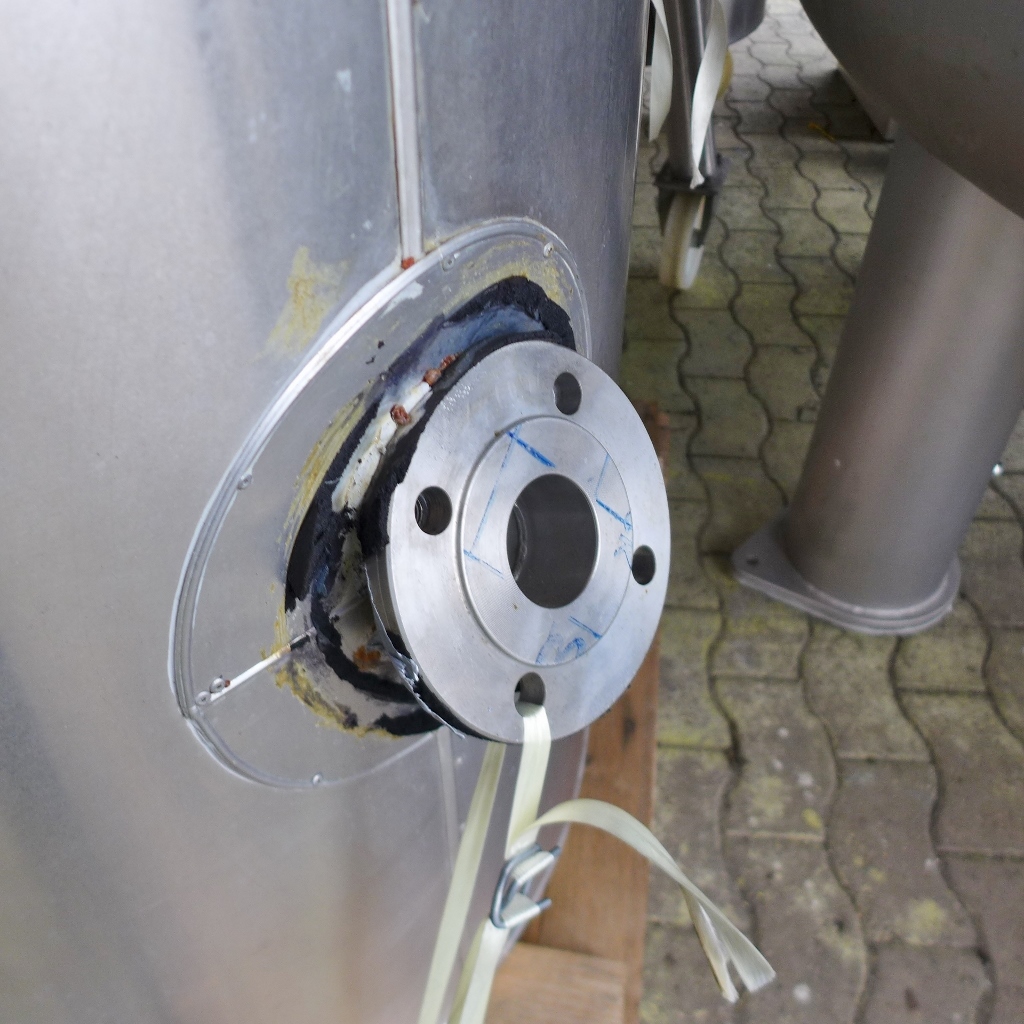

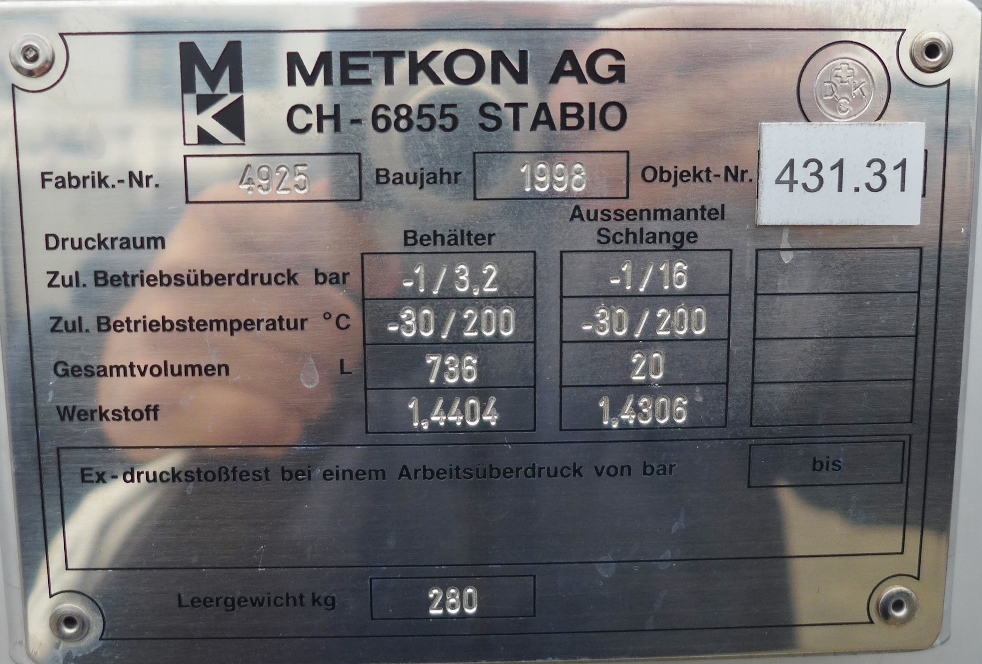

Additional information: Pharmaceutical Chemistry; 3 support brackets, st. st.; Half-coil, Aisi 304 around the lower cylinder area and the lower bottom; hand hole DN 200 (hand hole cover is missing); Insulating jacket made of material 1.0425; some residues of previous content Volumetric volume (L): 736 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3,20 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Volume: 20 L Max Overpressure: 16 Bar Max onderdruk: 1 Bar Max. working temperature: 200 °C Type HE on the bottom: half pipe welded onto the outside of the innertank Type HE on the cylinder: half pipe welded onto the outside of the innertank Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Outlet of tank: available Top: 2,60 mm Cylinder: 4 mm Bottom: 2,30 mm Internal diameter tank: 800 mm Outer diameter tank: 1.050 mm Cylinder height: 1.250 mm Total height of tank: 2.200 mm
