730 liter i Rostfritt 304

item available on order

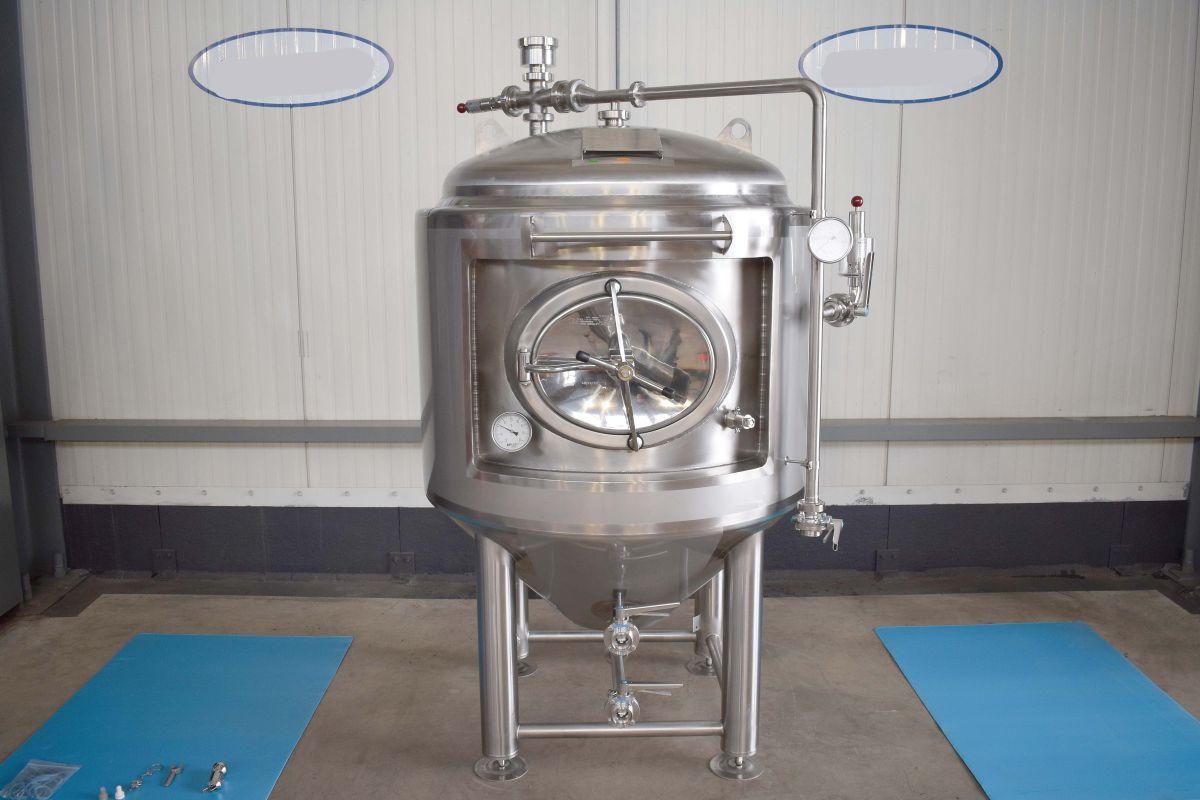

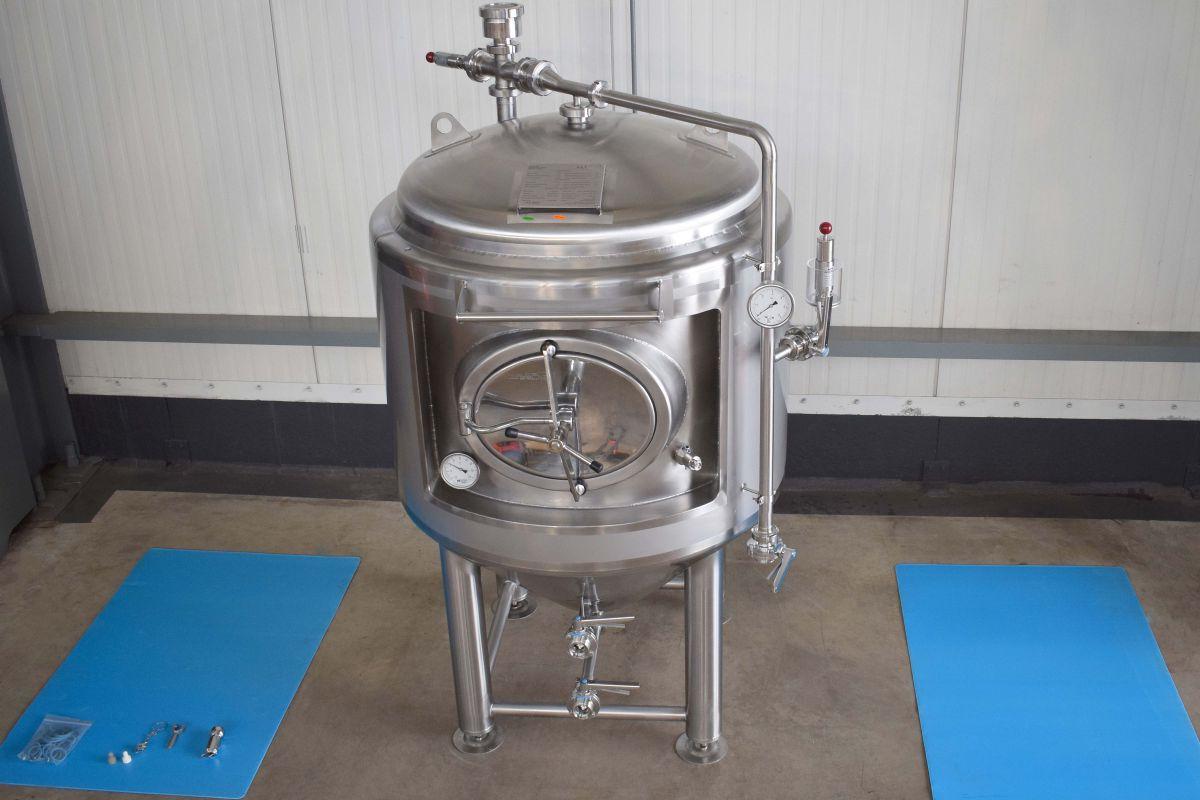

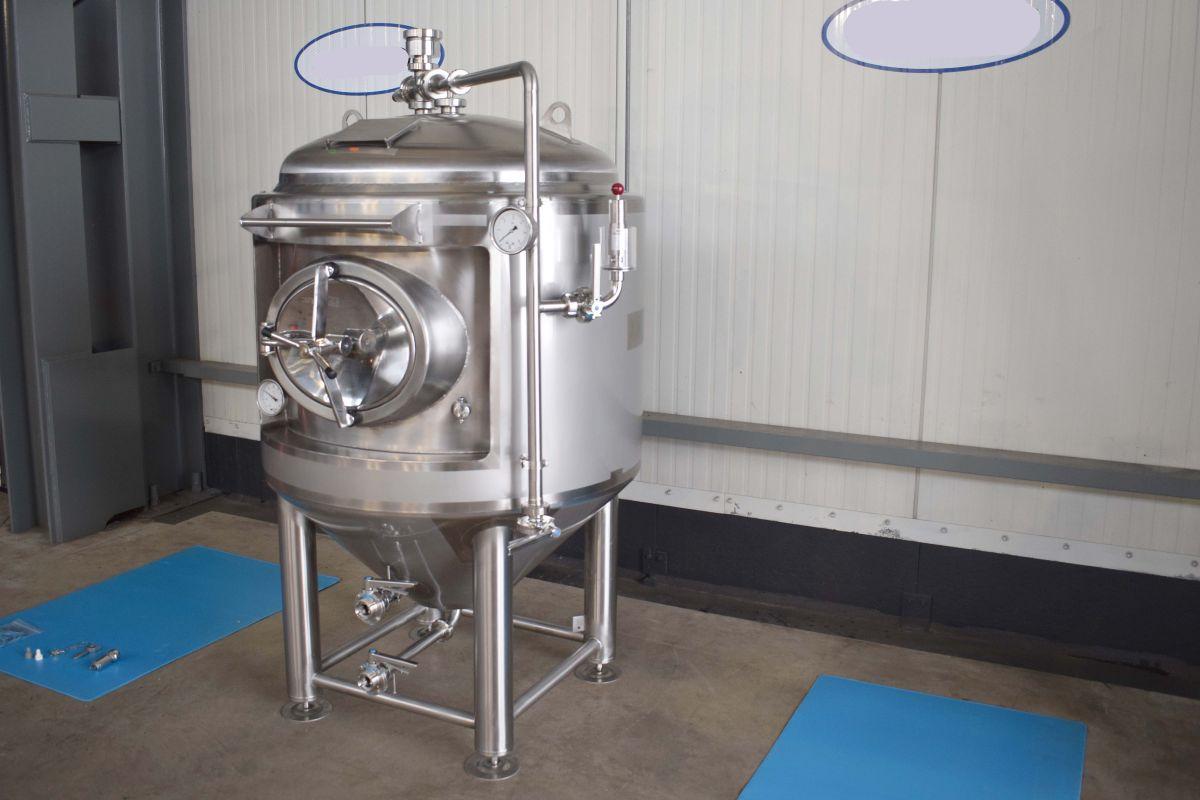

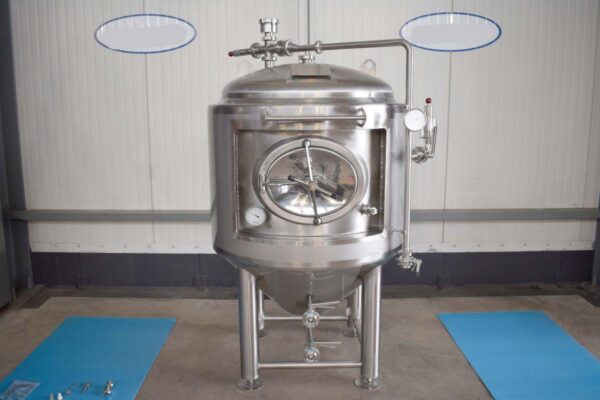

Article type: brand new pressure tank – type CCT-HIL
Additional information: Ra=<0.8µm
Capacity: 730 L
Maximal density of the product: 1.050
Ra inner weld: 0,80

Finish stainless steel: 2b
Working pressure in tank: pressure
Design pressure of the tank: 3,30 Bar
Max. working temperature: 30 °C
Min. working temperature: -10 °C

Material wet parts: SS AISI 304L (V2A)
Model: vertical
Configuration: insulated with heat-exchanger
Heat exchanger: yes
Insulation: yes

Mobile tank: no
Top type: dished
Shape of tank: cylindrical

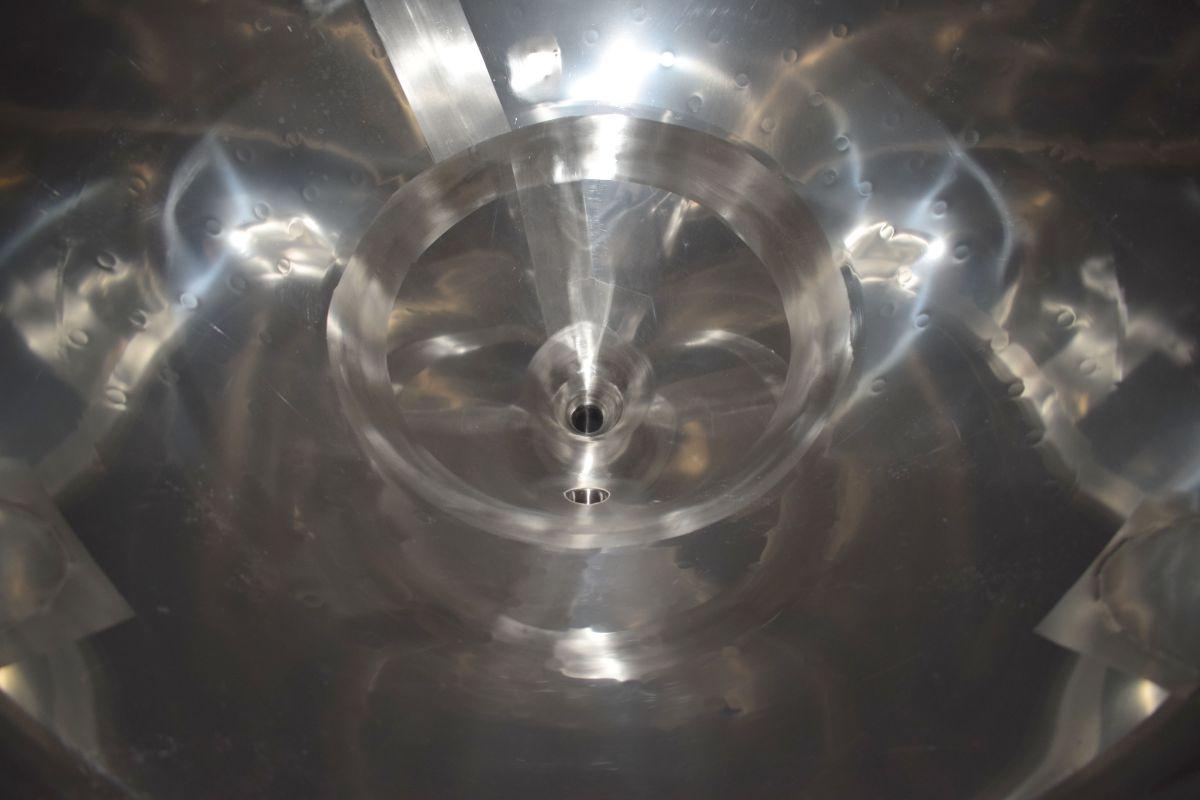

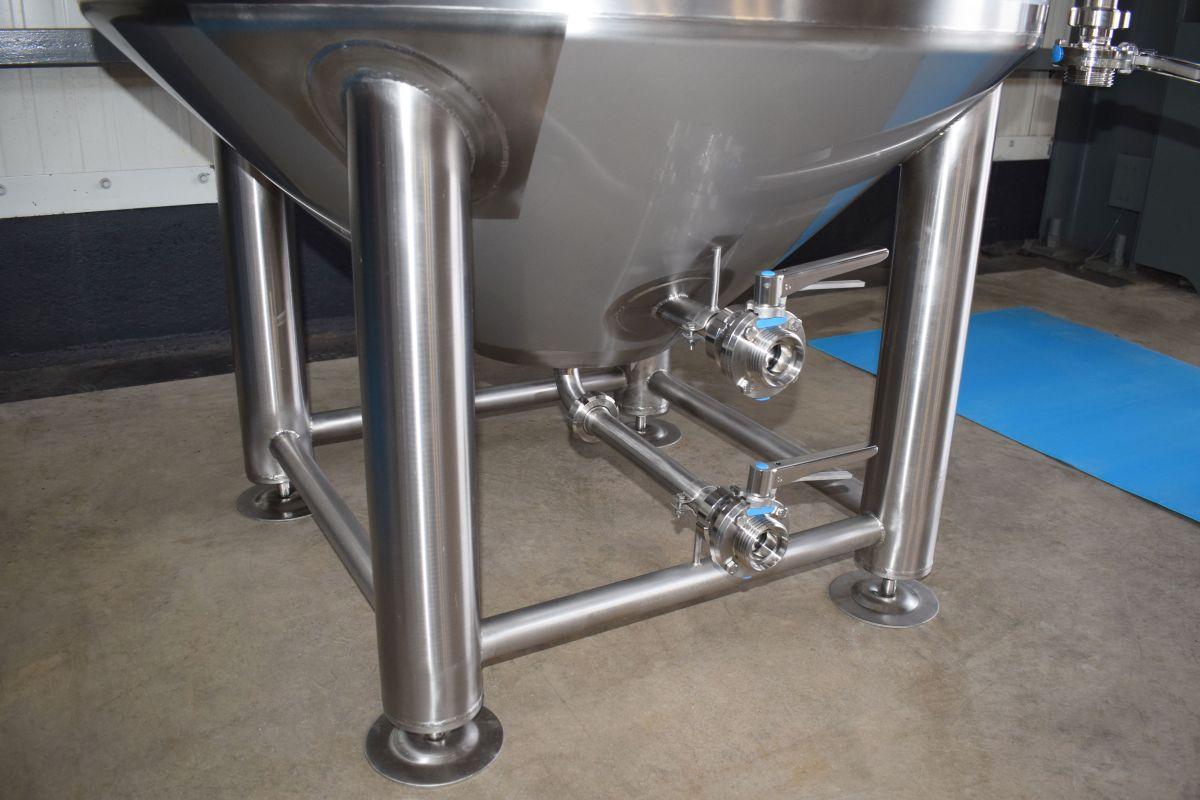

Bottom type: strong conical 45 °
Total discharge: yes

Fixation points: 4 adjustable feet
Type of HE on the cylinder: dimple-jacket
Position HE: the complet cilinder
Number of sections: 1
Water pressure HE: 3 Bar

Hydraulic test pressure: 4,50 Bar
Contact surface cylinder: 1 m²
Connection HE: 1″ BSP
Type of HE on the bottom: dimple-jacket
Water pressure HE: 3 Bar

Hydraulic test pressure: 4,50 Bar
Contact surface bottom: 0,40
Connection HE: 1″ BSP
Heat exchanger: RVS 304 – with PUR insulation
Insulation material: PUR

Outer jacket (ornamental wall): RVS 304
Manway(s): RVS 304
Gasket manway(s): EPDM
Fixation point(s): RVS 304
Suitable for food industry: yes

Documents included: yes, optional
Technical drawing included: yes

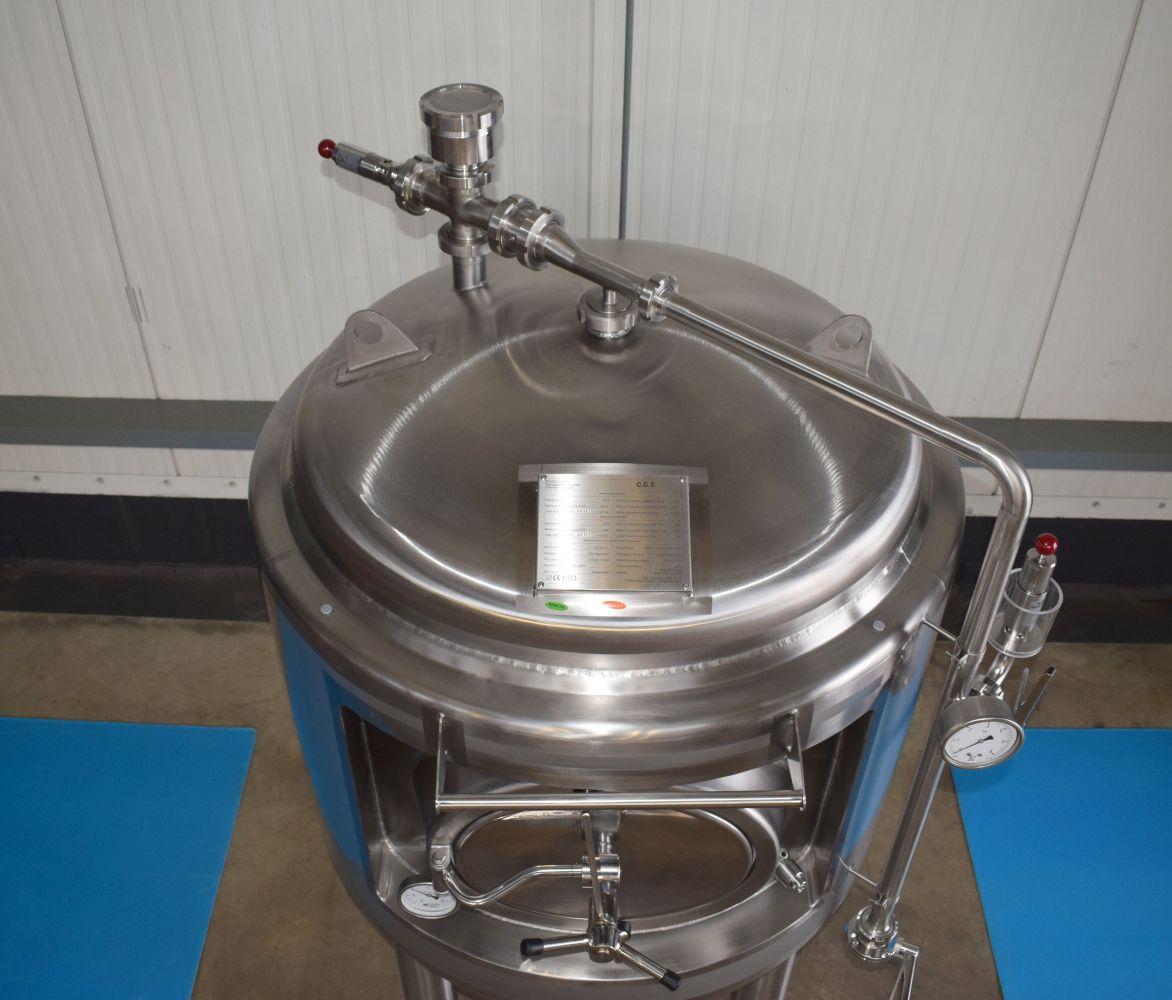

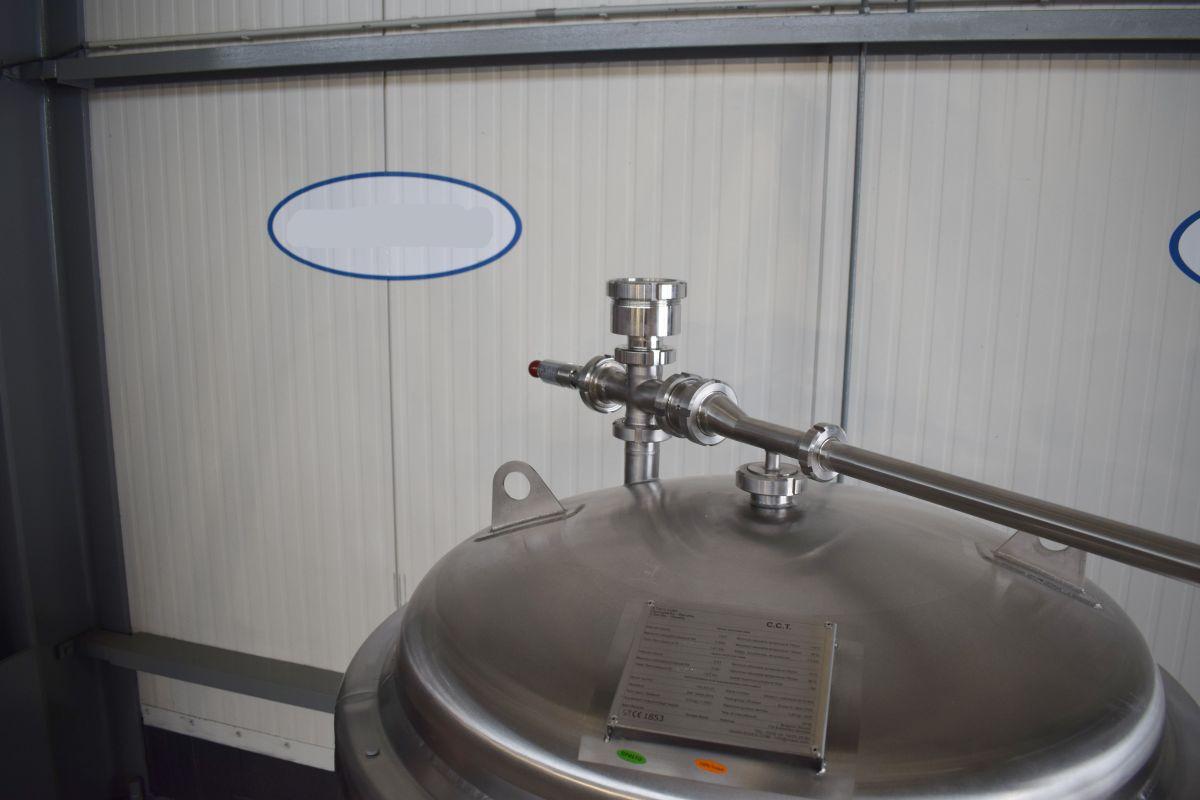

Registration plate on the tank: yes
with inspection of: TUV
Flange for agitator: no

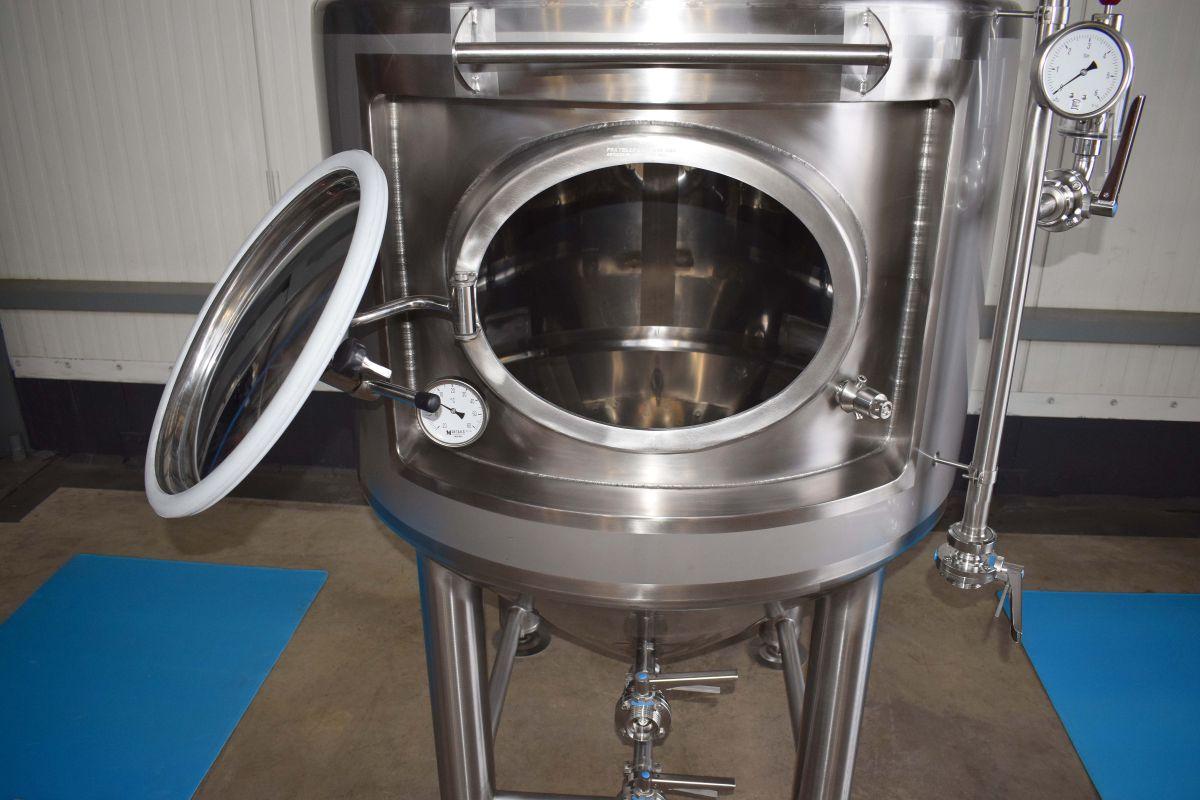

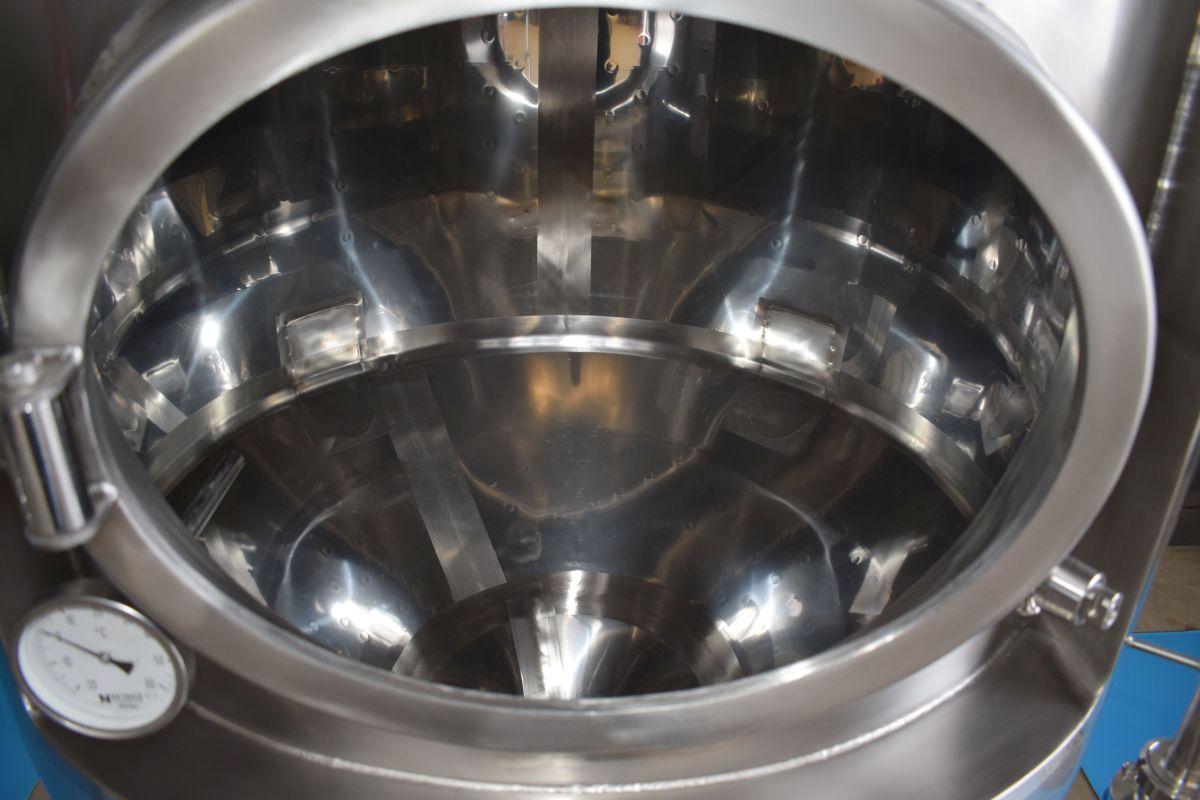

Number of manways: 1
Position manway: cylinder
Manway 1: 440 mm x H 340 mm

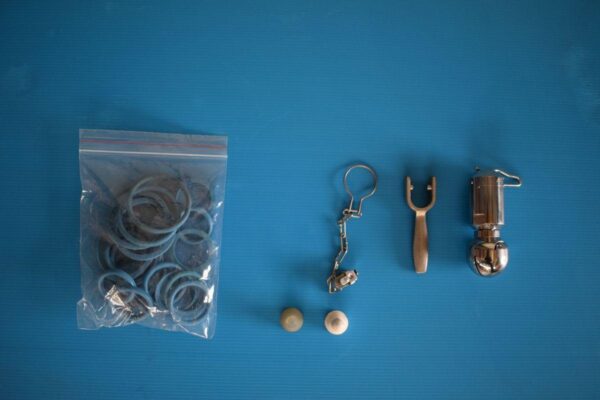

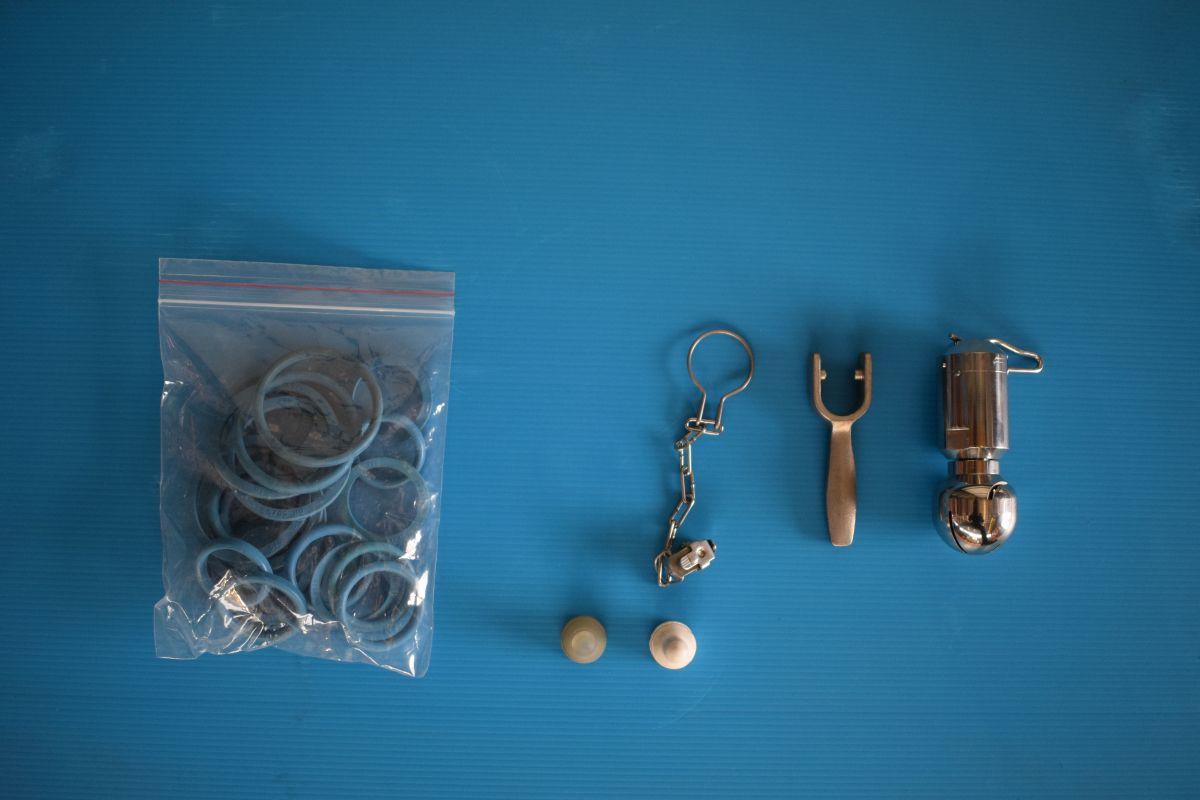

Spray ball: yes
Tank outlet: inside Ø 32 mm

Outlet type: DIN11851 male
Total outlet valve: yes
Type shut-off valve: butterfly valve
Top: 3 mm
Cylinder: 3 mm

Bottom: 3 mm
Cylinder: 2
Insulation body: yes
Bottom: 2
Insulation bottom/sides: yes

finish of the outer jacket: welded
Insulation thickness: 75
Internal diameter tank: 950 mm
Distance from outlet to ground: 230 mm
Outer diameter tank: 1.100 mm

Cylinder height: 750 mm
Total height of tank: 1.994 mm
Empty weight tank: 270
