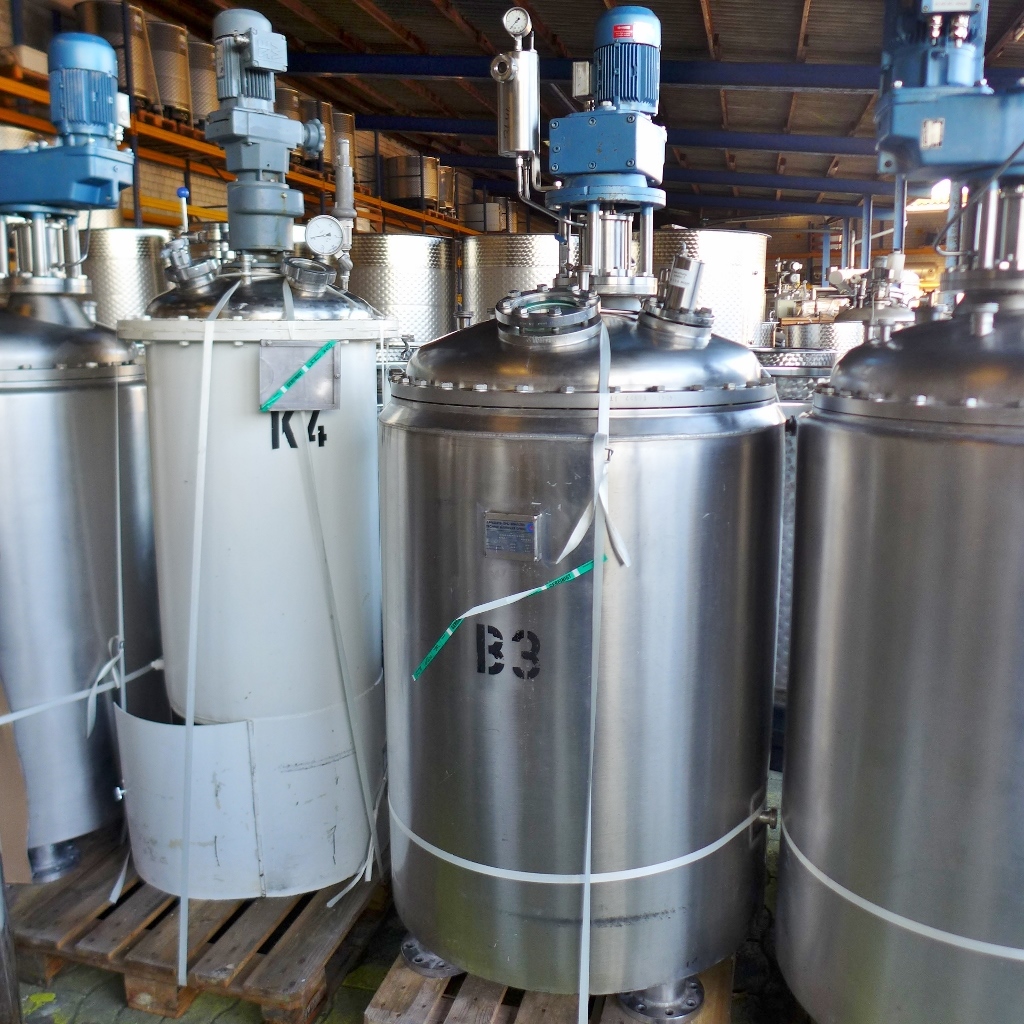

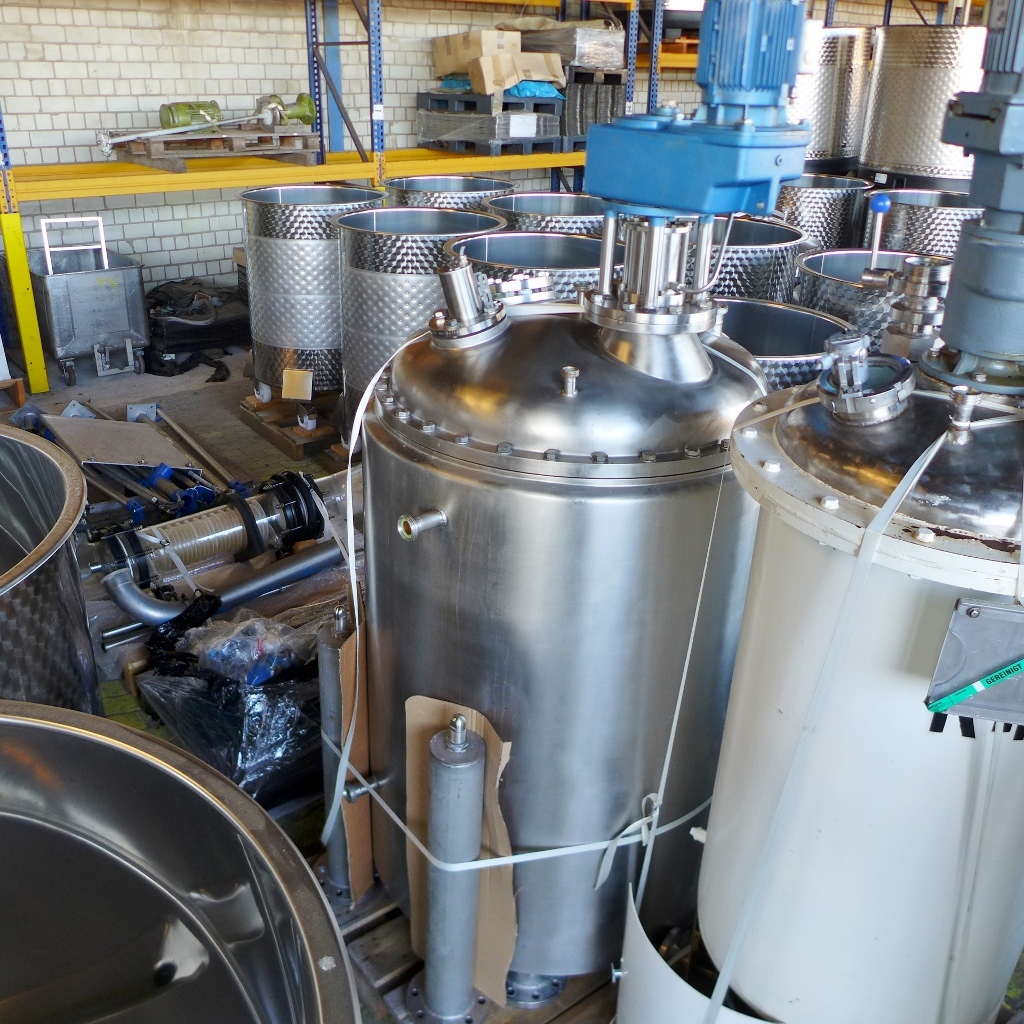

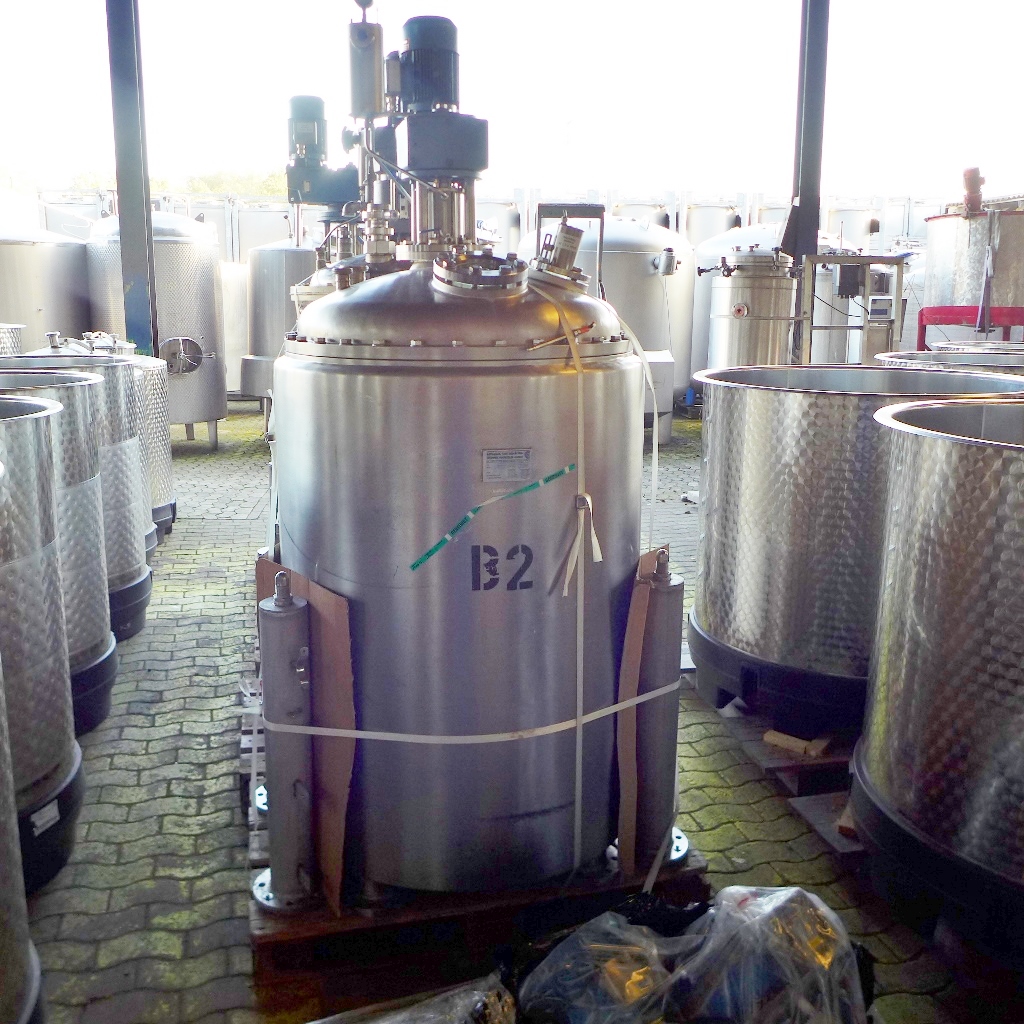

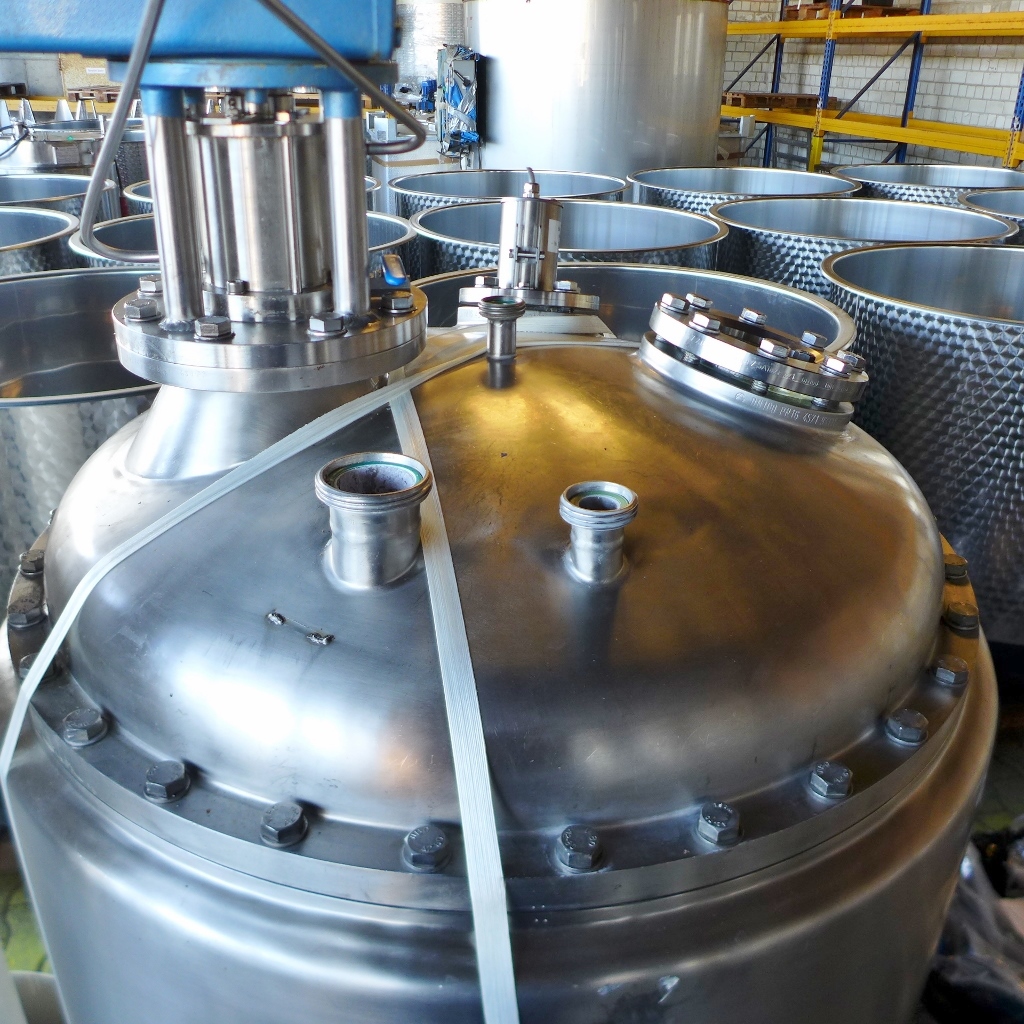

680 liter tank i Rostfritt 304

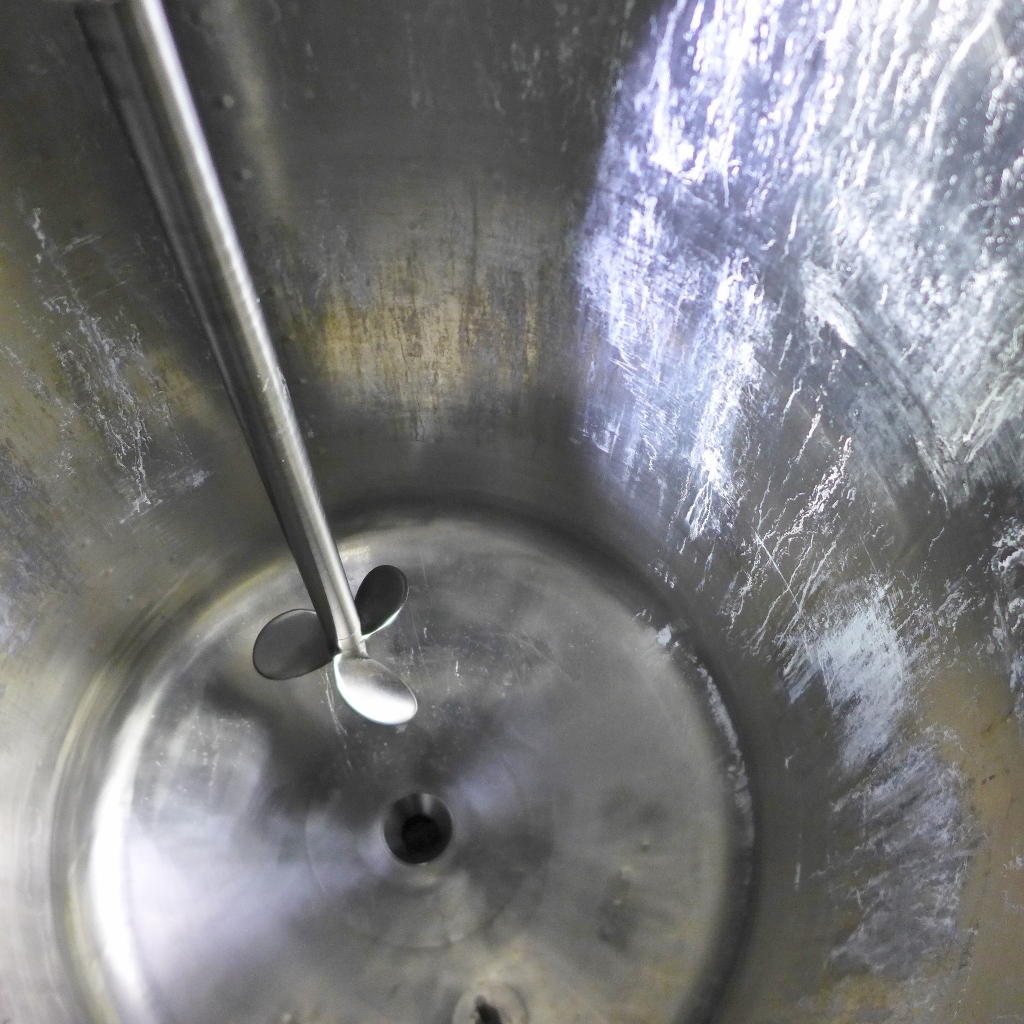

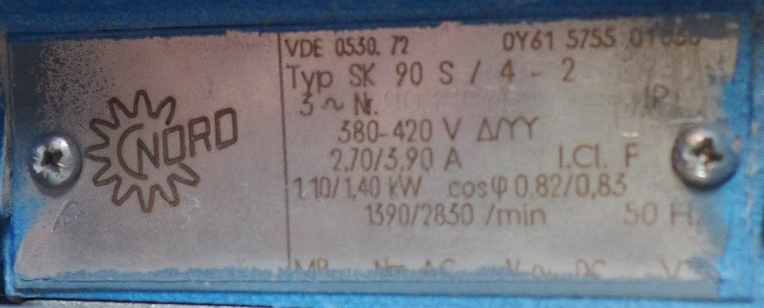

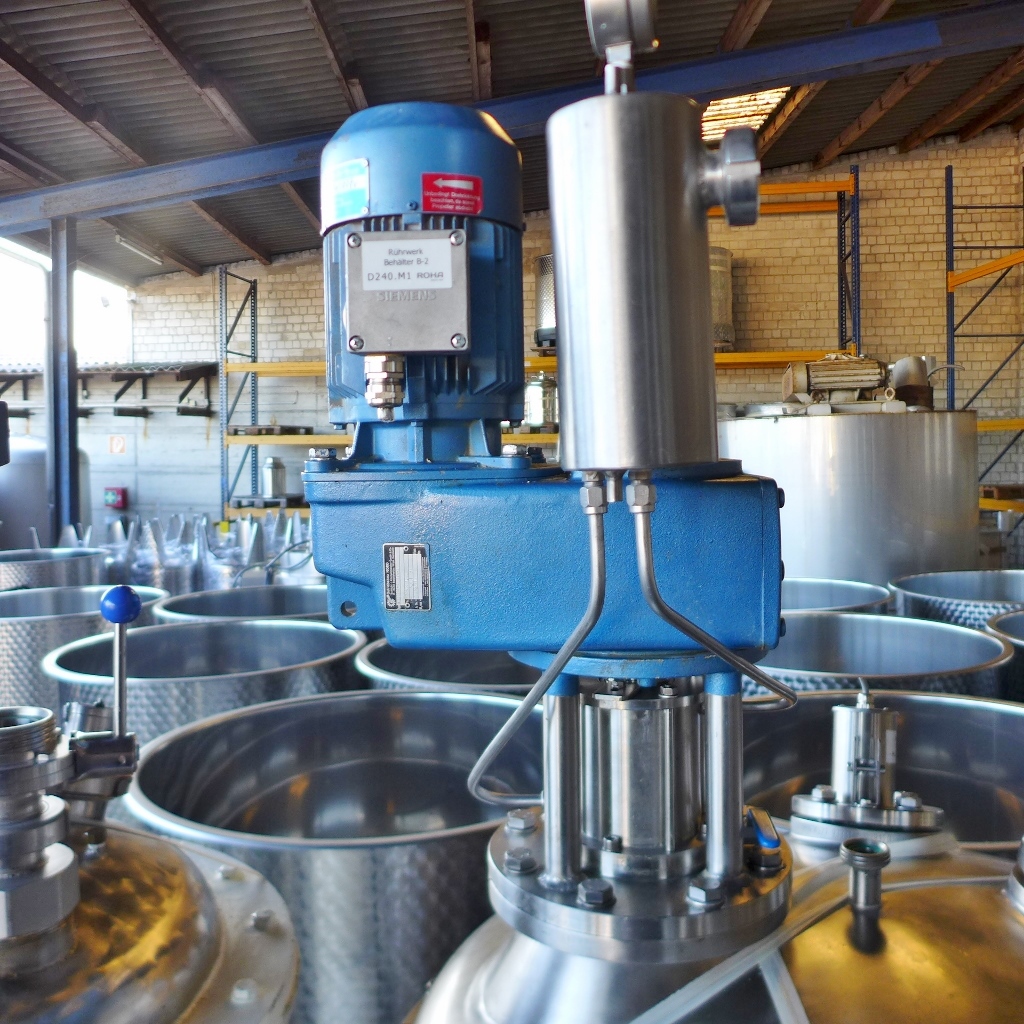

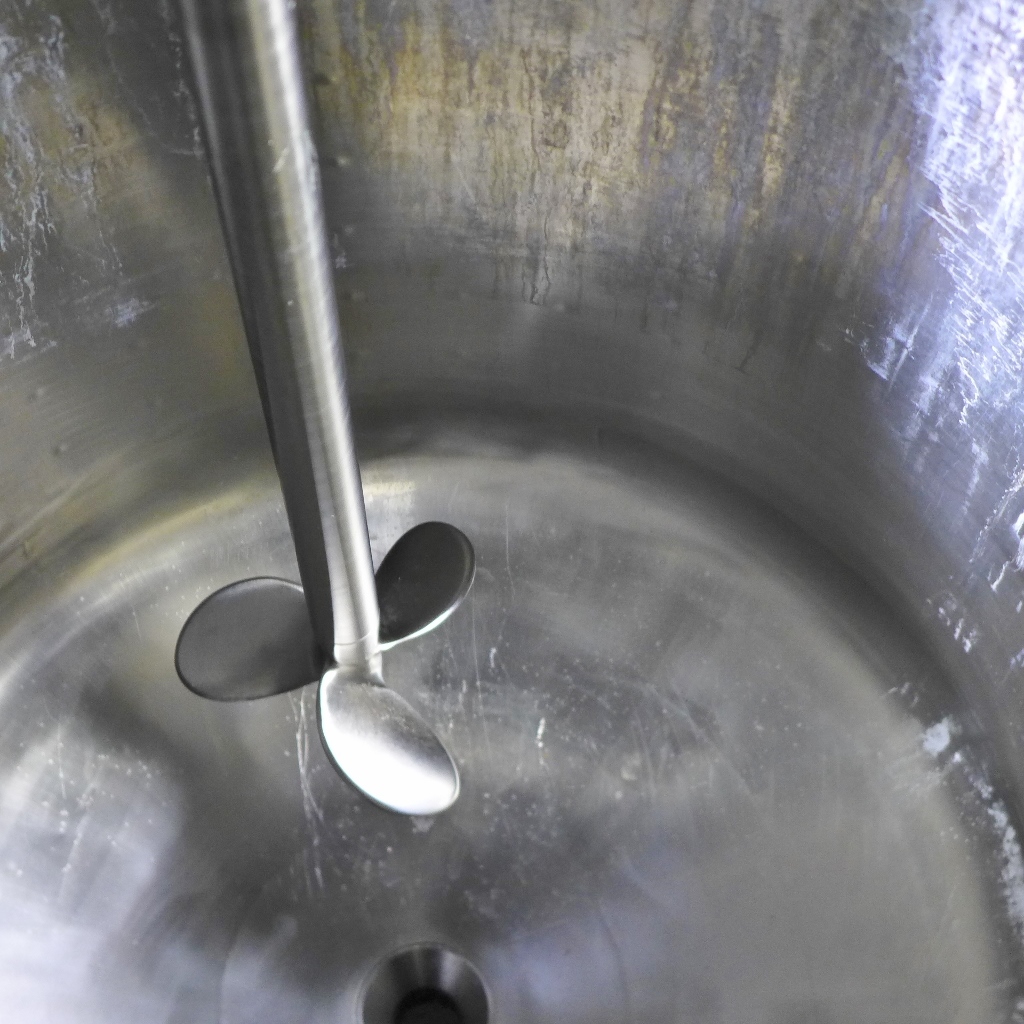

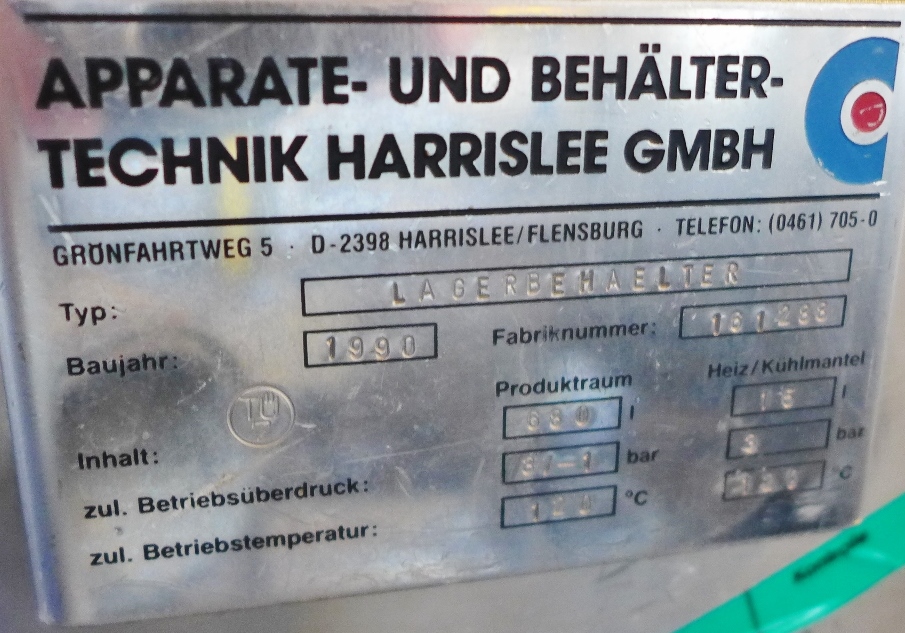

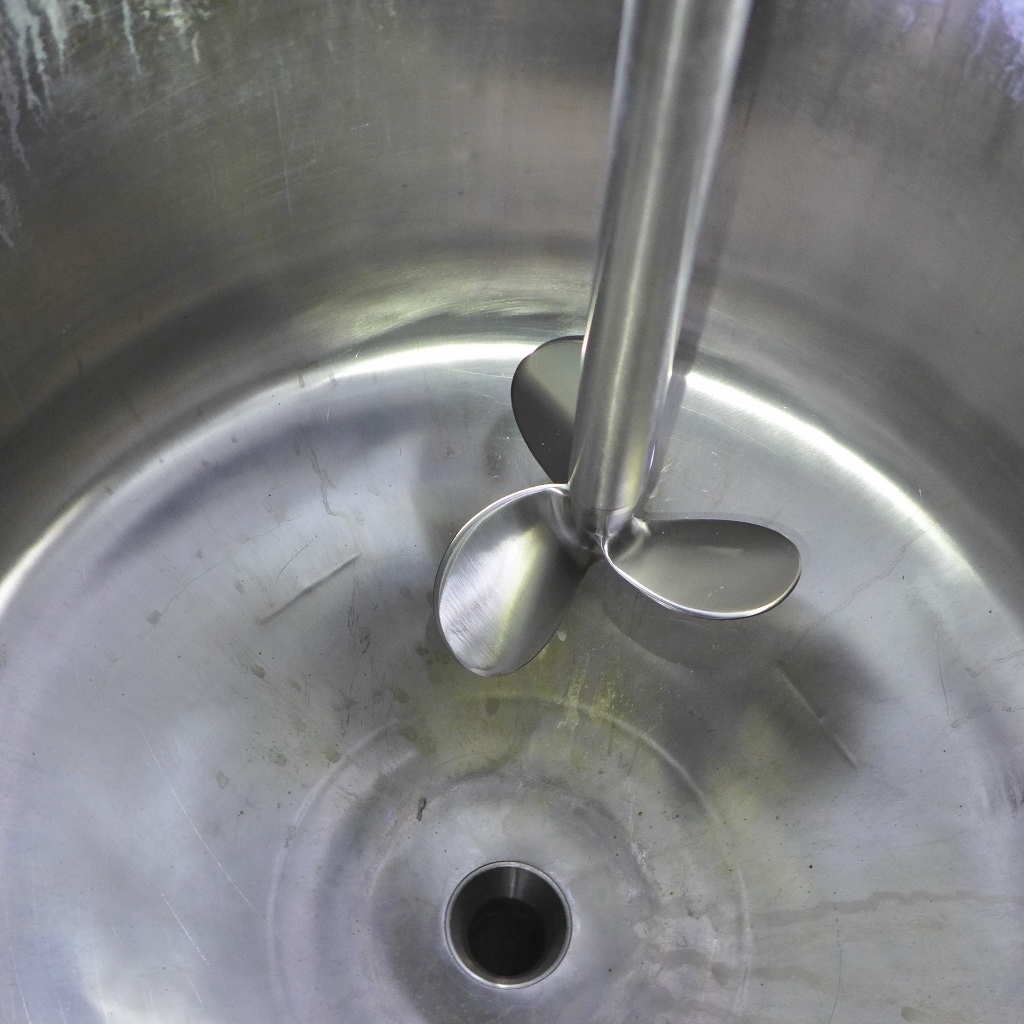

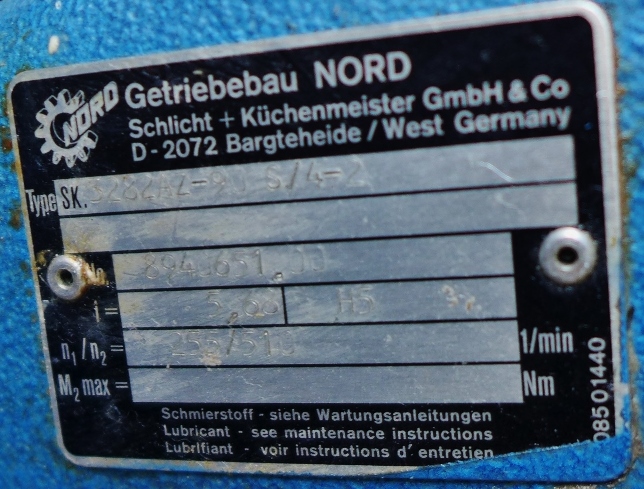

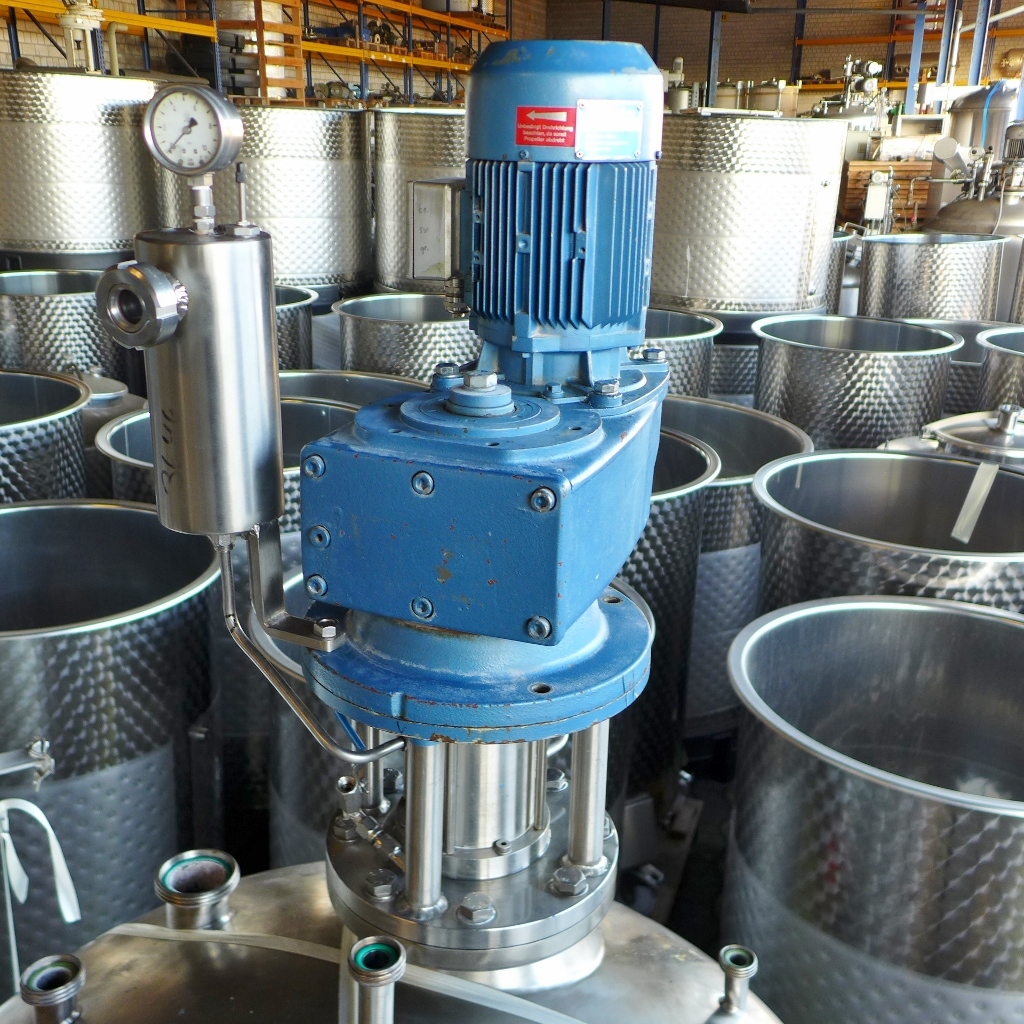

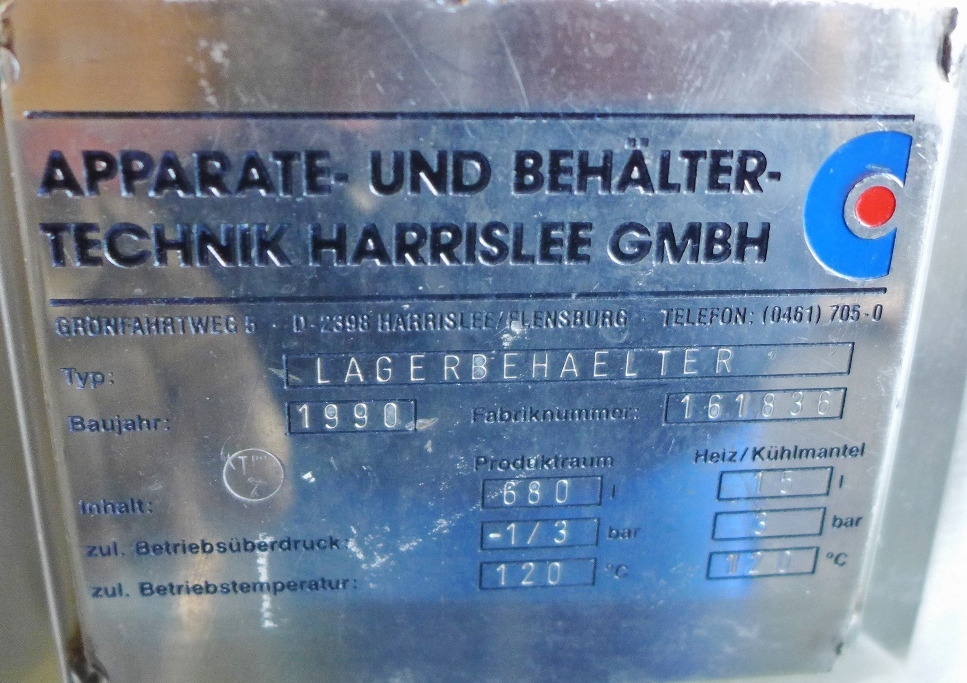

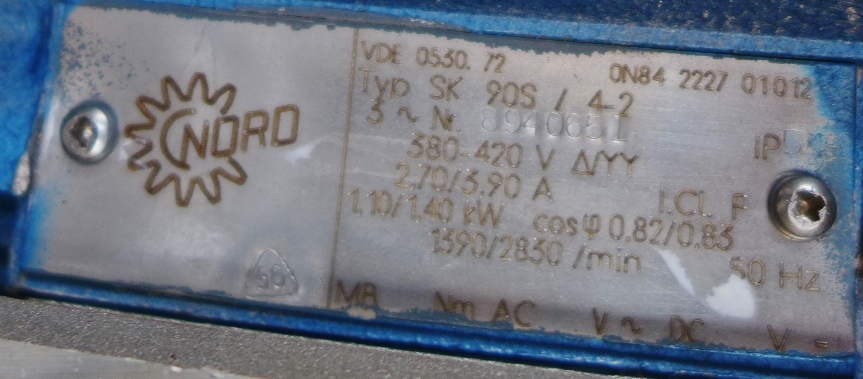

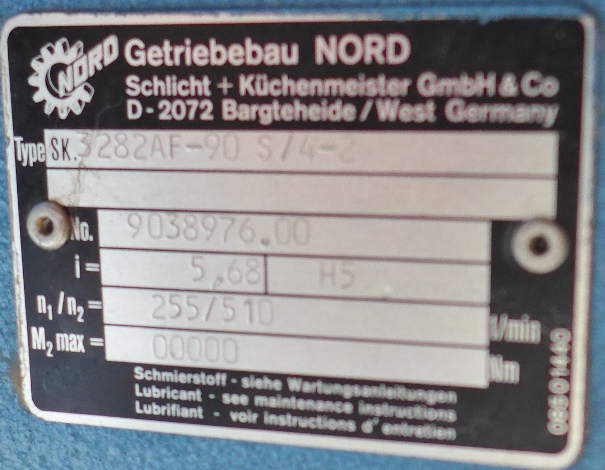

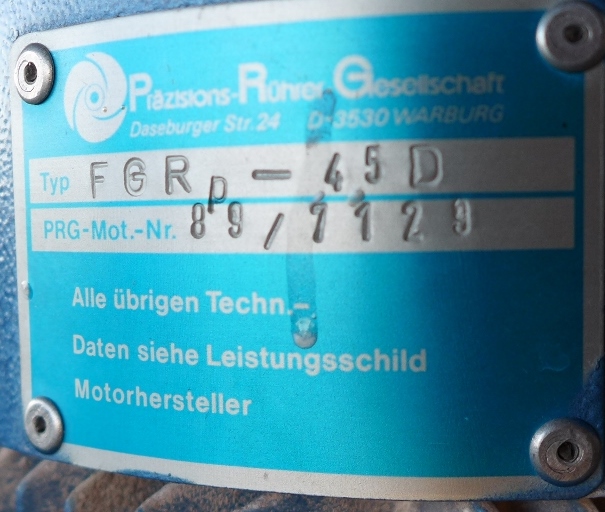

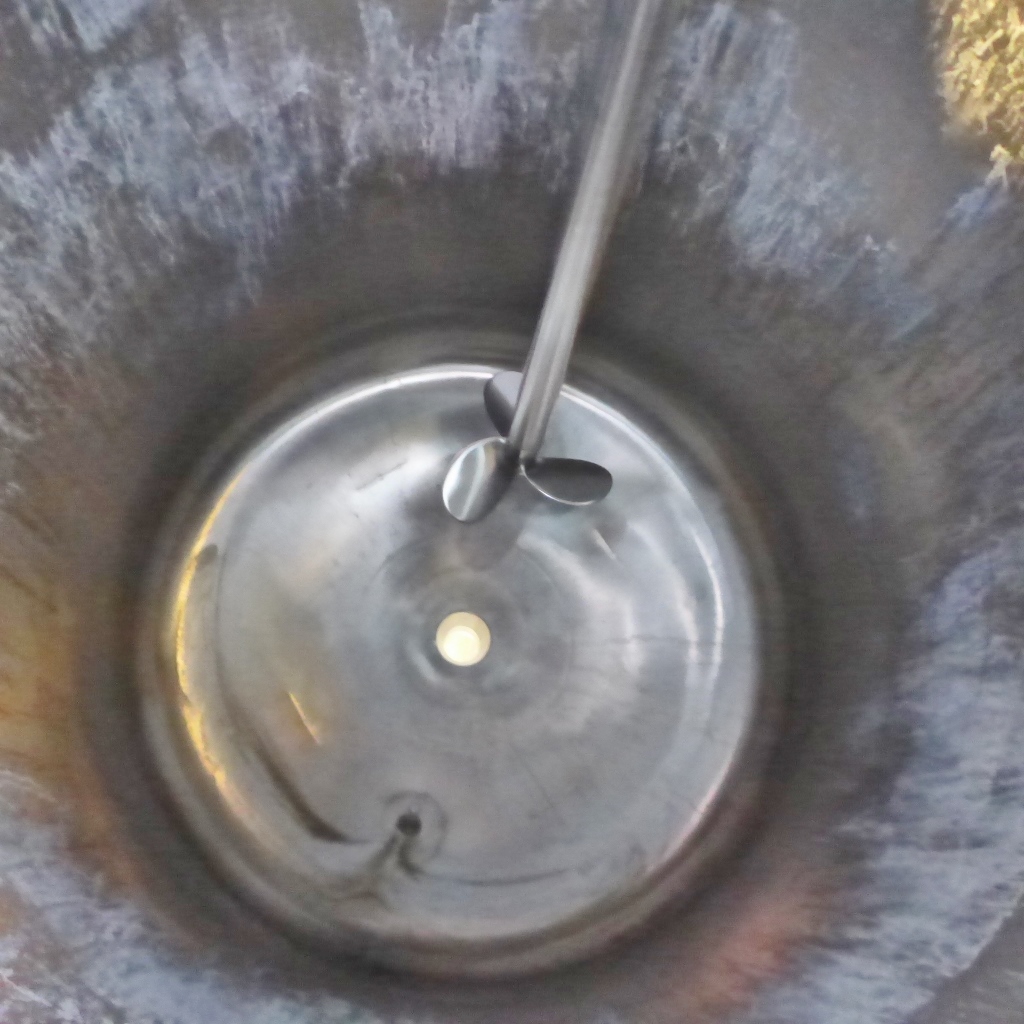

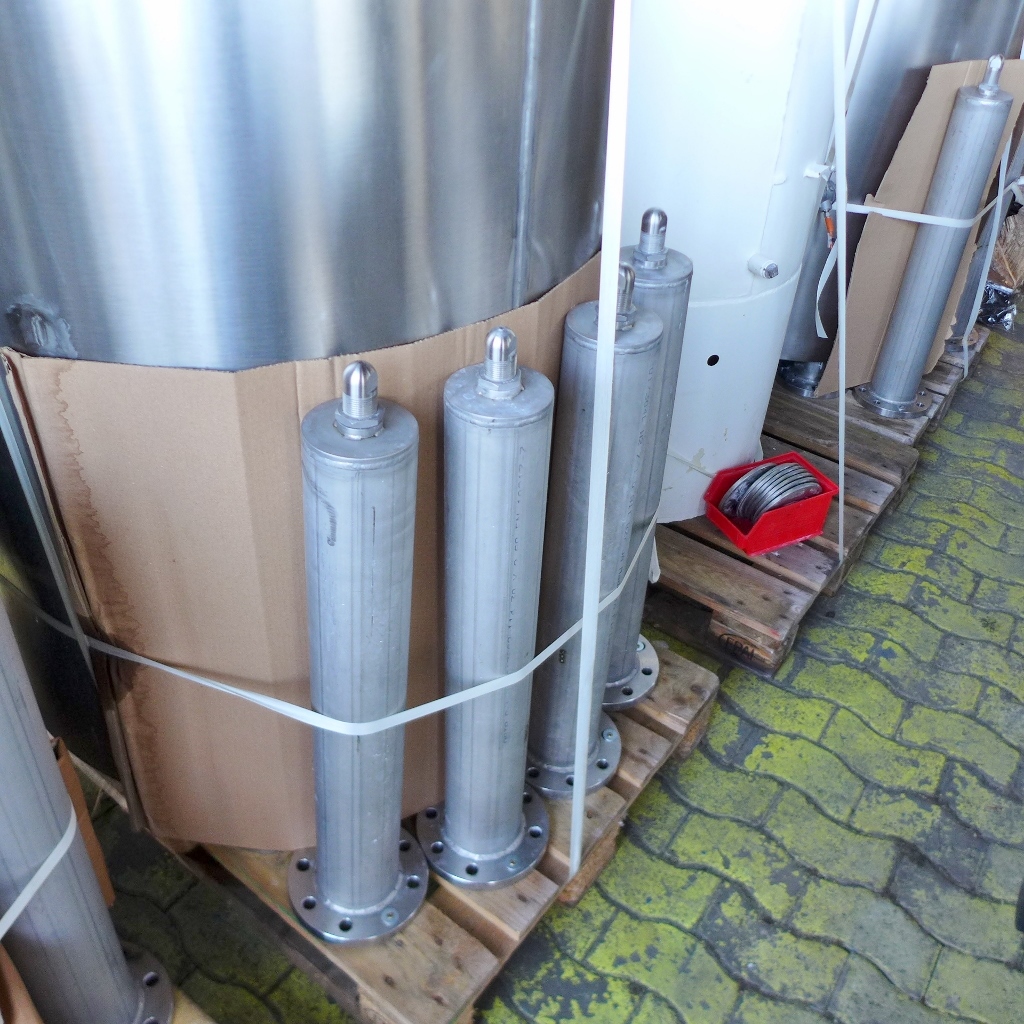

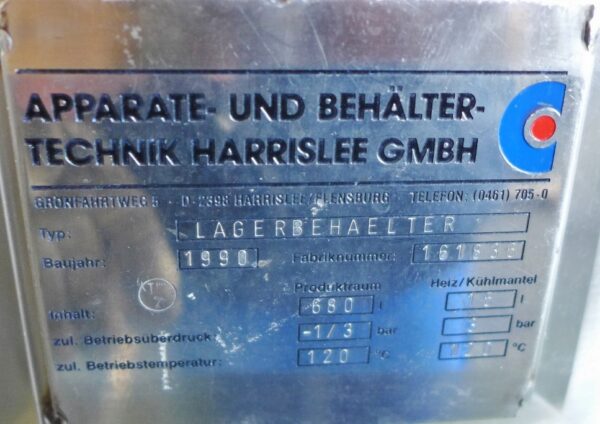

Additional information: Pharmacy; The total height includes the 4 loose foot extensions (length approx. 900 mm each); some residues of previous content Volumetric volume (L): 680 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 120 °C Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Volume: 15 L Max Overpressure: 3 Bar Max onderdruk: 1 Bar Max. working temperature: 120 °C Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Outlet of tank: 50 Agitator: yes Number of revolutions: 255 / 510 Power: 1.1 / 1.4 Top: 3,20 mm Cylinder: 4 mm Bottom: 2,80 mm Internal diameter tank: 820 mm Outer diameter tank: 955 mm Cylinder height: 1.000 mm Total height of tank: 3.250 mm
