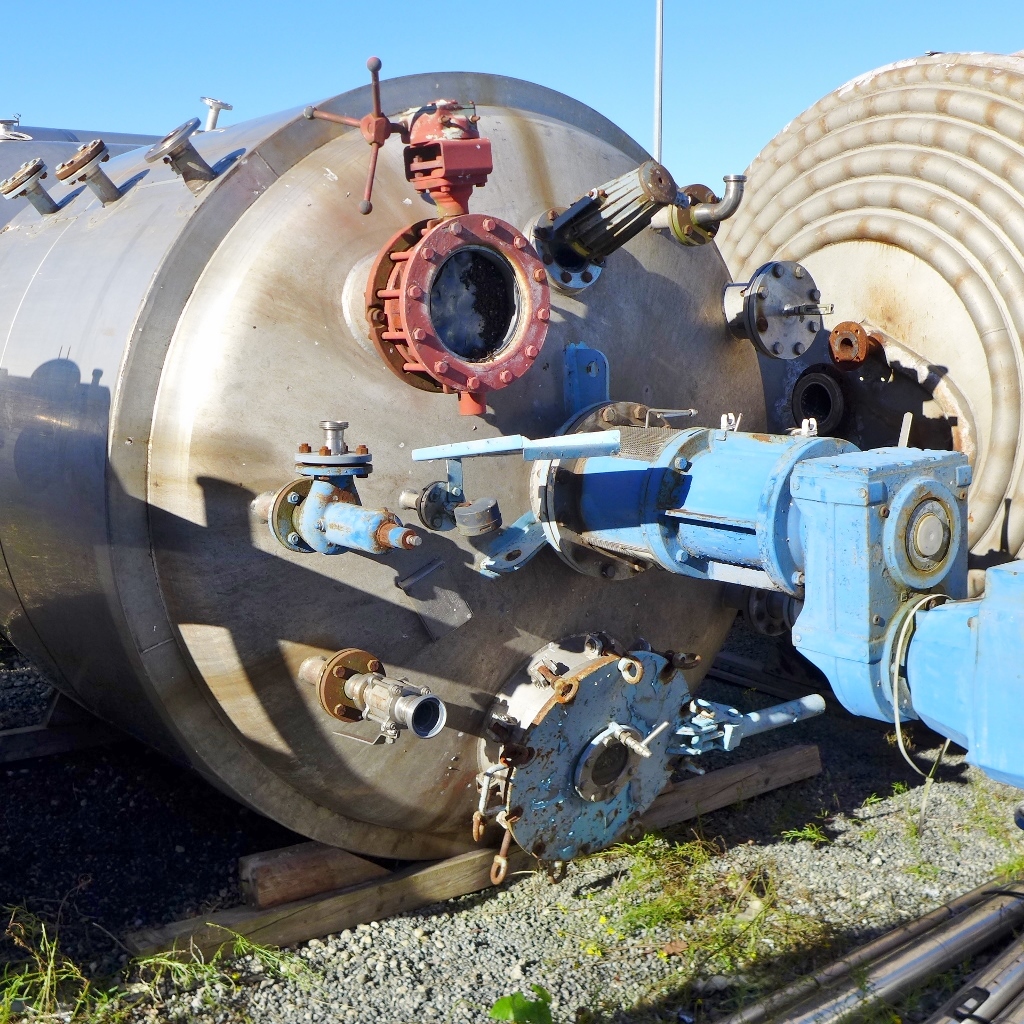

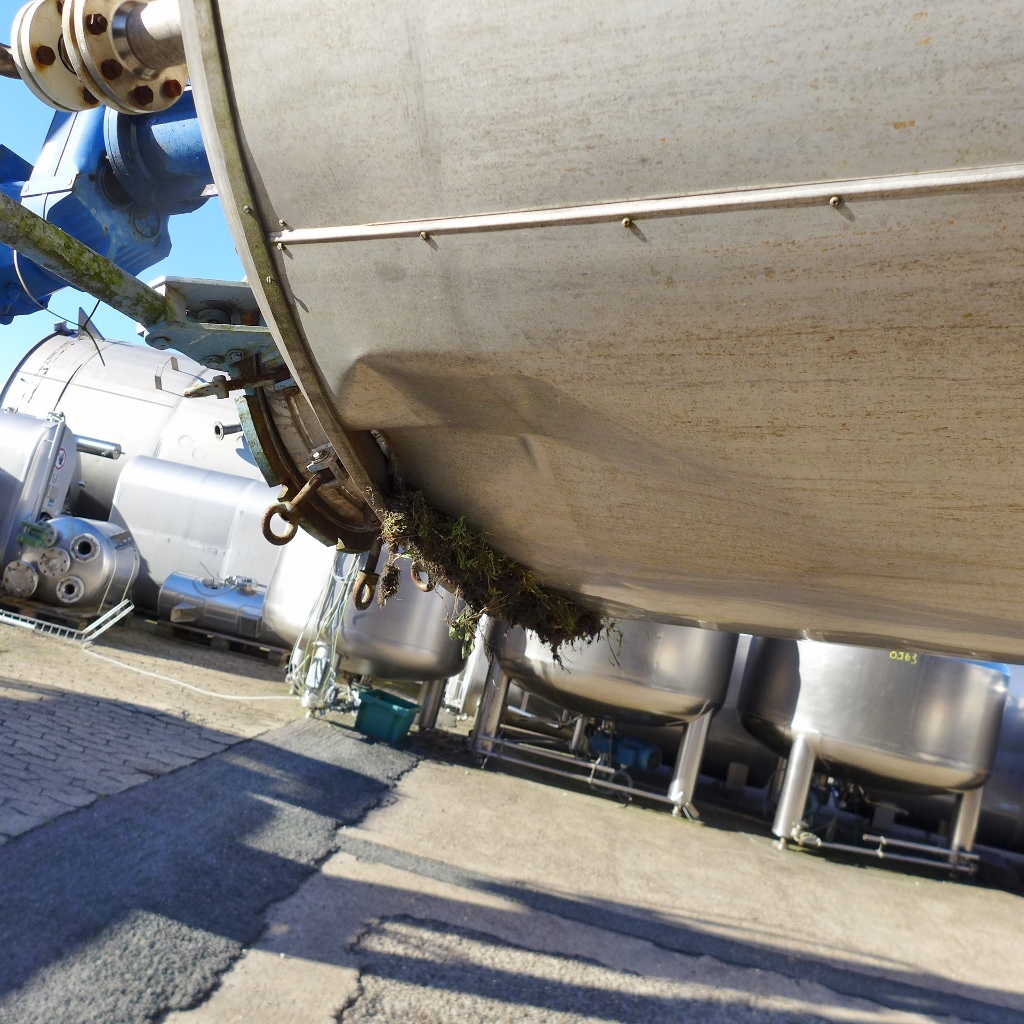

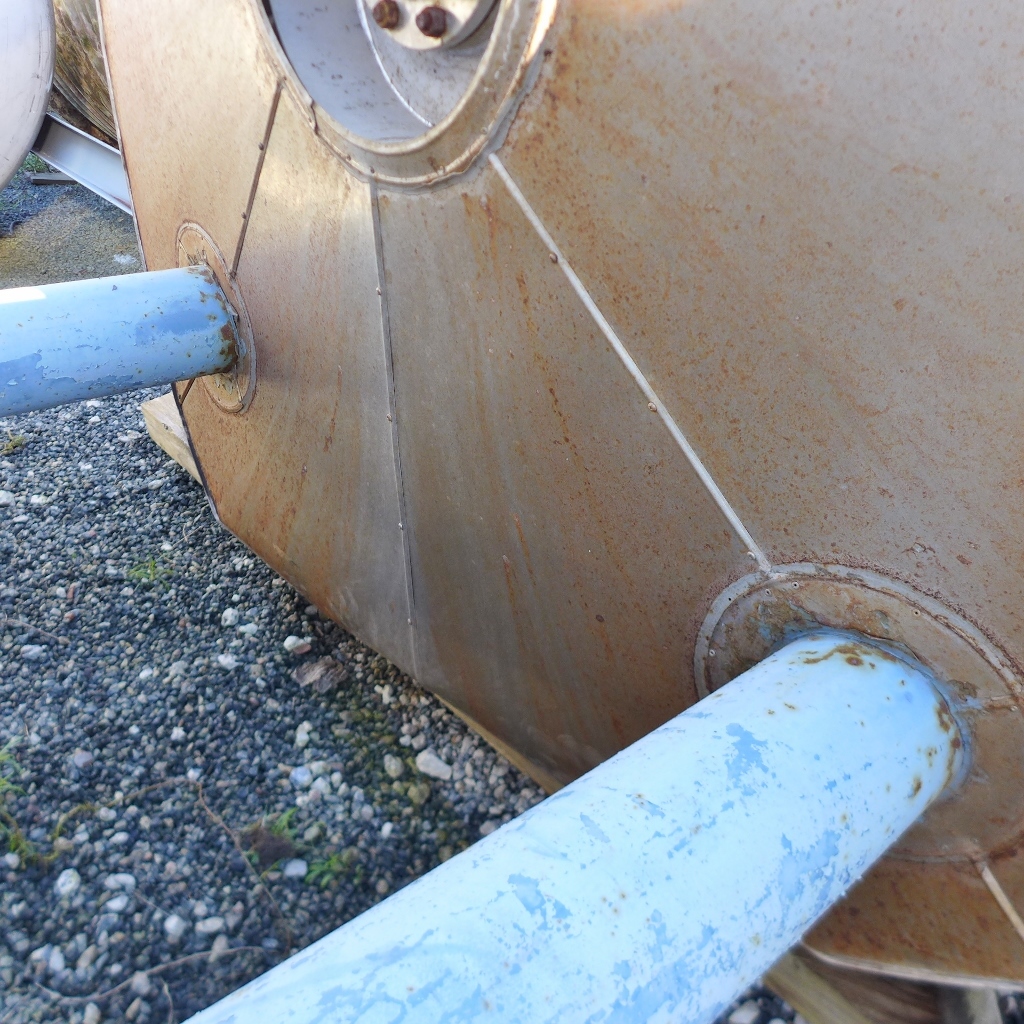

6500 liter tank i Syrafast 316

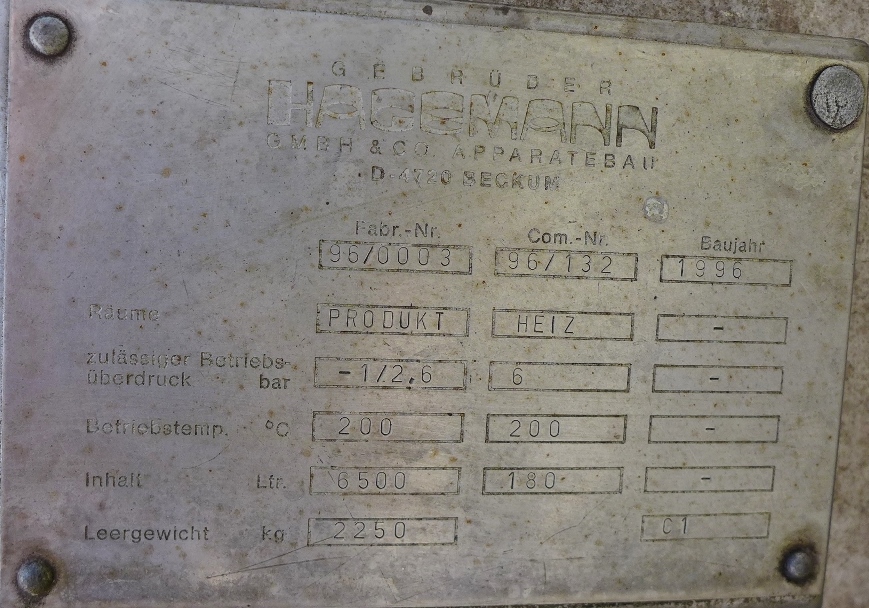

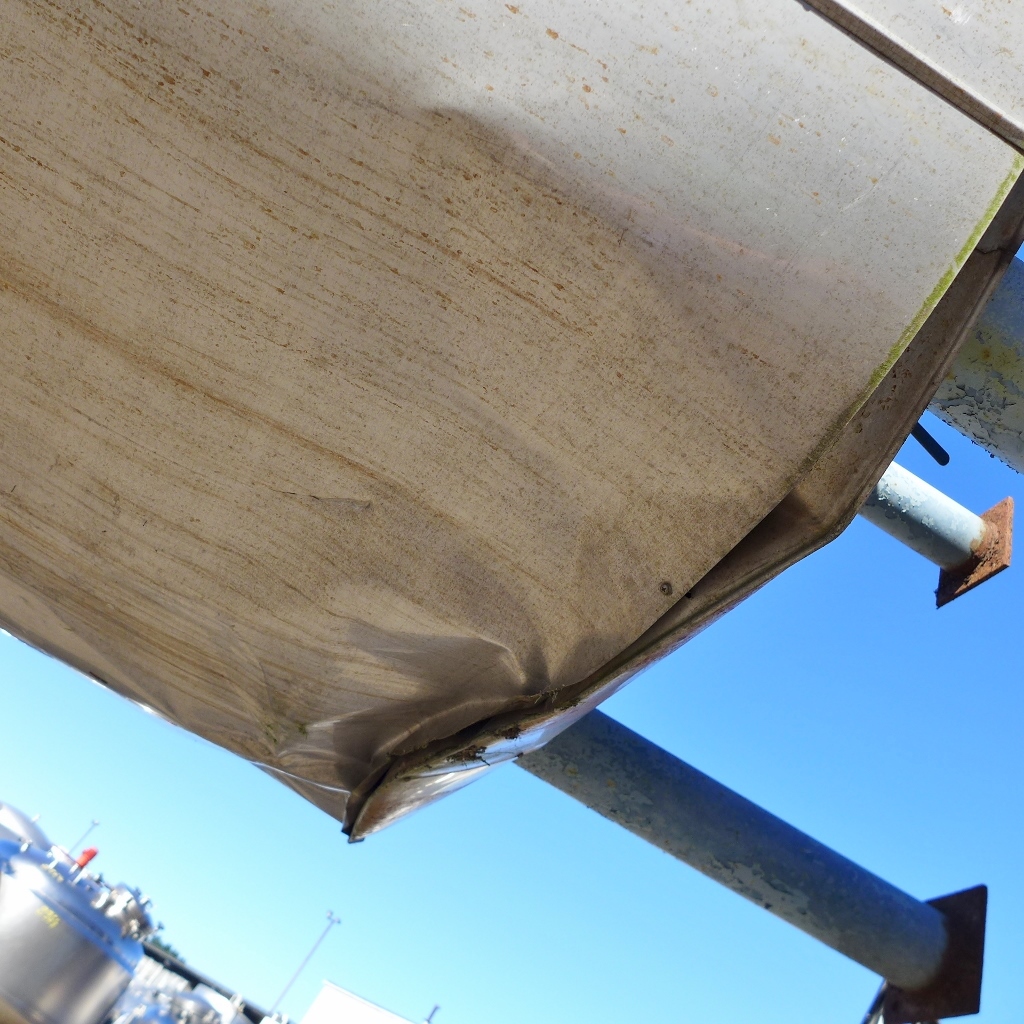

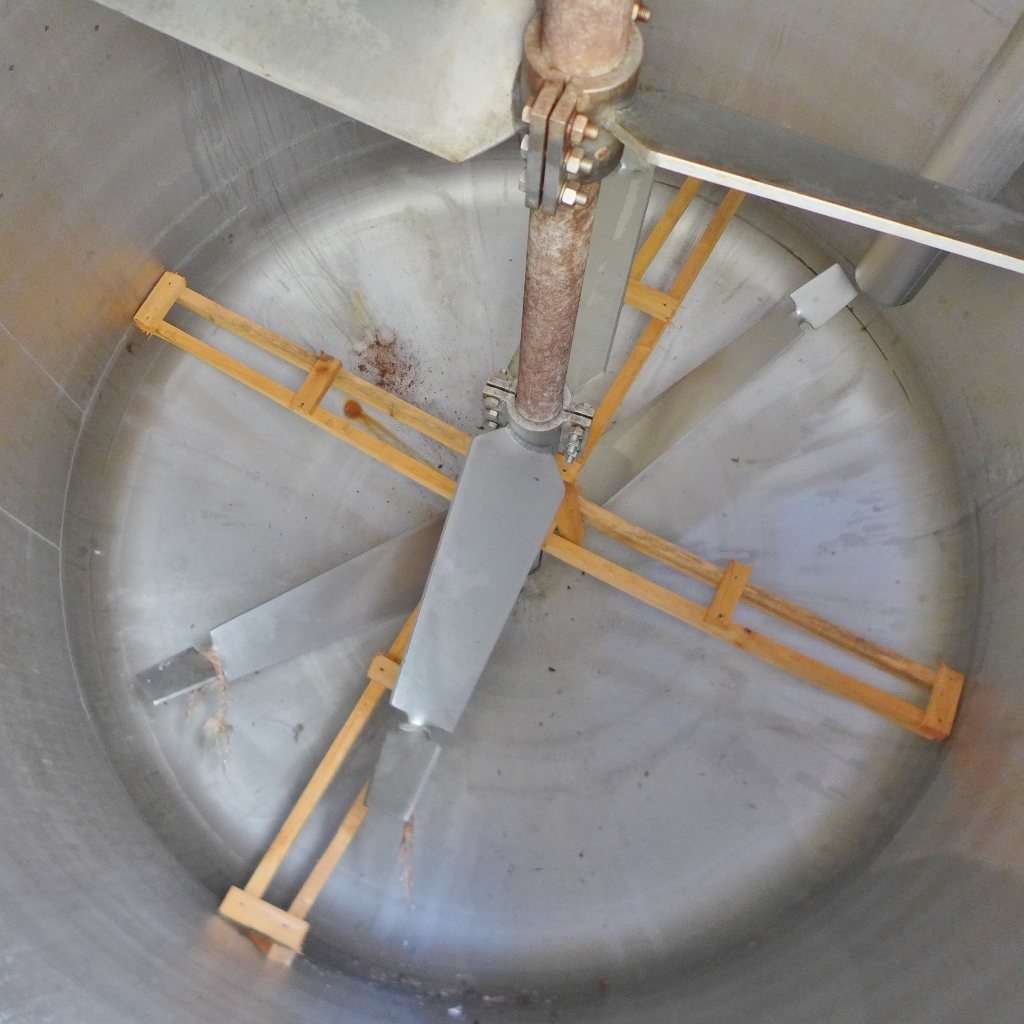

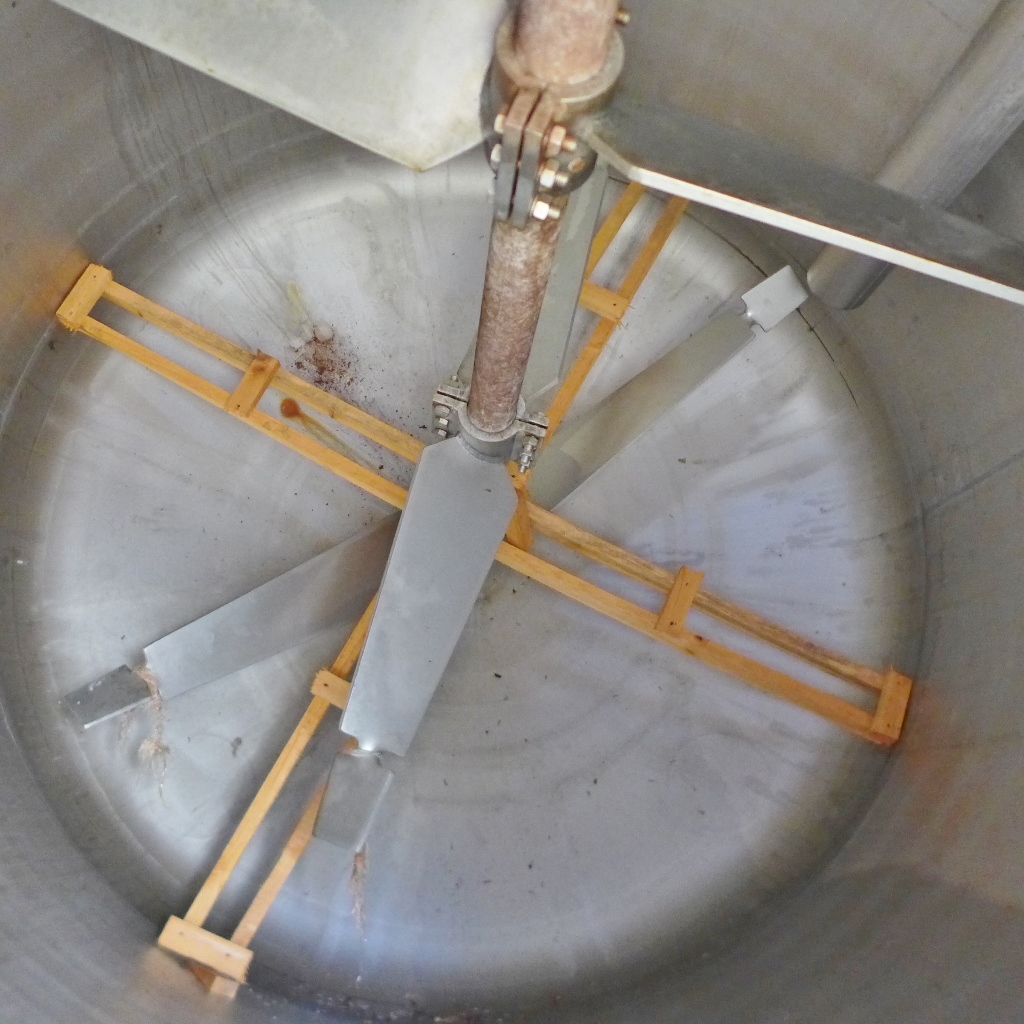

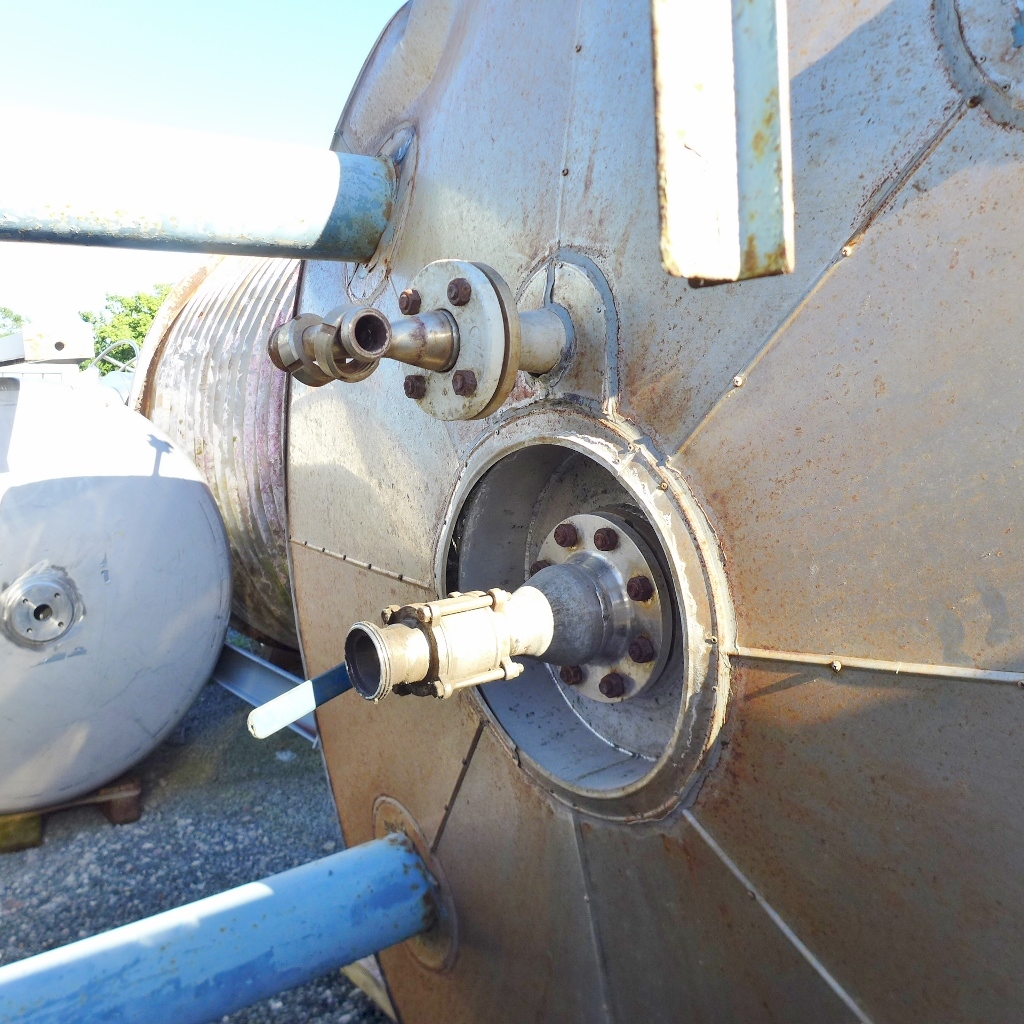

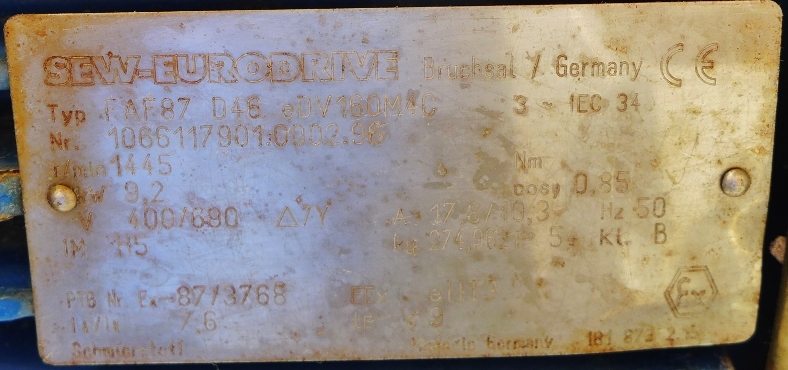

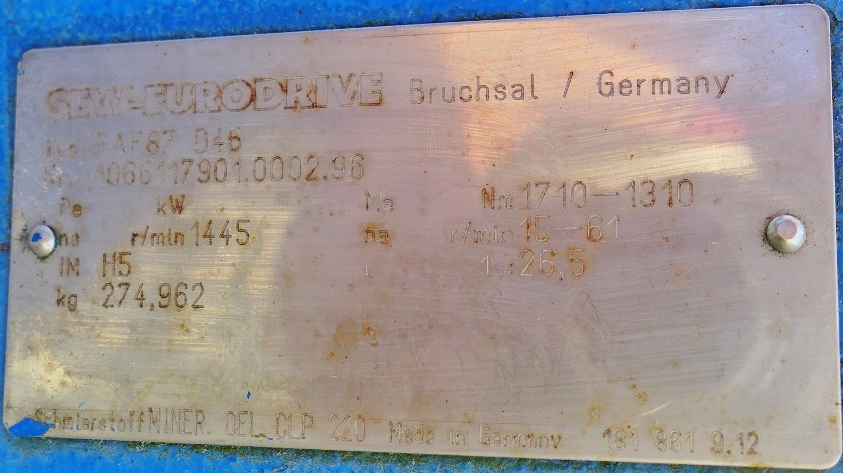

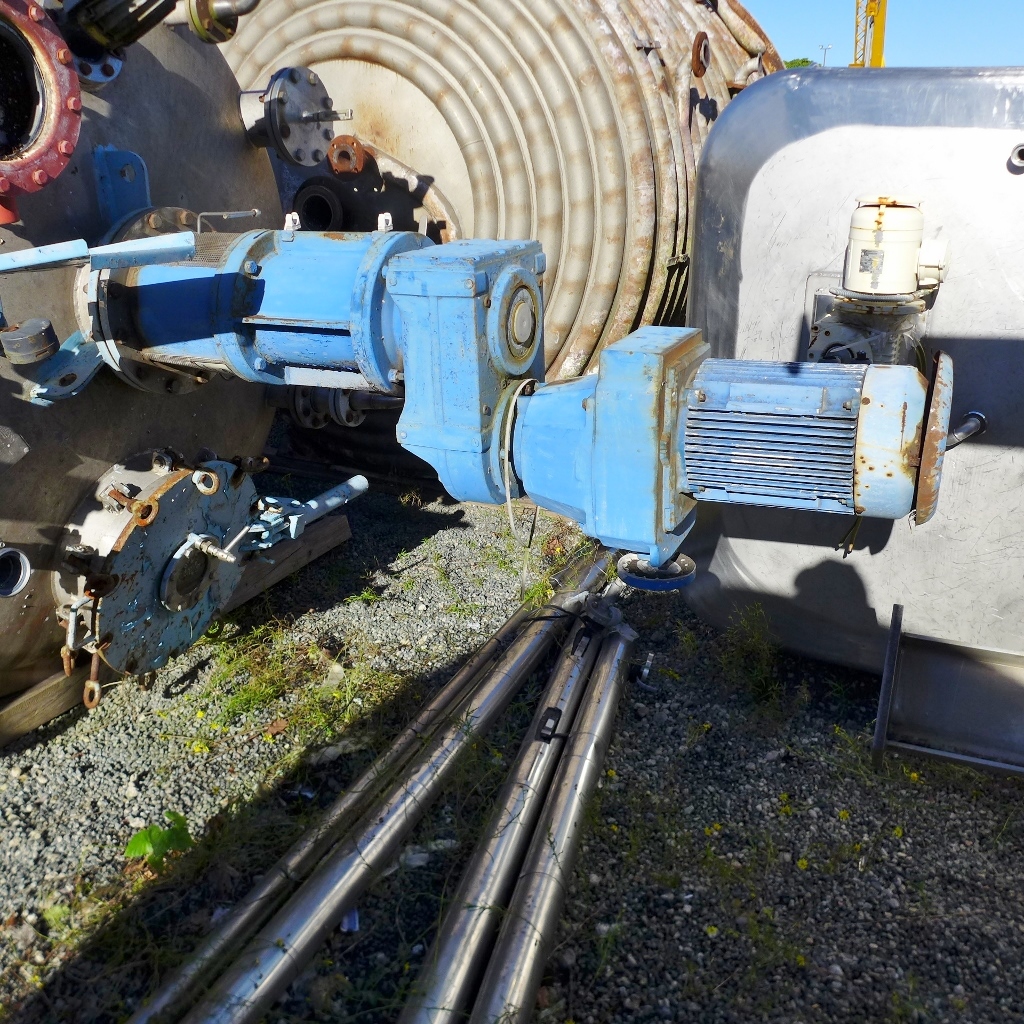

Additional information: Chemistry; bump at the insulation jacket; manhole cover plated Volumetric volume (L): 6.500 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 2,60 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Volume: 180 L Max Overpressure: 6 Bar Max onderdruk: 1 Bar Max. working temperature: 200 °C Type HE on the bottom: half pipe welded onto the outside of the innertank Type HE on the cylinder: half pipe welded onto the outside of the innertank Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: in the bottom Outlet of tank: DN50 DIN 11851 Agitator: yes Number of revolutions: 15 - 61 Power: 9,20 Internal diameter tank: 2.000 mm Outer diameter tank: 2.180 mm Cylinder height: 1.500 mm Total height of tank: 5.400 mm
