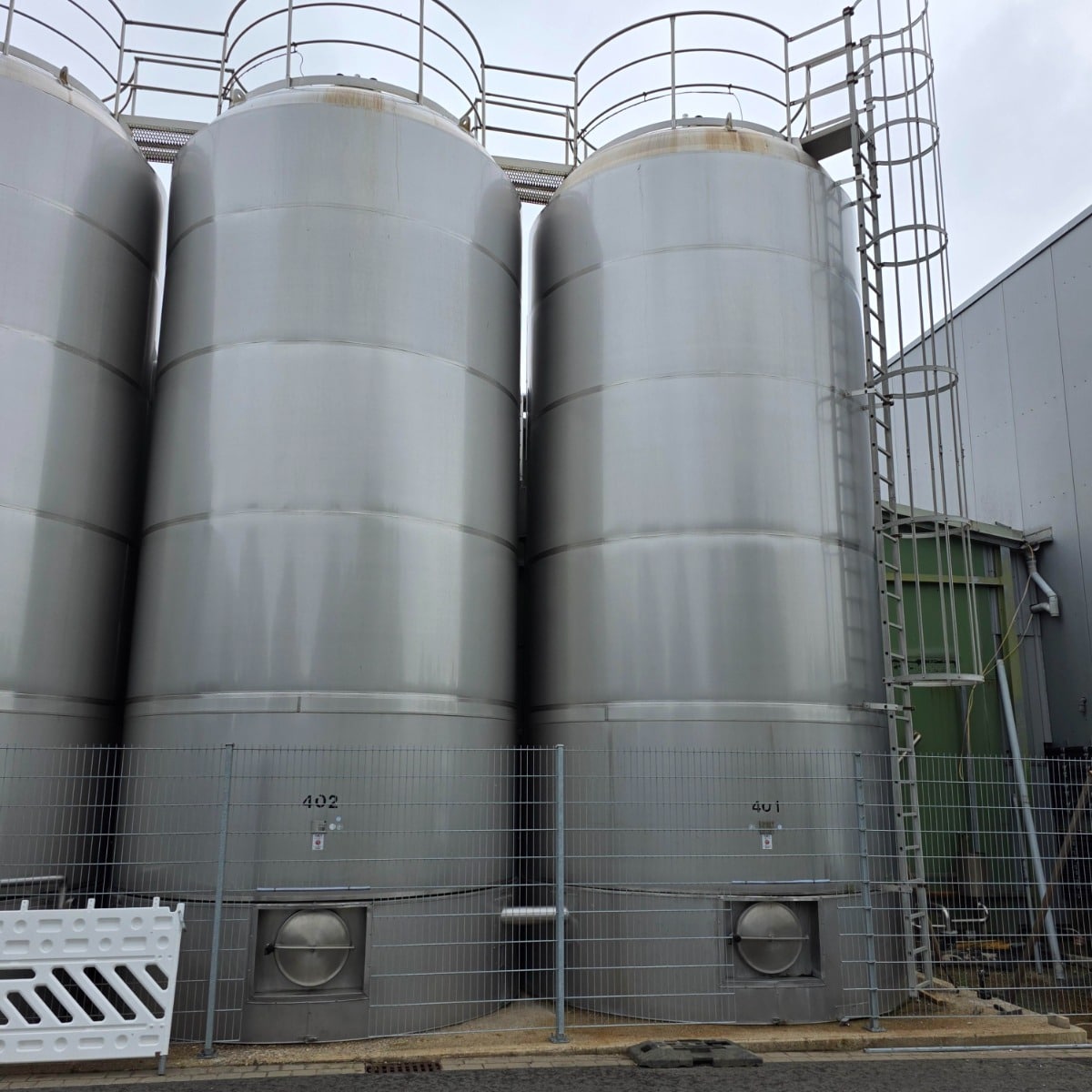

64680 liter tank i Rostfritt 304

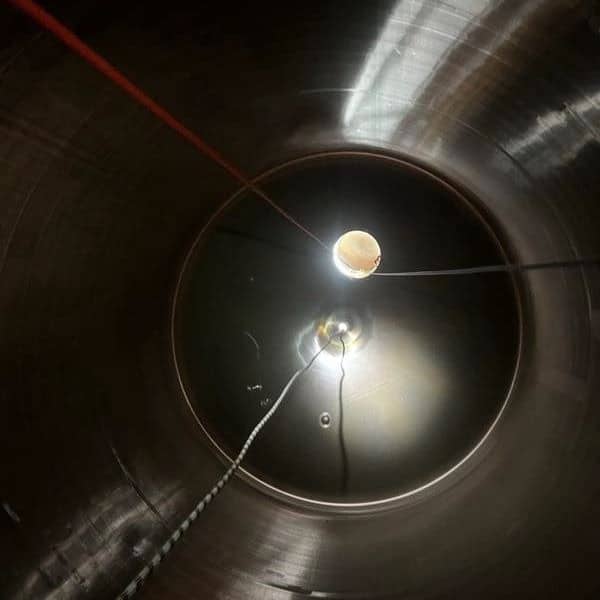

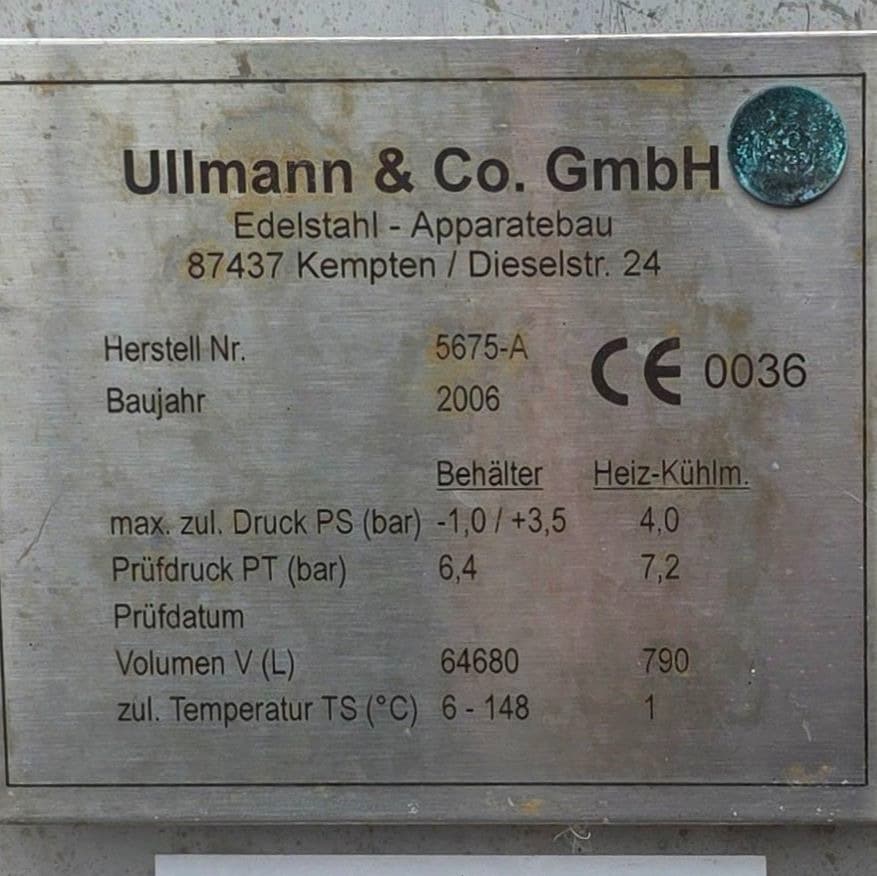

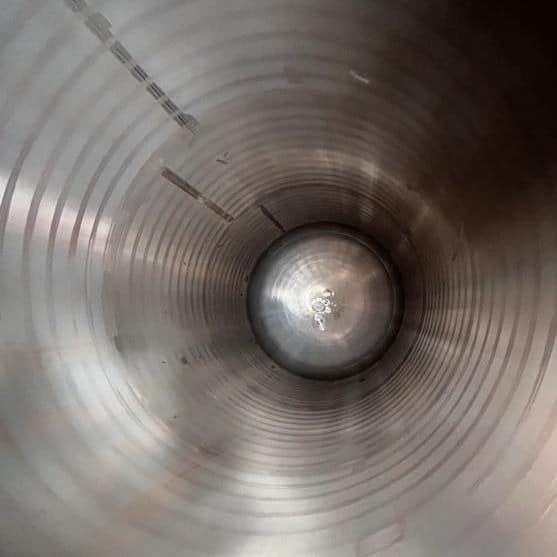

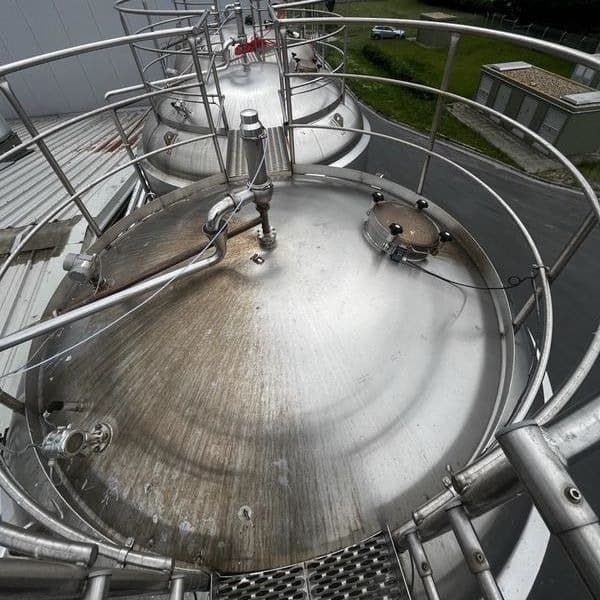

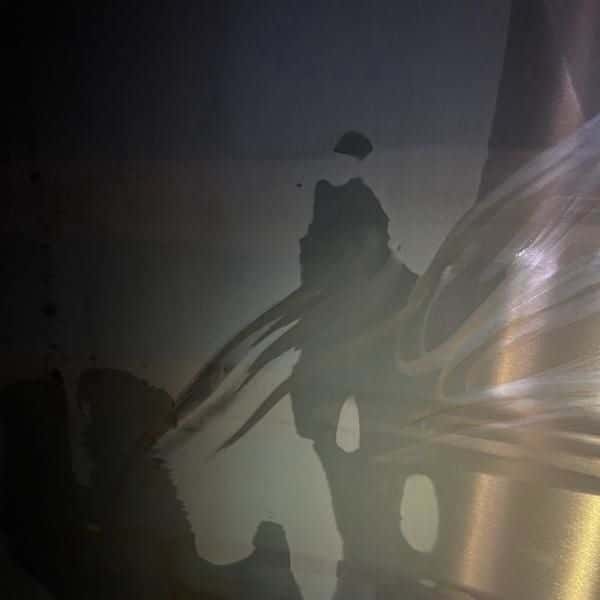

Additional information: milk; The heating jacket has leaks and has therefore not been in operation; slight milk residue inside the tank (see photos). Volumetric volume (L): 64.680 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3,50 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 148 °C Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Volume: 790 L Max Overpressure: 4 Bar Type HE on the bottom: half pipe welded onto the outside of the innertank Type HE on the cylinder: half pipe welded onto the outside of the innertank Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: headside Outlet of tank: available Internal diameter tank: 3.380 mm Outer diameter tank: 3.600 mm Cylinder height: 6.000 mm
