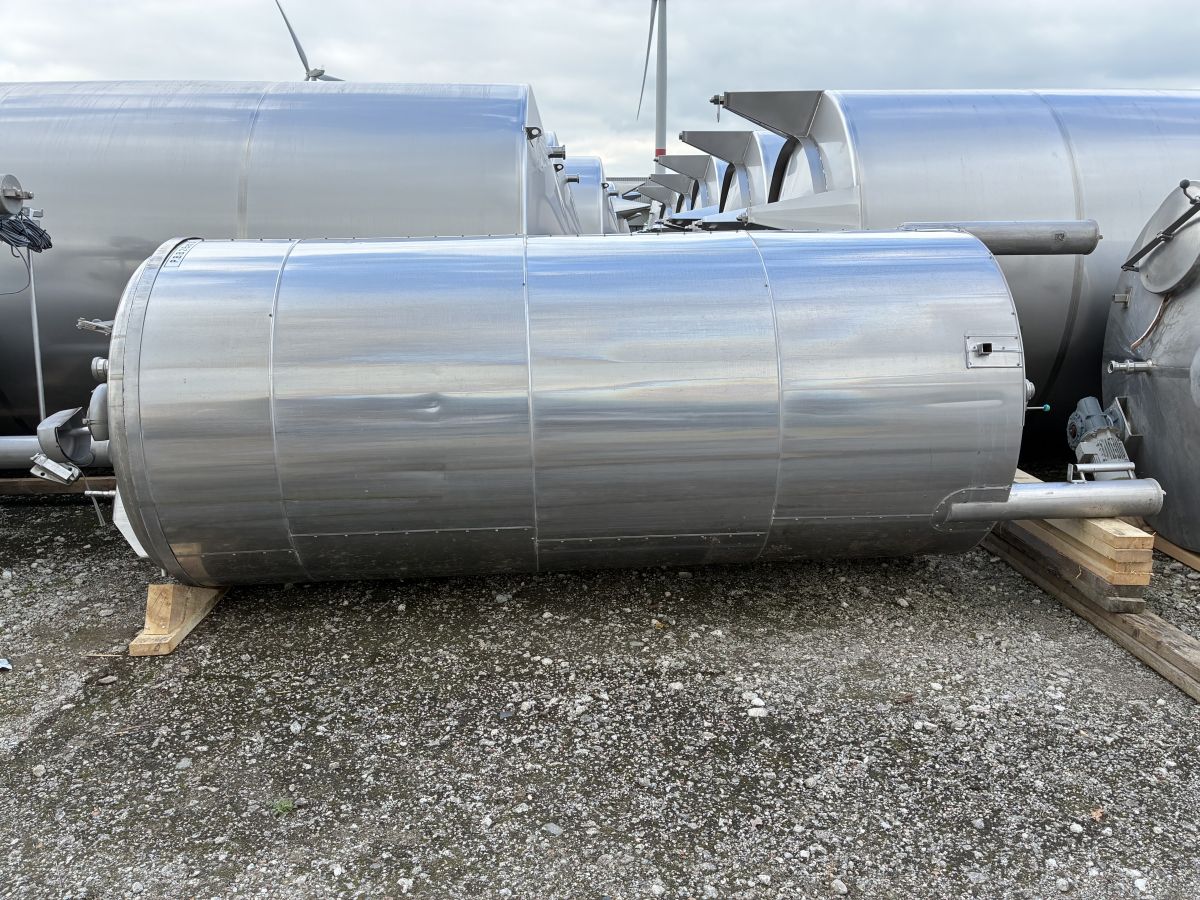

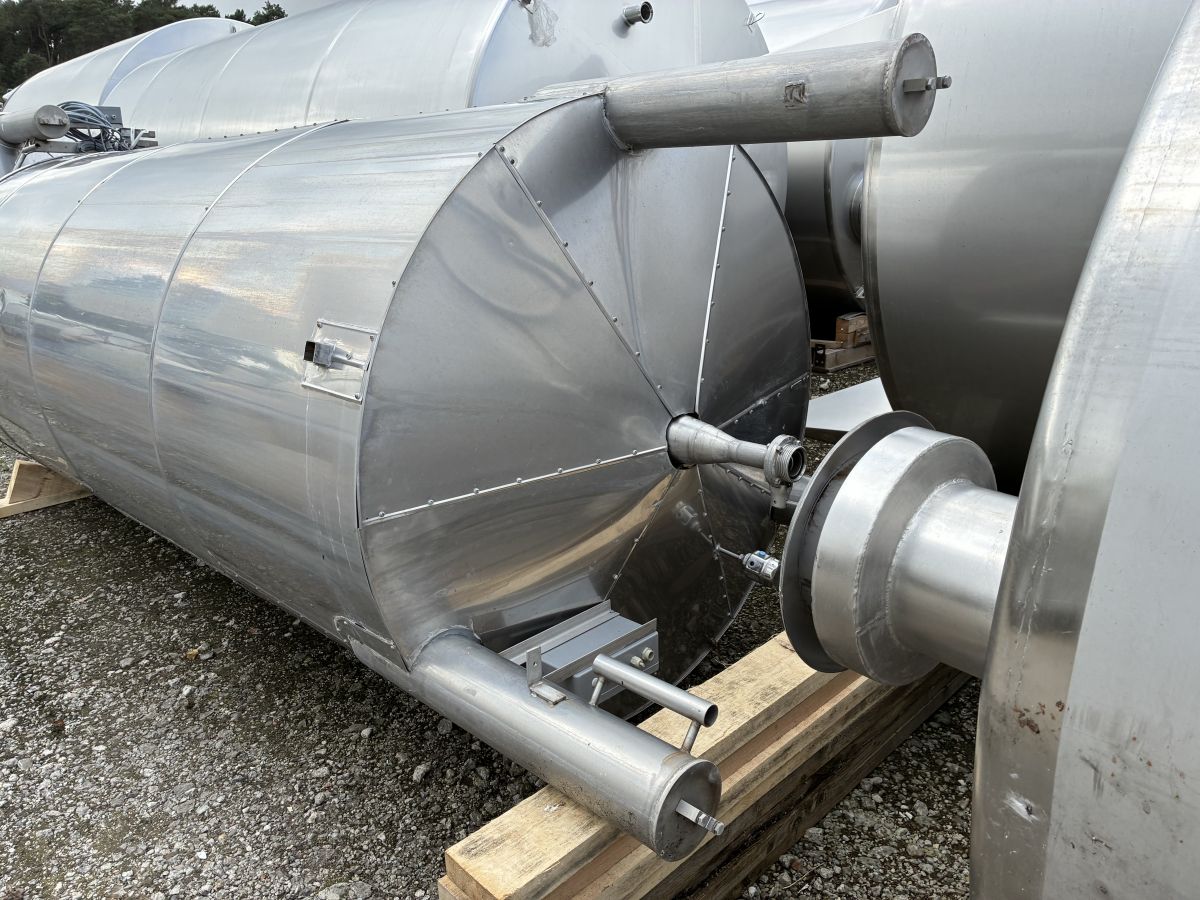

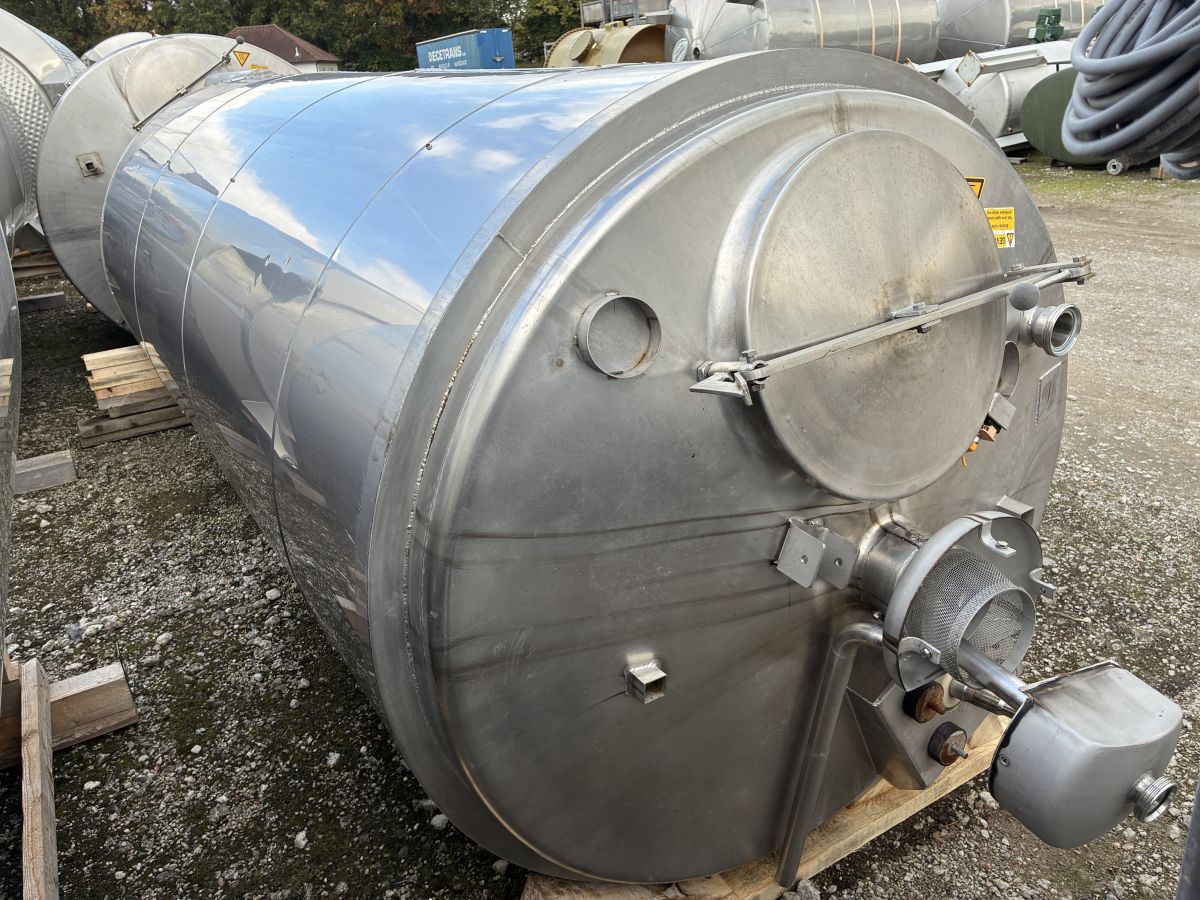

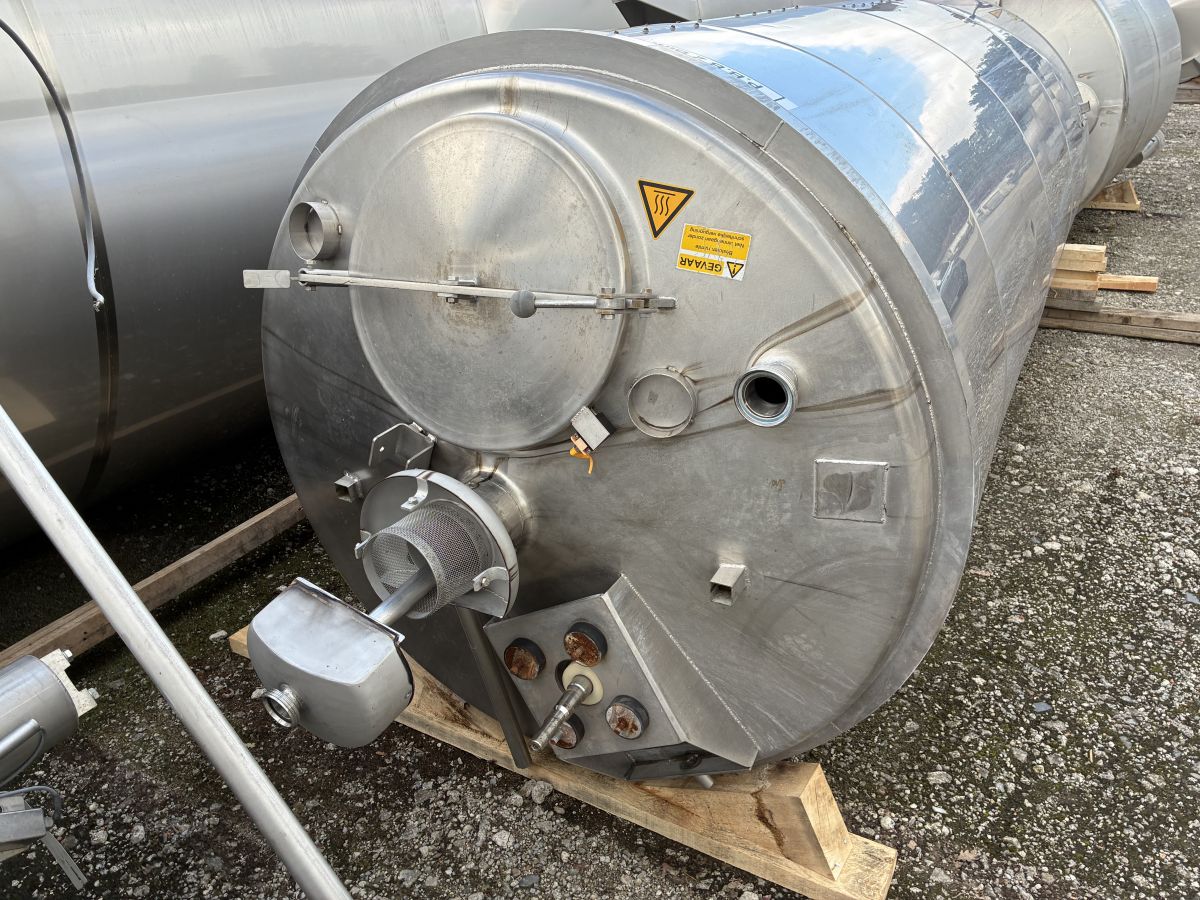

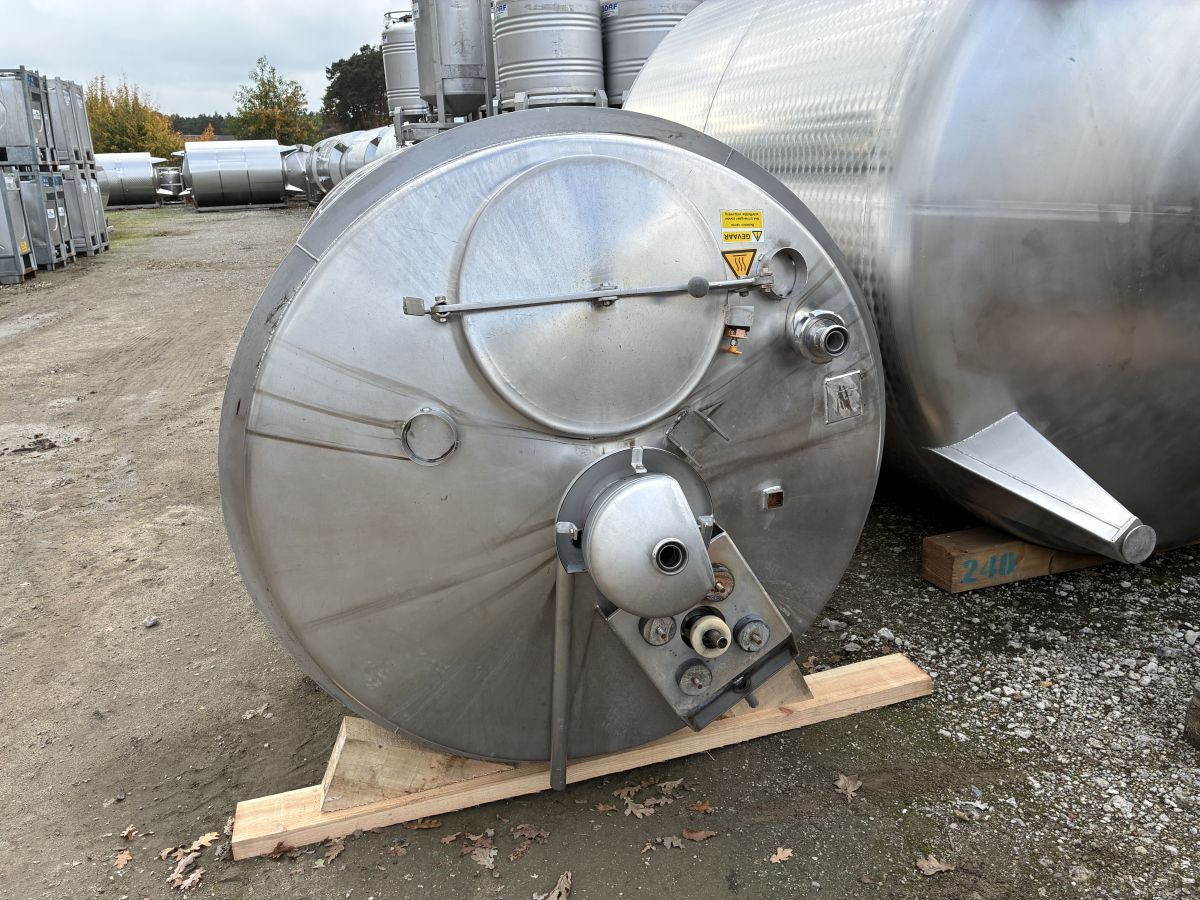

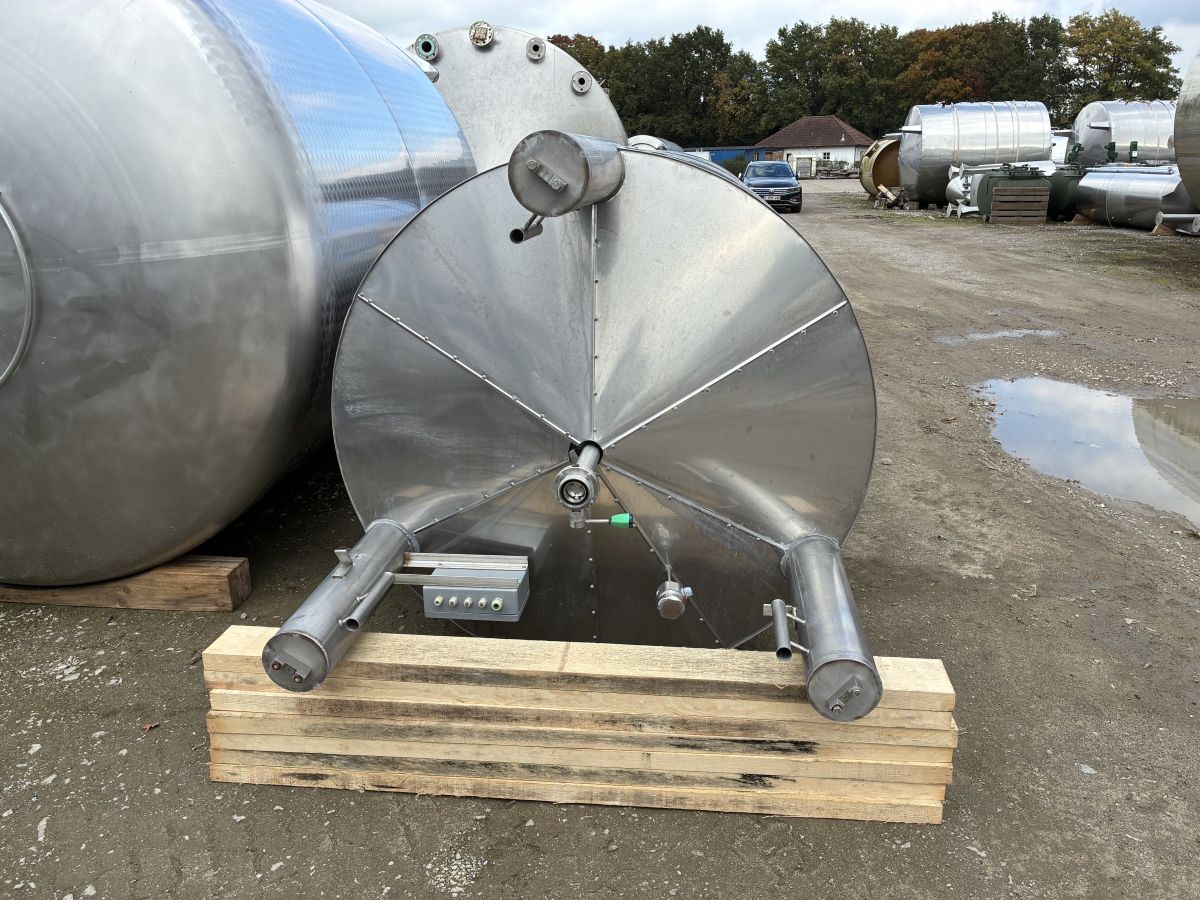

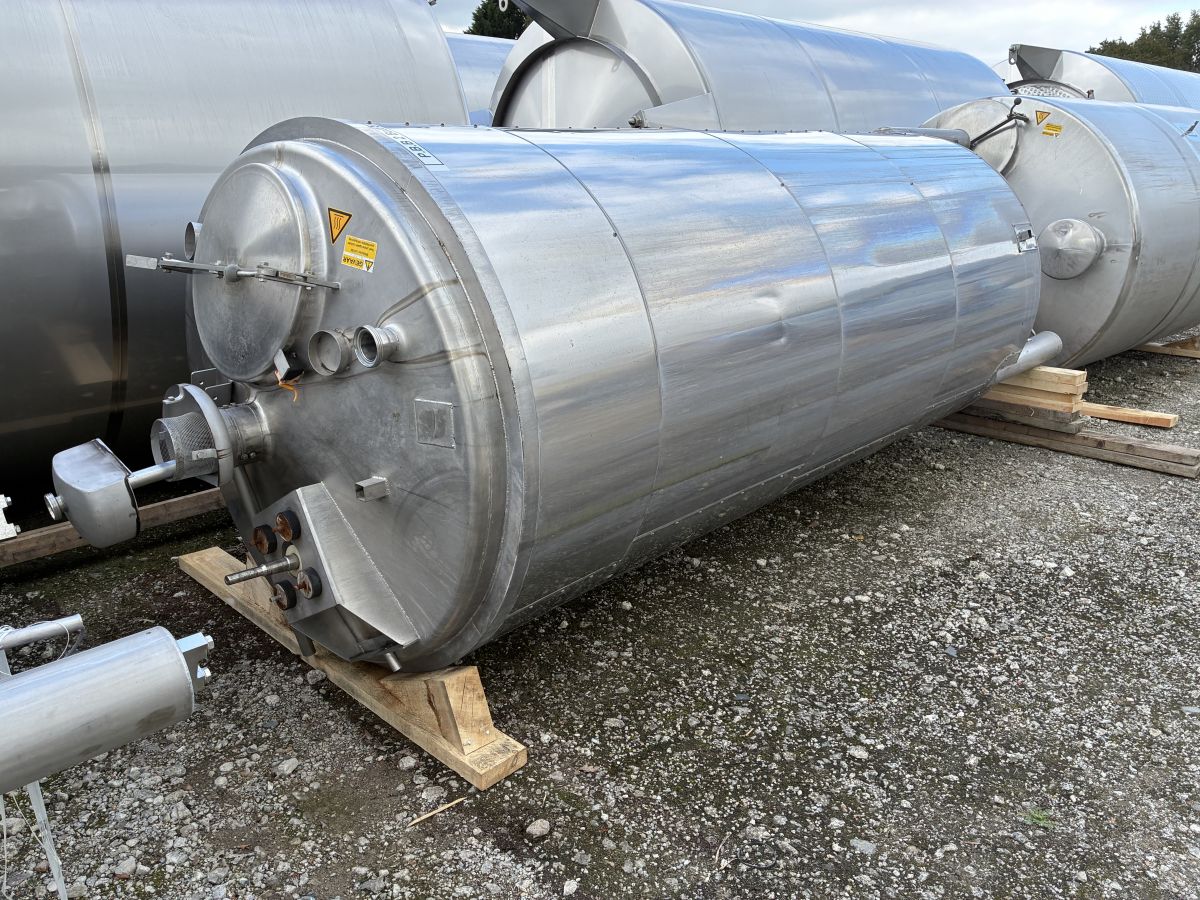

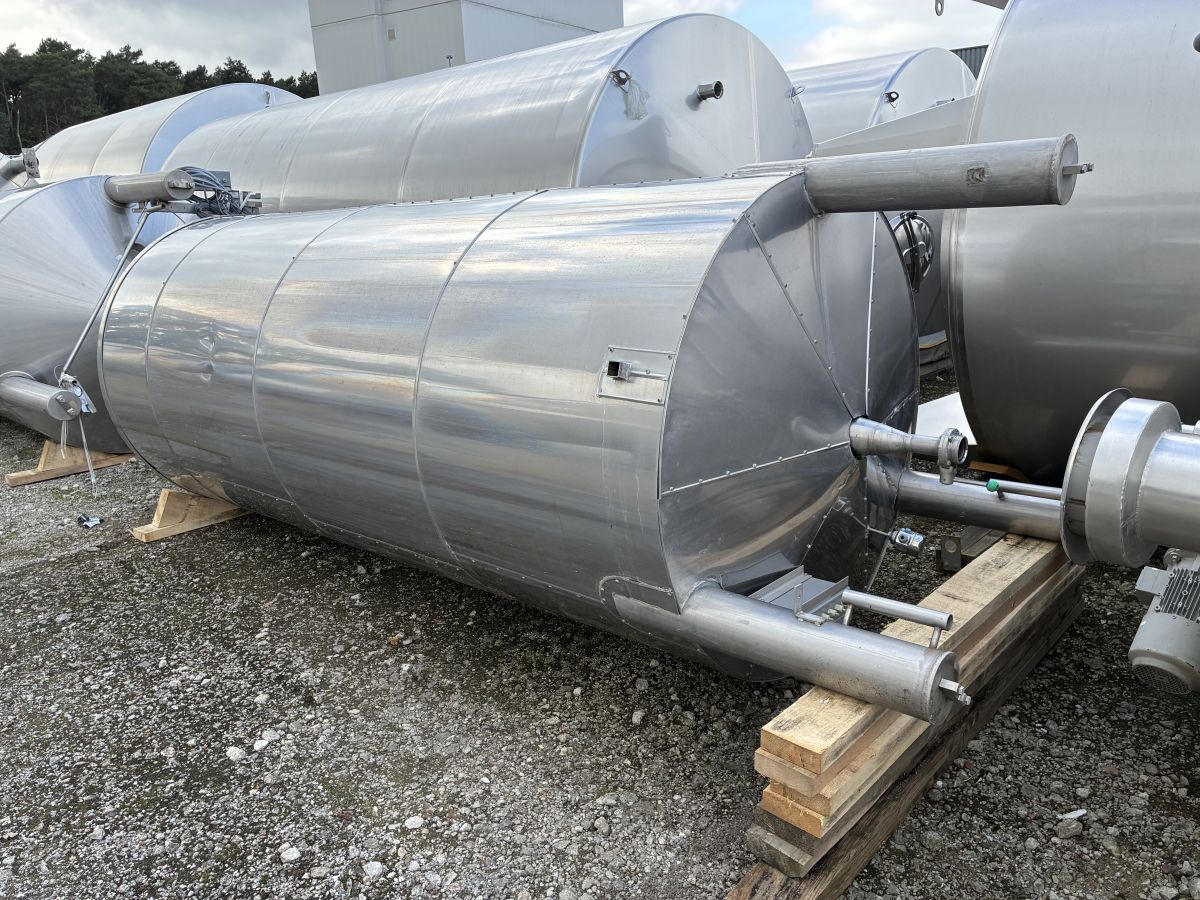

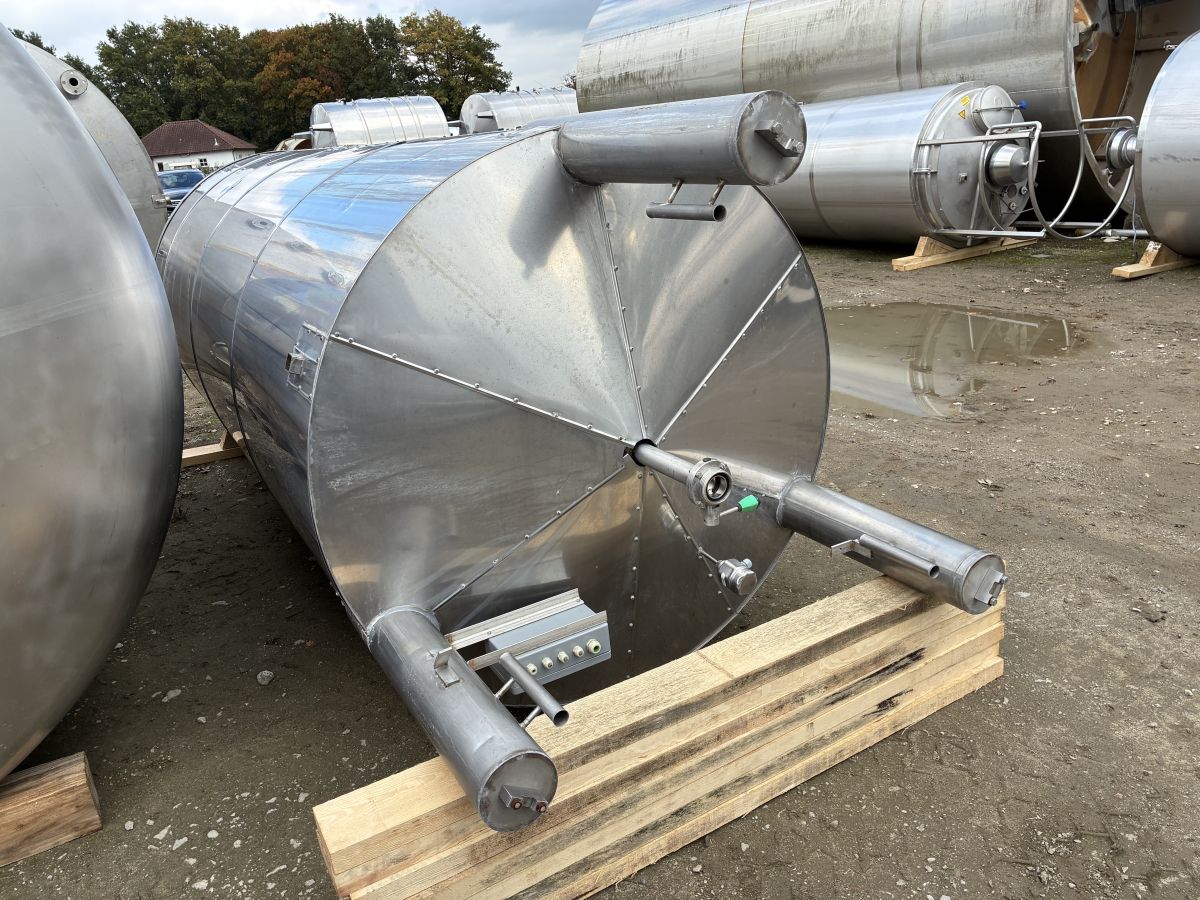

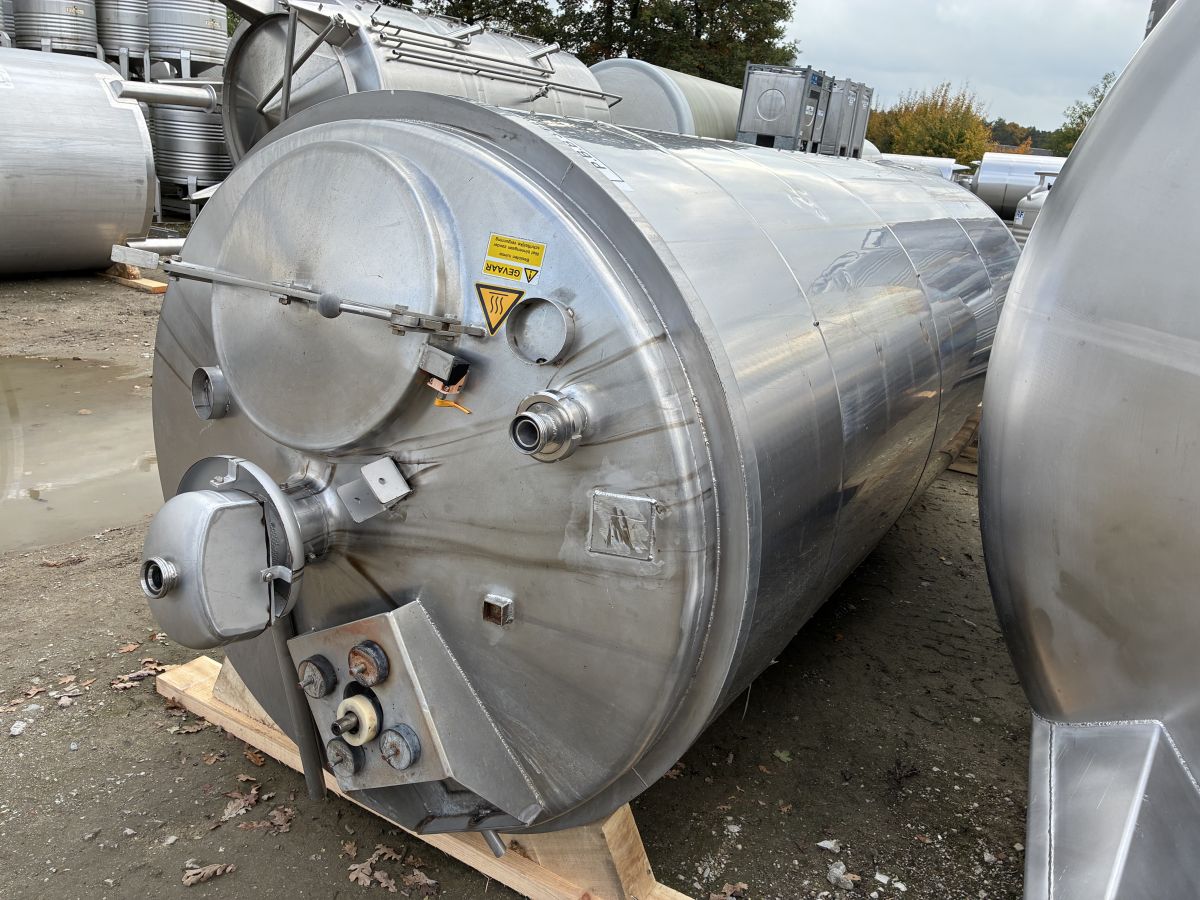

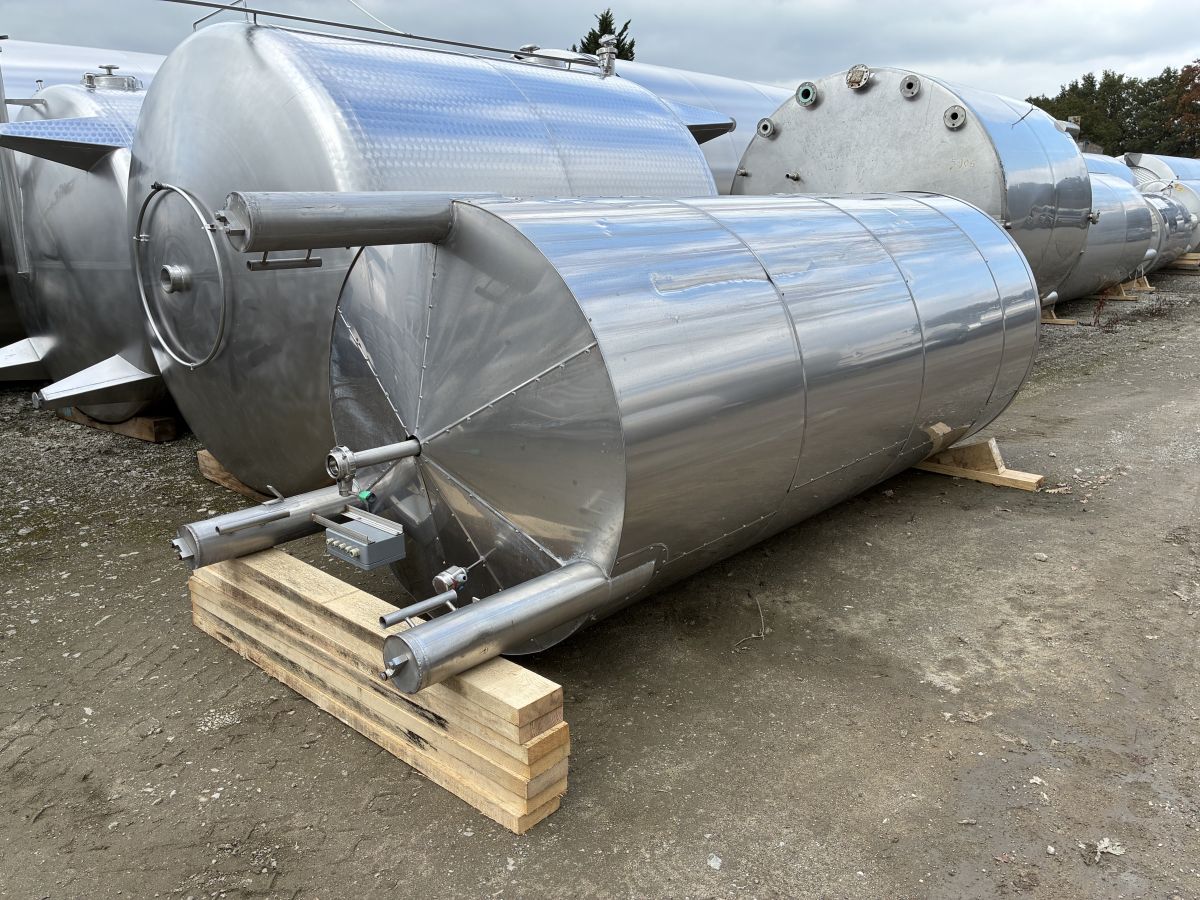

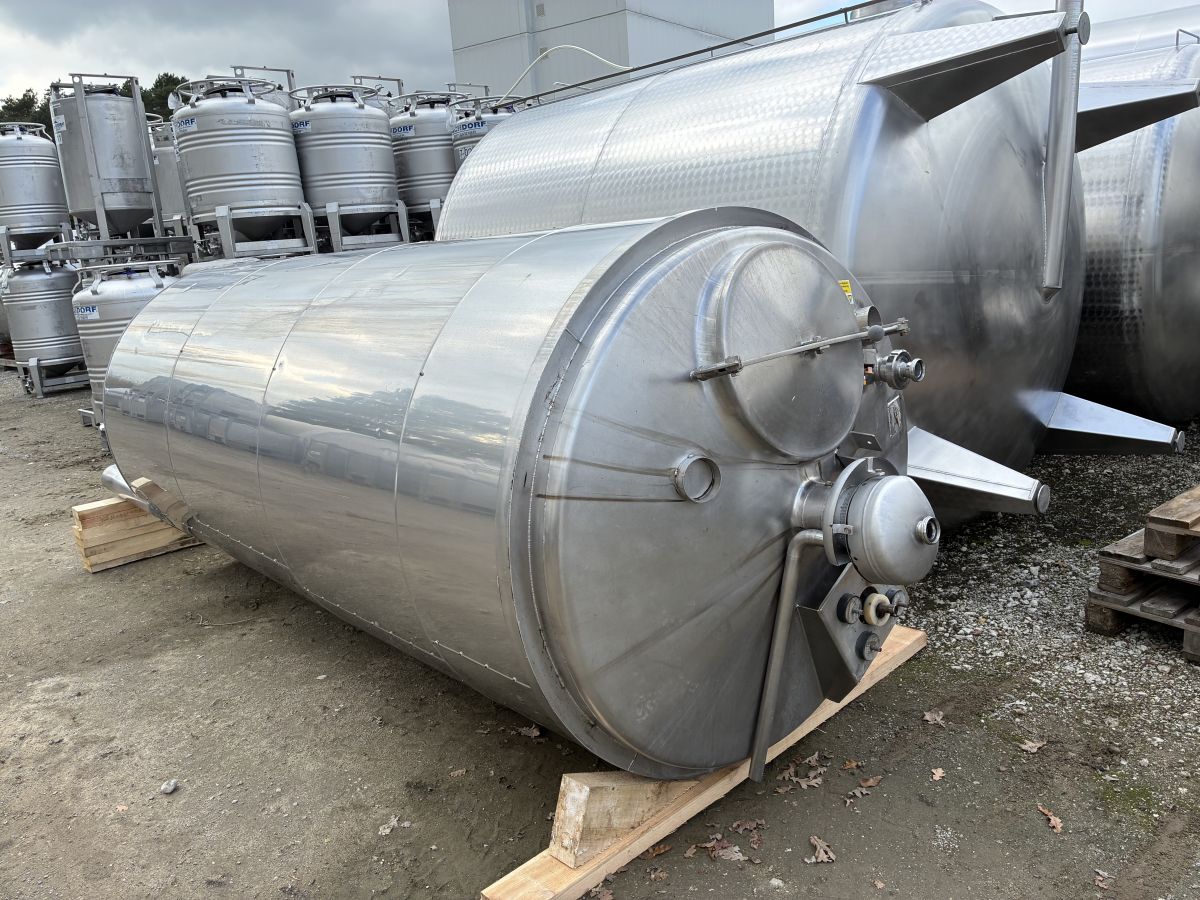

5100 liter tank i Rostfritt 304

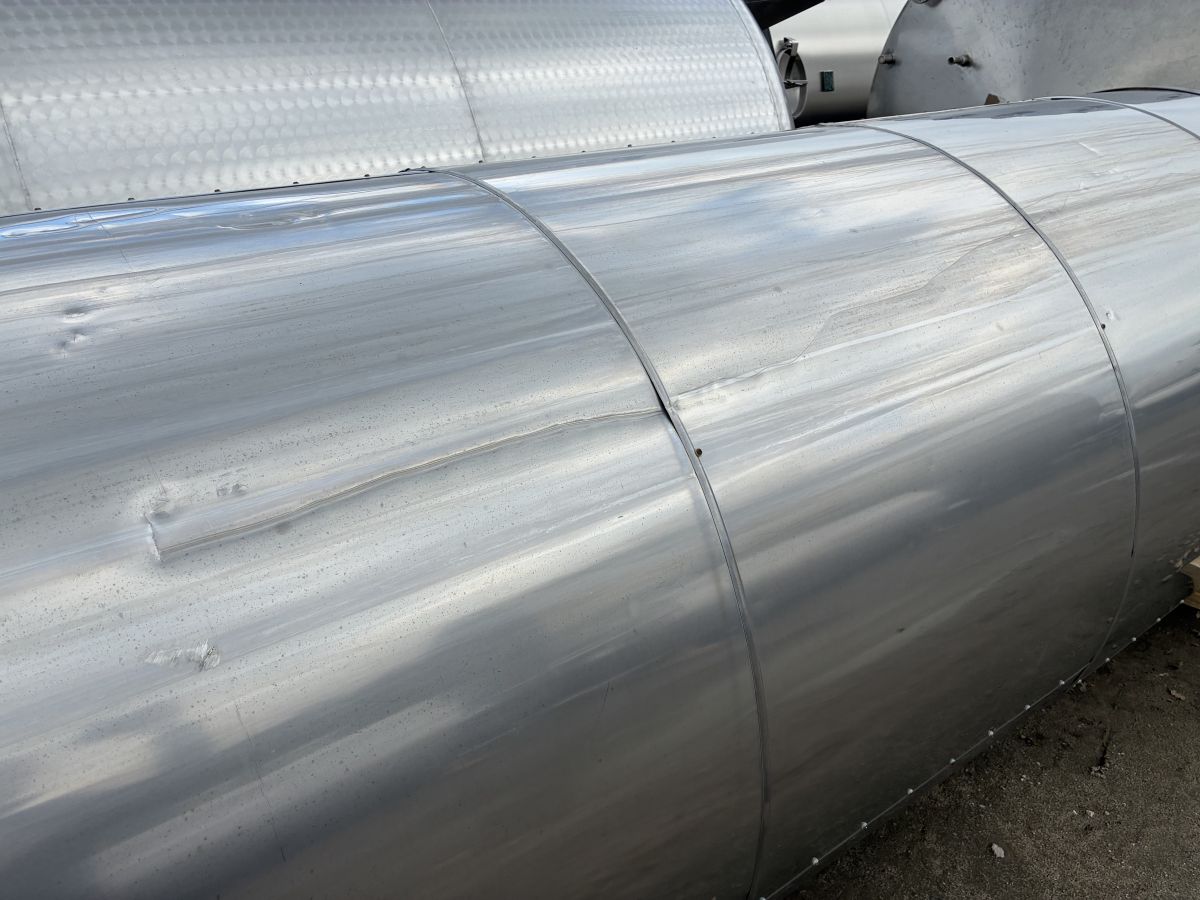

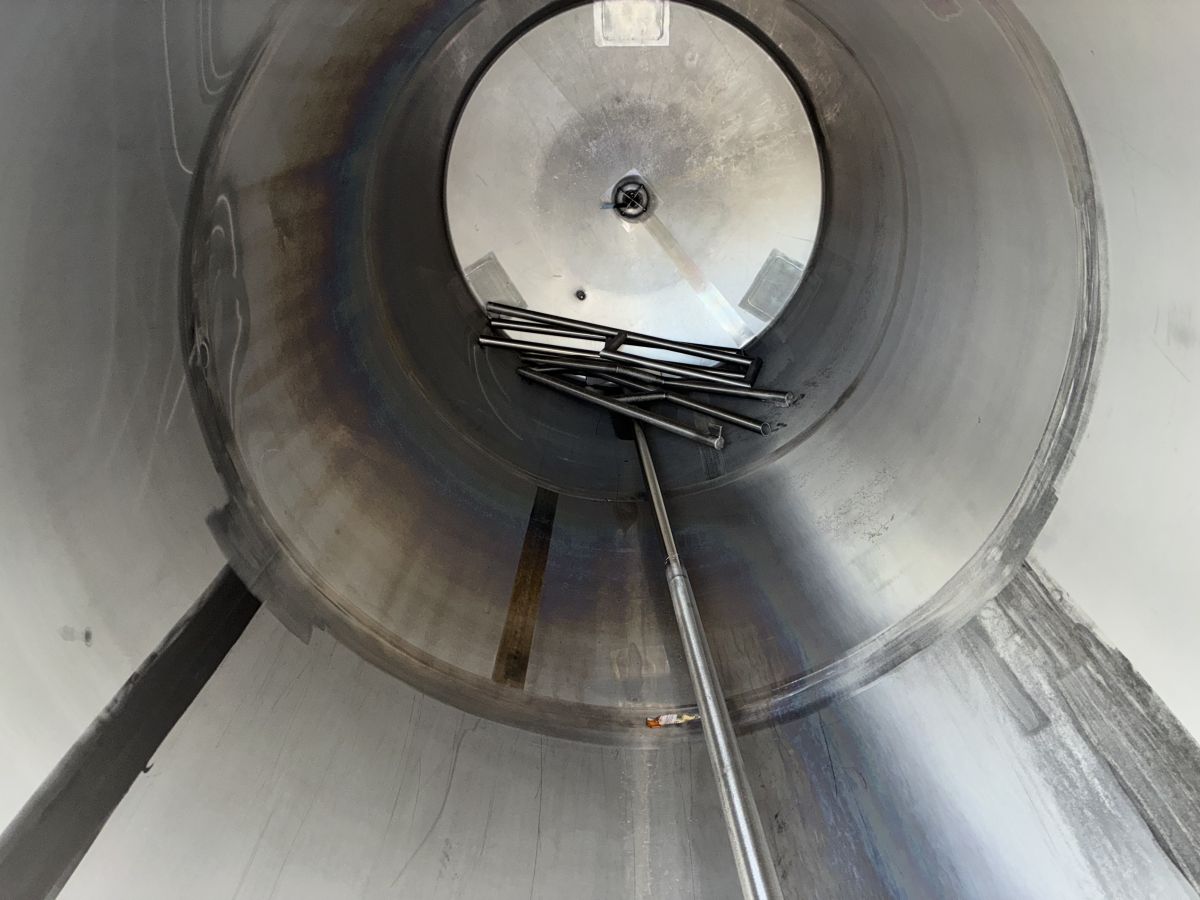

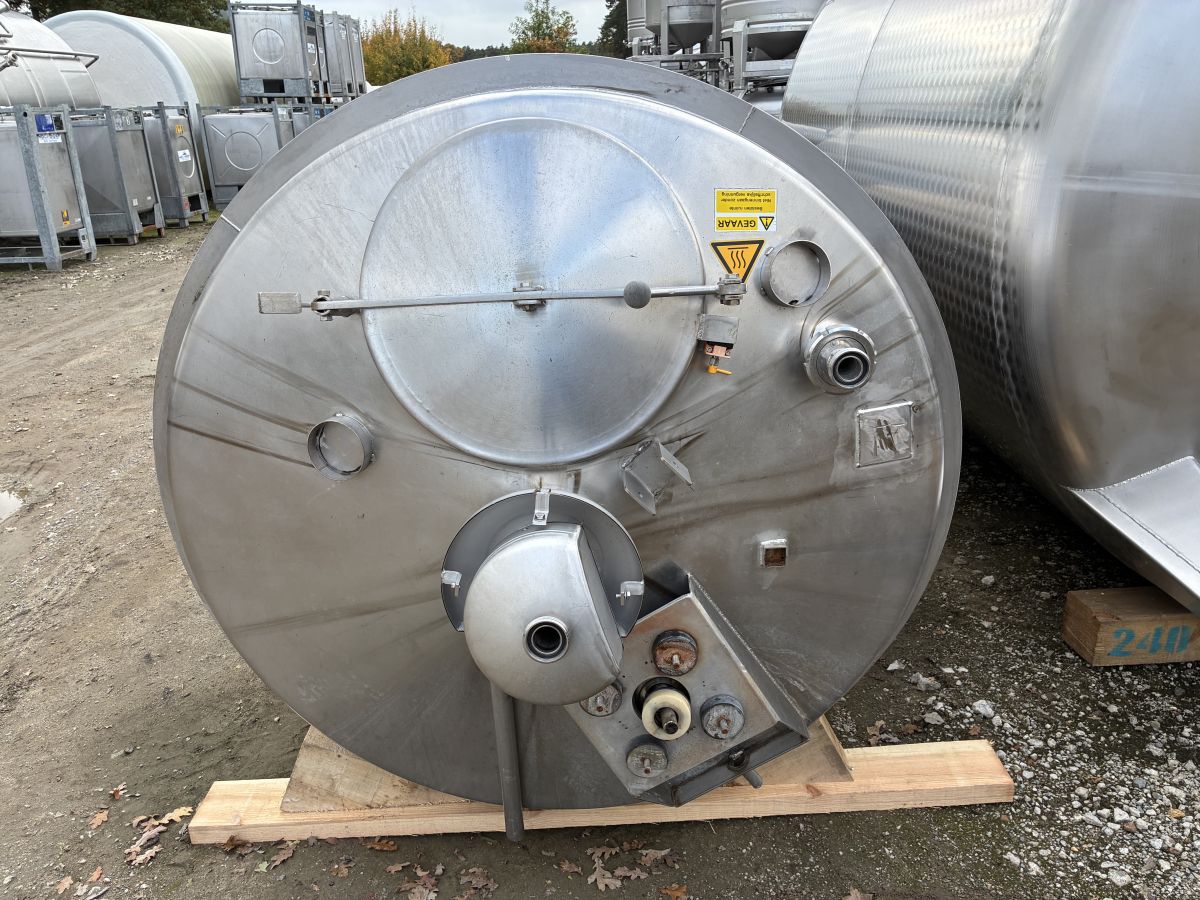

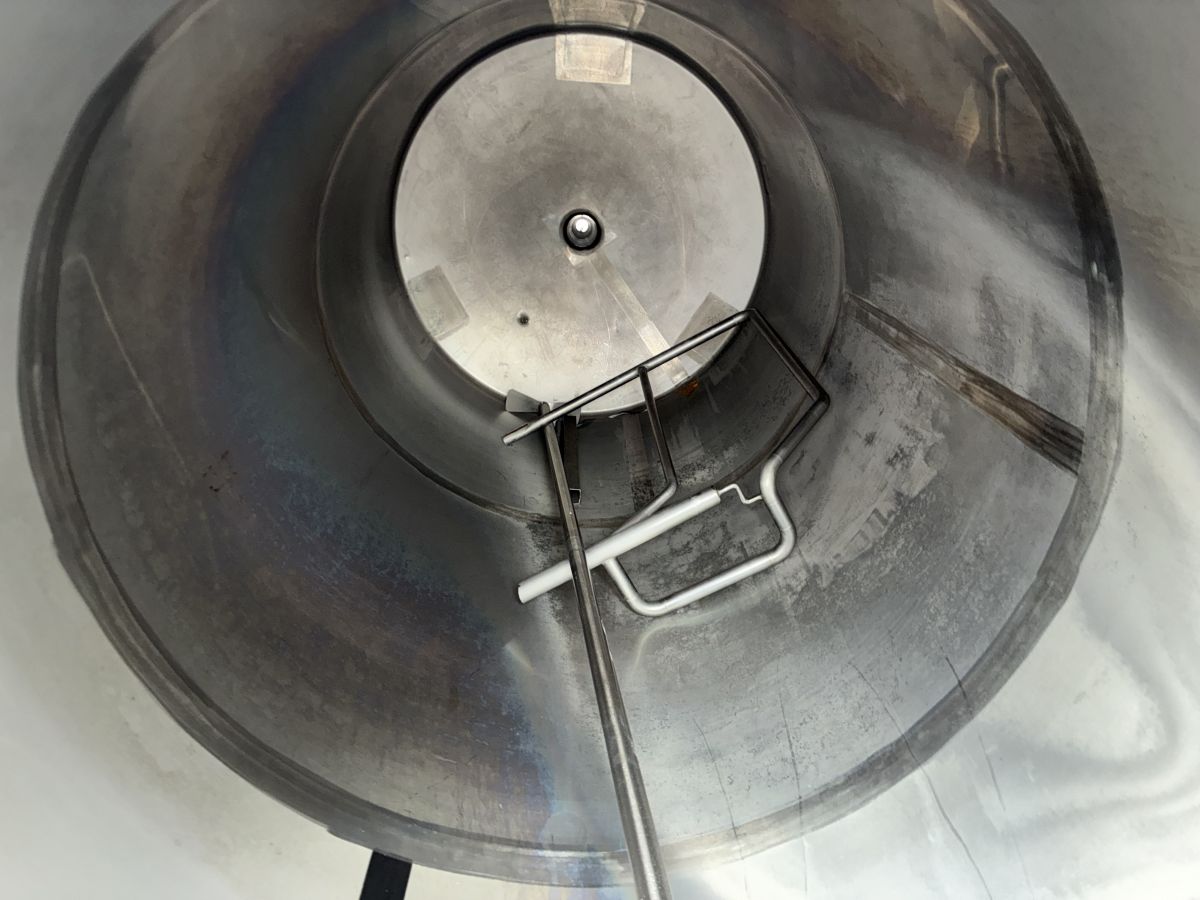

Article type: second-hand storage tank Additional information: The agitator drive is missing, there is a loose piece of the platform in the tank. Volumetric volume (L): 5.100 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: insulated Heat exchanger: no Insulation: yes Mobile tank: no Top type: conical Shape of tank: cylindrical Bottom type: conical Total discharge: yes Fixation points: 3 non adjustable feet Insulation material: Rockwool Outer jacket (ornamental wall): RVS 304 Manway(s): RVS 304 Gasket manway(s): unknown Valve: RVS 304 Gasket shut-off valve (mat): unknown Fixation point(s): RVS 304 Suitable for food industry: yes Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator: no Number of manways: 1 Position of manway: at the top Height manhole 1 (mm): 500 mm Tank outlet: inside Ø 50 mm Outlet type: DIN11851 Total outlet valve: yes Insulation body: yes Insulation bottom/sides: yes finish of the outer jacket: riveted Insulation thickness: 50 Internal diameter tank: 1.400 mm Distance from outlet to ground: 200 mm Outer diameter tank: 1.550 mm Cylinder height: 3.340 mm Total height of tank: 4.500 mm Empty weight tank: 600
