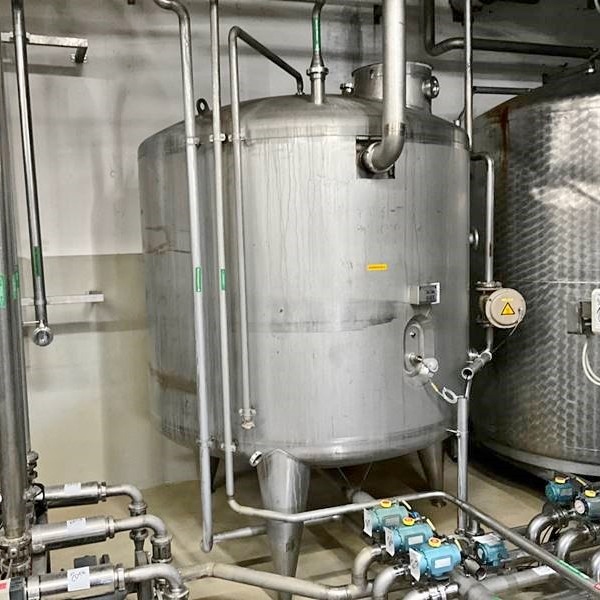

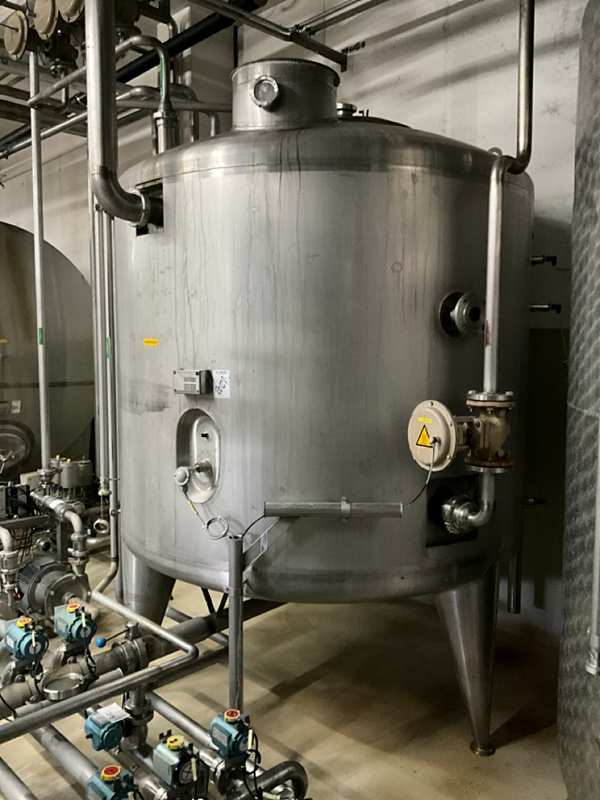

5100 liter tank i Rostfritt 304

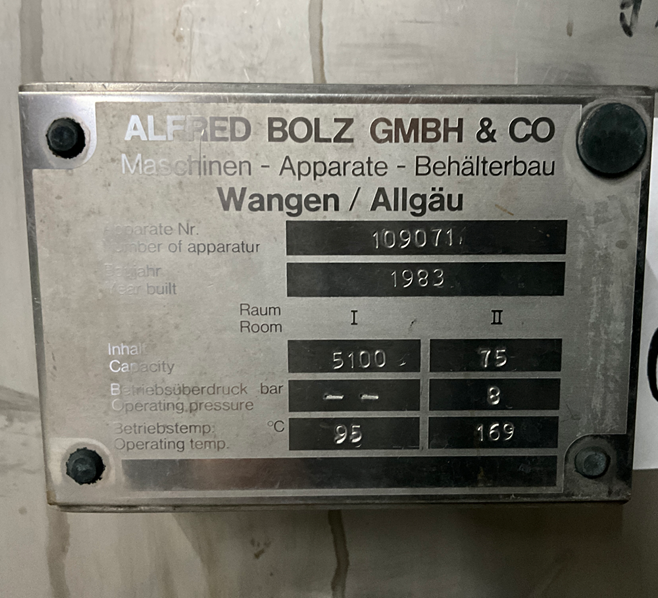

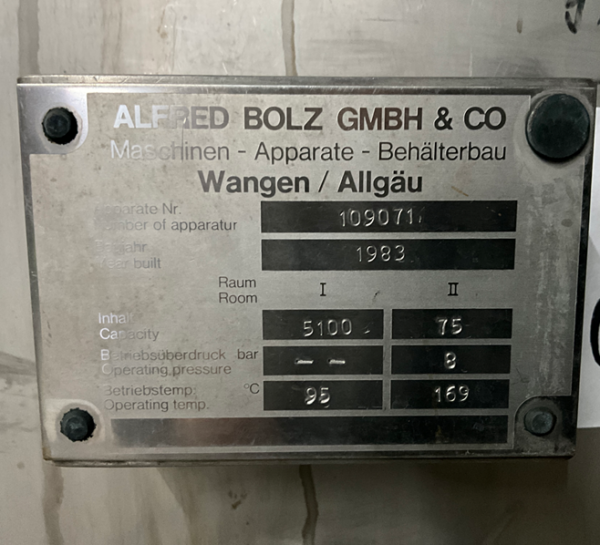

Additional information: Fruit juice industry; Attention: Contrary to the information on the nameplate, this tank cannot be heated/cooled; The tank was probably formerly equipped with a heating-coil inside (unlike the welded brackets, this is no longer present); Manhole diameter approx. 420 mm; Insulation is cut out in several places; small dents in the insulation jacket; The outlet pipe tapers towards the tank to an internal pipe diameter of approx. 80 mm; some residues of previous content; Metallic discolouration inside Volumetric volume (L): 5.100 L Pressure in tank: ATM - atmosferic Max. temperature (°C): 95 °C Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: insulated Heat exchanger: no Insulation: yes Mobile tank: no Total discharge: yes Volume: 75 L Max Overpressure: 8 Bar Max. working temperature: 169 °C Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: in the bottom Outlet of tank: DN100 DIN 11851 Internal diameter tank: 1.890 mm Outer diameter tank: 2.000 mm Total height of tank: 3.050 mm
