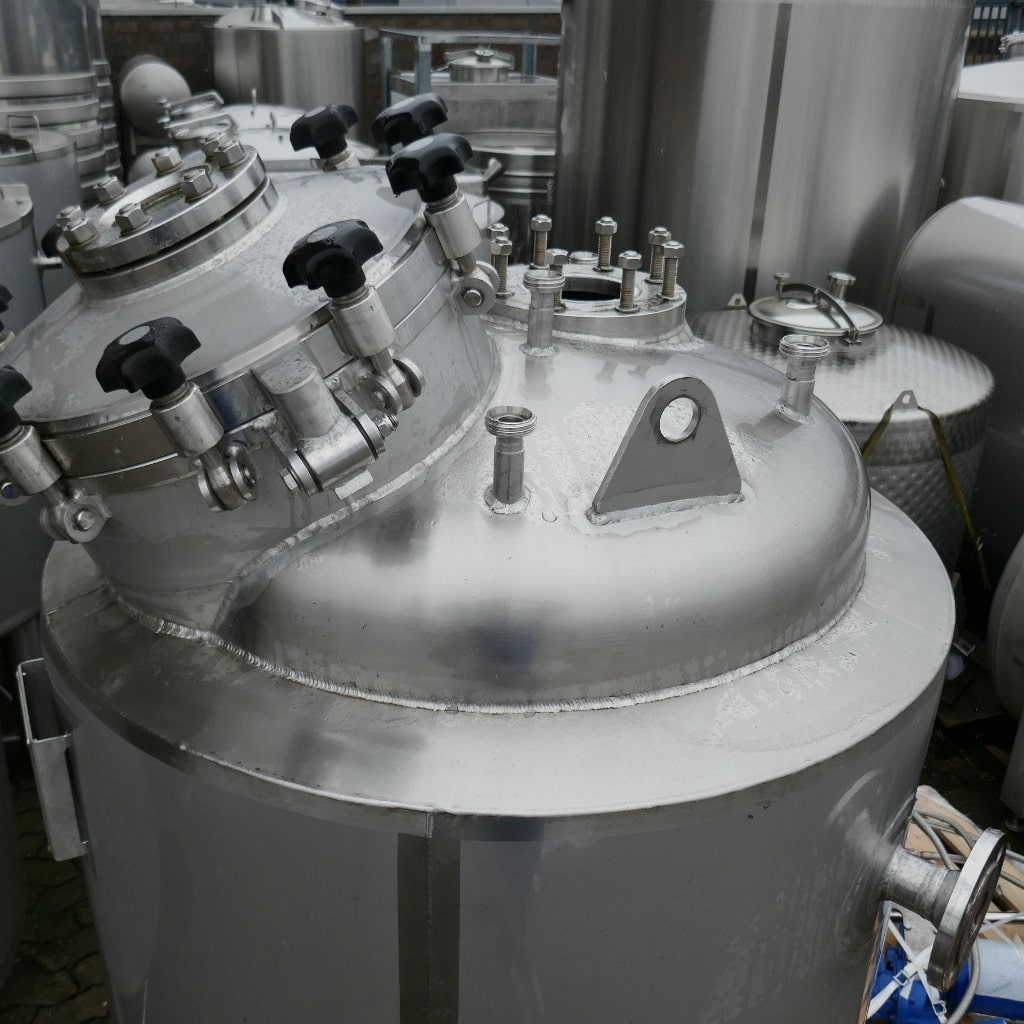

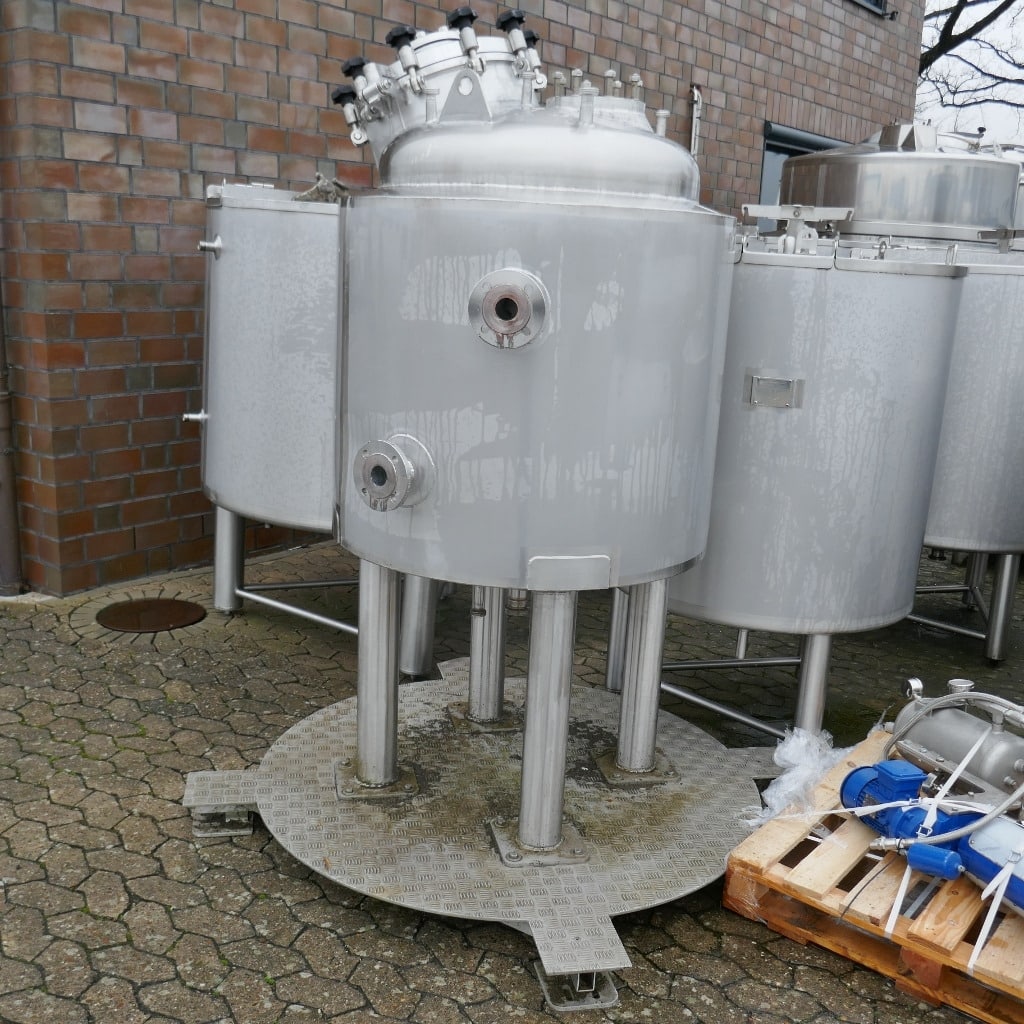

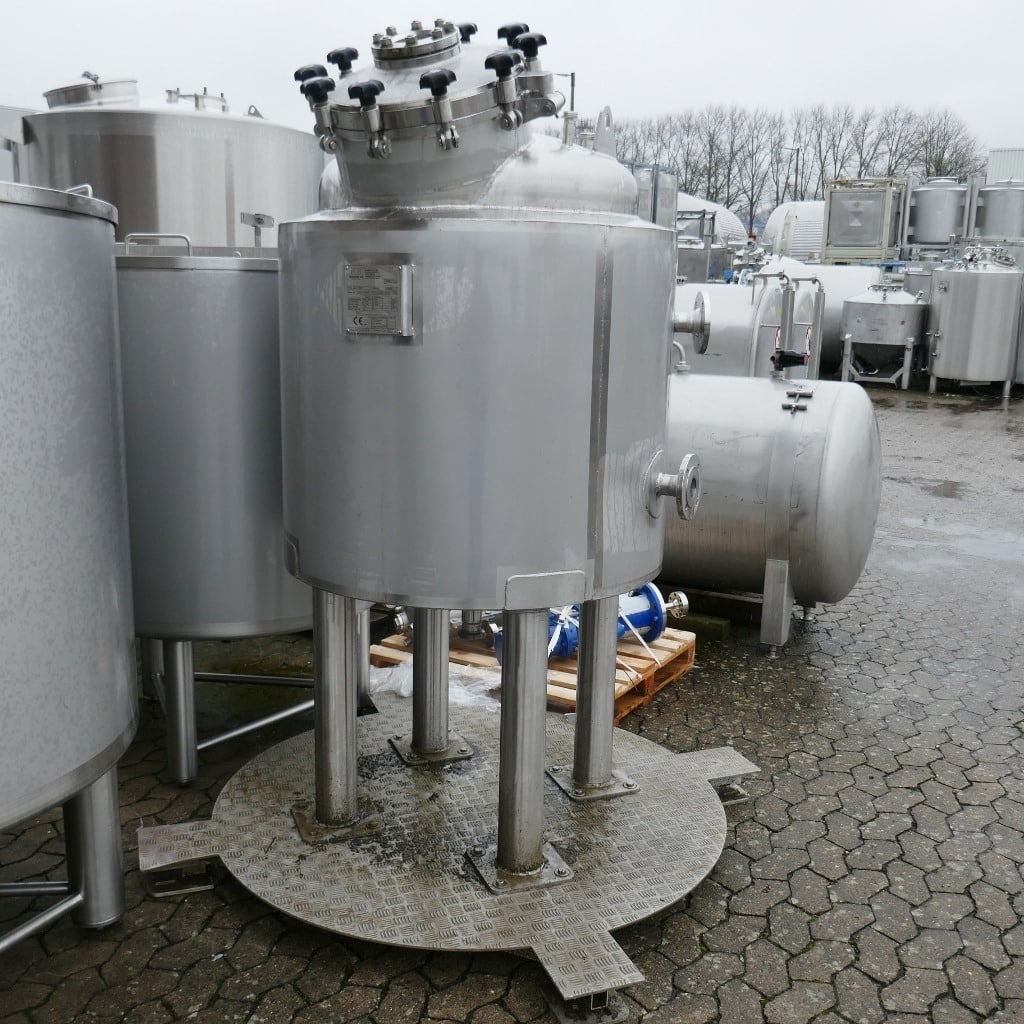

507 liter tank i Syrafast 316

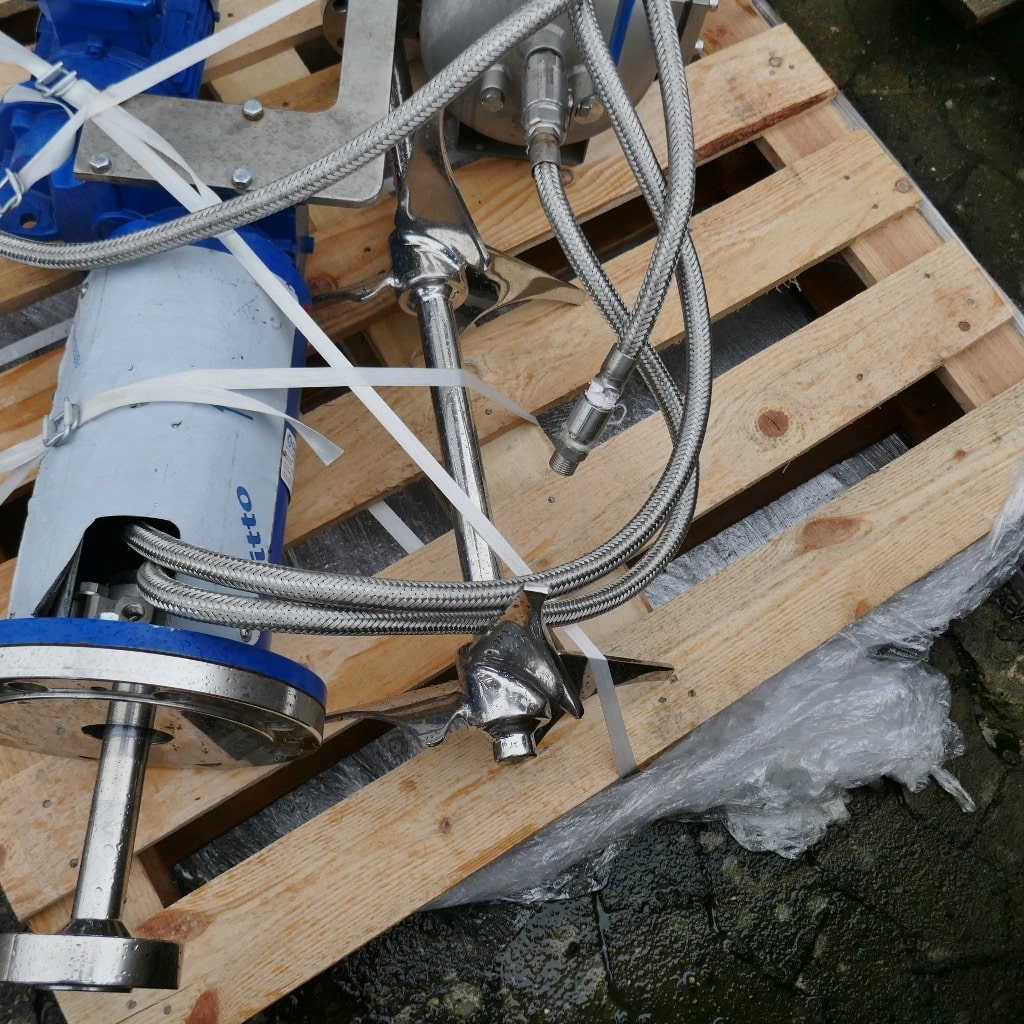

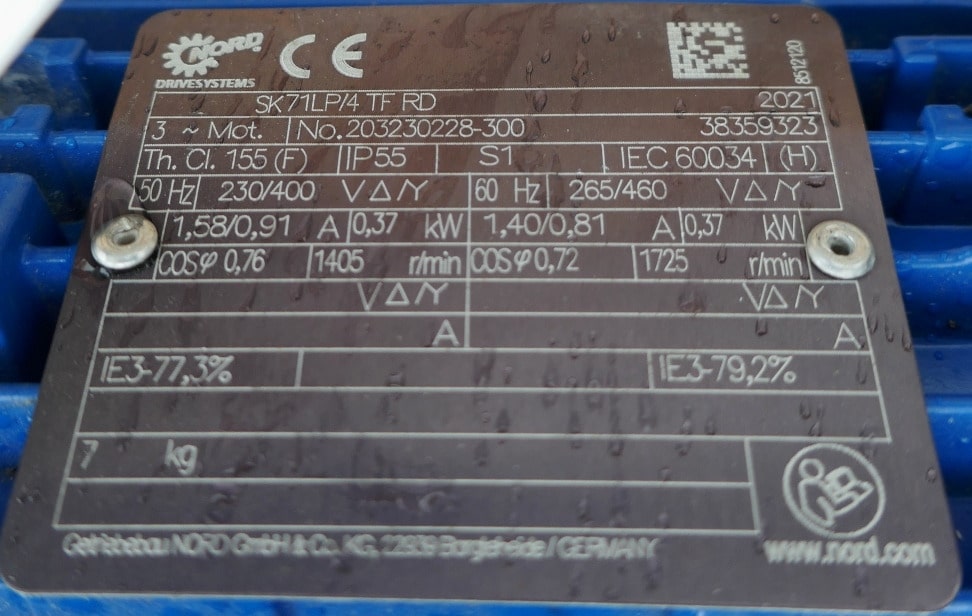

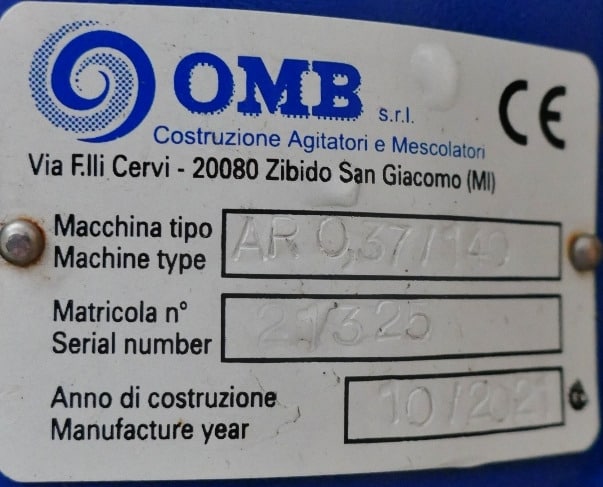

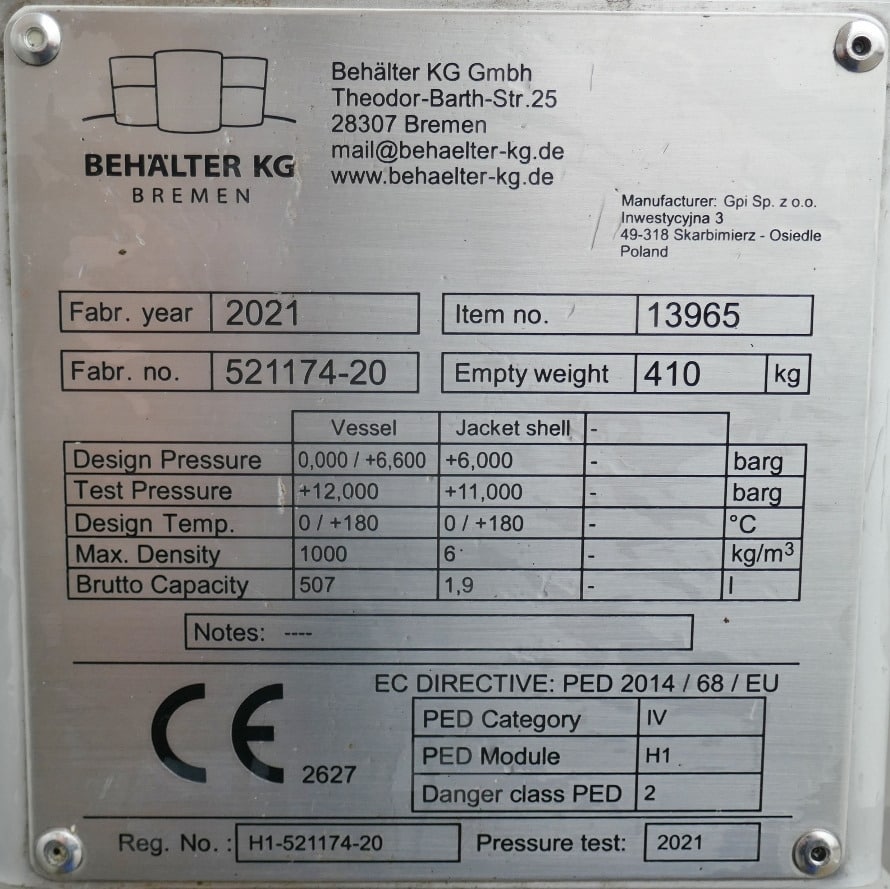

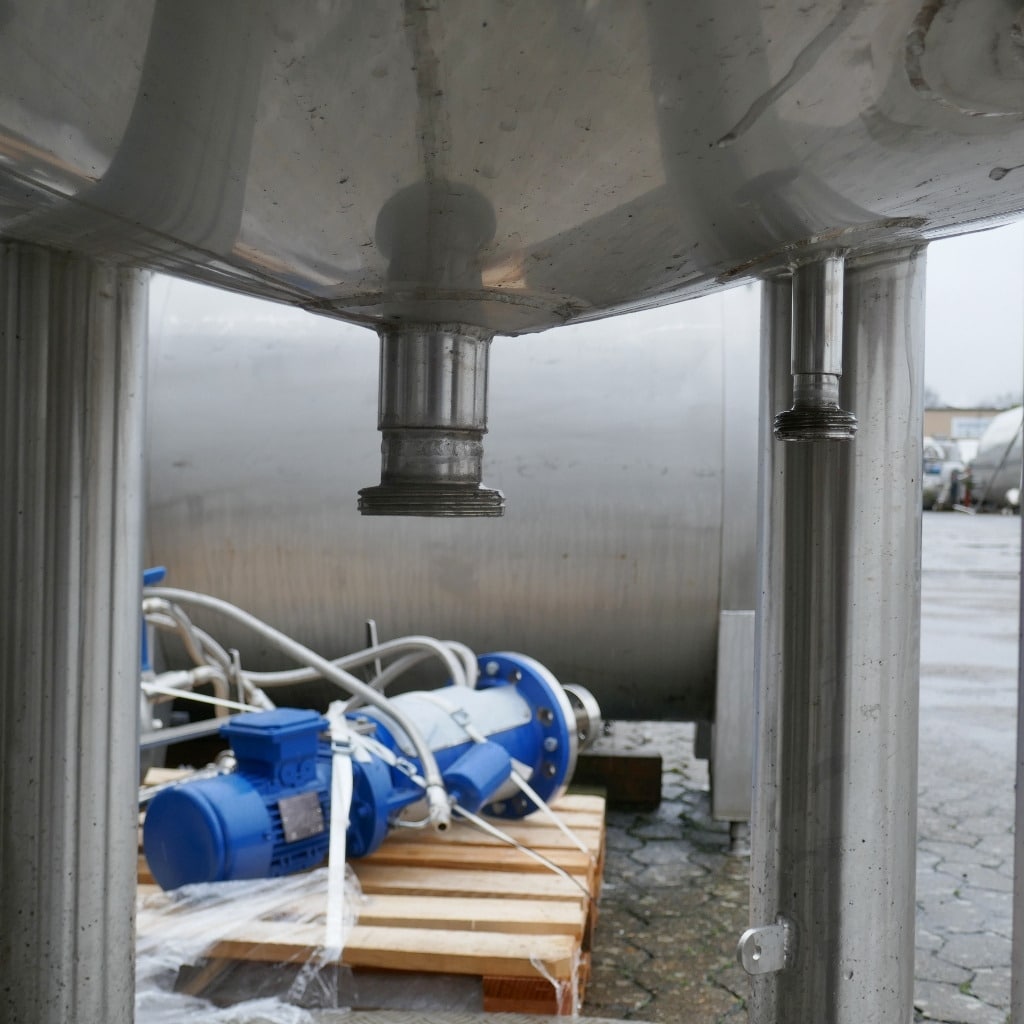

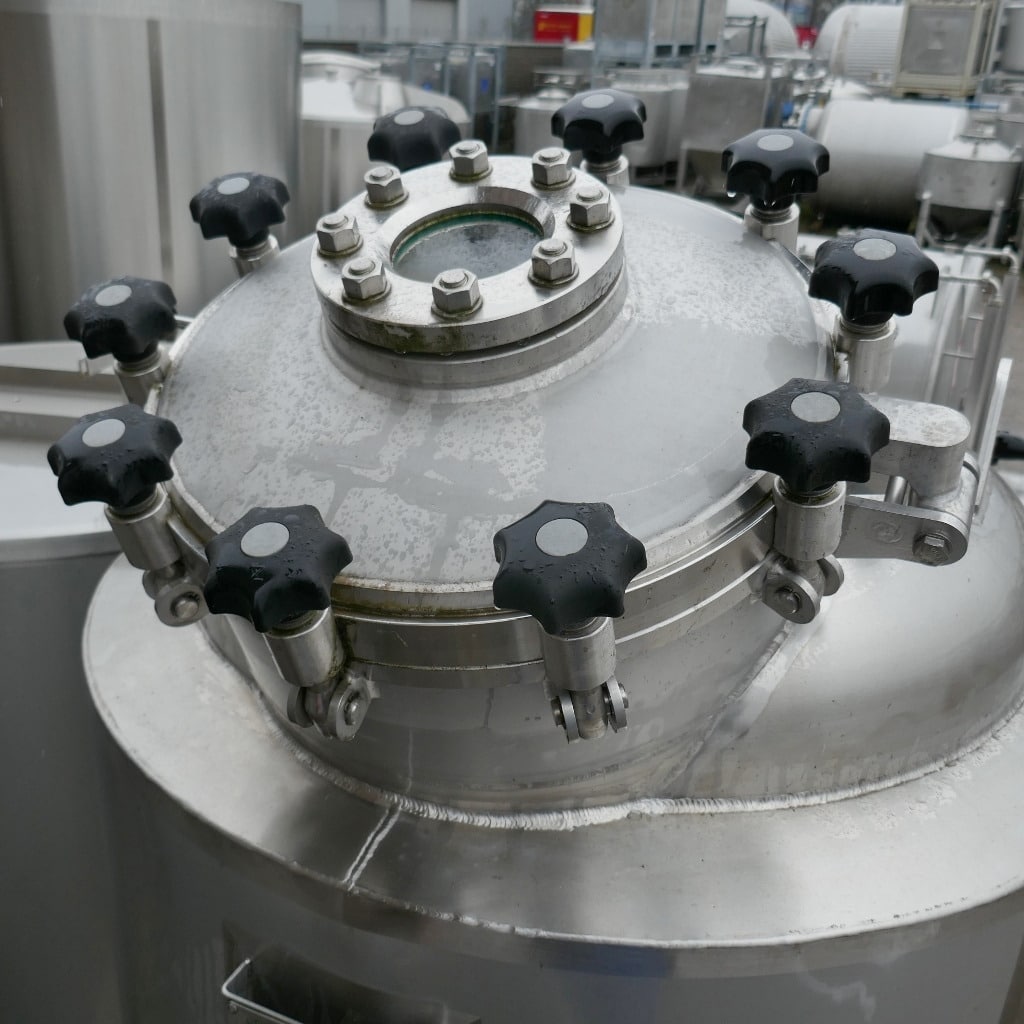

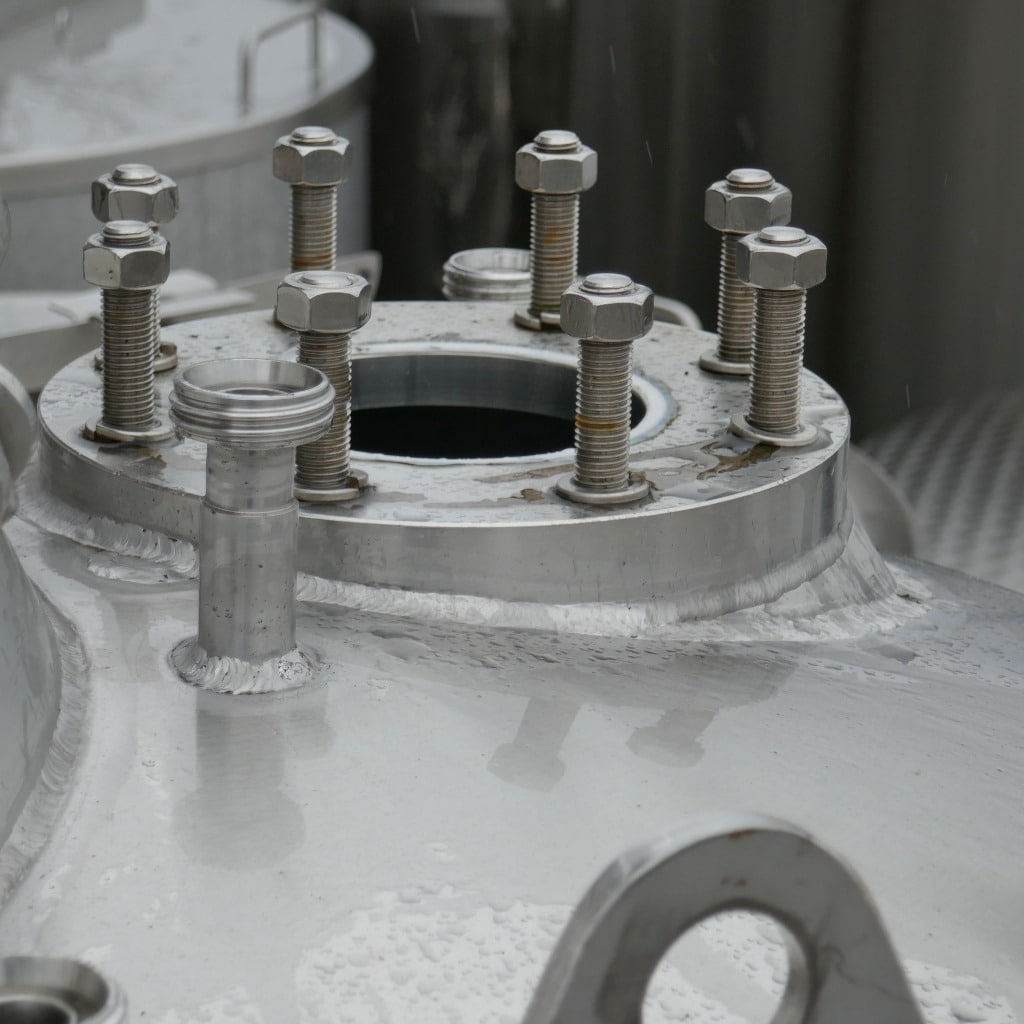

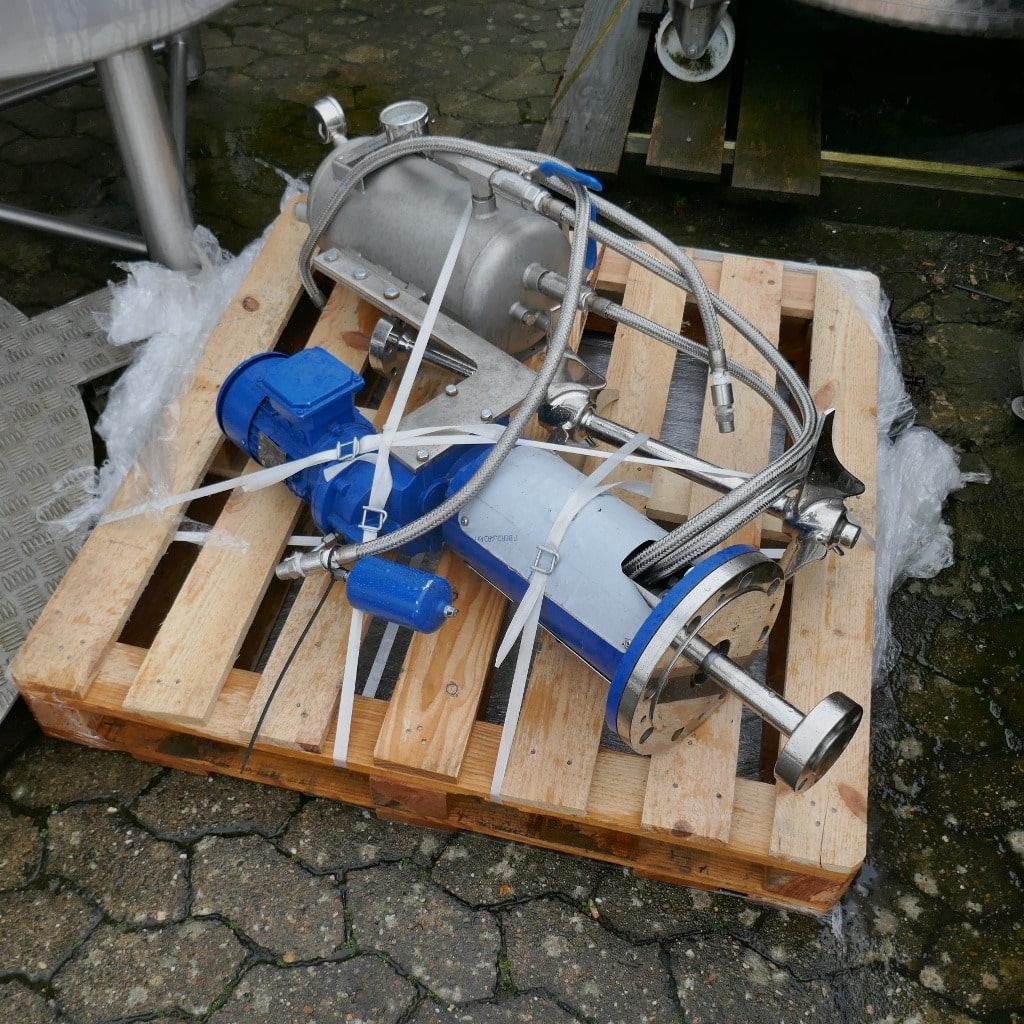

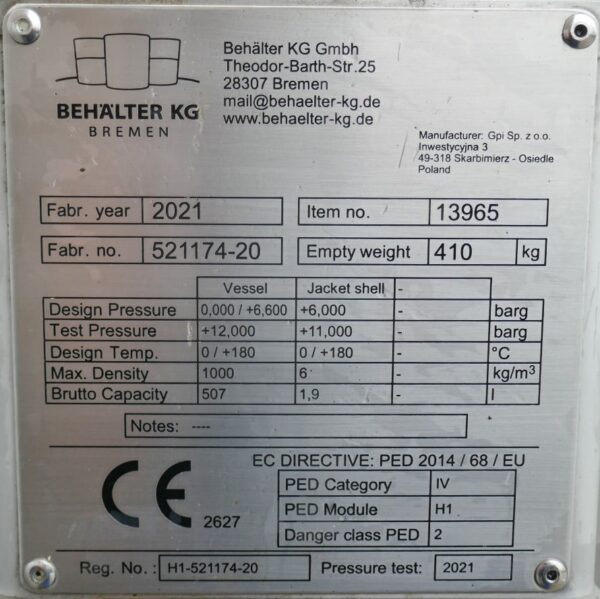

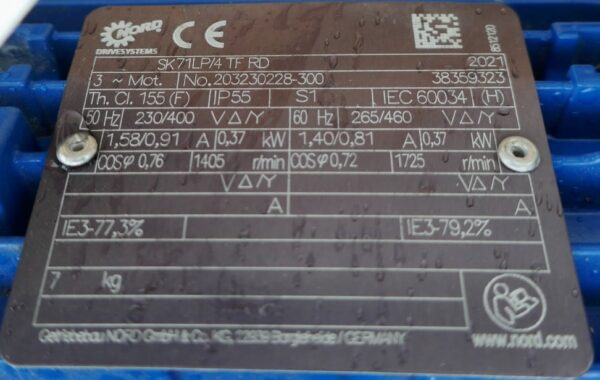

Additional information: Vessel currently bolted to an aluminum frame Volumetric volume (L): 507 L Pressure in tank: pressure Max. pressure (Bar): 6,60 Bar Max. temperature (°C): 180 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Volume: 2 L Max Overpressure: 6 Bar Max. working temperature: 180 °C Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: headside Outlet of tank: DN50 DIN 11851 Agitator: yes Number of revolutions: 140 Power: 0,37 Top: 10 mm Cylinder: 6 mm Bottom: 6 mm Internal diameter tank: 812 mm Outer diameter tank: 1.026 mm Cylinder height: 750 mm Total height of tank: 3.100 mm
