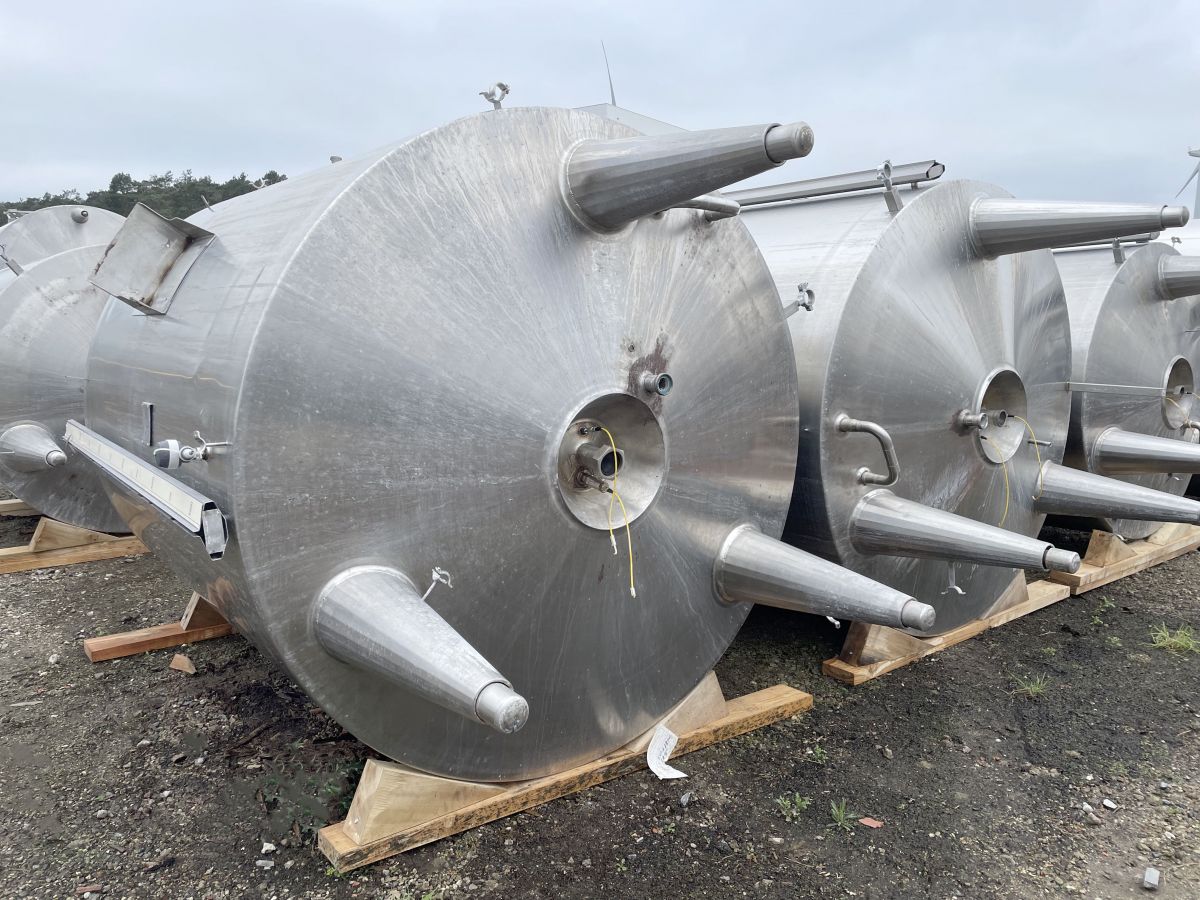

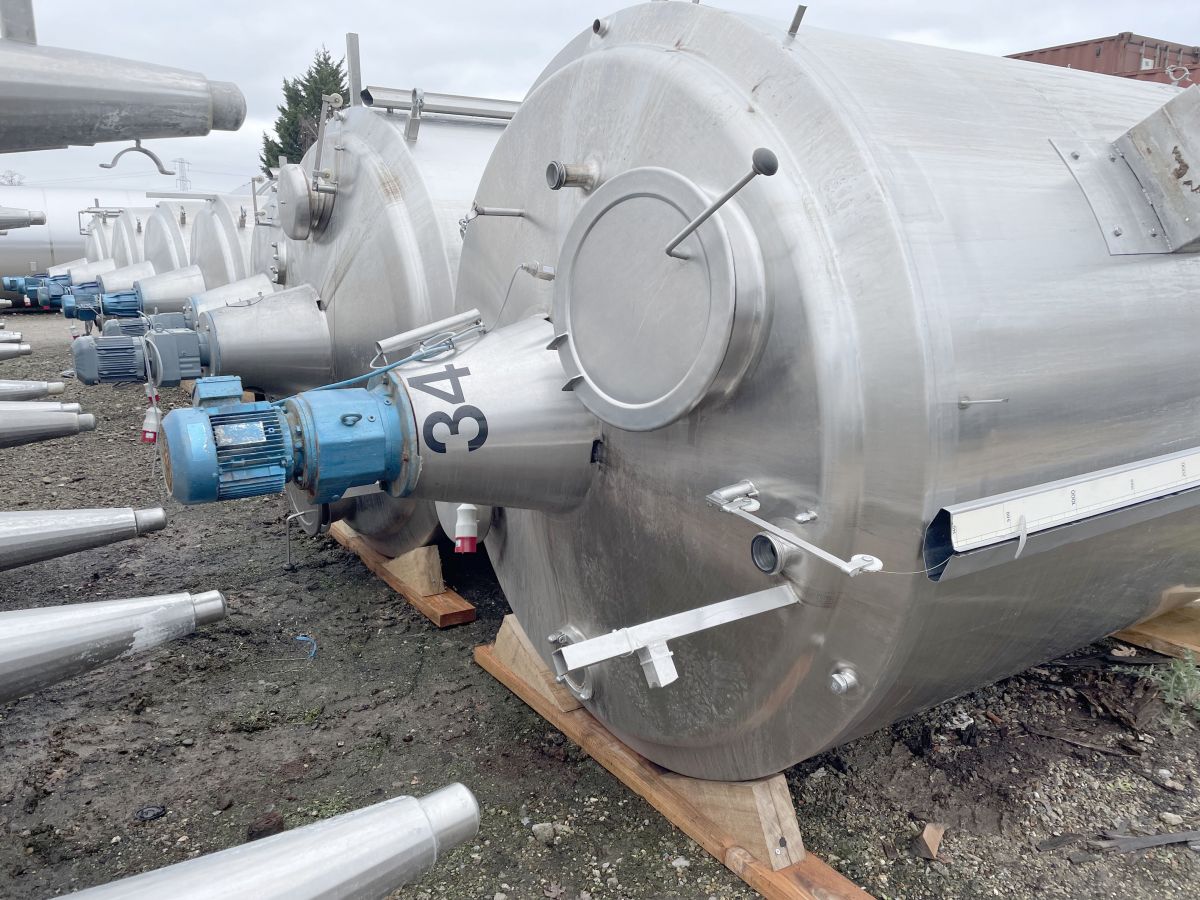

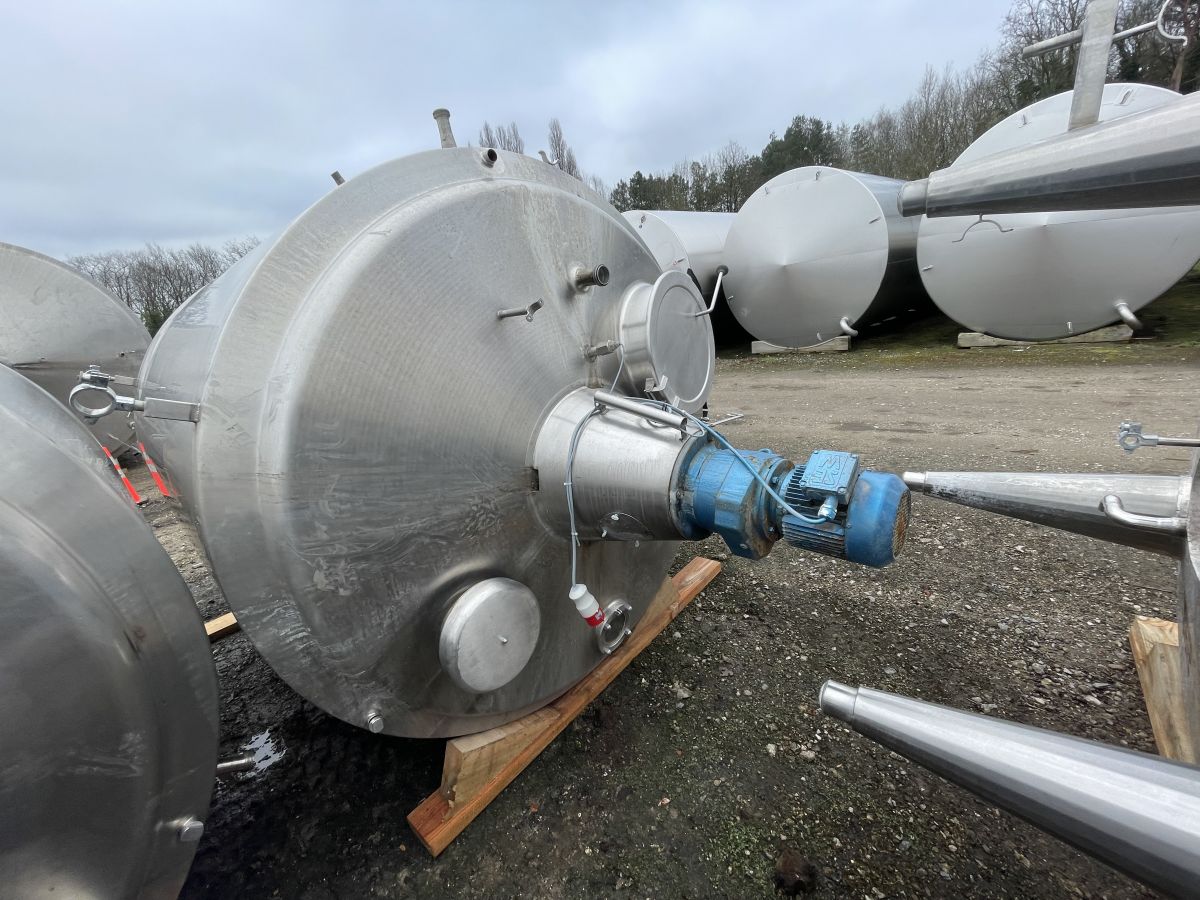

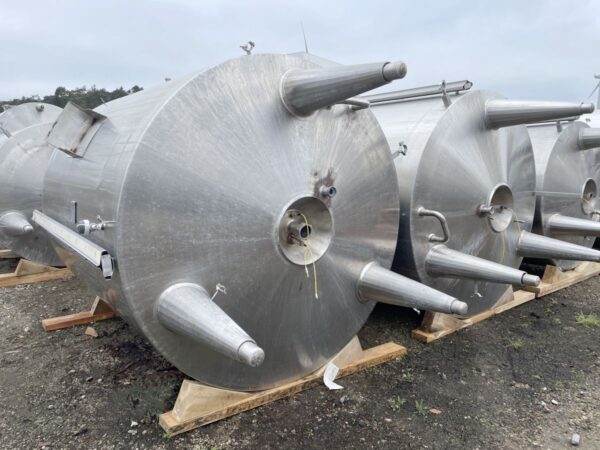

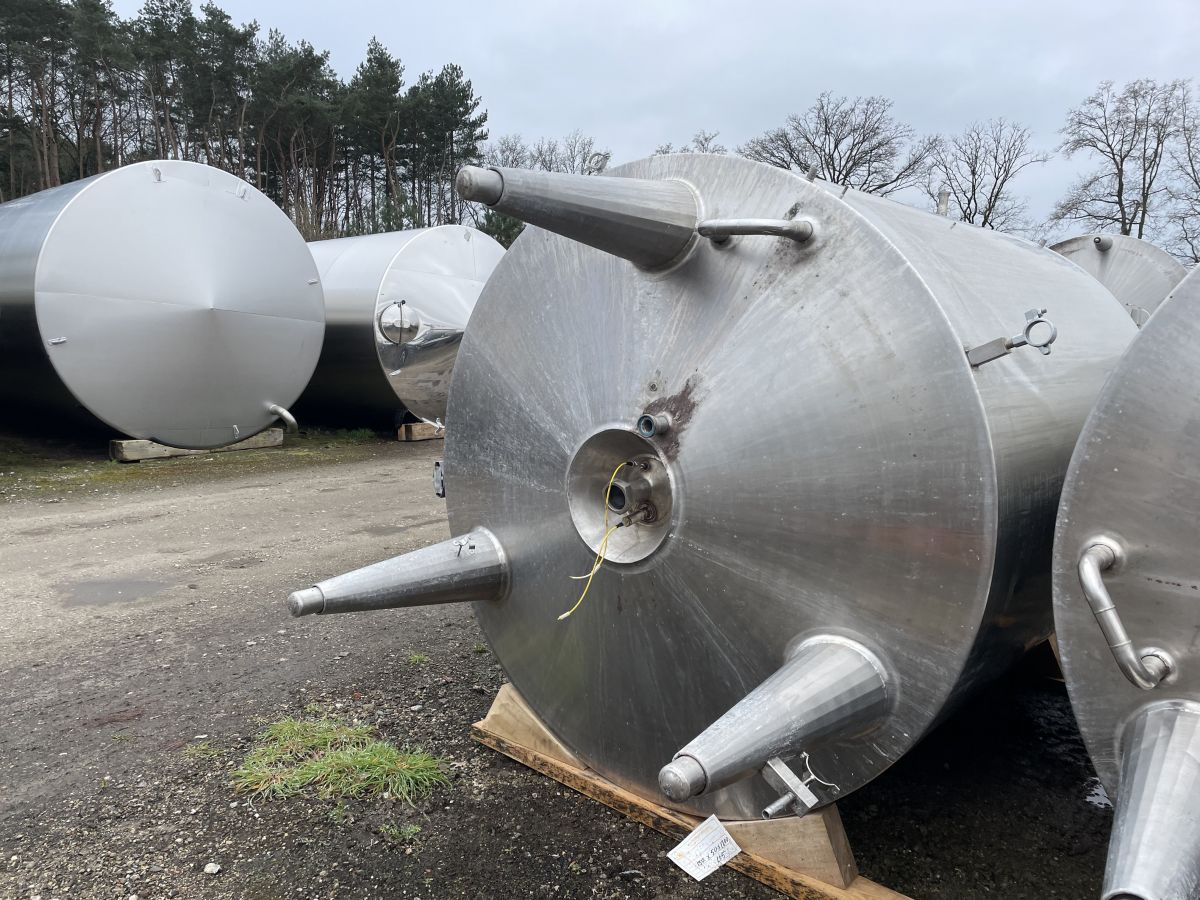

5000 liter tank i Rostfritt 304

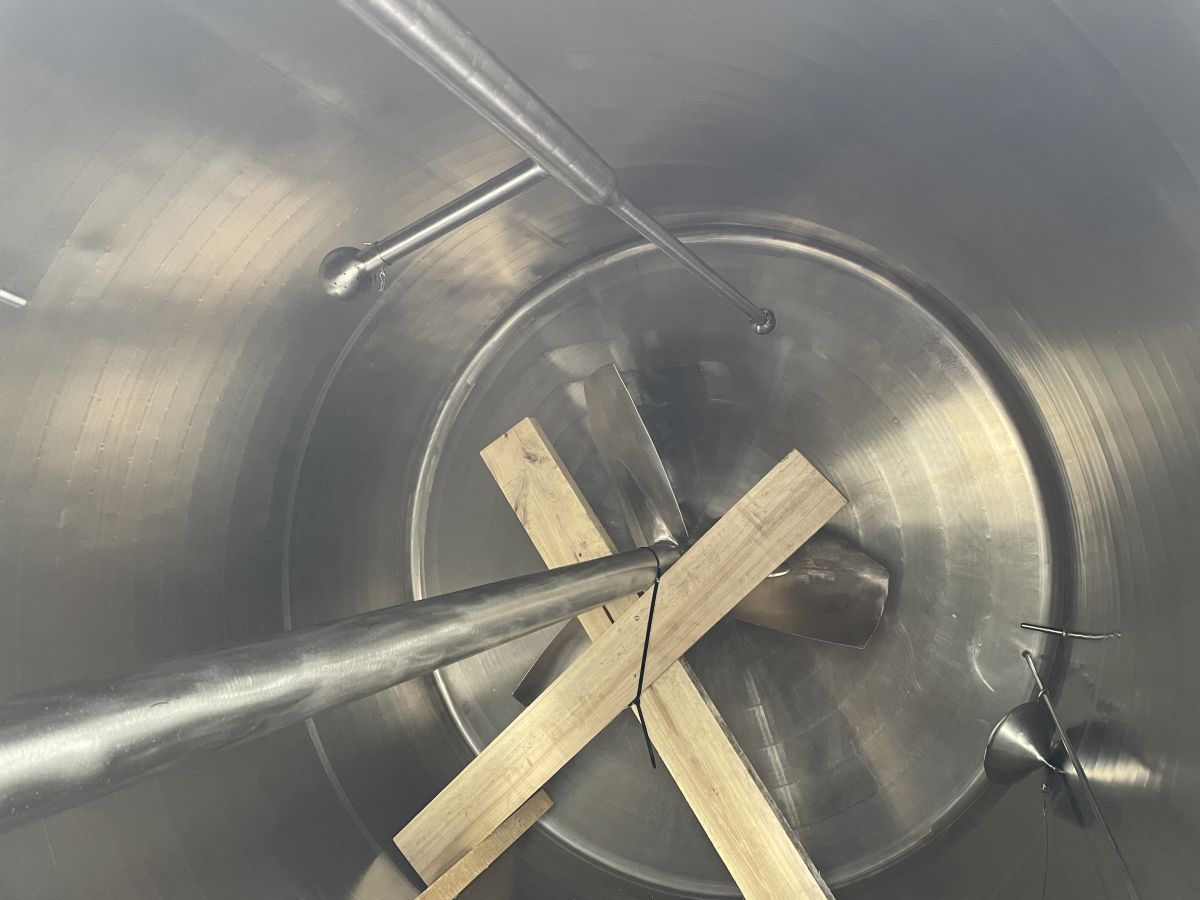

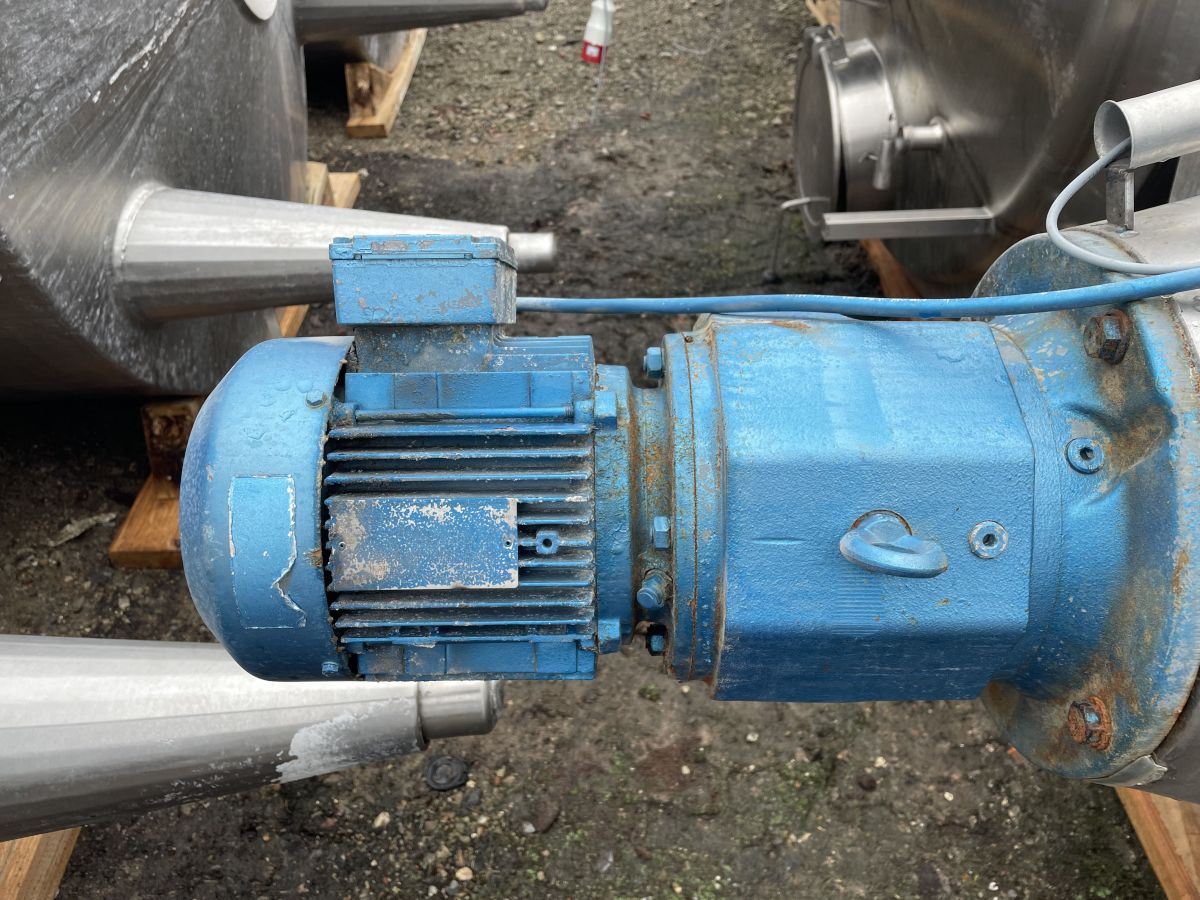

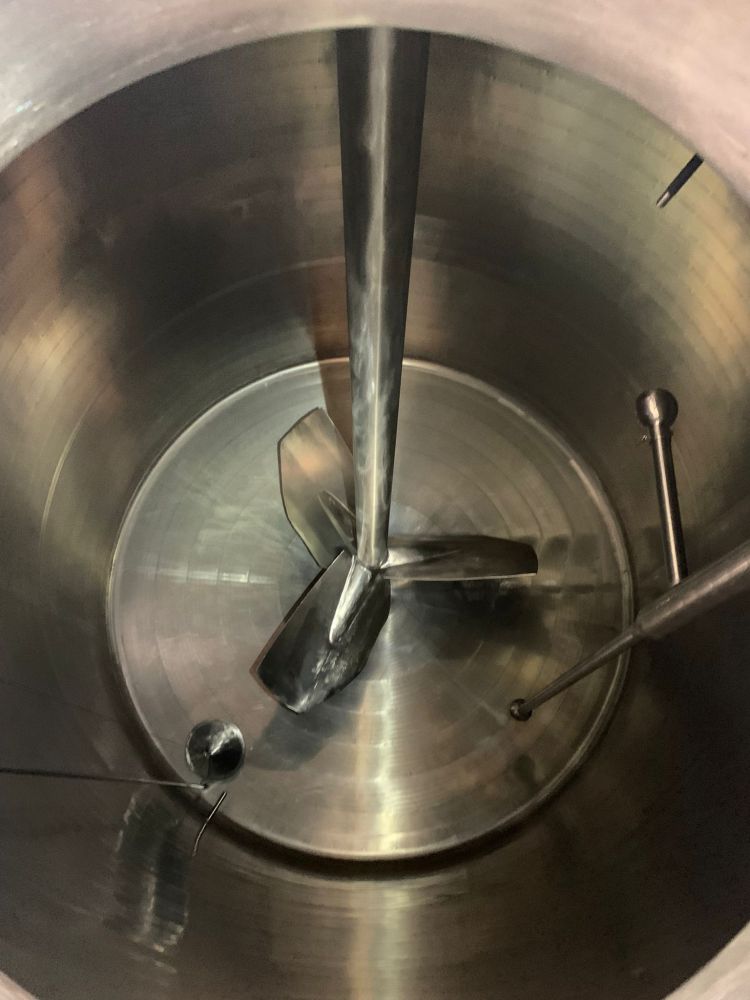

Article type: second-hand mixing tank Additional information: we can’t give any guarantees about the heating/cooling jacket; we can’t give any guarantees about the agitator Volumetric volume (L): 5.000 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Top type: conical Shape of tank: cylindrical Bottom type: conical Bottom outlet: yes Total discharge: yes Fixation points: 3 adjustable feet Type of HE on the cylinder: half pipe welded onto the outside of the innertank Position HE: the complet cilinder Type of HE on the bottom: half pipe welded onto the outside of the innertank Manway(s): RVS 304 Gasket manway(s): unknown Fixation point(s): RVS 304 Suitable for food industry: yes Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator: no Position of manway: at the top Hinged lid: yes Tank outlet: inside Ø 60 mm Agitator: yes Agitator type: propeller agitator Position engine: at the top Distance from outlet to ground: 670 mm Outer diameter tank: 2.000 mm Cylinder height: 2.050 mm Total height of tank: 3.800 mm Empty weight tank: 1.050
