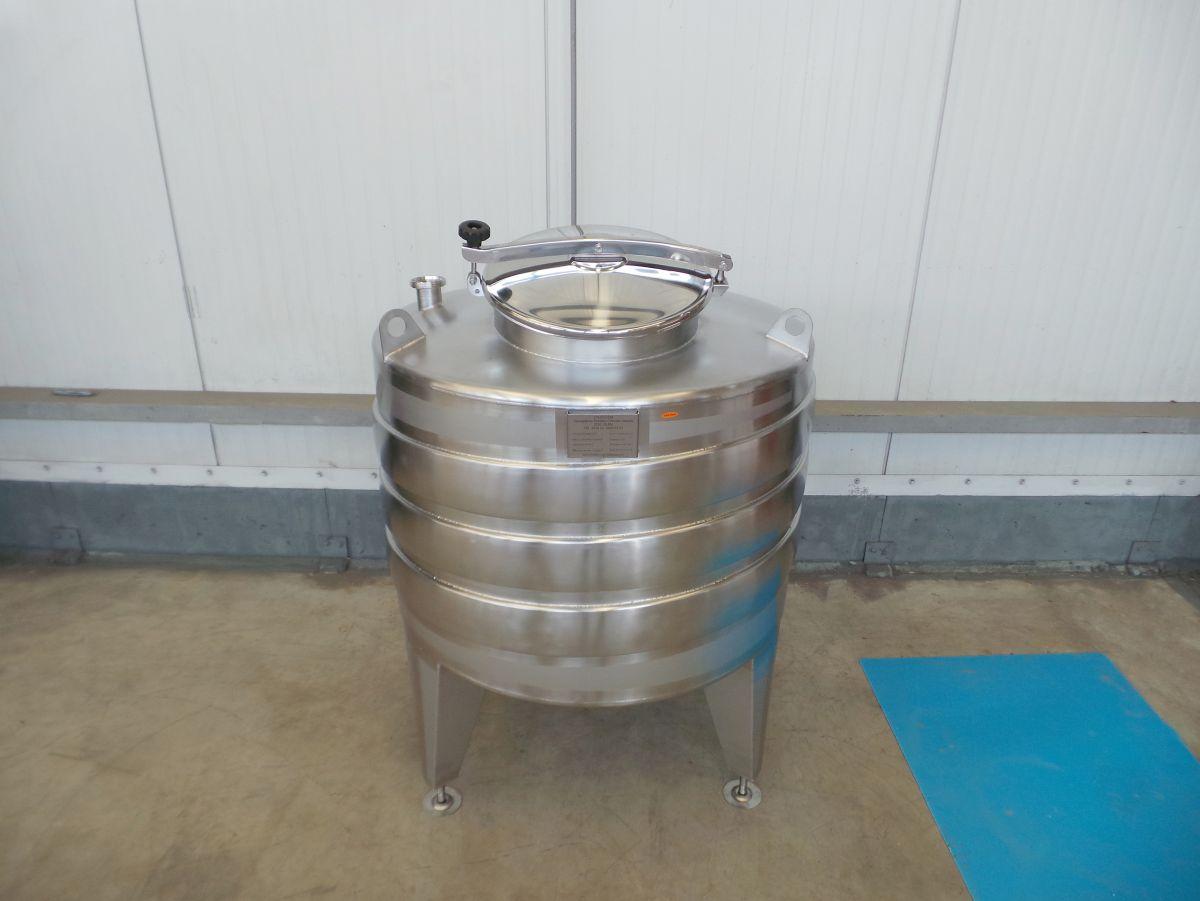

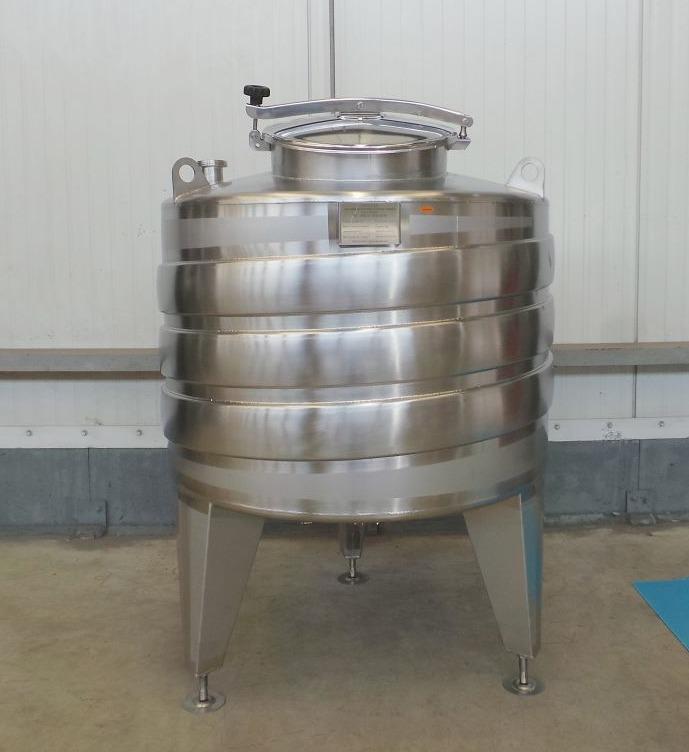

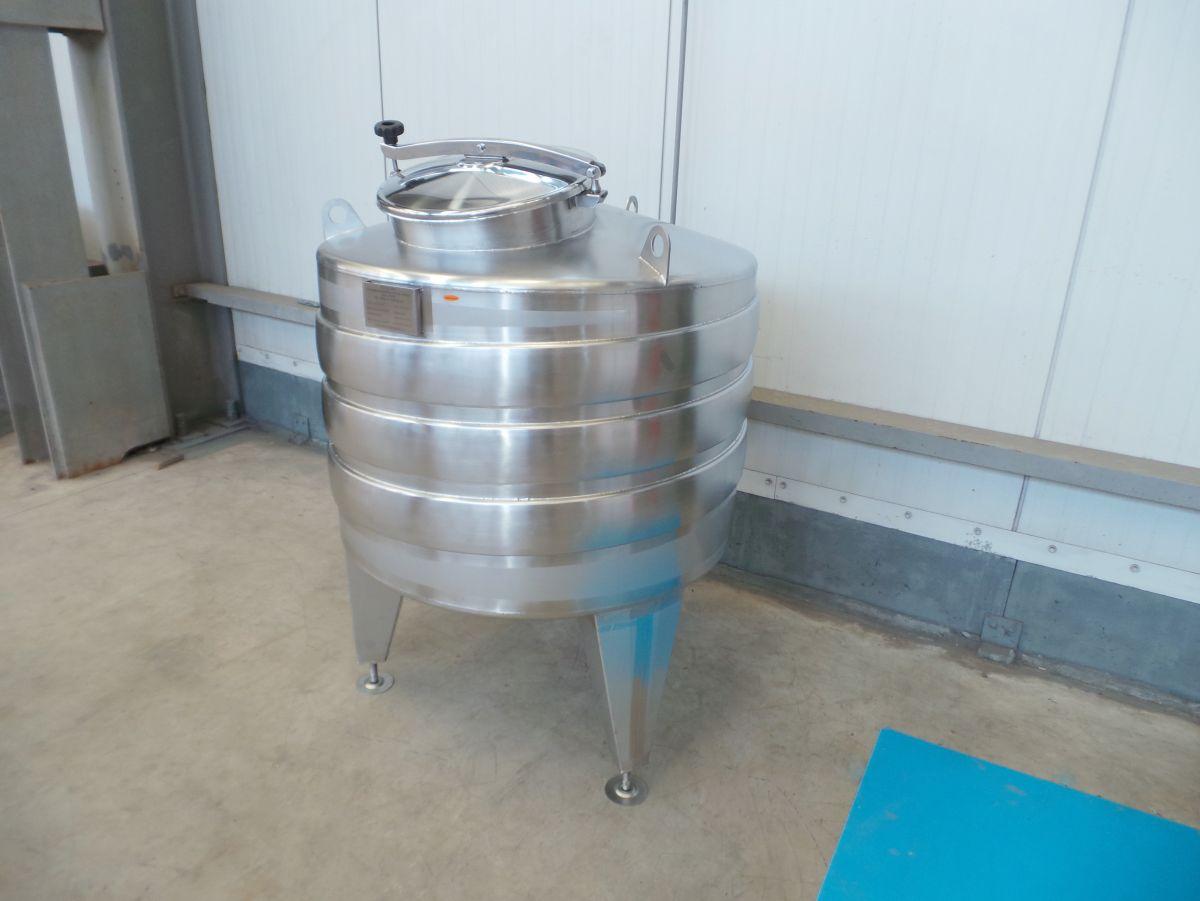

500 liter i Syrafast 316
43,000.00 SEK/st exkl moms
Mer information
Volym i liter | 500 |
---|---|
Nytillverkad/Begagnad | Nytillverkad |
Livsmedelsklassad | Ja |
Modell | Vertikal |
Material | Syrafast 316 |
Omrörare | Nej |
Uppvärmning/kylning | Ja |
Isolerad | Nej |

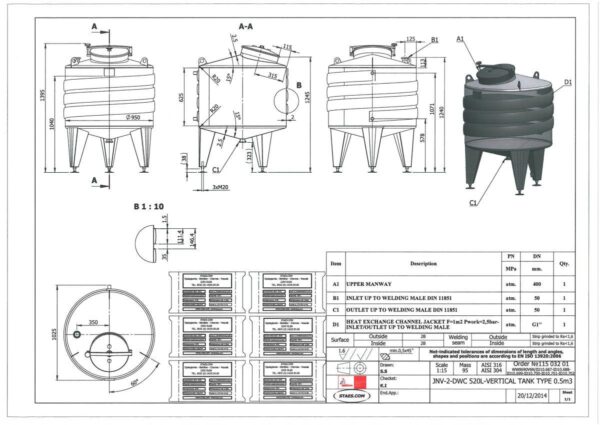

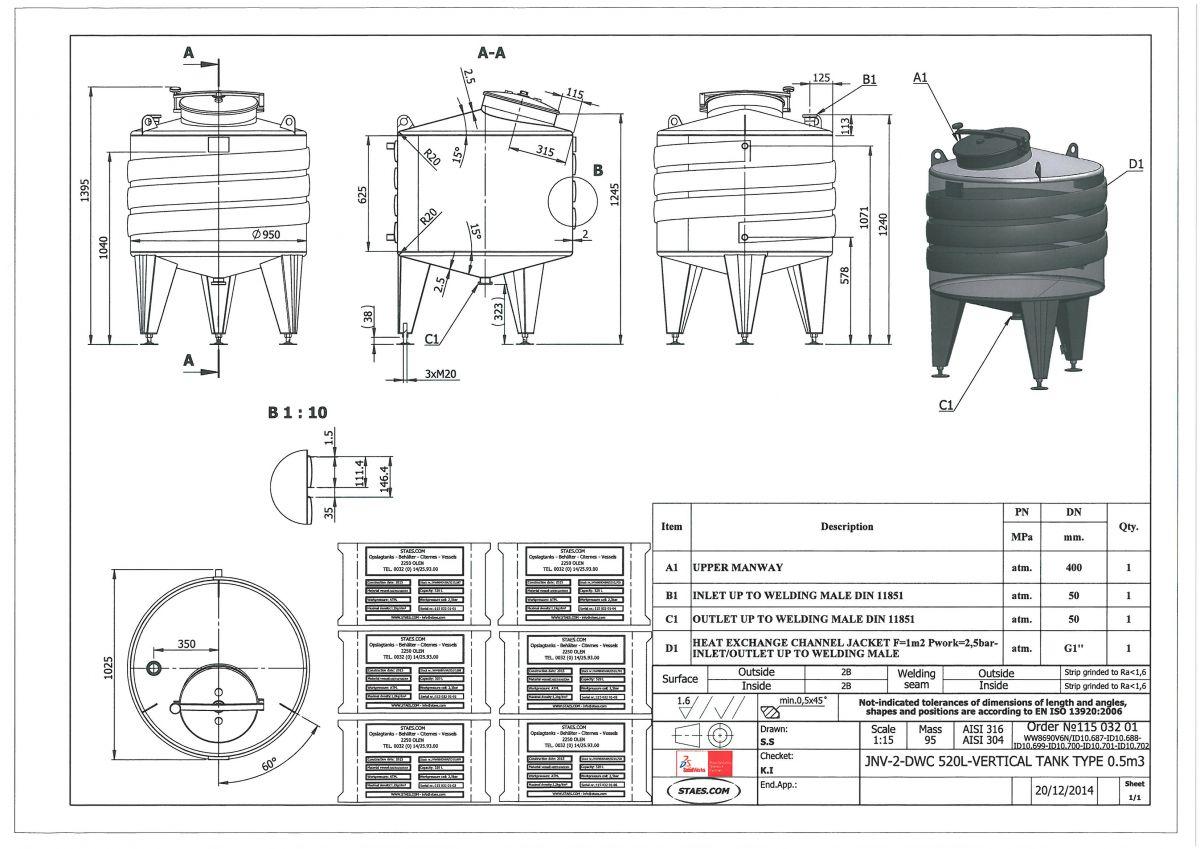

Ritning
ÖppnaArticle type: brand new storage tank – type K-HL
Capacity: 500 L
Maximal density of the product: 1.200
Ra inner weld: 1,60
Finish stainless steel: 2b
Working pressure in tank: ATM – atmosferic
Max. working temperature: 100 °C
Material wet parts: SS AISI 316 (V4A)
Model: vertical
Configuration: single jacketed with heat-exchanger
Heat exchanger: yes
Insulation: no
Agitator: yes, optional
Mobile tank: no
Top type: conical
Shape of tank: cylindrical

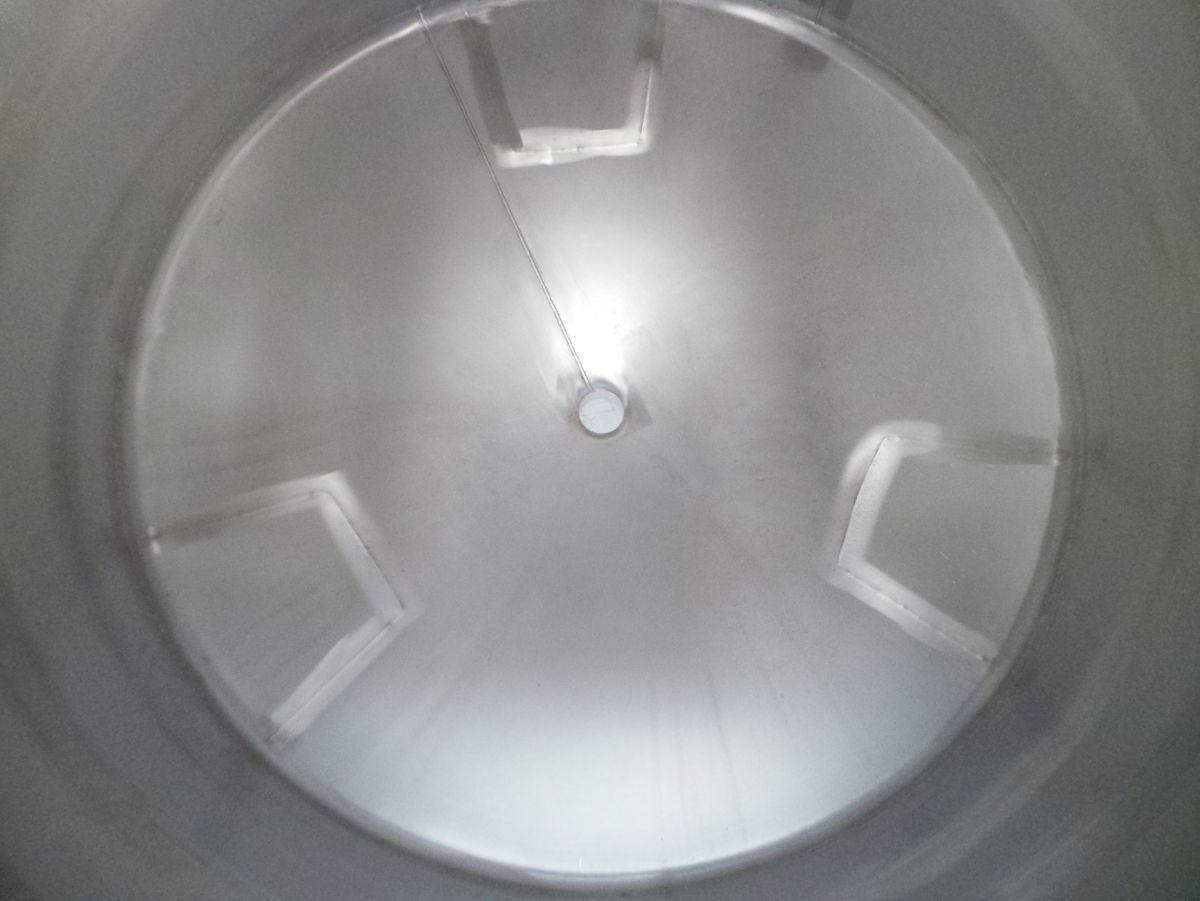

Bottom type: conical 15
Total discharge: yes
Fixation points: 3 adjustable feet
Legs: Set of baseplates and adjusting pieces included

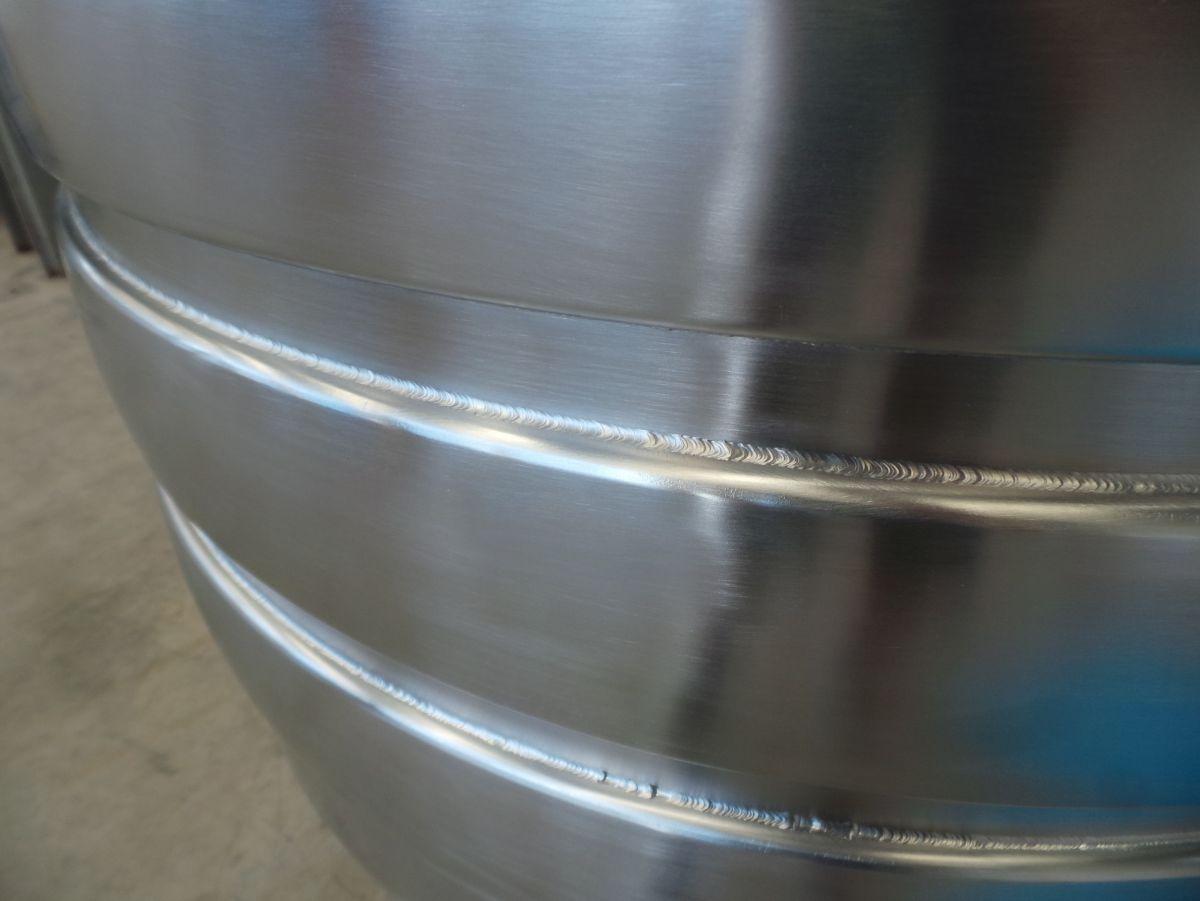

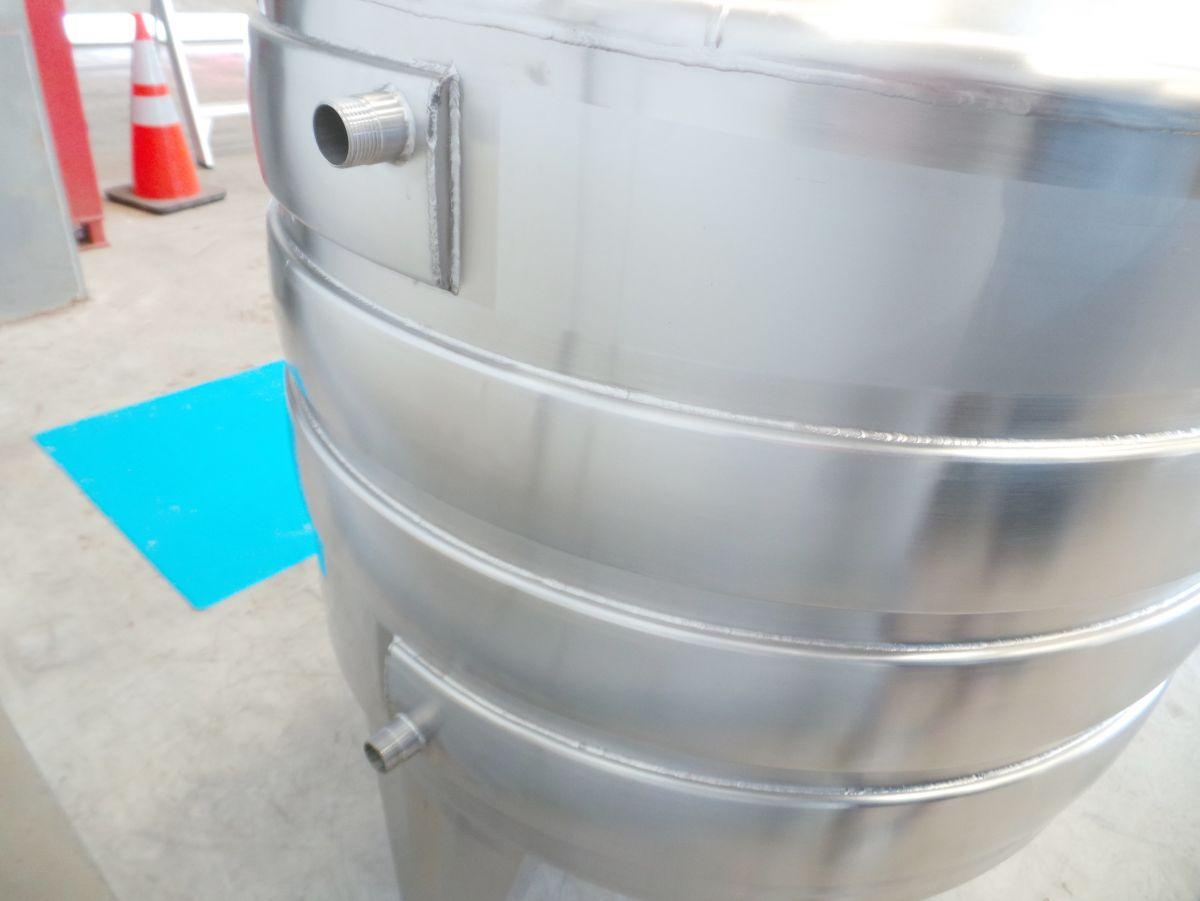

Type of HE on the cylinder: half pipe welded onto the outside of the innertank
Position HE: the complet cilinder
Number of windings: 3
Height HE: 500 mm
Number of sections: 1
Water pressure HE: 2,50 Bar
Steam pressure HE: 1 Bar
Hydraulic test pressure: 3 Bar
Connection HE: 1 BSP
Working temperature HE cylinder: 100 °C
Type HE: half pipe welded onto the outside of the innertank
Heat exchanger: RVS 304
Manway(s): RVS 316
Gasket manway(s): parra rubber
Valve: RVS 316L
Fixation point(s): RVS 304
Suitable for food industry: yes
Documents included: yes, optional
Technical drawing included: yes
Registration plate on the tank: yes
Flange for agitator: no

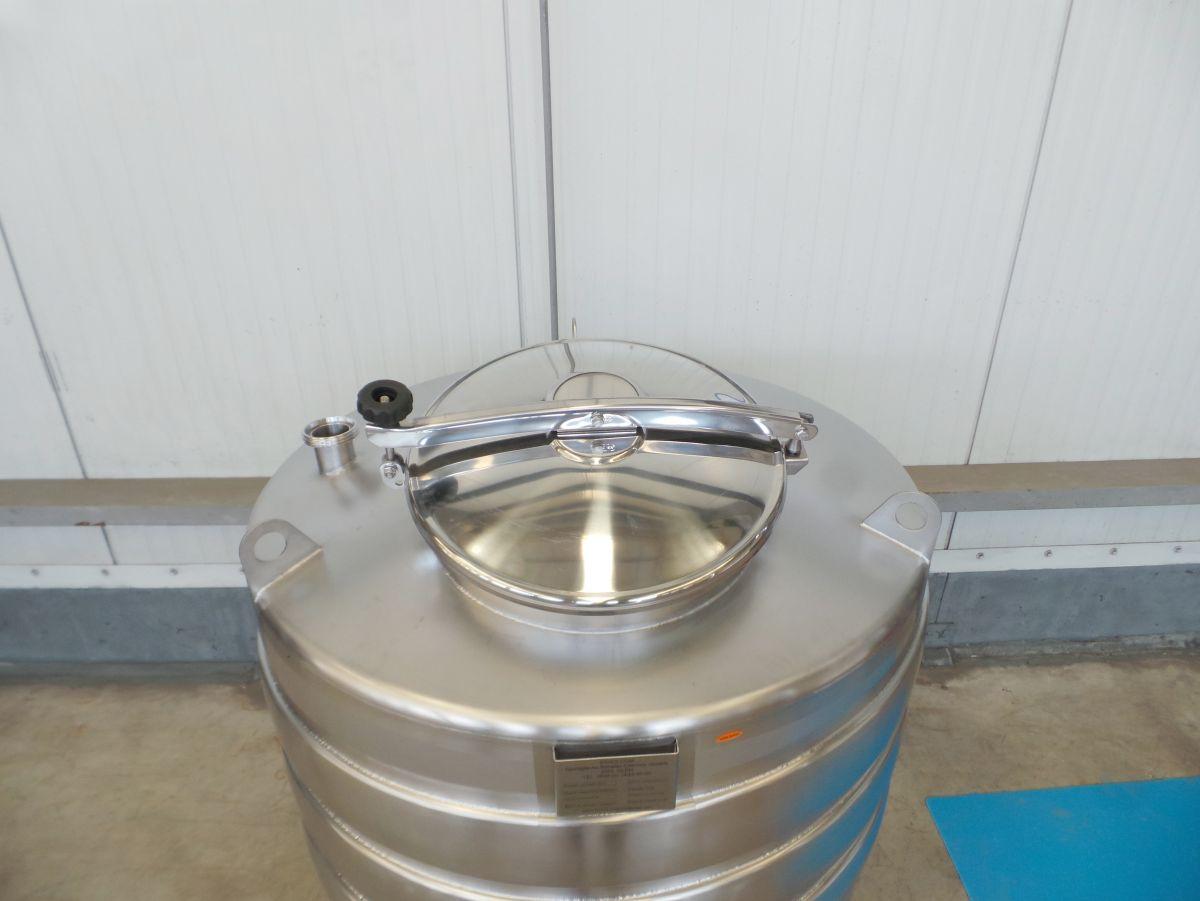

Number of manways: 1

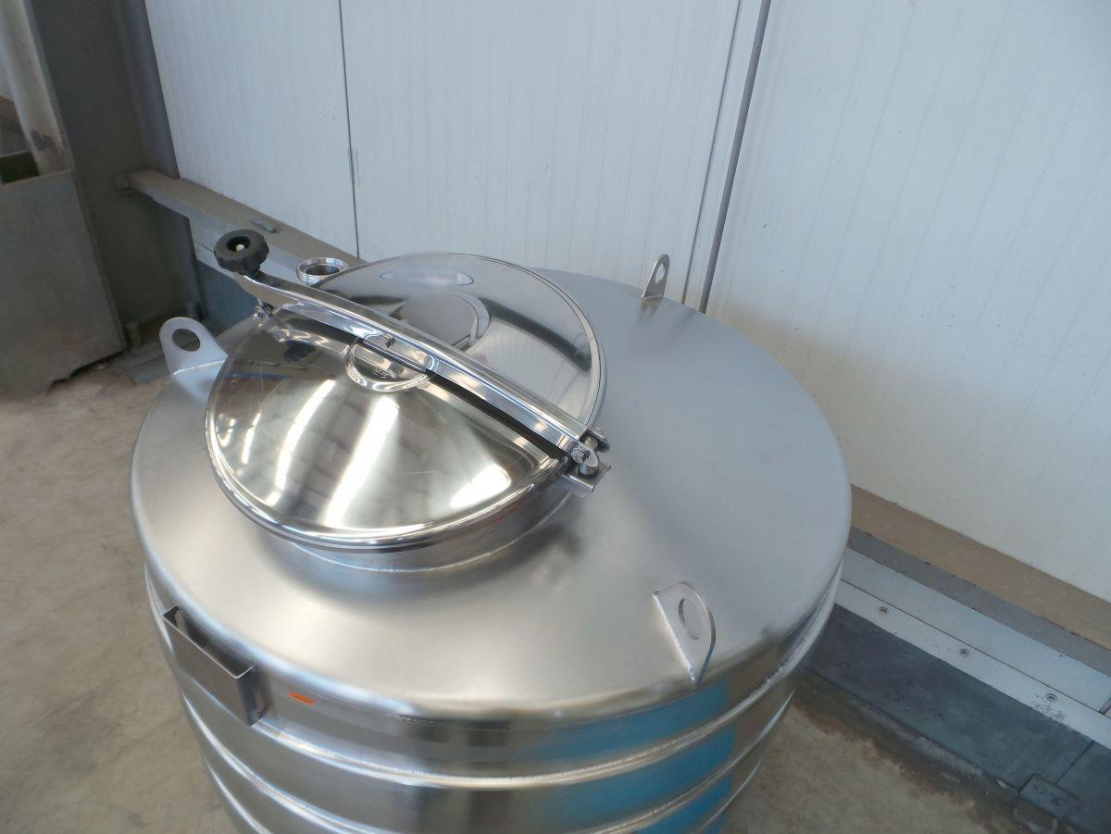

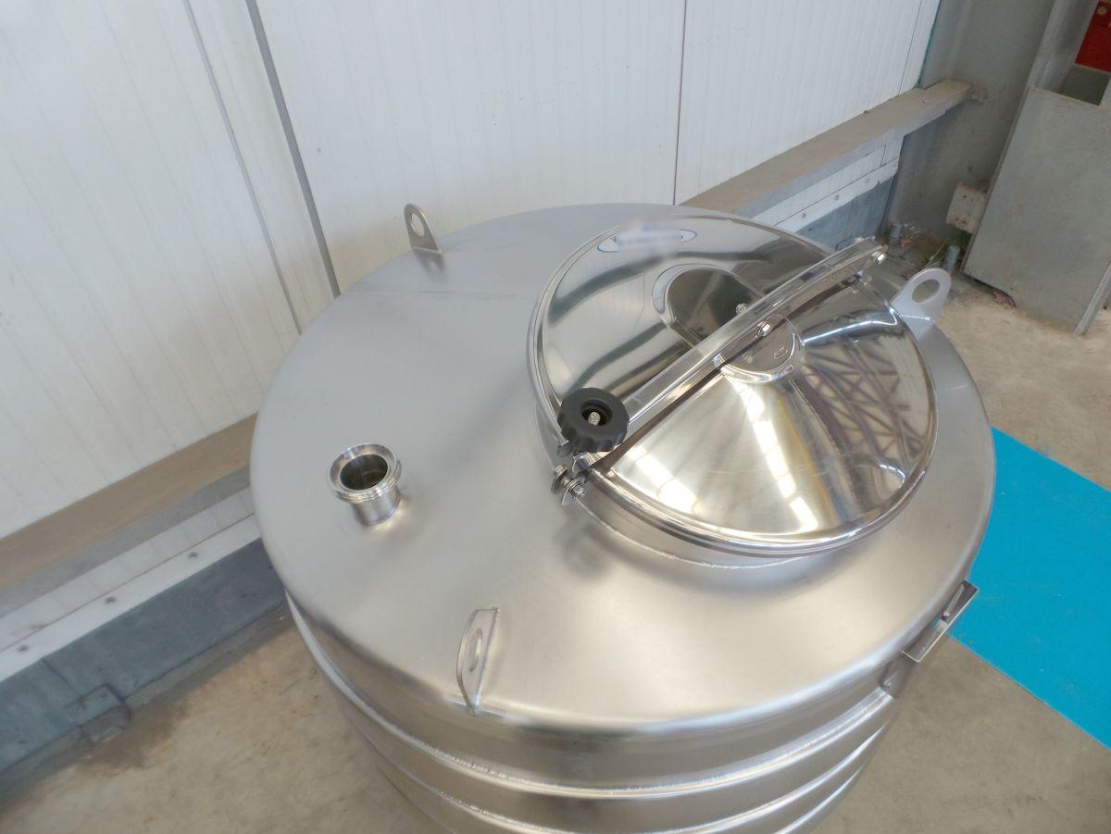

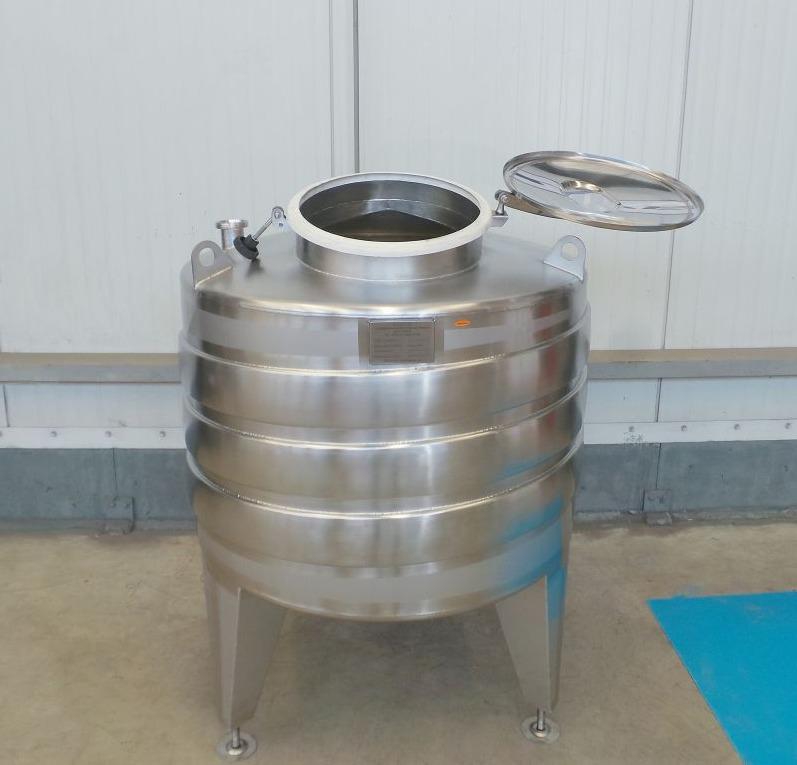

Position manway: at the top
Manway 1: 400 mm

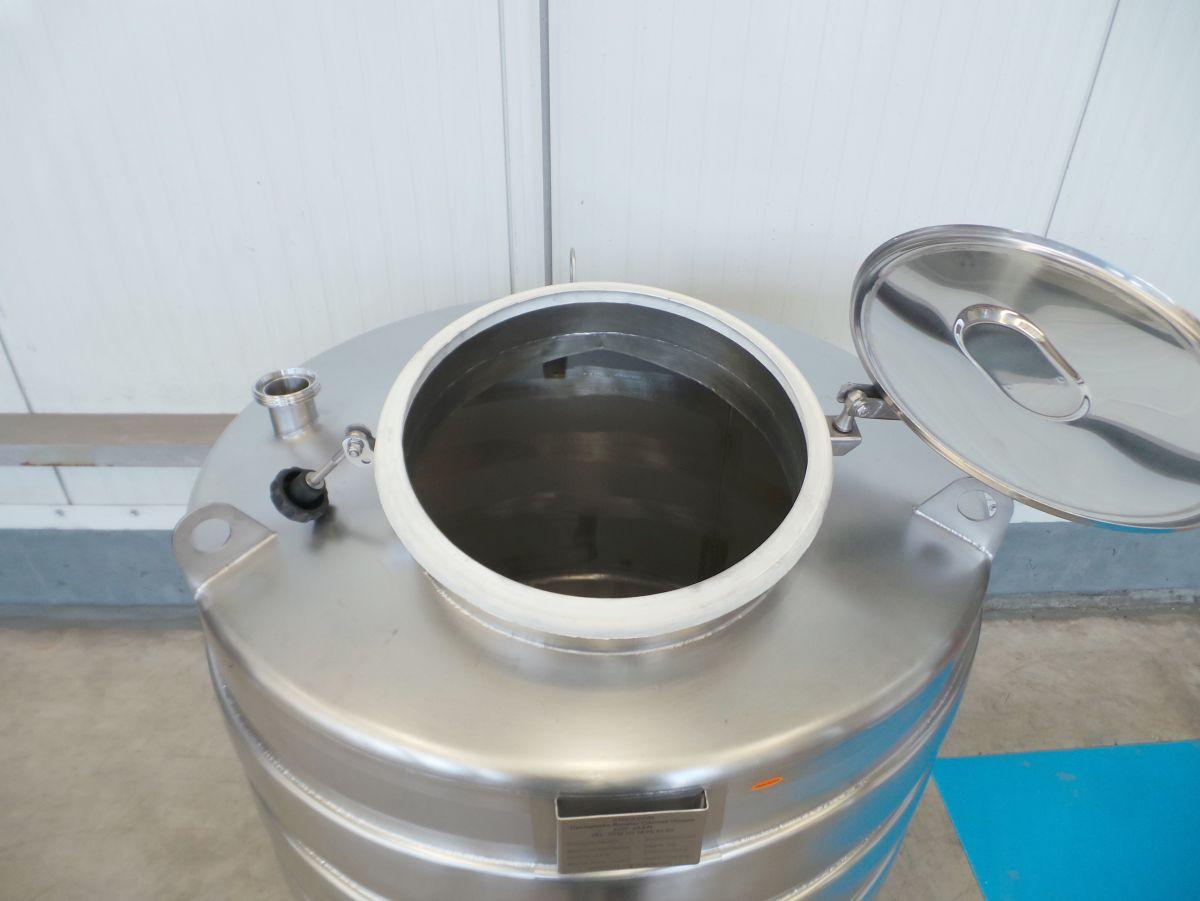

Hinged lid: yes
Spray ball: no

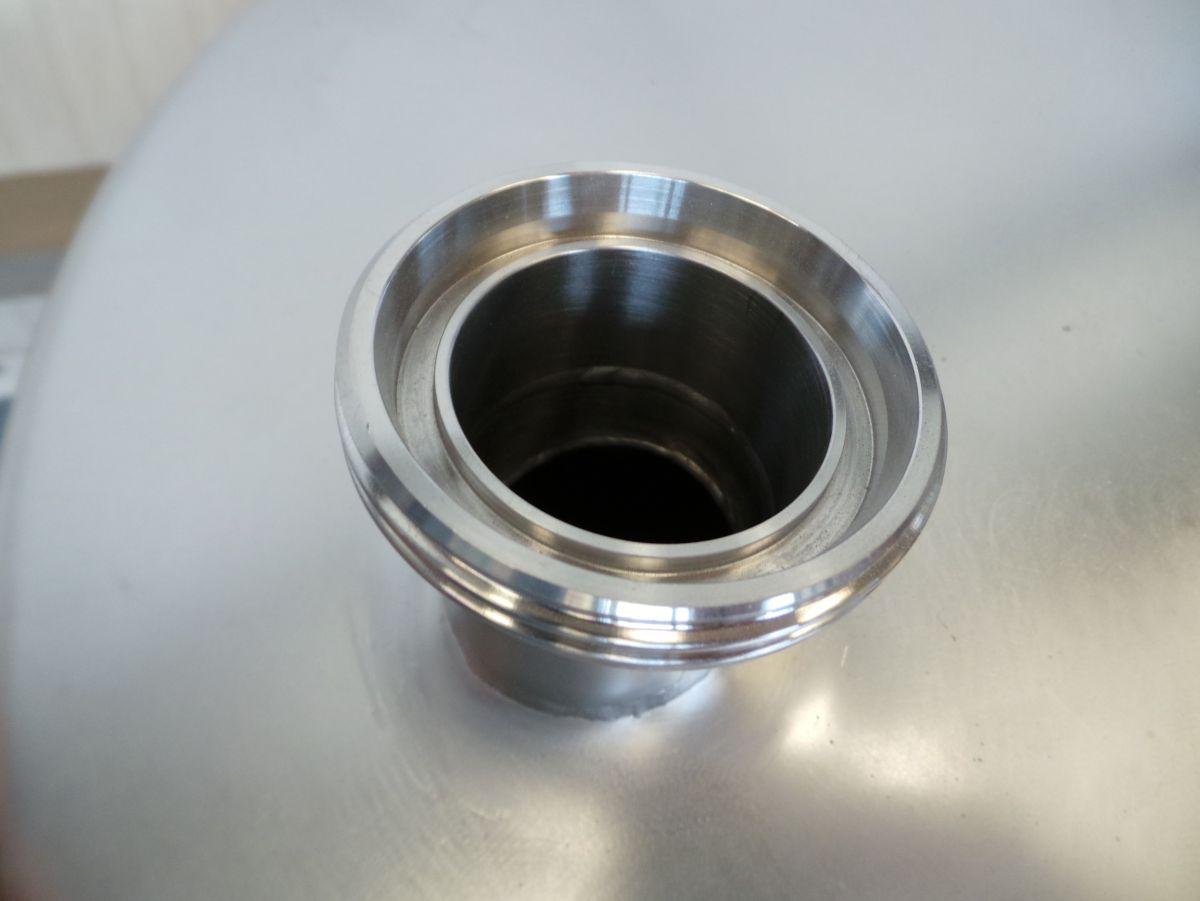

Tank outlet: inside Ø 50 mm
Outlet type: DIN11851
Total outlet valve: yes, optional
Type shut-off valve: butterfly valve
Adjustable legs: yes
Top: 2,50 mm
Cylinder: 2 mm
Bottom: 2,50 mm
Internal diameter tank: 950 mm
Outer diameter tank: 1.000 mm
Cylinder height: 625 mm
Total height of tank: 1.800 mm
Empty weight tank: 95
